3685-4. Other interior features
SEQUOIA_OM_USA_OM0C013U_19MY
Press a programmed HomeLink® button to operate a garage
door.
Within 1 minute of pressing the HomeLink
® button, after the
garage door operation has stopped, press the “Learn” or “Smart”
button on the garage door opener motor. Within 5 seconds of the
establishment of 2-way commu nication with the garage door
opener, both garage door operation indicators in the vehicle wi ll
flash rapidly green and the light on the garage door opener mot or
will blink twice, indicating that 2- way communication is enabled.
■Reprogramming a single HomeLink® button
When the following procedure is performed, buttons which alread y
have devices registered to them can be overwritten:
With one hand, press and hold the desired HomeLink
® button.
When the HomeLink
® indicator starts flashing orange, continue
to hold the HomeLink® button and perform “Programming the
HomeLink®” (it takes 20 seconds for the HomeLink® indicator
to start flashing).
Press the appropriate HomeLink
® button. The HomeLink® indicator
light should turn on.
Operating the HomeLink®
2
3
1
2
1

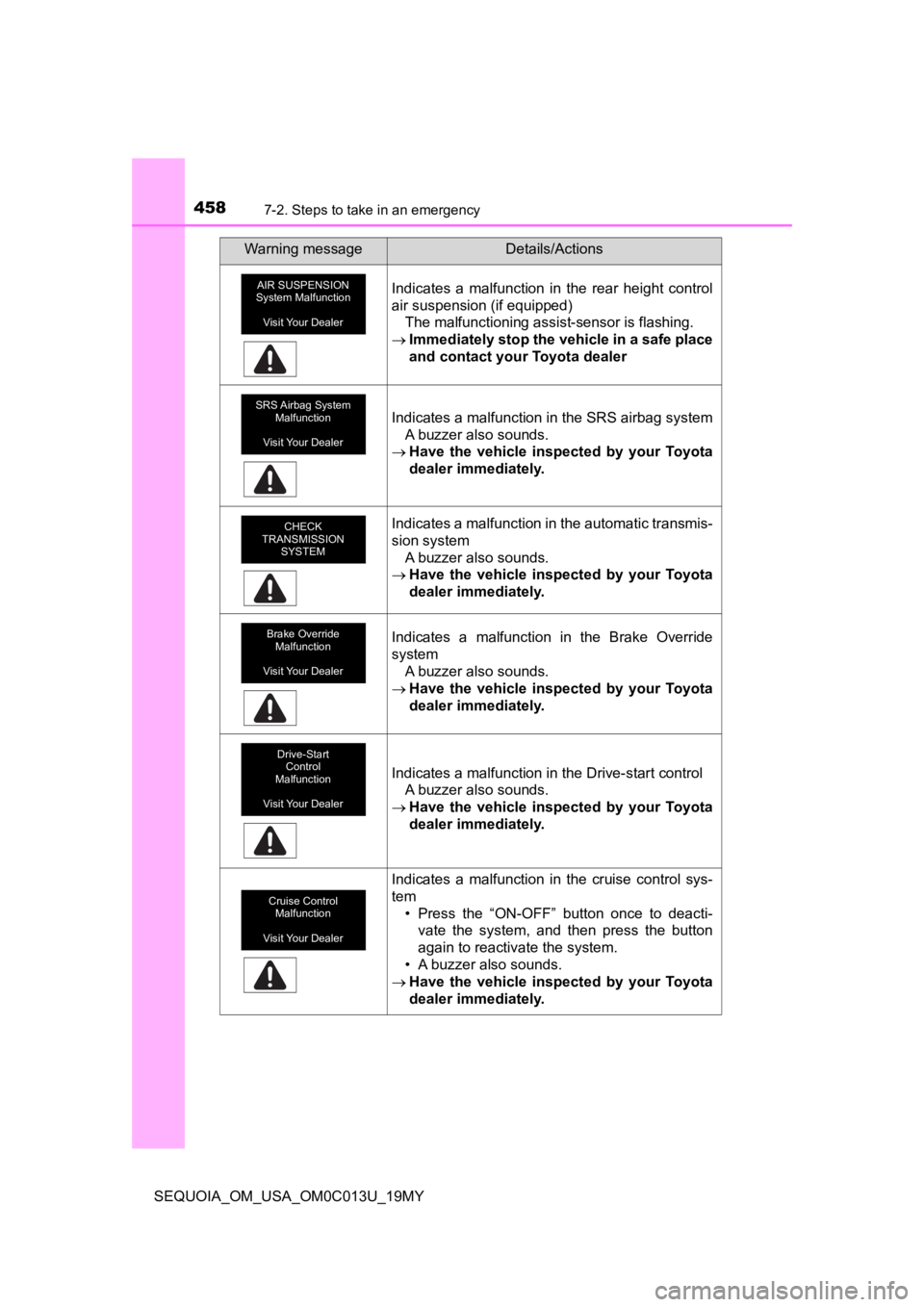

4587-2. Steps to take in an emergency
SEQUOIA_OM_USA_OM0C013U_19MY
Indicates a malfunction in the rear height control
air suspension (if equipped)The malfunctioning assist-sensor is flashing.
 Immediately stop the vehicle in a safe place
and contact your Toyota dealer
Indicates a malfunction in the SRS airbag system
A buzzer also sounds.
 Have the vehicle inspected by your Toyota
dealer immediately.
Indicates a malfunction in the automatic transmis-
sion system
A buzzer also sounds.
 Have the vehicle inspected by your Toyota
dealer immediately.
Indicates a malfunction in the Brake Override
system
A buzzer also sounds.
 Have the vehicle inspected by your Toyota
dealer immediately.
Indicates a malfunction in the Drive-start control
A buzzer also sounds.
 Have the vehicle inspected by your Toyota
dealer immediately.
Indicates a malfunction in the cruise control sys-
tem
• Press the “ON-OFF” button once to deacti-vate the system, and then press the button
again to reactivate the system.
• A buzzer also sounds.
 Have the vehicle inspected by your Toyota
dealer immediately.
Warning messageDetails/Actions
AIR SUSPENSION
System Malfunction
Visit Your Dealer
SRS Airbag System Malfunction
Visit Your Dealer
CHECK
TRANSMISSION SYSTEM
Brake Override Malfunction
Visit Your Dealer
Drive-Start Control
Malfunction
Visit Your Dealer
Cruise Control Malfunction
Visit Your Dealer
