sensor TOYOTA SEQUOIA 2019 Warranties & Maintenance Guides (in English)

18Your Warranties in Detail
WARRANTY
WHAT IS NOT COVERED
These warranty obligations do not apply
to failures or noncompliance caused by:
• The use of replacement parts not
certified in accordance with aftermarket
parts certification regulations.
• The use of replacement parts not
equivalent in quality or design to
original equipment parts.
Provisions under the “What Is Not
Covered” section of the New Vehicle
Limited Warranty also apply to
this warranty.


WARRANTY PARTS LIST
Air/Fuel Metering System
• Air/fuel ratio feedback control system
• Cold-start enrichment system
• Deceleration control system
• Electronic fuel injection system components
–Airflow sensor
– Engine control module (8/80)
– Throttle body
– Other components
Air Induction System
• Intake manifold and intake air surge tank
Catalyst System
• Catalytic converter and protector (8/80)
• Constricted fuel filler neck
• Exhaust manifold
• Exhaust pipe (manifold to catalyst
and/or catalyst to catalyst)
Evaporative Control System
• Charcoal canister
• Diaphragm valve
• Fuel filler cap
• Fuel tank
• Vapor liquid separator
FEDERAL EMISSION CONTROL WARRANTY
8/80 = Covered for eight years or 80,000 miles, whichever occurs first.

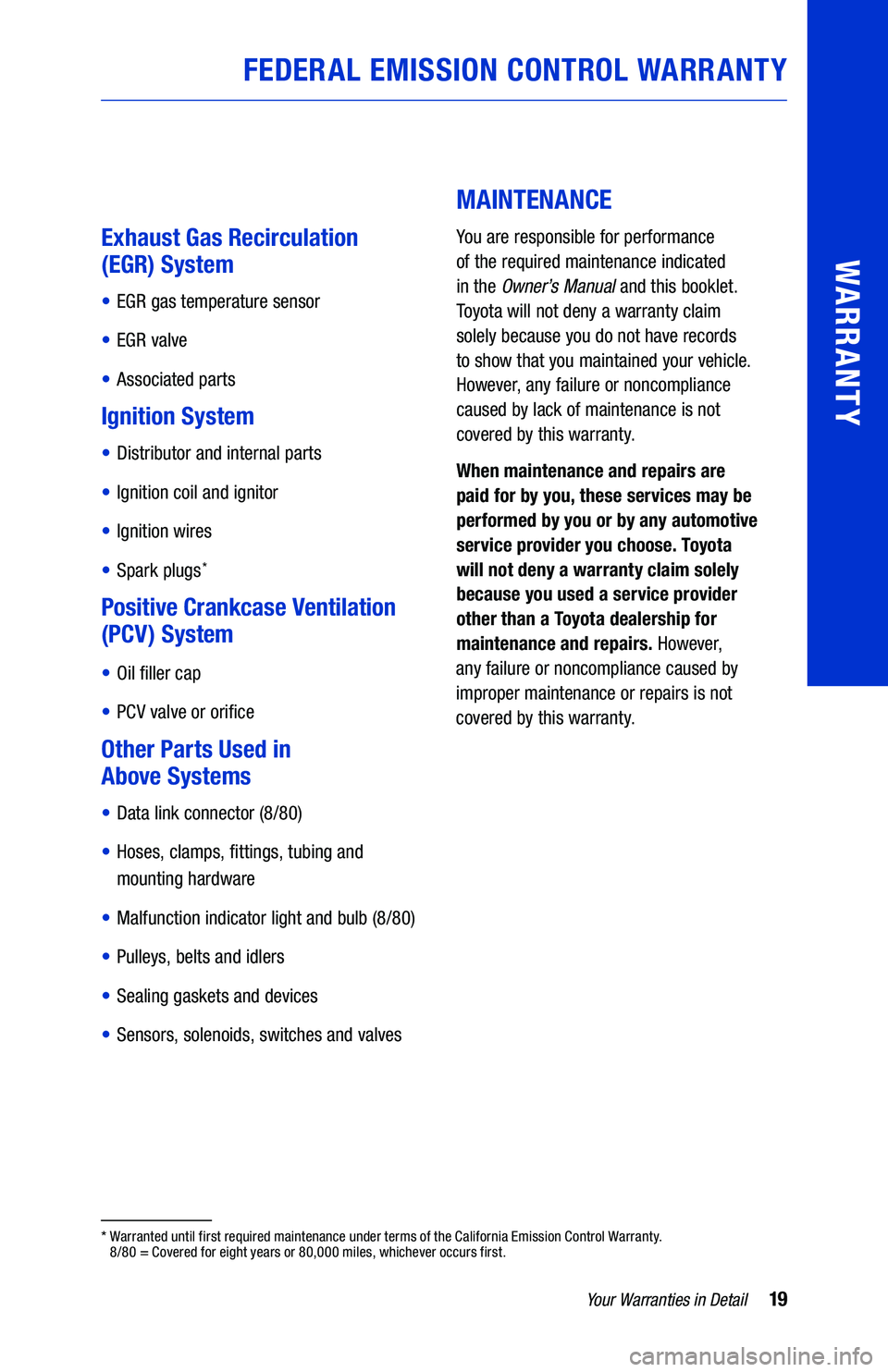

19Your Warranties in Detail
WARRANTYExhaust Gas Recirculation
(EGR) System
• EGR gas temperature sensor
• EGR valve
• Associated parts
Ignition System
• Distributor and internal parts
• Ignition coil and ignitor
• Ignition wires
• Spark plugs*
Positive Crankcase Ventilation
(PCV) System
• Oil filler cap
• PCV valve or orifice
Other Parts Used in
Above Systems
• Data link connector (8/80)
• Hoses, clamps, fittings, tubing and
mounting hardware
• Malfunction indicator light and bulb (8/80)
• Pulleys, belts and idlers
• Sealing gaskets and devices
• Sensors, solenoids, switches and valves


MAINTENANCE
You are responsible for performance
of the required maintenance indicated
in the Owner’s Manual and this booklet.
Toyota will not deny a warranty claim
solely because you do not have records
to show that you maintained your vehicle.
However, any failure or noncompliance
caused by lack of maintenance is not
covered by this warranty.
When maintenance and repairs are
paid for by you, these services may be
performed by you or by any automotive
service provider you choose. Toyota
will not deny a warranty claim solely
because you used a service provider
other than a Toyota dealership for
maintenance and repairs. However,
any failure or noncompliance caused by
improper maintenance or repairs is not
covered by this warranty.
FEDERAL EMISSION CONTROL WARRANTY
* Warranted until first required maintenance under terms of the California Emission Control Warranty.
8/80 = Covered for eight years or 80,000 miles, whichever occurs first.

25Your Warranties in Detail
WARRANTY
CALIFORNIA EMISSION CONTROL WARRANTY
WHAT IS NOT COVERED
These warranty obligations do not apply
to failures or noncompliance caused by:
• The use of replacement parts not
certified in accordance with aftermarket
parts certification regulations.
• The use of replacement parts not
equivalent in quality or design to
original equipment parts.
Provisions under the “What Is Not Covered”
section of the New Vehicle Limited Warranty
also apply to this warranty.
PARTS LIST:
LONG-TERM EMISSION
DEFECT WARRANTY
The parts listed here are covered for seven
years or 70,000 miles from the vehicle’s
in-service date, whichever occurs rst.
Air/Fuel Metering System
• Air pump
• Emission control valve
• Engine control computer (engine
control module)
• Fuel pump
• Throttle body
Air Induction System
• Intake manifold
Catalyst System
• Exhaust front pipe (including
catalytic converter)
• Exhaust front pipe no. 2 (including
catalytic converter)
• Exhaust manifold
• Exhaust manifold gasket
Evaporative Control System
• Charcoal canister
• Fuel tank
Ignition System
• Knock Sensor
Other Parts Used in
Systems Listed
• Transmission solenoid
