TOYOTA SEQUOIA 2020 Accessories, Audio & Navigation (in English)

612-4. Other settings
2
Basic function
*: Premium Audio only
1Select “Time Zone”.
2 Select the desired time zone.
 Premium Audio only:
If “Auto” is selected, the time
zone is selected automatically
by current vehicle position.
When “Auto Adjust by GPS” is
turned off, the clock can be
manually adjusted.
1 Select “Auto Adjust by GPS”
to set to off.
2 Adjust the clock manually.
Select “+” to set the time for-
ward one hour and “-” to set
the time back one hour.
Select “+” to set the time for-
ward one minute and “-” to
set the time back one minute.
Select to round to the nearest
hour.
e.g.
1:00 to 1:29  1:00
1:30 to 1:59  2:00
*: This function is not made avail-
able in some countries or areas.
1 Display the general settings
screen. ( P. 6 0 )
2 Select “Projection Settings”.
3 Select the desired items to
be set.
Select to turn Apple CarPlay
connection establishment
on/off.
Select to turn Android Auto
connection establishment
on/off.
●When the settings are changed
with a device connected to the
system via USB, disconnect the
device and connect it again to
enable the settings.
The driver settings feature will
allow the system to link some
preferences (such as audio pre-
sets, screen theme, language,
etc.) to a paired Bluetooth
®
phone.
1 Display the general settings
screen. ( P. 6 0 )
Setting the time zone
Manual clock setting
A
B
C
3URMHFWLRQVHWWLQJV
'ULYHUVHWWLQJV
A
B

622-4. Other settings
2Select “Driver Setting”.
3 Select “Enable This Feature”.
1 Select “Manually Select
Linked Settings”.
2 Select the desired phone.
 After a few seconds, loaded
screen automatically switches
to the home screen.
Registered or changed per-
sonal settings will be deleted or
returned to their default condi-
tions.
1 Display the general settings
screen. ( P.60)
2 Select “Delete Personal
Data”.
3 Select “Delete”. 4
Select “Yes” when the confir-
mation screen appears.
Examples of settings that can be
returned to their default conditions:
Navigation settings*
Audio settings
 Phone settings
etc.
*: Premium Audio only
*: Vehicles equipped with DCM
only. This function is not made
available in some countries or
areas.
When the automatic update
check function is enabled, if a
software update is available
from the Cloud, a message will
be displayed.
1 Display the general settings
screen. ( P. 6 0 )
2 Select “Software Update Set-
ting”.
3 Select “Automatic Update
Check” to enable/disable the
automatic update check func-
tion.
●When software update information
Manually select linked set-
tings
Deleting personal dataSoftware update settings*

632-4. Other settings
2
Basic function
is displayed, contact your Toyota
dealer.
1Press the “MENU” button.
2 Select “Setup”.
3 Select “Voice”.
4 Select the desired items to
be set.
Vo ic e s e t ti n g s
Voice volume, etc. can be
set.
Displaying the voice set-
tings screen
Voice settings screen

642-4. Other settings
Select to adjust the volume of
voice guidance.
Select to set the voice guid-
ance during route guidance
on/off.
*
Select to set the voice guid-
ance during audio/visual sys-
tem use on/off.
*
Select to set the voice recog-
nition prompts.
Select to train voice recogni-
tion.
The voice command system
adapts the user accent.
Select to start the voice rec-
ognition tutorial.
Select to set the beep sound
of navigation guidance.
*
Select to set the voice
prompt interrupt on/off.
Select to reset all setup
items.
*: Premium Audio only
1Press the “MENU” button.
2 Select “Setup”.
3 Select “Vehicle”.
4 Select the desired items to
be set.
Select to set maintenance.
*1
( P.66)
Select to set vehicle customi-
zation.
*2
A
B
C
D
E
F
G
H
I
Vehicle settings
Settings are available for
maintenance, vehicle cus-
tomization, etc.
Displaying the vehicle
settings screen
Vehicle settings screen
A
B

652-4. Other settings
2
Basic function
Select to set valet mode.
(P. 6 8 )
Select to set dealer informa-
tion.
*3, 4
*1: Premium Audio only
*2: Refer to the “OWNER’S MAN- UAL”
*3: Audio Plus with DCM only
*4: This function is not made avail-able in some countries or areas.
*: Premium Audio only
When the system is turned on,
the maintenance reminder
screen displays when it is time
to replace a part or certain com-
ponents. ( P. 2 6 )
1 Display the vehicle settings
screen. ( P.65)
2 Select “Maintenance”.
3 Select the desired item.
The system is set to give
maintenance information with
the maintenance reminder
screen. ( P.26)
Select to set a reminder for a
part or component. ( P. 6 6 ) Select to add a reminder
other than the provided ones.
Select to cancel all reminders
which have been entered.
Select to reset all reminders
which have expired.
Select to call the registered
dealer.
Select to register/edit dealer
information. (
P.67)
●When the vehicle needs to be ser-
viced, the scree n button color will
change to orange.
1 Select the desired part or
component screen button.
2 Set the conditions.
Select to enter the next main-
tenance date.
Select to enter the driving
distance until the next main-
tenance check.
Select to cancel the condi-
tions which have been
entered.
Maintenance*
C
D
A
B
0DLQWHQDQFHLQIRUPDWLRQ
VHWWLQJ
C
D
E
F
G
A
B
C

662-4. Other settings
Select to reset the conditions
which have expired.
3 Select “OK” after entering the
conditions.
●For scheduled maintenance infor-
mation, refer to “Scheduled Main-
tenance Guide” or “Owner’s
Manual Supplement”.
●Depending on driving or road con-
ditions, the actual date and dis-
tance that mainte nance should be
performed may differ from the
stored date and distance in the
system.
Dealer information can be regis-
tered in the system. With dealer
information registered, route
guidance to the dealer is avail-
able.
1 Select “Set Dealer”.
2 Select the desired item to
search for the location.
( P. 8 4 )
 The editing dealer screen
appears after setting the loca-
tion.
3 Select the desired items to
be edited.
Select to enter the name of a dealer. (
P.67)
Select to enter the name of a
dealer member. ( P.67)
Select to set the location.
( P.67)
Select to enter the phone
number. ( P.68)
Select to delete the dealer
information displayed on the
screen.
Select to set the displayed
dealer as a destination.
( P.91)
1 Select “Dealer” or “Contact”.
2 Enter the name and select
“OK”.
1 Select “Location”.
2 Scroll the map to the desired
point ( P.75) and select
“Enter”.
1 Select “Phone #”.
2 Enter the phone number and
select “OK”.
The security system can be set
Dealer setting
D
A
(GLWLQJGHDOHURUFRQWDFW
QDPH
(GLWLQJWKHORFDWLRQ
(GLWLQJSKRQHQXPEHU
6HWWLQJWKHY\
DOHWPRGH
B
C
D
E
F

672-4. Other settings
2
Basic function
to on by entering a security code
(4-digit number).
When set to on, the system will
become inoperative once the
electrical power source is dis-
connected until the security
code is entered.
1Display the vehicle settings
screen. ( P.65)
2 Select “Valet Mode”.
3 Enter the 4-digit personal
code and select “OK”.
4 Enter the same 4-digit per-
sonal code again and select
“OK”.
 The system will request that
you input the security code
again to confirm that you
remember it correctly.
 When valet mode activates,
the system stops and a secu-
rity code (4-digit number)
standby screen is displayed.
●If the 4-digit personal code is for-
gotten, please contact your Toyota
dealer.
1 Enter the 4-digit personal
code and select “OK”.
●If an incorrect security code (4-
digit number) is entered 6 times,
the system will not accept another
security code (4-digit number) for
10 minutes.
*: Audio Plus with DCM only. This
function is not made available in
some countries or areas.
Dealer information can be regis-
tered in the system. If the vehi-
cle alert screen is displayed,
selecting the call dealer button
on the screen will call the phone
number registered in the dealer
information.
1 Display the vehicle settings
screen. ( P. 6 5 )
2 Select “Dealer Info”.
3 Select the desired items to
be edited.
Select to enter the name of a
dealer. ( P.69)
Select to enter the name of a
dealer member. ( P.69)
Select to enter the phone
number. ( P.69)
Select to delete the dealer
information displayed on the
screen.
If the valet mode has been
activated
Setting dealer informa-
tion*
A
B
C
D

682-4. Other settings
1Select “Edit” next to “Dealer”
or “Contact”.
2 Enter the name and select
“OK”.
1 Select “Edit” next to “Phone
#”.
2 Enter the phone number and
select “OK”.Editing dealer or contact
name
Editing phone number

71
3
3
Navigation system
Navigation system
3-1. Basic operationNavigation ...................... 72
Map screen operation .... 74
Map screen information . 76
Traffic information .......... 81
3-2. Destination search Destination search opera-tion ............................... 84
Starting route guidance .. 91
3-3. Route guidance Route guidance screen .. 95
Typical voice guidance prompts ........................ 99
Editing route ................... 99
3-4. Setup Navigation settings...... 102
Detailed navigation settings .................................. 106
Traffic settings ............. 109
Use of information accumu- lated by navigation system
.................................. 113
3-5. Tips for operating the nav- igation system
GPS (Global Positioning System) ..................... 114
Map database version and covered area ............. 116

723-1. Basic operation
3-1.Basic operation
*: Premium Audio only
2D north up, 2D heading up or 3D heading up symbol (P. 7 5 )
Indicates whether the map orientation is set to north-up or hea d-
ing-up. The letter(s) under this symbol indicate the vehicle’s
heading direction (e.g. N for north). In 3D map, only a heading-up
view is available.
Destination button ( P. 8 4 )
Select to display the destination screen.
Map options button ( P.76)
Select to display the map options screen.
Route options button ( P.99)
Select to display the route options screen.
Mute button

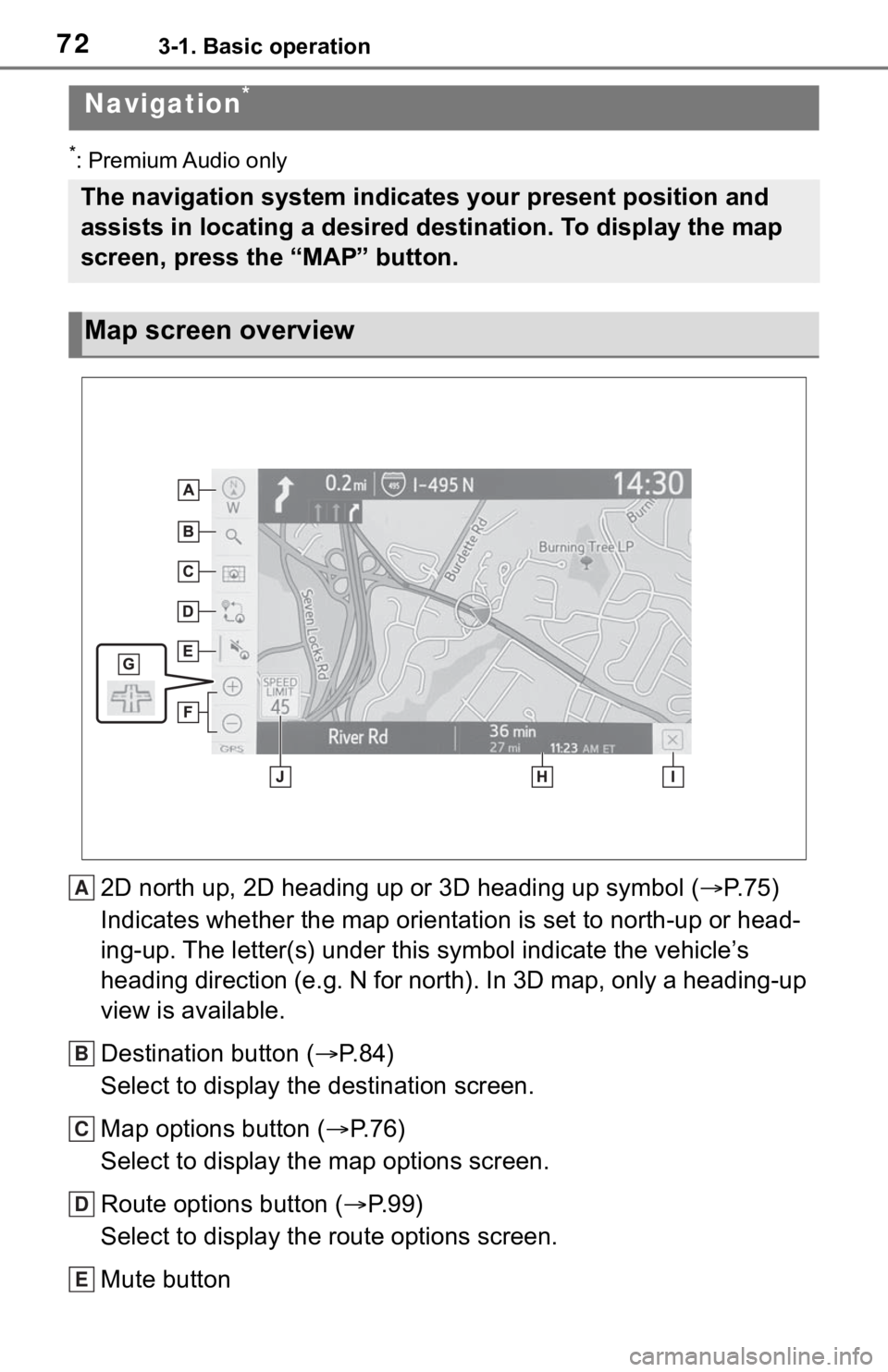

Navigation*
The navigation system indicates your present position and
assists in locating a desired destination. To display the map
screen, press the “MAP” button.
Map screen overview
A
B
C
D
E
