TOYOTA SEQUOIA 2020 Owners Manual (in English)

Quick Reference Guide 2020toyota\fcom
Printed in U.S.A. 8/19
19 - M KG -13 4 8 4
QUICK
REFERENCE
GUIDE
2020

SEQUOIA 2020

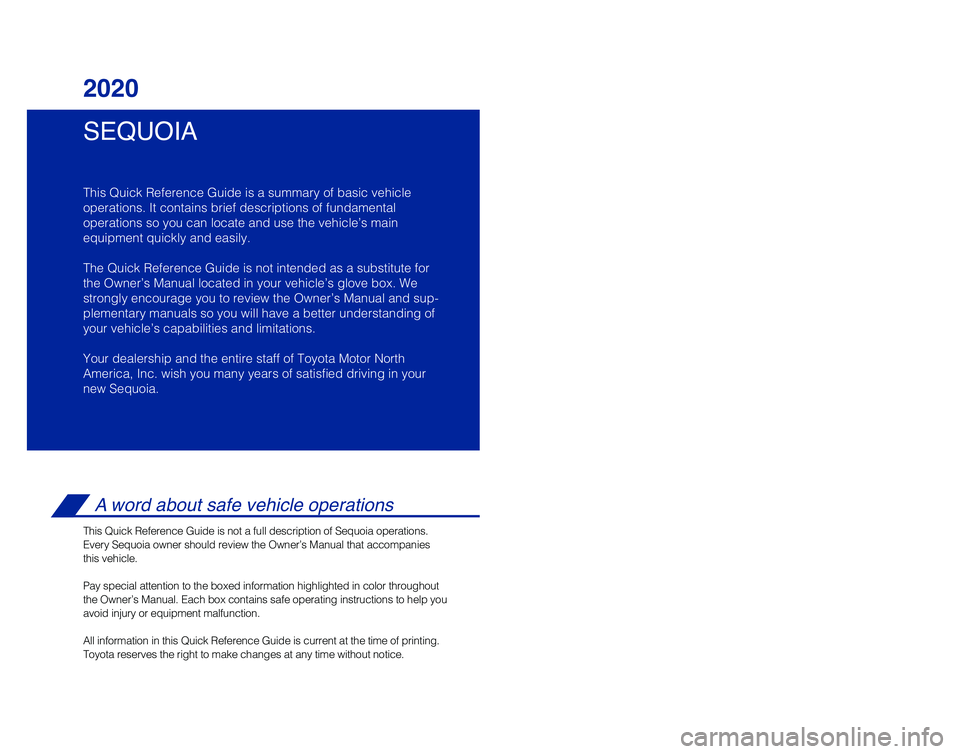

This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and sup-
plementary manuals so you will have a better understanding of
your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor North
America, Inc. wish you many years of satisfied driving in your
new Sequoia.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of Sequoia operatio\
ns.
Every Sequoia owner should review the Owner’s Manual that accompanies\

this vehicle.
Pay special attention to the boxed information highlighted in color thro\
ughout
the Owner’s Manual. Each box contains safe operating instructions to \
help you
avoid injury or equipment malfunction.
All information in this Quick Reference Guide is current at the time of \
printing.
Toyota reserves the right to make changes at any time without notice.
53
NOTES

1
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructio\
ns and more information.3 HomeLink® is a registered trademark of Gentex Corporation.
INDEX
Engine maintenance 11
Fuel tank door release & cap 10
Hood release 10
Indicator symbols 6-7
Instrument cluster 5
Instrument panel 2-4
Instrument panel light control 11
Keyless entry
1,2 8-9
Smart Key system1,2 9
OVERVIEW
FEATURES & OPERATIONS
Air conditioning/heating 24-25
Audio 26
Auto lock/unlock
1 12
Automatic transmission 12
AVS (Adaptive Variable
Suspension System) 33
Blind Spot Monitor with Rear Cross
Traffic Alert (BSM w/RCTA) 31
Cup holders 15
Door locks 16
Driving position memory 23
Electronically modulated air
suspension 32
Four-wheel drive 13
Garage door opener (HomeLink
®)3 30
Intuitive parking assist 33
Lights
1 & turn signals 20
Moonroof 23
Multi-Information Display (MID)
2 29
Parking brake 15
Power back door 22
Power outlets-12V DC 28
Power outlets-120V AC 27
Rear seat entertainment system 28
Rear view monitor system 30
Seat adjustments-Front 16
Seat adjustments-Rear 17
Seats-Folding 2nd row seats 18
Seats-Folding 3rd row seats 19
Seat heaters/ventilators 25
SAFETY & EMERGENCY FEATURES FEATURES & OPERATIONS (continued)
Seats-Head restraints 18
Steering lock release 14
Steering wheel switches &
telephone controls (Bluetooth
®) 27
Tilt & telescopic steering wheel 14
TOW/HAUL switch 31
USB charge-ports 26
USB media port 26
Vehicle Stability Control (VSC)
OFF switch 29
Window-Back door 22
Windows-Power 21
Windshield wipers & washers 21
BLUETOOTH® DEVICE
PAIRING SECTION 50-52
Floor mat installation
49
Rear door child safety locks 46
Safety Connect 46
Seat belts 45
Seat belts-Shoulder belt anchor 47
Spare tire & tools 47
Star Safety System
TM 48-49
Tire Pressure Monitoring
(warning) System (TPMS) 45
TOYOTA SAFETY SENSE™ P (TSS-P)
Automatic High Beams (AHB) 44
Dynamic Radar
Cruise Control (DRCC) 41-43
Lane Departure Alert (LDA) 37-40
Pre-Collision System with
Pedestrian Detection (PCS w/PD) 35-37
Quick overview-
Toyota Safety Sense
™ P (TSS-P) 34
Sensors 34
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

2

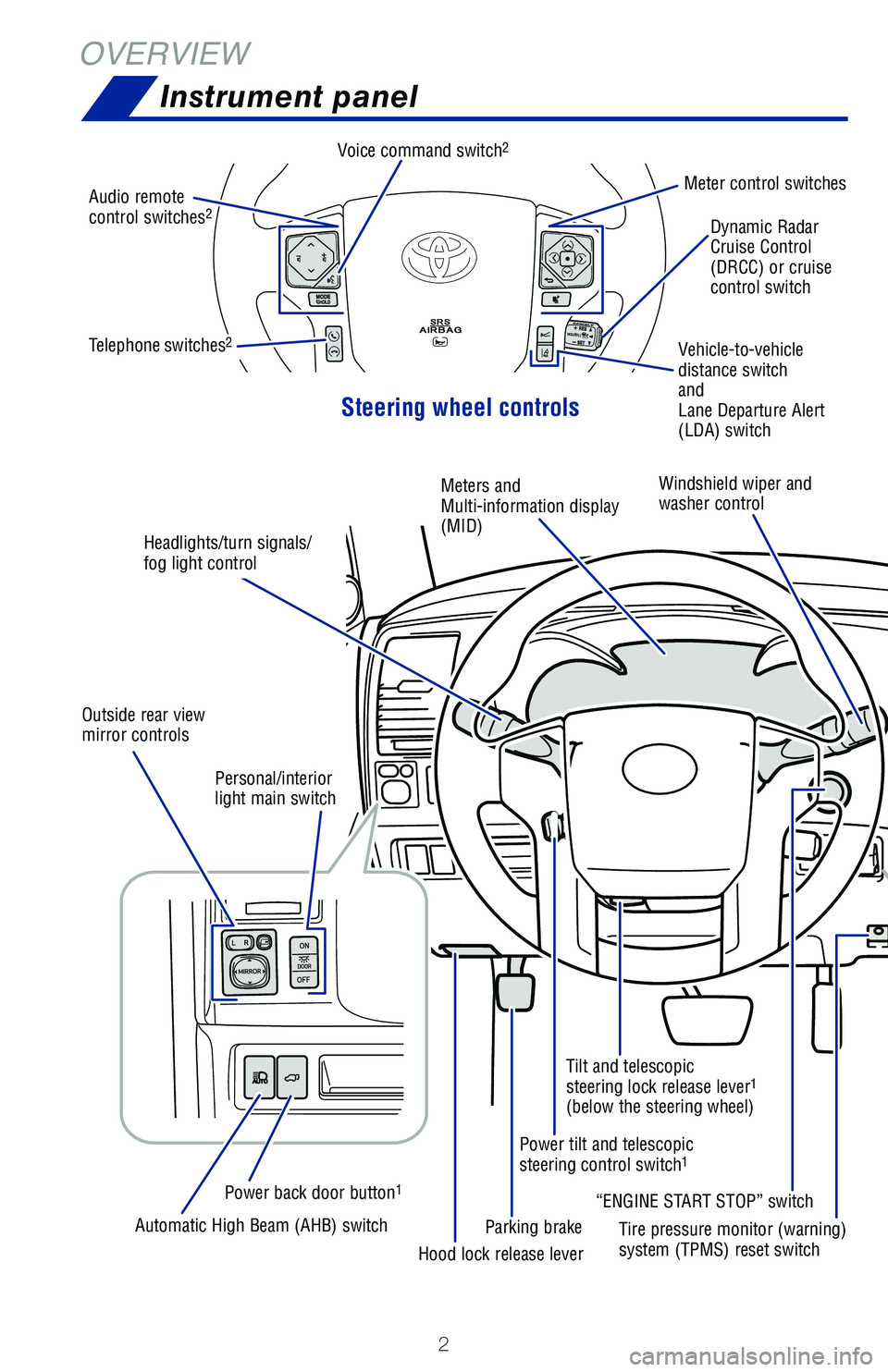

OVERVIEWInstrument panel
Meter control switches
Steering wheel controls
Windshield wiper and
washer control
Voice command switch
2
Tire pressure monitor (warning)
system (TPMS) reset switch
“ENGINE START STOP” switch
Outside rear view
mirror controls Audio remote
control switches
2
Telephone switches2
Dynamic Radar
Cruise Control
(DRCC) or cruise
control switch
Vehicle-to-vehicle
distance switch

and
Lane Departure Alert
(LDA) switch
Power tilt and telescopic
steering control switch
1
Parking brake
Hood lock release lever
Personal/interior
light main switch
Power back door button
1
Automatic High Beam (AHB) switch Tilt and telescopic
steering lock release lever
1
(below the steering wheel)
Headlights/turn signals/
fog light control
Meters and
Multi-information display
(MID)

3
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

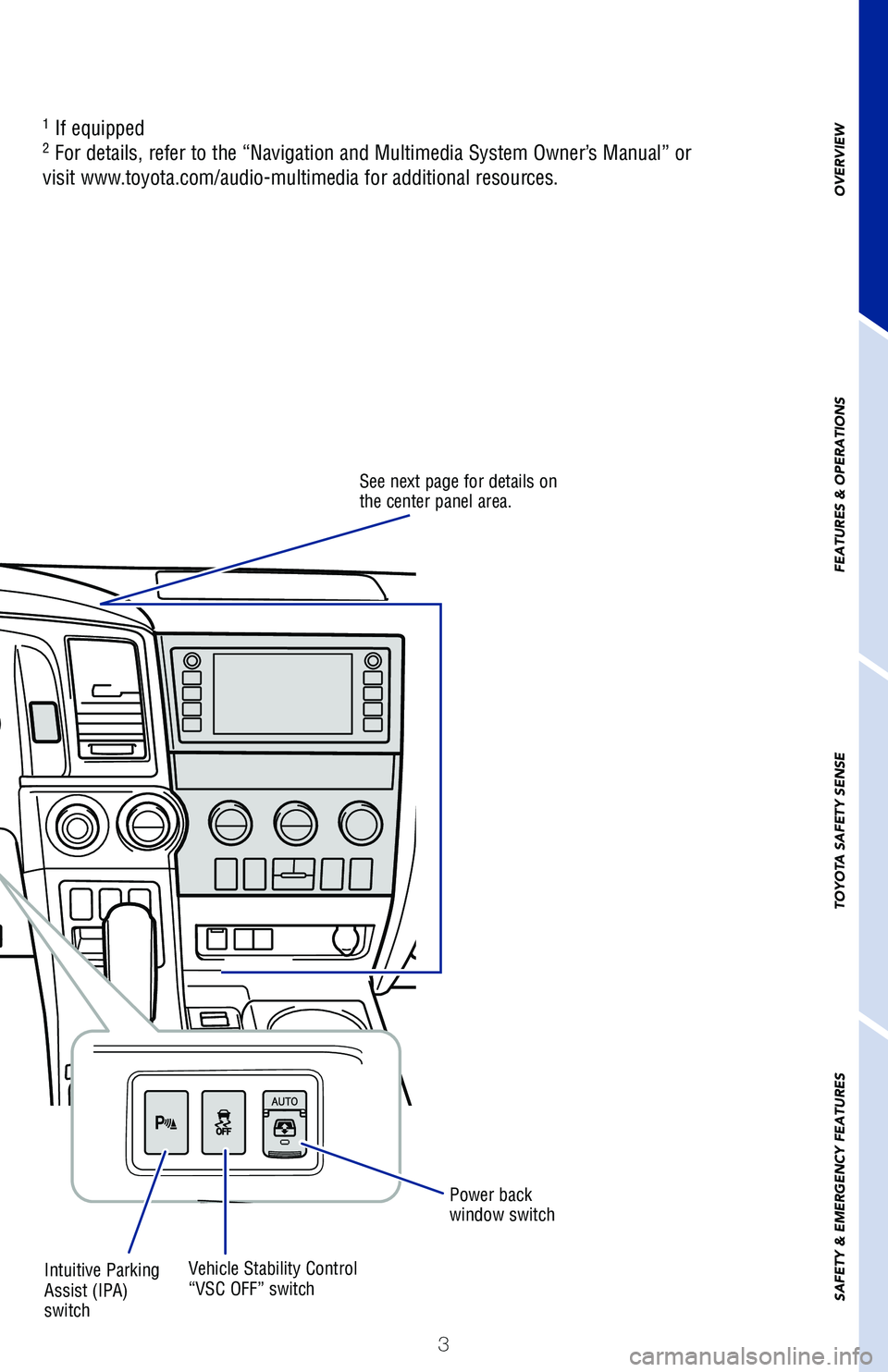

Intuitive Parking
Assist (IPA)
switchVehicle Stability Control
“VSC OFF” switch Power back
window switch
See next page for details on
the center panel area.
1If equipped2 For details, refer to the “Navigation and Multimedia System Owner’\
s Manual” or
visit www.toyota.com/audio-multimedia for additional resources.

4

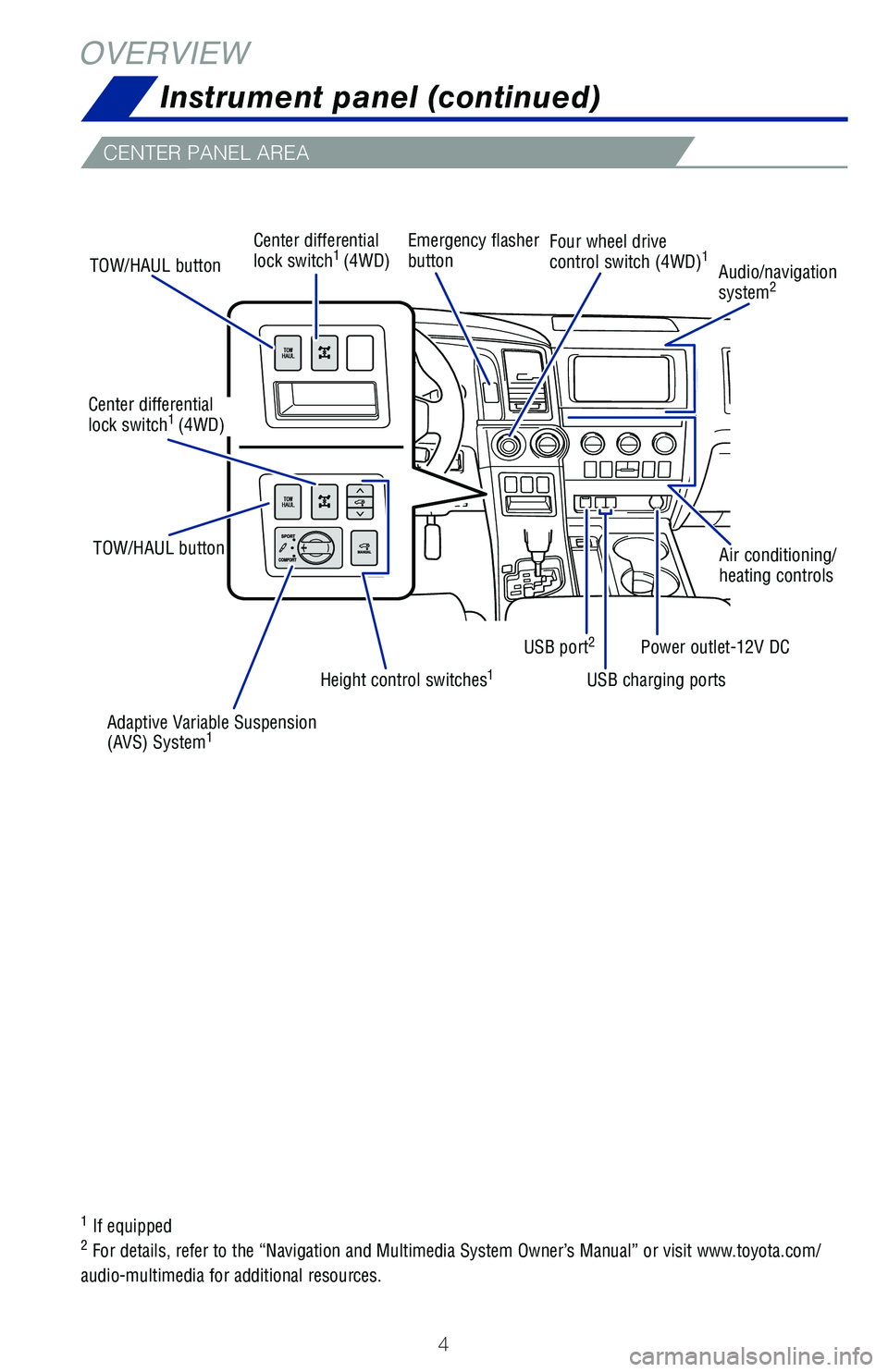

CENTER PANEL AREA
OVERVIEW
1If equipped2For details, refer to the “Navigation and Multimedia System Owner’\
s Manual” or visit www.toyota.com/
audio-multimedia for additional resources.
Instrument panel (continued)
Air conditioning/
heating controls
Height control switches
1
Adaptive Variable Suspension
(AVS) System1
Four wheel drive
control switch (4WD)1Audio/navigation
system2TOW/HAUL button
Center differential
lock switch1 (4WD)Emergency flasher
button
USB port
2
USB charging portsPower outlet-12V DC
TOW/HAUL button
Center differential
lock switch1 (4WD)

5

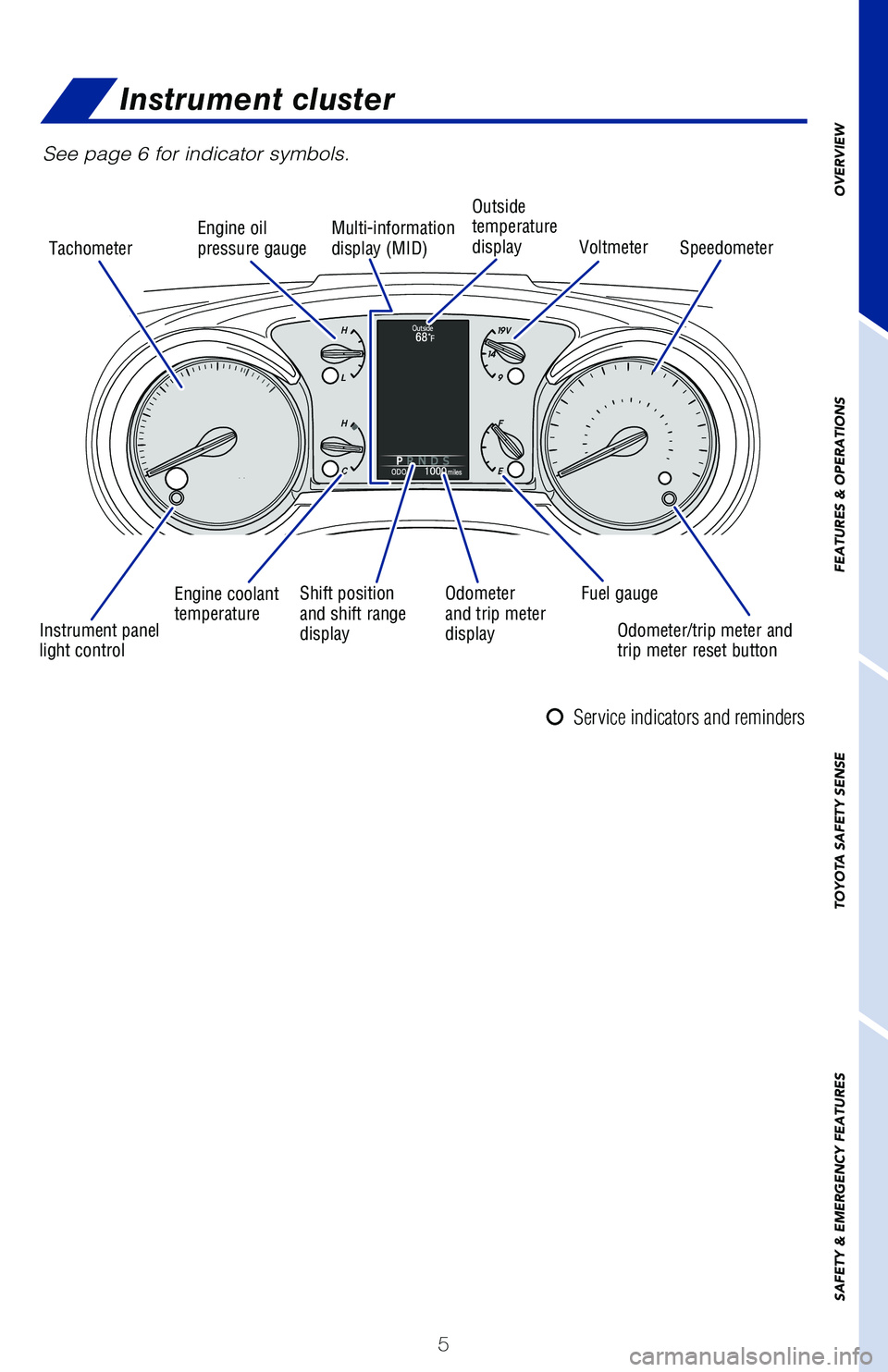

Instrument cluster
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
See page 6 for indicator symbols.
Multi-information
display (MID) Outside
temperature
display
Speedometer
Fuel gauge
Odometer
and trip meter
display
Shift position
and shift range
display Voltmeter
Engine oil
pressure gauge
Engine coolant
temperature Odometer/trip meter and
trip meter reset button
Instrument panel
light control Tachometer
Service indicators and reminders

6

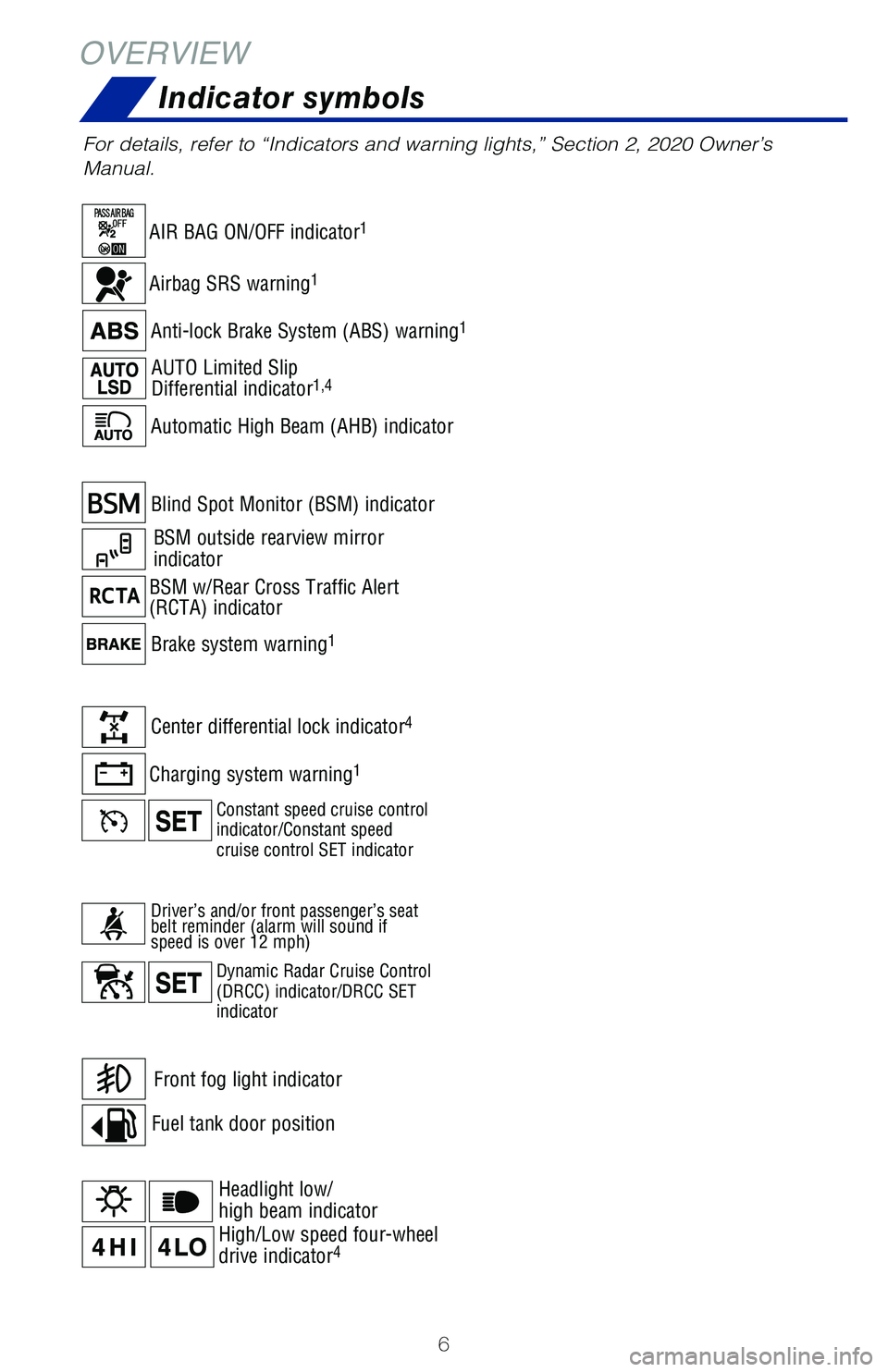

Indicator symbols
For details, refer to “Indicators and warning lights,” Section 2, \
2020 Owner’s
Manual.
Charging system warning1
Center differential lock indicator4
BSM w/Rear Cross Traffic Alert
(RCTA) indicator
AIR BAG ON/OFF indicator1
Anti-lock Brake System (ABS) warning1
Airbag SRS warning1
Automatic High Beam (AHB) indicator
Blind Spot Monitor (BSM) indicator
OVERVIEW
Fuel tank door position Front fog light indicator
Brake system warning1
BSM outside rearview mirror
indicator
High/Low speed four-wheel
drive indicator
4
Headlight low/
high beam indicator
AUTO Limited Slip
Differential indicator
1,4
Constant speed cruise control
indicator/Constant speed
cruise control SET indicator
Driver’s and/or front passenger’s seat
belt reminder (alarm will sound if
speed is over 12 mph)
Dynamic Radar Cruise Control
(DRCC) indicator/DRCC SET
indicator

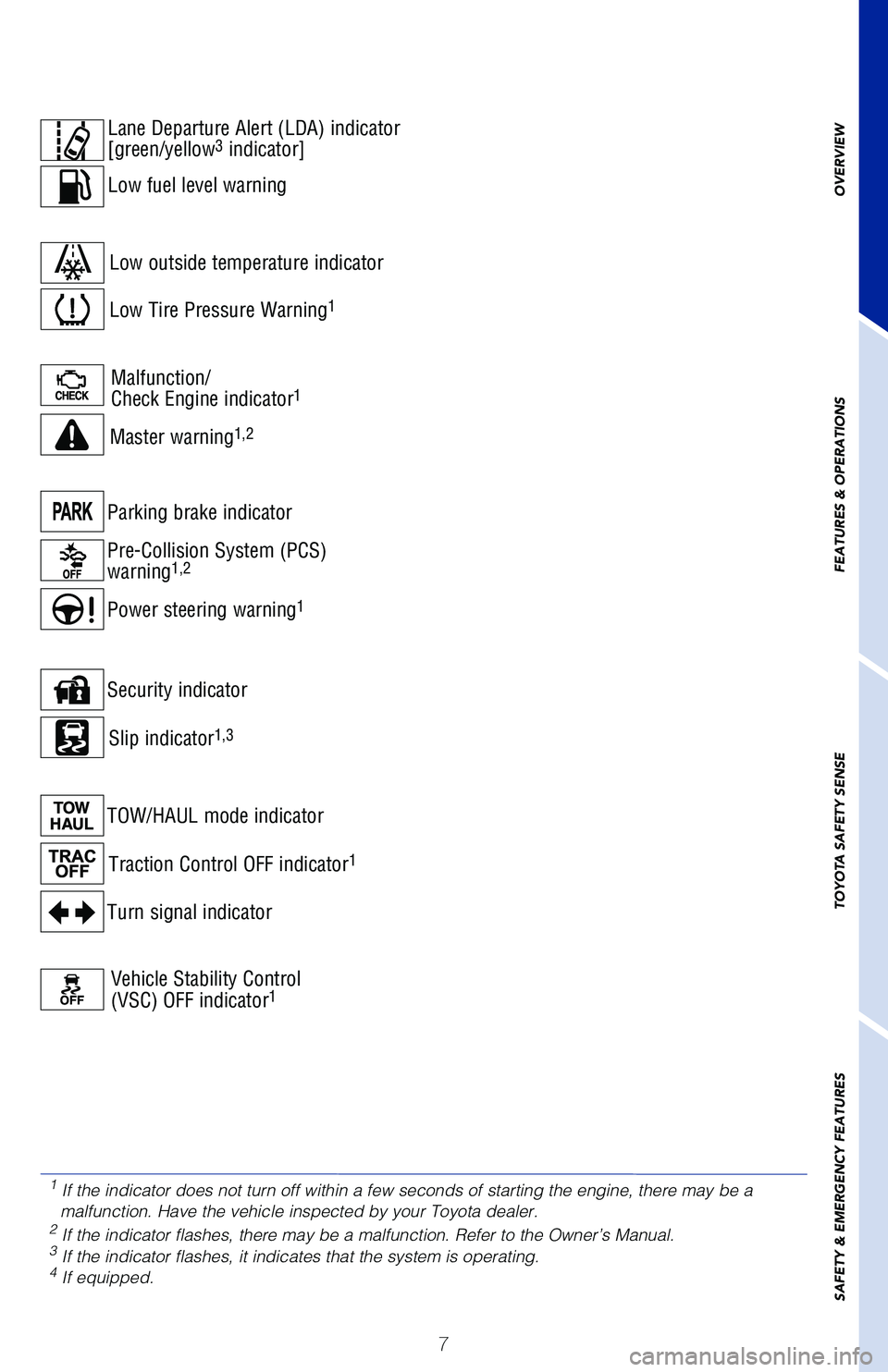

7
Parking brake indicator
Pre-Collision System (PCS)
warning
1,2
Power steering warning1
Malfunction/
Check Engine indicator1
Master warning1,2
Slip indicator1,3
Turn signal indicator
Security indicator
TOW/HAUL mode indicatorTraction Control OFF indicator
1
Low fuel level warning Lane Departure Alert (LDA) indicator
[green/yellow
3 indicator]
Vehicle Stability Control
(VSC) OFF indicator
1
Low outside temperature indicator
Low Tire Pressure Warning
1
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
1
If the indicator does not turn off within a few seconds of starting the \
engine, there may be a
malfunction. Have the vehicle inspected by your Toyota dealer.
2 If the indicator flashes, there may be a malfunction. Refer to the Owner\
’s Manual.3 If the indicator flashes, it indicates that the system is operating.4 If equipped.

8

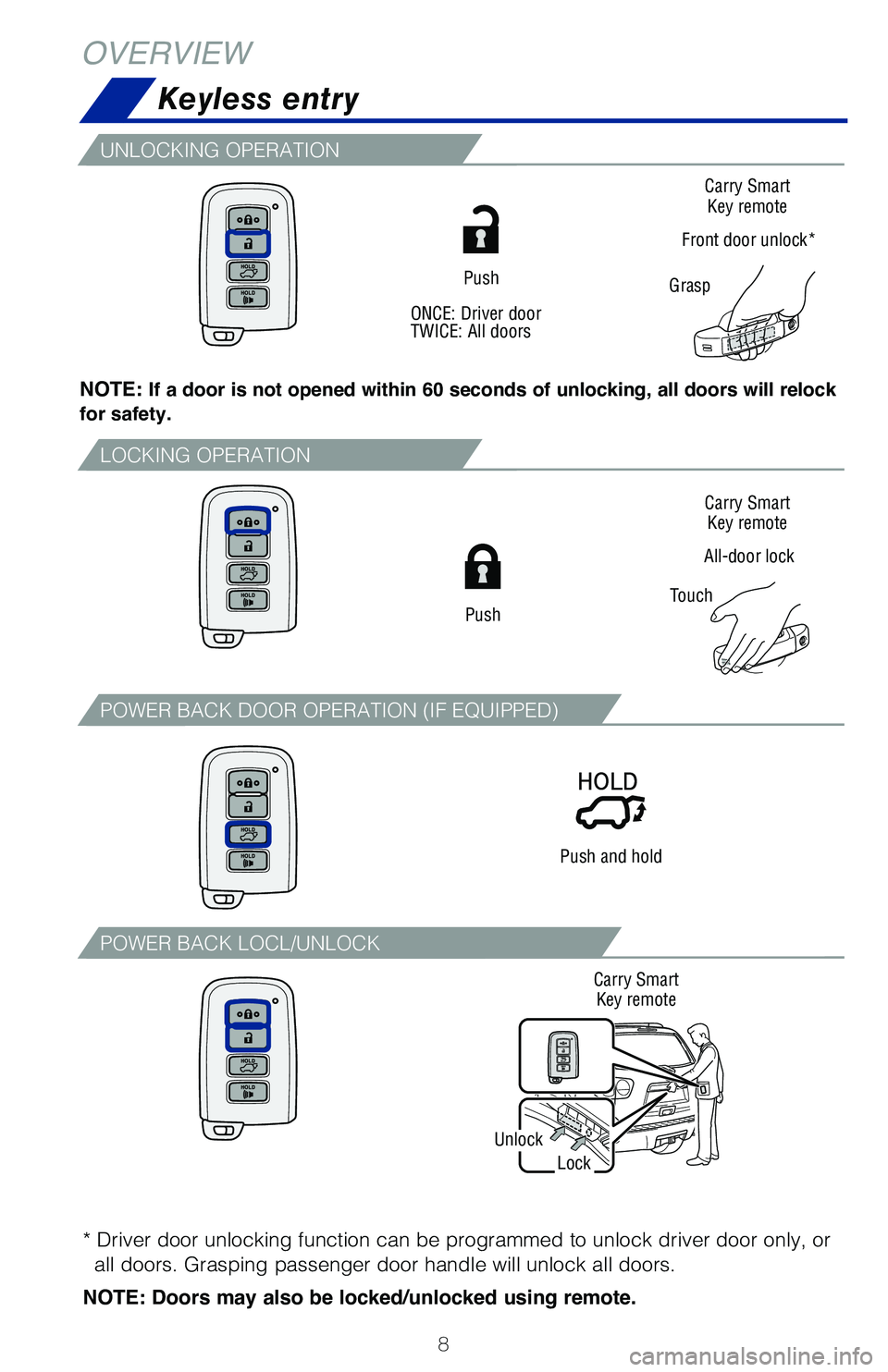

OVERVIEWKeyless entry
Push
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock
for safety.
Push and hold
UNLOCKING OPERATION
POWER BACK DOOR OPERATION (IF EQUIPPED)
POWER BACK LOCL/UNLOCK
LOCKING OPERATION
Push
ONCE: Driver door
TWICE: All doors
Carry Smart Key remote
Front door unlock*
Grasp
Carry Smart Key remote
Carry Smart Key remote
All-door lock
Touch
Lock
Unlock
* Driver door unlocking function can be programmed to unlock driver door\
only, or
all doors. Grasping passenger door handle will unlock all doors.
NOTE: Doors may also be locked/unlocked using remote.
