display TOYOTA SEQUOIA 2020 Owners Manual (in English)

1
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructio\
ns and more information.3 HomeLink® is a registered trademark of Gentex Corporation.
INDEX
Engine maintenance 11
Fuel tank door release & cap 10
Hood release 10
Indicator symbols 6-7
Instrument cluster 5
Instrument panel 2-4
Instrument panel light control 11
Keyless entry
1,2 8-9
Smart Key system1,2 9
OVERVIEW
FEATURES & OPERATIONS
Air conditioning/heating 24-25
Audio 26
Auto lock/unlock
1 12
Automatic transmission 12
AVS (Adaptive Variable
Suspension System) 33
Blind Spot Monitor with Rear Cross
Traffic Alert (BSM w/RCTA) 31
Cup holders 15
Door locks 16
Driving position memory 23
Electronically modulated air
suspension 32
Four-wheel drive 13
Garage door opener (HomeLink
®)3 30
Intuitive parking assist 33
Lights
1 & turn signals 20
Moonroof 23
Multi-Information Display (MID)
2 29
Parking brake 15
Power back door 22
Power outlets-12V DC 28
Power outlets-120V AC 27
Rear seat entertainment system 28
Rear view monitor system 30
Seat adjustments-Front 16
Seat adjustments-Rear 17
Seats-Folding 2nd row seats 18
Seats-Folding 3rd row seats 19
Seat heaters/ventilators 25
SAFETY & EMERGENCY FEATURES FEATURES & OPERATIONS (continued)
Seats-Head restraints 18
Steering lock release 14
Steering wheel switches &
telephone controls (Bluetooth
®) 27
Tilt & telescopic steering wheel 14
TOW/HAUL switch 31
USB charge-ports 26
USB media port 26
Vehicle Stability Control (VSC)
OFF switch 29
Window-Back door 22
Windows-Power 21
Windshield wipers & washers 21
BLUETOOTH® DEVICE
PAIRING SECTION 50-52
Floor mat installation
49
Rear door child safety locks 46
Safety Connect 46
Seat belts 45
Seat belts-Shoulder belt anchor 47
Spare tire & tools 47
Star Safety System
TM 48-49
Tire Pressure Monitoring
(warning) System (TPMS) 45
TOYOTA SAFETY SENSE™ P (TSS-P)
Automatic High Beams (AHB) 44
Dynamic Radar
Cruise Control (DRCC) 41-43
Lane Departure Alert (LDA) 37-40
Pre-Collision System with
Pedestrian Detection (PCS w/PD) 35-37
Quick overview-
Toyota Safety Sense
™ P (TSS-P) 34
Sensors 34
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

2
OVERVIEWInstrument panel
Meter control switches
Steering wheel controls
Windshield wiper and
washer control
Voice command switch
2
Tire pressure monitor (warning)
system (TPMS) reset switch
“ENGINE START STOP” switch
Outside rear view
mirror controls Audio remote
control switches
2
Telephone switches2
Dynamic Radar
Cruise Control
(DRCC) or cruise
control switch
Vehicle-to-vehicle
distance switch

and
Lane Departure Alert
(LDA) switch
Power tilt and telescopic
steering control switch
1
Parking brake
Hood lock release lever
Personal/interior
light main switch
Power back door button
1
Automatic High Beam (AHB) switch Tilt and telescopic
steering lock release lever
1
(below the steering wheel)
Headlights/turn signals/
fog light control
Meters and
Multi-information display
(MID)

5
Instrument cluster
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
See page 6 for indicator symbols.
Multi-information
display (MID) Outside
temperature
display
Speedometer
Fuel gauge
Odometer
and trip meter
display
Shift position
and shift range
display Voltmeter
Engine oil
pressure gauge
Engine coolant
temperature Odometer/trip meter and
trip meter reset button
Instrument panel
light control Tachometer
Service indicators and reminders

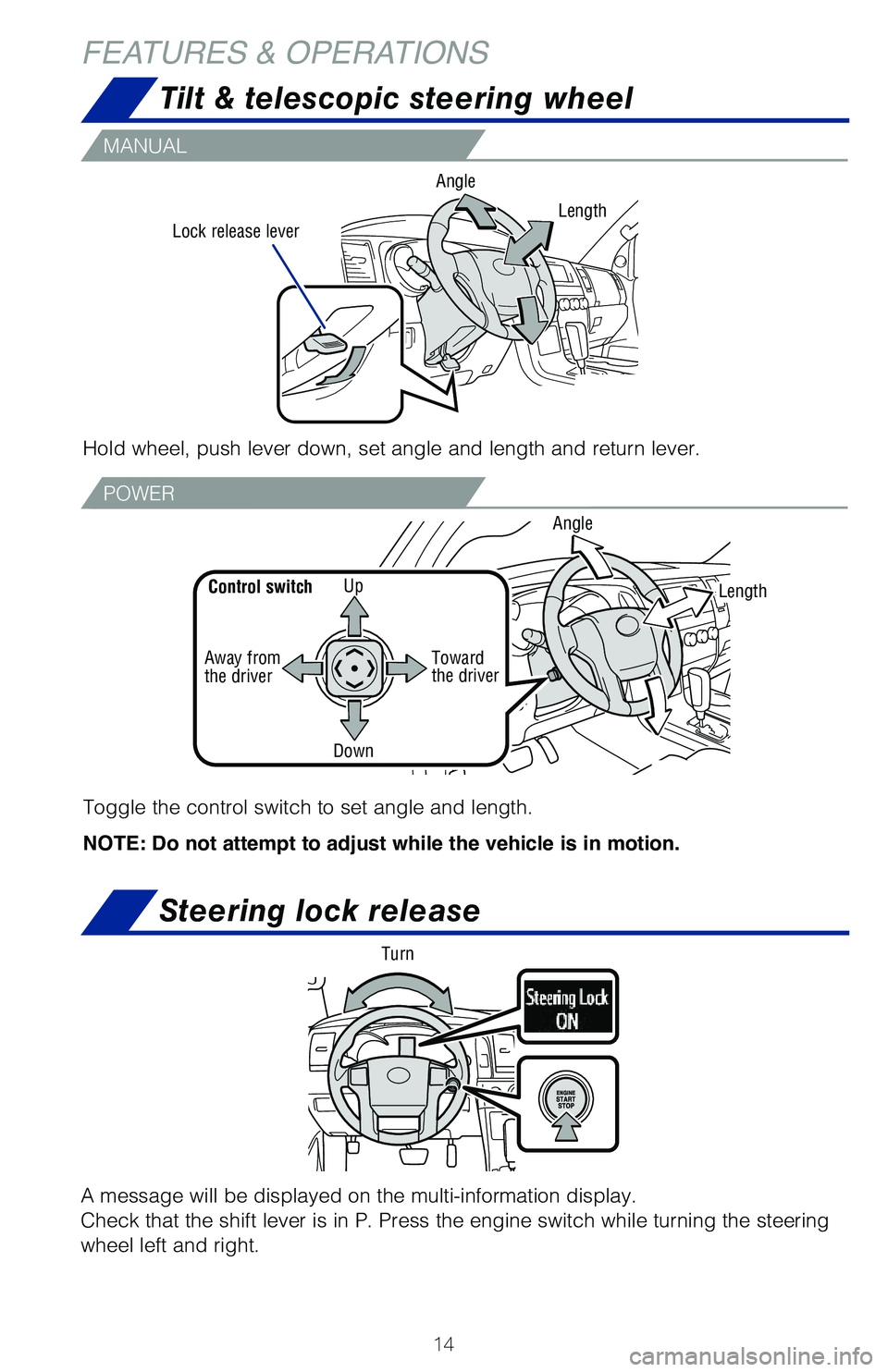

14
FEATURES & OPERATIONS
MANUAL
POWER
Hold wheel, push lever down, set angle and length and return lever.
Lock release leverAngle
Toggle the control switch to set angle and length.
NOTE: Do not attempt to adjust while the vehicle is in motion.
UpControl switch
Away from
the driver
Length
Toward
the driver
Down Angle
Length
Tilt & telescopic steering wheel
Steering lock release
A message will be displayed on the multi-information display.

Check that the shift lever is in P. Press the engine switch while turnin\
g the steering
wheel left and right.
Turn

24
FEATURES & OPERATIONS
Control panel
Display
FRONT
Fan speedDriver side
temperature
Rear temperature
Airflow vent
Passenger
temperature
Fan speed Automatic climate control ON
Adjusting the temperature setting will cause
the airflow vents, air intake and
fan to adjust automatically to set temperature. “SYNC” button
Indicator ON: Synchronized temperature settings for
driver, front passenger and rear seats. Indicator OFF:
Separate temperature settings for driver, front passenger
and rear seats.
Air Conditioning ON/OFF
Rear temperature
control ON/OFF
Climate control OFF Windshield defogger
(outside air only)
Temperature selector
(front passenger side)
Temperature selector
(rear passenger area*)
Recirculate cabin air
(outside air when OFF)
Temperature selector
(driver side) Outside rearview mirror**/back
window defogger or windshield
wiper de-icer**
Airflow vent
In “
” mode, use outside
air (“
” indicator “OFF”) to
reduce window fogging.
* To change the rear seat setting, press the “REAR” button.
** If equipped.
Air conditioning/heating

25
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
REAR
FRONT SEATS
SECOND SEATS (WITH CONSOLE BOX)
Climate control OFF
Driver’s seat Front passenger’s seat
Ventilator
Ventilator Heater
Heater
Adjust
Driver’s seat Front passenger’s seat
ON
Adjust
ON
Heaters only (if equipped)Heaters and ventilators (if equipped)
Push
Push
Low heat setting
High heat setting
Push lightly in the opposite direction to turn off.
The engine switch must be in the “IGNITION ON” mode for use.
Automatic climate control ON
DisplayAirflow vent
Fan speed
Temperature selector
Seat heaters/ventilators (if equipped)

26
FEATURES & OPERATIONS
Turn to tune
radio stations
manually or
select tracks or
files
Touch screen display
Push to turn
ON/OFF or turn
to adjust volume
Push to display
home screen
Push to display
“MENU” screen
Push to display
audio/visual
system screen
Push to display
the map screen
USB media port
USB charge-ports
Connecting a compatible device and cable into the USB media port will su\
pport
charging and music playback through the audio multimedia system.
Refer to the “Navigation and Multimedia System Owner’s Manual” \
or visit

www.toyota.com/audio-multimedia for additional resources.
Seek station/
track/file select
Push to access
hands-free
system
Press to display
the Toyota apps
screen
(Charge only)
The engine switch must be in the “ACCESSORY” or IGNITION ON mode f\
or use.
Audio

29
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Multi-Information Display (MID)
Return to previous screen Press: Enters/Sets
Press and hold: Resets
Menu
Select item/change pages
Drive information
Navigation system-linked display (if equipped)
Audio system-linked display
Vehicle information
Warning message display
Settings display
Use the meter control switches on the steering wheel to scroll through t\
he following
information screens:
Refer to the Owner’s Manual, for more details.
The VSC OFF switch is used to switch between modes related to the TRAC, \
VSC
and AUTO LSD functions.
Refer to the Owner’s Manual for limitations and more information.
Push
Vehicle Stability Control (VSC) OFF switch

30
FEATURES & OPERATIONS
Garage door opener (HomeLink®)*
Garage door openers manufactured under license from HomeLink®* can be
programmed to operate garage doors, estate gates, security lighting, etc\
.
Refer to “Garage door opener,” Section 5-4 in the Owner’s Manual for more
details.
For programming assistance, contact HomeLink
® at 1-800-355-3515, or visit
http://www.homelink.com/toyota.
* HomeLink® is a registered trademark of Gentex Corporation.
Buttons
HomeLink® indicator light
Garage door operation indicators
The rear view monitor system displays an image of the view from the bump\
er of
the rear area of the vehicle. The camera for the rear view monitor syste\
m is located
above the license plate.
To adjust the image on the rear view monitor screen, press the “MENU”\
button and
select “Display”. Select “Camera” to adjust the screen contr\
ast and brightness.
Refer to the Owner‘s Manual for limitations and more details on this system.
Rear view monitor system

32
Electronically modulated air suspension
(If equipped)
FEATURES & OPERATIONS
The electronically modulated air suspension allows the driver to control\
the
vehicle’s height in order to adjust for driving conditions.
Select the desired height with the height control switch.
“N” mode (normal mode): For ordinary driving
“HI” mode (high mode): For driving on bumpy roads 1.2 in. (30 mm) higher than
the normal height
“LO” mode (low mode): For the ease of egress/ingress and loading luggage
1.2 in. (30 mm) lower than the normal height
Vehicle height can be adjusted only when the engine is running.
The selected height mode will be shown on the electronically modulated a\
ir
suspension display. The selected mode will flash while the height mode i\
s being
change.
Refer to the Owner‘s Manual for limitations and more details on this system.
HEIGHT CONTROL SWITCH
SELECTING VEHICLE HEIGHT
Height control switch
Higher
Lower
Height control mode
select switch
