parking sensors TOYOTA SEQUOIA 2020 Owners Manual (in English)

1
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructio\
ns and more information.3 HomeLink® is a registered trademark of Gentex Corporation.

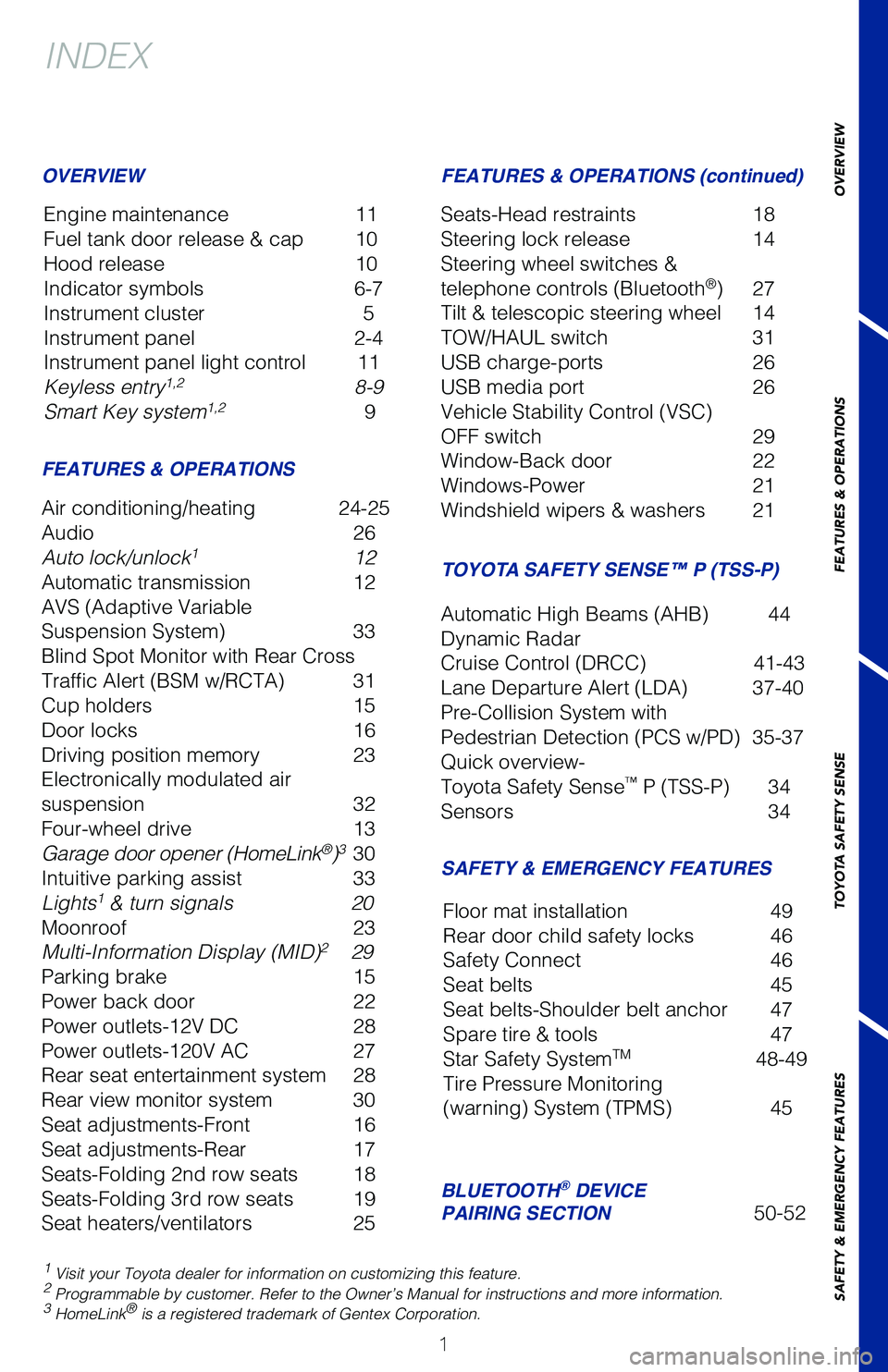

INDEX
Engine maintenance 11
Fuel tank door release & cap 10
Hood release 10
Indicator symbols 6-7
Instrument cluster 5
Instrument panel 2-4
Instrument panel light control 11
Keyless entry
1,2 8-9
Smart Key system1,2 9
OVERVIEW
FEATURES & OPERATIONS
Air conditioning/heating 24-25
Audio 26
Auto lock/unlock
1 12
Automatic transmission 12
AVS (Adaptive Variable
Suspension System) 33
Blind Spot Monitor with Rear Cross
Traffic Alert (BSM w/RCTA) 31
Cup holders 15
Door locks 16
Driving position memory 23
Electronically modulated air
suspension 32
Four-wheel drive 13
Garage door opener (HomeLink
®)3 30
Intuitive parking assist 33
Lights
1 & turn signals 20
Moonroof 23
Multi-Information Display (MID)
2 29
Parking brake 15
Power back door 22
Power outlets-12V DC 28
Power outlets-120V AC 27
Rear seat entertainment system 28
Rear view monitor system 30
Seat adjustments-Front 16
Seat adjustments-Rear 17
Seats-Folding 2nd row seats 18
Seats-Folding 3rd row seats 19
Seat heaters/ventilators 25
SAFETY & EMERGENCY FEATURES FEATURES & OPERATIONS (continued)
Seats-Head restraints 18
Steering lock release 14
Steering wheel switches &
telephone controls (Bluetooth
®) 27
Tilt & telescopic steering wheel 14
TOW/HAUL switch 31
USB charge-ports 26
USB media port 26
Vehicle Stability Control (VSC)
OFF switch 29
Window-Back door 22
Windows-Power 21
Windshield wipers & washers 21
BLUETOOTH® DEVICE
PAIRING SECTION 50-52
Floor mat installation
49
Rear door child safety locks 46
Safety Connect 46
Seat belts 45
Seat belts-Shoulder belt anchor 47
Spare tire & tools 47
Star Safety System
TM 48-49
Tire Pressure Monitoring
(warning) System (TPMS) 45
TOYOTA SAFETY SENSE™ P (TSS-P)
Automatic High Beams (AHB) 44
Dynamic Radar
Cruise Control (DRCC) 41-43
Lane Departure Alert (LDA) 37-40
Pre-Collision System with
Pedestrian Detection (PCS w/PD) 35-37
Quick overview-
Toyota Safety Sense
™ P (TSS-P) 34
Sensors 34
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

33
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

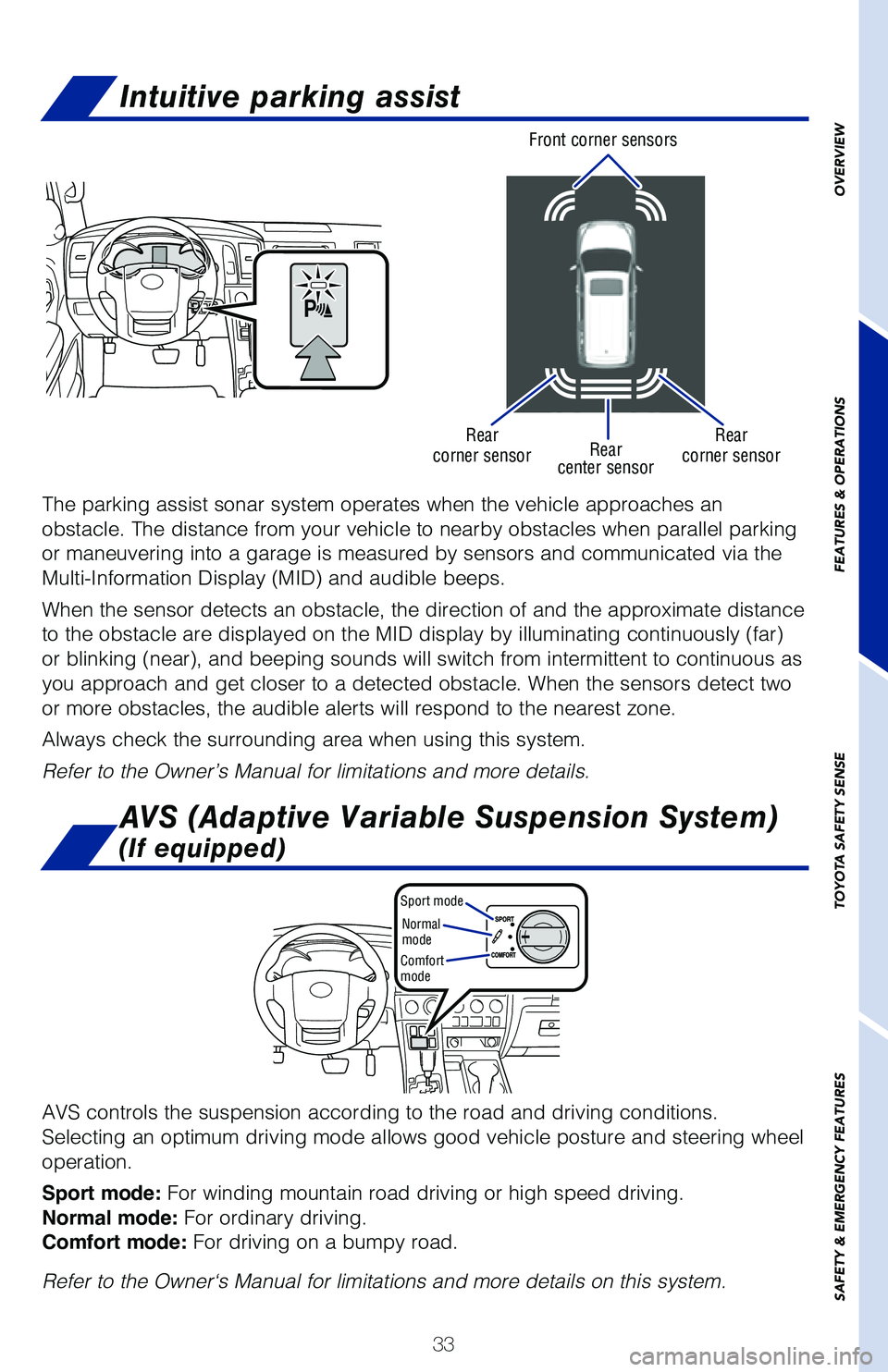

Intuitive parking assist
The parking assist sonar system operates when the vehicle approaches an \
obstacle. The distance from your vehicle to nearby obstacles when parall\
el parking
or maneuvering into a garage is measured by sensors and communicated via\
the
Multi-Information Display (MID) and audible beeps.
When the sensor detects an obstacle, the direction of and the approximat\
e distance
to the obstacle are displayed on the MID display by illuminating continu\
ously (far)
or blinking (near), and beeping sounds will switch from intermittent t\
o continuous as
you approach and get closer to a detected obstacle. When the sensors det\
ect two
or more obstacles, the audible alerts will respond to the nearest zone. \
Always check the surrounding area when using this system.
Refer to the Owner’s Manual for limitations and more details.
Front corner sensors
Rear
corner sensor Rear
corner sensor
Rear
center sensor
AVS (Adaptive Variable Suspension System)
(If equipped)
Sport mode
Normal
mode
Comfort
mode
AVS controls the suspension according to the road and driving conditions\
.
Selecting an optimum driving mode allows good vehicle posture and steeri\
ng wheel
operation.
Sport mode: For winding mountain road driving or high speed driving.
Normal mode: For ordinary driving.
Comfort mode: For driving on a bumpy road.
Refer to the Owner‘s Manual for limitations and more details on this system.
