TOYOTA SEQUOIA 2020 Owners Manual (in English)

4817-2. Steps to take in an emergency
7
When trouble arises
SEQUOIA_OM_USA_OM0C021U_20MY
Indicates the following:• The brake fluid level is low; or
• The brake system is malfunctioning.
 Immediately stop the vehicle in a safe place
and contact your Toyota dealer.
Indicates remaining fuel is approximately 4.0 gal.
(15.0 L, 3.3 Imp.gal.) or less
A buzzer also sounds.
 Refuel the vehicle.
Indicates that the tire inflation pressure is low
Check the tire inflation pressure, and
adjust to the appropriate level.
Indicates that the washer fluid level is low
 Add washer fluid.
Indicates that intuitive parking assist sensor is
dirty or covered with ice (if equipped)
Clean the sensor.
Indicates that the headlight switch is in or
position (with the key removed and the
driver’s door opened) A buzzer also sounds.
 Turn the lights off.
Indicates that the moon roof is not fully closed
(with the engine switch off, and the driver’s door
open)
A buzzer also sounds.
 Close the moon roof.
Indicates that all maintenance according to the
driven distance on the maintenance schedule
*
should be performed soon.
Comes on approximately 4500 miles (7200 km)
after the message has been reset.
If necessary, perfo rm maintenance.
Warning messageDetails/Actions
Check Brake System
Fuel Low
Tire Pressure Low
Check Tire
Windshield
Washer Fluid Low
Clean Parking Assist Sensor
Turn Lights Off
(Flashes)
Moon Roof Open
(Flashes)
Maintenance
Required Soon

4827-2. Steps to take in an emergency
SEQUOIA_OM_USA_OM0C021U_20MY
Indicates that all maintenance is required to cor-
respond to the driven distance on the mainte-
nance schedule
*.
Comes on approximately 5000 miles (8000 km)
after the message has been reset.
(The indicator will not work properly unless the
message has been reset.)
 Perform the necessary maintenance.
Please reset the message after the mainte-
nance is performed. ( P. 405)
Indicates a malfunction in the PCS (Pre-Collision
System).
A buzzer also sounds.
 Have the vehicle inspected by your Toyota
dealer.
Indicates a malfunction in the LDA (Lane Depar-
ture Alert).
A buzzer also sounds.
 Have the vehicle inspected by your Toyota
dealer.
Indicates that the LDA (Lane Departure Alert)
system cannot be used as the vehicle speed is
lower than approximately 32 mph (50 km/h).
Drive the vehicle at approximately 32 mph
(50 km/h) or more.
Indicates that LDA (Lane Departure Alert) system
cannot be used due to the vehicle speed being
too high.
Slow down.
Indicates that radar cruise control sensor is dirty
or covered with ice.
A buzzer also sounds.
 Clean the sensor.
Warning messageDetails/Actions
Maintenance
Required
Visit Your Dealer
Pre-Collision System Malfunction
Visit Your Dealer
LDA
Malfunction
Visit Your Dealer
(Yellow)
LDA
Unavailable
Below Approx. 32MPH
LDA
Unavailable
at Current Speed
Radar Cruise Control
Unavailable
Clean Sensor

4837-2. Steps to take in an emergency
7
When trouble arises
SEQUOIA_OM_USA_OM0C021U_20MY
Indicates that the dynamic radar cruise control
system cannot be used temporarily due to bad
weatherA buzzer also sounds.
 Use the dynamic radar cruise control sys-
tem when it becomes available again.
The operation conditions of the camera sensor
(temperature, etc.) are not met.
When the operation conditions of the cam-
era sensor (temperature, etc.) are met, the
following systems will become available.
(P. 267, 469)
• PCS (Pre-Collision System)
• LDA (Lane Departure Alert) system
• Dynamic radar cruise control
• Automatic High Beam
Indicates that dirt, rain, condensation, ice, snow,
etc., are present on the windshield in front of the
camera sensor. The following systems will be
temporarily unusable.
• PCS (Pre-Collision System)
• LDA (Lane Departure Alert) system
• Dynamic radar cruise control
• Automatic High Beam
 Turn the system off, remove any dirt, rain,
condensation, ice, snow, etc., from the
windshield, and then turn the system back
on. ( P. 267, 469)
Indicates that the Automatic High Beam switch is
pressed while the headlights are in low beam.
Turn the high beam on and press the Auto-
matic High Beam switch again.
Indicates that, since the VSC (Vehicle Stability
Control) system was turned off, the pre-collision
brake system operation is stopped.
Turn the VSC on. ( P. 324)
Warning messageDetails/Actions
Radar Cruise
Control
Unavailable
Front Camera Unavailable
(Yellow)
Front Camera Unavailable
See Owner’s Manual
(Yellow)
Auto High Beam Ready Turn ON High Beam to Activate
VSC Turned Off
Pre-Collision Brake System
Unavailable

4847-2. Steps to take in an emergency
SEQUOIA_OM_USA_OM0C021U_20MY
*: Refer to the separate “Scheduled Maintenance Guide” or “Owner’s Manual
Supplement” for the maintenance interval applicable to your veh icle.
■Warning message in radar cruise mode
In the following cases, the warning message may not be displaye d even if
vehicle-to-vehicle distance decreases:
● When your vehicle and the vehicle ahead are traveling at the sa me speed or
the vehicle ahead is traveling more quickly than your vehicle
● When the vehicle ahead is traveling at a very low speed
● Immediately after cruise control speed is set
● At the instant the accelerator pedal is depressed
■ Warning buzzer
In some cases, the buzzer may not be heard because of noisy pla ce or an
audio sound.
Indicates that the pre-collision system is tempo-
rarily unavailable.
 Please wait until the system returns. If the
message does not disappear, the system
may be malfunctioning. Have the vehicle
inspected by your Toyota dealer immedi-
ately.
Indicates that the pre-collision system sensor is
dirty, covered with ice, etc.
Remove any dirt, ice, etc.
Indicates that the shift position was changed and
Drive-Start Control was operated while depress-
ing the accelerator pedal.
Momentarily release the accelerator pedal.
Warning messageDetails/Actions
Pre-Collision System
Unavailable
Pre-Collision System
Unavailable
Clean Sensor
Release
Accelerator

4857-2. Steps to take in an emergency
7
When trouble arises
SEQUOIA_OM_USA_OM0C021U_20MY
After taking the specified steps to correct the suspected problem,
check that the warning m essage and light go off.
Have the malfunction repaired immediately.
Interior
buzzerExterior buzzerWarning messageDetails/Actions
Contin-
uous  The driver’s door was opened
when the shift lever was not in
P and the engine switch was
not turned off.

Shift the shift lever to P.
Contin-
uousContin-
uous
The driver’s door was opened
and closed while the elec-
tronic key was not in the vehi-
cle, the shift lever was not in P
and the engine switch was not
turned off.
Shift the shift lever to P.
 Bring the electronic key
back into the vehicle.
Once3 times
The driver’s door was opened
and closed while the elec-
tronic key was not in the vehi-
cle, the shift lever was in P
and the engine switch was not
turned off.
Turn the engine switch
off.
 Bring the electronic key
back into the vehicle.
The electronic key was carried
outside the vehicle and a door
other than the driver’s door
was opened and closed while
the engine switch was in a
mode other than off.
Bring the electronic key
back into the vehicle.
Shift into P Position
(Flashes)
Shift into P Position
Key Not Detected
(Flashes)
Key Not Detected
(Flashes)

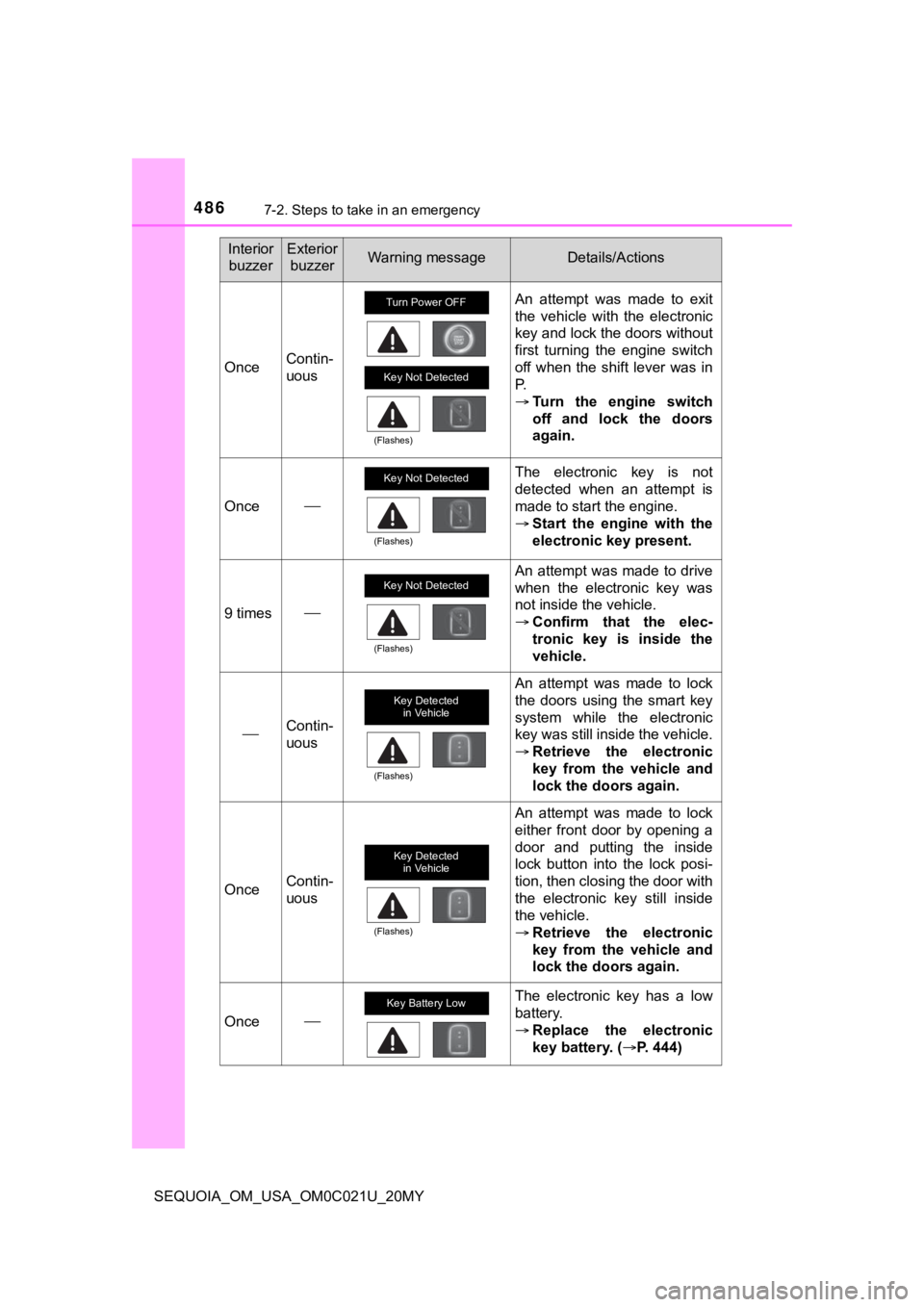

4867-2. Steps to take in an emergency
SEQUOIA_OM_USA_OM0C021U_20MY
OnceContin-
uous
An attempt was made to exit
the vehicle with the electronic
key and lock the doors without
first turning the engine switch
off when the shift lever was in
P.
Turn the engine switch
off and lock the doors
again.
Once
The electronic key is not
detected when an attempt is
made to start the engine.
Start the engine with the
electronic key present.
9 times
An attempt was made to drive
when the electronic key was
not inside the vehicle.
Confirm that the elec-
tronic key is inside the
vehicle.
Contin-
uous
An attempt was made to lock
the doors using the smart key
system while the electronic
key was still inside the vehicle.
Retrieve the electronic
key from the vehicle and
lock the doors again.
OnceContin-
uous
An attempt was made to lock
either front door by opening a
door and putting the inside
lock button into the lock posi-
tion, then closing the door with
the electronic key still inside
the vehicle.
Retrieve the electronic
key from the vehicle and
lock the doors again.
Once
The electronic key has a low
battery.
Replace the electronic
key battery. ( P. 444)
Interior
buzzerExterior buzzerWarning messageDetails/Actions
Turn Power OFF
Key Not Detected
(Flashes)
Key Not Detected
(Flashes)
Key Not Detected
(Flashes)
Key Detected in Vehicle
(Flashes)
Key Detected
in Vehicle
(Flashes)
Key Battery Low

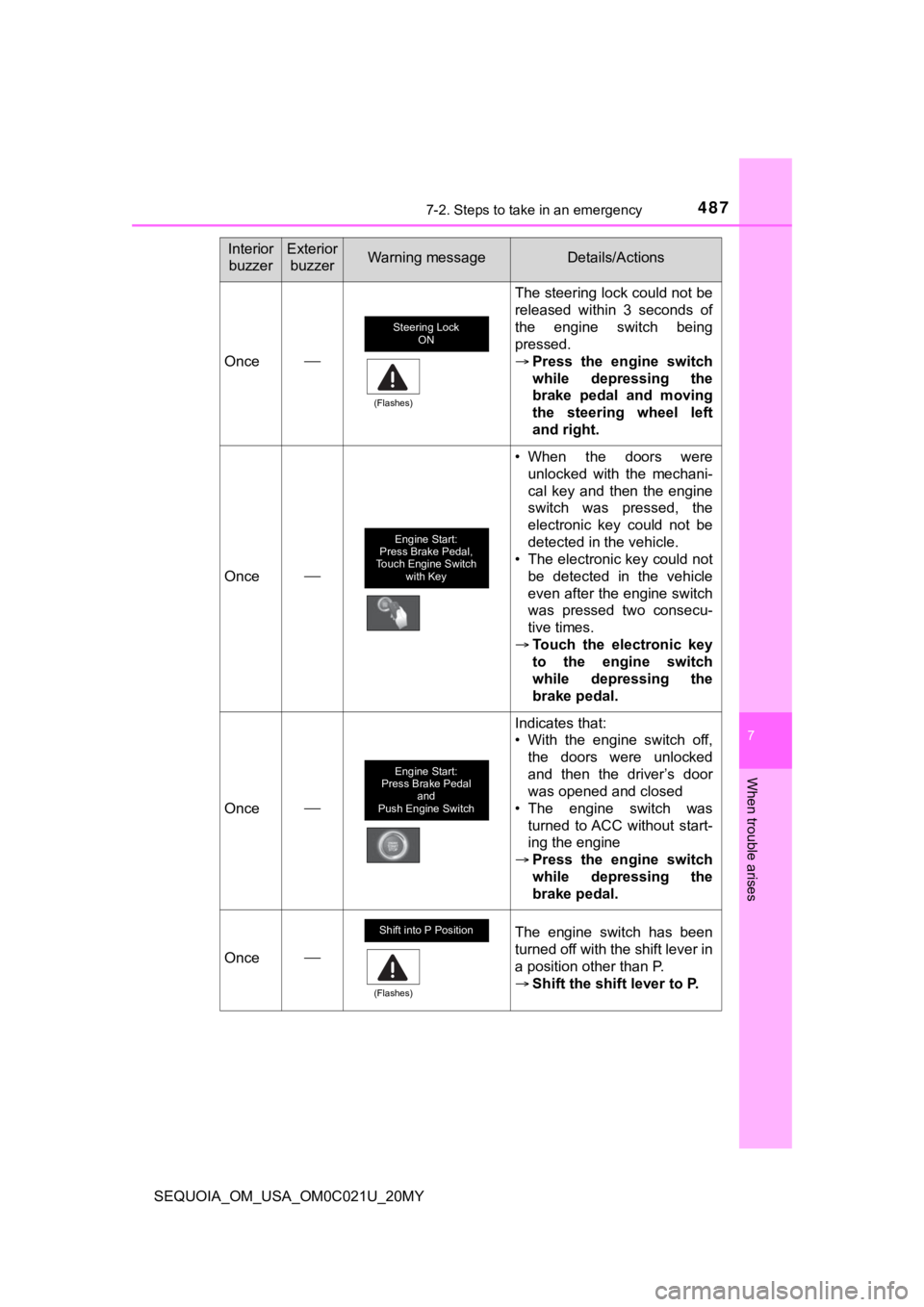

4877-2. Steps to take in an emergency
7
When trouble arises
SEQUOIA_OM_USA_OM0C021U_20MY
Once
The steering lock could not be
released within 3 seconds of
the engine switch being
pressed.
Press the engine switch
while depressing the
brake pedal and moving
the steering wheel left
and right.
Once
• When the doors were
unlocked with the mechani-
cal key and then the engine
switch was pressed, the
electronic key could not be
detected in the vehicle.
• The electronic key could not
be detected in the vehicle
even after the engine switch
was pressed two consecu-
tive times.
 Touch the electronic key
to the engine switch
while depressing the
brake pedal.
Once
Indicates that:
• With the engine switch off,
the doors were unlocked
and then the driver’s door
was opened and closed
• The engine switch was turned to ACC without start-
ing the engine
 Press the engine switch
while depressing the
brake pedal.
Once
The engine switch has been
turned off with the shift lever in
a position other than P.
Shift the shift lever to P.
Interior
buzzerExterior buzzerWarning messageDetails/Actions
Steering Lock ON
(Flashes)
Engine Start:
Press Brake Pedal,
Touch Engine Switch with Key
Engine Start:
Press Brake Pedal
and
Push Engine Switch
Shift into P Position
(Flashes)

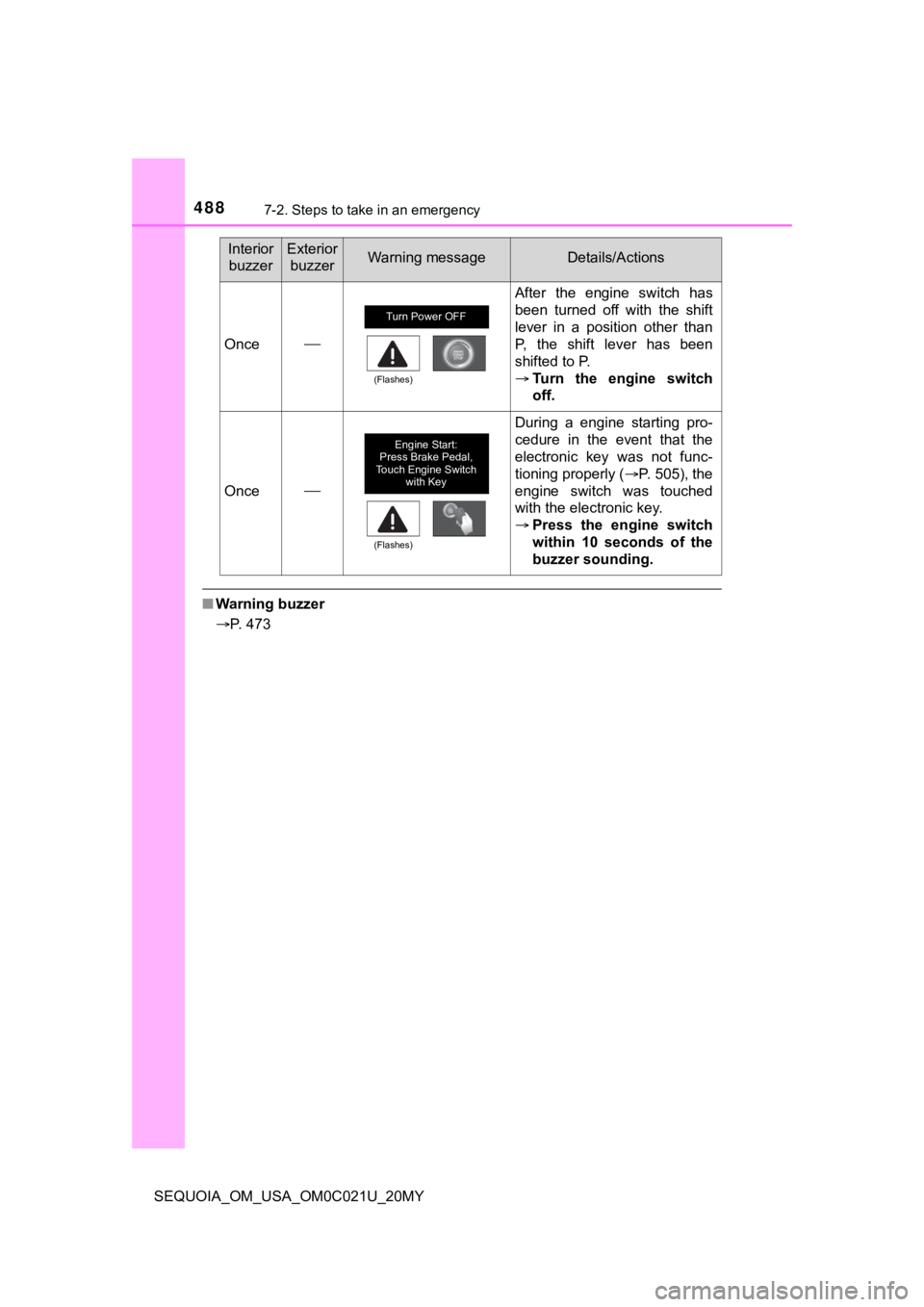

4887-2. Steps to take in an emergency
SEQUOIA_OM_USA_OM0C021U_20MY
■Warning buzzer
P. 473
Once
After the engine switch has
been turned off with the shift
lever in a position other than
P, the shift lever has been
shifted to P.
 Turn the engine switch
off.
Once
During a engine starting pro-
cedure in the event that the
electronic key was not func-
tioning properly ( P. 505), the
engine switch was touched
with the electronic key.
 Press the engine switch
within 10 seconds of the
buzzer sounding.
Interior
buzzerExterior buzzerWarning messageDetails/Actions
Turn Power OFF
(Flashes)
Engine Start:
Press Brake Pedal,
Touch Engine Switch
with Key
(Flashes)

4897-2. Steps to take in an emergency
SEQUOIA_OM_USA_OM0C021U_20MY
7
When trouble arises
If you have a flat tire
●Stop the vehicle in a safe place on a hard, flat surface.
● Set the parking brake.
● Shift the shift lever to P.
● Stop the engine.
● Turn on the emergency flashers. ( P. 458)
● Press the height control mode sel ect switch to set the height control
system to manual mode (if equipped) ( P. 309)
Your vehicle is equipped with a spare tire. The flat tire can b e
replaced with the spare tire.
For details about tires: P. 4 2 5
WARNING
■If you have a flat tire
Do not continue driving with a flat tire.
Driving even a short distance wit h a flat tire can damage the tire and the
wheel beyond repair, which cou ld result in an accident.
Before jacking up the vehicle

4907-2. Steps to take in an emergency
SEQUOIA_OM_USA_OM0C021U_20MY
Spare tire
Jack
Tool bag
Location of the spare tire, jack and tools
