TOYOTA SEQUOIA 2020 Warranties & Maintenance Guides (in English)

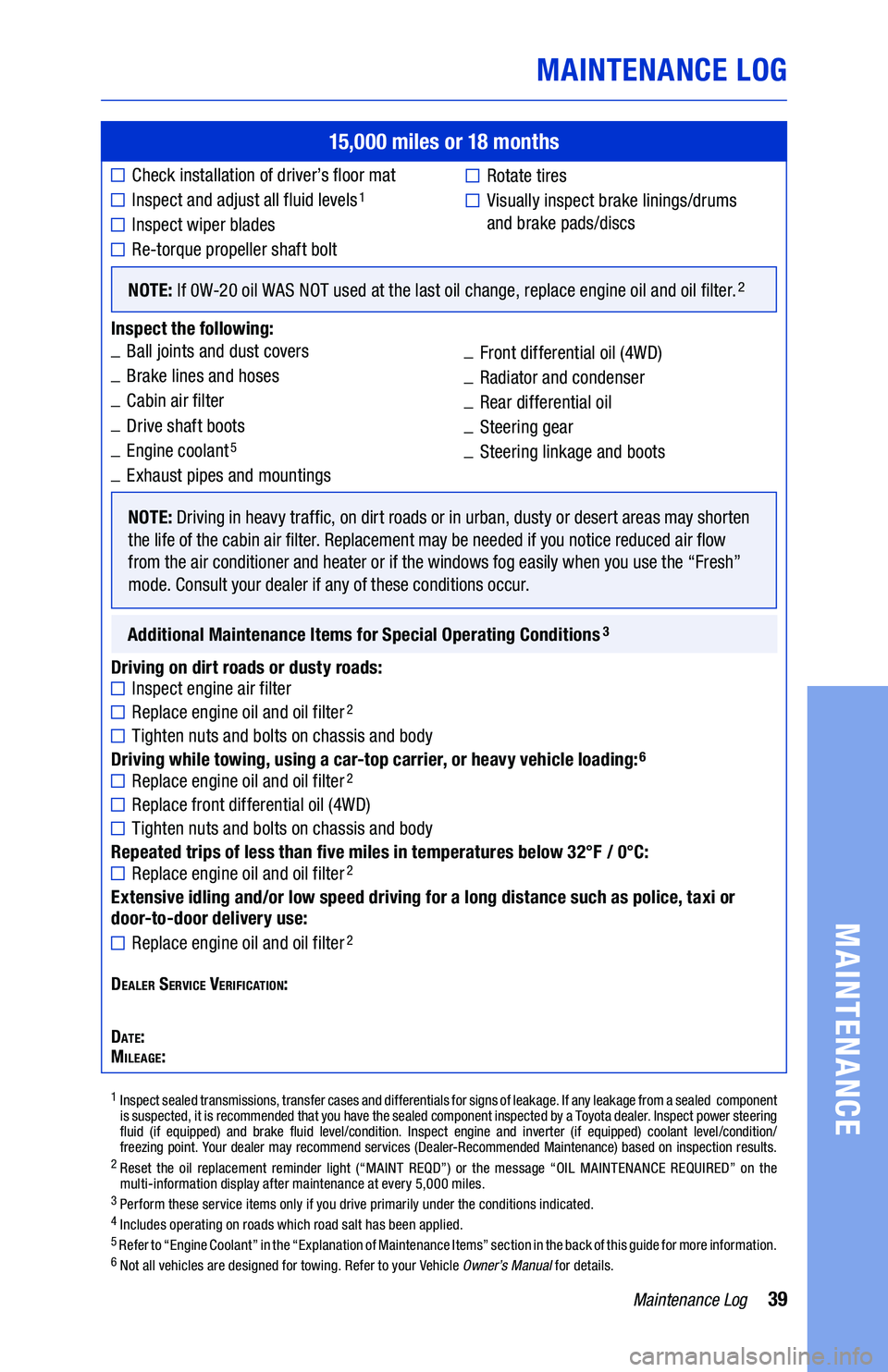

39Maintenance Log
MAINTENANCE LOG
MAINTENANCE
15,000 miles or 18 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Re-torque propeller shaft bolt
NOTE: If 0W-20 oil WAS NOT used at the last oil change, replace engine oil and oil filter.2
Inspect the following:
_Ball joints and dust covers
_ Brake lines and hoses
_ Cabin air filter
_ Drive shaft boots
_ Engine coolant
5
_Exhaust pipes and mountings
NOTE: Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may shorten
the life of the cabin air filter. Replacement may be needed if you notice reduced air flow
from the air conditioner and heater or if the windows fog easily when you use the “Fresh”
mode. Consult your dealer if any of these conditions occur.
Driving on dirt roads or dusty roads:Inspect engine air filter
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:6
Replace engine oil and oil filter2
Replace front differential oil (4WD)
Tighten nuts and bolts on chassis and body
Repeated trips of less than five miles in temperatures below 32°F / 0°C:
Replace engine oil and oil filter2
Extensive idling and/or low speed driving for a long distance such as police, taxi or
door-to-door delivery use:
Replace engine oil and oil filter2
DEALER SERVICE VERIFICATION:
D
ATE:
MILEAGE:
1 Inspect sealed transmissions, transfer cases and differentials for signs of leakage. If any leakage from a sealed component
is suspected, it is recommended that you have the sealed component inspected by a Toyota dealer. Inspect power steering
fluid (if equipped) and brake fluid level/condition. Inspect engine and inverter (if equipped) coolant level/condition/
freezing point. Your dealer may recommend services (Dealer-Recommended Maintenance) based on inspection results.
2 Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after maintenance at every 5,000 miles.
3 Perform these service items only if you drive primarily under the conditions indicated. 4 Includes operating on roads which road salt has been applied. 5 Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more information.6 Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
_ Front differential oil (4WD)
_ Radiator and condenser
_ Rear differential oil
_ Steering gear
_ Steering linkage and boots
Additional Maintenance Items for Special Operating Conditions3

40Maintenance Log
MAINTENANCE LOG
MAINTENANCE
20,000 miles or 24 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Replace engine oil and oil filter2
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect engine air filter
Inspect steering linkage and boots
Re-torque propeller shaft bolt4
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading:
7
Re-torque propeller shaft bolt4
Tighten nuts and bolts on chassis
and body



DEALER SERVICE VERIFICATION:
D
ATE:
MILEAGE:
25,000 miles or 30 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
NOTE: If 0W-20 oil WAS NOT used at
the last oil change, replace engine oil
and oil filter.
2
Additional Maintenance Items for
Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect engine air filter
Inspect steering linkage and boots
Re-torque propeller shaft bolt4
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading:
7
Re-torque propeller shaft bolt4
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis
and body
Repeated trips of less than five miles in
temperatures below 32°F / 0°C:
Replace engine oil and oil filter2
Extensive idling and/or low speed driving
for a long distance such as police, taxi
or door-to-door delivery use:
Replace engine oil and oil filter2

DEALER SERVICE VERIFICATION:
D
ATE:
MILEAGE:

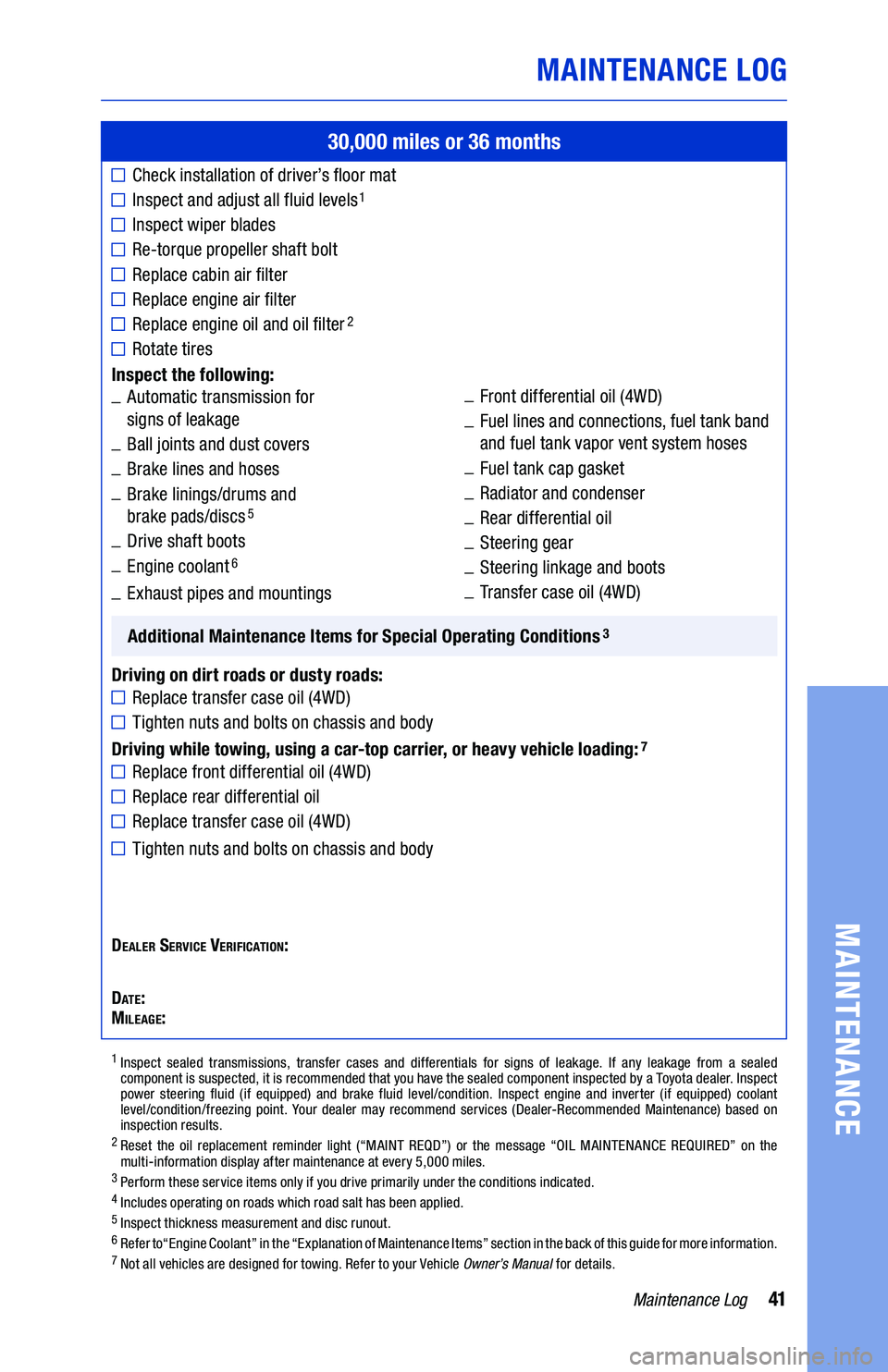

41Maintenance Log
MAINTENANCE LOG
MAINTENANCE
30,000 miles or 36 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Re-torque propeller shaft bolt
Replace cabin air filter
Replace engine air filter
Replace engine oil and oil filter2
Rotate tires
Inspect the following: _ Automatic transmission for
signs of leakage
_ Ball joints and dust covers
_ Brake lines and hoses
_ Brake linings/drums and
brake pads/discs
5
_Drive shaft boots
_ Engine coolant
6
_Exhaust pipes and mountings
Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads:Replace transfer case oil (4WD)
Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:
7
Replace front differential oil (4WD)
Replace rear differential oil
Replace transfer case oil (4WD)
Tighten nuts and bolts on chassis and body
DEALER SERVICE VERIFICATION:
D
ATE:
MILEAGE:
1 Inspect sealed transmissions, transfer cases and differentials for signs of leakage. If any leakage from a sealed
component is suspected, it is recommended that you have the sealed component inspected by a Toyota dealer. Inspect
power steering fluid (if equipped) and brake fluid level/condition. Inspect engine and inverter (if equipped) coolant
level/condition/freezing point. Your dealer may recommend services (Dealer-Recommended Maintenance) based on
inspection results.
2 Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after maintenance at every 5,000 miles.
3 Perform these service items only if you drive primarily under the conditions indicated. 4 Includes operating on roads which road salt has been applied. 5 Inspect thickness measurement and disc runout.6 Refer to“Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more information.7 Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
_
Front differential oil (4WD)
_ Fuel lines and connections, fuel tank band
and fuel tank vapor vent system hoses
_ Fuel tank cap gasket
_ Radiator and condenser
_ Rear differential oil
_ Steering gear
_ Steering linkage and boots
_ Transfer case oil (4WD)

42Maintenance Log
MAINTENANCE LOG
MAINTENANCE
35,000 miles or 42 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
NOTE: If 0W-20 oil WAS NOT used at
the last oil change, replace engine oil
and oil filter.
2
Additional Maintenance Items for
Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect engine air filter
Inspect steering linkage and boots
Re-torque propeller shaft bolt4
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading:
6
Re-torque propeller shaft bolt4
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis
and body
Repeated trips of less than five miles in
temperatures below 32°F / 0°C:
Replace engine oil and oil filter2
Extensive idling and/or low speed driving
for a long distance such as police, taxi
or door-to-door delivery use:
Replace engine oil and oil filter2
DEALER SERVICE VERIFICATION:
D
ATE:
MILEAGE:
40,000 miles or 48 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Replace engine oil and oil filter2
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect engine air filter
Inspect steering linkage and boots
Re-torque propeller shaft bolt4
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading:
6
Re-torque propeller shaft bolt4
Tighten nuts and bolts on chassis
and body
DEALER SERVICE VERIFICATION:
D
ATE:
MILEAGE:

43Maintenance Log
MAINTENANCE LOG
MAINTENANCE
45,000 miles or 54 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Re-torque propeller shaft bolt
NOTE: If 0W-20 oil WAS NOT used at the last oil change, replace engine oil and oil filter.2

Inspect the following:
_Ball joints and dust covers
_ Brake lines and hoses
_ Cabin air filter
_ Drive shaft boots
_ Engine coolant
5
_Exhaust pipes and mountings
NOTE: Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may shorten
the life of the cabin air filter. Replacement may be needed if you notice reduced air flow
from the air conditioner and heater or if the windows fog easily when you use the “Fresh”
mode. Consult your dealer if any of these conditions occur.
Driving on dirt roads or dusty roads:Inspect engine air filter
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:6
Replace engine oil and oil filter2
Replace front differential oil (4WD)
Tighten nuts and bolts on chassis and body
Repeated trips of less than five miles in temperatures below 32°F / 0°C:
Replace engine oil and oil filter2
Extensive idling and/or low speed driving for a long distance such as police, taxi or
door-to-door delivery use:
Replace engine oil and oil filter2
DEALER SERVICE VERIFICATION:
D
ATE:
MILEAGE:
1 Inspect sealed transmissions, transfer cases and differentials for signs of leakage. If any leakage from a sealed component
is suspected, it is recommended that you have the sealed component inspected by a Toyota dealer. Inspect power steering
fluid (if equipped) and brake fluid level/condition. Inspect engine and inverter (if equipped) coolant level/condition/
freezing point. Your dealer may recommend services (Dealer-Recommended Maintenance) based on inspection results.
2 Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after maintenance at every 5,000 miles.
3 Perform these service items only if you drive primarily under the conditions indicated. 4 Includes operating on roads which road salt has been applied.5 Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more information.6 Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
_ Front differential oil (4WD)
_ Radiator and condenser
_ Rear differential oil
_ Steering gear
_ Steering linkage and boots
Additional Maintenance Items for Special Operating Conditions3

44Maintenance Log
MAINTENANCE LOG
MAINTENANCE
50,000 miles or 60 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Replace engine oil and oil filter2
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect engine air filter
Inspect steering linkage and boots
Re-torque propeller shaft bolt4
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading:
8
Re-torque propeller shaft bolt4
Tighten nuts and bolts on chassis
and body

DEALER SERVICE VERIFICATION:
D
ATE:
MILEAGE:
55,000 miles or 66 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
NOTE: If 0W-20 oil WAS NOT used at
the last oil change, replace engine oil
and oil filter.
2
Additional Maintenance Items for
Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect engine air filter
Inspect steering linkage and boots
Re-torque propeller shaft bolt4
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading:
8
Re-torque propeller shaft bolt4
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis
and body
Repeated trips of less than five miles in
temperatures below 32°F / 0°C:
Replace engine oil and oil filter2
Extensive idling and/or low speed driving
for a long distance such as police, taxi
or door-to-door delivery use:
Replace engine oil and oil filter2
DEALER SERVICE VERIFICATION:
D
ATE:
MILEAGE:

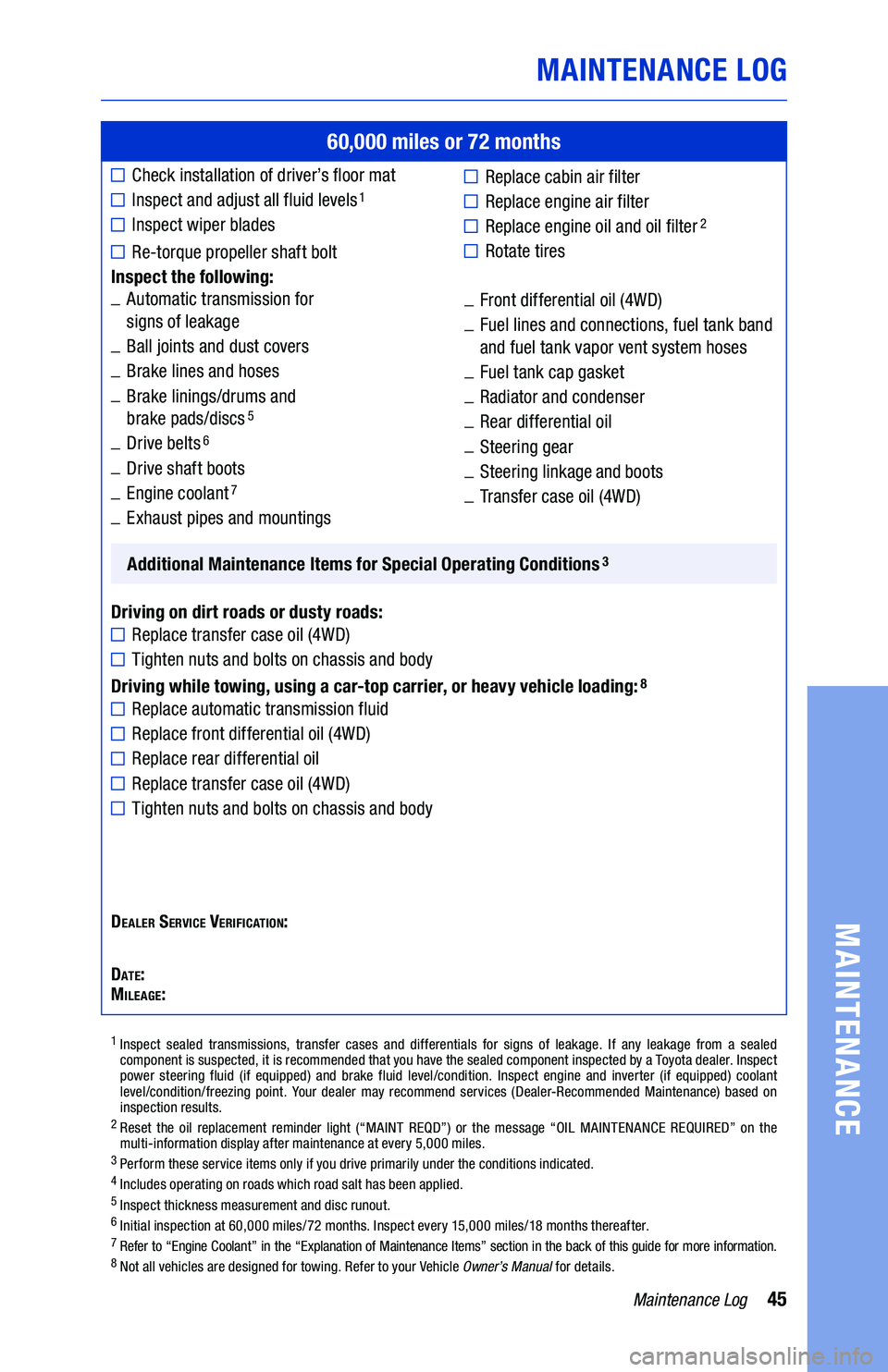

45Maintenance Log
MAINTENANCE LOG
MAINTENANCE
60,000 miles or 72 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Re-torque propeller shaft bolt
Inspect the following: _ Automatic transmission for
signs of leakage
_ Ball joints and dust covers
_ Brake lines and hoses
_ Brake linings/drums and
brake pads/discs
5
_Drive belts6
_ Drive shaft boots
_ Engine coolant
7
_Exhaust pipes and mountings

Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads:Replace transfer case oil (4WD)
Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:
8
Replace automatic transmission fluid
Replace front differential oil (4WD)
Replace rear differential oil
Replace transfer case oil (4WD)
Tighten nuts and bolts on chassis and body
DEALER SERVICE VERIFICATION:
D
ATE:
MILEAGE:
1 Inspect sealed transmissions, transfer cases and differentials for signs of leakage. If any leakage from a sealed
component is suspected, it is recommended that you have the sealed component inspected by a Toyota dealer. Inspect
power steering fluid (if equipped) and brake fluid level/condition. Inspect engine and inverter (if equipped) coolant
level/condition/freezing point. Your dealer may recommend services (Dealer-Recommended Maintenance) based on
inspection results.
2 Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after maintenance at every 5,000 miles.
3 Perform these service items only if you drive primarily under the conditions indicated. 4 Includes operating on roads which road salt has been applied. 5 Inspect thickness measurement and disc runout. 6 Initial inspection at 60,000 miles/ 72 months. Inspect every 15,000 miles/18 months thereafter.7 Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more information.8 Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
_
Front differential oil (4WD)
_ Fuel lines and connections, fuel tank band
and fuel tank vapor vent system hoses
_ Fuel tank cap gasket
_ Radiator and condenser
_ Rear differential oil
_ Steering gear
_ Steering linkage and boots
_ Transfer case oil (4WD)
Replace cabin air filter
Replace engine air filter
Replace engine oil and oil filter2
Rotate tires

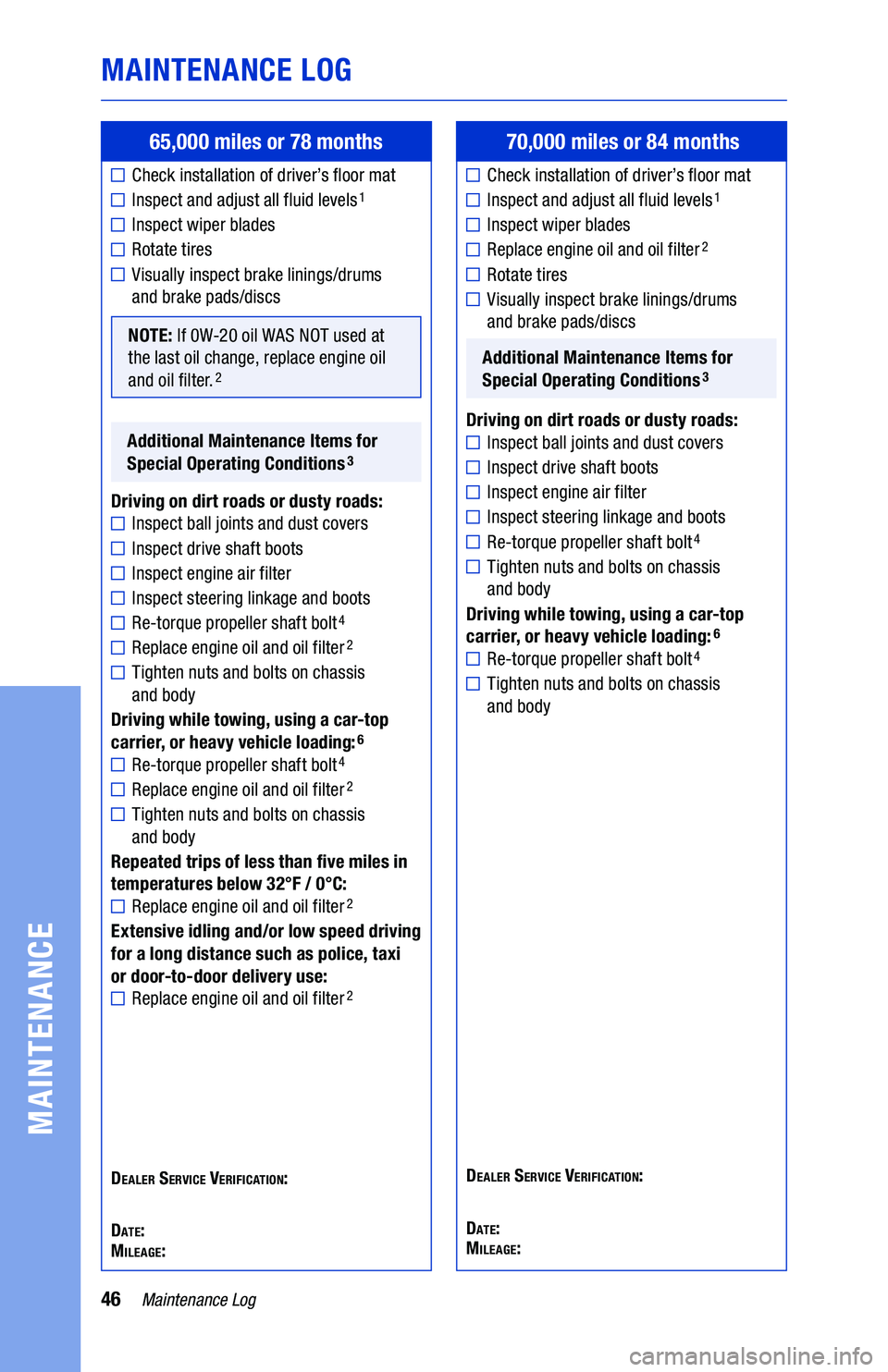

46Maintenance Log
MAINTENANCE LOG
MAINTENANCE
65,000 miles or 78 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
NOTE: If 0W-20 oil WAS NOT used at
the last oil change, replace engine oil
and oil filter.
2
Additional Maintenance Items for
Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect engine air filter
Inspect steering linkage and boots
Re-torque propeller shaft bolt4
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading:
6
Re-torque propeller shaft bolt4
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis
and body
Repeated trips of less than five miles in
temperatures below 32°F / 0°C:
Replace engine oil and oil filter2
Extensive idling and/or low speed driving
for a long distance such as police, taxi
or door-to-door delivery use:
Replace engine oil and oil filter2
DEALER SERVICE VERIFICATION:
D
ATE:
MILEAGE:
70,000 miles or 84 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Replace engine oil and oil filter2
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect engine air filter
Inspect steering linkage and boots
Re-torque propeller shaft bolt4
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading:
6
Re-torque propeller shaft bolt4
Tighten nuts and bolts on chassis
and body

DEALER SERVICE VERIFICATION:
D
ATE:
MILEAGE:

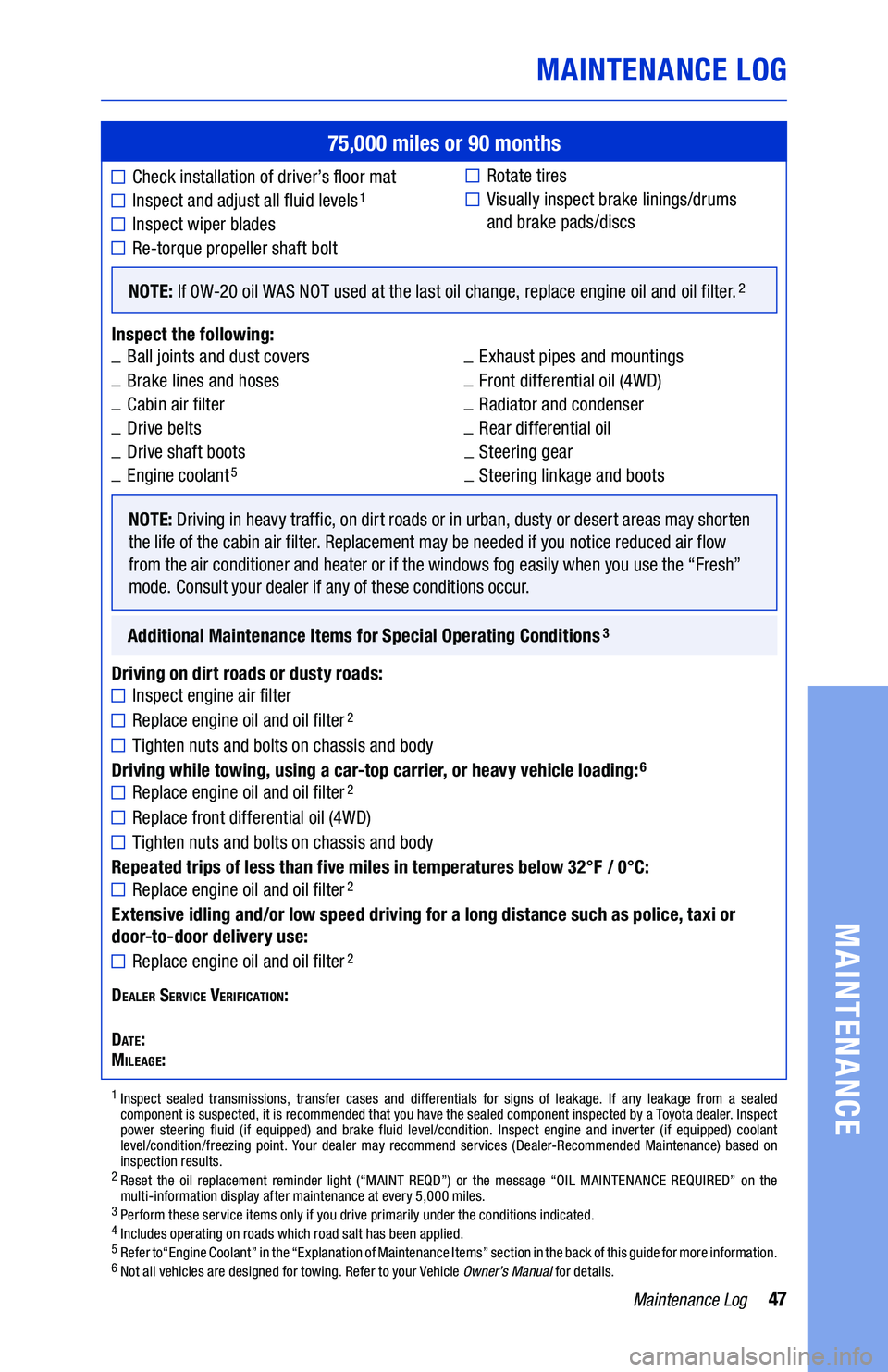

47Maintenance Log
MAINTENANCE LOG
MAINTENANCE
75,000 miles or 90 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Re-torque propeller shaft bolt
NOTE: If 0W-20 oil WAS NOT used at the last oil change, replace engine oil and oil filter.2
Inspect the following:
_Ball joints and dust covers _
Exhaust pipes and mountings
_ Brake lines and hoses _
Front differential oil (4WD)
_ Cabin air filter _
Radiator and condenser
_ Drive belts _
Rear differential oil
_ Drive shaft boots
_ Steering gear
_ Engine coolant5 _ Steering linkage and boots
NOTE: Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may shorten
the life of the cabin air filter. Replacement may be needed if you notice reduced air flow
from the air conditioner and heater or if the windows fog easily when you use the “Fresh”
mode. Consult your dealer if any of these conditions occur.
Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect engine air filter
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:6
Replace engine oil and oil filter2
Replace front differential oil (4WD)
Tighten nuts and bolts on chassis and body
Repeated trips of less than five miles in temperatures below 32°F / 0°C:
Replace engine oil and oil filter2
Extensive idling and/or low speed driving for a long distance such as police, taxi or
door-to-door delivery use:
Replace engine oil and oil filter2
DEALER SERVICE VERIFICATION:
D
ATE:
MILEAGE:
1 Inspect sealed transmissions, transfer cases and differentials for signs of leakage. If any leakage from a sealed
component is suspected, it is recommended that you have the sealed component inspected by a Toyota dealer. Inspect
power steering fluid (if equipped) and brake fluid level/condition. Inspect engine and inverter (if equipped) coolant
level/condition/freezing point. Your dealer may recommend services (Dealer-Recommended Maintenance) based on
inspection results.
2 Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after maintenance at every 5,000 miles.
3 Perform these service items only if you drive primarily under the conditions indicated. 4 Includes operating on roads which road salt has been applied. 5 Refer to“Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more information.6 Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs

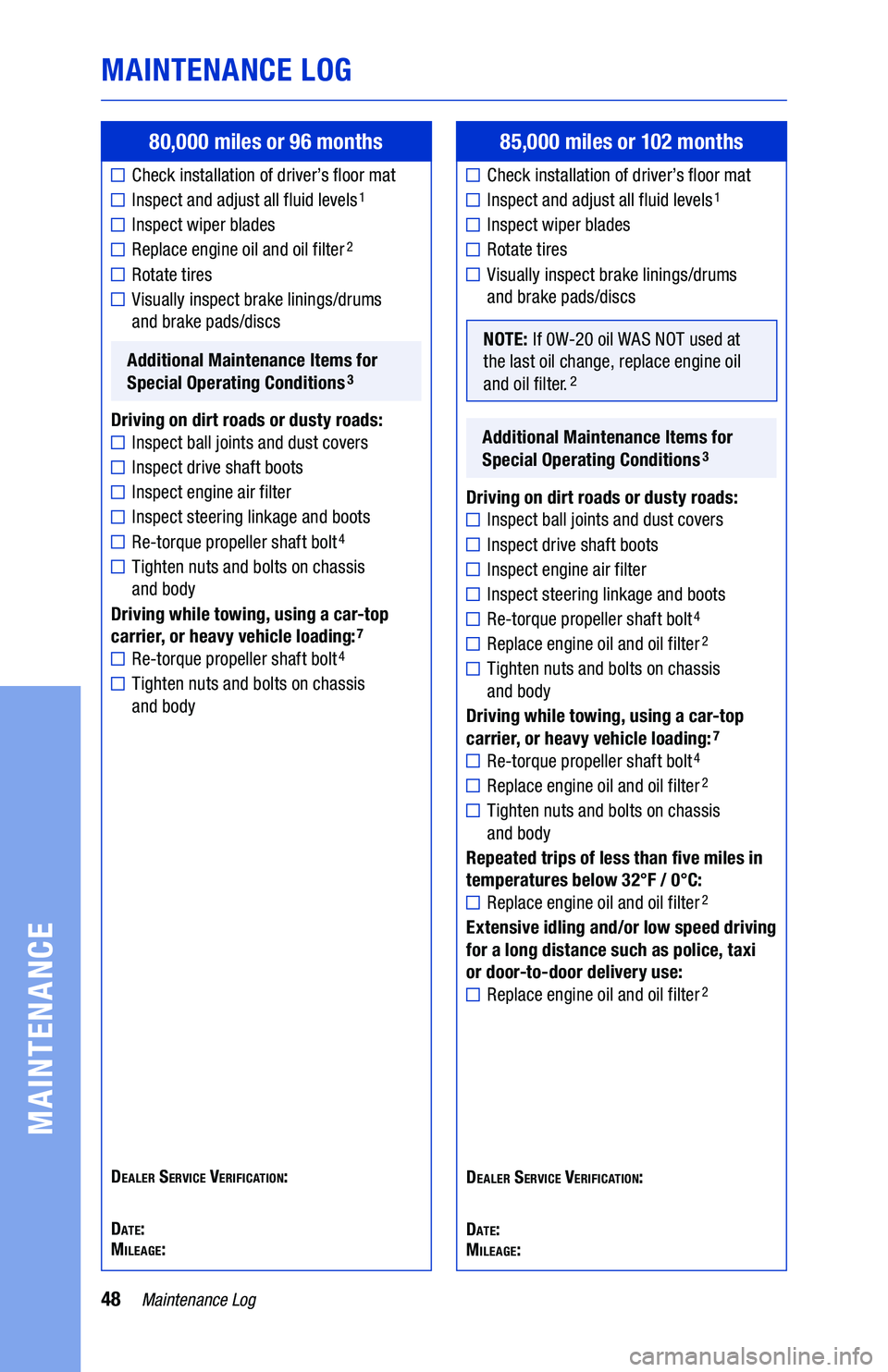

48Maintenance Log
MAINTENANCE LOG
MAINTENANCE
80,000 miles or 96 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Replace engine oil and oil filter2
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect engine air filter
Inspect steering linkage and boots
Re-torque propeller shaft bolt4
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading:
7
Re-torque propeller shaft bolt4
Tighten nuts and bolts on chassis
and body



DEALER SERVICE VERIFICATION:
D
ATE:
MILEAGE:
85,000 miles or 102 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
NOTE: If 0W-20 oil WAS NOT used at
the last oil change, replace engine oil
and oil filter.
2
Additional Maintenance Items for
Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect engine air filter
Inspect steering linkage and boots
Re-torque propeller shaft bolt4
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading:
7
Re-torque propeller shaft bolt4
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis
and body
Repeated trips of less than five miles in
temperatures below 32°F / 0°C:
Replace engine oil and oil filter2
Extensive idling and/or low speed driving
for a long distance such as police, taxi
or door-to-door delivery use:
Replace engine oil and oil filter2


DEALER SERVICE VERIFICATION:
D
ATE:
MILEAGE:
