1804-8. Rear seat entertainment system operation
2Input the title number or
chapter number, and select
“OK”.
SD video
The audio channel can be
changed for SD card with multi-
ple audio channels.
1 Select “Multiplexed Audio”.
2 Each time “Audio” is
selected, the mode changes
in the following order:
“Main”: Main audio channel
“Sub”: Sub audio channel
“Main/Sub”: Both the main and sub
audio channels
SD video
The playback mode can be
changed to program mode or playlist mode. Playlist mode
cannot be selected if a playlist is
not stored on the SD card.
1
Select “Playback Mode”.
2 Each time “Playback Mode”
is selected, the mode
changes in the following
order:
“Program” mode: Playback the disc
in order of pr ogram number
“Playlist” mode: Playback the disc
in order of pla ylist number
SD AVCHD
The audio language can be
changed for SD card with multi-
ple audio languages.
1 Select “Audio”.
2 Each time “Audio” is
selected, another language
Changing the audio channel
Changing the playback mode
Changing the audio lan-
guage

1814-8. Rear seat entertainment system operation
4
Audio/visual system
available on the SD card is
selected.
SD AVCHD
The subtitle language can be
changed for SD card with multi-
ple subtitle languages.
1 Select “Subtitle”.
2 Each time “Subtitle” is
selected, another language
available on the SD card is
selected.
“Hide”: Subtitle can be hidden.
1Select “Format SD Card”.
2 Select “Yes” to format the SD
card.
 If the SD card is formatted, all
data on the card will be erased.
The BD history data such as
bookmarks and resume informa-
tion can be deleted.
1 Select “Clear BD Data”.
2 Select “Yes” to delete the BD
history data.
Changing the subtitle lan-
guage
Formatting the SD card
Deleting the BD history
data

1924-9. Tips for operating rear seat entertainment system
an error message appears on
the screen. Even if the
BD/DVD video disc does not
have a region code, in some
cases it cannot be used. Even
if a BD video disc has a com-
patible region code, depend-
ing on the intention of the
maker, the BD video disc may
not be able to play in a spe-
cific region or country.
 When storing content on BD-
R, BD-RE, DVD-R or DVD-
RW discs, they must be final-
ized using a recorder. Discs
that are not finalized cannot
be played by this system.
 Discs that are recorded with
multi session cannot be
played by this system.
 BD-Live™ is not supported.
 Blu-ray 3D™ discs is not sup-
ported in 3D playback, it will
play back in 2D.
Parental controls
This feature limits what can be
viewed in conformity with the level
of restrictions of the country. The
level of restrictions varies depend-
ing on the BD/DVD video disc.
Some BD/DVD video discs cannot
be played at all, or violent scenes
are skipped or replaced with other
scenes.
•DVD video
Level 1: DVD vid eo discs for chil-
dren can be played.
Symbols shown on
BD/DVD video discs
SymbolMeaning
Indicates PAL/NTSC for-
mat
Indicates the number of
audio tracks
Indicates the number of
language subtitles
Indicates the number of
angles
Indicates the screen dis-
play ratios available
Wide screen: 16:9
Standard: 4:3
Indicates the disc’s
region code
 BD video
“ABC”: all regions
Alphabet: region code
 DVD video
“ALL”: all regions
Number: region code
BD/DVD video disc infor-
mation
SymbolMeaning

1934-9. Tips for operating rear seat entertainment system
4
Audio/visual system
Level 2 - 7: DVD video discs for
children and G-rated movies can be
played.
Level 8: All types of DVD video
discs can be played.
• BD video
Parental controls o f BD videos can
be set up by inputting an age. If the
target age of BD video exceeds the
age restriction that was set up, then
playback will not be possible.
 Multi-angle feature
You can enjoy the same scene from
different angles.
Multi-language option
You can select t he subtitle and
audio languages.
 Region codes
The region codes are provided on
BD/DVD players and BD/DVD
discs. If the BD/DVD disc does not
have the same region code as the
BD/DVD player, you cannot play
the disc on the player.
Title and chapter
Video and audio programs stored in
BD/DVD video discs are divided
into parts by title and chapter.
Title: The largest unit of the video
and audio programs stored on
BD/DVD video dis cs. Usually, one
movie, one album , or one audio
program is assigned as a title.
Chapter: A title comprises of one or
more chapters.
 AV C H D
AVCHD is a new format (standard)
for high definition video cameras
that can record a nd play high-reso- lution HD images. DVDs and SD
cards with videos recorded in
AVCHD format can playback on this
system.

BDAV (Blu-ray Disc™
Audio/Visual)
BDAV is one of the audio/video
recording formats for Blu-ray
Disc™, has been made primarily
for the purpose of broadcasting the
recording. It is used when recording
to BD-R and BD-RE by Blu-ray™
recorder.
BD-J
Some BD video discs contain Java
applications, and these applications
are called BD-J. You can enjoy var-
ious interactive fea tures in addition
to playing normal video.
 Pop-up menu
Some BD video discs have a pop-
up navigation menu that can be
called up and be operated on the
screen without interrupting play-
back.
Picture-in-picture
This is a function of BD video that
plays the primary video and sec-
ondary video simultaneously. For
instance, the function is capable of
playing the original movie as the
primary video while playing video
commentary from t he film director
on a small screen as a secondary
video.
 DUBA (Disc Unbound BD-J
Application)
For BD videos that come as a 2
disc set or more, after finishing and
ejecting one of the discs, continua-
tion of the video can be seen

1944-9. Tips for operating rear seat entertainment system
shortly after replacing the disc with
the proper disc.
 Playlist (BDAV only)
A playlist of favorite scenes by Blu-
ray™ recorder can be created and
the scenes can pla yback via play-
list.
This player can play Linear
PCM, Dolby Audio, DTS, AAC
and MPEG audio format. Other
decoded types cannot be
played. Audio

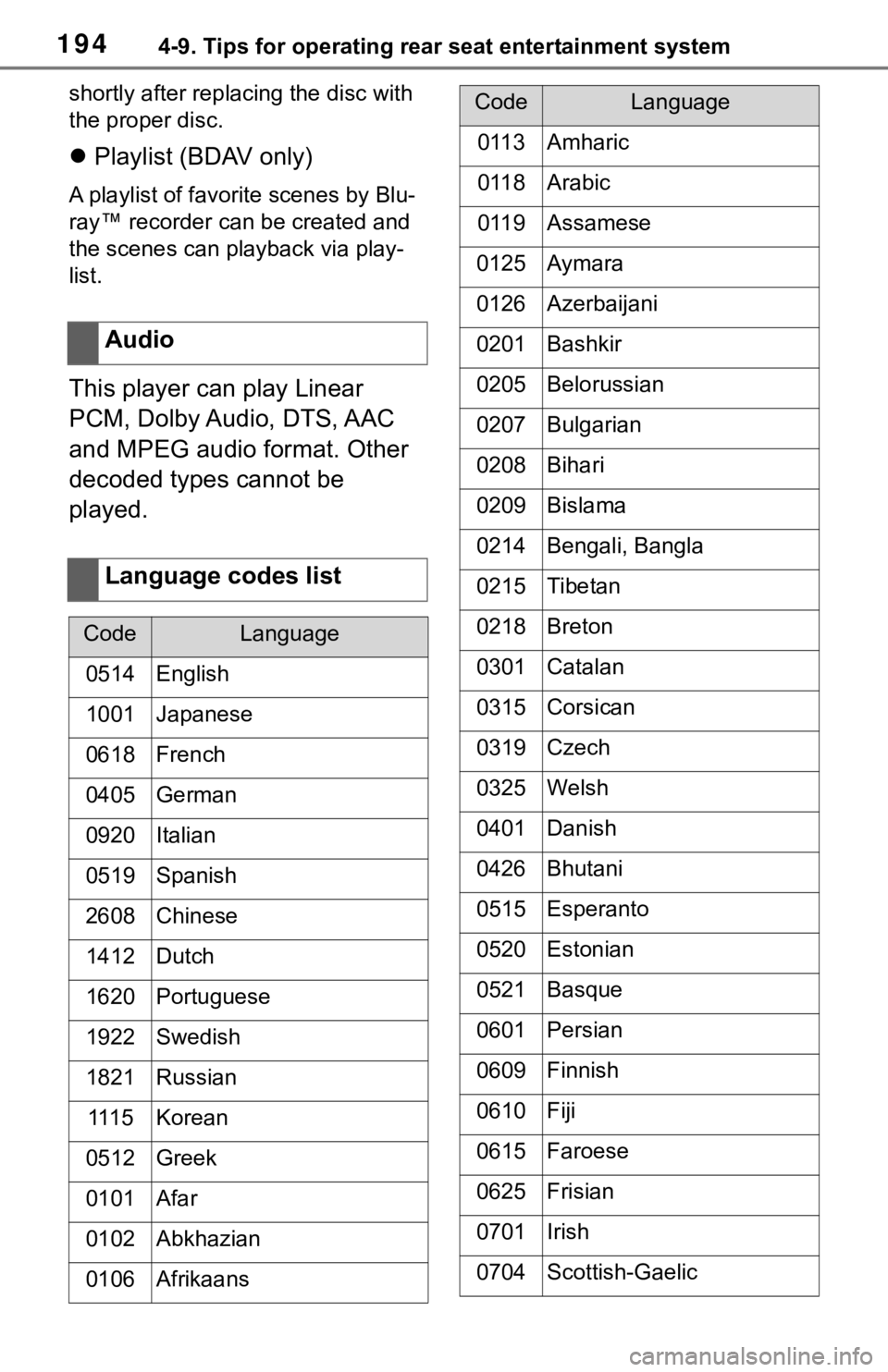

Language codes list
CodeLanguage
0514English
1001Japanese
0618French
0405German
0920Italian
0519Spanish
2608Chinese
1412Dutch
1620Portuguese
1922Swedish
1821Russian
111 5Korean
0512Greek
0101Afar
0102Abkhazian
0106Afrikaans
0113Amharic
0118Arabic
0119Assamese
0125Aymara
0126Azerbaijani
0201Bashkir
0205Belorussian
0207Bulgarian
0208Bihari
0209Bislama
0214Bengali, Bangla
0215Tibetan
0218Breton
0301Catalan
0315Corsican
0319Czech
0325Welsh
0401Danish
0426Bhutani
0515Esperanto
0520Estonian
0521Basque
0601Persian
0609Finnish
0610Fiji
0615Faroese
0625Frisian
0701Irish
0704Scottish-Gaelic
CodeLanguage

1954-9. Tips for operating rear seat entertainment system
4
Audio/visual system

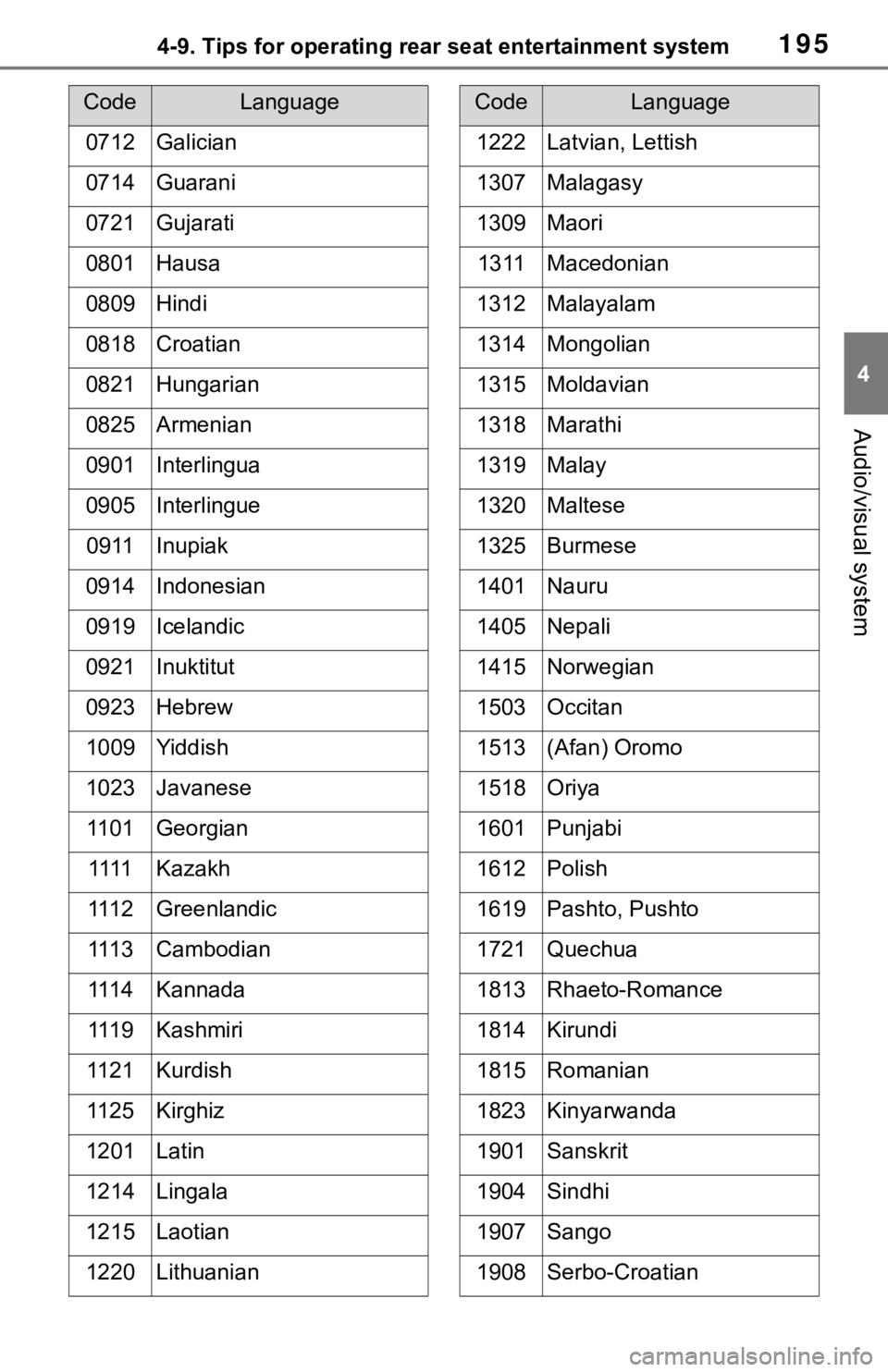

0712Galician
0714Guarani
0721Gujarati
0801Hausa
0809Hindi
0818Croatian
0821Hungarian
0825Armenian
0901Interlingua
0905Interlingue
0911Inupiak
0914Indonesian
0919Icelandic
0921Inuktitut
0923Hebrew
1009Yiddish
1023Javanese
11 0 1Georgian
1111Kazakh
111 2Greenlandic
111 3Cambodian
111 4Kannada
111 9Kashmiri
11 2 1Kurdish
11 2 5Kirghiz
1201Latin
1214Lingala
1215Laotian
1220Lithuanian
CodeLanguage
1222Latvian, Lettish
1307Malagasy
1309Maori
1311Macedonian
1312Malayalam
1314Mongolian
1315Moldavian
1318Marathi
1319Malay
1320Maltese
1325Burmese
1401Nauru
1405Nepali
1415Norwegian
1503Occitan
1513(Afan) Oromo
1518Oriya
1601Punjabi
1612Polish
1619Pashto, Pushto
1721Quechua
1813Rhaeto-Romance
1814Kirundi
1815Romanian
1823Kinyarwanda
1901Sanskrit
1904Sindhi
1907Sango
1908Serbo-Croatian
CodeLanguage

1964-9. Tips for operating rear seat entertainment system
MP3 (MPEG Audio LAYER3) is
a standard audio compression
format. Files can be com-
pressed to approximately 1/10
of their original size by using
MP3 compression.
WMA (Windows Media Audio) is
a Microsoft audio compression
format. This format compresses
audio data to a size smaller than
that of the MP3 format.
AAC (Advanced Audio Coding)
is a standardized the audio com-
pression type that is designed to
be the successor of the MP3 for-
mat. AAC generally achieves
good sound quality and high-
compression than MP3 at simi-
lar bit rates.
There is a limit to the MP3,
WMA and AAC file standards
and to the media/formats
recorded by them that can be
used.

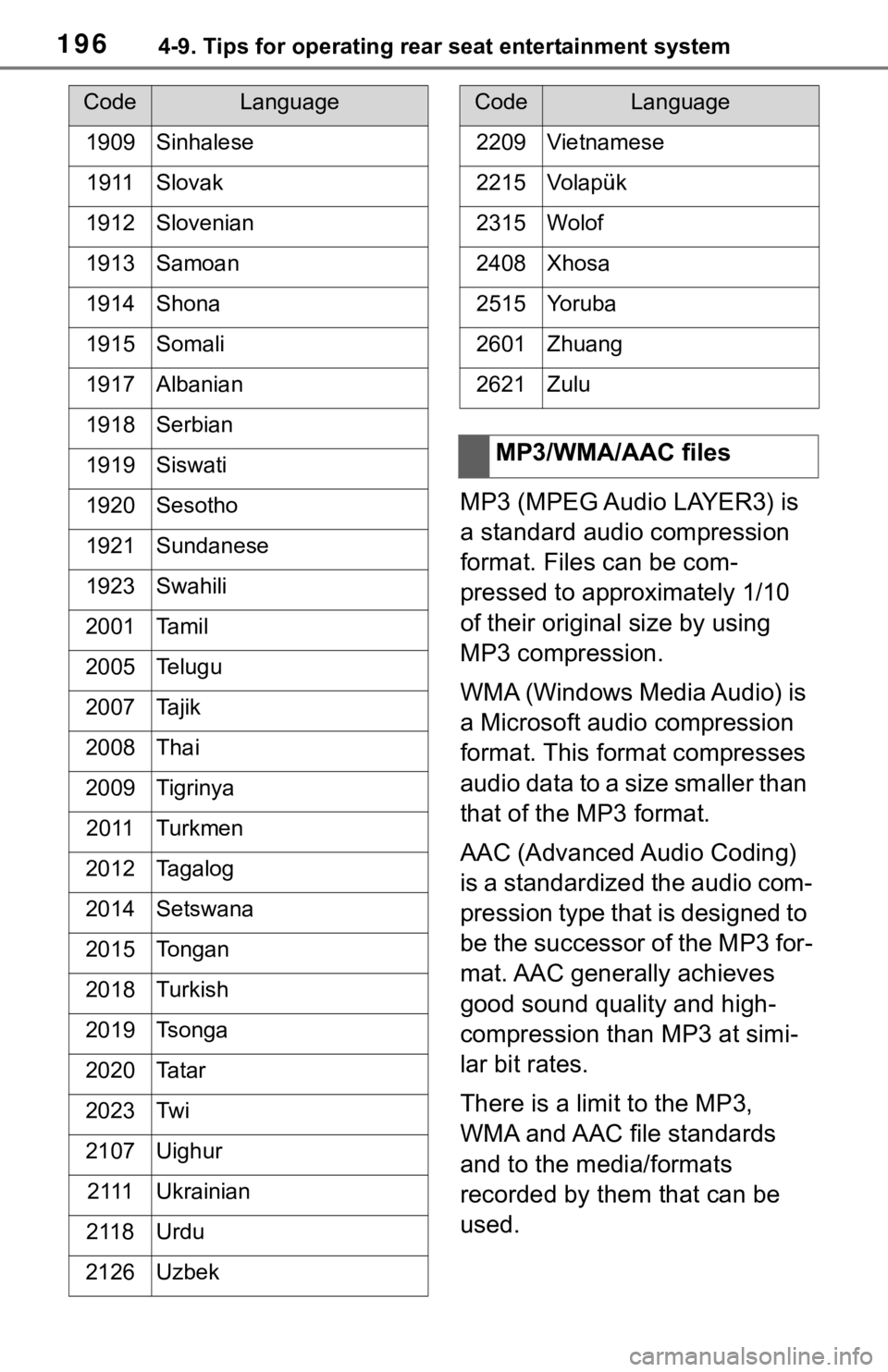

1909Sinhalese
1911Slovak
1912Slovenian
1913Samoan
1914Shona
1915Somali
1917Albanian
1918Serbian
1919Siswati
1920Sesotho
1921Sundanese
1923Swahili
2001Ta m i l
2005Telugu
2007Tajik
2008Thai
2009Tigrinya
2011Turkmen
2012Tagalog
2014Setswana
2015Tongan
2018Turkish
2019Tsonga
2020Ta t a r
2023Tw i
2107Uighur
2 111Ukrainian
2118Urdu
2126Uzbek
CodeLanguage
2209Vietnamese
2215Volapük
2315Wolof
2408Xhosa
2515Yo r u b a
2601Zhuang
2621Zulu
MP3/WMA/AAC files
CodeLanguage

217
5
5
Voice command system
Voice command sys-
tem
5-1. Voice command system operation
Voice command system .................................. 218
Natural language under- standing..................... 221
Command list .............. 222

2215-1. Voice command system operation
5
Voice command system
1Select .
2 Speak to the system.
 Words recognized through
your speech will be displayed.
To confirm the entered text,
select “OK”.
●A keyboard screen will not be dis-
played when the vehicle is being
driven.
●Text message reply with the dicta-
tion function may n ot be available
depending on the type of cellular
phone.
*: Premium Audio only. This func-
tion is not made available in
some countries or areas.
Natural language
understanding*
Due to natural language
speech recognition technol-
ogy, this system recog-
nizes commands when
spoken naturally. (If a con-
nected services subscrip-
tion has been entered, the
system will be able to con-
nect to the Cloud and the
range of naturally spoken
English which can be rec-
ognized will be increased.)
However, the system cannot
recognize every variation of
each command. In some sit-
uations, it is possible to
omit the command for the
procedure and directly state
the desired operation. Not
all voice commands are dis-
played in the function
menu.
To use this function, a sub-
scription to the connected
services is necessary. Con-
tact your Toyota dealer for
details.

2225-1. Voice command system operation

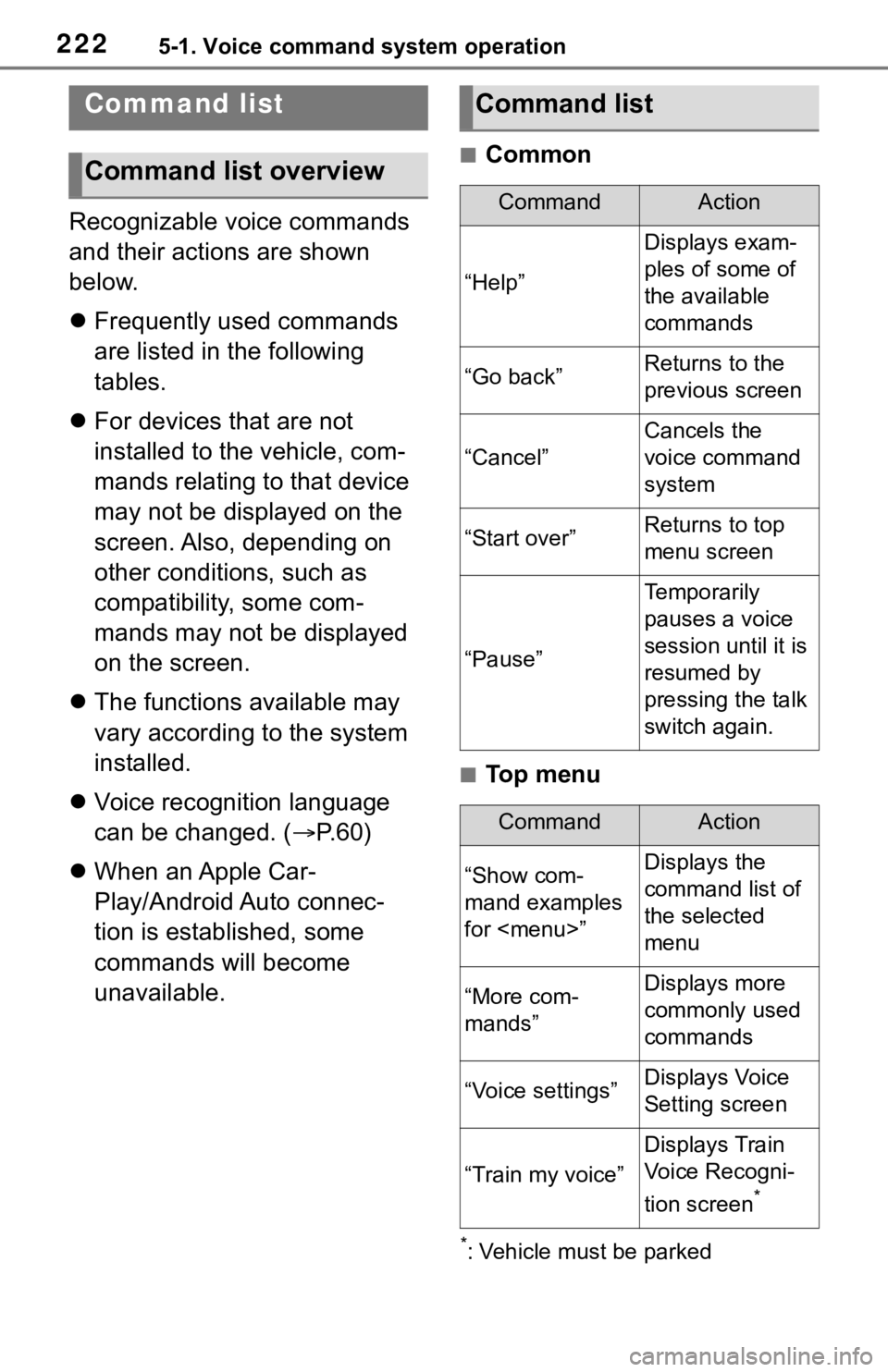

Recognizable voice commands
and their actions are shown
below.
Frequently used commands
are listed in the following
tables.
 For devices that are not
installed to the vehicle, com-
mands relating to that device
may not be displayed on the
screen. Also, depending on
other conditions, such as
compatibility, some com-
mands may not be displayed
on the screen.
 The functions available may
vary according to the system
installed.
 Voice recognition language
can be changed. ( P.60)
 When an Apple Car-
Play/Android Auto connec-
tion is established, some
commands will become
unavailable.
■Common
■Top menu
*: Vehicle must be parked
Command list
Command list overview
Command list
CommandAction
“Help”
Displays exam-
ples of some of
the available
commands
“Go back”Returns to the
previous screen
“Cancel”
Cancels the
voice command
system
“Start over”Returns to top
menu screen
“Pause”
Temporarily
pauses a voice
session until it is
resumed by
pressing the talk
switch again.
CommandAction
“Show com-
mand examples
for
