display TOYOTA SEQUOIA 2021 Owners Manual (in English)

1
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructio\
ns and more information.3 HomeLink® is a registered trademark of Gentex Corporation.
INDEX
Engine maintenance 11
Fuel tank door release & cap 10
Hood release 10
Indicator symbols 6-7
Instrument cluster 5
Instrument panel 2-4
Instrument panel light control 11
Keyless entry
1,2 8-9
Smart Key system1,2 9
OVERVIEW
FEATURES & OPERATIONS
Air conditioning/heating 24-25
Audio 26
Auto lock/unlock
1 12
Automatic transmission 12
AVS (Adaptive Variable
Suspension System) 31
Blind Spot Monitor with Rear
Cross Traffic Alert (BSM w/RCTA) 33
Clock 29
Cup holders 15
Door locks 16
Driving position memory 23
Electronically modulated air
suspension 32
Four-wheel drive 13
Garage door opener (HomeLink
®)3 30
Heated/ventilated seats 25
Intuitive parking assist 34
Lights
1 & turn signals 20
Moonroof 23
Multi-Information Display (MID)
2 29
Parking brake 15
Power back door 22
Power back door window 22
Power outlets-12V DC 28
Power outlets-120V AC 27
Power windows 21
Rear seat entertainment system 28
Rear view monitor system 34
Seat adjustments-Front 16
SAFETY & EMERGENCY FEATURES FEATURES & OPERATIONS (continued)
Seat adjustments-Rear 17
Seats-Folding 2nd row seats 18
Seats-Folding 3rd row seats 19
Seats-Head restraints 18
Steering lock release 14
Steering wheel switches &
telephone controls (Bluetooth
®) 27
Tilt & telescopic steering wheel 14
TOW/HAUL switch 30
USB charge ports 26
USB media port 26
Vehicle Stability Control (VSC)/TRAC/
Trailer sway control OFF switch 31
Windshield wipers & washers 21
BLUETOOTH® DEVICE
PAIRING SECTION 52-54
Floor mat installation
51
Rear door child safety locks 48
Safety Connect
® 48
Seat belts 47
Seat belts-Shoulder belt anchor 49
Spare tire & tools 49
Star Safety System
TM 50-51
Tire Pressure Monitoring
(warning) System (TPMS) 47
TOYOTA SAFETY SENSE™ P (TSS-P)
Automatic High Beams (AHB) 46
Dynamic Radar
Cruise Control (DRCC) 43-45
Lane Departure Alert (LDA) 39-42
Pre-Collision System with
Pedestrian Detection (PCS w/PD) 36-38
Quick overview-
Toyota Safety Sense
™ P (TSS-P) 35
Sensors 35
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

2

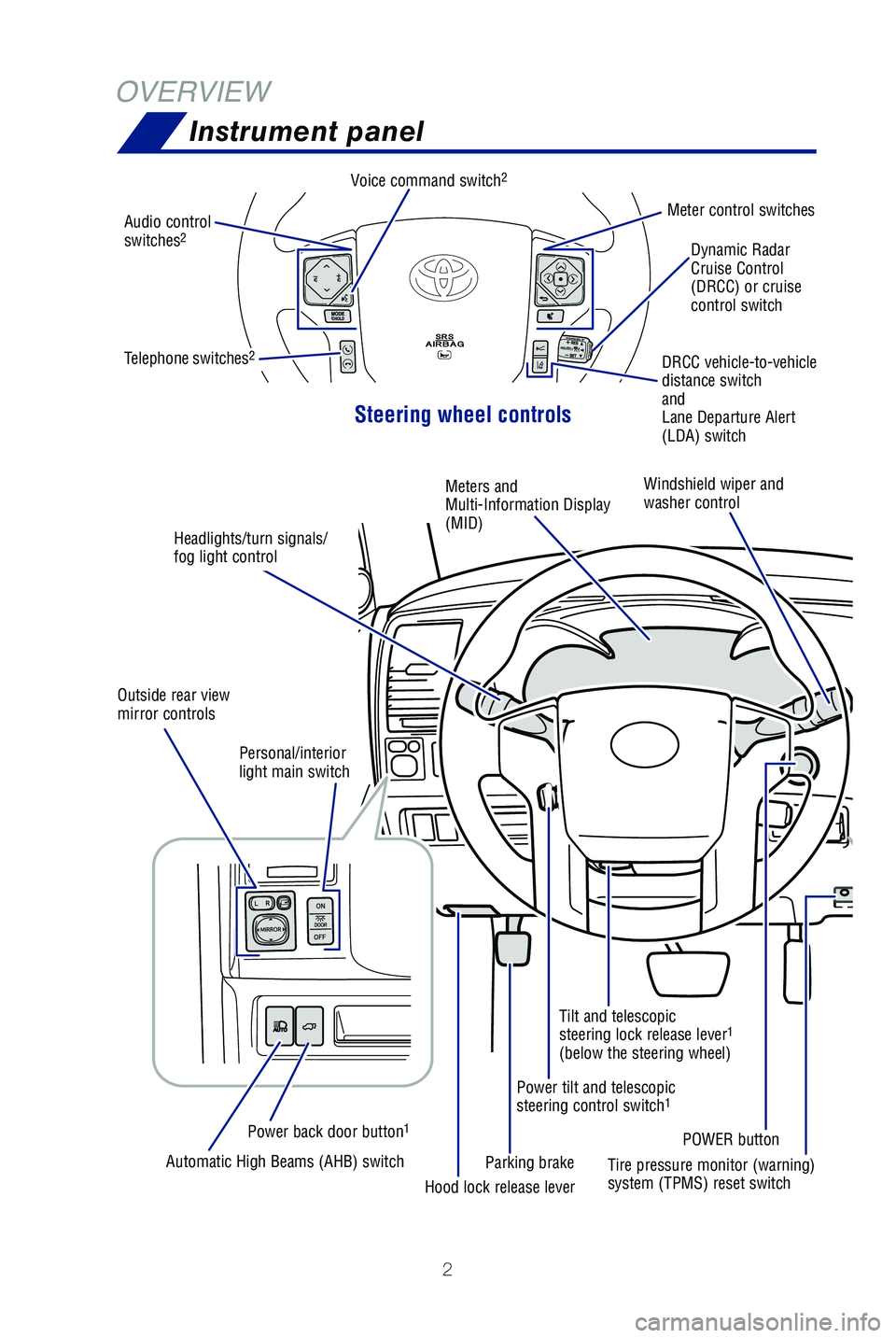

OVERVIEWInstrument panel
Meter control switches
Steering wheel controls
Windshield wiper and
washer control
Voice command switch
2
Tire pressure monitor (warning)
system (TPMS) reset switch
POWER button
Outside rear view
mirror controls Audio control
switches
2
Telephone switches2
Dynamic Radar
Cruise Control
(DRCC) or cruise
control switch
DRCC vehicle-to-vehicle
distance switch

and
Lane Departure Alert
(LDA) switch
Power tilt and telescopic
steering control switch
1
Parking brake
Hood lock release lever
Personal/interior
light main switch
Power back door button
1
Automatic High Beams (AHB) switch Tilt and telescopic
steering lock release lever
1
(below the steering wheel)
Headlights/turn signals/
fog light control
Meters and
Multi-Information Display
(MID)

5
Instrument cluster
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Multi-Information
Display (MID) Outside
temperature
display
Service indicators and warning lights
Speedometer
Fuel gauge
Odometer
and trip meter
display
Shift position
and shift range
display Voltmeter
Engine oil
pressure gauge
Engine coolant
temperature Odometer/trip meter and
trip meter resetting button
Instrument panel
light control Tachometer

14
FEATURES & OPERATIONS
MANUAL
POWER

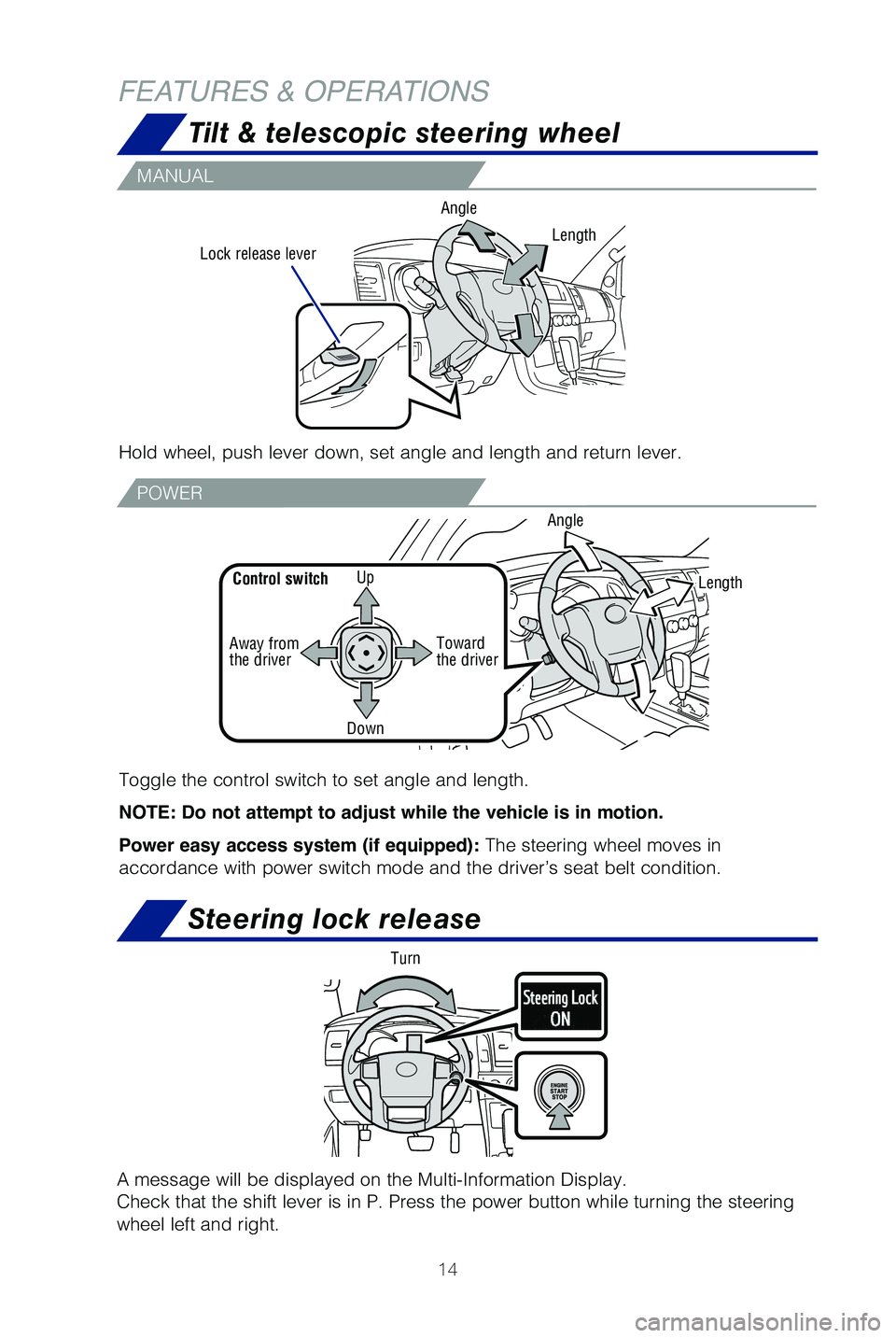

Hold wheel, push lever down, set angle and length and return lever.
Lock release leverAngle
Toggle the control switch to set angle and length.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Power easy access system (if equipped): The steering wheel moves in
accordance with power switch mode and the driver’s seat belt conditio\
n.
UpControl switch
Away from
the driver
Length
Toward
the driver
Down Angle
Length
Tilt & telescopic steering wheel
Steering lock release
A message will be displayed on the Multi-Information Display.
Check that the shift lever is in P. Press the power button while turning\
the steering
wheel left and right.
Turn

24
FEATURES & OPERATIONS

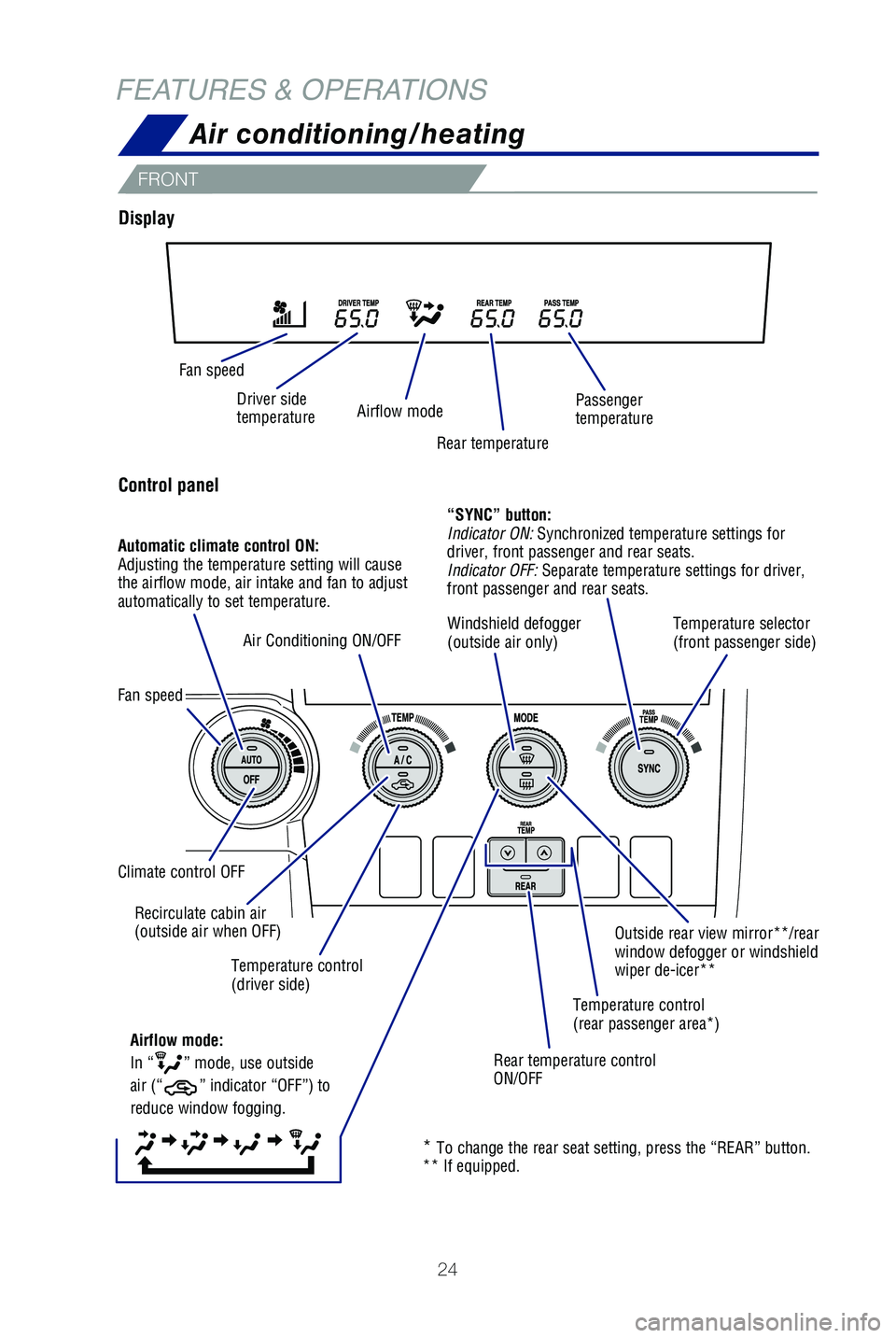

Control panel
Display
FRONT
Fan speedDriver side
temperature Rear temperature
Airflow mode
Passenger
temperature
Fan speed Automatic climate control ON:
Adjusting the temperature setting will cause
the airflow mode, air intake and fan to adjust
automatically to set temperature. “SYNC” button:
Indicator ON: Synchronized temperature settings for
driver, front passenger and rear seats.
Indicator OFF: Separate temperature settings for driver,
front passenger and rear seats.
Air Conditioning ON/OFF
Rear temperature control
ON/OFF
Climate control OFF Windshield defogger
(outside air only)
Temperature selector
(front passenger side)
Temperature control
(rear passenger area*)
Recirculate cabin air
(outside air when OFF)
Temperature control
(driver side) Outside rear view mirror**/rear
window defogger or windshield
wiper de-icer**
Airflow mode:
In “
” mode, use outside
air (“
” indicator “OFF”) to
reduce window fogging.
* To change the rear seat setting, press the “REAR” button.
** If equipped.
Air conditioning/heating

25
Temperature selector
(front passenger side)
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

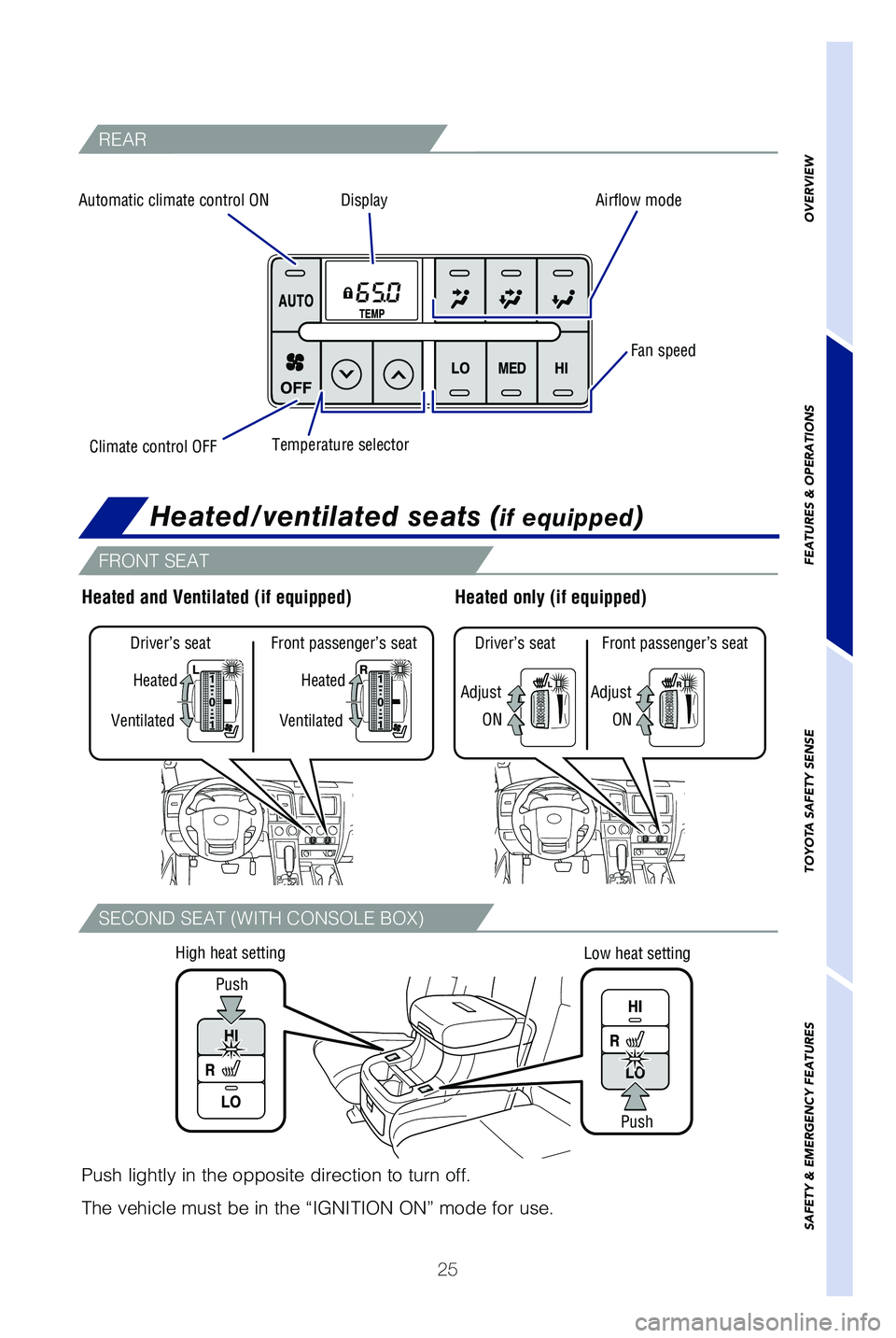

REAR
FRONT SEAT
SECOND SEAT (WITH CONSOLE BOX)
Climate control OFF
Driver’s seat Front passenger’s seat
Ventilated
Ventilated Heated
Heated
Adjust
Driver’s seat Front passenger’s seat
ON
Adjust
ON
Heated only (if equipped)Heated and Ventilated (if equipped)
Push
Push
Low heat setting
High heat setting
Push lightly in the opposite direction to turn off.
The vehicle must be in the “IGNITION ON” mode for use.
Automatic climate control ON
DisplayAirflow mode
Fan speed
Temperature selector
Heated/ventilated seats (if equipped)

26
FEATURES & OPERATIONS
Turn to tune
radio stations
manually or
select tracks or
files
Touchscreen display
Push to turn
ON/OFF or turn
to adjust volume
USB media port
USB charge ports
Connecting a compatible device and cable into the USB media port will su\
pport
charging and music playback through the audio multimedia system.
Refer to the “Navigation and Multimedia System Owner’s Manual” \
or visit
www.toyota.com/audio-multimedia for additional resources.
NOTE: Always use safe driving practices and follow all traffic rules.
Seek station/
track/file select
Access Bluetooth
hands-free
system
Access
Apps screen
(Charge only)
The vehicle must be in the “ACCESSORY” or “IGNITION ON” mode\
for use.
Access
HOME screen
Access
MENU screen
Access
AUDIO screen
Access
MAP screen
Audio

29
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Multi-Information Display (MID)
Return to previous screen Press: Enters/Sets
Press and hold: Resets
Menu
Select item/change pages
Drive information
Navigation system-linked display (if equipped)
Audio system-linked display
Vehicle information
Warning message display
Settings display
Press meter control switches to change and select information in the fol\
lowing:
Refer to the Owner’s Manual for more details.
Clock
1) Push “MENU” button next to the screen.
2) Select “Setup” or “General” in the touchscreen to access the general setting screen.
3) Select “Clock.”
4) Select desired items to be set.

Refer to the “Navigation and Multimedia System Owner’s Manual” \
for more details.
* Available only on Premium Audio
Select to change the time zone.
Select to set daylight saving
time On/Off/Auto*.
Select to set to automatic GPS
adjustment of clock.
Select to set the 24 hour time
format on/off.

32
FEATURES & OPERATIONS
Electronically modulated air suspension
(If equipped)
The electronically modulated air suspension allows the driver to control\
the
vehicle’s height in order to adjust for driving conditions.
Select the desired height with the height control switch.
“N” mode (normal mode): For ordinary driving.
“HI” mode (high mode): For driving on bumpy roads 1.2 in. (30 mm) higher than
the normal height.
“LO” mode (low mode): For the ease of egress/ingress and loading luggage. -1.2 in. (30 mm) lower than the normal height
Vehicle height can be adjusted only when the engine is running.
The selected height mode will be shown on the electronically modulated a\
ir
suspension display. The selected mode will flash while the height mode i\
s being
changed.
Refer to the Owner’s Manual for limitations and more details on this \
system.
HEIGHT CONTROL SWITCH
SELECTING VEHICLE HEIGHT
Height control switch
Higher
Lower
Height control mode
select switch

33
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

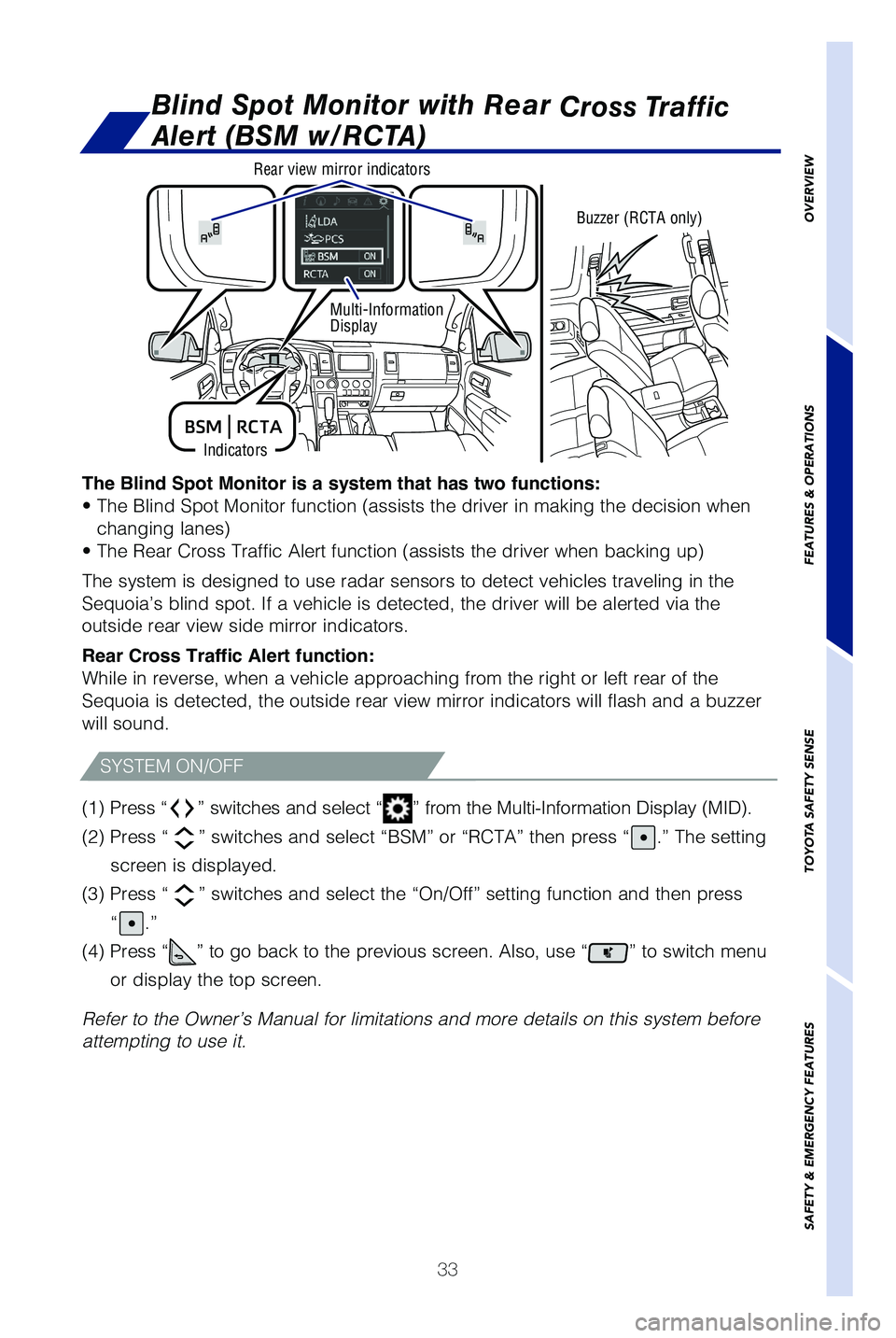

The Blind Spot Monitor is a system that has two functions:
• The Blind Spot Monitor function (assists the driver in making the \
decision when
changing lanes)
• The Rear Cross Traffic Alert function (assists the driver when bac\
king up)
The system is designed to use radar sensors to detect vehicles traveling\
in the
Sequoia’s blind spot. If a vehicle is detected, the driver will be al\
erted via the
outside rear view side mirror indicators.
Rear Cross Traffic Alert function:
While in reverse, when a vehicle approaching from the right or left rear\
of the
Sequoia is detected, the outside rear view mirror indicators will flash \
and a buzzer
will sound.
Blind Spot Monitor with Rear Cross Traffic
Alert (BSM w/RCTA)
Rear view mirror indicators
Indicators Multi-Information
Display
Buzzer (RCTA only)
(1)
Press “” switches and select “” from the Multi-Information Display (MID).
(2) Press “
” switches and select “BSM” or “RCTA” then press “.” The setting
screen is displayed.
(3) Press “
” switches and select the “On/Off” setting function and then pr\
ess
“
.”
(4) Press “
” to go back to the previous screen. Also, use “” to switch menu
or display the top screen.
Refer to the Owner’s Manual for limitations and more details on this \
system before
attempting to use it.
SYSTEM ON/OFF
