navigation system TOYOTA SEQUOIA 2021 Owners Manual (in English)

3
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

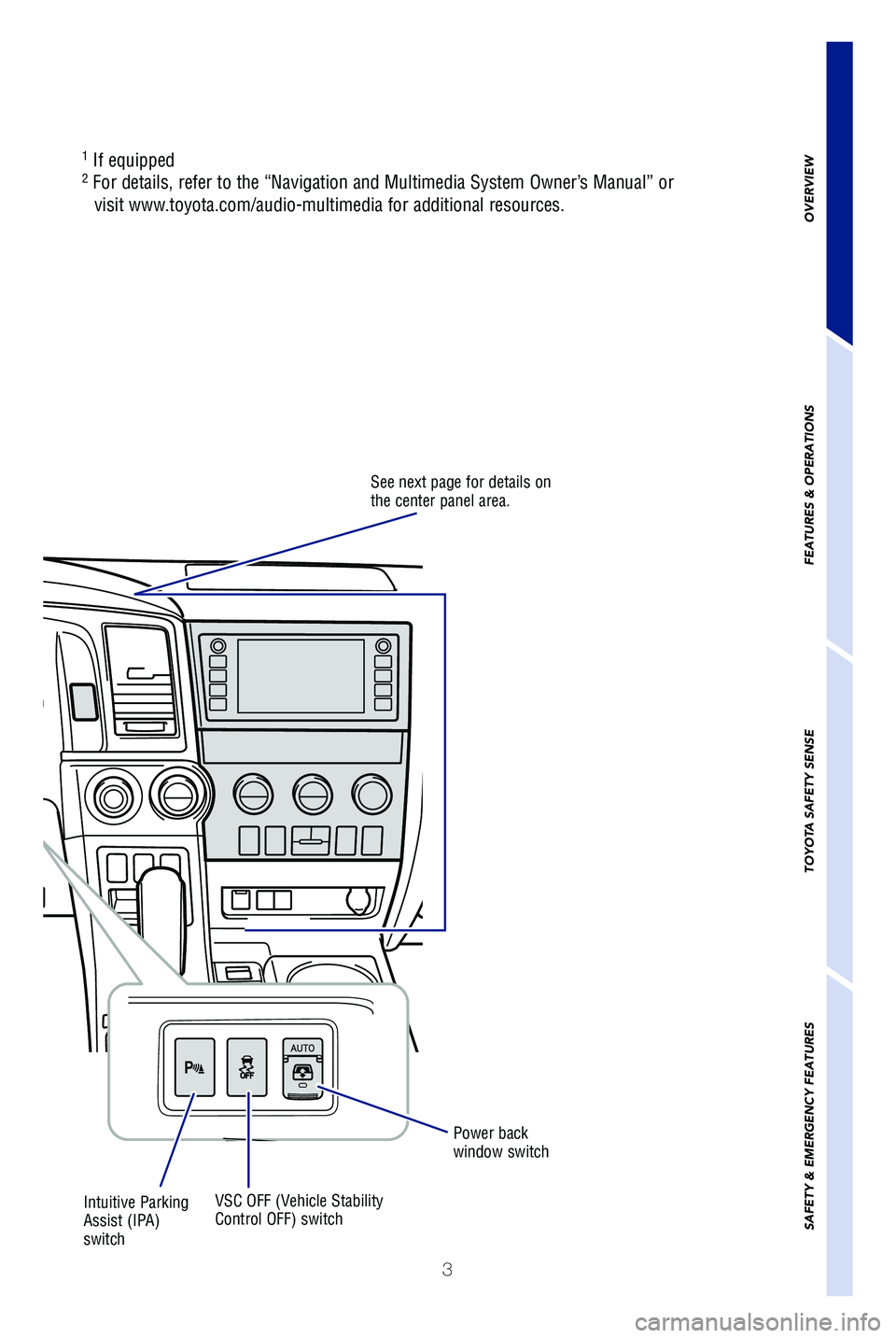

Intuitive Parking
Assist (IPA)
switchVSC OFF (Vehicle Stability
Control OFF) switch Power back
window switch
See next page for details on
the center panel area.
1If equipped2 For details, refer to the “Navigation and Multimedia System Owner’\
s Manual” or
visit www.toyota.com/audio-multimedia for additional resources.

4

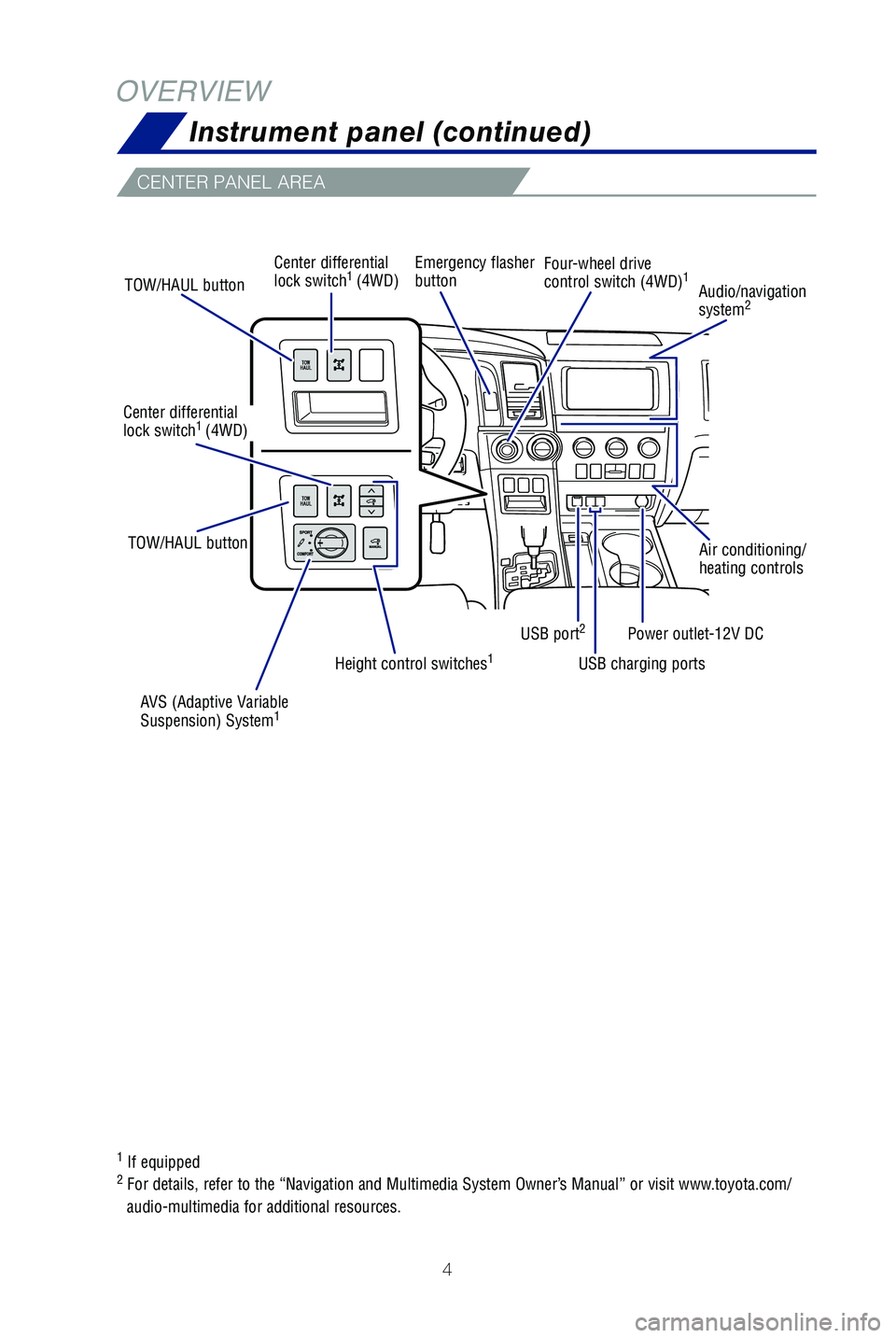

CENTER PANEL AREA
OVERVIEW
1If equipped2For details, refer to the “Navigation and Multimedia System Owner’\
s Manual” or visit www.toyota.com/
audio-multimedia for additional resources.
Instrument panel (continued)
Air conditioning/
heating controls
Height control switches
1
AVS (Adaptive Variable
Suspension) System1
Four-wheel drive
control switch (4WD)1Audio/navigation
system2TOW/HAUL button
Center differential
lock switch1 (4WD)Emergency flasher
button
USB port
2
USB charging portsPower outlet-12V DC
TOW/HAUL button
Center differential
lock switch1 (4WD)

26
FEATURES & OPERATIONS
Turn to tune
radio stations
manually or
select tracks or
files
Touchscreen display
Push to turn
ON/OFF or turn
to adjust volume
USB media port
USB charge ports
Connecting a compatible device and cable into the USB media port will su\
pport
charging and music playback through the audio multimedia system.
Refer to the “Navigation and Multimedia System Owner’s Manual” \
or visit
www.toyota.com/audio-multimedia for additional resources.
NOTE: Always use safe driving practices and follow all traffic rules.
Seek station/
track/file select
Access Bluetooth
hands-free
system
Access
Apps screen
(Charge only)
The vehicle must be in the “ACCESSORY” or “IGNITION ON” mode\
for use.
Access
HOME screen
Access
MENU screen
Access
AUDIO screen
Access
MAP screen
Audio

27
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
End call Volume controls
Voice command switch
Start call
Microphone
“MODE/HOLD”
Push to change audio
mode. Push and hold to
mute or pause the audio. “
>>”
Use to search within the
selected audio feature.

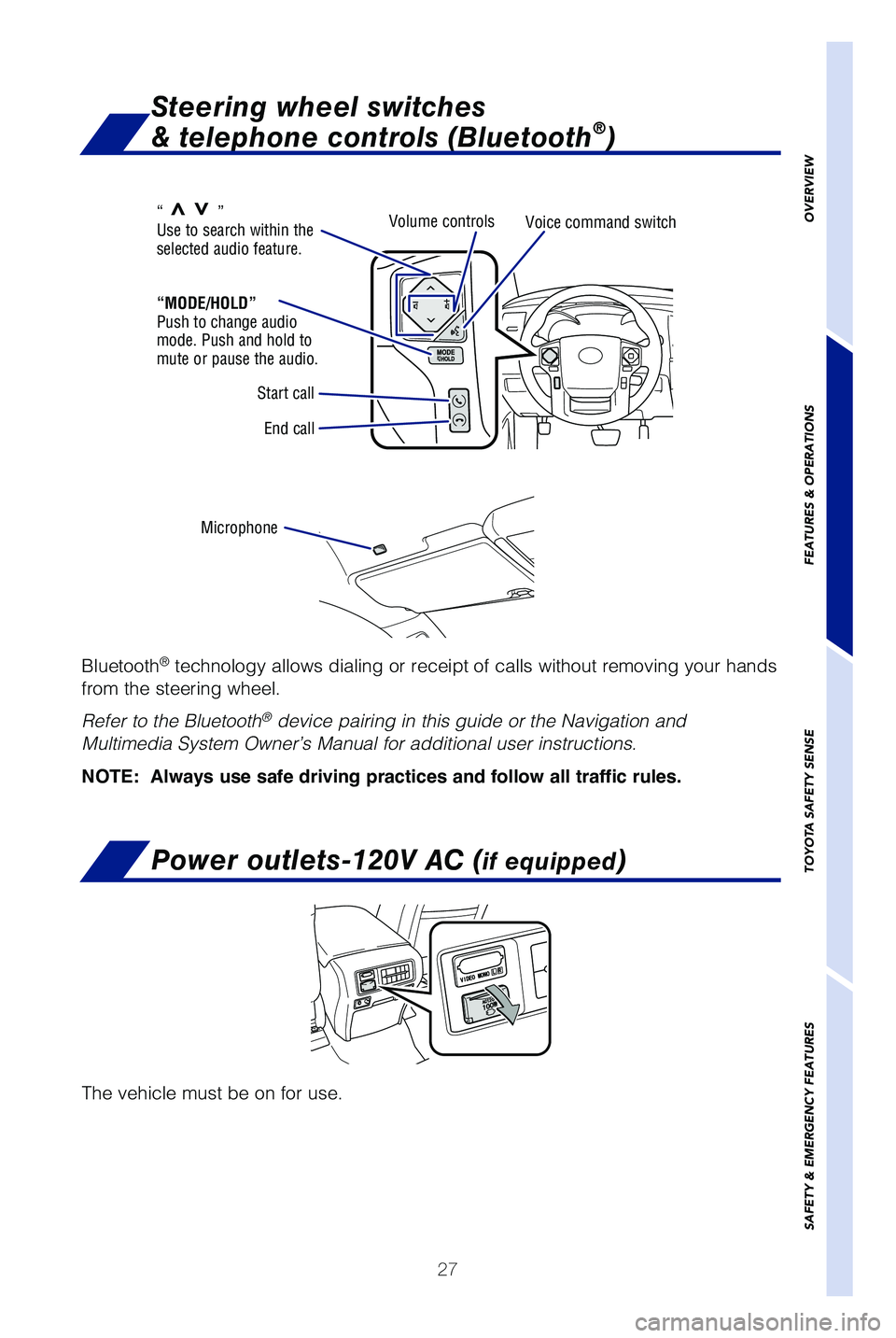

Steering wheel switches
& telephone controls (Bluetooth®)
Bluetooth® technology allows dialing or receipt of calls without removing your han\
ds
from the steering wheel.
Refer to the Bluetooth
® device pairing in this guide or the Navigation and
Multimedia System Owner’s Manual for additional user instructions.
NOTE: Always use safe driving practices and follow all traffic rules.
The vehicle must be on for use.
Power outlets-120V AC (if equipped)

28

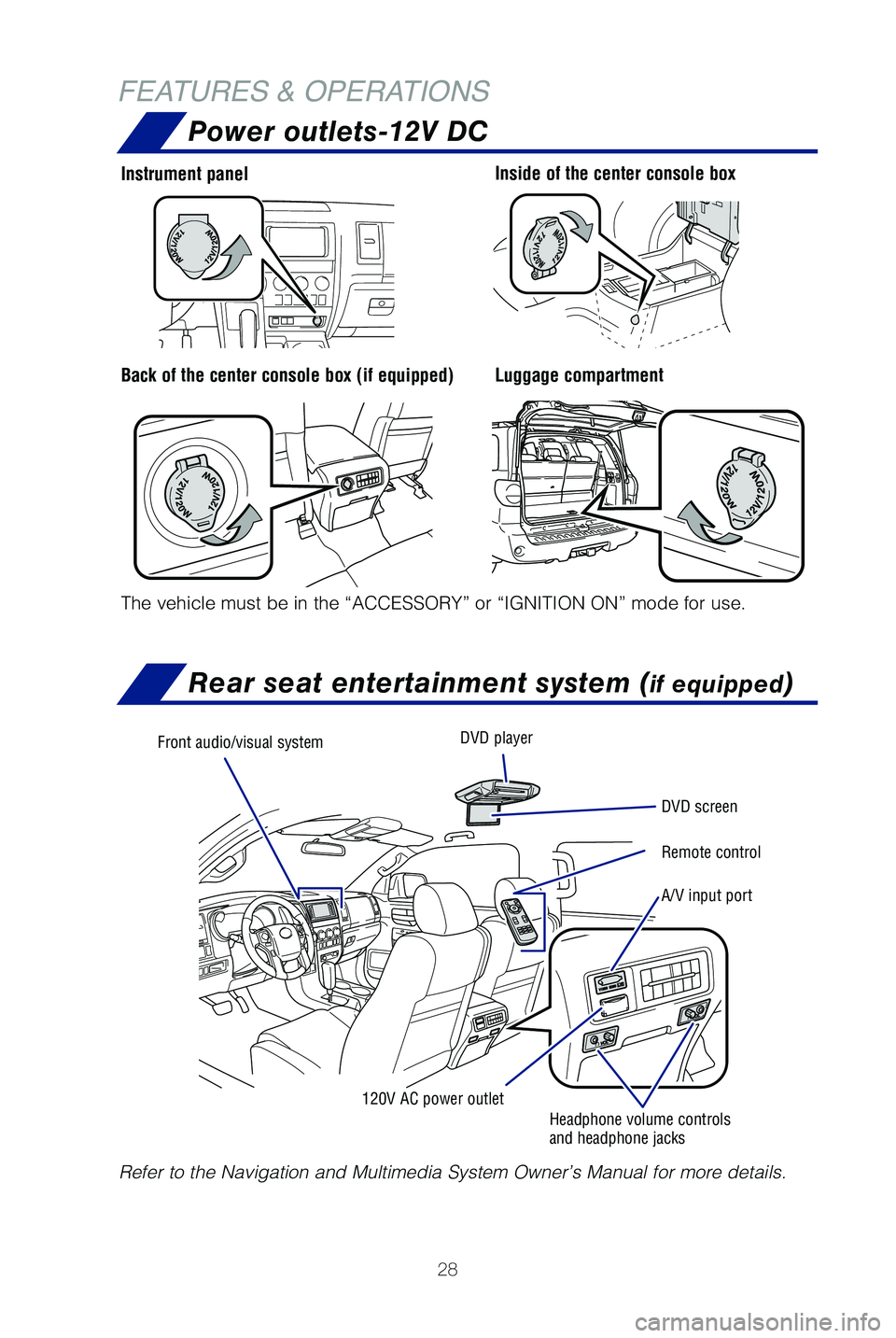

FEATURES & OPERATIONSPower outlets-12V DC
Luggage compartment
Instrument panelInside of the center console box
Back of the center console box (if equipped)
The vehicle must be in the “ACCESSORY” or “IGNITION ON” mode\
for use.
Rear seat entertainment system (if equipped)
Refer to the Navigation and Multimedia System Owner’s Manual for more\
details.
Front audio/visual system DVD player
DVD screen
Remote control
A/V input port
120V AC power outlet Headphone volume controls
and headphone jacks

29
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Multi-Information Display (MID)
Return to previous screen Press: Enters/Sets
Press and hold: Resets
Menu
Select item/change pages
Drive information
Navigation system-linked display (if equipped)
Audio system-linked display
Vehicle information
Warning message display
Settings display
Press meter control switches to change and select information in the fol\
lowing:
Refer to the Owner’s Manual for more details.
Clock
1) Push “MENU” button next to the screen.
2) Select “Setup” or “General” in the touchscreen to access the general setting screen.
3) Select “Clock.”
4) Select desired items to be set.

Refer to the “Navigation and Multimedia System Owner’s Manual” \
for more details.
* Available only on Premium Audio
Select to change the time zone.
Select to set daylight saving
time On/Off/Auto*.
Select to set to automatic GPS
adjustment of clock.
Select to set the 24 hour time
format on/off.
