fuse box TOYOTA SEQUOIA HYBRID 2023 Owners Manual

4656-3. Do-it-yourself maintenance
Owners Manual_USA_M0C043_en
6
Maintenance and care
Fuse boxes ( P.495)
Power control unit coolant reservoir ( P.468)
Intercooler coolant reservoir ( P.468)
Engine coolant reservoir ( P.468)
Engine oil filler cap ( P.466)
Engine oil level dipstick ( P.466)
Brake fluid reservoir ( P.469)
Engine radiator ( P.469)
Condenser ( P.469)
Electric cooling fans
Radiator cooling fan ( P.468)
Washer fluid tank ( P.470)
Intercooler radiators ( P.468)

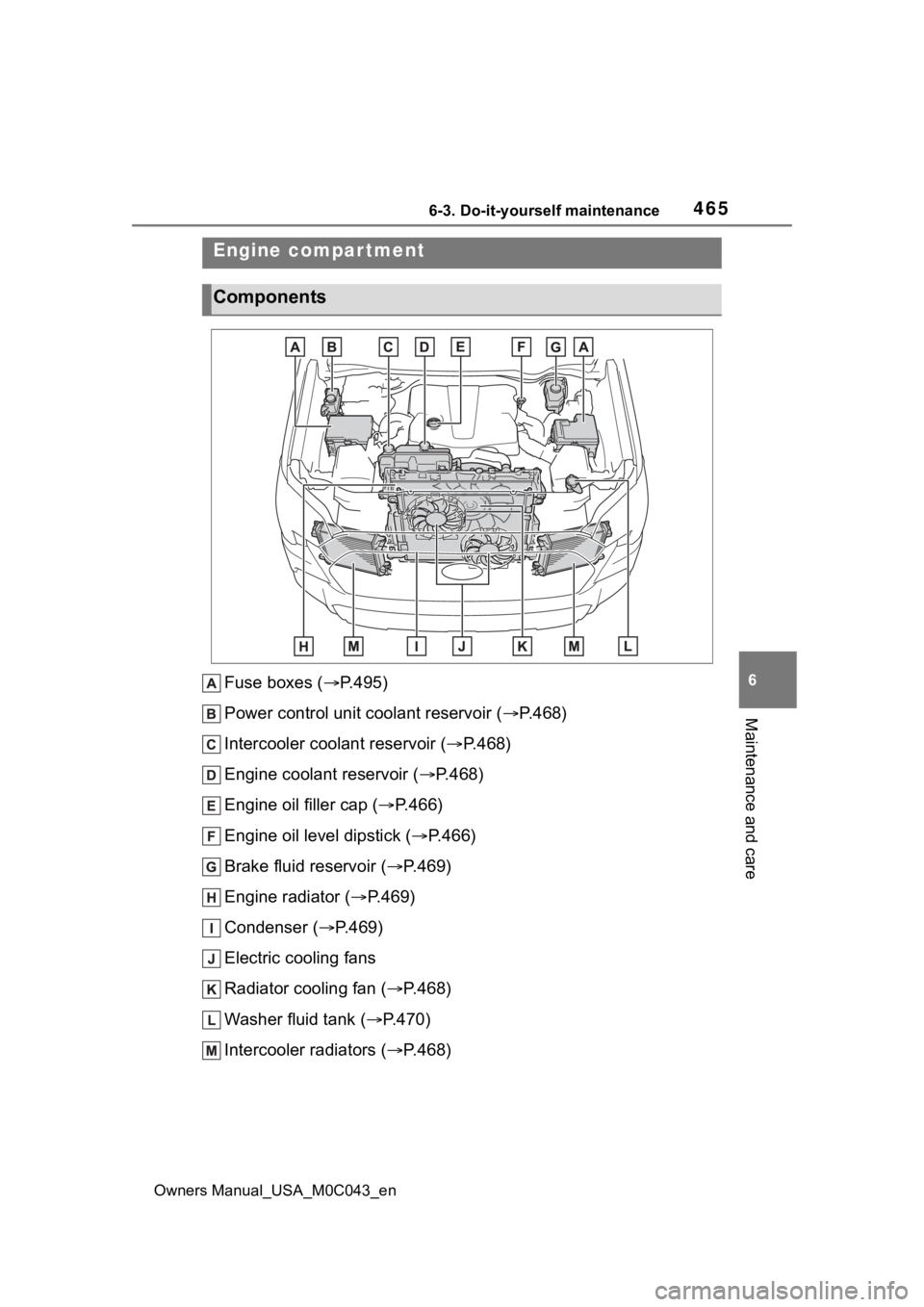

Engine compar tment
Components

4956-3. Do-it-yourself maintenance
Owners Manual_USA_M0C043_en
6
Maintenance and care
1 Turn the power switch off.
2 Open the fuse box cover.
Engine compartment: type A
fuse box
Push the tabs in and lift the lid off.
Engine compartment: type B
fuse box
Push the tabs in and lift the lid off.
Passenger’ side instrument
panel
Remove the cover.
Vehicles with footwell lights:
Remove the footwell lights connec-
tor.
Remove the lid.
Make sure to push the claw when
removing/installing the lid.
Checking and replac-
ing fuses
If any of the electrical com-
ponents do not operate, a
fuse may have blown. If this
happens, check and replace
the fuses as necessary.
Checking and replacing
fuses

4966-3. Do-it-yourself maintenance
Owners Manual_USA_M0C043_en
Luggage compartment
Slide the third se ats to the front-
most position. ( P.145)
Remove the left-hand side of the
luggage trim cover.
Remove the positive (+) battery ter-
minal cover.
3 Remove the fuse with the
pullout tool.
Only type A fuse can be removed using the pullout
tool.
4 Check if the fuse is blown.
Type A and B:
Replace the blown fuse with a new
fuse of an appropriate amperage
rating. The amperage rating can be
found on the fuse box lid.
Type C and D:
Contact your Toyota dealer.
Type A
Normal fuse
Blown fuse
Type B

4976-3. Do-it-yourself maintenance
Owners Manual_USA_M0C043_en
6
Maintenance and care
Normal fuse
Blown fuse
Type C Normal fuse
Blown fuse
Type D
Normal fuse
Blown fuse
■After a fuse is replaced
●When installing the lid, make sure
that the tab is installed securely.
●If the lights do n ot turn on even
after the fuse has been replaced,
a bulb may need replacement.
●If the replaced fuse blows again,
have the vehicle inspected by
your Toyota dealer.
■If there is an ove rload in a cir-
cuit
The fuses are designed to blow, pro-
tecting the wiring harness from
damage.
■When replacing light bulbs
Toyota recommends that you use
genuine Toyota pr oducts designed
for this vehicle.
Because certain bulbs are con-
nected to circuits designed to pre-
vent overload, non-genuine parts or
parts not designed for this vehicle
may be unusable.
WARNING
■To prevent system break-
downs and vehicle fire
Observe the following precau-
tions.
Failure to do so may cause dam-
age to the vehicle, and possibly a
fire or injury.
●Never use a fuse of a higher
amperage rating than that indi-
cated, or use any other object in
place of a fuse.
●Always use a genuine Toyota
fuse or equivalent.
Never replace a fuse with a
wire, even as a temporary fix.
●Do not modify the fuses or fuse
boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical over-
load determined and repaired by
your Toyota dealer as soon as
possible.

5387-2. Steps to take in an emergency
Owners Manual_USA_M0C043_en
If you have a set of jumper (or
booster) cables and a second
vehicle with a 12-volt battery,
you can jump start your vehicle
by following the steps below.
1Confirm that the electronic
key is being carried.
When connecting the jumper (or
booster) cables, depending on the
situation, the ala rm may activate
and doors locked. ( P. 8 5 )
2 Open the hood ( P.464) and
fuse box cover.
Push claw to completely release
the lock, and them lift up the cover.
3 Open the exclusive jump
starting terminal cover.
4 Remove the engine cover.
Lift the edge of the cover to disen-
gage the fixed pins, and then pull
the cover towards you to remove it.
5 Connect a positive jumper cabl e clamp to on your vehicle and
connect the clamp on the other end of the positive cable to on
the second vehicle. Then, connect a negative cable clamp to
If the vehicle 12-volt
batter y is discharged
The following procedures
may be used to start the
hybrid system if the vehi-
cle’s 12-volt battery is dis-
charged.
You can also call your Toy-
ota dealer or a qualified
repair shop.
Restarting the hybrid sys-
tem

5397-2. Steps to take in an emergency
Owners Manual_USA_M0C043_en
7
When trouble arises
on the second vehicle and connect the clamp at the other end of
the negative cable to .
Exclusive jump starting terminal (your vehicle)
Positive (+) battery terminal (second vehicle)
Negative (-) battery term inal (second vehicle)
Solid, stationary, unpainted metallic point away from the batte ry
and any moving parts as shown in the illustration
6 Start the engine of the sec-
ond vehicle. Increase the
engine speed slightly and
maintain at that level for
approximately 5 minutes to
recharge the 12-volt battery
of your vehicle.
7 Open and close any of the
doors of your vehicle with the
power switch OFF.
8 Maintain the engine speed of
the second vehicle and start
the hybrid system of your
vehicle by turning the power
switch to ON.
9 Once the vehicle’s hybrid
system has started, remove the jumper cables in the
exact reverse order from
which they were connected.
10When the engine cover installing, reverse the step
removed.
11Close the exclusive jump starting terminal cover, and
reinstall the fuse box cover to
its original position.
Once the engine starts, have the
vehicle inspected at your Toyota
dealer as soon as possible.
