TOYOTA SIENNA 1998 Owners Manual

name. SIENNA (U)
101
Make sure you turn the defoggers off
when the surfaces are clear. Leaving the
defoggers on for a long time could cause
the battery to discharge, especially during
stop−and−go driving. The defoggers are
not designed for drying rain water or for
melting snow.
CAUTION
On some models, since the mirror
surfaces can get hot, keep your
hands off them when the defogger
switch is on.
NOTICE
When cleaning the inside of the rear
window, be careful not to scratch or
damage the heater wires.
ProCarManuals.com

name. SIENNA (U)
102
ProCarManuals.com

name. SIENNA (U)
103
Part 1
OPERATION OF
INSTRUMENTS
AND CONTROLS—
Chapter 1−5
Gauges, Meters and
Service reminder
indicators
Fuel gauge
Engine coolant temperature
gauge
Tachometer
Odometer and two trip meters
Service reminder indicators and
warning buzzers

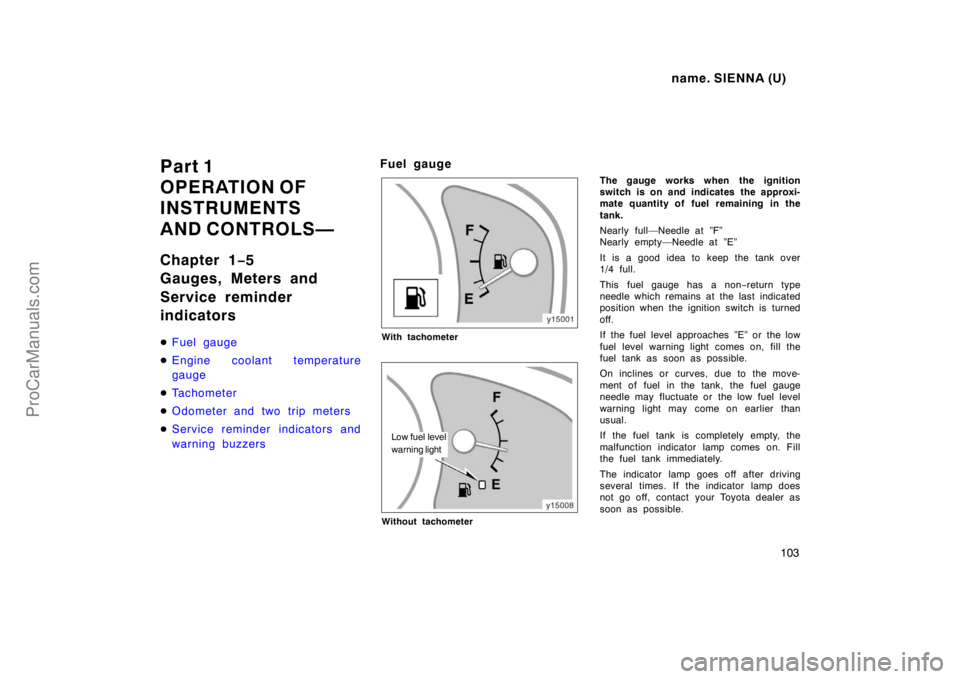

Fuel gauge
With tachometer
Low fuel level
warning light
Without tachometer
The gauge works when the ignition
switch is on and indicates the approxi-
mate quantity of fuel remaining in the
tank.
Nearly full—Needle at ”F”
Nearly empty—Needle at ”E”
It is a good idea to keep the tank over
1/4 full.
This fuel gauge has a non−return type
needle which remains at the last indicated
position when the ignition switch is turned
off.
If the fuel level approaches ”E” or the low
fuel level warning light comes on, fill the
fuel tank as soon as possible.
On inclines or curves, due to the move-
ment of fuel in the tank, the fuel gauge
needle may fluctuate or the low fuel level
warning light may come on earlier than
usual.
If the fuel tank is completely empty, the
malfunction indicator lamp comes on. Fill
the fuel tank immediately.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.
ProCarManuals.com

name. SIENNA (U)
104

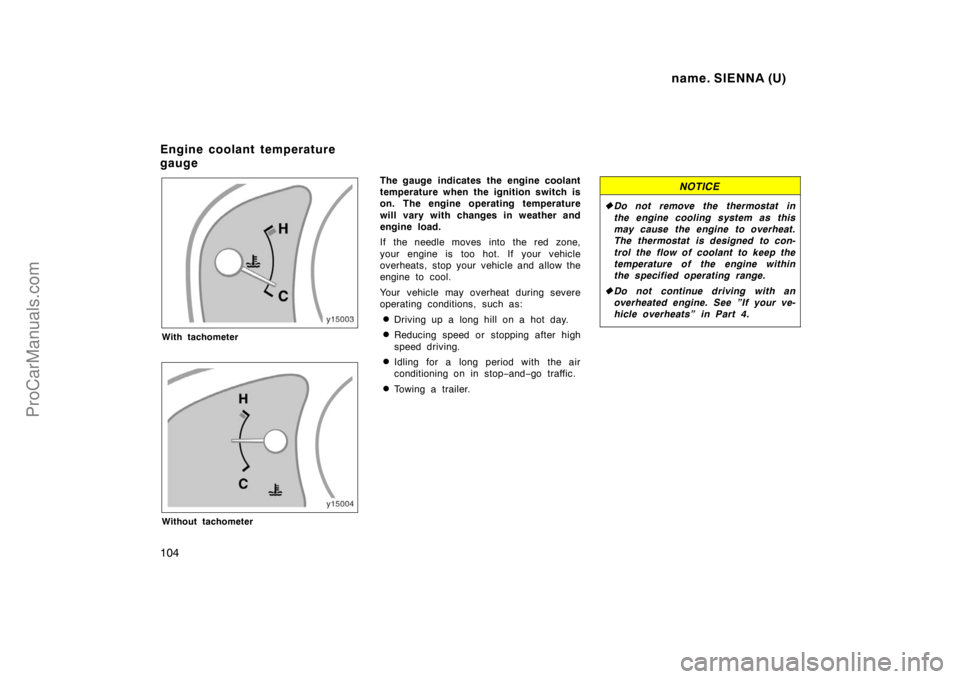

With tachometer
Without tachometer
The gauge indicates the engine coolant
temperature when the ignition switch is
on. The engine operating temperature
will vary with changes in weather and
engine load.
If the needle moves into the red zone,
your engine is too hot. If your vehicle
overheats, stop your vehicle and allow the
engine to cool.
Your vehicle may overheat during severe
operating conditions, such as:
Driving up a long hill on a hot day.
Reducing speed or stopping after high
speed driving.
Idling for a long period with the air
conditioning on in stop−and−go traffic.
Towing a trailer.
NOTICE
Do not remove the thermostat in
the engine cooling system as this
may cause the engine to overheat.
The thermostat is designed to con-
trol the flow of coolant to keep the
temperature of the engine within
the specified operating range.
Do not continue driving with an
overheated engine. See ”If your ve-
hicle overheats” in Part 4.
Engine coolant temperature
gauge
ProCarManuals.com

name. SIENNA (U)
105

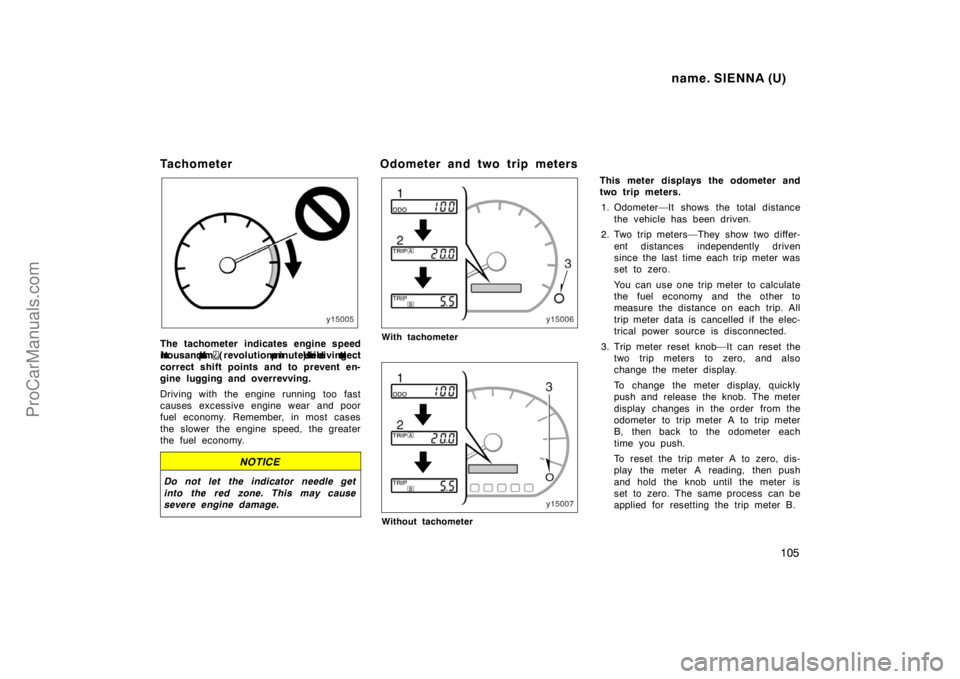

Tachometer
The tachometer indicates engine speed
in t housands of r pm
( revolutions per minute). Use i t while driving t o s elect
correct shift points and to prevent en-
gine lugging and overrevving.
Driving with the engine running too fast
causes excessive engine wear and poor
fuel economy. Remember, in most cases
the slower the engine speed, the greater
the fuel economy.
NOTICE
Do not let the indicator needle get
into the red zone. This may cause
severe engine damage.
Odometer and two trip meters
With tachometer
Without tachometer
This meter displays the odometer and
two trip meters.
1. Odometer—It shows the total distance
the vehicle has been driven.
2. Two trip meters—They show two differ-
ent distances independently driven
since the last time each trip meter was
set to zero.
You can use one trip meter to calculate
the fuel economy and the other to
measure the distance on each trip. All
trip meter data is cancelled if the elec-
trical power source is disconnected.
3. Trip meter reset knob—It can reset the
two trip meters to zero, and also
change the meter display.
To change the meter display, quickly
push and release the knob. The meter
display changes in the order from the
odometer to trip meter A to trip meter
B, then back to the odometer each
time you push.
To reset the trip meter A to zero, dis-
play the meter A reading, then push
and hold the knob until the meter is
set to zero. The same process can be
applied for resetting the trip meter B.
ProCarManuals.com

name. SIENNA (U)
106
(a)
(b)
If the indicator
or buzzer
comes on...
(c)
(d)
If parking brake
is off, stop and
check.
Fasten seat belts.
Stop and check.
Take vehicle to
Toyota dealer. Do this.
(type
A)
(type
B)
(Indicator and buzzer)
(type
A)
(type
B
)
(f)
(g)
If the indicator
or buzzer
comes on...
(h) (e)
Low fuel level
warning lightDo this.
Fill up tank.
(type
A)
(type
B)
Stop and check.
Take vehicle to
Toyota dealer.
(type
A)
(type
B)
Close all doors.Add washer fluid.
Adjust tire
pressure.If the indicator
or buzzer
comes on...
Remove key. Take vehicle to
To y o t a d e a l e r
immediately.
(m
) (l)
Key reminder
buzzer (k) (j)Do this.
Close the right
side sliding door. (i)
(Indicator and buzzer)
Service reminder indicators
an d warn in g bu zzers
ProCarManuals.com

name. SIENNA (U)
107
(a) Brake System Warning Light
This light has the following functions:
Parking brake reminder
If this light is on, make sure the parking
brake is fully released. The light should
go off.
Low brake fluid level warning
If this light comes on and stays on while
you are driving, slow down and pull off
the road. Then stop the vehicle carefully.
Remember that stopping distance and ped-
al effort may be increased. There maybe
a problem somewhere in the brake sys-
tem. Check the fluid level of the see−
through reservoir.
To make sure the parking brake has not
caused the warning light to come on,
check to see that the parking brake is
fully released.
If the brake fluid level is low...
At a safe place, test your brakes by start-
ing and stopping.
If you judge that the brakes still work
adequately, drive cautiously to your
nearest dealer or shop for repairs.
If the brakes are not working, have the
vehicle towed in for repairs. (For tow-
ing information, see Part 4.)
CAUTION
It is dangerous to continue driving
normally when the brake fluid level is
low.
If the brake fluid level is correct...
Have the warning system checked by your
Toyota dealer.
(b) Seat Belt Reminder Light and Buzz-
er
The light and buzzer remind you to buckle
up the driver ’s seat belt.
Once the ignition key is turned to ”ON” or
”START”, the reminder light and buzzer
come on if the driver’s seat belt is not
pulled out. Unless the driver starts to pull
the shoulder belt out of the retractor, the
light stays on and the buzzer stops after
about 4 to 8 seconds.
(c) Discharge Warning Light
This light warns that the battery is being
discharged.
If it comes on while you are driving, there
is a problem somewhere in the charging
system.The engine ignition will continue to oper-
ate, however, until the battery is dis-
charged. Turn off the air conditioning,
blower, radio, etc., and drive directly to
the nearest Toyota dealer or repair shop.
NOTICE
Do not continue driving if the engine
drive belt is broken or loose.
(d) Malfunction Indicator Lamp
This lamp comes on in the following
cases.
a. The fuel tank is completely empty. (See
”Fuel gauge” in Chapter 1−5 for instruc-
tions.)
b. The fuel tank cap is not tightened se-
curely. (See ”Fuel tank cap” in Chapter
1−2 for instructions.)
c. There is a problem somewhere in your
engine or automatic transmission electrical
system.
If it comes on while you are driving in
case c, have your vehicle checked/re-
paired by your Toyota dealer as soon as
possible.
ProCarManuals.com

name. SIENNA (U)
108
(e) Low Fuel Level Warning Light
This light comes on when the fuel level
in the tank becomes nearly empty. Fill up
the tank as soon as possible.
On inclines or curves, due to the move-
ment of fuel in the tank, the low fuel level
warning light may come on earlier than
usual.
(f) Low Oil Pressure Warning Light
This light warns that the engine oil pres-
sure is too low.
If it flickers or stays on while you are
driving, pull off the road to a safe place
and stop the engine immediately. Call a
Toyota dealer or qualified repair shop for
assistance.
The light may occasionally flicker when
the engine is idling or it may come on
briefly after a hard stop. There is no
cause for concern if it then goes out when
the engine is accelerated slightly.
The light may come on when the oil level
is extremely low. It is not designed to
indicate low oil level, and the oil level
must be checked using the level dipstick.NOTICE
Do not drive the vehicle with the
warning light on—even for one block.
It may ruin the engine.
(g) ”ABS” Warning Light
This light warns that there is a problem
somewhere in your anti−lock brake sys-
tem.
If the light comes on while you are driv-
ing, have your vehicle checked by your
Toyota dealer as soon as possible.
The light will come on when the ignition
key is turned to the ”ON” position. After
a few seconds, the light will go off.
When the ”ABS” warning light is on (and
the brake system warning light is off), the
brake system operates conventionally but
anti−lock brake system is not assisting
brake performance so that the wheels can
lock−up during sudden braking or braking
on slippery road surfaces.(h) Open Door Warning Light
This light remains on until all the doors
and back door are completely closed.
When the ignition switch is ”OFF” and this
light stays lighting on, the light will turn off
automatically after 30 minutes with the light
flashing five times. See ”Personal lights” and
”Interior light” for details in chapter 1−4.
(i) Open Power Sliding Door Warning
Light and Buzzer
This light comes on if the power sliding
door is not completely closed with the
ignition key in the “ON” position.
If you forcibly close the power sliding door
by your hand when the ignition key is in
the “ON” position, the open power sliding
door warning light will stay on. In this
case, try again closing the power sliding
door by hand slowly, or use one of the
“PWR DOOR” switches or wireless remote
control transmitter.
If you shift out of “P” when the power
sliding door is opened or in the process
of closing with the power sliding door sys-
tem on, a buzzer will sound and the open
power sliding door warning light will flash.
This is a warning that the sliding door is
not completely closed.
ProCarManuals.com

name. SIENNA (U)
109
(j) SRS Airbag Warning Light
This light will come on when the igni-
tion key is turned to the “ACC” or
“ON” position. After about 6 seconds,
the light will go off. This means the
system of the airbag and front seat belt
pretensioners are operating properly.
The warning light system monitors the air-
bag sensor assembly, seat belt pretension-
er assembly, inflators, warning light, inter-
connecting wiring and power sources.
If either of the following conditions occurs,
this indicates a malfunction somewhere in
the parts monitored by the warning light
system. Contact your Toyota dealer as
soon as possible to service the vehicle.
The light does not come on when the
ignition key is turned to the ”ACC” or
”ON” position or remains on.
The light comes on or flashes while
driving.
(k) Low Windshield Washer Fluid Level
Warning Light
The light warns that the windshield washer
fluid level is too low. Add washer fluid at
your earliest opportunity. (For instructions,
see ”Adding washer fluid” in Chapter 7−3.)(l) Low Tire Pressure Warning Light
This light warns that the tire pressure of any
one of the tires is critically reduced. The light
comes on when the ignition key is turned to
the ”ON” position. It goes off after a few
seconds. This indicates that the low tire pres-
sure warning system is functioning properly.
If the light comes on while driving, adjust tire
pressure to the specified level. (See ”Tires”
in Part 8.) After the tire pressure is adjusted,
the light should go off after driving at about
more than 30 km/h (19 mph) for some time.
If the light still remains, have the low tire
pressure warning system checked at your
Toyota dealer.
(m) Key Reminder Buzzer
This buzzer reminds you to remove the
key when you open the driver’s door with
the ignition key in the ”ACC” or ”LOCK”
position.CHECKING SERVICE REMINDER INDICA-
TORS (except the low fuel level warning
light and low windshield washer fluid
level warning light)
1. Apply the parking brake.
2. Open one of the doors.
The open door warning light should
come on.
3. Close the door.
The open door warning light should go
off.
4. Turn the ignition key to ”ACC”.
The SRS airbag warning light should
come on. It goes off after about 6 se-
conds.
5. Turn the ignition key to ”ON”, but do
not start the engine.
All the service reminder indicators ex-
cept the open door warning light, open
power sliding door warning light and
SRS airbag warning light should come
on. The ”ABS” warning light and low
tire pressure warning light go off after
a few seconds.
ProCarManuals.com

name. SIENNA (U)
11 0
6. Vehicles with a power sliding door:
Open the right side sliding door.
The open power sliding door warning
light should come on.
Close the right side sliding door.
The open power sliding door warning
light should go off.
If any service reminder indicator or warn-
ing buzzer does not function as described
above, either the bulb is burned out or the
circuit is in need of repair. Have it
checked by your Toyota dealer as soon as
possible.
ProCarManuals.com
