TOYOTA SIENNA 1998 Owners Manual
Manufacturer: TOYOTA, Model Year: 1998, Model line: SIENNA, Model: TOYOTA SIENNA 1998Pages: 261, PDF Size: 6.83 MB
Page 1 of 261
name. SIENNA (U)
1
Part 1
OPERATION OF
INSTRUMENTS
AND CONTROLS—
Chapter 1−1
Overview of instruments
and controls
Instrument panel overview
Instrument cluster overview
Indicator symbols on the
instrument panel
ProCarManuals.com
Page 2 of 261
name. SIENNA (U)
2
Instrument panel overview
1. Side defroster outlets
2. Side vents
3. Instrument cluster
4. Automatic transmission selector lever
5. Center vents
6. Garage door opener box or auxiliary
box
7. Electric moon roof switch or
personal light switch
8. Front personal lights or front interior
light
9. Power door lock switches
10. Power window switches
11. Glovebox
12. Auxiliary boxes
13. Tilt steering lock release lever
14. Hood lock release lever
15. Parking brake pedal
ProCarManuals.com
Page 3 of 261
name. SIENNA (U)
3
1. Headlight and turn signal switch
2. Wiper and washer switches
3. Clock
4. Air conditioning controls
5. Emergency flasher switch
6. Rear window and outside rear view
mirror defoggers switch
7. Power rear quarter window switch
8. Rear fan speed selector
9. Car audio
10. Ashtray
11. Cigarette lighter
12. Power outlet
13. Power sliding door switch
14. Ignition switch
15. Cruise control switch
16. Power sliding door off switch
17. Theft deterrent system indicator light
18. Power rear view mirror control switch
19. Tire pressure warning system reset
switch
20. Instrument panel light control dial
ProCarManuals.com
Page 4 of 261
name. SIENNA (U)
4
With tachometer
1. Engine coolant temperature gauge
2. Tachometer
3. Service reminder indicators and
indicator lights4. Speedometer
5. Fuel gauge
6. Trip meter reset knob7. Odometer and two trip meters
Instrument cluster overview
ProCarManuals.com
Page 5 of 261
name. SIENNA (U)
5
Without tachometer
1. Engine coolant temperature gauge
2. Service reminder indicators and
indicator lights
3. Speedometer4. Odometer and two trip meters
5. Fuel gauge
6. Trip meter reset knob
ProCarManuals.com
Page 6 of 261
name. SIENNA (U)
6
Indicator symbols on the instrument panel
Brake system warning light∗
1
Seat belt reminder light∗
1
Malfunction indicator lamp∗
1
Low fuel level warning light∗
1
(type A)
Low oil level warning light∗
1
(type B)
Discharge warning light
∗
1
(type A)
(type B)
(type A)
(type B)Anti−lock brake system warning light∗
1
Open door warning light∗
1
SRS airbag warning light∗
1
Low windshield washer fluid level warning light∗
1
Low tire pressure warning light∗
1
Open power sliding door warning light∗
1
ProCarManuals.com
Page 7 of 261
name. SIENNA (U)
7
Overdrive−off indicator light
Cruise control indicator light
∗
2
Automatic transmission indicator light
∗
1: For details, see ”Service reminder indicators and warning
buzzers” in Chapter 1−5.
∗
2: If this light flashes, see ”Cruise control” in Chapter 1−6. Headlight high beam indicator light Turn signal indicator lights
ProCarManuals.com
Page 8 of 261
name. SIENNA (U)
8
ProCarManuals.com
Page 9 of 261
name. SIENNA (U)
9
Part 1
OPERATION OF
INSTRUMENTS
AND CONTROLS—
Chapter 1−2
Keys and Doors
Keys
Front doors
Sliding door
Power sliding door
Wireless remote control
Power windows
Power rear quarter windows
Center side windows and manual
rear quarter windows
Back door
Hood
Theft deterrent system
Fuel tank cap
Electric moon roof

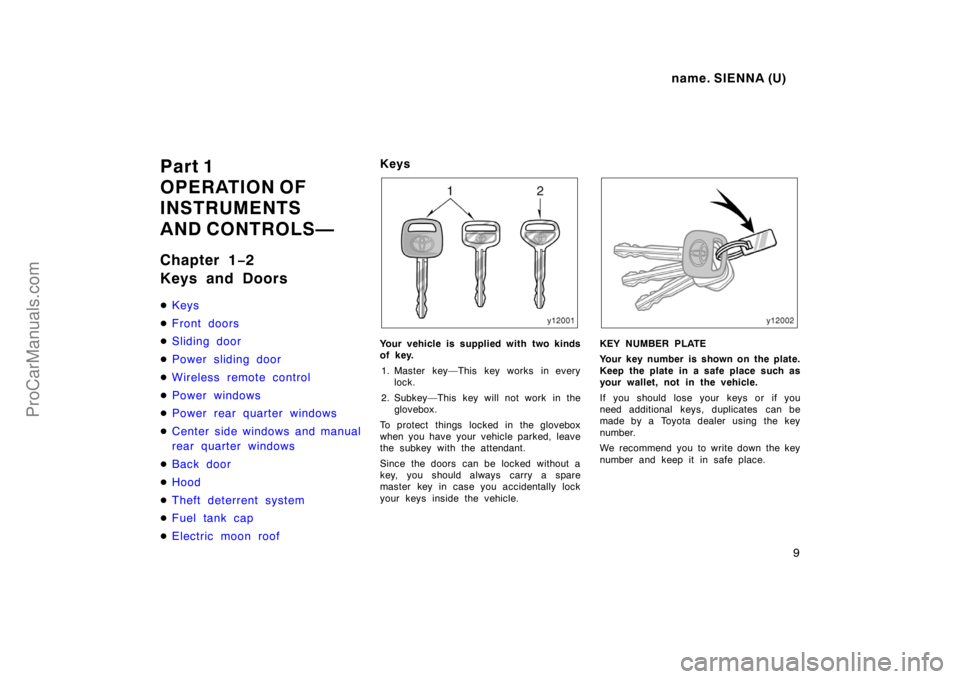

Keys
Your vehicle is supplied with two kinds
of key.
1. Master key—This key works in every
lock.
2. Subkey—This key will not work in the
glovebox.
To protect things locked in the glovebox
when you have your vehicle parked, leave
the subkey with the attendant.
Since the doors can be locked without a
key, you should always carry a spare
master key in case you accidentally lock
your keys inside the vehicle.KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend you to write down the key
number and keep it in safe place.
ProCarManuals.com
Page 10 of 261
name. SIENNA (U)
10

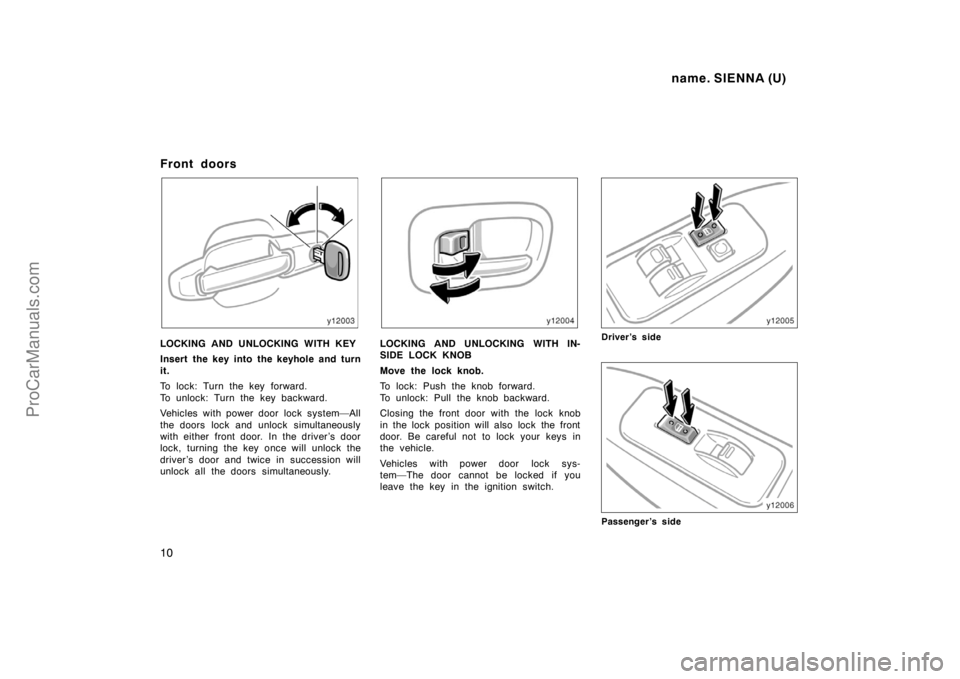

Front doors
LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn
it.
To lock: Turn the key forward.
To unlock: Turn the key backward.
Vehicles with power door lock system—All
the doors lock and unlock simultaneously
with either front door. In the driver’s door
lock, turning the key once will unlock the
driver’s door and twice in succession will
unlock all the doors simultaneously.LOCKING AND UNLOCKING WITH IN-
SIDE LOCK KNOB
Move the lock knob.
To lock: Push the knob forward.
To unlock: Pull the knob backward.
Closing the front door with the lock knob
in the lock position will also lock the front
door. Be careful not to lock your keys in
the vehicle.
Vehicles with power door lock sys-
tem—The door cannot be locked if you
leave the key in the ignition switch.Driver’s side
Passenger’s side
