TOYOTA SIENNA 1998 Owners Manual

name. SIENNA (U)
151

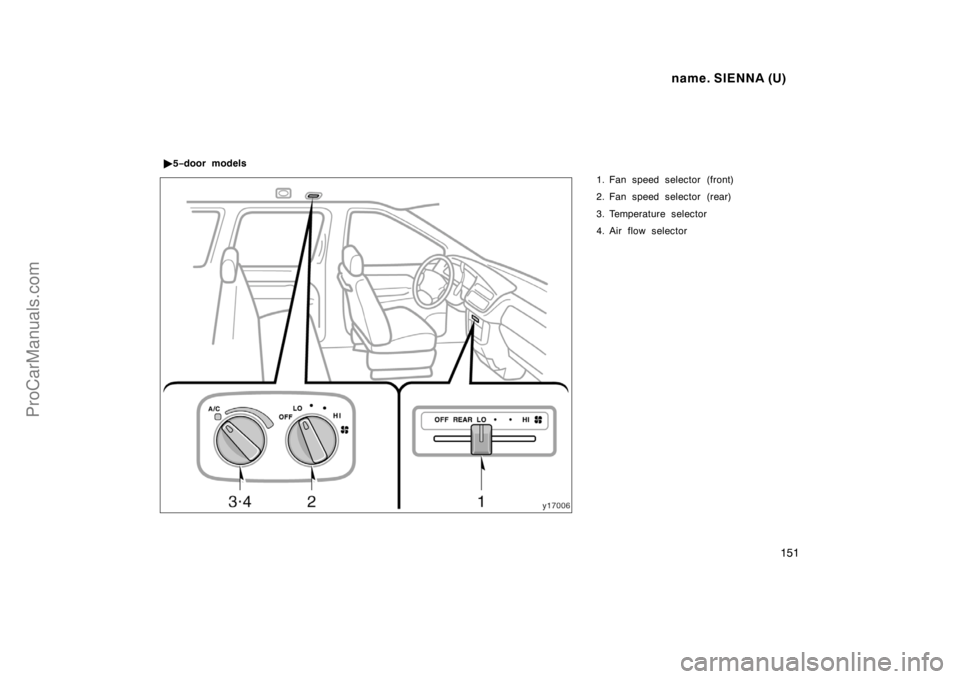

1. Fan speed selector (front)
2. Fan speed selector (rear)
3. Temperature selector
4. Air flow selector 5−door models
ProCarManuals.com

name. SIENNA (U)
152
1. Fan speed selector (front)
This lever is used to turn the rear air
conditioning system on and off, and adjust
the fan speed.
Move the lever to ”REAR” so that you can
operate the rear air conditioning system
by the rear controller.
Move the lever to adjust the fan
speed—to the right to increase, to the left
to decrease. Moving the lever to “OFF”
turns off the rear air conditioning system
and the system cannot be operated by the
rear controller.
2. Fan speed selector (rear)
When the front fan speed selector is in
“REAR”, you can operate it.
Move the lever to adjust the fan
speed—to the right to increase, to the left
to decrease.
Temperature selector
4−door models—
Move the lever to adjust the tempera-
ture—to the right to warm, to the left to
cool.
5−door models—
Move the lever to adjust the tempera-
ture—to the right to warm, to the “A/C”
position to cool.

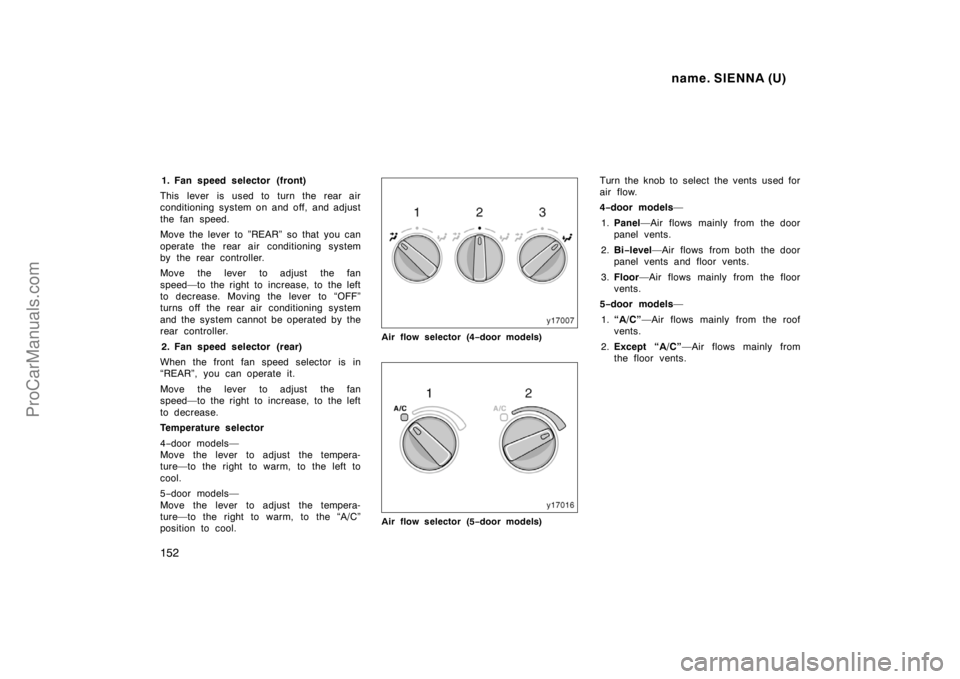

Air flow selector (4−door models)
Air flow selector (5−door models)
Turn the knob to select the vents used for
air flow.
4−door models—
1.Panel—Air flows mainly from the door
panel vents.
2.Bi−level—Air flows from both the door
panel vents and floor vents.
3.Floor—Air flows mainly from the floor
vents.
5−door models—
1.“A/C”—Air flows mainly from the roof
vents.
2.Except “A/C”—Air flows mainly from
the floor vents.
ProCarManuals.com

name. SIENNA (U)
153

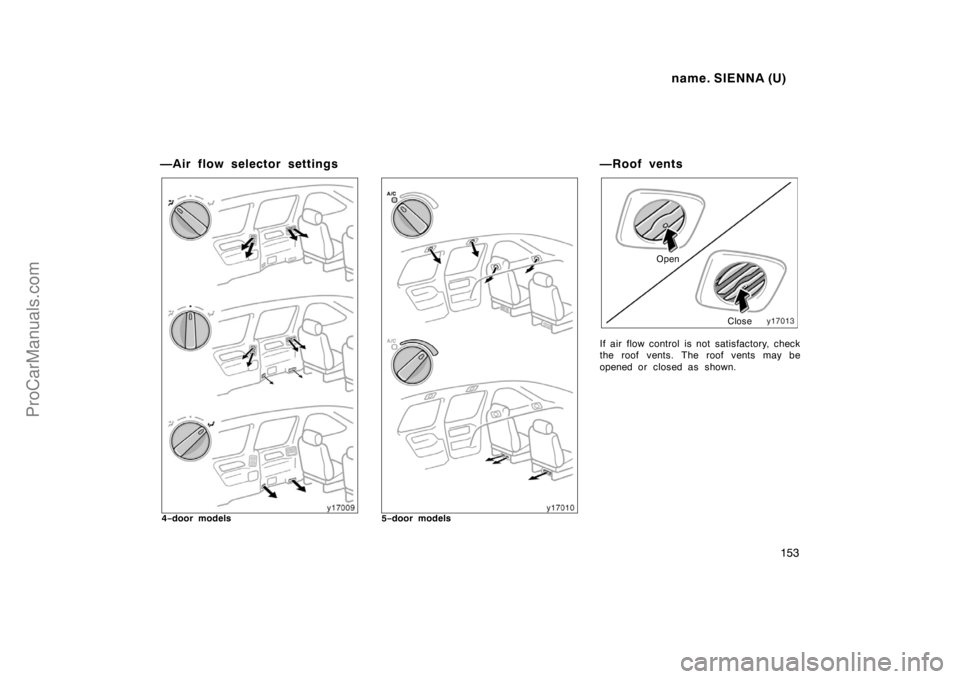

—Air flow selector settings
4−door models5−door models
—Roof vents
Open
Close
If air flow control is not satisfactory, check
the roof vents. The roof vents may be
opened or closed as shown.
ProCarManuals.com

name. SIENNA (U)
154
ProCarManuals.com

name. SIENNA (U)
155
Part 1
OPERATION OF
INSTRUMENTS
AND CONTROLS—
Chapter 1−8
Other equipment
Clock
Cigarette lighter and ashtray
P ower out let s
Glovebox
Garage door opener box
Auxiliary boxes
Cup holder
First−aid kit and warning reflector
holder
Tire pressure warning system
Floor mat

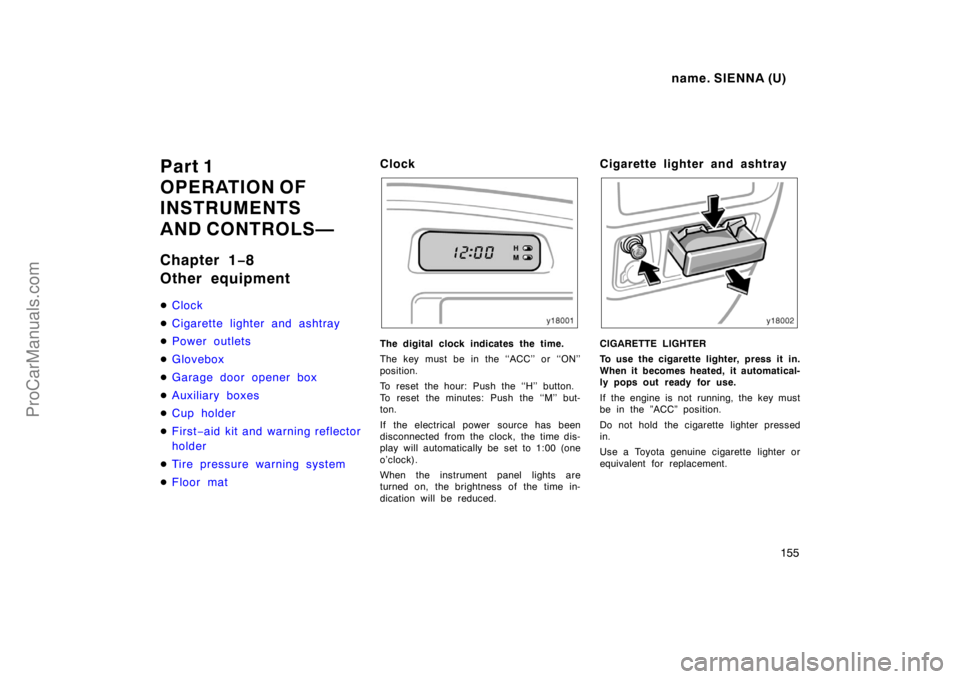

Clock
The digital clock indicates the time.
The key must be in the ‘‘ACC’’ or ‘‘ON’’
position.
To reset the hour: Push the ‘‘H’’ button.
To reset the minutes: Push the ‘‘M’’ but-
ton.
If the electrical power source has been
disconnected from the clock, the time dis-
play will automatically be set to 1:00 (one
o’clock).
When the instrument panel lights are
turned on, the brightness of the time in-
dication will be reduced.
Cigarette lighter and ashtray
CIGARETTE LIGHTER
To use the cigarette lighter, press it in.
When it becomes heated, it automatical-
ly pops out ready for use.
If the engine is not running, the key must
be in the ”ACC” position.
Do not hold the cigarette lighter pressed
in.
Use a Toyota genuine cigarette lighter or
equivalent for replacement.
ProCarManuals.com

name. SIENNA (U)
156
ASHTRAY
To use the ashtray, open out.
When finished with your cigarette, thor-
oughly extinguish it in the ashtray to pre-
vent other cigarette butts from catching
fire. After using the ashtray, push it back
in completely.
To remove the ashtray, press down on the
lock spring plate and pull out.
CAUTION
To reduce the chance of injury in
case of an accident or sudden stop
while driving, always push the ash-
tray back in completely after using.

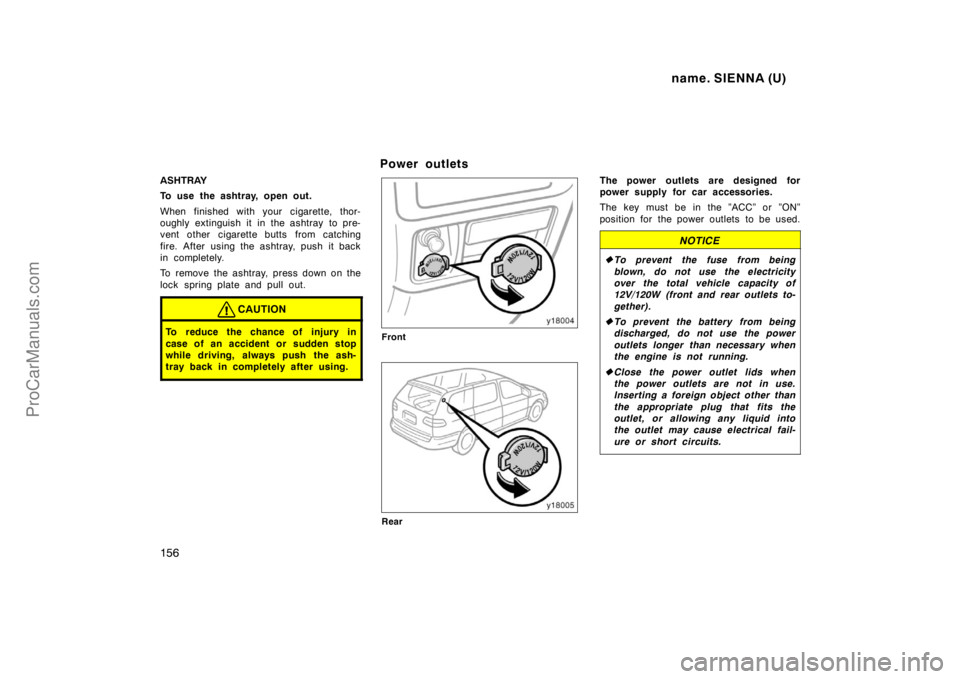

Power outlets
Front
Rear
The power outlets are designed for
power supply for car accessories.
The key must be in the ”ACC” or ”ON”
position for the power outlets to be used.
NOTICE
To prevent the fuse from being
blown, do not use the electricity
over the total vehicle capacity of
12V/120W (front and rear outlets to-
gether).
To prevent the battery from being
discharged, do not use the power
outlets longer than necessary when
the engine is not running.
Close the power outlet lids when
the power outlets are not in use.
Inserting a foreign object other than
the appropriate plug that fits the
outlet, or allowing any liquid into
the outlet may cause electrical fail-
ure or short circuits.
ProCarManuals.com

name. SIENNA (U)
157

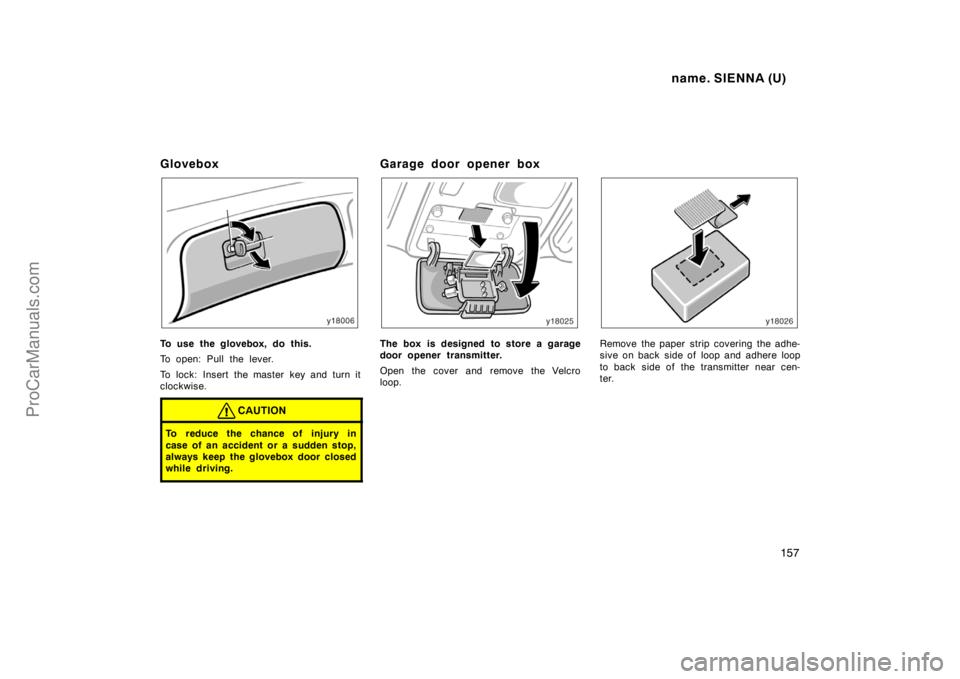

Glovebox
To use the glovebox, do this.
To open: Pull the lever.
To lock: Insert the master key and turn it
clockwise.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the glovebox door closed
while driving.
Garage door opener box
The box is designed to store a garage
door opener transmitter.
Open the cover and remove the Velcro
loop.Remove the paper strip covering the adhe-
sive on back side of loop and adhere loop
to back side of the transmitter near cen-
ter.
ProCarManuals.com

name. SIENNA (U)
158

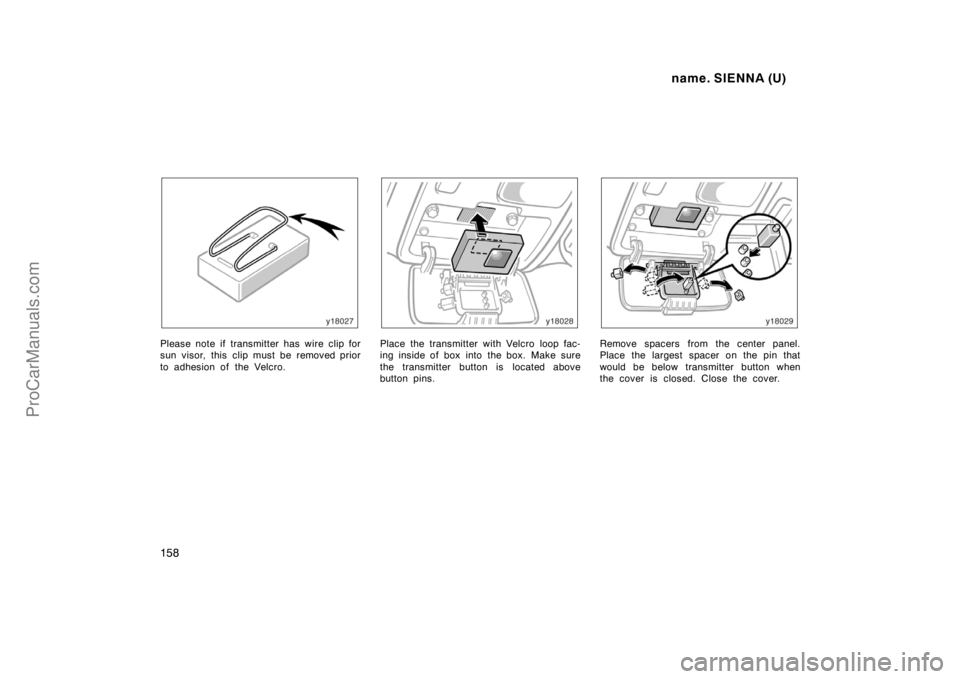

Please note if transmitter has wire clip for
sun visor, this clip must be removed prior
to adhesion of the Velcro.Place the transmitter with Velcro loop fac-
ing inside of box into the box. Make sure
the transmitter button is located above
button pins.Remove spacers from the center panel.
Place the largest spacer on the pin that
would be below transmitter button when
the cover is closed. Close the cover.
ProCarManuals.com

name. SIENNA (U)
159

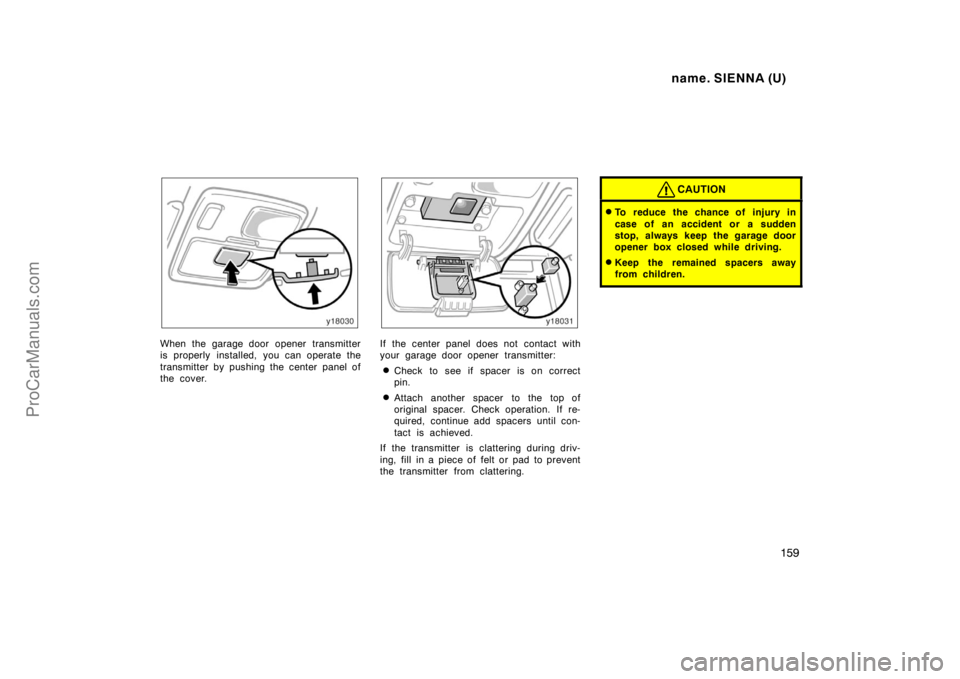

When the garage door opener transmitter
is properly installed, you can operate the
transmitter by pushing the center panel of
the cover.If the center panel does not contact with
your garage door opener transmitter:
Check to see if spacer is on correct
pin.
Attach another spacer to the top of
original spacer. Check operation. If re-
quired, continue add spacers until con-
tact is achieved.
If the transmitter is clattering during driv-
ing, fill in a piece of felt or pad to prevent
the transmitter from clattering.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden
stop, always keep the garage door
opener box closed while driving.
Keep the remained spacers away
from children.
ProCarManuals.com

name. SIENNA (U)
160

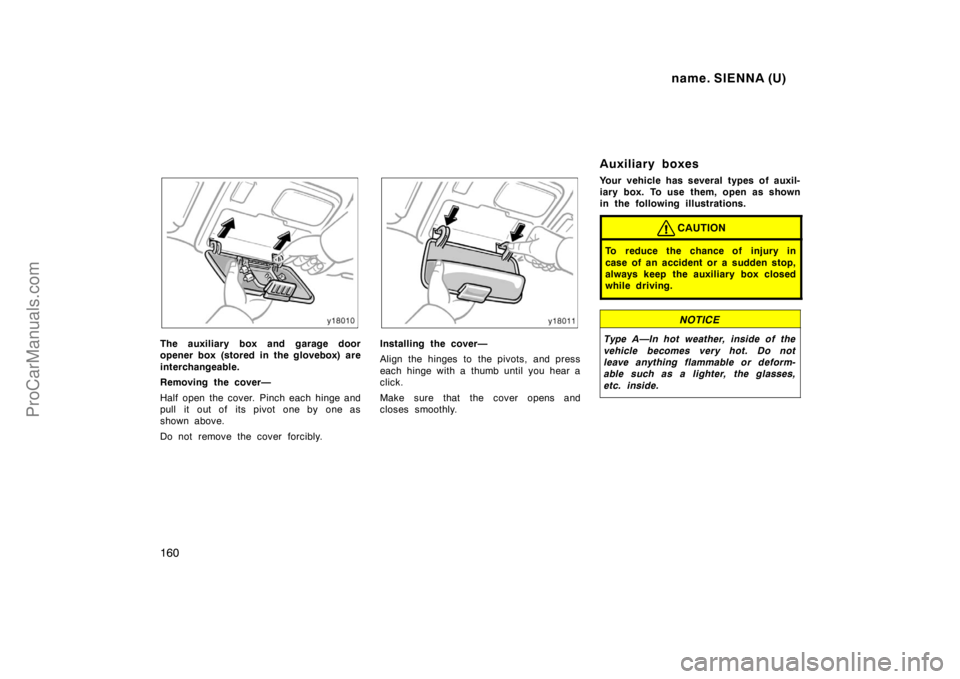

The auxiliary box and garage door
opener box (stored in the glovebox) are
interchangeable.
Removing the cover—
Half open the cover. Pinch each hinge and
pull it out of its pivot one by one as
shown above.
Do not remove the cover forcibly.Installing the cover—
Align the hinges to the pivots, and press
each hinge with a thumb until you hear a
click.
Make sure that the cover opens and
closes smoothly.
Auxiliary boxes
Your vehicle has several types of auxil-
iary box. To use them, open as shown
in the following illustrations.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the auxiliary box closed
while driving.
NOTICE
Type A—In hot weather, inside of the
vehicle becomes very hot. Do not
leave anything flammable or deform-
able such as a lighter, the glasses,
etc. inside.
ProCarManuals.com
