TOYOTA SIENNA 1998 Owner's Manual

name. SIENNA (U)
21
To cancel the ”PANIC” mode, unlock any
door with the key or transmitter or turn
the ignition key from the ”LOCK” to ”ACC”
position.
The ”PANIC” mode does not work when
the key is inserted in the ignition switch.
WIRELESS REMOTE CONTROL TRANS-
MITTER
The wireless remote control transmitter is
an electronic component. Observe the fol-
lowing instructions in order not to cause
damage to the transmitter.
Do not leave the transmitter on places
where the temperature becomes high
such as on the dashboard.
Do not disassemble it.
Avoid knocking it hard against other
objects or dropping it.
Avoid putting it in water.
You can use up to 2 wireless remote con-
trol transmitters for the same vehicle.
Contact your Toyota dealer for detailed
information.
If the wireless remote control transmitter
does not actuate the doors or alarm, or
operate from a normal distance:
Check for closeness to a radio trans-
mitter such as a radio station or an
airport which can interfere with normal
operation of the transmitter.
The batteries may have been con-
sumed. Check the batteries in the
transmitter. To replace the batteries,
see ”Replacing transmitter batteries”.
Replacing transmitter batteries
The expected life of your transmitter bat-
teries is about one year. For replacement,
use DURACELL DL2016 or equivalent.
a. Using a screwdriver, separate the two
halves of the transmitter with the transmit-
ter buttons facing down.
b. Remove and replace the transmitter
batteries.
If you touch a new battery with your fin-
gers, clean it with rubbing alcohol. Skin
oils may shorten the batteries’ life.
c. Reassemble the transmitter case. Make
sure the gasket is properly installed.
After replacing batteries, check that the
transmitter operates properly. If the trans-
mitter still does not operate properly, con-
tact your Toyota dealer.If you lose your transmitter, contact your
Toyota dealer as soon as possible to
avoid the possibility of theft, or an acci-
dent.
MODEL/FCC ID: GQ43VT7T
ISC: 1470 K1361
MADE IN U.S.A.
This complies with part 15 of the FCC
rules. Operation is subject to the follow-
ing two conditions:
(1) This device may not cause harmful
interference, and (2) This device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
ProCarManuals.com

name. SIENNA (U)
22
Power windows
The windows can be operated with the
switch on each front door.
The power windows work when the ignition
switch is in the ”ON” position. However,
if both front doors are closed, they work
for 45 seconds even after the ignition
switch is turned off. They stop working
when either front door is opened.
OPERATING THE DRIVER’S WINDOW
Use the switch on the driver’s door.
Normal operation: The window moves as
long as you hold the switch.
To open: Lightly push down the switch.
To close: Pull up the switch.Automatic operation (to open only):
Push the switch completely down and then
release it. The window will fully open. To
stop the window partway, lightly pull the
switch up and then release it.
Window
lock button
OPERATING THE PASSENGER’S WIN-
DOW
Use the switch on the passenger ’s
door. The driver ’s door also has the
switch that controls the passenger ’s
window.
The window moves as long as you hold
the switch.
To open: Push down the switch.
To close: Pull up the switch.
If you push in the window lock button on
the driver ’s door, the passenger ’s window
cannot be operated.
ProCarManuals.com

name. SIENNA (U)
23

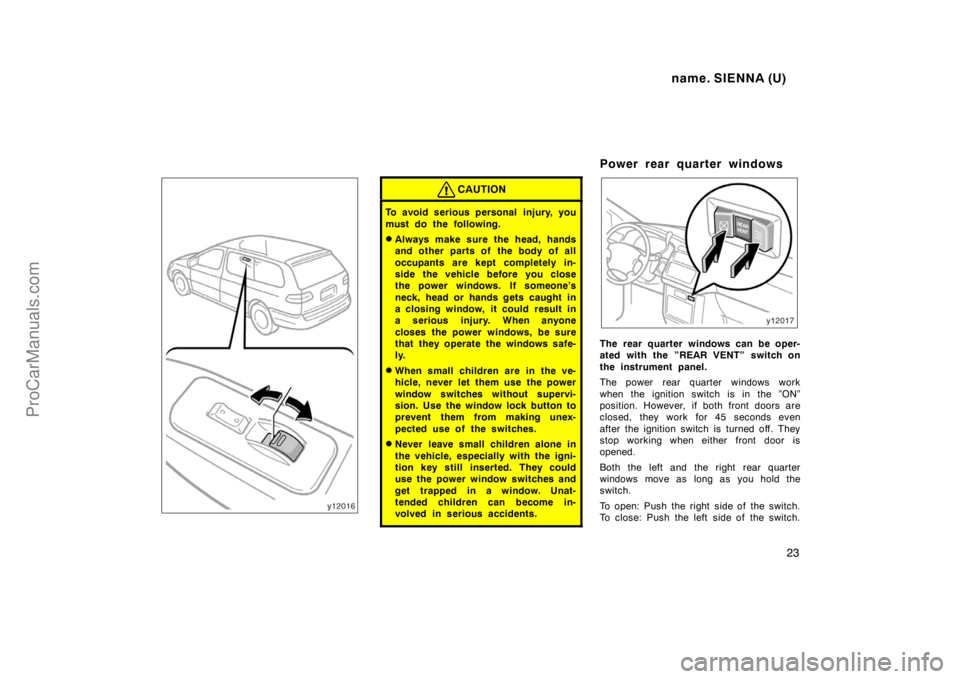

CAUTION
To avoid serious personal injury, you
must do the following.
Always make sure the head, hands
and other parts of the body of all
occupants are kept completely in-
side the vehicle before you close
the power windows. If someone’s
neck, head or hands gets caught in
a closing window, it could result in
a serious injury. When anyone
closes the power windows, be sure
that they operate the windows safe-
ly.
When small children are in the ve-
hicle, never let them use the power
window switches without supervi-
sion. Use the window lock button to
prevent them from making unex-
pected use of the switches.
Never leave small children alone in
the vehicle, especially with the igni-
tion key still inserted. They could
use the power window switches and
get trapped in a window. Unat-
tended children can become in-
volved in serious accidents.
Power rear quarter windows
The rear quarter windows can be oper-
ated with the ”REAR VENT” switch on
the instrument panel.
The power rear quarter windows work
when the ignition switch is in the ”ON”
position. However, if both front doors are
closed, they work for 45 seconds even
after the ignition switch is turned off. They
stop working when either front door is
opened.
Both the left and the right rear quarter
windows move as long as you hold the
switch.
To open: Push the right side of the switch.
To close: Push the left side of the switch.
ProCarManuals.com

name. SIENNA (U)
24

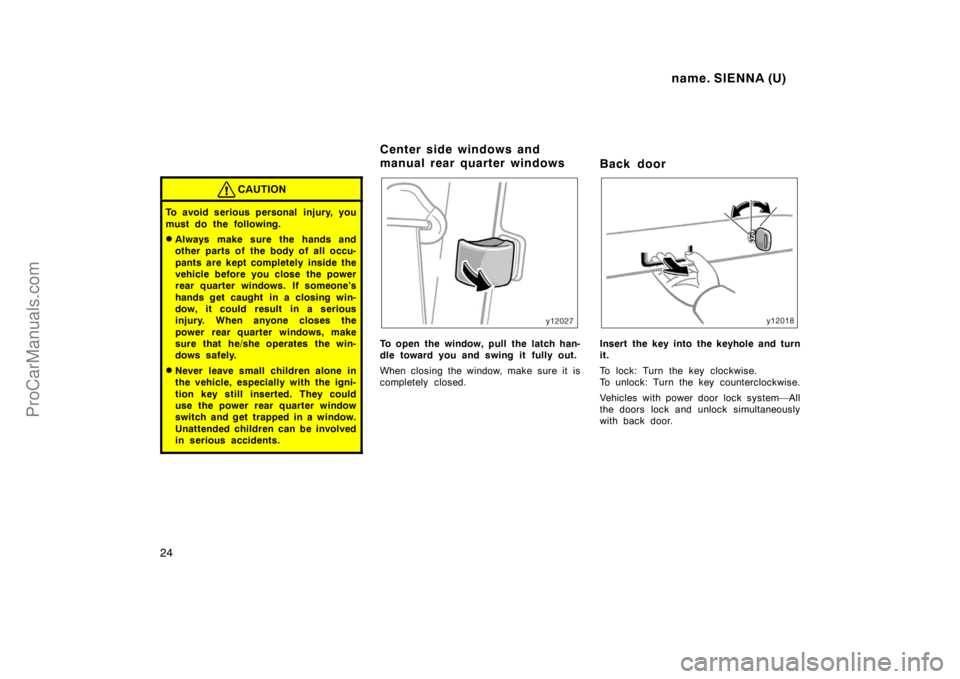

CAUTION
To avoid serious personal injury, you
must do the following.
Always make sure the hands and
other parts of the body of all occu-
pants are kept completely inside the
vehicle before you close the power
rear quarter windows. If someone’s
hands get caught in a closing win-
dow, it could result in a serious
injury. When anyone closes the
power rear quarter windows, make
sure that he/she operates the win-
dows safely.
Never leave small children alone in
the vehicle, especially with the igni-
tion key still inserted. They could
use the power rear quarter window
switch and get trapped in a window.
Unattended children can be involved
in serious accidents.
To open the window, pull the latch han-
dle toward you and swing it fully out.
When closing the window, make sure it is
completely closed.
Back door
Insert the key into the keyhole and turn
it.
To lock: Turn the key clockwise.
To unlock: Turn the key counterclockwise.
Vehicles with power door lock system—All
the doors lock and unlock simultaneously
with back door.
Center side windows and
manual rear quarter windows
ProCarManuals.com

name. SIENNA (U)
25
Strap
Handle
When closing the back door, use the
inside strap or handle for easier reach
to the back door.
To close the back door, lower it and press
down on it. After closing the back door,
try pulling it up to make sure it is secure-
ly closed.
See ”Luggage stowage precautions” in
Part 2 for precautions to observe for load-
ing luggage.
CAUTION
Keep the back door closed while driv-
ing. This not only keeps the luggage
from being thrown out but also pre-
vents exhaust gases from entering
the vehicle.
NOTICE
To prevent damage to the back door
dampers, do not apply any force,
paint or let any other foreign matter
on them.
Hood
To open the hood:
1. Pull the hood lock release lever. The
hood will spring up slightly.
CAUTION
Before driving, be sure that the hood
is closed and securely locked. Other-
wise, the hood may open unexpected-
ly while driving and an accident may
occur.
ProCarManuals.com

name. SIENNA (U)
26
2. In front of the vehicle, pull up the
auxiliary catch lever and lift the
hood.3. Hold the hood open by inserting the
support rod into the slot.
Before closing the hood, check to see that
you have not forgotten any tools, rags,
etc. and return the support rod to its clip−
this prevents rattles. Then lower the hood
make sure it locks into place. If neces-
sary, press down gently on the front edge
to lock it.
CAUTION
After inserting the support rod into
the slot, make sure the rod supports
the hood securely from falling down
on to your head or body.
Theft deterrent system—
To deter the vehicle theft, the system
is designed to give an alarm and keep
the engine from being started if any of
the front, sliding or back doors or hood
is forcibly unlocked or the battery ter-
minal is disconnected and then recon-
nected when the vehicle is locked.
The alarm blows the horn intermittently
and flashes the headlights, tail lights and
other exterior lights. The engine cannot be
started because the starter circuit will be
cut.
ProCarManuals.com

name. SIENNA (U)
27
SETTING THE SYSTEM
1. Turn the ignition key to the ”LOCK”
position and remove it.
2. Have all passengers get out of the
vehicle.
3. Close and lock the front, sliding and
back doors and hood.
The indicator light will come on when the
front, sliding and back doors and hood are
closed and locked.As the doors are locked, the system will
give you a preparation time of 30 seconds
before the setting, during which the front,
sliding or back doors and hood may be
opened.
Be careful not to unlock any door with the
key or wireless remote control transmitter
during setting. This will cancel the system.
4. After making sure the indicator light
starts flashing, you may leave the ve-
hicle.
The system will automatically be set after
the preparation time passes. The indicator
light will flash to show the system is set.
If any of the front, sliding or back doors
or hood is open at that time, the setting
is interrupted until it is closed and locked.
Never leave anyone in the vehicle when
you set the system, because unlocking
from the inside will activate the system.WHEN THE SYSTEM IS SET
Activating the system
The system will give the alarm and cut
the starter circuit under the following
conditions:
If any of the front, sliding or back
doors is unlocked or if the hood is
forcibly opened without the key or wire-
less remote control transmitter
If the battery terminal is disconnected
and then reconnected
After one minute, the alarm will automati-
cally stop with the starter circuit cut kept
on.
Reactivating the alarm
Once set, the system cannot be cancelled
without the key or wireless remote control
transmitter. If the front, sliding and back
doors and hood are closed after the alarm
stops, the system automatically resets the
alarm.
The alarm will be activated again under
the following conditions:
If any of the front, sliding or back
doors or hood is opened
If the battery terminal is disconnected
and then reconnected
ProCarManuals.com

name. SIENNA (U)
28
Stopping the alarm
Turn the ignition key from the ”LOCK” to
”ACC” position. The alarm will be stopped
with the starter circuit cut kept on. Stop-
ping the alarm in this manner will keep
the alarm from being reactivated when any
of the front, sliding or back doors or hood
is opened.
CANCELLING THE SYSTEM
Unlock either front door or back door with
the key or wireless remote control trans-
mitter. This cancels the system completely
and the starter circuit cut will be cancelled
at once.
INDICATOR LIGHT
The indicator light gives the following
three indications.
FLASHING—The system is set. You need
the key or wireless remote control trans-
mitter to open the front, sliding and back
doors and hood.
ON—The system will automatically be set
when the time comes. The front, sliding
and back doors and hood may be opened
without a key or wireless remote control
transmitter.
OFF—The system is inactive. You may
open any door and hood.TESTING THE SYSTEM
1. Open all the windows.
2. Set the system as described above.
The doors should be locked with the
key or wireless remote control transmit-
ter. Be sure to wait until the indicator
light starts flashing.
3. Unlock any door from the inside. The
system should activate the alarm.
4. Cancel the system by unlocking either
front door or back door with the key or
wireless remote control transmitter.
5. Repeat this operation for the other
doors and hood. When testing on the
hood, also check that the system is
activated when the battery terminal is
disconnected and then reconnected.
If the system does not work properly,
have it checked by your Toyota dealer.
Fuel tank cap
1. To open the fuel filler door, pull the
lever up.
When refueling, turn off the engine.
CAUTION
Do not smoke, cause sparks or al-
low open flames when refueling.
The fumes are flammable.
When opening the cap, do not re-
move the cap quickly. In hot weath-
er, fuel under pressure could cause
injury by spraying out of the filler
neck if the cap is suddenly re-
moved.
ProCarManuals.com

name. SIENNA (U)
29
NOTICE
5−door models—Avoid opening the
fuel filler door when the left side slid-
ing door is fully opened. Otherwise,
the fuel filler door may be damaged.
2. To remove the fuel tank cap, turn
the cap slowly counterclockwise,
then pause slightly before removing
it. After removing the cap, hang it
on the cap hanger.
It is not unusual to hear a slight swoosh
when the cap is opened. When installing,
turn the cap clockwise till you hear a
click.
If the cap is not tightened securely, the
malfunction indicator lamp comes on.
Make sure the cap is tightened securely.The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.
The left side sliding door does not open
fully if the fuel filler door is opened.
CAUTION
Make sure the cap is tightened se-
curely to prevent fuel spillage in
case of an accident.
Use only a genuine Toyota fuel tank
cap for replacement. It has a built−
in check valve to reduce fuel tank
vacuum.
ProCarManuals.com

name. SIENNA (U)
30
Electric moon roof
Sliding operation
Tilting operation
To operate the moon roof, use the
switches beside the personal light.
The moon roof works when the ignition
switch is in the ”ON” position. However,
if both front doors are closed, it works for
45 seconds even after the ignition switch
is turned off. It stops working when any
of the doors is opened.
Sun shade operation—
The sun shade can be opened or closed
by hand.
Sliding operation—
To open: Push the switch on the ”SLIDE
OPEN”’ side.
The roof will fully open. To stop the roof
partway, push the switch on either the
”SLIDE OPEN” or ”TILT UP” side briefly.
The sun shade will be opened together
with the roof.
To close: Push the switch on the ”TILT
UP” side.
As a precaution when closing, the roof
stops at the half closed position before
fully closing. Therefore, release the switch
and then push it again to close it com-
pletely.Tilting operation—
To tilt up: Push the switch on the ”TILT
UP” side.
To lower: Push the switch on the ”SLIDE
OPEN” side.
You may stop the moon roof at any de-
sired position. The roof will move while
the switch is being pushed and stop when
released except to slide open.
CAUTION
To avoid serious personal injury, you
must do the following.
While the vehicle is moving, always
keep the head, hands and other
parts of the body of all occupants
away from the roof opening. Other-
wise, you could be seriously injured
if the vehicle stops suddenly or if
the vehicle is involved in an acci-
dent.
ProCarManuals.com
