TOYOTA SIENNA 1999 Owners Manual
Manufacturer: TOYOTA, Model Year: 1999, Model line: SIENNA, Model: TOYOTA SIENNA 1999Pages: 272, PDF Size: 7.44 MB
Page 1 of 272
name. SIENNA (45403U)
1
Part 1
OPERATION OF
INSTRUMENTS AND
CONTROLS—
Chapter 1−1
Overview of instruments
and controls
Instrument panel overview
Instrument cluster overview
Indicator symbols on the
instrument panel
ProCarManuals.com
Page 2 of 272
name. SIENNA (45403U)
2

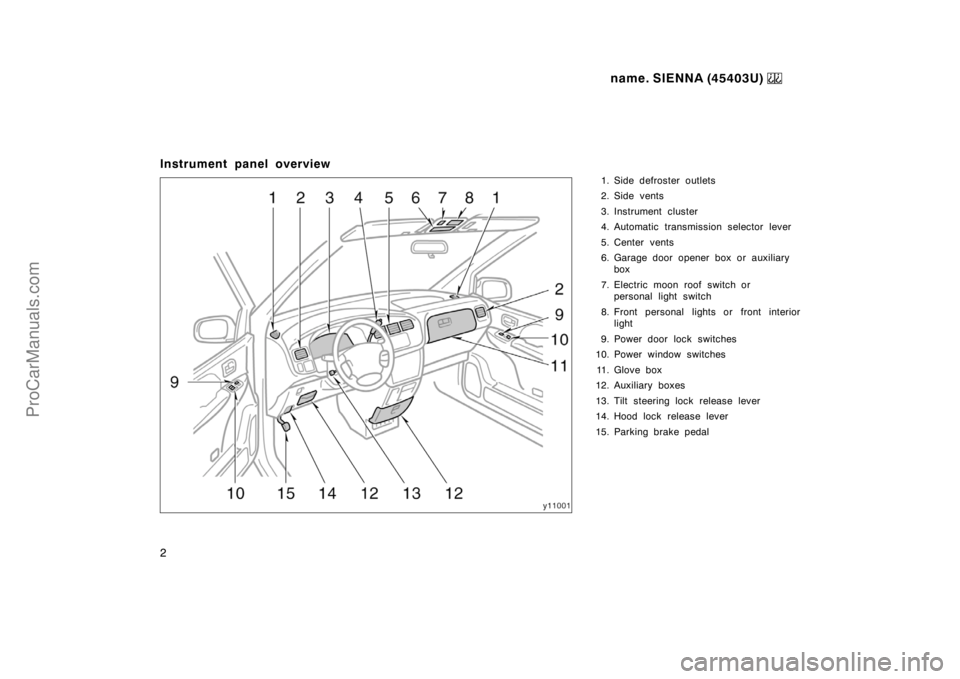

Instrument panel overview
1. Side defroster outlets
2. Side vents
3. Instrument cluster
4. Automatic transmission selector lever
5. Center vents
6. Garage door opener box or auxiliary
box
7. Electric moon roof switch or
personal light switch
8. Front personal lights or front interior
light
9. Power door lock switches
10. Power window switches
11 . G l o v e b o x
12. Auxiliary boxes
13. Tilt steering lock release lever
14. Hood lock release lever
15. Parking brake pedal
ProCarManuals.com
Page 3 of 272
name. SIENNA (45403U)
3

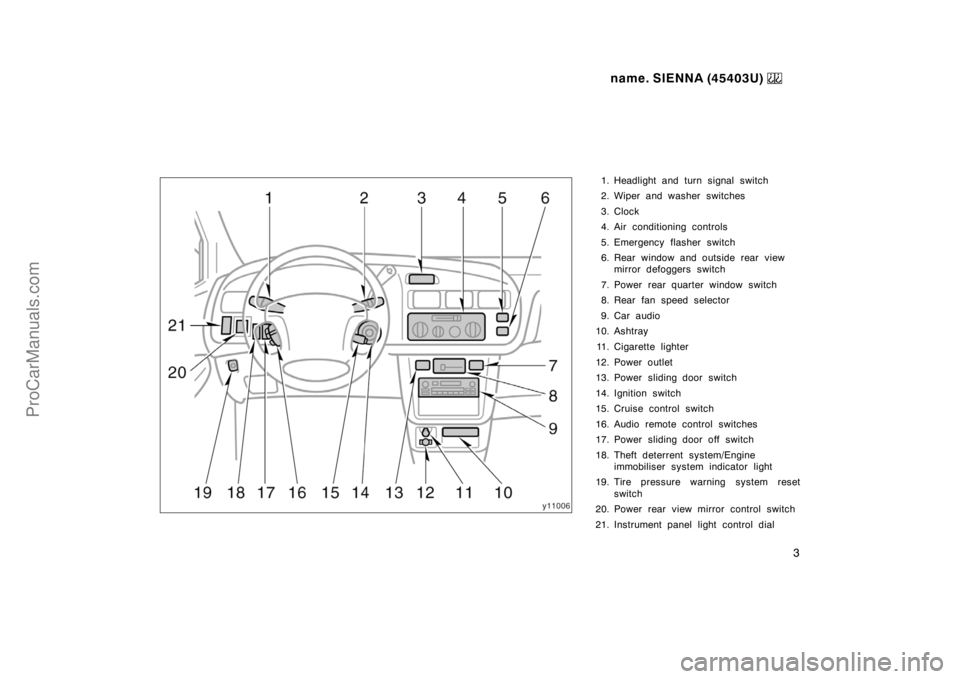

1. Headlight and turn signal switch
2. Wiper and washer switches
3. Clock
4. Air conditioning controls
5. Emergency flasher switch
6. Rear window and outside rear view
mirror defoggers switch
7. Power rear quarter window switch
8. Rear fan speed selector
9. Car audio
10. Ashtray
11. Cigarette lighter
12. Power outlet
13. Power sliding door switch
14. Ignition switch
15. Cruise control switch
16. Audio remote control switches
17. Power sliding door off switch
18. Theft deterrent system/Engine
immobiliser system indicator light
19. Tire pressure warning system reset
switch
20. Power rear view mirror control switch
21. Instrument panel light control dial
ProCarManuals.com
Page 4 of 272
name. SIENNA (45403U)
4

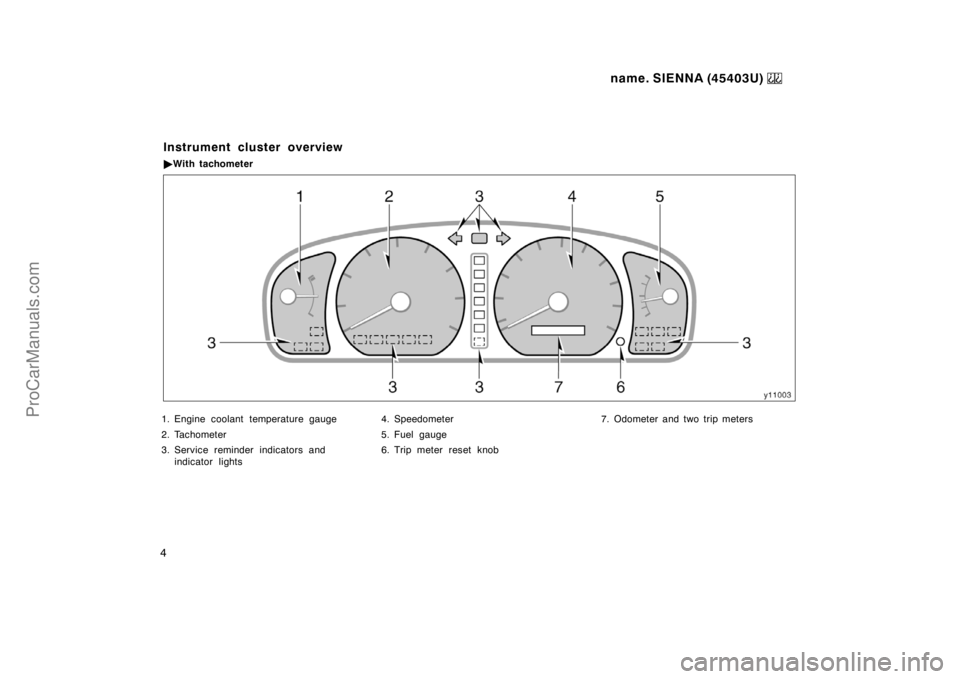

1. Engine coolant temperature gauge
2. Tachometer
3. Service reminder indicators and
indicator lights4. Speedometer
5. Fuel gauge
6. Trip meter reset knob7. Odometer and two trip meters
Instrument cluster overview
With tachometer
ProCarManuals.com
Page 5 of 272
name. SIENNA (45403U)
5

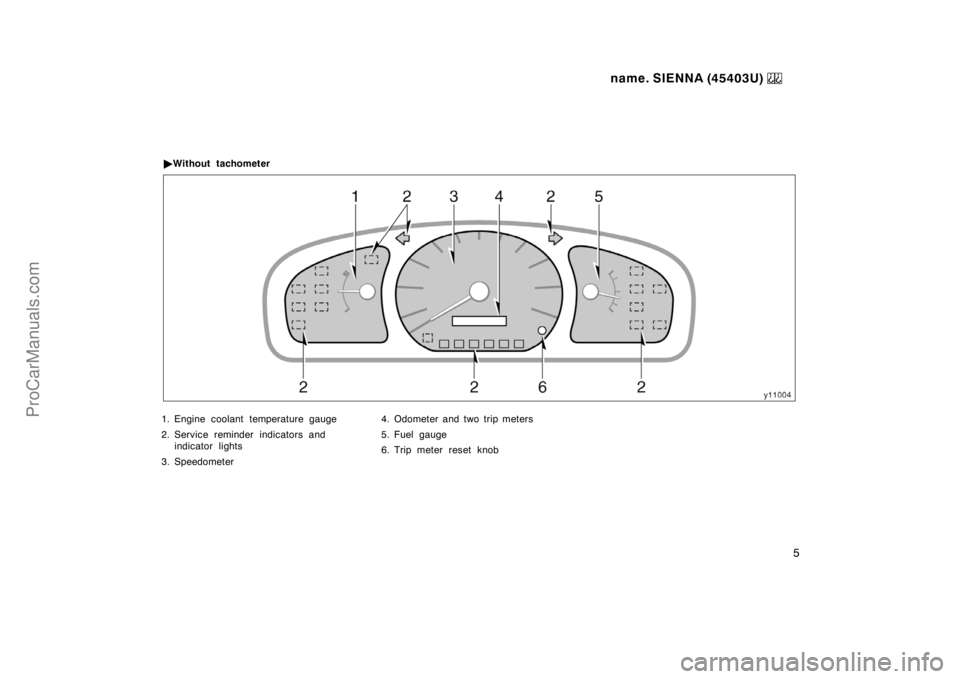

1. Engine coolant temperature gauge
2. Service reminder indicators and
indicator lights
3. Speedometer4. Odometer and two trip meters
5. Fuel gauge
6. Trip meter reset knob Without tachometer
ProCarManuals.com
Page 6 of 272
name. SIENNA (45403U)
6
Indicator symbols on the instrument panel
Brake system warning light∗
1
(type A)
(type B)
(type A)
(type B)
Seat belt reminder light∗
1
Malfunction indicator lamp∗
1
Low fuel level warning light∗
1
Discharge warning light∗
1
(type A)
(type B)
Low oil pressure warning light∗
1
Anti−lock brake system warning light∗
1
Open door warning light∗
1
SRS airbag warning light∗
1
Low windshield washer fluid level warning
light∗
1
Low tire pressure warning light∗
1
Open power sliding door warning light∗
1
ProCarManuals.com
Page 7 of 272
name. SIENNA (45403U)
7
Overdrive−off indicator light
Cruise control indicator light
∗
2
Automatic transmission indicator lights Headlight high beam indicator light Turn signal indicator lights
∗
1: For details, see ”Service reminder indicators and warning
buzzers” in Chapter 1−5.
∗
2: If this light flashes, see ”Cruise control” in Chapter 1−6.
ProCarManuals.com
Page 8 of 272
name. SIENNA (45403U)
8
ProCarManuals.com
Page 9 of 272
name. SIENNA (45403U)
9
Part 1
OPERATION OF
INSTRUMENTS AND
CONTROLS—
Chapter 1−2
Keys and Doors
Keys
Engine immobiliser system
Front doors
Sliding door
Power sliding door
Wireless remote control
Power windows
Power rear quarter windows
Center side windows and
manual rear quarter windows
Back door
Hood
Theft deterrent system
Fuel tank capElectric moon roof
Your vehicle is supplied with two kinds
of key.
1. Master key—This key works in every
lock.
2. Sub key—This key will not work in the
glove box.
To protect things locked in the glove box
when you have your vehicle parked, leave
the sub key with the attendant.
Since the doors can be locked without a
key, you should always carry a spare
master key in case you accidentally lock
your keys inside the vehicle.
Keys (without engine
immobiliser system)
ProCarManuals.com
Page 10 of 272
name. SIENNA (45403U)
10
KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend you to write down the key
number and keep it in safe place.Your vehicle is supplied with the two
kinds of key.
1. Master key (black)—This key works in
every lock. Your Toyota dealer will
need it to make you a new key with
built−in transponder chip.
2. Sub key (gray)—This key will not work
in the glove box.
The master key and sub key each have
a transponder chip in their key head
which is very important for the system
function, so be careful not to lose these
keys. If you make your own duplicate key,
you will not be able to cancel the system
or start the engine.To protect things locked in the glove box
when you have your vehicle parked, leave
the sub key with the attendant.
Since the side door can be locked without
a key, you should always carry a spare
master key in case you accidentally lock
your keys inside the vehicle.
Keys (with engine
immobiliser system)
