name. SIENNA (45403U)
51
You can use the third seatback as a tem-
porary table only when the vehicle is
stopped.
CAUTION
To avoid serious injury:
Do not set up the seatback table
while the vehicle is moving.
Do not sit on the folded seatback.
Make sure the third seat is securely
locked in position when you set the
third seat as a temporary table.
NOTICE
To prevent the seat from damaging,
avoid putting heavy loads on the tem-
porary table.2. Remove the head restraint. Unlock
the seat legs by pulling up the left
side handle under the seat, and
swing the whole seat up and for-
ward.
After returning the seat to its origi-
nal position, be certain to replace
the head restraint.
Folding the third seats will enlarge the
luggage compartment. See ”Luggage
stowage precautions” in Part 2 for
precautions to observe for loading
luggage.
ProCarManuals.com

name. SIENNA (45403U)
52
CAUTION
When folding up the seat or return-
ing it to its original position, be
careful not to get your hands or
feet pinched in the seat.
Be certain to replace head restraint.
Make sure the seat is securely
locked by pushing forward and rear-
ward on the top of the seatback or
by trying to pull up the edge of the
bottom cushion. Failure to do so
will prevent seat belt from proper
operation.
—Removing third seats
BEFORE REMOVING THIRD SEAT
Stow the third center seat belt as
shown in the illustration.
This prevents the belt from falling out
when you remove the third seat.
NOTICE
The third center seat belt must be
stowed before you remove the third
seat.
Make sure to stow the third center
seat belt in order not to cause dam-
age on the seat belt by pinching it
between the third seat inner leg and
seat striker.
ProCarManuals.com

name. SIENNA (45403U)
53
REMOVING THIRD SEAT
1. Lift the seatback angle adjusting le-
ver (1) or press the lever (2) behind
the seatback and fold the seatback
down.2. Holding up the right side handle un-
der the seat, lift the seat and remove
it toward you.
Removing the third seat will enlarge the
luggage compartment. See ”Luggage
stowage precautions” in Part 2 for
precautions to observe for loading
luggage.
CAUTION
When removing or reinstalling the
seat, observe the following to prevent
personal injury:
Be careful not to get your hands or
feet pinched in the seat.
Be careful not to hit the removed
seat against a person or drop it on
yourself.
ProCarManuals.com

name. SIENNA (45403U)
54
To reinstall the third seat, do this.
1. Hook the front legs to the floor.
2. Lock the rear legs.
CAUTION
To prevent personal injury in a colli-
sion or sudden stop:
You must install the removed seat
back in its original position. The
right and the left are not inter-
changeable. If it is installed in the
wrong position, the proper seat belt
tongue and buckle will not attach.
Make sure the seat is securely
locked by pushing forward and rear-
ward on the top of the seatback or
by trying to pull up the edge of the
bottom cushion. Failure to do so
will prevent seat belt from proper
operation.
Do not remove the second seat or
fold the seatback down whenever
the third seat is folded up.
NOTICE
Avoid putting heavy loads on the re-
moved seat. The metallic tips of the
seat legs may be damaged and the
seat cannot be reinstalled.
If the seat legs are locked in the wrong
position, pull up the right side handle
under the seat. Then lift and remove
the seat.
ProCarManuals.com

name. SIENNA (45403U)
55
Head restraints
Ty p e A
Ty p e B
For your safety and comfort, adjust the
head restraint before driving.
To raise: Pull it up.
To lower: Push it down while pressing the
lock release button.
On some models, you can also move the
head restraint forward or backward. If
such adjustment is desired, pull or push
the head restraint.
The head restraint is most effective when
it is close to your head. Therefore, using
a cushion on the seatback is not recom-
mended.
CAUTION
Adjust the center of the head re-
straint so that it is closest to the
top of your ears.
After adjusting the head restraint,
make sure it is locked in position.
Do not drive with the head re-
straints removed.
Armrests
To use the armrest, pull it down as
shown above.
NOTICE
To prevent damage to the armrest,
avoid putting heavy loads on it.
ProCarManuals.com

name. SIENNA (45403U)
56
Toyota strongly urges that the driver and
passengers in the vehicle be properly re-
strained at all times with the seat belts
provided. Failure to do so could increase
the chance of injury and/or the severity of
injury in accidents.
Child. Use a child restraint system ap-
propriate for the child until the child be-
comes large enough to properly wear the
vehicle’s seat belts. See ”Child restraint”
for details.
If a child is too large for a child restraint
system, the child should sit in the rear
seat and must be restrained using the
vehicle’s seat belt. According to accident
statistics, the child is safer when properly
restrained in the rear seat than in the
front seat.
If a child must sit in the front seat, the
seat belts should be worn properly. If an
accident occurs and the seat belts are not
worn properly, the force of the rapid infla-
tion of the airbag may cause death or
serious injury to the child.Do not allow the child to stand up or
kneel on either rear or front seats. An
unrestrained child could suffer serious in-
jury or death during emergency braking or
a collision. Also, do not let the child sit
on your lap. It does not provide sufficient
restraint.
Pregnant woman. Toyota recommends the
use of a seat belt. Ask your doctor for
specific recommendations. The lap belt
should be worn securely and as low as
possible over the hips and not on the
waist.
Injured person. Toyota recommends the
use of a seat belt. Depending on the inju-
ry, first check with your doctor for specific
recommendations.CAUTION
Persons should ride in their seats
properly wearing their seat belts
whenever the vehicle is moving.
Otherwise, they are much more likely
to suffer serious bodily injury or
death in the event of sudden braking
or a collision.
When using the seat belts, observe
the following:
Use the belt for only one person at
a time. Do not use a single belt for
two or more people—even children.
Avoid reclining the seatbacks too
much. The seat belts provide maxi-
mum protection when the seatbacks
are in the upright position. (Refer
to the seat adjustment instructions.)
Be careful not to damage the belt
webbing or hardware. Take care that
they do not get caught or pinched
in the seat or doors.
Inspect the belt system periodically.
Check for cuts, fraying, and loose
parts. Damaged parts should be re-
placed. Do not disassemble or
modify the system.
Seat belts—
—Seat belt precautions
ProCarManuals.com

name. SIENNA (45403U)
57
Keep the belts clean and dry. If
they need cleaning, use a mild soap
solution or lukewarm water. Never
use bleach, dye, or abrasive clean-
ers—they may severely weaken the
belts. (See ”Cleaning the interior”
in Part 5.)
Replace the belt assembly (includ-
ing bolts) if it has been used in a
severe impact. The entire assembly
should be replaced even if damage
is not obvious.
Adjust the seat as needed and sit up
straight and well back in the seat. To
fasten your belt, pull it out of the re-
tractor and insert the tab into the
buckle.
You will hear a click when the tab locks
into the buckle.
The seat belt length automatically adjusts
to your size and the seat position.
The retractor will lock the belt during a
sudden stop or on impact. It also may
lock if you lean forward too quickly. A
slow, easy motion will allow the belt to
extend, and you can move around freely.If the seat belt cannot be pulled out of the
retractor, firmly pull the belt and release
it. You will then be able to smoothly pull
the belt out of the retractor.
When a passenger ’s shoulder belt is com-
pletely extended and is then retracted
even slightly, the belt is locked in that
position and cannot be extended. This fea-
ture is used to hold the child restraint
system securely. (For details, see ”Child
restraint” in this chapter.) To free the belt
again, fully retract the belt and then pull
the belt out once more.CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the belt is not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, immediately contact your
Toyota dealer. Do not use the seat
until the seat belt is fixed. It cannot
protect an adult occupant or your
child from injury.
—Front seat belts and rear
outside seat belts
ProCarManuals.com

name. SIENNA (45403U)
58

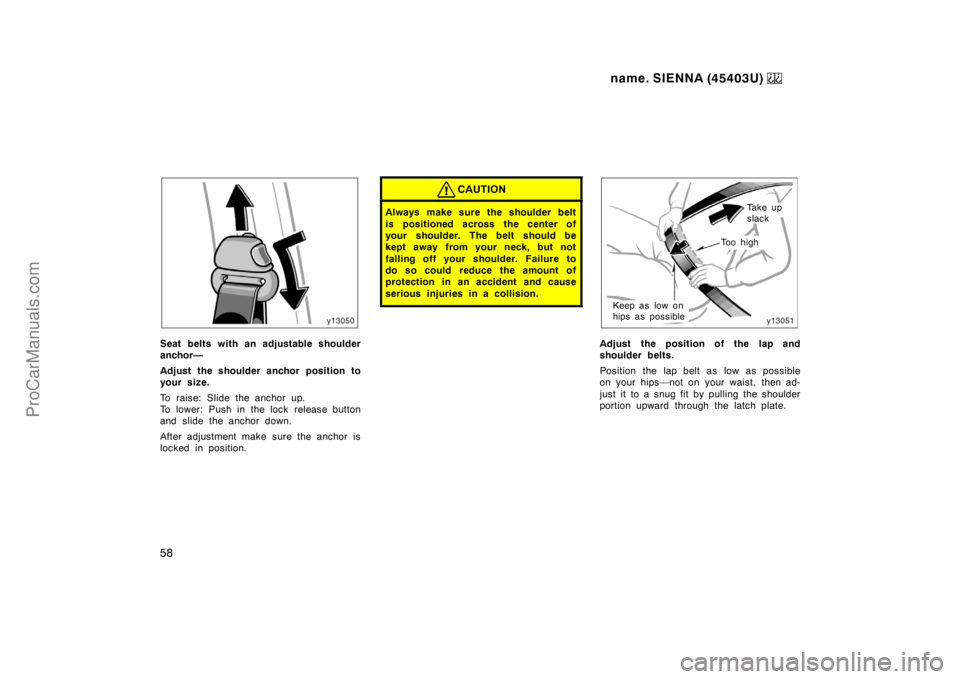

Seat belts with an adjustable shoulder
anchor—
Adjust the shoulder anchor position to
your size.
To raise: Slide the anchor up.
To lower: Push in the lock release button
and slide the anchor down.
After adjustment make sure the anchor is
locked in position.
CAUTION
Always make sure the shoulder belt
is positioned across the center of
your shoulder. The belt should be
kept away from your neck, but not
falling off your shoulder. Failure to
do so could reduce the amount of
protection in an accident and cause
serious injuries in a collision.
To o h i g h
Ta k e u p
slack
Keep as low on
hips as possible
Adjust the position of the lap and
shoulder belts.
Position the lap belt as low as possible
on your hips—not on your waist, then ad-
just it to a snug fit by pulling the shoulder
portion upward through the latch plate.
ProCarManuals.com

name. SIENNA (45403U)
59

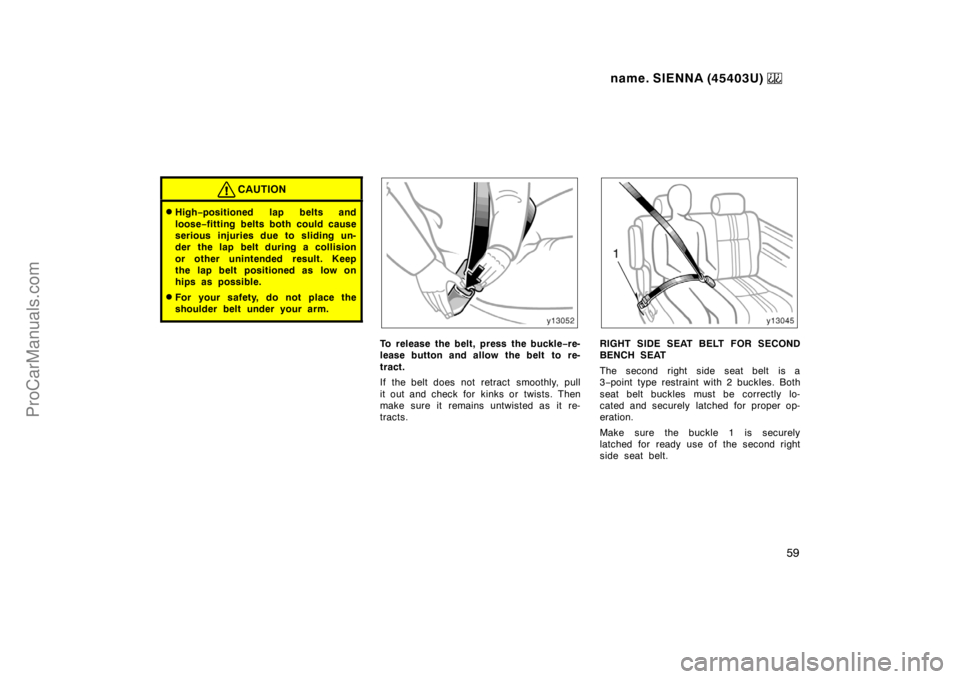

CAUTION
High−positioned lap belts and
loose−fitting belts both could cause
serious injuries due to sliding un-
der the lap belt during a collision
or other unintended result. Keep
the lap belt positioned as low on
hips as possible.
For your safety, do not place the
shoulder belt under your arm.
To release the belt, press the buckle−re-
lease button and allow the belt to re-
tract.
If the belt does not retract smoothly, pull
it out and check for kinks or twists. Then
make sure it remains untwisted as it re-
tracts.RIGHT SIDE SEAT BELT FOR SECOND
BENCH SEAT
The second right side seat belt is a
3−point type restraint with 2 buckles. Both
seat belt buckles must be correctly lo-
cated and securely latched for proper op-
eration.
Make sure the buckle 1 is securely
latched for ready use of the second right
side seat belt.
ProCarManuals.com

name. SIENNA (45403U)
60

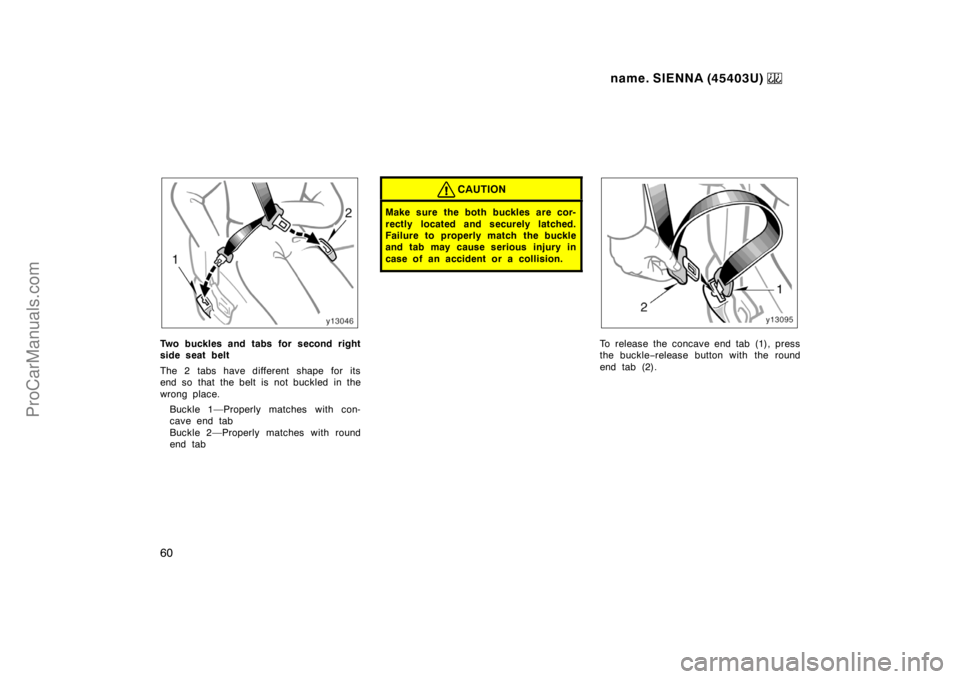

Two buckles and tabs for second right
side seat belt
The 2 tabs have different shape for its
end so that the belt is not buckled in the
wrong place.
Buckle 1—Properly matches with con-
cave end tab
Buckle 2—Properly matches with round
end tab
CAUTION
Make sure the both buckles are cor-
rectly located and securely latched.
Failure to properly match the buckle
and tab may cause serious injury in
case of an accident or a collision.
To release the concave end tab (1), press
the buckle−release button with the round
end tab (2).
ProCarManuals.com
