TOYOTA SIENNA 2000 User Guide

00 SIENNA(U)
5

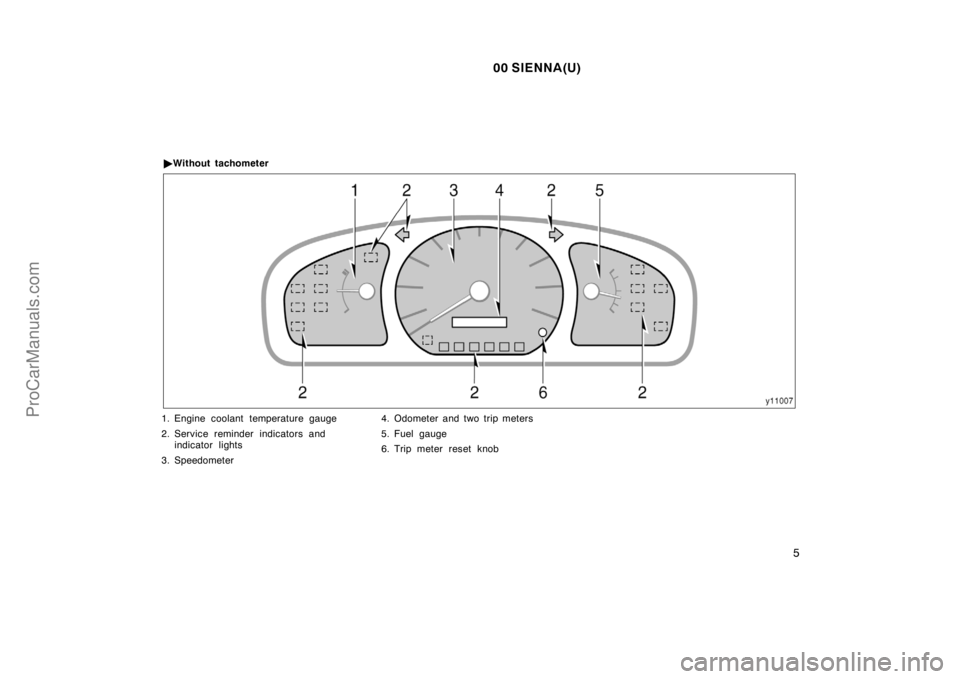

1. Engine coolant temperature gauge
2. Service reminder indicators and
indicator lights
3. Speedometer4. Odometer and two trip meters
5. Fuel gauge
6. Trip meter reset knob Without tachometer
ProCarManuals.com

00 SIENNA(U)
6
Indicator symbols on the instrument panel
Brake system warning light∗
1
(type A)
(type B)
(type A)
(type B)
Seat belt reminder light∗
1
Malfunction indicator lamp∗
1
Low fuel level warning light∗
1
Discharge warning light∗
1
(type A)
(type B)
Low oil pressure warning light∗
1
Anti−lock brake system warning light∗
1
Open door warning light∗
1
SRS warning light∗
1
Low windshield washer fluid level warning
light∗
1
Low tire pressure warning light∗
1
Open power sliding door warning light∗
1
ProCarManuals.com

00 SIENNA(U)
7
Overdrive−off indicator light
Cruise control indicator light
∗
2
Automatic transmission indicator lights Headlight high beam indicator light Turn signal indicator lights
∗
1: For details, see “Service reminder indicators and warning
buzzers” in Section 1−5.
∗
2: If this light flashes, see “Cruise control” in Section 1−6.
ProCarManuals.com

00 SIENNA(U)
8
ProCarManuals.com

00 SIENNA(U)
9
OPERATION OF INSTRUMENTS AND
CONTROLS
Keys and Doors
Keys10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine immobiliser system13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front doors14 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Sliding door16 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power sliding door19 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wireless remote control23 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power windows28 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power rear quarter windows29 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Center side windows and manual rear quarter windows30 . . . . . . . . . .
Back door30 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hood31 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Theft deterrent system32 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel tank cap34 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electric moon roof36 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 1− 2
ProCarManuals.com

00 SIENNA(U)
10

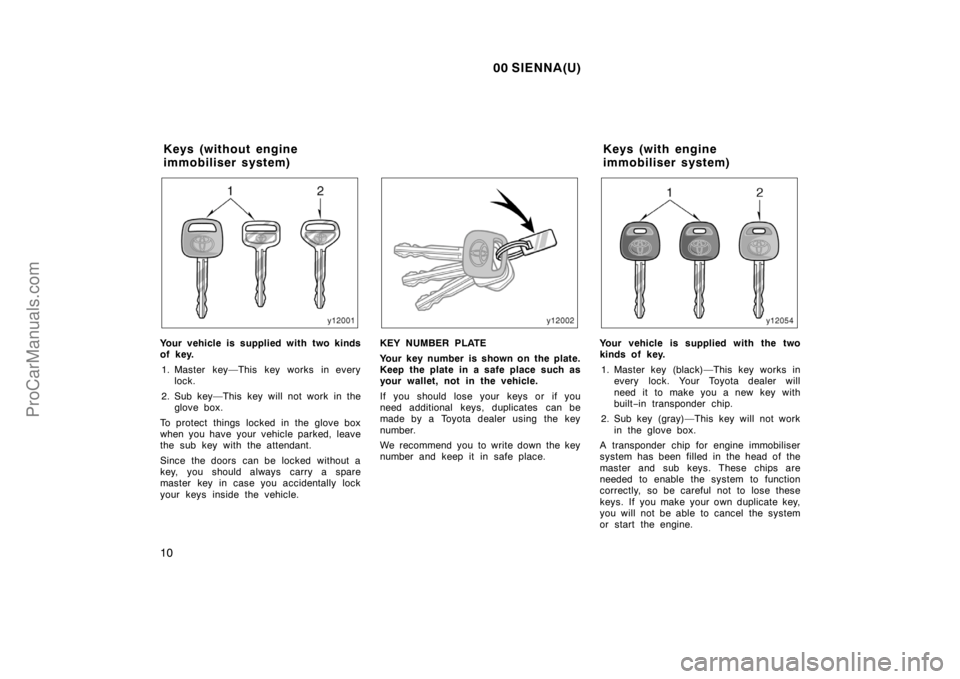

Your vehicle is supplied with two kinds
of key.
1. Master key—This key works in every
lock.
2. Sub key—This key will not work in the
glove box.
To protect things locked in the glove box
when you have your vehicle parked, leave
the sub key with the attendant.
Since the doors can be locked without a
key, you should always carry a spare
master key in case you accidentally lock
your keys inside the vehicle.KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend you to write down the key
number and keep it in safe place.Your vehicle is supplied with the two
kinds of key.
1. Master key (black)—This key works in
every lock. Your Toyota dealer will
need it to make you a new key with
built−in transponder chip.
2. Sub key (gray)—This key will not work
in the glove box.
A transponder chip for engine immobiliser
system has been filled in the head of the
master and sub keys. These chips are
needed to enable the system to function
correctly, so be careful not to lose these
keys. If you make your own duplicate key,
you will not be able to cancel the system
or start the engine.
Keys (without engine
immobiliser system)Keys (with engine
immobiliser system)
ProCarManuals.com

00 SIENNA(U)
11
To protect things locked in the glove box
when you have your vehicle parked, leave
the sub key with the attendant.
Since the side door can be locked without
a key, you should always carry a spare
master key in case you accidentally lock
your keys inside the vehicle.

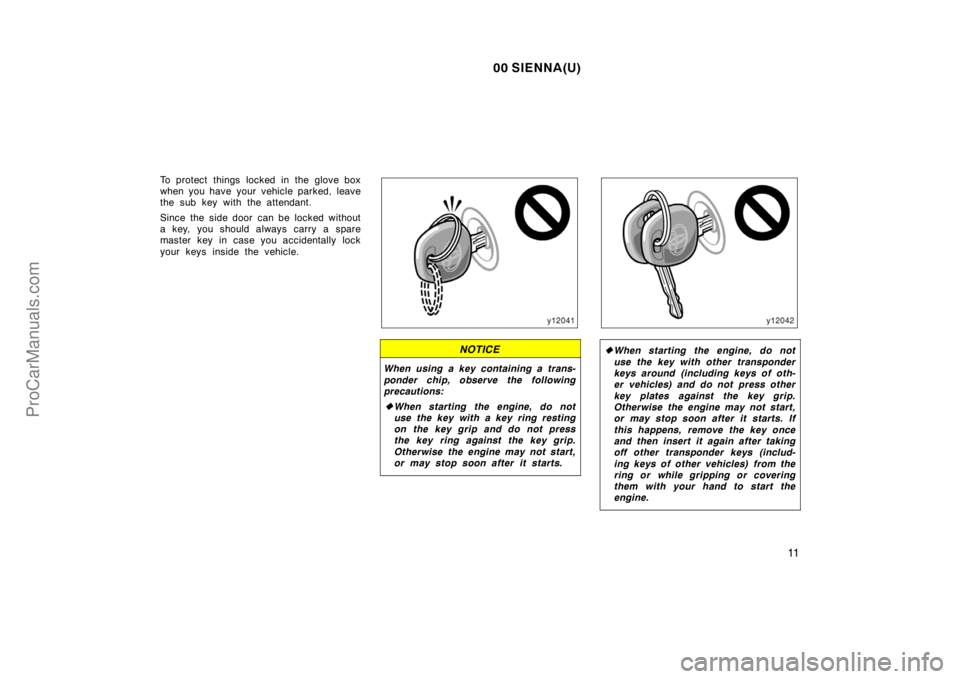

NOTICE
When using a key containing a trans-
ponder chip, observe the following
precautions:
When starting the engine, do not
use the key with a key ring resting
on the key grip and do not press
the key ring against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts.
When starting the engine, do not
use the key with other transponder
keys around (including keys of oth-
er vehicles) and do not press other
key plates against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts. If
this happens, remove the key once
and then insert it again after taking
off other transponder keys (includ-
ing keys of other vehicles) from the
ring or while gripping or covering
them with your hand to start the
engine.
ProCarManuals.com

00 SIENNA(U)
12

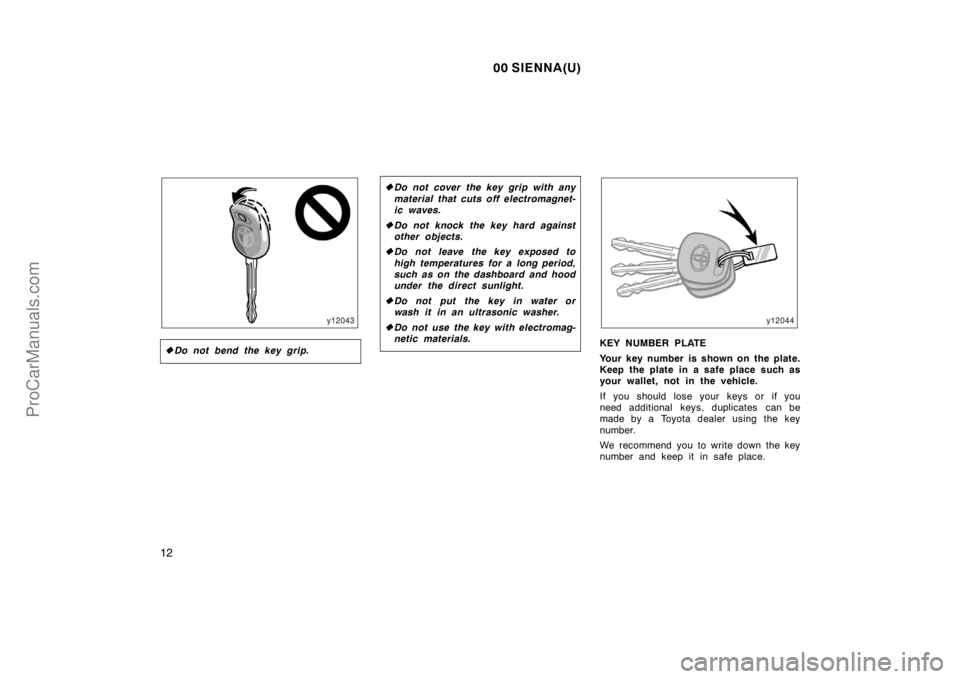

Do not bend the key grip.
Do not cover the key grip with any
material that cuts off electromagnet-
ic waves.
Do not knock the key hard against
other objects.
Do not leave the key exposed to
high temperatures for a long period,
such as on the dashboard and hood
under the direct sunlight.
Do not put the key in water or
wash it in an ultrasonic washer.
Do not use the key with electromag-
netic materials.
KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend you to write down the key
number and keep it in safe place.
ProCarManuals.com

00 SIENNA(U)
13
Engine immobiliser system
The engine immobiliser system is a
theft prevention system. When you in-
sert the key in the ignition switch, the
transponder chip in the key’s head
transmits an electronic code to the ve-
hicle. The engine will start, only when
the electronic code in the chip corre-
sponds to the registered ID code for
the vehicle.The system is automatically set when the
key is removed from the ignition switch.
The indicator light will start flashing every
1 second to show the system is set.
If either of the following indicator condi-
tions occurs, contact your Toyota dealer.
The indicator light stays on except
when the theft deterrent system is set-
ting or activating. (See “Theft deterrent
system”.)
The indicator light does not start flash-
ing when the key is removed from the
ignition switch.
The indicator light flashes unsteady.Inserting the registered key in the ignition
switch automatically cancels the system,
which enables the engine to start. The
indicator light will go off.
For your Toyota dealer to make you a
new key with built−in transponder chip,
your dealer will need your key number
and master key. However, there is a limit
to the number of additional keys your
Toyota dealer can make for you.
If you make your own duplicate key,
you will not be able to cancel the sys-
tem or start the engine.
ProCarManuals.com

00 SIENNA(U)
14

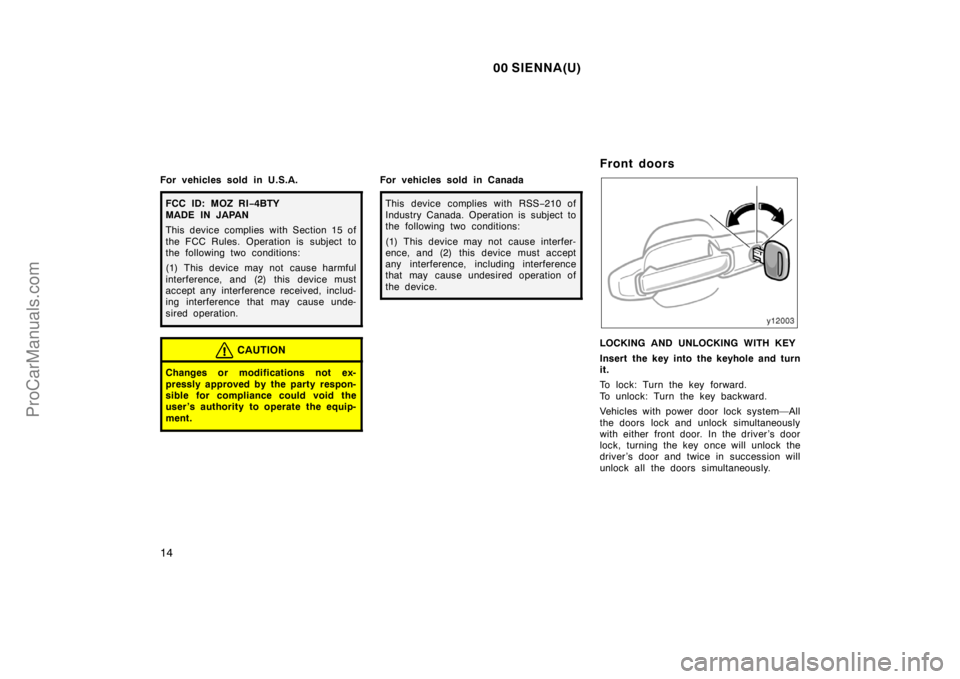

For vehicles sold in U.S.A.
FCC ID: MOZ RI−4BTY
MADE IN JAPAN
This device complies with Section 15 of
the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
CAUTION
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.
For vehicles sold in Canada
This device complies with RSS−210 of
Industry Canada. Operation is subject to
the following two conditions:
(1) This device may not cause interfer-
ence, and (2) this device must accept
any interference, including interference
that may cause undesired operation of
the device.
Front doors
LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn
it.
To lock: Turn the key forward.
To unlock: Turn the key backward.
Vehicles with power door lock system—All
the doors lock and unlock simultaneously
with either front door. In the driver ’s door
lock, turning the key once will unlock the
driver’s door and twice in succession will
unlock all the doors simultaneously.
