TOYOTA SIENNA 2000 Workshop Manual

00 SIENNA(U)
45
For access to the third seat, do this.
1. Pull the lever behind the seatback.
The seat will slide forward.
2. Move the seat to the front−most posi-
tion.
After passengers are in, lift up the seat-
back and return the seat until it locks.
CAUTION
After putting back the seat, try
pushing the seat forward and rear-
ward to make sure it is secured in
place.
Passengers sitting in the third seat
must be careful not to accidentally
pull the release lever while the ve-
hicle is moving.
Lift the seatback angle adjusting lever
(1) or press the lever (2) behind the
seatback and fold the seatback down.
—Moving second seat for
third seat entry
(right side captain seat)—Folding second seat
(bench seat)
ProCarManuals.com

00 SIENNA(U)
46
You can use the second seatback as a
temporary table only when the vehicle is
stopped.
CAUTION
To avoid serious injury:
Do not set up the seatback table
while the vehicle is moving.
Do not sit on the folded seatback.
Make sure the second seat is se-
curely locked in position when you
set the second seat as a temporary
table.
NOTICE
To prevent the seat from damaging,
avoid putting heavy loads on the tem-
porary table.
1. Pull the lever behind the seatback.
Right side only—The seat will slide for-
ward.
—Folding second seats
(captain seat)
ProCarManuals.com

00 SIENNA(U)
47
2. Lift the seatback angle adjusting le-
ver and fold the seatback down.You can use the second seatback as a
temporary table only when the vehicle is
stopped.
CAUTION
To avoid serious injury:
Do not set up the seatback table
while the vehicle is moving.
Do not sit on the folded seatback.
Make sure the second seat is se-
curely locked in sliding position
when you set the second seat as a
temporary table.
When the second seat for a table
was slid for accessing to the third
seat, get the seatback up to the
upright position, fold the seatback
down again, and make certain all
the latches are engaged.
NOTICE
To prevent the seat from damaging,
avoid putting heavy loads on the tem-
porary table.
ProCarManuals.com

00 SIENNA(U)
48
1. Lift the seatback angle adjusting le-
ver (1) or press the lever (2) behind
the seatback and fold the seatback
down.2. Pull the seat lock release lever. Lift
the seat and remove the seat toward
you.
Removing the second seat will enlarge the
luggage compartment. See “Luggage
stowage precautions” in Section 2 for pre-
cautions to observe for loading luggage.
CAUTION
When removing or reinstalling the
seat, observe the following to prevent
personal injury:
Be careful not to get your hands or
feet pinched in the seat.
Be careful not to hit the removed
seat against a person or drop it on
yourself.
—Removing second seat
(bench seat)
ProCarManuals.com

00 SIENNA(U)
49
To reinstall the second seat, do this.
1. Hook the front legs to the floor.
2. Lock the rear legs.
CAUTION
Make sure the seat is securely
locked by pushing forward and rear-
ward on the top of the seatback or
by trying to pull up the edge of the
bottom cushion. Failure to do so
will prevent seat belt from operat-
ing properly.
Do not remove the second seat or
fold the seatback down whenever
the third seat is folded up.
NOTICE
Avoid putting heavy loads on the re-
moved seat. The metallic tips of the
seat legs may be damaged and the
seat cannot be reinstalled.
1. Pull the lever behind the seatback.
Right side only—The seat will slide for-
ward.
—Removing second seats
(captain seat)
ProCarManuals.com

00 SIENNA(U)
50

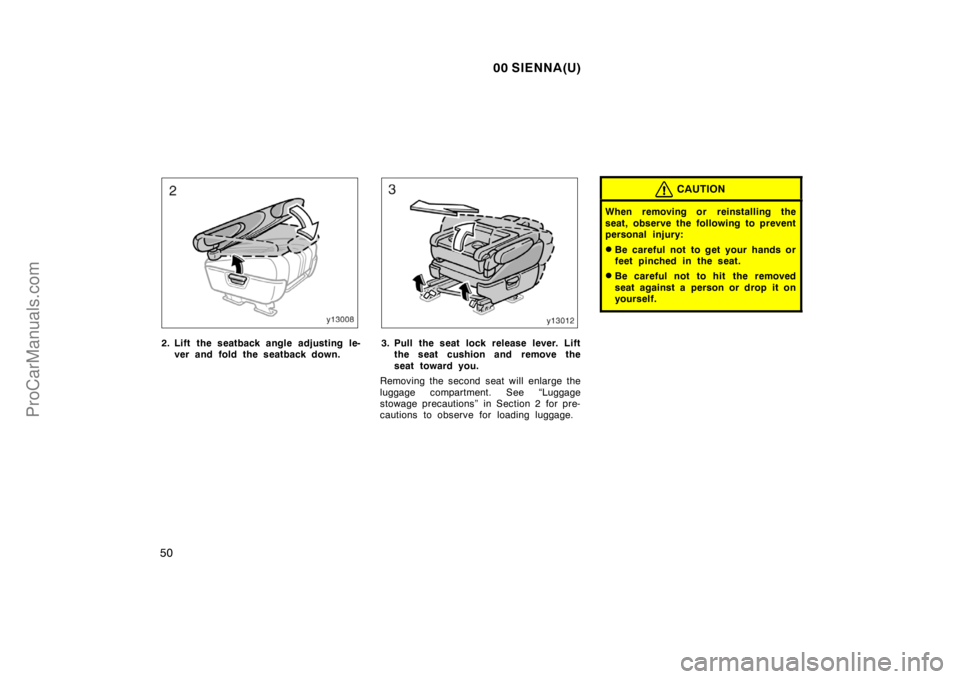

2. Lift the seatback angle adjusting le-
ver and fold the seatback down.3. Pull the seat lock release lever. Lift
the seat cushion and remove the
seat toward you.
Removing the second seat will enlarge the
luggage compartment. See “Luggage
stowage precautions” in Section 2 for pre-
cautions to observe for loading luggage.
CAUTION
When removing or reinstalling the
seat, observe the following to prevent
personal injury:
Be careful not to get your hands or
feet pinched in the seat.
Be careful not to hit the removed
seat against a person or drop it on
yourself.
ProCarManuals.com

00 SIENNA(U)
51
To reinstall the second seat, do this.
1. Hook the front legs to the floor.
2. Lock the rear legs.
CAUTION
Make sure the seat is securely
locked by pushing forward and rear-
ward on the top of the seatback or
by trying to pull up the edge of the
bottom cushion. Failure to do so
will prevent seat belt from operat-
ing properly.
Do not remove the second seat or
fold the seatback down whenever
the third seat is folded up.
NOTICE
Avoid putting heavy loads on the re-
moved seat. The metallic tips of the
seat legs may be damaged and the
seat cannot be reinstalled.
—Adjusting third seats
ProCarManuals.com

00 SIENNA(U)
52
SEATBACK ANGLE ADJUSTING LEVER
Lean forward and pull the lever up.
Then lean back to the desired angle
and release the lever.
CAUTION
To reduce the risk of sliding under
the lap belt during a collision, avoid
reclining the seatback any more than
needed. The seat belts provide maxi-
mum protection in a frontal or rear
collision when the passengers are sit-
ting up straight and well back in the
seats. If you are reclined, the lap belt
may slide past your hips and apply
restraint forces directly to the abdo-
men. Therefore, in the event of a
frontal collision, the risk of personal
injury may increase with increasing
recline of the seatback.
—Folding third seats
BEFORE FOLDING THIRD SEAT
Stow the third center seat belt as
shown in the illustration.
This prevents the belt from falling out
when you fold up the third seat.
NOTICE
The third center seat belt must be
stowed before you fold up the third
seat.
Make sure to stow the third center
seat belt in order not to cause dam-
age on the seat belt by pinching it
between the third seat inner leg and
seat striker.
ProCarManuals.com

00 SIENNA(U)
53

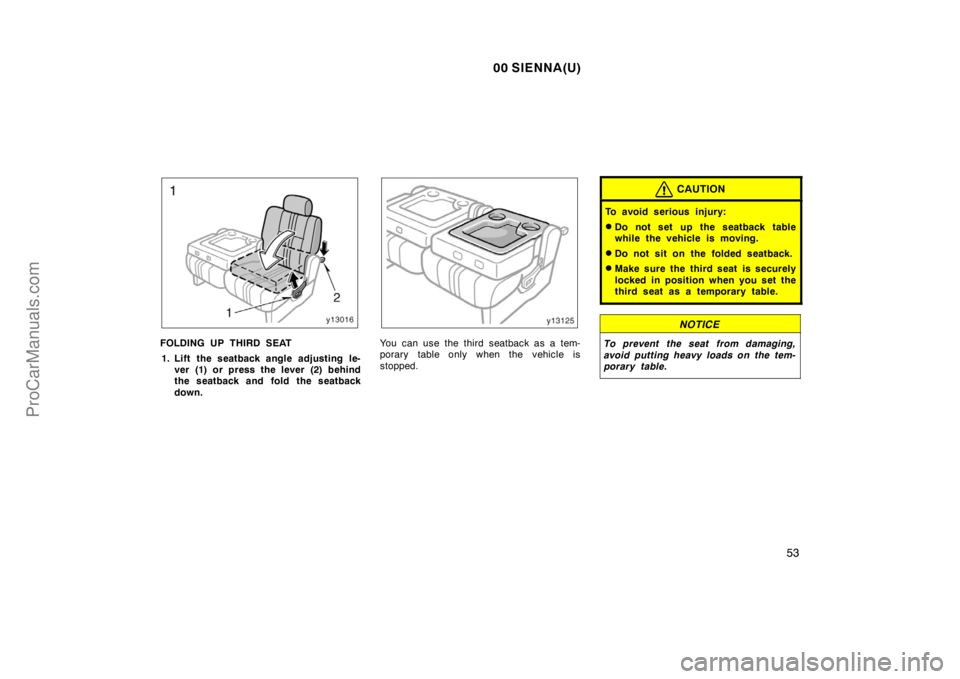

FOLDING UP THIRD SEAT
1. Lift the seatback angle adjusting le-
ver (1) or press the lever (2) behind
the seatback and fold the seatback
down.You can use the third seatback as a tem-
porary table only when the vehicle is
stopped.
CAUTION
To avoid serious injury:
Do not set up the seatback table
while the vehicle is moving.
Do not sit on the folded seatback.
Make sure the third seat is securely
locked in position when you set the
third seat as a temporary table.
NOTICE
To prevent the seat from damaging,
avoid putting heavy loads on the tem-
porary table.
ProCarManuals.com

00 SIENNA(U)
54
2. Remove the head restraint. Unlock
the seat legs by pulling up the left
side handle under the seat, and
swing the whole seat up and for-
ward.
After returning the seat to its origi-
nal position, be certain to replace
the head restraint.
Folding the third seats will enlarge the
luggage compartment. See “Luggage
stowage precautions” in Section 2 for pre-
cautions to observe for loading luggage.
CAUTION
When folding up the seat or return-
ing it to its original position, be
careful not to get your hands or
feet pinched in the seat.
Be certain to replace head restraint.
Make sure the seat is securely
locked by pushing forward and rear-
ward on the top of the seatback or
by trying to pull up the edge of the
bottom cushion. Failure to do so
will prevent seat belt from operat-
ing properly.
—Removing third seats
BEFORE REMOVING THIRD SEAT
Stow the third center seat belt as
shown in the illustration.
This prevents the belt from falling out
when you remove the third seat.
NOTICE
The third center seat belt must be
stowed before you remove the third
seat.
