CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.
4. To remove the convertible seat, press
the buckle−release button and allow the
belt to retract completely. The belt will
move freely again and be ready to
work for an adult or older child passen-
ger.(C) BOOSTER SEAT INSTALLATION
A booster seat is used in forward−fac-
ing position only.
ProCarManuals.com

01 SIENNA_U (L/O0008)
1082001 MY SIENNA (OM45406U)
Move seat fully back
CAUTION
A for war d−facing child restraint sys-
tem should be allowed to be put on
the front seat only when it is un-
avoidable. Always move the seat as
far back as possible, because the
force of the deploying airbag could
cause death or serious injury to the
child.
On vehicles with side airbags, do
not allow the child to lean against
the front door or around the front
door even if the child is seated in
the child restraint system. It is dan-
gerous if the side airbag inflates,
and the impact could cause death
or serious injury to the child.
1. Sit the child on a booster seat. Run
the lap and shoulder belt through or
around the booster seat and child fol-
lowing the instructions provided by its
manufacturer and insert the tab into
the buckle taking care not to twist the
belt.
Make sure the shoulder belt is correctly
across the child’s shoulder and that the
lap belt is positioned as low as possible
on child’s hips. See “Seat belts” for de-
tails.
ProCarManuals.com

01 SIENNA_U (L/O0008)
1092001 MY SIENNA (OM45406U)
CAUTION
Always make sure the shoulder belt
is positioned across the center of
child’s shoulder. The belt should be
kept away from child’s neck, but
not falling off child’s shoulder. Fail-
ure to do so could reduce the
amount of protection in an accident
and cause serious injuries in a col-
lision.
Both high−positioned lap belts and
loose−fitting belts could cause seri-
ous injuries due to sliding under
the lap belt during a collision or
other unintended result. Keep the
lap belt positioned as low on a
child’s hips as possible.
For child’s safety, do not place the
shoulder belt under child’s arm.
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.
If the seat belt does not function
normally, it cannot protect your
child from injury. Contact your
Toyota dealer immediately. Do not
use the seat until the seat belt is
fixed.
2. To remove the child restraint system,
press the buckle−release button and al-
low the belt to retract.
ProCarManuals.com

01 SIENNA_U (L/O0008)
11 02001 MY SIENNA (OM45406U)
— U sin g a to p st rap
Second seat (left side only)
Third seat
Follow the procedure below for a child
restraint system that requires the use
of a top strap.Anchor brackets
Second seat (left side only): Use the an-
chor bracket on the floor to attach the top
strap.
Anchor bracket is installed for left side
second seat.
Third seat: Use the anchor brackets on
the rear of the third seat cushion to attach
the top strap.
Anchor brackets are installed for each
third seat.
ProCarManuals.com

01 SIENNA_U (L/O0008)
1112001 MY SIENNA (OM45406U)

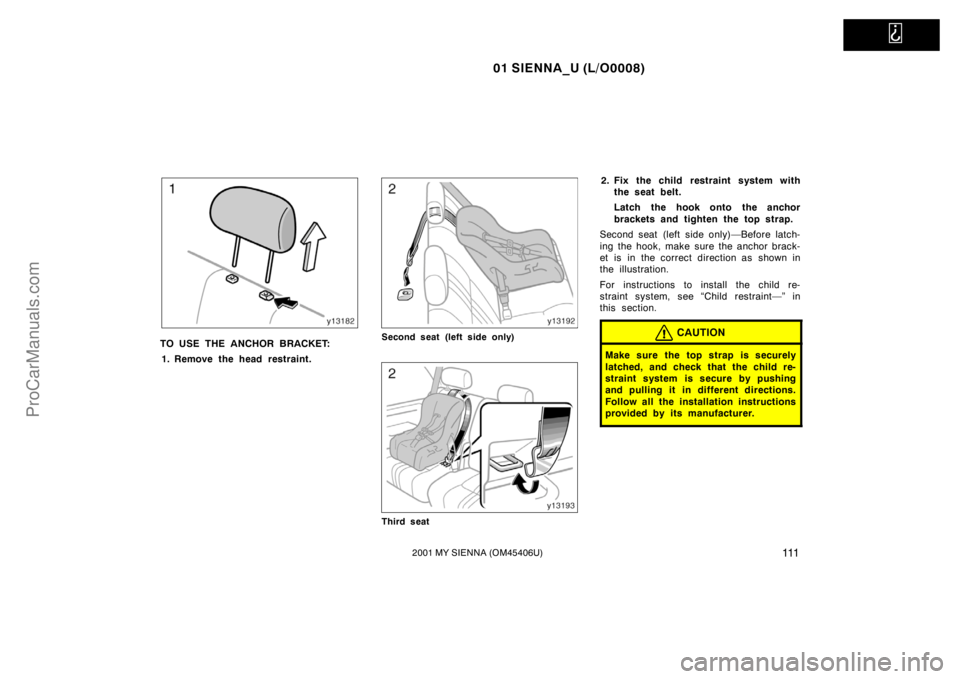

TO USE THE ANCHOR BRACKET:
1. Remove the head restraint.Second seat (left side only)
Third seat
2. Fix the child restraint system with
the seat belt.
Latch the hook onto the anchor
brackets and tighten the top strap.
Second seat (left side only)—Before latch-
ing the hook, make sure the anchor brack-
et is in the correct direction as shown in
the illustration.
For instructions to install the child re-
straint system, see “Child restraint—” in
this section.
CAUTION
Make sure the top strap is securely
latched, and check that the child re-
straint system is secure by pushing
and pulling it in different directions.
Follow all the installation instructions
provided by its manufacturer.
ProCarManuals.com

01 SIENNA_U (L/O0008)
11 22001 MY SIENNA (OM45406U)

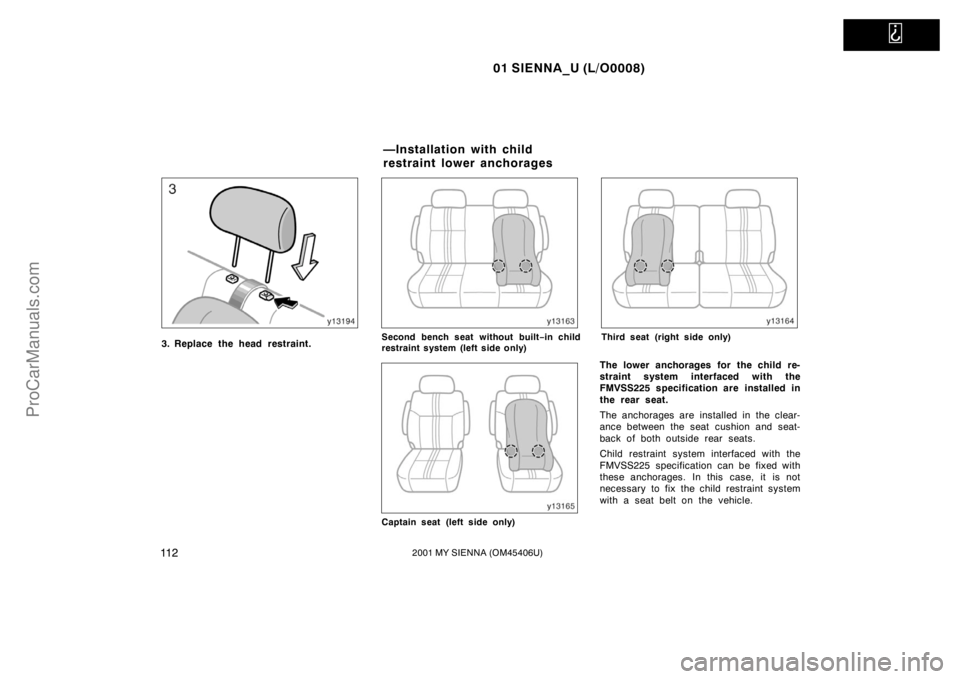

3. Replace the head restraint.Second bench seat without built−in child
restraint system (left side only)
Captain seat (left side only)
Third seat (right side only)
The lower anchorages for the child re-
straint system interfaced with the
FMVSS225 specification are installed in
the rear seat.
The anchorages are installed in the clear-
ance between the seat cushion and seat-
back of both outside rear seats.
Child restraint system interfaced with the
FMVSS225 specification can be fixed with
these anchorages. In this case, it is not
necessary to fix the child restraint system
with a seat belt on the vehicle.
—Installation with child
restraint lower anchorages
ProCarManuals.com

01 SIENNA_U (L/O0008)
11 32001 MY SIENNA (OM45406U)

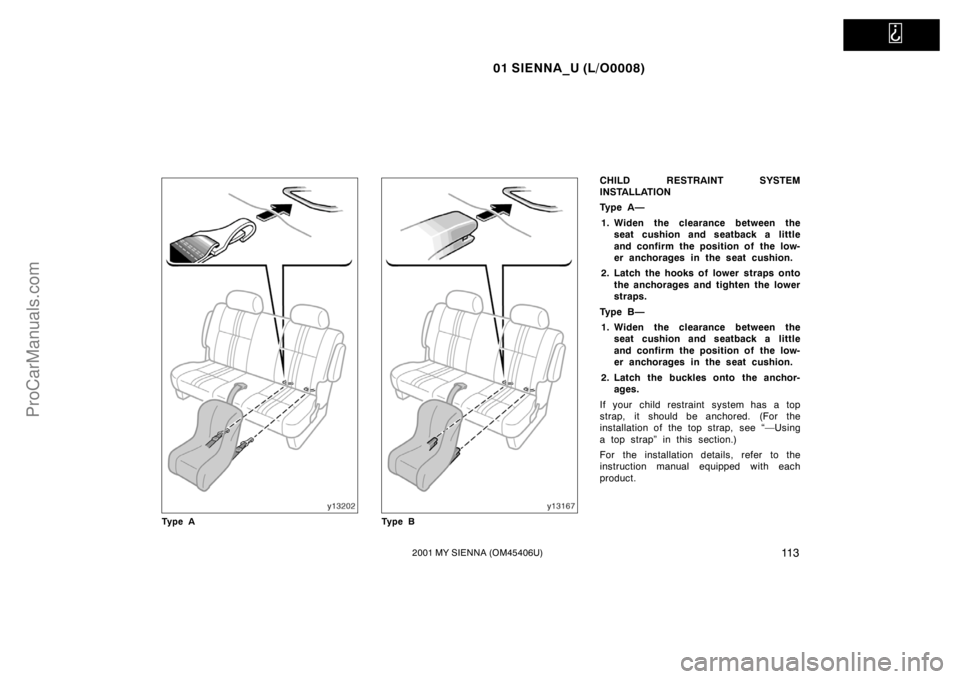

Ty p e ATy p e B
CHILD RESTRAINT SYSTEM
INSTALLATION
Ty p e A —
1. Widen the clearance between the
seat cushion and seatback a little
and confirm the position of the low-
er anchorages in the seat cushion.
2. Latch the hooks of lower straps onto
the anchorages and tighten the lower
straps.
Ty p e B —
1. Widen the clearance between the
seat cushion and seatback a little
and confirm the position of the low-
er anchorages in the seat cushion.
2. Latch the buckles onto the anchor-
ages.
If your child restraint system has a top
strap, it should be anchored. (For the
installation of the top strap, see “—Using
a top strap” in this section.)
For the installation details, refer to the
instruction manual equipped with each
product.
ProCarManuals.com

01 SIENNA_U (L/O0008)
11 42001 MY SIENNA (OM45406U)
CAUTION
When using the lower anchorages
for the child restraint system, be
sure that there are no irregular ob-
jects around the anchorages or that
the seat belt is not caught.
Push and pull the child restraint
system in different directions to be
sure it is secure. Follow all the
installation instructions provided by
its manufacturer.
After securing the child restraint
system, never slide or recline the
seat.
Do not put a child restraint system
on the second seat or third seat if
it interferes with the lock mecha-
nism of the front seat or second
seat. This can cause severe injury
to the child and front passenger in
case of sudden braking or a colli-
sion.
Tilt steering wheel
To change the steering wheel angle,
hold the steering wheel, pull the lock
release lever toward you, tilt the steer-
ing wheel to the desired angle and re-
lease the lever.
When the steering wheel is in a low posi-
tion, it will spring up as you release the
lock release lever.
CAUTION
Do not adjust the steering wheel
while the vehicle is moving. It may
cause the driver to mishandle the
vehicle and an accident may occur
resulting in death or serious inju-
ries.
After adjusting the steering wheel,
try moving it up and down to make
sure it is locked in position.
ProCarManuals.com

01 SIENNA_U (L/O0008)
11 52001 MY SIENNA (OM45406U)

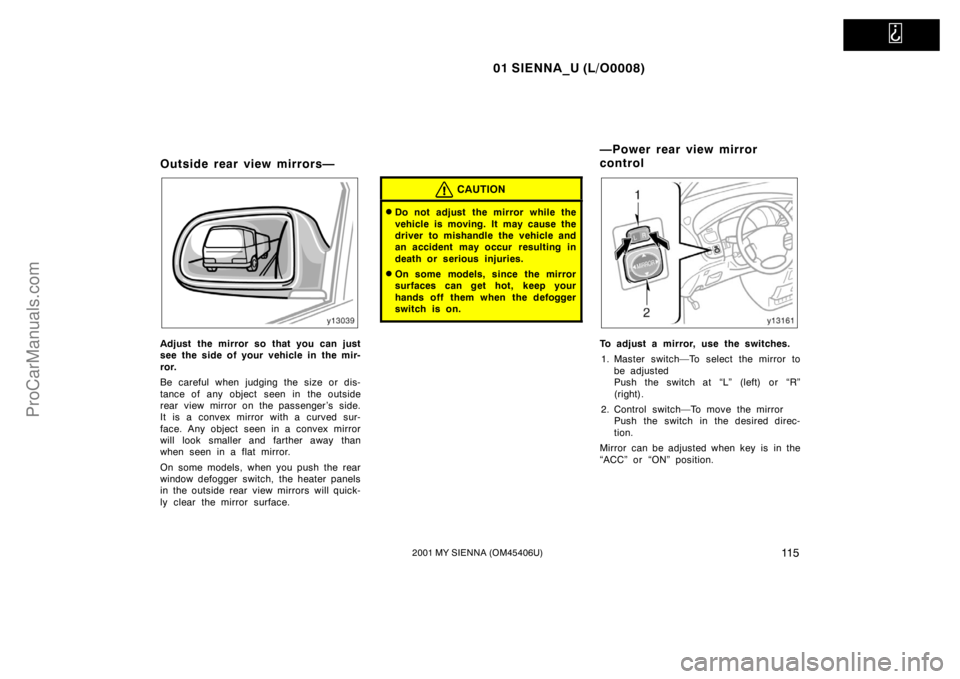

Outside rear view mirrors—
Adjust the mirror so that you can just
see the side of your vehicle in the mir-
ror.
Be careful when judging the size or dis-
tance of any object seen in the outside
rear view mirror on the passenger ’s side.
It is a convex mirror with a curved sur-
face. Any object seen in a convex mirror
will look smaller and farther away than
when seen in a flat mirror.
On some models, when you push the rear
window defogger switch, the heater panels
in the outside rear view mirrors will quick-
ly clear the mirror surface.
CAUTION
Do not adjust the mirror while the
vehicle is moving. It may cause the
driver to mishandle the vehicle and
an accident may occur resulting in
death or serious injuries.
On some models, since the mirror
surfaces can get hot, keep your
hands off them when the defogger
switch is on.
To adjust a mirror, use the switches.
1. Master switch—To select the mirror to
be adjusted
Push the switch at “L” (left) or “R”
(right).
2. Control switch—To move the mirror
Push the switch in the desired direc-
tion.
Mirror can be adjusted when key is in the
“ACC” or “ON” position.
—Power rear view mirror
control
ProCarManuals.com

01 SIENNA_U (L/O0008)
11 62001 MY SIENNA (OM45406U)

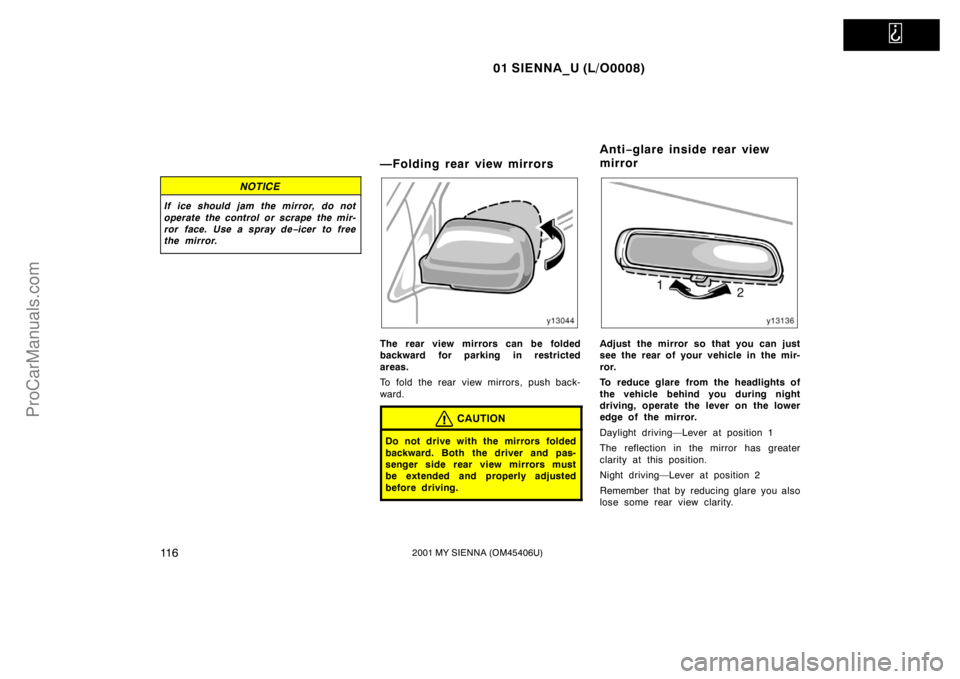

NOTICE
If ice should jam the mirror, do not
operate the control or scrape the mir-
ror face. Use a spray de−icer to free
the mirror.
—Folding rear view mirrors
The rear view mirrors can be folded
backward for parking in restricted
areas.
To fold the rear view mirrors, push back-
ward.
CAUTION
Do not drive with the mirrors folded
backward. Both the driver and pas-
senger side rear view mirrors must
be extended and properly adjusted
before driving.
Adjust the mirror so that you can just
see the rear of your vehicle in the mir-
ror.
To reduce glare from the headlights of
the vehicle behind you during night
driving, operate the lever on the lower
edge of the mirror.
Daylight driving—Lever at position 1
The reflection in the mirror has greater
clarity at this position.
Night driving—Lever at position 2
Remember that by reducing glare you also
lose some rear view clarity.
Anti−glare inside rear view
mirror
