TOYOTA SIENNA 2001 Owners Manual
Manufacturer: TOYOTA, Model Year: 2001, Model line: SIENNA, Model: TOYOTA SIENNA 2001Pages: 330, PDF Size: 8.53 MB
Page 1 of 330
01 SIENNA_U (L/O0008)
i2001 MY SIENNA (OM45406U)
Foreword
Welcome to the growing group of value−conscious people who drive Toyotas. We
are proud of the advanced engineering and quality construction of each vehicle we
build.
This Owner’s Manual explains the operation of your new Toyota. Please read
it thoroughly and have all the occupants follow the instructions carefully.
Doing so will help you enjoy many years of safe and trouble−free motoring.
For important information about this manual and your Toyota, read the follow-
ing pages carefully.
When it comes to service, remember that your Toyota dealer knows your vehicle
best and is interested in your complete satisfaction. He will provide quality mainte-
nance and any other assistance you may require.
Please leave this Owner ’s Manual in this vehicle at the time of resale. The next
owner will need this information also.
All information and specifications in this manual are current at the time of printing.
However, because of Toyota’s policy of continual product improvement, we reserve
the right to make changes at any time without notice.
Please note that this manual applies to all models and explains all equipment,
including options. Therefore, you may find some explanations for equipment
not installed on your vehicle.
©2000 TOYOTA MOTOR CORPORATION
All rights reserved. This material may not be reproduced or copied, in whole or in
part, without the written permission of Toyota Motor Corporation.
ProCarManuals.com
Page 2 of 330
01 SIENNA_U (L/O0008)
ii2001 MY SIENNA (OM45406U)
Important information about this manual
Safety and vehicle damage warnings
Throughout this manual, you will see safety and vehicle dam-
age warnings. You must follow these warnings carefully to
avoid possible injury or damage.
The types of warnings, what they look like, and how they are
used in this manual are explained as follows:
CAUTION
This is a warning against something which may cause
injury to people if the warning is ignored. You are
informed about what you must or must not do in
order to avoid or reduce the risk to yourself and other
people.
NOTICE
This is a warning against something which may cause
damage to the vehicle or its equipment if the warning
is ignored. You are informed about what you must or
must not do in order to avoid or reduce the risk of
damage to your vehicle and its equipment.
Safety symbol
When you see the safety symbol
shown above, it means: “Do not...”;
“Do not do this”; or “Do not let this
happen”.
ProCarManuals.com
Page 3 of 330
01 SIENNA_U (L/O0008)
iii2001 MY SIENNA (OM45406U)
Important information about your Toyota
New vehicle warranty
Your new vehicle is covered by the following Toyota
limited warranties:
New vehicle warranty
Emission control systems warranty
Others
For further information, please refer to the “Owner’s
Warranty Information Booklet” or “Owner ’s Manual
Supplement”.
Your responsibility for maintenance
It is the owner ’s responsibility to make sure that the
specified maintenance is performed. Section 6 gives de-
tails of these maintenance requirements. Also included
in Section 6 is general maintenance. For scheduled
maintenance information, please refer to the “Scheduled
Maintenance Guide” or “Owner ’s Manual Supplement”.
Accessories, spare parts and
modification of your Toyota
A wide variety of non−genuine spare parts and accesso-
ries for Toyota vehicles are currently available in the
market. You should know that Toyota does not warrant
these products and is not responsible for their perfor-
mance, repair, or replacement, or for any damage they
may cause to, or adverse effect they may have on,
your Toyota vehicle.
This vehicle should not be modified with non−genuine
Toyota products. Modification with non−genuine Toyota
products could affect its performance, safety or durabili-
ty, and may even violate governmental regulations. In
addition, damage or performance problems resulting from
the modification may not be covered under warranty.
ProCarManuals.com
Page 4 of 330
01 SIENNA_U (L/O0008)
iv2001 MY SIENNA (OM45406U)
Spark ignition system of
your Toyota
The spark ignition system in your Toyota meets all re-
quirements of the Canadian Interference−Causing Equip-
ment Standard.
Installation of a mobile
two−way radio system
As the installation of a mobile two−way radio system in
your vehicle could affect electronic systems such as
multiport fuel injection system/sequential multiport fuel
injection system, cruise control system, anti−lock brake
system, traction control system, vehicle skid control sys-
tem, SRS airbag system and seat belt pretensioner sys-
tem, be sure to check with your Toyota dealer for pre-
cautionary measures or special instructions regarding
installation.
Scrapping of your Toyota
The SRS airbag and seat belt pretensioner devices in
your Toyota contain explosive chemicals. If the vehicle
is scrapped with the airbags and pretensioners left as
they are, this may cause an accident such as fire. Be
sure to have the systems of the SRS airbag and seat
belt pretensioner removed and disposed of by the quali-
fied service shop or by your Toyota dealer before you
dispose of your vehicle.
ProCarManuals.com
Page 5 of 330
01 SIENNA_U (L/O0008)
12001 MY SIENNA (OM45406U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Overview of instruments and controls
Instrument panel overview2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Instrument cluster overview5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Indicator symbols on the instrument panel7 . . . . . . . . . . . . . . . . . . . . . . .
SECTION 1− 1
ProCarManuals.com
Page 6 of 330
01 SIENNA_U (L/O0008)
22001 MY SIENNA (OM45406U)

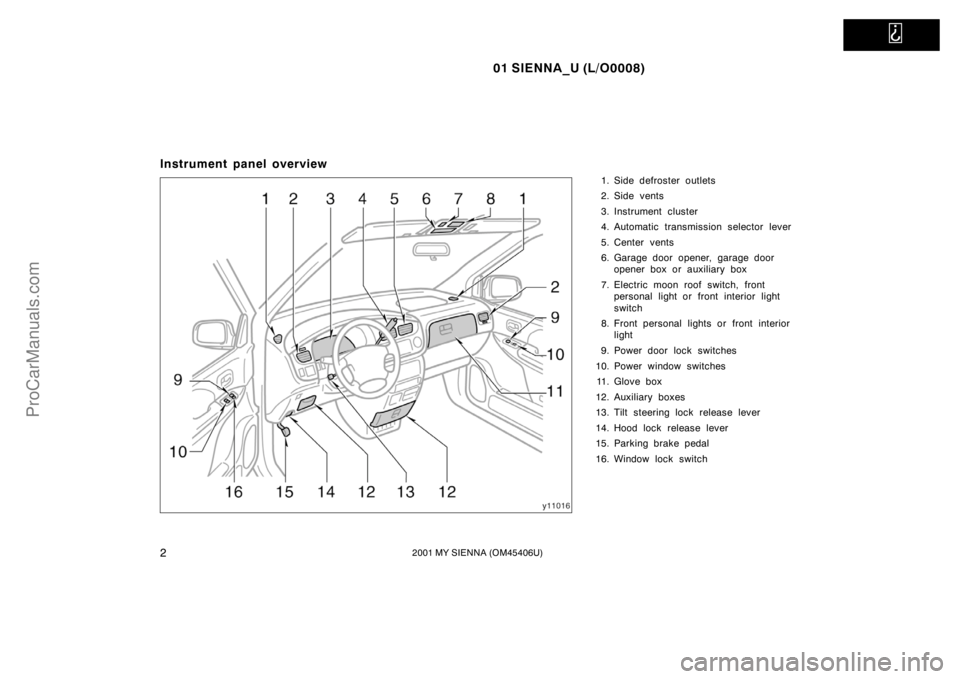

Instrument panel overview
1. Side defroster outlets
2. Side vents
3. Instrument cluster
4. Automatic transmission selector lever
5. Center vents
6. Garage door opener, garage door
opener box or auxiliary box
7. Electric moon roof switch, front
personal light or front interior light
switch
8. Front personal lights or front interior
light
9. Power door lock switches
10. Power window switches
11 . G l o v e b o x
12. Auxiliary boxes
13. Tilt steering lock release lever
14. Hood lock release lever
15. Parking brake pedal
16. Window lock switch
ProCarManuals.com
Page 7 of 330
01 SIENNA_U (L/O0008)
32001 MY SIENNA (OM45406U)

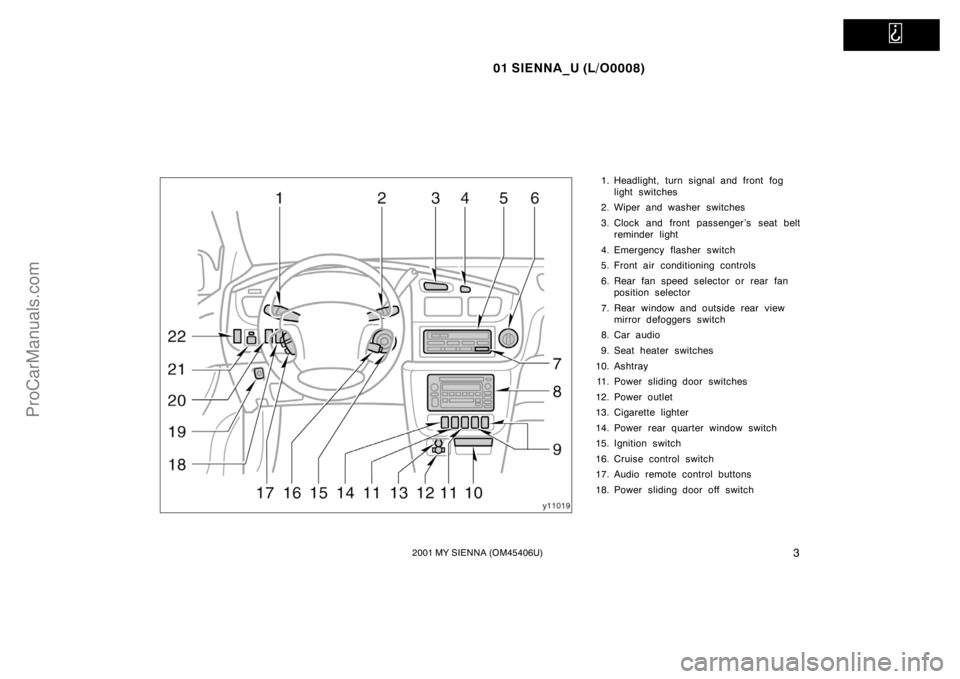

1. Headlight, turn signal and front fog
light switches
2. Wiper and washer switches
3. Clock and front passenger ’s seat belt
reminder light
4. Emergency flasher switch
5. Front air conditioning controls
6. Rear fan speed selector or rear fan
position selector
7. Rear window and outside rear view
mirror defoggers switch
8. Car audio
9. Seat heater switches
10. Ashtray
11. Power sliding door switches
12. Power outlet
13. Cigarette lighter
14. Power rear quarter window switch
15. Ignition switch
16. Cruise control switch
17. Audio remote control buttons
18. Power sliding door off switch
ProCarManuals.com
Page 8 of 330
01 SIENNA_U (L/O0008)
42001 MY SIENNA (OM45406U)
19. Tire pressure warning system reset
switch or traction control system off
switch
20. Theft deterrent system/Engine
immobiliser system indicator light
21. Power rear view mirror control switch
22. Instrument panel light control dial
ProCarManuals.com
Page 9 of 330
01 SIENNA_U (L/O0008)
52001 MY SIENNA (OM45406U)
1. Engine coolant temperature gauge
2. Tachometer
3. Service reminder indicators and
indicator lights4. Speedometer
5. Fuel gauge
6. Trip meter reset knob7. Odometer and two trip meters
Instrument cluster overview
With tachometer
ProCarManuals.com
Page 10 of 330
01 SIENNA_U (L/O0008)
62001 MY SIENNA (OM45406U)
1. Engine coolant temperature gauge
2. Service reminder indicators and
indicator lights
3. Speedometer4. Odometer and two trip meters
5. Fuel gauge
6. Trip meter reset knob Without tachometer
ProCarManuals.com
