If the new fuse immediately blows out,
there is a problem with the electrical sys-
tem. Have your Toyota dealer correct it as
soon as possible.
CAUTION
Never use a fuse with a higher am-
perage rating, or any other object, in
place of a fuse. This may cause ex-
tensive damage and possibly a fire.
Adding washer fluid
If any washer does not work or low
windshield washer fluid level warning
light comes on, the washer tank may be
empty. Add washer fluid.
You may use plain water as washer fluid.
However, in cold areas where tempera-
tures range below freezing point, use
washer fluid containing antifreeze. This
product is available at your Toyota dealer
and most auto parts stores. Follow the
manufacturer ’s directions for how much to
mix with water.
NOTICE
Do not use engine antifreeze or any
other substitute because it may dam-
age your vehicle’s paint.
Replacing light bulbs—
The following illustrations show how to
gain access to the bulbs. When replacing
a bulb, make sure the ignition switch and
light switch are off. Use bulbs with the
wattage ratings given in the table.
CAUTION
To prevent yourself from burning,
do not replace the light bulbs while
they are hot.
Halogen bulbs have pressurized gas
inside and require special handling.
They can burst or shatter if
scratched or dropped. Hold a bulb
only by its plastic or metal case.
Do not touch the glass part of a
bulb with bare hands.
NOTICE
Only use a bulb of the listed type.

02 SIENNA_U (L/O 0107)
3082002 MY SIENNA_U (OM45407U)
The inside of the lens of exterior lights
such as headlights may temporarily fog up
when the lens becomes wet in the rain or
in a car wash. This is not a problem
because the fogging is caused by the
temperature difference between the outside
and inside of the lens, just like the
windshield fogged up in the rain. However,
if there is a large drop of water on the
inside of the lens, or if there is water
pooled inside the light, contact your
Toyota dealer.Ty p e
W
Bulb No.
60/55
Light bulbs
Headlights
Front fog lights A
Front turn signal and parking/side marker lights
Rear turn signal lights
Stop/tail lights
Backup lights
License plate lights
High mounted stoplight
Front personal lights
Front interior light
Center personal lights
Rear interior light
Vanity mirror lights
A: HB2 halogen bulbs
B: HB3 halogen bulbs
C: Single end bulbs
D: Wedge base bulbs
E: Double end bulbs 51
—B
27/8
3157A C
21
—D
21/5
7743 D
18
921 D
5
168 D
18
921 D
8
—E
8
—E
8
—E
8
—E
3
—E
Door courtesy lights
Luggage compartment light 3.8
194 D
5
—E —

02 SIENNA_U (L/O 0107)
3092002 MY SIENNA_U (OM45407U)

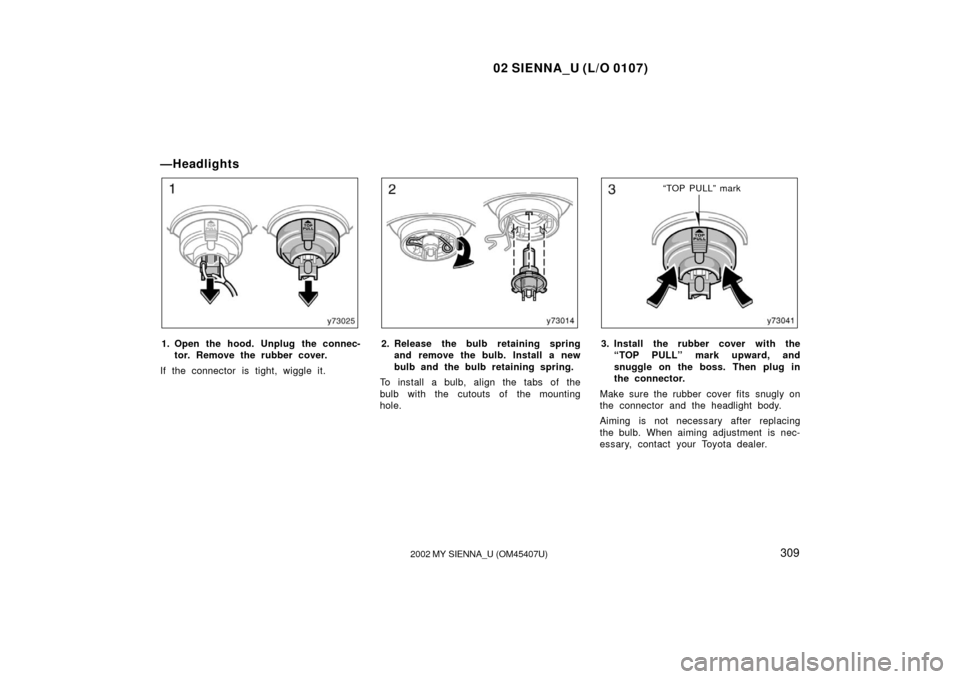

—Headlights
1. Open the hood. Unplug the connec-
tor. Remove the rubber cover.
If the connector is tight, wiggle it.2. Release the bulb retaining spring and remove the bulb. Install a new
bulb and the bulb retaining spring.
To install a bulb, align the tabs of the
bulb with the cutouts of the mounting
hole.
“TOP PULL” mark
3. Install the rubber cover with the “TOP PULL” mark upward, and
snuggle on the boss. Then plug in
the connector.
Make sure the rubber cover fits snugly on
the connector and the headlight body.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.

02 SIENNA_U (L/O 0107)
3102002 MY SIENNA_U (OM45407U)
—Front fog lights
If either the left or right front fog burns
out, contact your Toyota dealer.
NOTICE
Do not try to replace the front fog
lights bulbs by yourself. You may
damage the vehicle.
Use a Phillipshead screwdriver.

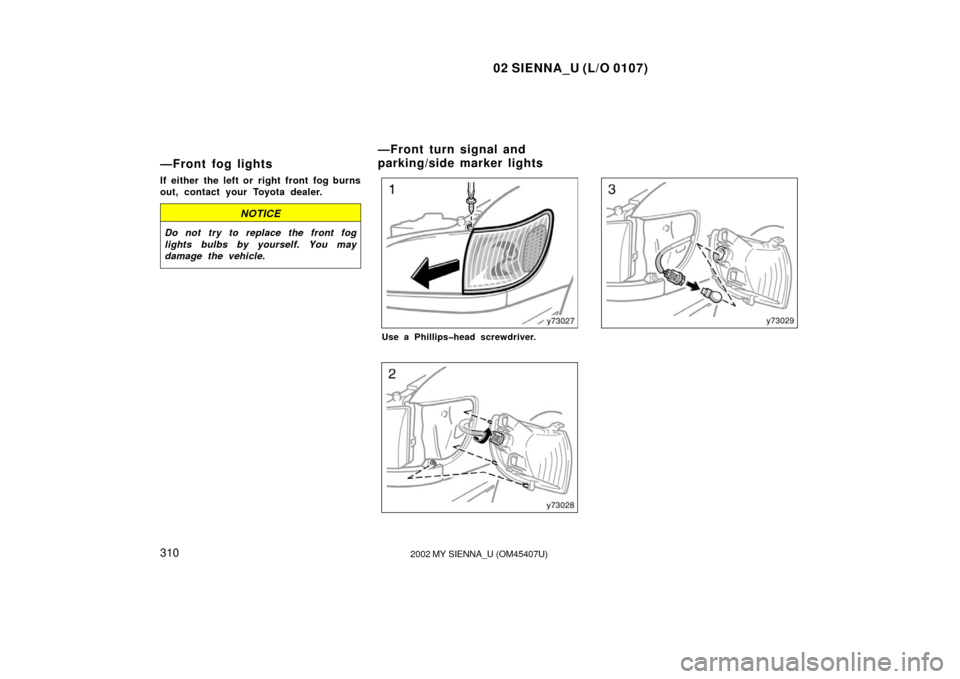

—Front turn signal and
parking/side marker lights

02 SIENNA_U (L/O 0107)
3112002 MY SIENNA_U (OM45407U)

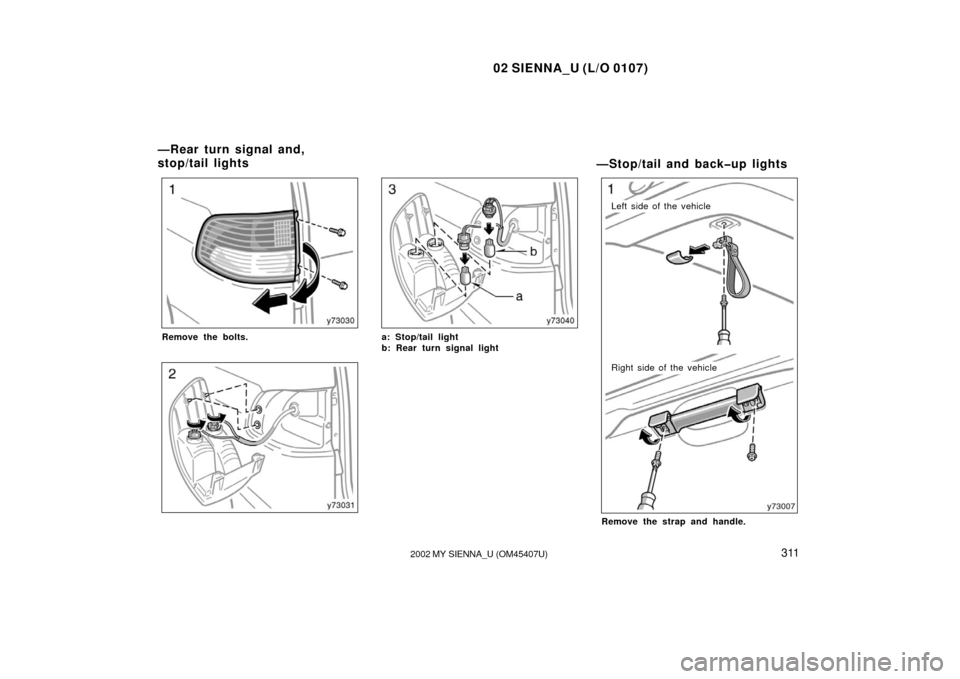

Remove the bolts.a: Stop/tail light
b: Rear turn signal light
—Stop/tail and backup lights
Left side of the vehicle
Right side of the vehicle
Remove the strap and handle.

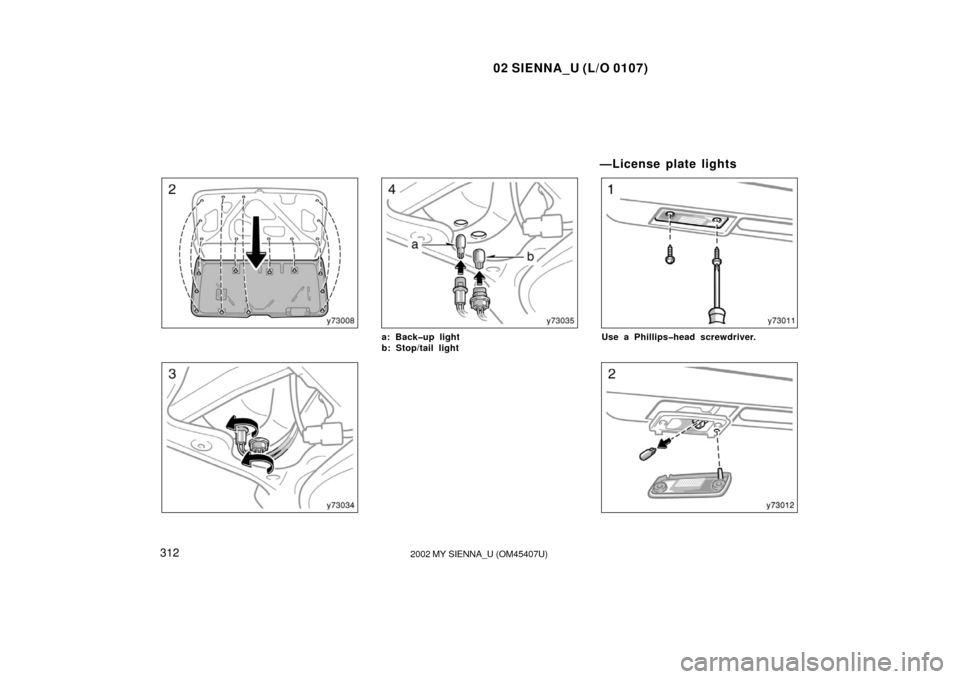

—Rear turn signal and,
stop/tail lights

02 SIENNA_U (L/O 0107)
3122002 MY SIENNA_U (OM45407U)
a: Backup light
b: Stop/tail light
—License plate lights
Use a Phillipshead screwdriver.

02 SIENNA_U (L/O 0107)
3132002 MY SIENNA_U (OM45407U)

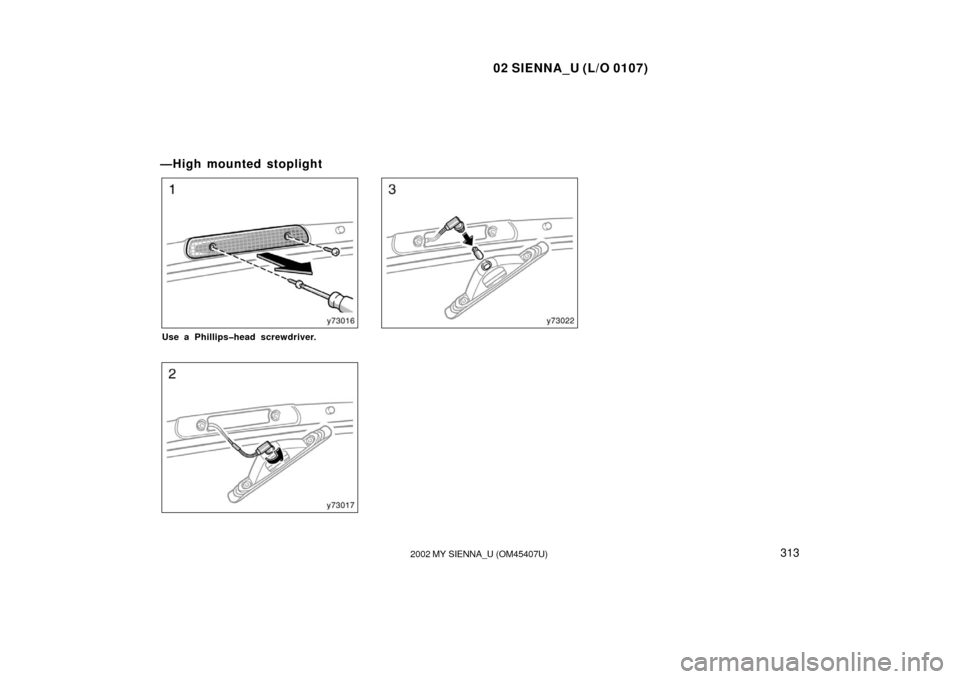

—High mounted stoplight
Use a Phillipshead screwdriver.

02 SIENNA_U (L/O 0107)
3142002 MY SIENNA_U (OM45407U)

02 SIENNA_U (L/O 0107)
3152002 MY SIENNA_U (OM45407U)
SPECIFICATIONS
Dimensions and weight 316
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Engine 316
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Fuel 317
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Service specifications 317
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Tires 319
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
Fuses 320
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
SECTION 8

02 SIENNA_U (L/O 0107)
3162002 MY SIENNA_U (OM45407U)
Dimensions and weight Engine
Model:
1MZFE
Type: 6 cylinder V type 4 cycle, gasoline
Bore and stroke, mm (in.): 87.5 83.0 (3.44 3.27)
Displacement, cm
3 (cu. in.):
2995 (182.8)
Overall width mm (in.)
2900 (114.2)
Overall height mm (in.)
1610 (63.4)
Wheelbase mm (in.)
Front tread mm (in.) 1565 (61.6)
Rear tread mm (in.)
511 (1127)
∗: Unladen vehicleOverall length mm (in.)
Vehicle capacity weight
kg (lb.)
(occupants + luggage) 4930 (194.1)
1865 (73.4)
1710 (67.3)
∗
