TOYOTA SIENNA 2002 XL10 / 1.G Owners Manual

02 SIENNA_U (L/O 0107)
3172002 MY SIENNA_U (OM45407U)
Fuel
Fuel type:
Unleaded gasoline, Octane Rating 87
(Research Octane Number 91) or higher.
For improved vehicle performance, the
use of premium unleaded gasoline with
an Octane Rating of 91 (Research Oc-
tane Number 96) or higher is recom-
mended.
Fuel tank capacity, L (gal., Imp. gal.): 79 (21, 17.5)
Service specifications
ENGINE
Valve clearance (engine cold), mm (in.):Intake 0.15—0.25 (0.006—0.010)
Exhaust 0.25—0.35 (0.010—0.014)
Spark plug type: DENSO SK20R11
NGK IFR6A11
Spark plug gap, mm (in.): 1.1 (0.043)
Drive belt tension measured with Bor-
roughs drive belt tension gauge
No.BT3373F (used belt), Ibf: Generator belt 125 10
Power steering pump belt 115 20
ENGINE LUBRICATION
Oil capacity (drain and ref ill),
L (qt., Imp. qt.): With filter 4.7 (5.0, 4.1)
Without filter 4.5 (4.8, 4.0)
Oil grade: API grade SJ, “EnergyConserving” or
ILSAC multigrade engine oil is recom-
mended. Recommended oil viscosity (SAE):
5W-30 Preferred
Temperature range anticipated before
next oil change
COOLING SYSTEM
Total capacity, L (qt., Imp. qt.): 10.4 (11.0, 9.2)
Coolant type: “TOYOTA Long Life Coolant” or equiva-
lent
With ethyleneglycol type coolant for a
proper corrosion protection of aluminum
components
Do not use alcohol type antifreeze or
plain water alone.

02 SIENNA_U (L/O 0107)
3182002 MY SIENNA_U (OM45407U)
BATTERY
Open voltage
∗ at 20C (68 F):
12.6—12.8 V Fully charged
12.2—12.4 V Half charged
11.8—12.0 V Discharged
∗: Voltage that is checked 20 minutes af- ter the key is removed with all the
lights turned off
Charging rates: 5 A max.
AUTOMATIC TRANSAXLE
Fluid capacity (drain and ref ill),
L (qt., Imp. qt.):
Up to 4.75 (5.0, 4.2)
Fluid type: Automatic transmission fluid Dll or
DEXRON III (DEXRON II) BRAKES
Minimum pedal clearance when depressed
with the force of 490 N (50 kgf, 110 lbf)
with the engine running, mm (in.):
96 (3.8)
Pedal free play, mm (in.): 1—6 (0.04—0.24)
Pad wear limit, mm (in.): 1.0 (0.04)
Lining wear limit, mm (in.): 1.0 (0.04)
Parking brake adjustment when depressed
with the force of 294 N (30 kgf, 66 lbf): 3—5 clicks
Fluid type: SAE J1703 or FMVSS No.116 DOT 3
STEERING
Wheel free play: Less than 30 mm (1.2 in.)
Power steering fluid type: Automatic transmission fluid DEXRON II
or III

02 SIENNA_U (L/O 0107)
3192002 MY SIENNA_U (OM45407U)
Tires
Wheel nut torque, N·m (kgf·m, ft·lbf):
104 (10.5, 77)
NOTE: For a complete information on tires (e.g. replacing tires or re-
placing wheels), see “Checking
tire pressure” through “Aluminum
wheel precautions” in Section 72.
Tire size Wheel size
P205/70R15 95S 240 (2.4, 35)
220 (2.2, 32)
∗ 1
240 (2.4, 35)∗2
T145/80D16 420 (4.2, 60) 15
61/2JJ
16 4T
P215/65R15 95S
Tire size Wheel size
P205/70R15 95S 240 (2.4, 35) 1561/2JJ
240 (2.4, 35) 1561/2JJ
P215/65R15 95S
When driving under the above vehicle load conditions at sustained high speeds above
160 km/h (100 mph), in countries where such speeds are permitted bylaw, inflate
the front and rear tires to 240 kPa (2.4 kgf/cm
2 or bar, 35 psi) provided that it does
not exceed the maximum cold tire pressure molded on the tire sidewall.
∗ 1: Vehicle load up to 6 passengers∗2: Up to vehicle capacity weight
Normal driving
Trailer towing Tire size and pressure:
Tire pressure,
kPa (kgf/cm
2 or bar, psi)
Tire pressure,
kPa (kgf/cm
2 or bar, psi) 15
61/2JJ

02 SIENNA_U (L/O 0107)
3202002 MY SIENNA_U (OM45407U)
Fuses

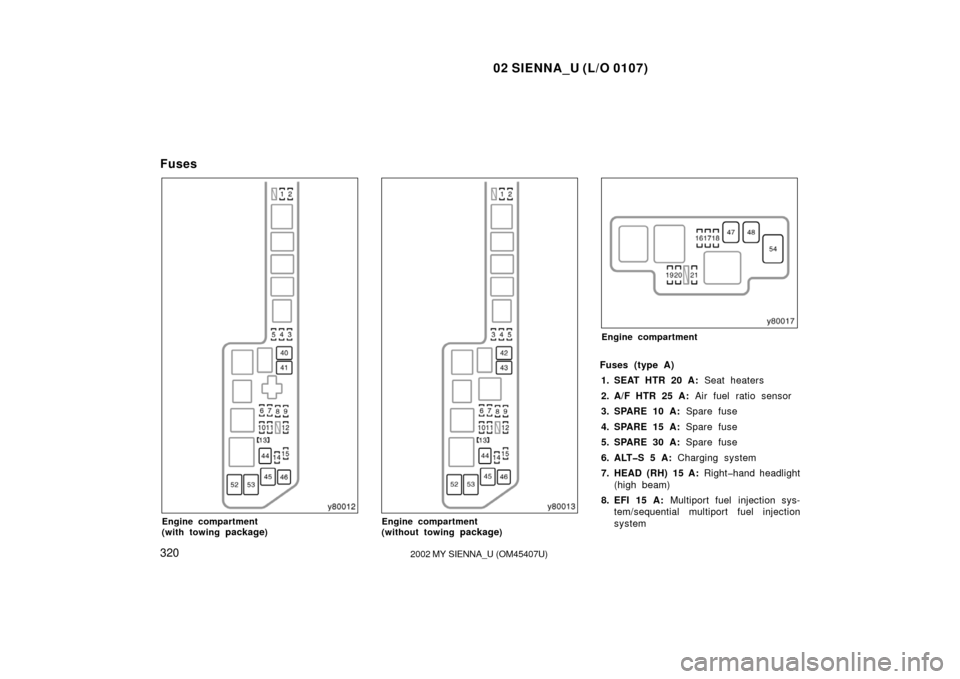

Engine compartment
(with towing package)Engine compartment
(without towing package)
Engine compartment
Fuses (type A)
1. SEAT HTR 20 A: Seat heaters
2. A/F HTR 25 A: Air fuel ratio sensor
3. SPARE 10 A: Spare fuse
4. SPARE 15 A: Spare fuse
5. SPARE 30 A: Spare fuse
6. ALTS 5 A: Charging system
7. HEAD (RH) 15 A: Righthand headlight
(high beam)
8. EFI 15 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system

02 SIENNA_U (L/O 0107)
3212002 MY SIENNA_U (OM45407U)
Instrument panel
9. HORN 10 A: Horn, theft deterrent sys-
tem
10. HAZARD 10 A: Emergency flashers
11. AM2 30 A: “IGN” and “STARTER”
fuses
12. HEAD (LH) 15 A: Lefthand headlight
(high beam)
13. RADIO NO.1 20 A: Car audio system

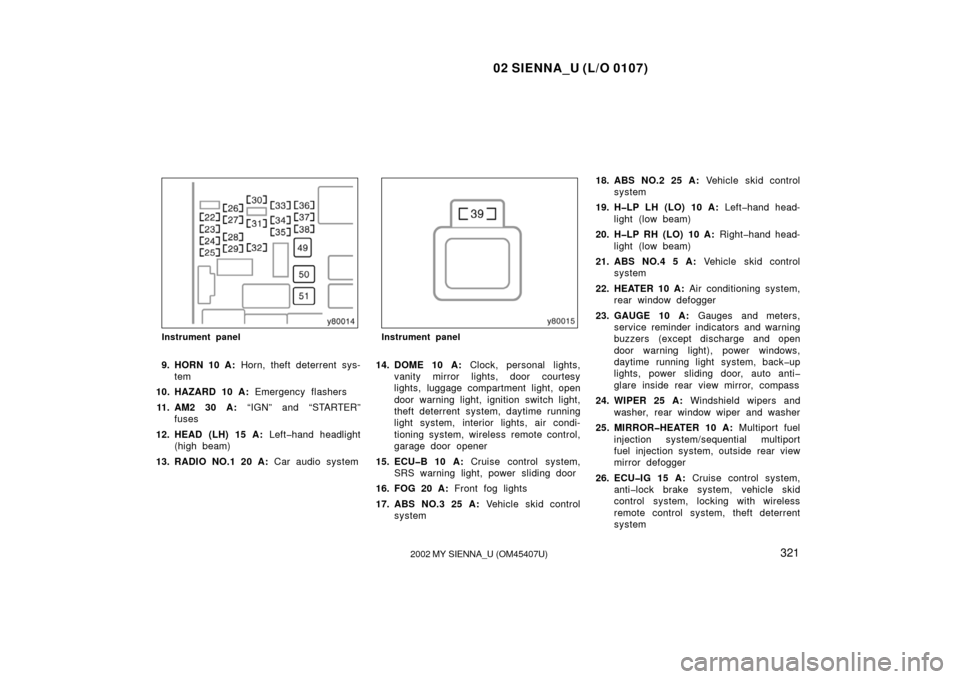

Instrument panel
14. DOME 10 A: Clock, personal lights,
vanity mirror lights, door courtesy
lights, luggage compartment light, open
door warning light, ignition switch light,
theft deterrent system, daytime running
light system, interior lights, air condi-
tioning system, wireless remote control,
garage door opener
15. ECUB 10 A: Cruise control system,
SRS warning light, power sliding door
16. FOG 20 A: Front fog lights
17. ABS NO.3 25 A: Vehicle skid control
system 18. ABS NO.2 25 A:
Vehicle skid control
system
19. HLP LH (LO) 10 A: Lefthand head-
light (low beam)
20. HLP RH (LO) 10 A: Righthand head-
light (low beam)
21. ABS NO.4 5 A: Vehicle skid control
system
22. HEATER 10 A: Air conditioning system,
rear window defogger
23. GAUGE 10 A: Gauges and meters,
service reminder indicators and warning
buzzers (except discharge and open
door warning light), power windows,
daytime running light system, backup
lights, power sliding door, auto anti
glare inside rear view mirror, compass
24. WIPER 25 A: Windshield wipers and
washer, rear window wiper and washer
25. MIRRORHEATER 10 A: Multiport fuel
injection system/sequential multiport
fuel injection system, outside rear view
mirror defogger
26. ECUIG 15 A: Cruise control system,
antilock brake system, vehicle skid
control system, locking with wireless
remote control system, theft deterrent
system

02 SIENNA_U (L/O 0107)
3222002 MY SIENNA_U (OM45407U)
27. IGN 5 A: Gauges and meters, charging
system, SRS airbag system, seat belt
pretensioners, multiport fuel injection
system/s equential multiport fuel injec-
tion system
28. STOP 15 A: Stop lights, cruise control
system, highm ounted stoplight, tail
lights
29. TAIL 10 A: Parking lights, front side
marker lights, license plate lights, tail
lights, power sliding door
30. PWRVENT 15 A: Power rear quarter
windows
31. OBD 7.5 A: Onboard diagnosis sys-
tem
32. PWROUTLET 15 A: Power outlets
33. STARTER 5 A: Multiport fuel injection
system/s equential multiport fuel injec-
tion system
34. DOOR 25 A: Power door lock system,
theft deterrent system
35. PANEL 7.5 A: Gauge and meter, car
audio system, clock, air conditioning
system, instrument p anel light control,
rear window defogger, electronically
controlled automatic transmission sys-
tem, emergency flashers, parking
lights, seat heaters, power rear quarter
windows, power sliding door 36. TURN 7.5 A:
Turn signal lights, emer-
gency flashers
37. RADIO NO.2 7.5 A: Car audio system
38. CIG 15 A: Cigarette lighter, clock, pow-
er rear view mirror controls, SRS air-
bag system, seat belt pretensioners,
backup lights, theft deterrent system,
air conditioning system
39. A /C 5 A: Front air conditioning system
Fuses (type B)
40. CDS 40 A: Electric cooling fans
41. RDI 40 A: Electric cooling fans
42. CDS 30 A: Electric cooling fans
43. RDI 30 A: Electric cooling fans
44. MAIN 40 A: Daytime running light sys-
tem, “HLP RH (LO)” and “HLP LH
(LO)” fuses
45. R /R A /C 40 A: Rear air conditioning
system
46. HTR 50 A: Front air conditioning sys-
tem
47. PWR SLD 30 A: Power sliding door
(left side)
48. Rr CLR 40 A: Rear air conditioning
system
49. DEF 30 A: Rear window defogger,
“MIRRORHEATER” fuse 50. PWR 30 A:
Power windows, electric
moon roof, power seat, power sliding
door (right side), “PWRVENT” fuse
51. AM1 40 A: “CIG”, “RADIO NO.2”,
“ECUIG”, “WIPER”, “HEATER”,
“GAUGE” and “TURN” fuses
Fuses (type C)
52. ALT 140 A: Charging system, “FL
ABS”, “INP”, “HTR” and “R/R A/C”
fuses
53. INP 100 A: “AM1” and “DEF” fuses
54. FL ABS 60 A: Antilock brake system

02 SIENNA_U (L/O 0107)
3232002 MY SIENNA_U (OM45407U)
REPORTING SAFETY DEFECTS FOR U.S.
OWNERS AND UNIFORM TIRE QUALITY
GRADING
Reporting safety defects for U.S. owners 324
. . . . . . . . . . . . . . . . . . . . . .
Uniform tire quality grading 324
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 9

02 SIENNA_U (L/O 0107)
3242002 MY SIENNA_U (OM45407U)
If you believe that your vehicle
has a defect which could cause a
crash or could cause injury or
death, you should immediately in-
form the National Highway Traffic
Safety Administration (NHTSA) in
addition to notifying Toyota Motor
Sales, U.S.A., Inc.
(Tollfree: 18003314331).
If NHTSA receives similar com-
plaints, it may open an investiga-
tion, and if it finds that a safety
defect exists in a group of ve-
hicles, it may order a recall and
remedy campaign. However,
NHTSA cannot become involved
in individual problems between
you, your dealer, or Toyota Motor
Sales, U.S.A., Inc. To contact NHTSA, you may ei-
ther call the Auto Safety Hotline
tollfree at 18004249393 (or
3660123 in Washington, D.C.
area) or write to: NHTSA, U.S.De-
partment of Transportation, Wash-
ington, D.C. 20590. You can also
obtain other information about mo-
tor vehicle safety from the Hotline.
Uniform tire quality gradingThis information has been prepared in ac-
cordance with regulations issued by the
National Highway Traffic Safety Adminis-
tration of the U.S. Department of Trans-
portation. It provides the purchasers and/
or prospective purchasers of Toyota
vehicles with information on uniform tire
quality grading.
Your Toyota dealer will help answer any
questions you may have as you read this
information.
DOT quality grades—All passenger car
tires must conform to Federal Safety
Requirements in addition to these
grades. Quality grades can be found
where applicable on the tire sidewall
between tread shoulder and maximum
section width. For example: Treadwear
200 Traction AA Temperature A
Reporting safety defects
for U.S. owners

02 SIENNA_U (L/O 0107)
3252002 MY SIENNA_U (OM45407U)
Treadwear— The treadwear grade is a
comparative rating based on the wear rate
of the tire when tested under controlled
conditions on a specified government test
course. For example, a tire graded 150
would wear one and a half (11/2) times
as well on the government course as a
tire graded 100. The relative performance
of tires depends upon the actual condi-
tions of their use, however, and may de-
part significantly from the norm due to
variations in driving habits, service prac-
tices and differences in road characteris-
tics and climate.
Traction AA, A, B, C— The traction
grades, from highest to lowest, are AA, A,
B, and C, and they represent the tire’s
ability to stop on wet pavement as mea-
sured under controlled conditions on spe-
cified government test surfaces of asphalt
and concrete. A tire marked C may have
poor traction performance.
Warning: The traction grade assigned to
this tire is based on braking (straight
ahead) traction tests and does not include
cornering (turning) traction. Temperature A, B, C—
The temperature
grades are A (the highest), B, and C,
representing the tire’s resistance to the
generation of heat and its ability to dissi-
pate heat when tested under controlled
conditions on a specified indoor laboratory
test wheel. Sustained high temperature
can cause the material of the tire to de-
generate and reduce tire life, and exces-
sive temperature can lead to sudden tire
failure. The grade C corresponds to a lev-
el of performance which all passenger car
tires must meet under the Federal Motor
Vehicle Safety Standard No.109. Grades B
and A represent higher levels of perfor-
mance on the laboratory test wheel than
the minimum required by law.
Warning: The temperature grades for this
tire are established for a tire that is prop-
erly inflated and not overloaded. Exces-
sive speed, underinflation, or excessive
loading, either separately or in combina-
tion, can cause heat buildup and possible
tire failure.

02 SIENNA_U (L/O 0107)
3262002 MY SIENNA_U (OM45407U)
