Loading multiple compact discs—
To load multiple compact discs, push and
hold (until you hear a beep when the au-
dio system is on). After pushing the but-
ton, insert the first compact disc. At this
time, the indicators on both sides of the
slot are flashing. After the disc is loaded,
the shutter of the slot will close and the
indicators will stop flashing. After a few
seconds, the shutter will automatically
open again so the next disc can be in-
serted. The same process can be applied
for loading the rest of the di scs.
If no compact disc is inserted, the shutter
will close after 15 seconds.
PWR·VOL (Power and Volume)
Push “PWR·VOL” to turn the audio system
on and off. Turn “PWR·VOL” to adjust the
volume.
RAND (Random): Compact Disc Player
There are two random features—you can
either listen to the tracks on all the com-
pact discs in the magazine in random or-
der, or only listen to the tracks on a
specific compact disc in random order. To randomly play the tracks on a disc:
Quickly push and release “
”. “”
will appear on the display. The disc you
are listening to will play in random order.
If you hear a beep, you held the button
too long, and the player will play all the
tracks in the magazine in random order.
To turn off the random feature, push this
button again.
To randomly play all the tracks in the
magazine:
Push and hold “
” until you hear a
beep. “
” will appear on the display
and the player will perform all the tracks
on all the discs in the magazine in ran-
dom order. To turn off the random feature,
push this button again.
RPT (Repeat)
Cassette Player
Push “
” while the track is playing.
“
” will appear on the display. When
the track ends, it will automatically be
rewound and replayed. This process will
be continued until you push the button
again to turn off the repeat feature.
There must be at least 3 seconds of blank
space between tracks in order for the re-
peat feature to work correctly. Compact Disc Player
There are two repeat features—You can
either replay a disc track or a whole com-
pact disc.
Repeating a track:
Quickly push and release “
” while the
track is playing. “
” will appear on the
display. If you hear a beep, you held the
button too long, and the player will repeat
the whole disc. When the track ends, it
will automatically be replayed. This pro-
cess will be continued until you push the
button again to turn off the repeat feature.
Repeating a disc:
Push and hold “
” until you hear a
beep. “
” will appear on the display.
The player will repeat all the tracks on the
disc you are listening to. When the disc
ends, the player will automatically go back
to the top track of the disc and replay.
This process will be continued until you
push the button again to turn off the re-
peat feature.

03 SIENNA_U (L/O 0207)
1782003 MY SIENNA (OM45410U)
SCAN
Radio
You can either scan all the frequencies on
a band or scan only the preset stations
for that band.
To scan the preset stations:
Push and hold “SCAN” until you hear a
beep. The radio will tune in the next pres-
et station up the band, stay there for 5
seconds, and then move to the next pre-
set station. To select a station, push
“SCAN” again.
To scan all the frequencies:
Quickly push and release “SCAN”. If you
hear a beep, you held the button too long,
and the radio will scan the preset sta-
tions. The radio will find the next station
up the station band, stay there for 5 se-
conds, and then scan again. To select a
station, push “SCAN” again.Compact disc player
There are two scan features—you can ei-
ther scan the tracks on a specific disc or
scan the first tracks of all the discs in the
magazine.
Scanning the tracks on a disc:
Quickly push and release “SCAN”. “SCAN”
will appear on the display and the player
will scan all the tracks on the disc you
are listening to. If you hear a beep, you
held the button too long, and the player
will scan the first track of all the discs in
the magazine. To select a track, push
“SCAN” again. If the player scanned all
the tracks on the disc, it will stop scan-
ning.
Scanning the first track of all the discs in
the magazine:
Push “SCAN” until you hear a beep.
“
·SCAN” will appear on the display and
the player will perform the first track of
the next disc. To select a disc, push the
“SCAN” again. If the player has scanned
all the discs, it will stop sc anning.SEEK (Seeking)
Radio
In the seek mode, the radio finds and
plays the next station up or down the
station band.
To seek a station, quickly push and re-
lease the “
” or “ ” under the “SEEK”.
Do this again to find another station.
Cassette Player
By using this button, you can skip up or
down to a different track.
You can skip up to nine tracks at a time.
Push the up or down side of the button.
“FF 1” or “REW 1” will appear on the
display.
Next, push either side of the track button
until the number on the display reaches
the number of tracks you want to skip. If
you push the button ten times, the skip
feature will be turned off.
When counting the number of tracks you
want to rewind, remember to count the
current track as well. For example, if you
want to rewind to a song that is two be-
fore the song you are listening to, push
on the down side of the button until “REW
3” appears on the display.

03 SIENNA_U (L/O 0207)
1792003 MY SIENNA (OM45410U)
If you have pushed the track button more
than you wanted to, push the other side
of the button. The track number will be
reduced.
The track number you select is not valid
if it is higher than the number of tracks
remaining on the current cassette side.
After the beginning of the tape is
reached, the player will automatically
start playing the same side.
After the end of the tape is reached,
the player will automatically reverse
sides and start playing the other side.
There must be at least 3 seconds of blank
space between tracks for the track button
to work correctly. In addition, the feature
may not work well with some spoken
word, live, or classical recordings.
ST (Stereo reception) display
Your radio automatically changes to stereo
reception when a stereo broadcast is re-
ceived. “ST” appears on the display. If the
signal becomes weak, the radio reduces
the amount of channel separation to prev-
ent the weak signal from creating noise.
If the signal becomes extremely weak, the
radio switches from stereo to mono recep-
tion. TA P E
Push “TAPE” to switch from radio or com-
pact disc operation to cassette operation.
If the audio system is off, you can turn
on the cassette player by pushing “TAPE”.
In both cases, a cassette must already be
loaded in the player.
TRACK (Track up/down button):
Compact disc player
By using this button, you can skip up or
down to a different track.
Push either side of the track button until
the number of the track you want to listen
to appears on the display. If you want to
return to the beginning of the current
track, push the down side of the button
one time, quickly.
TUNE (Tuning)
Your Toyota has an electronic tuning radio
(ETR). Turn the knob clockwise to step up
the frequency. Turn the knob counterclock-
wise to step down the frequency.

03 SIENNA_U (L/O 0207)
1802003 MY SIENNA (OM45410U)

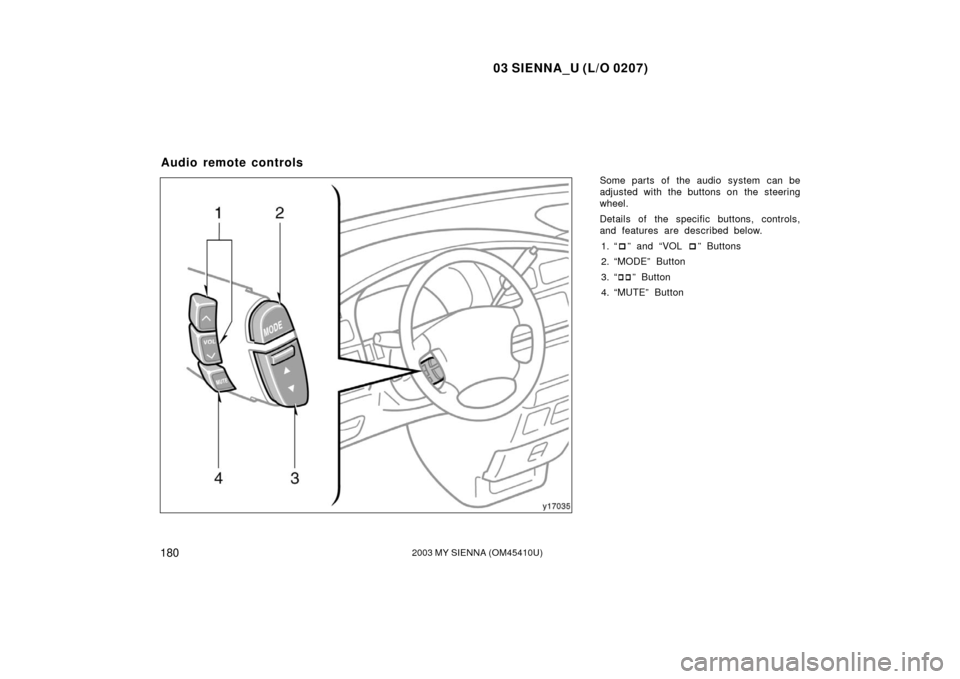

Some parts of the audio system can be
adjusted with the buttons on the steering
wheel.
Details of the specific buttons, controls,
and features are described below.1. “ ” and “VOL ” Buttons
2. “MODE” Button
3. “ ” Button
4. “MUTE” Button
Audio remote controls

03 SIENNA_U (L/O 0207)
1812003 MY SIENNA (OM45410U)
1. “” and “VOL ” Buttons (Volume
Up/Down)
Push “ ” to increase the volume. The
volume continues to increase while the
button is being pressed.
Push “VOL ” to decrease the volume.
The volume continues to decrease while
the button is being pressed.
2. “MODE” Button
Push “MODE” to select an audio mode.
Each push changes the mode sequentially
if the desired mode is ready to use. 3. “ ” Button (Seek, Search, Track)
Radio
In the seek mode, the radio finds and
plays the next station by going up or
down the station band.
To seek a station, push the “ ” or “ ”
side of the button. Do this again to find
the next station.
If you push the button on either side dur-
ing the seek mode, seeking will be can-
celled.
Cassette player
By using this button, you can skip to a
different track in either direction.
You can skip up to nine tracks at a time. Push the “
” or “” side of the button.
“FF 1” or “REW 1” will appear on the
display.
Next, push either side of the track button
until the track you want to listen to is set.
If you push the button ten times, the skip
function will turn off.
When counting the number of the tracks
you want to rewind, remember to count
the current track as well. For example, if
you want to rewind to a song that is two
before the song you are listening to, push
the “ ” side of the button three times.
If you push the track button further than
you wanted to, push the other side of the
button. The track number will be increased
or reduced.
The track number you select is not valid
if it is higher than the number of the
tracks remaining on the current side of
the cassette.
When the tape reaches to the begin-
ning, the player will automatically start
playing that side.
After the tape reaches to the end, the
player will automatically reverse and
start playing the other side. There must be at least 3 seconds of blank
space between tracks for the track button
to work correctly. In addition, the feature
may not work well with some spoken, live,
or classical recordings.
Compact disc player
By using this button, you can skip to a
different track in either direction.
Push either side of the track button until
the track you want to listen to is set. If
you want to return to the beginning of the
current track, push the “
” side of the
button once, quickly.
4. “MUTE” Button
Push “MUTE” to turn the volume off mo-
mentarily. This function is cancelled by
doing the following:
Push “MUTE” once again.
Push “ ” or “VOL ”.
Operate any of the buttons or knobs on
the audio system itself.
Disconnect the electrical power source.

03 SIENNA_U (L/O 0207)
1822003 MY SIENNA (OM45410U)
NOTICE
To ensure correct audio system op-
erations:
Be careful not to spill beverages
over the audio system.
 Do not put anything other than a
cassette tape or Compact Disc into
the slot.
 The use of a cellular phone inside
or near the vehicle may cause a
noise from the speakers of the au-
dio system which you are listening
to. However, this does not indicate
a malfunction.
RADIO RECEPTION
Usually, a problem with radio reception
does not mean there is a problem with
your radio—it is just the normal result of
conditions outside the vehicle.
For example, nearby buildings and terrain
can interfere with FM reception. Power
lines or telephone wires can interfere with
AM signals. And of course, radio signals
have a limited range. The farther you are
from a station, the weaker its signal will
be. In addition, reception conditions
change constantly as your vehicle moves. Here are some common reception prob-
lems that probably do not indicate a prob-
lem with your radio:
FM
Fading and drifting stations—Generally, the
effective range of FM is about 40 km (25
miles). Once outside this range, you may
notice fading and drifting, which increase
with the distance from the radio transmit-
ter. They are often accompanied by distor-
tion.
Multipath—FM signals are reflective,
making it possible for two signals to reach
your antenna at the same time. If this
happens, the signals will cancel each oth-
er out, causing a momentary flutter or
loss of reception.
Static and fluttering—These occur when
signals are blocked by buildings, trees, or
other large objects. Increasing the bass
level may reduce static and fluttering.
Station swapping—If the FM signal you
are listening to is interrupted or weak-
ened, and there is another strong station
nearby on the FM band, your radio may
tune in the second station until the origi-
nal signal can be picked up again.
AM
Fading—AM broadcasts are reflected by
the upper atmosphere—especially at night.
These reflected signals can interfere with
those received directly from the radio sta-
tion, causing the radio station to sound
alternately strong and weak.
Station interference—When a reflected sig-
nal and a signal received directly from a
radio station are very nearly the same
frequency, they can interfere with each
other, making it difficult to hear the broad-
cast.
Static—AM is easily affected by external
sources of electrical noise, such as high
tension power lines, lightening, or electri-
cal motors. This results in static.
CARING FOR YOUR CASSETTE PLAYER
AND TAPES
For the best performance for your cas-
sette player and tapes:
Clean the tape head and other parts regu-
larly.
A dirty tape head or tape path can
decrease sound quality and tangle your
cassette tapes. The easiest way to
clean them is by using a cleaning tape.
(A wet type is recommended.)
Car audio system operating
hints

03 SIENNA_U (L/O 0207)
1832003 MY SIENNA (OM45410U)
Use highquality cassettes.
Lowquality cassette tapes can cause
many problems, including poor sound,
inconsistent playing speed, and
constant autoreversing. They can also
get stuck or tangled in the cassette
player.
Do not use a cassette if it has been
damaged or tangled or if its label is
peeling off.
Do not leave a cassette in the player
if you are not listening to it, especially
if it is hot outside.
Store cassettes in their cases and out
of direct sunlight.
Avoid using cassettes with a total play-
ing time longer than 100 minutes (50
minutes per side). The tape used in
these cassettes is thin and could get
stuck or tangled in the cassette player.CARING FOR YOUR COMPACT DISC
PLAYER AND DISCS
Your compact disc player is intended
for use with 12 cm (4.7 in.) discs only.
Extremely high temperatures can keep
your compact disc player from working.
On hot days, use the air conditioning
to cool the vehicle interior before you
listen to a disc.
Bumpy roads or other vibrations may
make your compact disc player skip.
If moisture gets into your compact disc
player, you may not hear any sound
even though your compact disc player
appears to be working. Remove the
disc from the player and wait until it
dries.

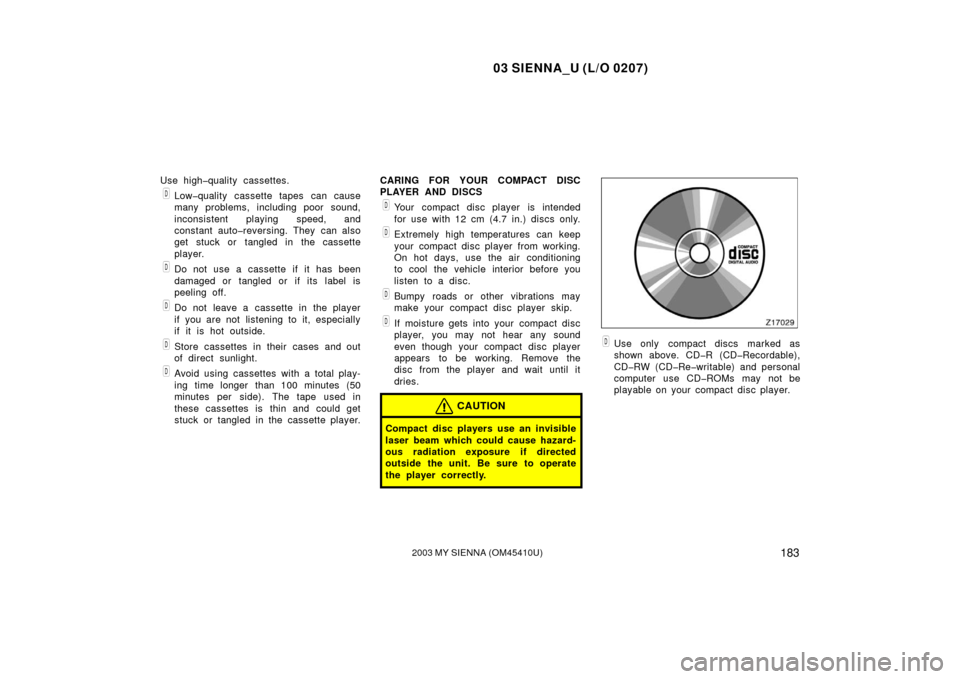

CAUTION
Compact disc players use an invisible
laser beam which could cause hazard-
ous radiation exposure if directed
outside the unit. Be sure to operate
the player correctly.
Use only compact discs marked as
shown above. CDR (CDRecordable),
CDRW (CDRewritable) and personal
computer use CDROMs may not be
playable on your compact disc player.

03 SIENNA_U (L/O 0207)
1842003 MY SIENNA (OM45410U)
Special shaped discs
Low quality discs
Labeled discs
NOTICE
To prevent damage to the changer or
player, do not use special shaped, low
quality or labeled discs such as those
shown in the illustrations.
CorrectWrong
Handle compact discs carefully, espe-
cially when you are inserting them.
Hold them on the edge and do not
bend them. Avoid getting fingerprints
on them, particularly on the shiny side.
Dirt, scrapes, warping, pin holes, or
other disc damage could cause the
player to skip or to repeat a section of
a track. (To see a pin hole, hold the
disc up to the light.)
Remove discs from the compact disc
player when you are not listening to
them. Store them in their plastic cases
away from moisture, heat, and direct
sunlight.

03 SIENNA_U (L/O 0207)
1852003 MY SIENNA (OM45410U)

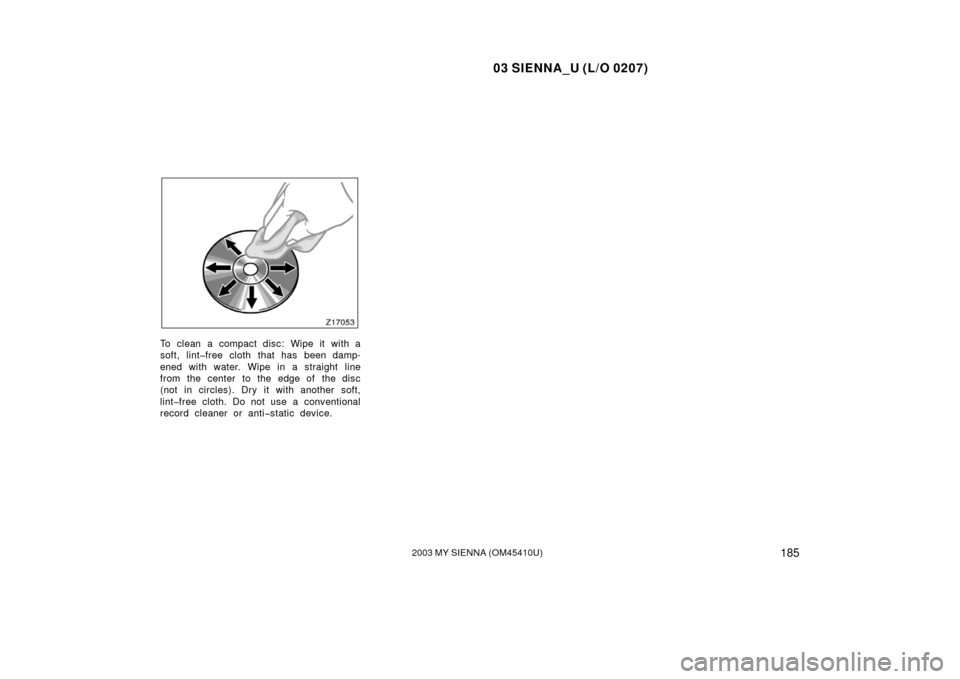

To clean a compact disc: Wipe it with a
soft, lintfree cloth that has been damp-
ened with water. Wipe in a straight line
from the center to the edge of the disc
(not in circles). Dry it with another soft,
lintfree cloth. Do not use a conventional
record cleaner or antistatic device.

03 SIENNA_U (L/O 0207)
1862003 MY SIENNA (OM45410U)
