TOYOTA SIENNA 2004 XL20 / 2.G Owners Manual

04 SIENNA_U (L/O 0408)
185
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
The traction control system automatical-
ly helps prevent the spinning of 4
wheels when the vehicle is started or
accelerated on slippery road surfaces.
When the ignition key is turned to “ON”,
the system automatically turns on.

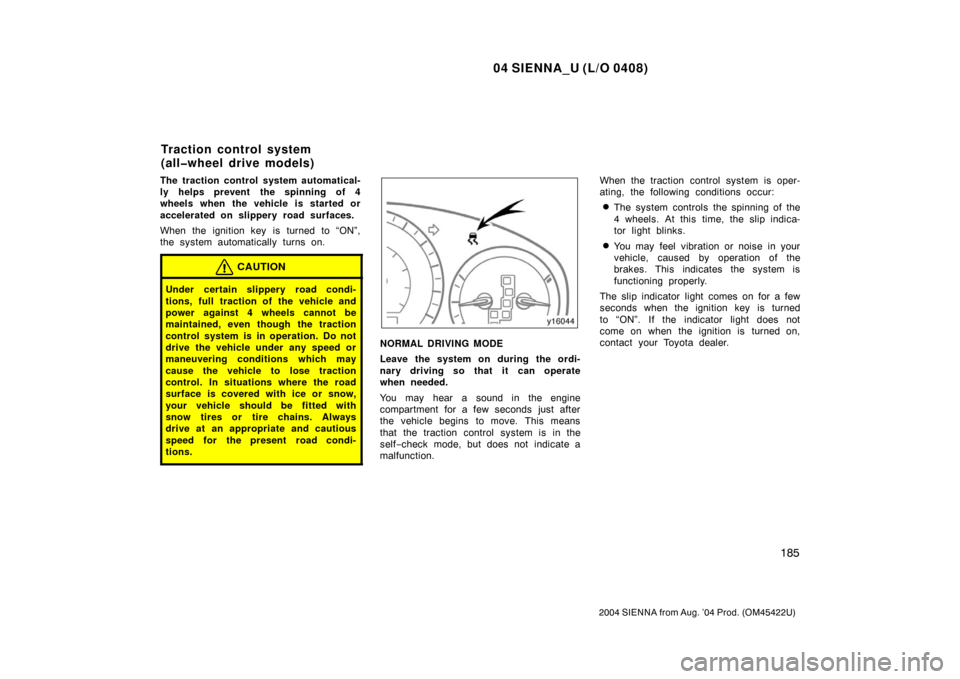

CAUTION
Under certain slippery road condi-
tions, full traction of the vehicle and
power against 4 wheels cannot be
maintained, even though the traction
control system is in operation. Do not
drive the vehicle under any speed or
maneuvering conditions which may
cause the vehicle to lose traction
control. In situations where the road
surface is covered with ice or snow,
your vehicle should be fitted with
snow tires or tire chains. Always
drive at an appropriate and cautious
speed for the present road condi-
tions.
NORMAL DRIVING MODE
Leave the system on during the ordi-
nary driving so that it can operate
when needed.
You may hear a sound in the engine
compartment for a few seconds just after
the vehicle begins to move. This means
that the traction control system is in the
self−check mode, but does not indicate a
malfunction. When the traction control system is oper-
ating, the following conditions occur:
The system controls the spinning of the
4 wheels. At this time, the slip indica-
tor light blinks.
You may feel vibration or noise in your
vehicle, caused by operation of the
brakes. This indicates the system is
functioning properly.
The slip indicator light comes on for a few
seconds when the ignition key is turned
to “ON”. If the indicator light does not
come on when the ignition is turned on,
contact your Toyota dealer.
Traction control system
(allwheel drive models)

04 SIENNA_U (L/O 0408)
186
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
“VSC” warning light
This light warns that there is a problem
somewhere in the traction control system
or the vehicle stability control system.
The light will come on when the ignition
key is turned to “ON” and will go off after
a few seconds.
If the light comes on while driving, the
system does not work. However, as con-
ventional braking operates when applied,
there is no problem to continue your driv-
ing.In the following cases, contact your Toyota
dealer:
The warning light does not come on
after the ignition key is turned to “ON”.
The warning light remains on after the
ignition key is turned to “ON”.
The warning light comes on while driv-
ing.
The vehicle stability control system
helps provide integrated control of the
systems such as an antilock brake
system, brake assist system, traction
control, engine control, etc. This sys-
tem automatically controls the brakes
and engine to help prevent the vehicle
from skidding when cornering on a slip-
pery road surface or operating steering
wheel abruptly.
This system activates when the vehicle
speed is about more than 15 km/h (9
mph).
You may hear a sound in the engine
compartment for a few seconds just after
the vehicle begins to move. This means
that the system is in the self
−check mode,
but does not indicate a malfunction.
Vehicle stability control
system

04 SIENNA_U (L/O 0408)
187
2004 SIENNA from Aug. ’04 Prod. (OM45422U)

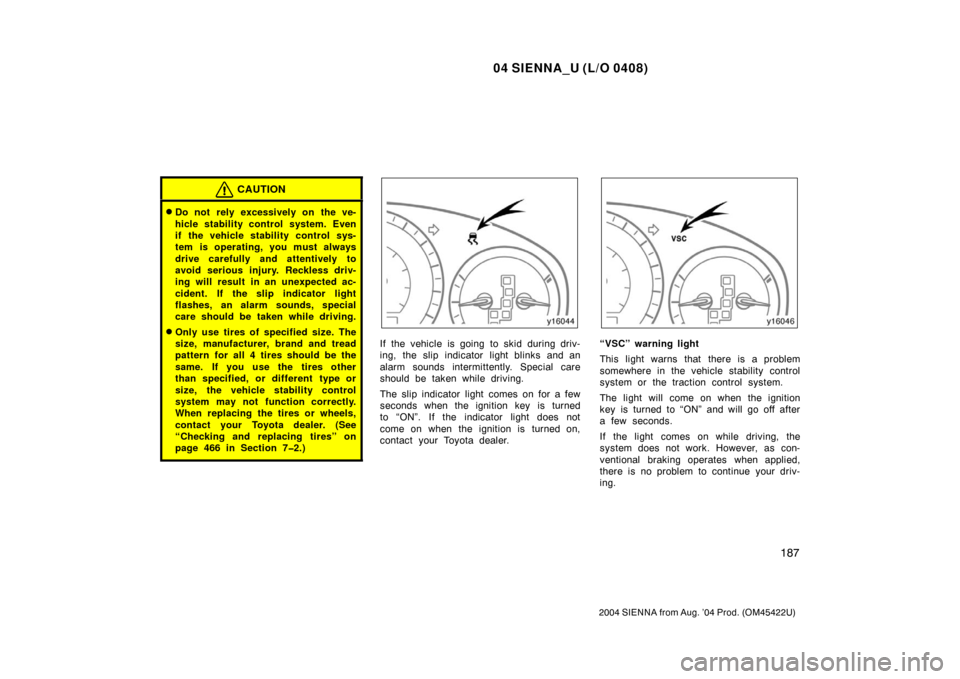

CAUTION
Do not rely excessively on the ve-
hicle stability control system. Even
if the vehicle stability control sys-
tem is operating, you must always
drive carefully and attentively to
avoid serious injury. Reckless driv-
ing will result in an unexpected ac-
cident. If the slip indicator light
flashes, an alarm sounds, special
care should be taken while driving.
Only use tires of specified size. The
size, manufacturer, brand and tread
pattern for all 4 tires should be the
same. If you use the tires other
than specified, or different type or
size, the vehicle stability control
system may not function correctly.
When replacing the tires or wheels,
contact your Toyota dealer. (See
“Checking and replacing tires” on
page 466 in Section 72.)
If the vehicle is going to skid during driv-
ing, the slip indicator light blinks and an
alarm sounds intermittently. Special care
should be taken while driving.
The slip indicator light comes on for a few
seconds when the ignition key is turned
to “ON”. If the indicator light does not
come on when the ignition is turned on,
contact your Toyota dealer.“VSC” warning light
This light warns that there is a problem
somewhere in the vehicle stability control
system or the traction control system.
The light will come on when the ignition
key is turned to “ON” and will go off after
a few seconds.
If the light comes on while driving, the
system does not work. However, as con-
ventional braking operates when applied,
there is no problem to continue your driv-
ing.

04 SIENNA_U (L/O 0408)
188
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
In the following cases, contact your Toyota
dealer:
The warning light does not come on
after the ignition key is turned to “ON”.
The warning light remains on after the
ignition key is turned to “ON”.
The warning light comes on while driv-
ing.
Tw o −wheel drive models only—The “TRAC
OFF” indicator light will come on when the
“VSC” warning light comes on even if the
“TRAC OFF” switch is not pushed. The tire pressure warning system is de-
signed to provide warning when tire
pressure of any one of the tires is criti-
cally low while the vehicle is moving.
The low tire pressure warning light
comes on to inform you that such low
tire pressure may hamper driving.
This system is not designed to operate
when the vehicle is stopped. Therefore,
check the tire pressure regularly. The rec-
ommended cold tire pressure, tire size
and the vehicle capacity weight are on the
tire pressure label. (For instructions, see
“Checking tire inflation pressure” on page
463 in Section 7
−2.)
Installed tires should be of the specified
size. They should be of the same size
and construction. If tires other than the
specified size are used, or if tires of dif-
ferent sizes or constructions are mixed,
the tire pressure warning system will not
function properly.
LOW TIRE PRESSURE WARNING LIGHT
This light comes on when the ignition key
is turned to the “ON” position. It goes off
after a few seconds. This indicates that
the tire pressure warning system is func-
tioning properly.
If the low tire pressure warning light
comes on or blinks while driving, do
the following.
If the warning light comes on:
Vehicles with standard tires—
Adjust the tire pressure to the specified
level as soon as possible. (See “Tires”
on page 491 in Section 8.)
Tire pressure warning system

04 SIENNA_U (L/O 0408)
189
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
Once the ignition switch is turned off, the
warning light also goes off. If the light
comes on again when the vehicle is
started after adjusting the tire pressure to
the specified level, have the tire pressure
warning system checked at your Toyota
dealer.
If you have a flat tire, replace it with the
spare tire. For details, see “If you have
a flat tire” on page 411 in Section 4.
Vehicles with runflat tires—
Decelerate at a speed below 90 km/h
(55 mph), then adjust the tire pressure
to the specified level as soon as pos-
sible. Do not drive more than 160 km
(100 miles).
When the tire pressure is below 140
kPa (1.4 kgf/cm2 or bar, 20 psi), con-
sult your Toyota dealer. If the tire is
flat or the tire pressure is below 100
kPa (1.0 kgf/cm
2 or bar, 15 psi), the
tire must be replaced. Do not use the
repaired tire.
When the tire pressure is 140 kPa (1.4
kgf/cm2 or bar, 20 psi) or more, adjust
it to specified level. (See “Tires” on
page 491 in Section 8.) Once the ignition switch is turned off,
the warning light also goes off. If the
light comes on again when the vehicle
is started after adjusting the tire pres-
sure to the specified level, have the
tire pressure warning system checked
at your Toyota dealer.
For details about the run −flat tires, see
“Run −flat tires” on page 469 in Section
7 −2.
If the warning light blinks once every
second:
The low tire pressure warning system may
be malfunctioning. Contact your Toyota
dealer.
If the warning light blinks twice every
second:
The low tire pressure warning system
needs to be initialized. Reset the system
with the tire pressure warning system re-
set switch. (To reset the system, see
“TIRE PRESSURE WARNING SYSTEM
RESET SWITCH”.) The tire pressure warning system does
not function properly under certain cir-
cumstances. In the following cases, the
low tire pressure warning light may not
come on even if the tire pressure is
low, or it may come on when the tire
pressure is actually normal.
The tread wear is uneven among the
tires.
A compact spare tire, snow tires, or
tire chains are used.
The tire pressure is excessively higher
than specified, or tire pressure sudden-
ly drops due to bursting or other
causes.
The vehicle is driven on a slippery
road surface such as rough or frozen
roads.
The vehicle speed is less than 30 km/h
(19 mph) or more than 100 km/h (62
mph), and the driving duration is less
than 5 minutes.
The tires differ in tread pattern or
manufacturer.
The tires are not the specified size.
The tread wear is very different among
the installed tires.
The pressure of two or more tires
drops at the same time.

04 SIENNA_U (L/O 0408)
190
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
Rapid acceleration/deceleration or
sharp turns is continue.
Towing a trailer.
The loading is over the limit or imbal-
anced.
Initialization was not performed correct-
ly after replacing or rotating tires or
wheels.

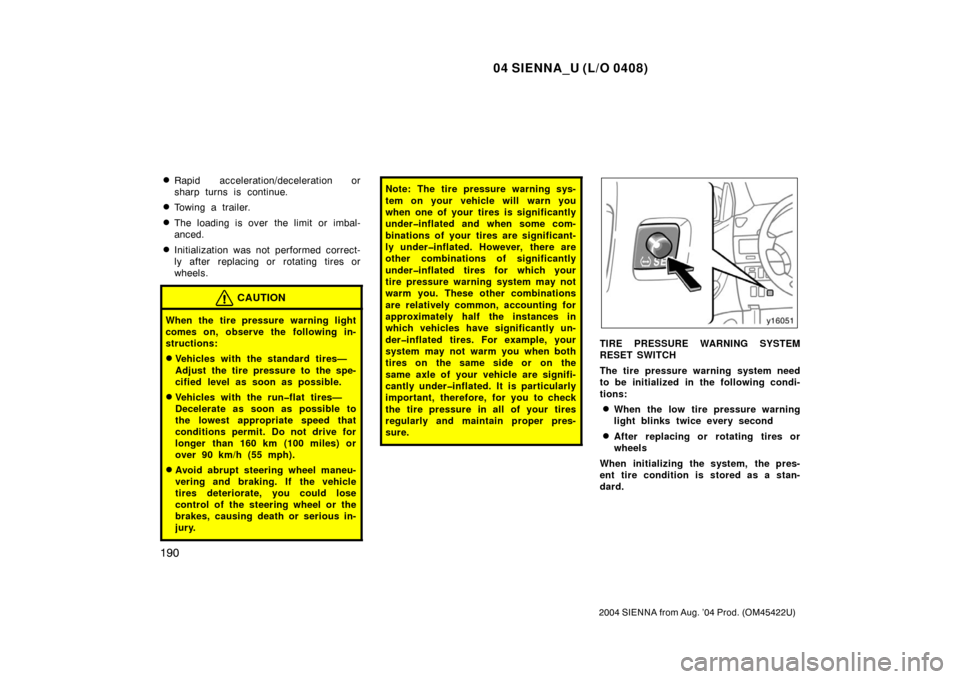

CAUTION
When the tire pressure warning light
comes on, observe the following in-
structions:
Vehicles with the standard tires—
Adjust the tire pressure to the spe-
cified level as soon as possible.
Vehicles with the runflat tires—
Decelerate as soon as possible to
the lowest appropriate speed that
conditions permit. Do not drive for
longer than 160 km (100 miles) or
over 90 km/h (55 mph).
Avoid abrupt steering wheel maneu-
vering and braking. If the vehicle
tires deteriorate, you could lose
control of the steering wheel or the
brakes, causing death or serious in-
jury.
Note: The tire pressure warning sys-
tem on your vehicle will warn you
when one of your tires is significantly
underinflated and when some com-
binations of your tires are significant-
ly underinflated. However, there are
other combinations of significantly
underinflated tires for which your
tire pressure warning system may not
warm you. These other combinations
are relatively common, accounting for
approximately half the instances in
which vehicles have significantly un-
derinflated tires. For example, your
system may not warm you when both
tires on the same side or on the
same axle of your vehicle are signifi-
cantly underinflated. It is particularly
important, therefore, for you to check
the tire pressure in all of your tires
regularly and maintain proper pres-
sure.
TIRE PRESSURE WARNING SYSTEM
RESET SWITCH
The tire pressure warning system need
to be initialized in the following condi-
tions:
When the low tire pressure warning
light blinks twice every second
After replacing or rotating tires or
wheels
When initializing the system, the pres-
ent tire condition is stored as a stan-
dard.

04 SIENNA_U (L/O 0408)
191
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
To initialize the system, perform the fol-
lowing:1. Park the vehicle at a safe place and apply the parking brake. Stop the en-
gine.
2. Adjust the pressure of all the installed tires to the specified level. (See “Tires”
on page 491 in Section 8.)
3. Turn the ignition key to “ON”.
4. Push and hold the reset switch until the low tire pressure warning light
blinks three times.
5. Initialization is completed after driving at the speeds of 30 km/h (19 mph) or
over for about 8 hours total, when the
tire pressure warning system detects
the normal tire pressure.
When initializing the system, make sure
the low tire pressure warning light blinks
three times. If the warning light does not
blink three times, initializing will be failed
and the tire pressure warning system will
not function properly.
Do not push the reset switch without ad-
justing the tire pressure to the specified
level. Otherwise, the low tire pressure
warning light may not come on even if the
tire pressure is low, or it may come on
when the tire pressure is actually normal.
If you push the reset switch while the
vehicle is moving, initialization is not per-
formed. If the low tire pressure warning light does
not blink when you push and hold the
reset switch, have the low pressure warn-
ing system checked at your Toyota dealer.
When the warning light blinks twice every
second while driving, you may be unable
to reset the system. In this case, set the
system again according to the above pro-
cedure.

04 SIENNA_U (L/O 0408)
192
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
Ty p e A
Ty p e B

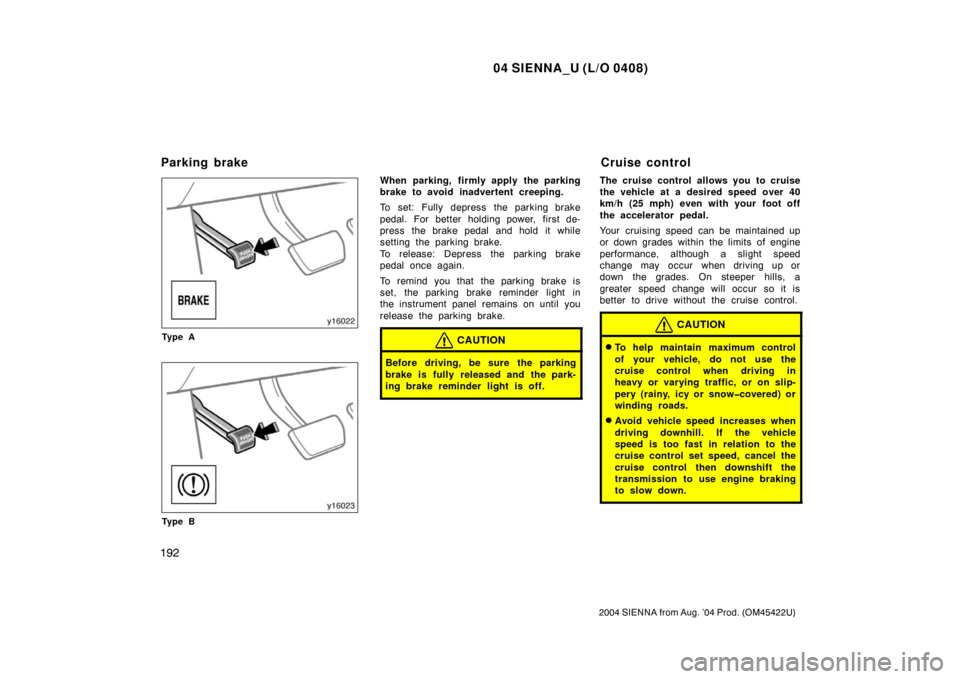

When parking, firmly apply the parking
brake to avoid inadvertent creeping.
To set: Fully depress the parking brake
pedal. For better holding power, first de-
press the brake pedal and hold it while
setting the parking brake.
To release: Depress the parking brake
pedal once again.
To remind you that the parking brake is
set, the parking brake reminder light in
the instrument panel remains on until you
release the parking brake.
CAUTION
Before driving, be sure the parking
brake is fully released and the park-
ing brake reminder light is off.
The cruise control allows you to cruise
the vehicle at a desired speed over 40
km/h (25 mph) even with your foot off
the accelerator pedal.
Your cruising speed can be maintained up
or down grades within the limits of engine
performance, although a slight speed
change may occur when driving up or
down the grades. On steeper hills, a
greater speed change will occur so it is
better to drive without the cruise control.
CAUTION
To help maintain maximum control
of your vehicle, do not use the
cruise control when driving in
heavy or varying traffic, or on slip-
pery (rainy, icy or snowcovered) or
winding roads.
Avoid vehicle speed increases when
driving downhill. If the vehicle
speed is too fast in relation to the
cruise control set speed, cancel the
cruise control then downshift the
transmission to use engine braking
to slow down.
Parking brakeCruise control

04 SIENNA_U (L/O 0408)
193
2004 SIENNA from Aug. ’04 Prod. (OM45422U)

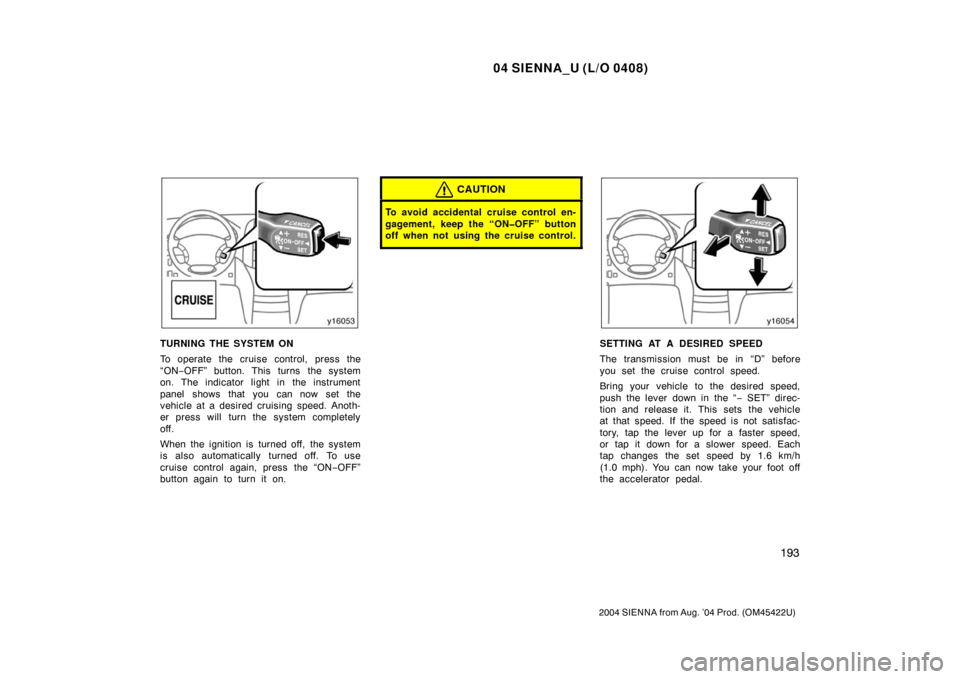

TURNING THE SYSTEM ON
To operate the cruise control, press the
“ON−OFF” button. This turns the system
on. The indicator light in the instrument
panel shows that you can now set the
vehicle at a desired cruising speed. Anoth-
er press will turn the system completely
off.
When the ignition is turned off, the system
is also automatically turned off. To use
cruise control again, press the “ON −OFF”
button again to turn it on.
CAUTION
To avoid accidental cruise control en-
gagement, keep the “ONOFF” button
off when not using the cruise control.
SETTING AT A DESIRED SPEED
The transmission must be in “D” before
you set the cruise control speed.
Bring your vehicle to the desired speed,
push the lever down in the “ − SET” direc-
tion and release it. This sets the vehicle
at that speed. If the speed is not satisfac-
tory, tap the lever up for a faster speed,
or tap it down for a slower speed. Each
tap changes the set speed by 1.6 km/h
(1.0 mph). You can now take your foot off
the accelerator pedal.

04 SIENNA_U (L/O 0408)
194
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
If you need acceleration—for example,
when passing—depress the accelerator
pedal enough for the vehicle to exceed
the set speed. When you release it, the
vehicle will return to the speed set prior
to the acceleration.
CANCELLING THE PRESET SPEED
You can cancel the preset speed by:
a. Pulling the lever in the “CANCEL” di-rection and releasing it.
b.
Depressing the brake pedal.
If the vehicle speed falls below about 40
km/h (25 mph), the preset speed will auto-
matically cancel out.
If the vehicle speed drops 16 km/h (10
mph) below the preset speed, the preset
speed will also automatically cancel out.
If the preset speed automatically cancels
out other than for the above cases, have
your vehicle checked by your Toyota deal-
er at the earliest opportunity. RESETTING TO A FASTER SPEED
Push the lever up in the “+ RES” direction
and hold it. Release the lever when the
desired speed is attained. While the lever
is held up, the vehicle will gradually gain
speed.
However, a faster way to reset is to ac-
celerate the vehicle and then push the
lever down in the “− SET” direction.
RESETTING TO A SLOWER SPEED
Push the lever down in the “
− SET” direc-
tion and hold it. Release the lever when
the desired speed is attained. While the
lever is held down, the vehicle speed will
gradually decrease.
However, a faster way to reset is to de-
press the brake pedal and then push the
lever down in the “− SET” direction.
Even if you downshift from “D” to “4”, with
the cruise control on, engine braking will
not be enabled because the cruise control
is not cancelled. To decrease the vehicle
speed, reset to a slower speed with the
cruise control lever or depress the brake
pedal. If you use the brake pedal, cruise
control is cancelled. RESUMING THE PRESET SPEED
If the preset speed is cancelled by pulling
the control lever or by depressing the
brake pedal, pushing the lever up in the
“+ RES” direction will restore the speed
set prior to cancellation.
However, once the vehicle speed falls be-
low about 40 km/h (25 mph), the preset
speed will not be resumed.
CRUISE CONTROL FAILURE WARNING
If the “CRUISE” indicator light in the
instrument cluster flashes when using the
cruise control, press the “ON
−OFF” button
to turn the system off and then press it
again to turn it on.
If any of the following conditions then oc-
curs, there is some trouble in the cruise
control system.
The indicator light does not come on.
The indicator light flashes again.
The indicator light goes out after it
comes on.
If this is the case, contact your Toyota
dealer and have your vehicle inspected.
