NOTICE
To prevent the battery from being dis-
charged, do not leave the switch on
longer than necessary when the en-
gine is not running.
To adjust the brightness of the instru-
ment panel lights, turn the knob.To turn on the front fog lights, twist
the band of the headlight and turn sig-
nal switch lever. They will come on
only when the headlights are on low
beam.
Instrument panel light control Front fog lights

04 SIENNA_U (L/O 0408)
156
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
Personal light main switch

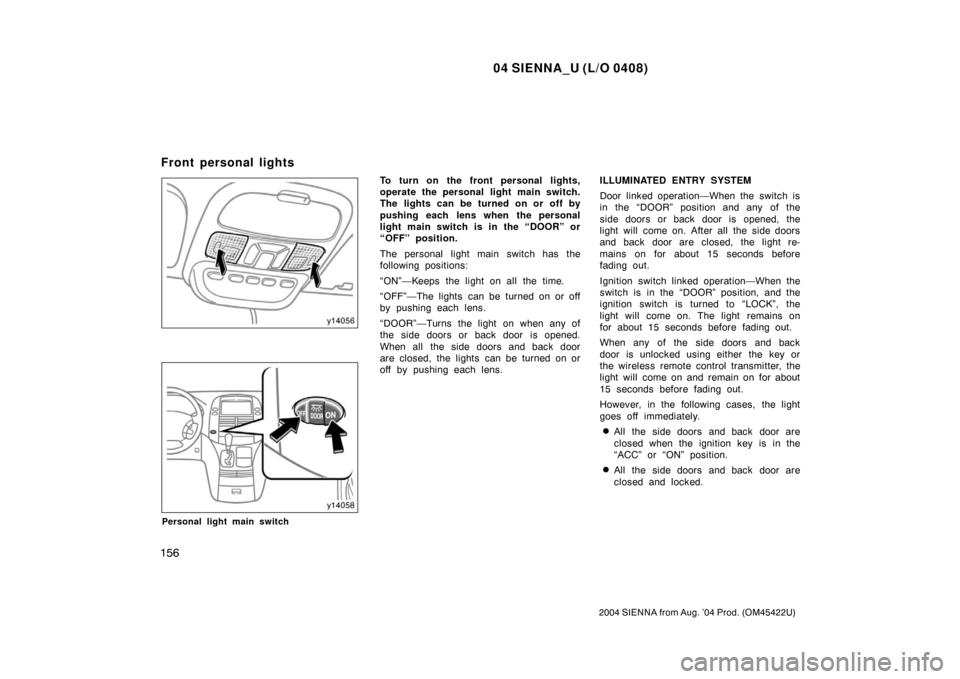

To turn on the front personal lights,
operate the personal light main switch.
The lights can be turned on or off by
pushing each lens when the personal
light main switch is in the “DOOR” or
“OFF” position.
The personal light main switch has the
following positions:
“ON”—Keeps the light on all the time.
“OFF”—The lights can be turned on or off
by pushing each lens.
“DOOR”—Turns the light on when any of
the side doors or back door is opened.
When all the side doors and back door
are closed, the lights can be turned on or
off by pushing each lens.ILLUMINATED ENTRY SYSTEM
Door linked operation—When the switch is
in the “DOOR” position and any of the
side doors or back door is opened, the
light will come on. After all the side doors
and back door are closed, the light re-
mains on for about 15 seconds before
fading out.
Ignition switch linked operation—When the
switch is in the “DOOR” position, and the
ignition switch is turned to “LOCK”, the
light will come on. The light remains on
for about 15 seconds before fading out.
When any of the side doors and back
door is unlocked using either the key or
the wireless remote control transmitter, the
light will come on and remain on for about
15 seconds before fading out.
However, in the following cases, the light
goes off immediately.
All the side doors and back door are
closed when the ignition key is in the
“ACC” or “ON” position.
All the side doors and back door are
closed and locked.
Front personal lights

04 SIENNA_U (L/O 0408)
157
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
The following adjustments can be made in
this system. For details, contact your
Toyota dealer.
Cancelling the door key or the wireless
remote control transmitter linked opera-
tion
Cancelling the ignition switch linked op-
eration.
Changing the duration of lighting
To prevent the battery being discharged,
the lights will automatically turn off when
the key is removed and the door is left
opened with the switch at “DOOR” position
for 20 minutes or more.
Personal light main switch

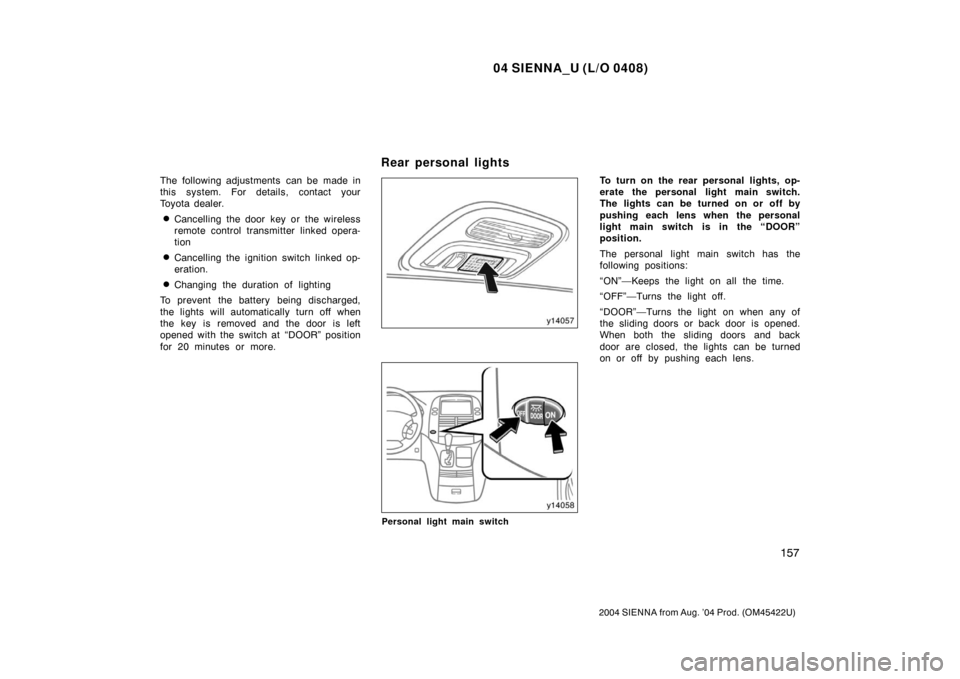

To turn on the rear personal lights, op-
erate the personal light main switch.
The lights can be turned on or off by
pushing each lens when the personal
light main switch is in the “DOOR”
position.
The personal light main switch has the
following positions:
“ON”—Keeps the light on all the time.
“OFF”—Turns the light off.
“DOOR”—Turns the light on when any of
the sliding doors or back door is opened.
When both the sliding doors and back
door are closed, the lights can be turned
on or off by pushing each lens.
Rear personal lights

04 SIENNA_U (L/O 0408)
158
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
Personal light main switch

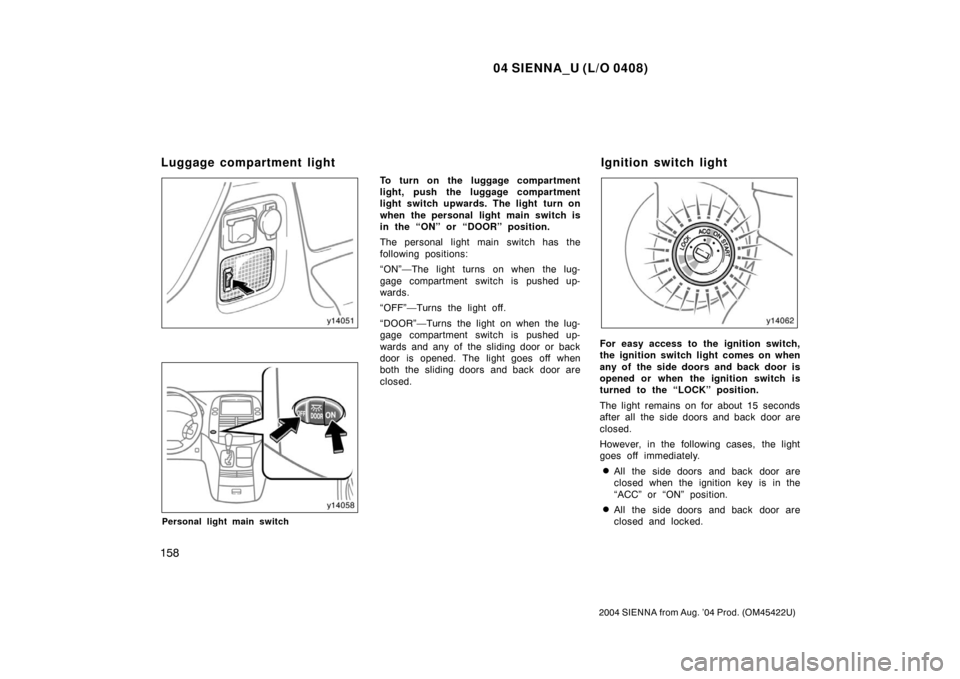

To turn on the luggage compartment
light, push the luggage compartment
light switch upwards. The light turn on
when the personal light main switch is
in the “ON” or “DOOR” position.
The personal light main switch has the
following positions:
“ON”—The light turns on when the lug-
gage compartment switch is pushed up-
wards.
“OFF”—Turns the light off.
“DOOR”—Turns the light on when the lug-
gage compartment switch is pushed up-
wards and any of the sliding door or back
door is opened. The light goes off when
both the sliding doors and back door are
closed.
For easy access to the ignition switch,
the ignition switch light comes on when
any of the side doors and back door is
opened or when the ignition switch is
turned to the “LOCK” position.
The light remains on for about 15 seconds
after all the side doors and back door are
closed.
However, in the following cases, the light
goes off immediately.
All the side doors and back door are
closed when the ignition key is in the
“ACC” or “ON” position.
All the side doors and back door are
closed and locked.
Luggage compartment lightIgnition switch light

04 SIENNA_U (L/O 0408)
159
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
When any of the side doors or back door
is unlocked using either the key or the
wireless remote control transmitter, the
light will come on and remain on for about
15 seconds before fading out.
The following adjustments can be made in
this system. For details, contact your
Toyota dealer.
Cancelling the door key or the wireless
remote control transmitter linked opera-
tion
Changing the duration of lighting
To prevent the battery being discharged,
the light will automatically turn off when
the key is removed and the door is left
opened for 20 minutes or more.

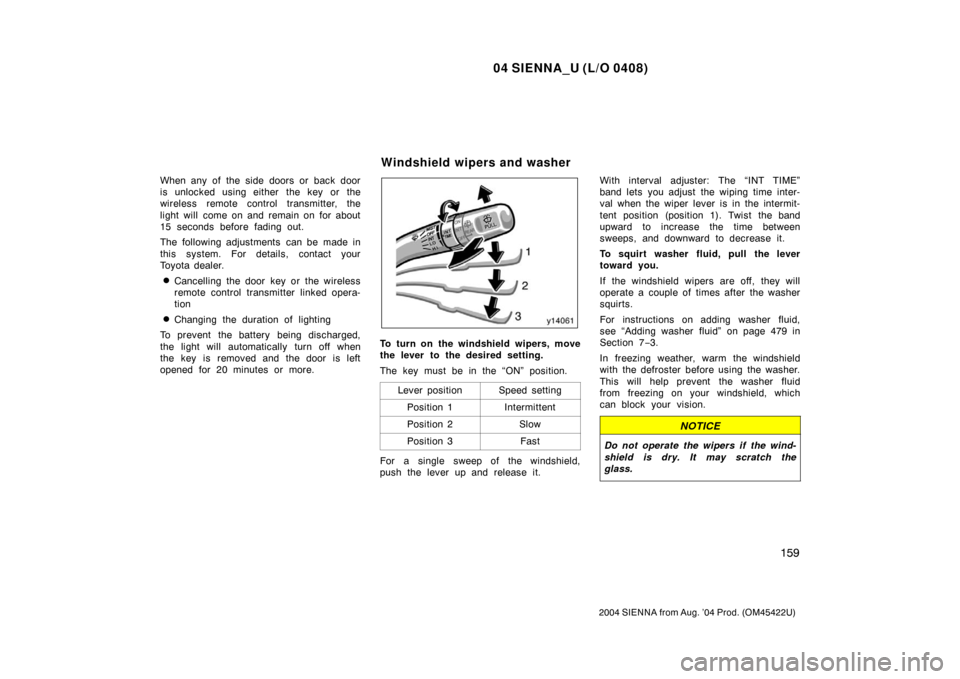

To turn on the windshield wipers, move
the lever to the desired setting.
The key must be in the “ON” position.
Lever position
Speed setting
Position 1Intermittent
Position 2Slow
Position 3Fast
For a single sweep of the windshield,
push the lever up and release it. With interval adjuster: The “INT TIME”
band lets you adjust the wiping time inter-
val when the wiper lever is in the intermit-
tent position (position 1). Twist the band
upward to increase the time between
sweeps, and downward to decrease it.
To squirt washer fluid, pull the lever
toward you.
If the windshield wipers are off, they will
operate a couple of times after the washer
squirts.
For instructions on adding washer fluid,
see “Adding washer fluid” on page 479 in
Section 7
−3.
In freezing weather, warm the windshield
with the defroster before using the washer.
This will help prevent the washer fluid
from freezing on your windshield, which
can block your vision.
NOTICE
Do not operate the wipers if the wind-
shield is dry. It may scratch the
glass.
Windshield wipers and washer

04 SIENNA_U (L/O 0408)
160
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
When waxing your vehicle, make sure that
the washer nozzles do not become
blocked. If a nozzle becomes blocked,
contact your Toyota dealer to have the
vehicle serviced.
NOTICE
If a nozzle becomes blocked, do not
try to clear it with a pin or other
object. The nozzle will be damaged.
To turn on the rear window wiper, twist
the lever knob upward.
The key must be in the “ON” position.Lever position
Speed setting
Position 1Intermittent
Position 2Normal
To squirt washer fluid on the rear window,
twist the knob upward or downward as far
as it will go (position 3 or 4). The knob
automatically returns from these positions
after you release it.
For instructions on adding washer fluid,
see “Adding washer fluid” on page 479 in
Section 7 −3.
NOTICE
 Do not operate the rear wiper if the
rear window is dry. It may scratch
the glass.
 Do not lift the rear wiper arm away
from the window, as it may break.
Rear window wiper and
washer

04 SIENNA_U (L/O 0408)
161
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
To defog or defrost the rear window,
push the switch.
The key must be in the “ON” position.
The thin heater wires on the inside of the
rear window will quickly clear the window
surfaces. An indicator light will illuminate
to indicate the defogger is operating.
On some models, the rear view mirror
defoggers and/or the windshield wiper de−
icer is also operating simultaneously by
this switch. Vehicles with the outside rear
view mirror defoggers, the heater panel in
the outside rear view mirrors will quickly
clear the surfaces. Vehicles with the wind-
shield wiper de −icer, the windshield wiper
blades will be de −iced. Push the switch once again to turn the
defoggers off.
The system will automatically shut off af-
ter the defoggers have operated about 15
minutes.
CAUTION
On some models, since the mirror
surfaces can get hot, do not touch
them when the defogger switch is on.
Make sure you turn the defoggers off
when the surfaces are clear or the wiper
blades have de
−iced. Leaving the defog-
gers on for a long time could cause the
battery to discharge, especially during
stop −and− go driving. The defoggers are
not designed for drying rain water or for
melting snow.
If the outside rear view mirrors are heavi-
ly coated with ice, use a spray de −icer
before operating the switch.
NOTICE
When cleaning the inside of the rear
window, be careful not to scratch or
damage the heater wires or connec-
tors.
Rear window and outside rear
view mirror defoggers and
windshield wiper deicer

04 SIENNA_U (L/O 0408)
162
2004 SIENNA from Aug. ’04 Prod. (OM45422U)

04 SIENNA_U (L/O 0408)
163
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Gauges, Meters and Service reminder indicators
Fuel gauge164
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . .
Engine coolant temperature gauge 164
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Tachometer 165
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Odometer and two trip meters 166
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service reminder indicators and warning buzzers 167
. . . . . . . . . . . . . .
SECTION 1 5

04 SIENNA_U (L/O 0408)
164
2004 SIENNA from Aug. ’04 Prod. (OM45422U)

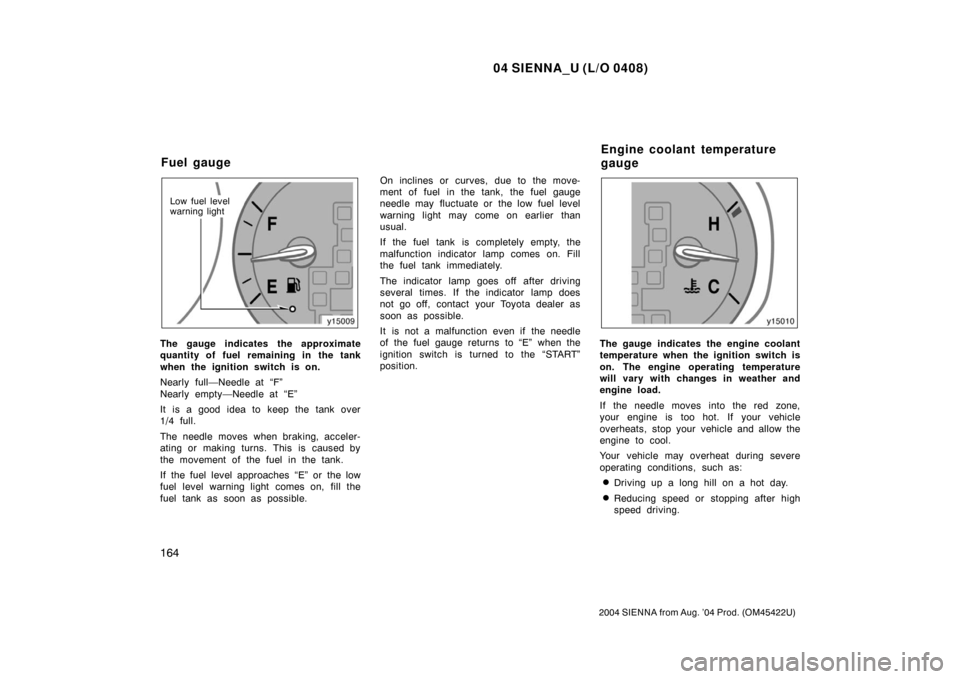

Low fuel level
warning light
The gauge indicates the approximate
quantity of fuel remaining in the tank
when the ignition switch is on.
Nearly full—Needle at “F”
Nearly empty—Needle at “E”
It is a good idea to keep the tank over
1/4 full.
The needle moves when braking, acceler-
ating or making turns. This is caused by
the movement of the fuel in the tank.
If the fuel level approaches “E” or the low
fuel level warning light comes on, fill the
fuel tank as soon as possible.On inclines or curves, due to the move-
ment of fuel in the tank, the fuel gauge
needle may fluctuate or the low fuel level
warning light may come on earlier than
usual.
If the fuel tank is completely empty, the
malfunction indicator lamp comes on. Fill
the fuel tank immediately.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.
It is not a malfunction even if the needle
of the fuel gauge returns to “E” when the
ignition switch is turned to the “START”
position.The gauge indicates the engine coolant
temperature when the ignition switch is
on. The engine operating temperature
will vary with changes in weather and
engine load.
If the needle moves into the red zone,
your engine is too hot. If your vehicle
overheats, stop your vehicle and allow the
engine to cool.
Your vehicle may overheat during severe
operating conditions, such as:
Driving up a long hill on a hot day.
Reducing speed or stopping after high
speed driving.
Fuel gauge
Engine coolant temperature
gauge
