Locking operation (type B)
Unlocking operation (type B)
The wireless remote control system is
designed to lock or unlock all the side
doors and back door, or activate the
panic mode from a distance within
approximately 1 m (3 ft.) of the vehicle.
On some models, the system also al-
lows you to activate the theft deterrent
system from the same distance.
LOCKING AND UNLOCKING THE
DOORS
To lock and unlock all the doors, push
the switches of the transmitter slowly
and securely.
To lock: Push the “
” (lock) switch. All
the side doors and back door are locked
simultaneously. At this time one beep will
be heard, turn signal lights will flash once.
Check to see that the doors are securely
locked.
If any of the side doors or back door is
not securely closed, or if the key is in the
ignition switch, locking cannot be per-
formed by the “
” (lock) switch and a
beep will sound continuously for 10 sec-
onds. However, if the key is in the igni-
tion, a beep will not sound. To stop the beep, close all the side doors
and back door securely or push the “
”
(unlock) switch.
The buzzer can be disabled. For details,
contact your Toyota dealer.
To unlock: Push the “
” (unlock) switch
once to unlock only the driver’s door.
Pushing the switch twice within 3 seconds
unlocks all the side doors and back door
simultaneously. Each time the “
” (un-
lock) switch is pushed, two beeps will be
heard, turn signal lights will flash twice.
This double switch operation to unlock all
the side doors and back door can be
changed to a single switch operation. For
details, contact your Toyota dealer.
When the “
” (unlock) switch is
pressed, the front personal lights and igni-
tion switch light come on. The lights re-
mains on for about 15 seconds unless any
of the side doors or back door are opened
then and closed. (For further information,
see “Front personal lights” on page 156
and/or “Ignition switch light” on page 158
in Section 1− 4.)
Page 22 of 506
04 SIENNA_U (L/O 0408)
16
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
You have 30 seconds to open a door after
using the wireless remote unlock feature.
If a door is not opened by then, all the
side doors and back door will automatical-
ly lock again.
The timing for the automatic door lock
function can be changed. For details, con-
tact your Toyota dealer.
If the “
” (lock) or “” (unlock) switch
is kept pressed in, the locking or unlock-
ing operation is not repeated. Release the
switch and then push again.
The following adjustments can be made in
this system. For details, contact your
Toyota dealer.
Cancelling the wireless door locking or
unlocking function
Cancelling the flash of the turn si gnal
lights
Cancelling the beep s ound
Right side power sliding door (type A)
Right side power sliding door (type B)
Left side power sliding door
OPENING AND CLOSING THE SLIDING
DOOR (vehicles with the power sliding
door)
Push the switch of the wireless remote
control transmitter about one second.
The power sliding door opens and
closes completely.
Right side power sliding door—
To open: Push the “
” switch.
To close: Push the “
” switch again.
Page 23 of 506
04 SIENNA_U (L/O 0408)
17
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
Left side power sliding door—
To open: Push the “
” switch.
To close: Push the “
” switch again.
Opening operation can be performed by
the switches under the following conditions
only:
The sliding door is unlocked.
The power sliding door system is on.
(The “SLIDE DOOR OFF” switch on the
instrument panel is pushed out.)
The key is not in the ignition switch.
The sliding door is between the fully −
closed position and half −opened posi-
tion.
The sliding door stops at the half −opened
position when the window is opened more
than about 15 cm (6 in.).
The left side power sliding door does not
operate when the fuel f iller door is
opened. Closing operation can be performed by the
wireless remote control switches under the
following conditions only:
The power sliding door system is on.
(The “SLIDE DOOR OFF” switch on the
instrument panel is pushed out.)
The key is not in the ignition switch.
The sliding door is between the fully
−
opened position and half −opened posi-
tion.
The sliding door operation by the wireless
remote control can be changed or dis-
abled. For details, contact your Toyota
dealer.
Ty p e A
Ty p e B
Page 24 of 506
04 SIENNA_U (L/O 0408)
18
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
OPENING AND CLOSING THE BACK
DOOR (vehicles with the power back
door)
Push the “
” switch of the wireless
remote control transmitter about one
second. The power back door opens
and closes completely.
When closing or opening the back door,
two beeps will be heard and the turn sig-
nal lights will flash twice.
Opening operation can be performed by
the switch under the following conditions
only:
The back door is unlocked.
The power back door system is on.
(The “BACK DOOR OFF” switch on the
instrument panel is pushed out.)
The key is not in the ignition switch.
The back door is between the fully −
closed position and half −opened posi-
tion. Closing operation can be performed by the
switch under the following conditions only:
The power back door system is on.
(The “BACK DOOR OFF” switch on the
instrument panel is pushed out.)
The key is not in the ignition switch.
The back door is between the fully
−
opened position and half −opened posi-
tion.
The back door operation by the wireless
remote control can be changed or dis-
abled. For details, contact your Toyota
dealer.
ACTIVATING PANIC MODE
Pushing and holding the “
” (panic)
switch blows the horn intermittently
and flashes the headlights, tail lights
and turns on the front personal lights.
The “
” (panic) switch is used to deter
vehicle theft when you witness anyone at-
tempting to break into or damage your
vehicle.
Page 25 of 506
04 SIENNA_U (L/O 0408)
19
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
The alarm will last for one minute. To stop
alarm midway, do the following:
Push any of the switch on the wireless
remote control transmitter.
Lock or unlock either front doors or
back door with the key.
Turn the ignition key from the “LOCK”
to “ON” position.
The panic mode does not work when the
ignition key is in the “ON” position.
This alarm function can be disabled. For
details, contact your Toyota dealer.
WIRELESS REMOTE CONTROL
TRANSMITTER
The wireless remote control transmitter is
an electronic component. Observe the fol-
lowing instructions in order not to cause
damage to the wireless remote control
transmitter.
Do not leave the transmitter in places
where the temperature becomes high
such as on the dashboard.
Do not disassemble it.
Avoid knocking it hard against other
objects or dropping it.
Avoid putting it in water. You can use up to 4 wireless remote con-
trol transmitters for the same vehicle.
Contact your Toyota dealer for detailed
information.
If the wireless remote control transmitter
does not actuate the doors or alarm, or
operate from a normal distance:
Check for closeness to a radio trans-
mitter such as a radio station or an
airport which can interfere with normal
operation of the transmitter.
The battery may have been consumed.
Check the battery in the transmitter. To
replace the battery, see “REPLACING
TRANSMITTER BATTERY”.
If you lose your wireless remote control
transmitter, contact your Toyota dealer as
soon as possible to avoid the possibility
of theft, or an accident. (See “If you lose
your wireless remote control transmitter”
on page 429 in Section 4.)
MADE IN U.S.A.
This complies with Part 15 of the FCC
rules. Operation is subject to the follow-
ing two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
Page 26 of 506
04 SIENNA_U (L/O 0408)
20
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
REPLACING TRANSMITTER BATTERY
For replacement, use a CR2032 lithium
battery or equivalent.
CAUTION
Special care should be taken to pre-
vent small children from swallowing
the removed transmitter battery or
components.
NOTICE
When replacing the transmitter bat-
tery, be careful not to lose the com-
ponents.
Replace only with the same or
equivalent type recommended by a
Toyota dealer.
Dispose of used batteries according
to the local laws.
Replace the transmitter battery by follow-
ing these procedures:
1. Using a coin or equivalent, open the
transmitter case.2. Remove the discharged transmitter bat-tery.
NOTICE
Do not bend the terminals.
Page 27 of 506
04 SIENNA_U (L/O 0408)
21
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
3. Put in a new transmitter battery withpositive (+) side up.
Close the transmitter case securely.
NOTICE
Make sure the positive side and
negative side of the transmitter bat-
tery are faced correctly.
Do not replace the battery with wet
hands. Water may cause unexpected
rust.
Do not touch or move any compo-
nents inside the transmitter, or it
may interfere with proper operation.
Be careful not to bend the electrode
when inserting the transmitter bat-
tery and that dust or oils do not
adhere to the transmitter case.
Close the transmitter case securely.
After replacing battery, check that the
transmitter operates properly. If the trans-
mitter still does not operate properly, con-
tact your Toyota dealer.
LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn
it.
To lock: Turn the key forward.
To unlock: Turn the key backward.
All the side doors and back door lock and
unlock simultaneously with either front
door. In the driver ’s door lock, turning the
key once will unlock the driver’s door and
twice in succession will unlock all the
doors simultaneously.
This double key turning operation to un-
lock all the side doors and back door can
be changed to a single key turning opera-
tion. For details, contact your Toyota deal-
er.
Front doors
Page 28 of 506
04 SIENNA_U (L/O 0408)
22
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
When either front door is unlocked with a
key, the front personal lights and ignition
switch light will come on and remain on
for about 15 seconds before fading out.
(For details, see “Front personal lights” on
page 156 and “Ignition switch light” on
page 158 in Section 1−4.)
LOCKING AND UNLOCKING WITH
INSIDE LOCK KNOB
Move the lock knob.
To lock: Push the knob forward.
To unlock: Pull the knob backward.
The front doors can be opened by pulling
the inside handles even if the lock knobs
are in the locked position.
CAUTION
Do not pull the inside handle of the
front doors while driving. The doors
will open and an accident may occur.
Toyota strongly recommends that all
children be placed in the rear seat of
the vehicle.
Closing the door with the lock knob in the
lock position will also lock the door. Be
careful not to lock your keys in the ve-
hicle.
The front doors cannot be locked if you
leave the key in the ignition switch.
Page 29 of 506
04 SIENNA_U (L/O 0408)
23
2004 SIENNA from Aug. ’04 Prod. (OM45422U)

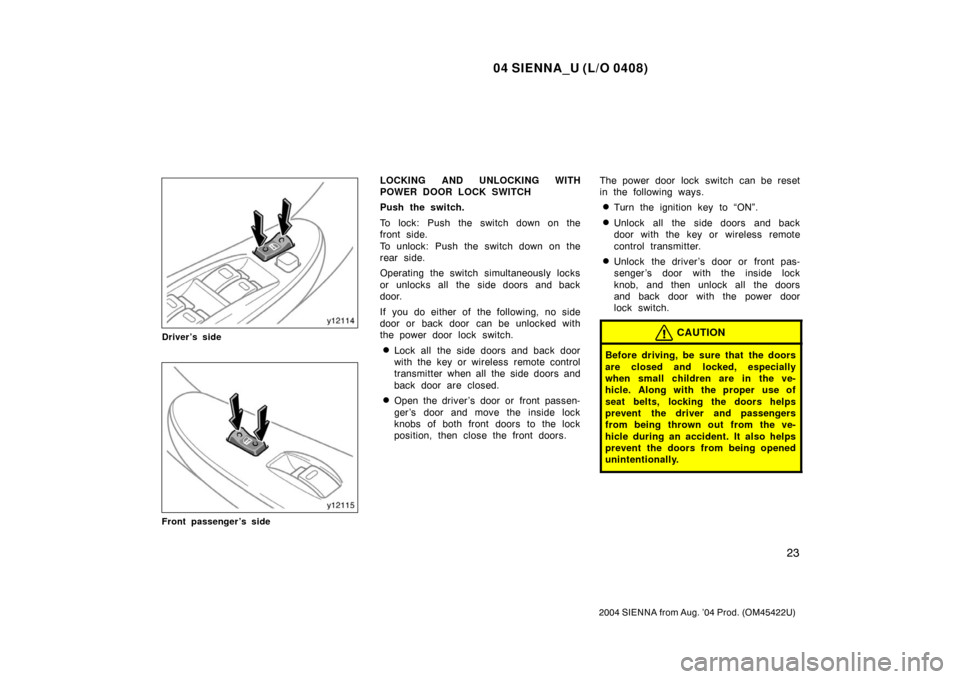

Driver’s side
Front passenger’s side
LOCKING AND UNLOCKING WITH
POWER DOOR LOCK SWITCH
Push the switch.
To lock: Push the switch down on the
front side.
To unlock: Push the switch down on the
rear side.
Operating the switch simultaneously locks
or unlocks all the side doors and back
door.
If you do either of the following, no side
door or back door can be unlocked with
the power door lock switch.
Lock all the side doors and back door
with the key or wireless remote control
transmitter when all the side doors and
back door are closed.
Open the driver ’s door or front passen-
ger’s door and move the inside lock
knobs of both front doors to the lock
position, then close the front doors.The power door lock switch can be reset
in the following ways.
Turn the ignition key to “ON”.
Unlock all the side doors and back
door with the key or wireless remote
control transmitter.
Unlock the driver’s door or front pas-
senger ’s door with the inside lock
knob, and then unlock all the doors
and back door with the power door
lock switch.
CAUTION
Before driving, be sure that the doors
are closed and locked, especially
when small children are in the ve-
hicle. Along with the proper use of
seat belts, locking the doors helps
prevent the driver and passengers
from being thrown out from the ve-
hicle during an accident. It also helps
prevent the doors from being opened
unintentionally.
Page 30 of 506
04 SIENNA_U (L/O 0408)
24
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
You can set the following auto door
locking and unlocking functions.
(a) Locking linked with the shift posi-tion
All the side doors and back door are
locked automatically when the selector le-
ver is moved out of the “P” position with
the ignition switch in the “ON” position.
This function is the default setting for new
vehicles.
(b) Unlocking linked with the shift posi- tion
All the side doors and back door are un-
locked automatically when the selector le-
ver is moved to the “P” position with the
ignition switch in the “ON” position.
(c) Locking linked with the vehicle speed
All the side doors and back door are
locked automatically when the vehicle
speed reaches 20 km/h (12 mph) or high-
er. However, if any door is unlocked dur-
ing driving, this auto locking function will
not operate until the unlocked door is
opened once. (d) Unlocking linked with opening the
driver ’s door
All the side doors and back door are un-
locked automatically when the driver’s
door is opened within 10 seconds after
the ignition switch is turned from “ON” to
the “ACC” or “LOCK” position.
Setting the functions
1. Close all the side doors and back door.
2. Turn the ignition switch to the “ON” position.
3. Within 10 seconds after the ignition switch is turned to the “ON” position;
To set function (a)
Push and hold the front of the driver’s
side power door lock switch for 5 sec-
onds with the selector lever in the “P”
position.
To set function (b)
Push and hold the rear of the driver’s
side power door lock switch for 5 sec-
onds with the selector lever in the “P”
position.
To set function (c)
Push and hold the front of the driver’s
side power door lock switch for 5 sec-
onds with the selector lever in any
position except “P”.
To set function (d)
Push and hold the rear of the driver’s
side power door lock switch for 5 sec-
onds with the selector lever in any
position except “P”.
All the side doors and back door automati-
cally lock and unlock when you release
the power door lock switch. This indicates
that the function is set. If all the doors do
not lock and unlock, the time the switch
was held may have been too short or too
long. Perform the procedure over again
starting from step 1.
If you want to cancel a function, repeat
the procedure. Each time you perform the
procedure, the function is set or can-
celled.
—Automatic door locking and
unlocking functions
