TOYOTA SIENNA 2004 XL20 / 2.G Owner's Guide

04 SIENNA_U (L/O 0408)
25
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
LOCKING AND UNLOCKING WITH
INSIDE LOCK KNOB
Move the lock knob.
To lock: Move the knob forward.
To unlock: Move the knob backward.
Closing the sliding door with the lock knob
in the lock position will also lock the slid-
ing door. Be careful not to lock your keys
in the vehicle.CLOSING THE FULLYOPENED SLIDING
DOOR
To close the fully
−opened sliding door, pull
the inside or outside handle and then
close the door.
CAUTION
Before driving, be sure that the doors
are closed and locked, especially
when small children are in the ve-
hicle. Along with the proper use of
seat belts, locking the doors helps
prevent the passengers from being
thrown out from the vehicle during an
accident. It also helps prevent the
doors from being opened unintention-
ally.
CAUTION
When closing the sliding door, con-
firm safety of the area around.
Keep the heads, hands and other
parts of the bodies of all occupants
away from the sliding door. Other-
wise, the closing door may cause
an unexpected serious injury.
When the vehicle is stopped on a
slope, the door will slide faster
when opening or closing, so be es-
pecially careful that the passengers
do not get hit or pinched by the
door.
Sliding doors

04 SIENNA_U (L/O 0408)
26
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
When stopping on a downward
slope, open the door fully while
passengers are getting on or off.
Do not pull the outside handle or
inside handle while the door is
open as the door could suddenly
close by itself causing injury.
NOTICE
Do not close the sliding door by ap-
plying the brakes. Doing so could
cause the door to be damaged.
When the fuel filler door is opened, the
left side siding door will not open.
Close the fuel filler door securely and
then operate the sliding door.
NOTICE
Avoid forcibly opening the left side
sliding door fully when the fuel filler
door is opened. Otherwise, the fuel
filler door may be damaged.
When the sliding door window is
opened more than about 15 cm (6 in.),
the sliding door will stop at half
opened position. Close the window and
then operate the sliding door.
CAUTION
Do not leave the sliding door at half
opened position. If the vehicle is
stopped on a downward slope, it may
move and cause an unexpected injury.

04 SIENNA_U (L/O 0408)
27
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
SLIDING DOOR CHILDPROTECTORS
Open the sliding door fully and move
the lock lever to the “LOCK” position
as shown on the label. Then close the
sliding door.
If the child−protector is locked, you cannot
open the sliding door from the inside. We
recommend using this feature whenever
small children are in the vehicle.
On Off
This switch is used to turn on and off
the power sliding door system. In order
to operate the power sliding door, the
“SLIDE DOOR OFF” switch on the in-
strument panel must be pushed out.
(The orange line on the top of the
switch indicates that the power sliding
door system is on.) To disable the pow-
er sliding door feature, push in the
switch. When the power sliding door system is
on, you can open and close the sliding
door with the power sliding door switches
on the overhead console or wireless re-
mote control transmitter even if the sliding
door child
−protector is locked.
CAUTION
Do not leave small children or pets
unattended in your vehicle. They
could operate the power sliding
door and injure themselves or oth-
ers. Turn off the power sliding door
system when the power sliding door
is not in use.
When jacking up the vehicle, turn
off the power sliding door system
and close the sliding door com-
pletely.
Power sliding doors—
—Power sliding door main switch
(“SLIDE DOOR OFF” switch)

04 SIENNA_U (L/O 0408)
28
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
NOTICE
When your vehicle goes through an
automatic car wash, make sure the
power sliding door system is off.
LOCKING AND UNLOCKING WITH
INSIDE LOCK KNOB
Move the lock knob.
To lock: Move the knob forward.
To unlock: Move the knob backward.
Closing the sliding door with the lock knob
in the lock position will also lock the slid-
ing door. Be careful not to lock your keys
in the vehicle.CLOSING THE FULLYOPENED SLIDING
DOOR
To close the fully
−opened sliding door, pull
the inside or outside handle and then
close the door.
CAUTION
Before driving, be sure that the doors
are closed and locked, especially
when small children are in the ve-
hicle. Along with the proper use of
seat belts, locking the doors helps
prevent the passengers from being
thrown out from the vehicle during an
accident. It also helps prevent the
doors from being opened unintention-
ally.
—Manual operation

04 SIENNA_U (L/O 0408)
29
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
Sliding door closer: When the sliding
door has not been fully closed, it is auto-
matically closed completely even if the
power sliding door system is off.
CAUTION
Careful attention is needed so as
not to get your fingers trapped as
the sliding door automatically
closes when it has not been fully
closed.
Never allow a child to operate the
sliding door.
NOTICE
Do not apply excessive force when
the sliding door closer is operating.
Otherwise, the sliding door closer
may be damaged.
CAUTION
When closing the sliding door, con-
firm safety of the area around.
Keep the heads, hands and other
parts of the bodies of all occupants
away from the sliding door. Other-
wise, the closing door may cause
an unexpected serious injury.
When the vehicle is stopped on a
slope, the door will slide faster
when opening or closing, so be es-
pecially careful that the passengers
do not get hit or pinched by the
door.
When stopping on a downward
slope, open the door fully while
passengers are getting on or off.
Do not pull the outside handle or
inside handle while the door is
open as the door could suddenly
close by itself causing injury.
NOTICE
Do not close the sliding door by ap-
plying the brakes. Doing so could
cause the door to be damaged.

04 SIENNA_U (L/O 0408)
30
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
When the fuel filler door is opened, the
left side sliding door will not open.
Close the fuel filler door securely and
then operate the sliding door.
NOTICE
Avoid forcibly opening the left side
sliding door fully when the fuel filler
door is opened. Otherwise, the fuel
filler door may be damaged.
When the sliding door window is
opened more than about 15 cm (6 in.),
the sliding door will stop at half
opened position. Close the window and
then operate the sliding door.
CAUTION
Do not leave the sliding door at half
opened position because the door will
unlock after 30 minutes. If the vehicle
is stopped on a downward slope, it
may move and cause an unexpected
injury.
NOTICE
To prevent the battery from being dis-
charged, do not leave the sliding door
at halfopened position.

04 SIENNA_U (L/O 0408)
31
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
SLIDING DOOR CHILDPROTECTORS
Open the sliding door fully and move
the lock lever to the “LOCK” position
as shown on the label. Then close the
sliding door.
When the child−protector is locked, you
cannot open the sliding door by the inside
door handle. We recommend using this
feature whenever small children are in the
vehicle.
CAUTION
Make sure to turn off the power slid-
ing door system after locking the
childprotectors.
The power sliding door can be operated
automatically in the following ways:
Operates with the power sliding door
switches inside the vehicle
Operates with the wireless remote con-
trol transmitter
Assists operation with the outside or
inside handle by hand
The power sliding door system can be
canceled by the “SLIDE DOOR OFF”
switch.
When the power sliding door system is
on, if you shift out of “P” with the ignition
key in the “ON” position and the sliding
door is not completely closed, a buzzer
will sound.
CAUTION
Careful attention is needed so as
not to get your fingers trapped as
the sliding door automatically opens
or closes.
Never allow a child to operate the
sliding door.
—Automatic operation

04 SIENNA_U (L/O 0408)
32
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
NOTICE
Do not apply excessive force when
the sliding door is operated automati-
cally. Otherwise, the power sliding
door system may be damaged.
You can cause a beep to sound when the
power sliding door is opened or closed.
For details, contact your Toyota dealer.
Front overhead console
Center pillar
OPERATING WITH THE POWER SLIDING
DOOR SWITCHES
To open the door, push the switch. To
close the door, push the switch once
again. The door opens and closes com-
pletely.
Switches on the front overhead con-
sole:“
” switch—To operate the left side
door.
“
” switch—To operate the right side
door.
Switches on the center pillar:
“PWR DOOR” switch—To operate each
side door.
Opening operation can be performed by
the switches under the following condi-
tions:
The sliding door is unlocked.
The power sliding door system is on.
(The “SLIDE DOOR OFF” switch is
pushed out.)
The sliding door is between the fully −
closed position and half −opened posi-
tion.

04 SIENNA_U (L/O 0408)
33
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
When the ignition key is in the “ON”
position, the transmission selector lever
must be in “P”.
The child−protector is unlocked.
(switches on the center pillar only)
Closing operation can be performed by
the switches under the following condi-
tions:
The power sliding door system is on.
(The “SLIDE DOOR OFF” switch is
pushed out.)
The sliding door is between the fully −
opened position and half −opened posi-
tion.
Left and right side power sliding door
models—The left side power sliding door
does not operate when the fuel filler door
is opened.
The length of time required to push the
switches for operating the sliding door can
be changed. For details, contact your
Toyota dealer.

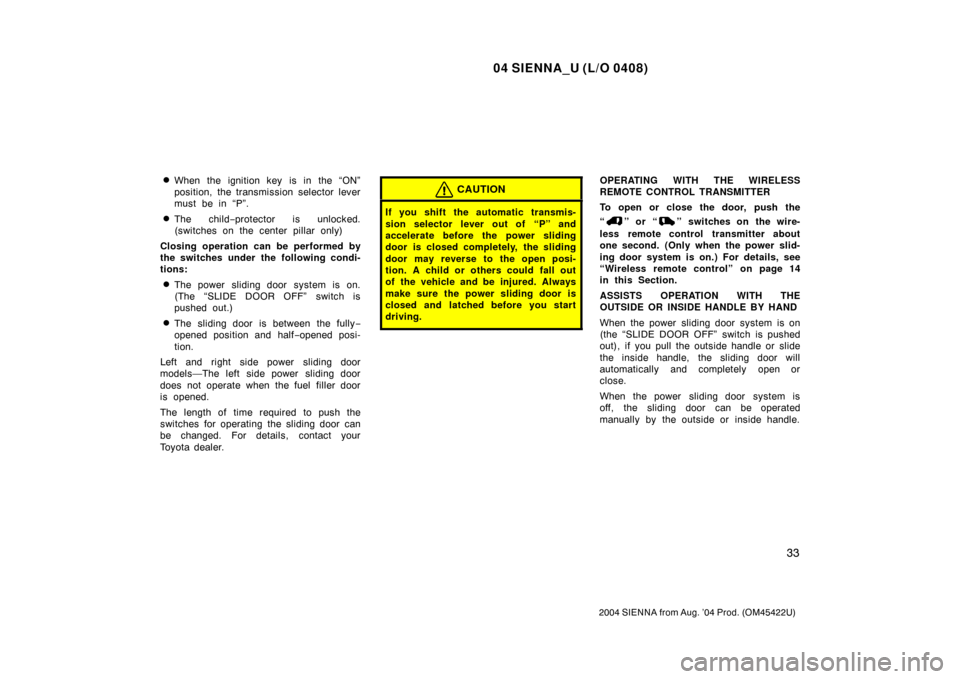

CAUTION
If you shift the automatic transmis-
sion selector lever out of “P” and
accelerate before the power sliding
door is closed completely, the sliding
door may reverse to the open posi-
tion. A child or others could fall out
of the vehicle and be injured. Always
make sure the power sliding door is
closed and latched before you start
driving.
OPERATING WITH THE WIRELESS
REMOTE CONTROL TRANSMITTER
To open or close the door, push the
“
” or “” switches on the wire-
less remote control transmitter about
one second. (Only when the power slid-
ing door system is on.) For details, see
“Wireless remote control” on page 14
in this Section.
ASSISTS OPERATION WITH THE
OUTSIDE OR INSIDE HANDLE BY HAND
When the power sliding door system is on
(the “SLIDE DOOR OFF” switch is pushed
out), if you pull the outside handle or slide
the inside handle, the sliding door will
automatically and completely open or
close.
When the power sliding door system is
off, the sliding door can be operated
manually by the outside or inside handle.

04 SIENNA_U (L/O 0408)
34
2004 SIENNA from Aug. ’04 Prod. (OM45422U)

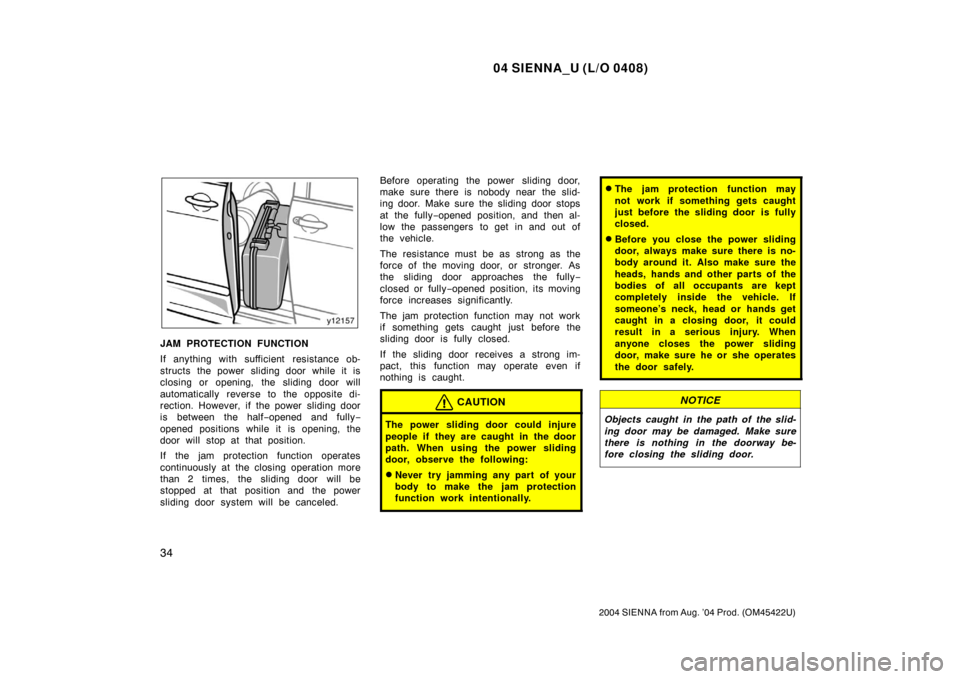

JAM PROTECTION FUNCTION
If anything with sufficient resistance ob-
structs the power sliding door while it is
closing or opening, the sliding door will
automatically reverse to the opposite di-
rection. However, if the power sliding door
is between the half−opened and fully −
opened positions while it is opening, the
door will stop at that position.
If the jam protection function operates
continuously at the closing operation more
than 2 times, the sliding door will be
stopped at that position and the power
sliding door system will be canceled. Before operating the power sliding door,
make sure there is nobody near the slid-
ing door. Make sure the sliding door stops
at the fully
−opened position, and then al-
low the passengers to get in and out of
the vehicle.
The resistance must be as strong as the
force of the moving door, or stronger. As
the sliding door approaches the fully −
closed or fully −opened position, its moving
force increases significantly.
The jam protection function may not work
if something gets caught just before the
sliding door is fully closed.
If the sliding door receives a strong im-
pact, this function may operate even if
nothing is caught.
CAUTION
The power sliding door could injure
people if they are caught in the door
path. When using the power sliding
door, observe the following:
Never try jamming any part of your
body to make the jam protection
function work intentionally.
The jam protection function may
not work if something gets caught
just before the sliding door is fully
closed.
Before you close the power sliding
door, always make sure there is no-
body around it. Also make sure the
heads, hands and other parts of the
bodies of all occupants are kept
completely inside the vehicle. If
someone’s neck, head or hands get
caught in a closing door, it could
result in a serious injury. When
anyone closes the power sliding
door, make sure he or she operates
the door safely.
NOTICE
Objects caught in the path of the slid-
ing door may be damaged. Make sure
there is nothing in the doorway be-
fore closing the sliding door.
