TOYOTA SIENNA 2006 XL20 / 2.G Navigation Manual

91
OTHER FUNCTIONS
Other functions
Maintenance information 92
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .
Maintenance information setting 92
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
.
Dealer setting 93
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Calendar with memo 95
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
Adding a memo 96
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . .
Editing a memo 98
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . .
Memo list 98
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . .
Hands− free system 99
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Speech command system 142
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Help screen 144
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Screen adjustment 145
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
Screen setting 146
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
Beep setting 149
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Select language 149
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
SECTION V

92
Maintenance information —
— Maintenance information
setting
When the Navigation System is turned on, the
“Information” screen displays when it is time
to replace a part or certain components. (See
page 3.)
1. Push the “INFO” button.
2. Touch “Maintenance”.
3. Touch the desired touchscreen but-
ton.
For details of each touch− screen button, see
“INFORMATION ITEMS” on page 92.
“Delete All”: To cancel all conditions which
have been inputted.
“Reset All”: To reset the item which has sat-
isfied a condition.
“Set Dealer”: To register or edit dealer infor-
mation. (See “ — Dealer setting” on page
93.)
If “ON” is selected, the system gives mainte-
nance information with the “Information”
screen when the system is turned on. (See
page 3.)
If “OFF” is selected, the “Information” screen
is disabled.
When the vehicle needs to be serviced, the
touch−screen button color will change to
orange. INFORMATION ITEMS
“ENGINE OIL”:
Replace engine oil
“OIL FILTER”: Replace engine oil filter
“ROTATION”: Rotate tires
“TIRES”: Replace tires
“BATTERY”: Replace battery
“BRAKE PAD”: Replace brake linings
“WIPERS”: Replace wiper blades
“LLC”: Replace engine coolant
“BRAKE OIL”: Replace brake fluid
“ATF”: Replace ATF
“SERVICE”: Scheduled maintenance
“AIR FILTER”: Replace air filter
“PERSONAL”: New information items can
be created separately from provided ones

93
4. Input the conditions.
Notice of “Date”: The next maintenance
date can be input.
Notice of “Distance”: The driving distance
until the next maintenance check can be in-
put.
“Delete”: To cancel the date and distance
conditions.
“Reset”: To reset the date and distance con-
ditions .
5. Touch “OK”.
The screen then returns to the “Maintenance”
screen.
INFORMATION
 For scheduled maintenance informa-
tion, please refer to the “Scheduled
Maintenance Guide” or “Owner’s
Manual Supplement”.
 Depending on driving or road condi-
tions, the actual date and distance
may differ from the stored date and
distance in the system.
— Dealer setting
It is possible to register a dealer in the system.
With dealer information registered, route
guidance to the dealer is available.
1. Touch “Set Dealer” on the “Mainte-
nance” screen.
2. If the dealer has not been registered,
enter the location of the dealer in the same
way as for a destination search. (See “Des-
tination search” on page 24.)
When “Set Dealer” registration is finished, the
“Edit Dealer” screen will be displayed.

94
3. Touch the touchscreen button to be
edited.
“Dealer”: To enter the name of a dealer. (See
page 94.)
“Contact”: To enter the name of a dealer
member. (See page 94.)
“Location”: To set a location. (See page
94.)
“Phone #”: To set a telephone number. (See
page 95.)
“Delete Dealer”: To delete the dealer infor-
mation displayed on the screen.
“Enter
”: To set the displayed dealer as a
destination. (See “Starting route guidance”
on page 43.)
To edit “Dealer” or “Contact”
1. Touch “Dealer” or “Contact” on the
“Edit Dealer” screen.
2. Enter the name using the alphanumeric
keys.
Up to 24 letters can be entered.
3. Touch “OK”.
The previous screen will be displayed.
To edit “Location”
1. Touch “Location” on the “Edit Dealer”
screen.
2. Touch the eight directional touch
screen button to move the cursor to the
desired point on the map.
3. Touch “Enter”.
The previous screen will be displayed.

95

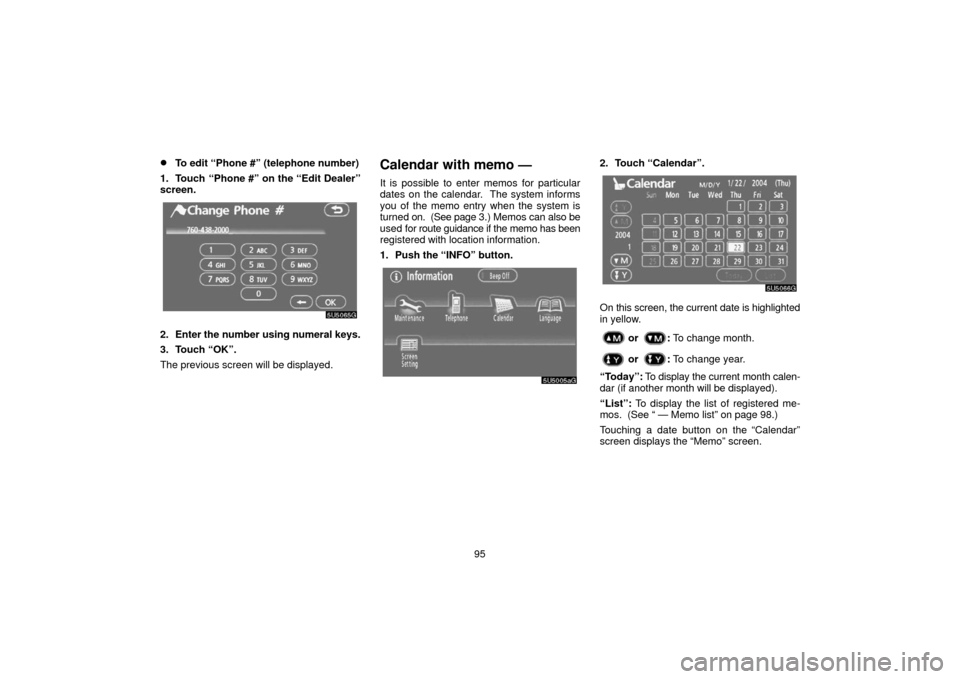

To edit “Phone #” (telephone number)
1. Touch “Phone #” on the “Edit Dealer”
screen.
2. Enter the number using numeral keys.
3. Touch “OK”.
The previous screen will be displayed.
Calendar with memo —
It is possible to enter memos for particular
dates on the calendar. The system informs
you of the memo entry when the system is
turned on. (See page 3 .) Memos can also be
used for route guidance if the memo has been
registered with location information.
1. Push the “INFO” button.
2. Touch “Calendar”.
On this screen, the current date is highlighted
in yellow.
or : To change month.
or : To change year.
“Today”: To display the current month calen-
dar (if another month will be displayed).
“List”: To display the list of registered me-
mos. (See “ — Memo list” on page 98.)

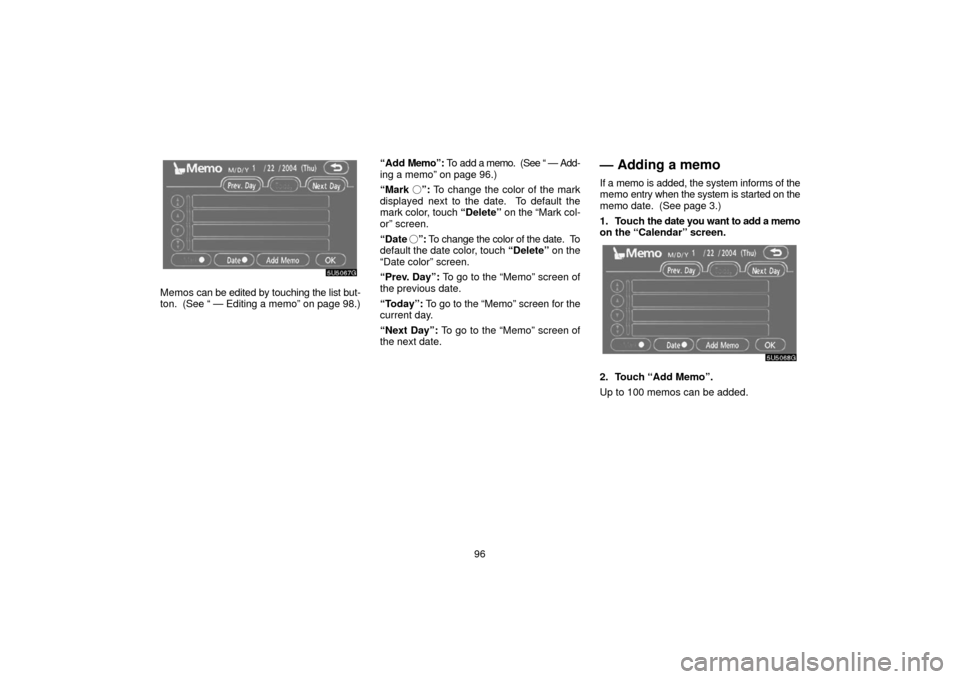

Touching a date button on the “Calendar”
screen displays the “Memo” screen.

96
Memos can be edited by touching the list but-
ton. (See “ — Editing a memo” on page 98.) “Add
Memo”: To add a memo. (See “ — Add-
ing a memo” on page 96.)
“Mark ”: To change the color of the mark
displayed next to the date. To default the
mark color, touch “Delete” on the “Mark col-
or” screen.
“Date ”: To change the color of the date. To
default the date color, touch “Delete” on the
“Date color” screen.
“Prev. Day”: To go to the “Memo” screen of
the previous date.
“Today”: To go to the “Memo” screen for the
current day.
“Next Day”: To go to the “Memo” screen of
the next date.
— Adding a memo
If a memo is added, the system informs of the
memo entry when the system is started on the
memo date. (See page 3.)
1. Touch the date you want to add a memo
on the “Calendar” screen.
2. Touch “Add Memo”.
Up to 100 memos can be added.

97

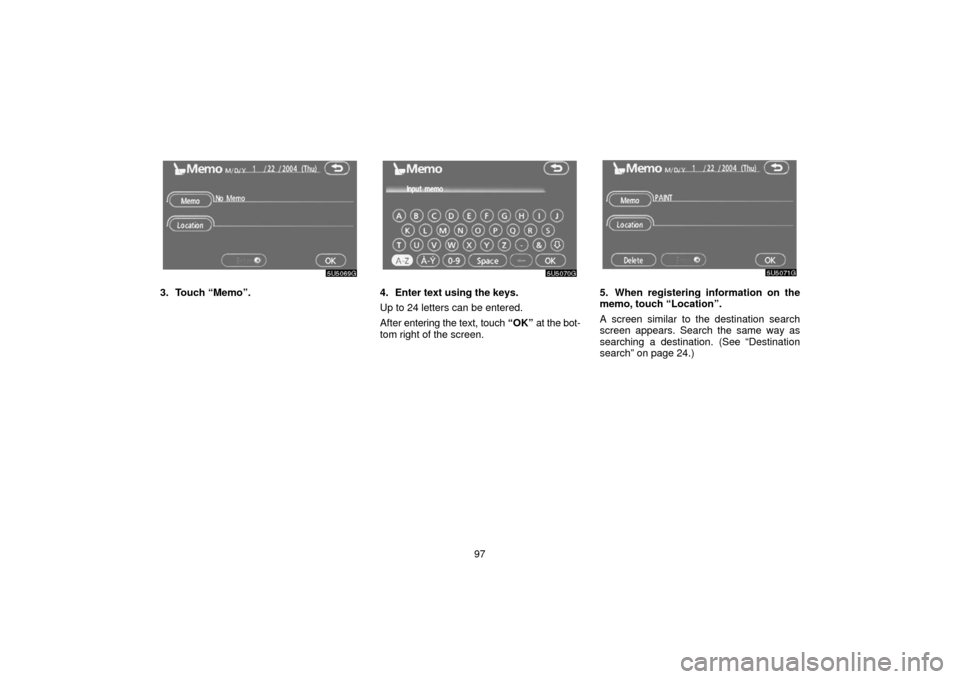

3. Touch “Memo”.4. Enter text using the keys.
Up to 24 letters can be entered.
After entering the text, touch “OK” at the bot-
tom right of the screen.5. When registering information on the
memo, touch “Location”.
A screen similar to the destination search
screen appears. Search the same way as
searching a destination. (See “Destination
search” on page 24.)

98

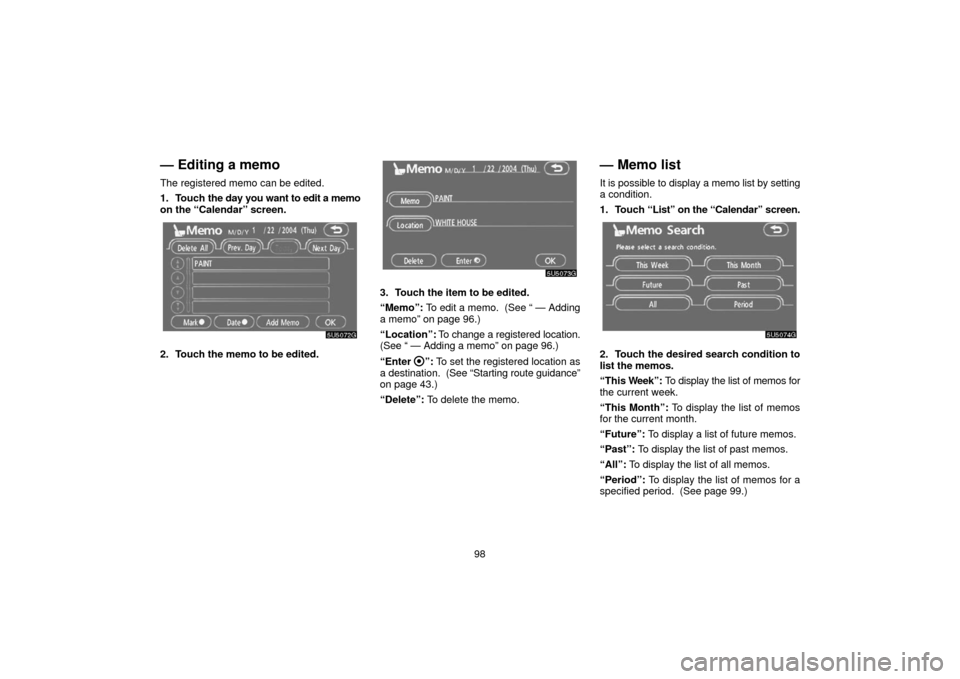

— Editing a memo
The registered memo can be edited.
1. Touch the day you want to edit a memo
on the “Calendar” screen.
2. Touch the memo to be edited.
3. Touch the item to be edited.
“Memo”: To edit a memo. (See “ — Adding
a memo” on page 96.)
“Location”: To change a registered location.
(See “ — Adding a memo” on page 96.)
“Enter
”: To set the registered location as
a destination. (See “Starting route guidance”
on page 43.)
“Delete”: To delete the memo.
— Memo list
It is possible to display a memo list by setting
a condition.
1. Touch “List” on the “Calendar” screen.
2. Touch the desired search condition to
list the memos.
“This Week”: To display the list of memos for
the current week.
“This Month”: To display the list of memos
for the current month.
“Future”: To display a list of future memos.
“Past”: To display the list of past memos.
“All”: To display the list of all memos.
“Period”: To display the list of memos for a
specified period. (See page 99.)

99

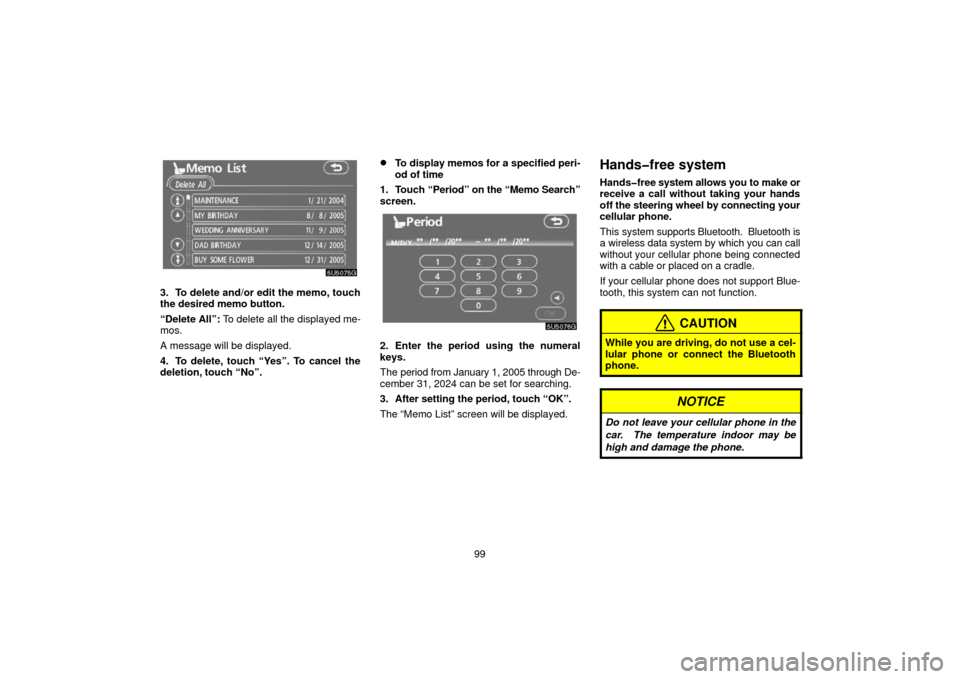

3. To delete and/or edit the memo, touch
the desired memo button.
“Delete All”: To delete all the displayed me-
mos.
A message will be displayed.
4. To delete, touch “Yes”. To cancel the
deletion, touch “No”.
To display memos for a specified peri-
od of time
1. Touch “Period” on the “Memo Search”
screen.
2. Enter the period using the numeral
keys.
The period from January 1, 2005 through De-
cember 31, 2024 can be set for searching.
3. After setting the period, touch “OK”.
The “Memo List” screen will be displayed.
Handsfree system
Handsfree system allows you to make or
receive a call without taking your hands
off the steering wheel by connecting your
cellular phone.
This system supports Bluetooth. Bluetooth is
a wireless data system by which you can call
without your cellular phone being connected
with a cable or placed on a cradle.
If your cellular phone does not support Blue-
tooth, this system can not function.
CAUTION
While you are driving, do not use a cel-
lular phone or connect the Bluetooth
phone.
NOTICE
Do not leave your cellular phone in the
car. The temperature indoor may be
high and damage the phone.

100
INFORMATION
In the following conditions, the system
may not function.
The cellular phone is turned OFF.
 The current position is outside the
communication area.
 The cellular phone is not connected.
 The cellular phone has a low battery.
By pushing the telephone switch above,
you can receive a call or hang up without
taking your hands off the steering wheel.
You can use the microphone above when
talking on the phone. The other party’s voice outputs from the driv-
er’s speaker. When the received calls or re-
ceived voice outputs, the audio from the Au-
dio system or voice guidance from the
Navigation system
will be muted.
INFORMATION
Talk alternately with the other party on
the phone. If you talk at the same time,
the voice may not reach each other. (It
is not a malfunction.)
 Keep the volume of receiving voice
down. Otherwise, echo is coming up.
When you talk on the phone, speak
clearly towards the microphone.
 In the following situations, your voice
may not reach the other party.
Driving on unpaved road. (Making
a traffic noise.)
 Driving at the high speed.
 The window is open.
 Turning the airconditioning vents
towards the microphone.
 The sound of the airconditioning
fan is loud.
