TOYOTA SIENNA 2006 XL20 / 2.G Navigation Manual

61
To set a POI as a destination
You can select one of the Points of Interest
icons on the map screen as a destination and
use it for route guidance.
1. Directly touch the Point of Interest icon
that you want to set as a destination.
The map will shift so that the icon is centered
on the screen and overlaps with the cursor
. At this time, the distance from the current
position is displayed on the screen. The dis-
tance shown is measured as a straight line
from the current vehicle position to the POI.
2. When the desired Point of Interest
overlaps with the cursor, touch “Enter
”.
The screen changes and displays the map
location of the selected destination and route
preference. (See
“Starting route guidance”
on page 43.)
— Route overview
1. Touch “Map View”.
2. Touch “Route Overview”.
The entire route from the current position to
the destination is displayed.
“Guide”: To start guidance.
“Route”: To change the route. (See pages
53 and 55.)
“Turn List”: The following screen displays
the list of the roads up to the destination.

62
You can scroll through the list of roads by
touching
or . However, not all road
names in the route may appear on the list. If
a road changes its name without requiring a
turn (such as on a street that runs through two
or more cities), the name change will not ap-
pear on the list. The street name closest to
the starting point will be displayed with the
mileage to the next turn.
These marks indicate the
direction in which you should turn
at an intersection.
Touch “Map” on the “Turn List” screen.
The point which you choose is displayed on
the map screen.— Route preview
1. Touch “Map View”.
2. Touch “Route Preview”.

63
:To indicate the next destination.
:To preview the route to the next des-
tination.
: To preview the route to the next des-
tination in fast −forward mode.
: To stop the preview.
:To review the route to the previous
destination or starting point.
: To review the route to the previous
destination or starting point in fast −
forward mode.
: To indicate the previous destination
or starting point.
— Route trace
It is possible to store the traveled route up to
124 miles (200 km) and retrace the route on
the display.
INFORMATION
This feature is available on the map with
more detailed map scale than 30 mile (50
km).
Touch “Map View”.
“Record”: To start recording the route trace.
“Stop”: To stop recording the route trace.
If you touch “Stop” to display the following
screen.
Touching “Yes” stops recording and the
route trace remains displayed on the screen.
Touching “No” stops recording and the route
trace is erased.

64

65
ADVANCED FUNCTIONS
Descriptions of functions for more effective use
Suspending and resuming guidance66
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Volume 67
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . .
User selection 67
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
My places 69
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . .
Registering memory points 70
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Editing memory points 71
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Deleting memory points 75
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Registering home 75
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
Deleting home 76
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Registering area to avoid 76
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Editing area to avoid 77
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Deleting area to avoid 79
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Delete previous points 80
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Setup 80
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION IV

66
Suspending and resuming
guidance
To suspend guidance
1. Push the “MENU” button.
2. Touch “Suspend Guidance”.
INFORMATION
Without route guidance, “Suspend
Guidance” cannot be used.
The screen will return to the current position
map without route guidance.
To resume guidance
1. Push the “MENU” button.
2. Touch “Resume Guidance”.
The screen will change to the current position
map with route guidance.

67
Volume
Voice guidance can be used when approach-
ing a destination.
The volume of the voice or turn off voice guid-
ance can be adjusted.
1. Push the “MENU” button.
2. Touch “Volume”.
To adjust the volume, select the desired level
by touching the appropriate number.
If voice guidance is unneeded, touch “OFF”.
The selected item is highlighted.
INFORMATION
During route guidance, the voice guid-
ance continues even if the navigation
screen is changed to other screens.
“Adaptive Volume Control”: By turning
“Adaptive Volume Control” on, the volume is
turned up automatically when the vehicle
speed exceeds 50 mph (80 km/h).
To turn the “Adaptive Volume Control” system
on, touch the button. The indicator will be
highlighted.
User selection
The system can memorize the following set-
tings for up to three users.
Map direction
Map scale
Map configuration
Guidance mode
Setup
Volume
Language
Route trace
Travel time/arrival time
Right screen of dual map
Road preference
Maintenance notification

68

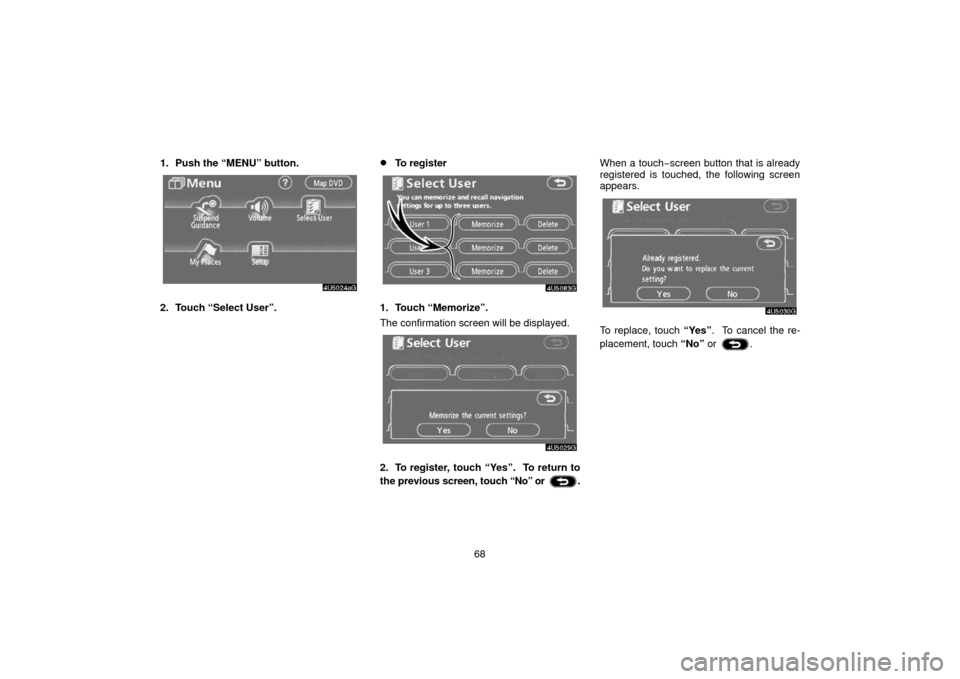

1. Push the “MENU” button.
2. Touch “Select User”.
To register
1. Touch “Memorize”.
The confirmation screen will be displayed.
2. To register, touch “Yes”. To return to
the previous screen, touch
“No” or
.When a touch−screen button that is already
registered is touched, the following screen
appears.
To replace, touch
“Yes”. To cancel the re-
placement, touch “No” or
.

69

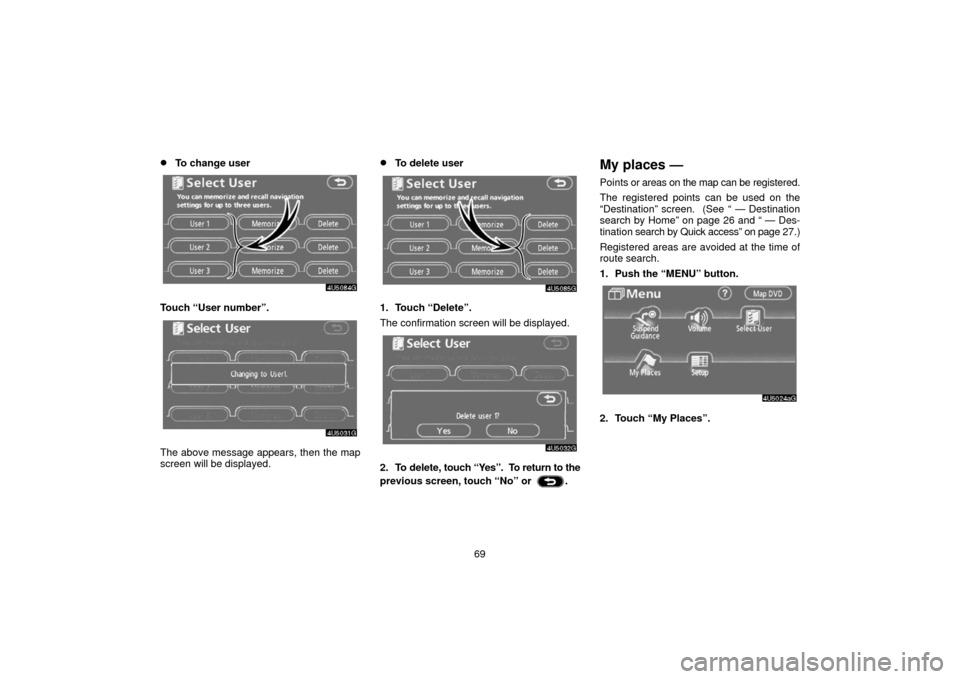

To change user
Touch “User number”.
The above message appears, then the map
screen will be displayed.
To delete user
1. Touch “Delete”.
The confirmation screen will be displayed.
2. To delete, touch “Yes”. To return to the
previous screen, touch “No” or
.
My places —
Points or areas on the map can be registered.
The registered points can be used on the
“Destination” screen. (See “ — Destination
search by Home” on page 26 and “ — Des-
tination search by Quick access” on page 27.)
Registered areas are avoided at the time of
route search.
1. Push the “MENU” button.
2. Touch “My Places”.

70

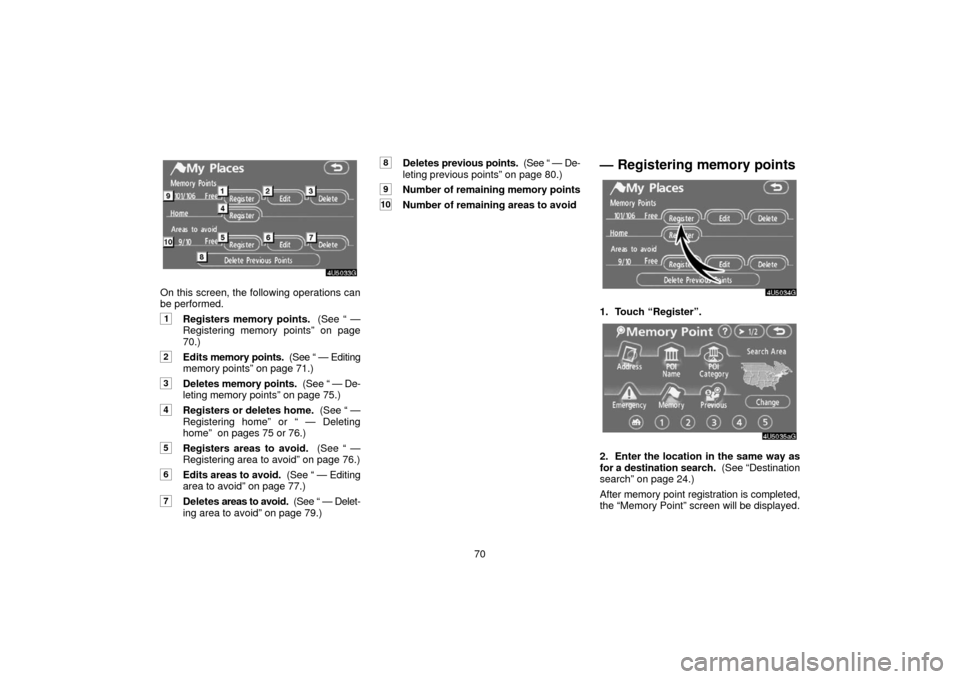

On this screen, the following operations can
be performed.
1Registers memory points. (See “ —
Registering memory points” on page
70.)
2Edits memory points. (See “ — Editing
memory points” on page 71.)
3Deletes memory points. (See “ — De-
leting memory points” on page 75.)
4Registers or deletes home. (See “ —
Registering home” or “ — Deleting
home” on pages 75 or 76.)
5Registers areas to avoid. (See “ —
Registering area to avoid” on page 76.)
6Edits areas to avoid. (See “ — Editing
area to avoid” on page 77.)
7Deletes areas to avoid. (See “ — Delet-
ing area to avoid” on page 79.)
8Deletes previous points. (See “ — De-
leting previous points” on page 80.)
9Number of remaining memory points
10Number of remaining areas to avoid
— Registering memory points
1. Touch “Register”.
2. Enter the location in the same way as
for a destination search. (See “Destination
search” on page 24.)
After memory point registration is completed,
the “Memory Point” screen will be displayed.
