Page 361 of 518

06 SIENNA_U (L/O 0603)
353
2006 SIENNA from March ‘06 Prod. (OM45443U)
To use the power outlet, push the main
switch on the instrument panel.
An indicator light will illuminate to indicate
that the power outlet is ready for use.
Push the main switch once again to turn
the power outlet off. When the power out-
let is not in use, make sure that the main
switch is turned off.
NOTICE
To prevent the battery from being
discharged, do not use the power
outlet longer than necessary when
the engine is not running.
Close the power outlet lids when
the power outlets are not in use.
Inserting anything other than an ap-
propriate plug that fits the outlet,
or allowing any liquid to get into
the outlet may cause electrical fail-
ure or short circuits.
The power outlet is not designed for
the following electric appliances even
though their power consumption is un-
der 115 VAC/100W. These appliances
may not operate properly.
Appliances with high initial peak watt-
age: cathode −ray tube type televisions,
compressor −driven refrigerators, electric
pumps, electric tools, etc.
Measuring devices which process pre-
cise data: medical equipment, measur-
ing instruments, etc.
Other appliances requiring an extremely
stable power supply: microcomputer −
controlled electric blankets, touch sen-
sor lamps, etc. Certain electrical appliances may cause
radio noise.
Page 362 of 518
06 SIENNA_U (L/O 0603)
354
2006 SIENNA from March ‘06 Prod. (OM45443U)
To use the glove box:
Open by pulling the lever.
Lock by inserting the master key and turn-
ing it clockwise.
Unlock by inserting the master key and
turning it counterclockwise.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the glove box door
closed while driving.
The box is designed to store a garage
door opener transmitter.
Open the cover and remove the Velcro
loop.Remove the paper strip covering the adhe-
sive on back side of loop and adhere loop
to back side of the transmitter near cen-
ter.
Glove boxGarage door opener box
Page 363 of 518
06 SIENNA_U (L/O 0603)
355
2006 SIENNA from March ‘06 Prod. (OM45443U)
Please note if transmitter has wire clip for
sun visor, this clip must be removed prior
to adhesion of the Velcro.Place the transmitter with Velcro loop fac-
ing inside of box into the box. Make sure
the transmitter button is located above
button pins.Remove spacers from the center panel.
Place one spacer on the pin that would be
below transmitter button when the cover is
closed. Close the cover.
Page 364 of 518
06 SIENNA_U (L/O 0603)
356
2006 SIENNA from March ‘06 Prod. (OM45443U)
When the garage door opener transmitter
is properly installed, you can operate the
transmitter by pushing the center panel of
the cover.If the center panel does not contact your
garage door opener transmitter:
Check to see if spacer is on the cor-
rect pin.
Attach another spacer to the top of
original spacer. Check operation. If re-
quired, continue to add spacers until
contact is achieved.
If the transmitter is clattering during driv-
ing, fill in a piece of felt or pad to prevent
the transmitter from clattering.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden
stop, always keep the garage door
opener box closed while driving.
Keep the remaining spacers away
from children.
Page 365 of 518

06 SIENNA_U (L/O 0603)
357
2006 SIENNA from March ‘06 Prod. (OM45443U)
To use the auxiliary box, open the lid
as shown in the following illustrations.
Type C—The plate in the center of the
auxiliary box can be adjusted or removed
as shown in the illustration.
Type I—For details, see “Front seat side
table” on page 368 in this Section.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden
stop, always keep the auxiliary box
closed while driving.
Type A—As these holders are de-
signed for holding a light object
such as an eyeglass, do not place
any heavy objects in them. Heavy
objects may cause the holder to
open and contents to fly out result-
ing in injuries.
NOTICE
Type A—During hot weather, the inte-
rior of the vehicle becomes very hot.
Do not leave anything flammable or
deformable such as a lighter, glasses,
etc. inside.
Type A (driver’s side roof)
Type B (instrument panel)
Position 1Position 2
Type C (instrument panel without seat
heater switches)
Auxiliary boxes
Page 366 of 518
06 SIENNA_U (L/O 0603)
358
2006 SIENNA from March ‘06 Prod. (OM45443U)
Type D (instrument panel with seat heater
switches)
Type E (upper side of the glove box)
Type F (front door)
Type G (quarter trim)
Type H (spare tire cover)
Type I (front seat side table)
Page 367 of 518
06 SIENNA_U (L/O 0603)
359
2006 SIENNA from March ‘06 Prod. (OM45443U)
Type J (rear side of console box)
Type K (front passenger’s seat)
To use the coin holder, push the but-
ton.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop
while driving, keep the coin holder
closed when it is not in use.
The cup holder is designed for holding
cups or drink cans. To use them, ob-
serve the following illustrations.
Type C and D—For details, see “Front
seat side table” on page 368 in this Sec-
tion.
Type G—For details, see “Removable con-
sole box” on page 362 in this Section.
CAUTION
Do not place anything else other
than cups or drink cans in the cup
holder, as such items may be
thrown about and possibly injure
people in the vehicle during sudden
braking or in an accident.
Type A and F—To reduce the
chance of injury in case of an acci-
dent or a sudden stop while driv-
ing, keep the cup holder closed
when it is not in use.
Coin holderCup holders
Page 368 of 518
06 SIENNA_U (L/O 0603)
360
2006 SIENNA from March ‘06 Prod. (OM45443U)

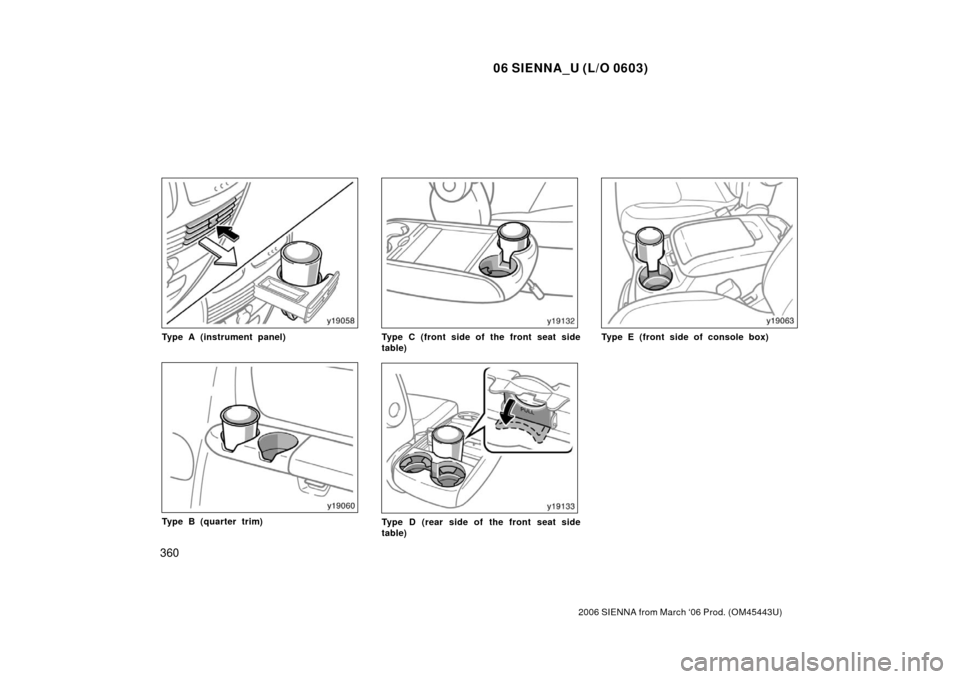

Type A (instrument panel)
Type B (quarter trim)
Type C (front side of the front seat side
table)
Type D (rear side of the front seat side
table)
Type E (front side of console box)
Page 369 of 518
06 SIENNA_U (L/O 0603)
361
2006 SIENNA from March ‘06 Prod. (OM45443U)

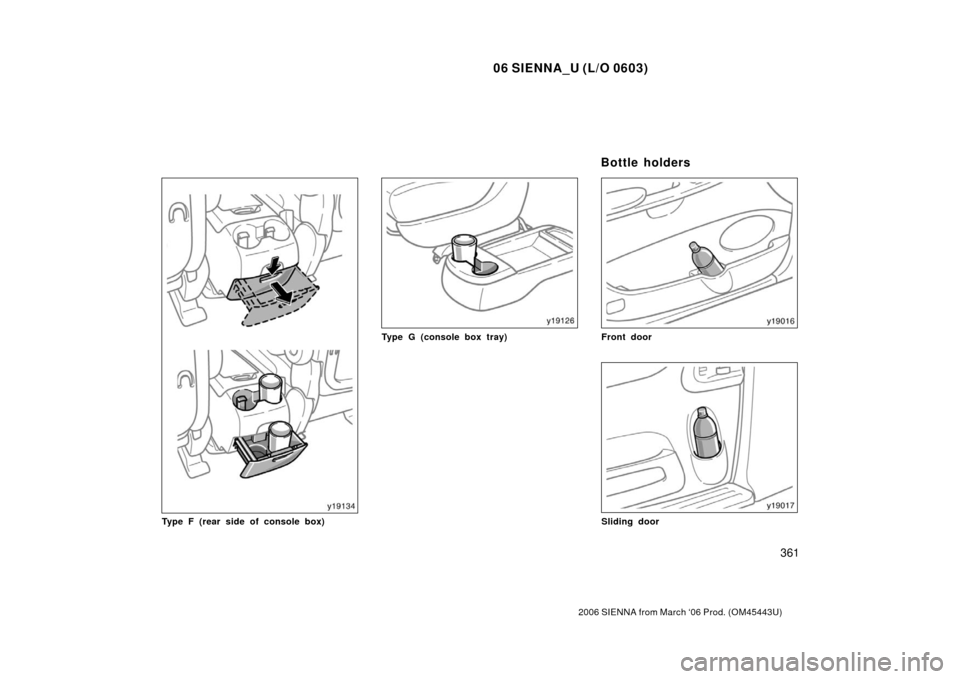

Type F (rear side of console box)
Type G (console box tray)Front door
Sliding door
Bottle holders

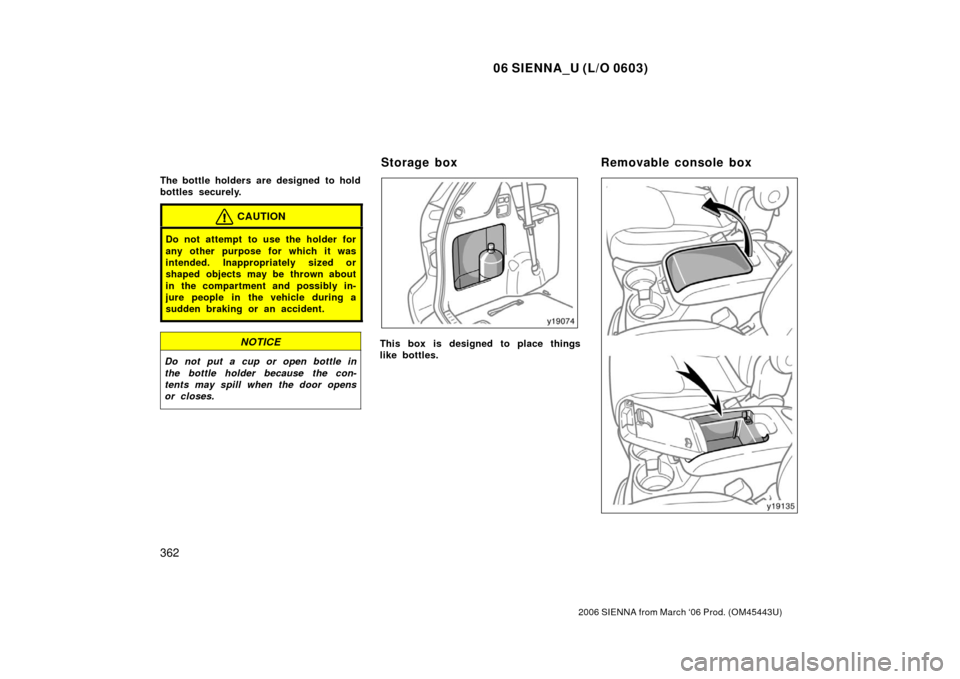

Page 370 of 518
06 SIENNA_U (L/O 0603)
362
2006 SIENNA from March ‘06 Prod. (OM45443U)
The bottle holders are designed to hold
bottles securely.
CAUTION
Do not attempt to use the holder for
any other purpose for which it was
intended. Inappropriately sized or
shaped objects may be thrown about
in the compartment and possibly in-
jure people in the vehicle during a
sudden braking or an accident.
NOTICE
Do not put a cup or open bottle in
the bottle holder because the con-
tents may spill when the door opens
or closes.
This box is designed to place things
like bottles.
Storage boxRemovable console box
