TOYOTA SIENNA 2006 XL20 / 2.G Owners Manual

06 SIENNA_U (L/O 0603)
363
2006 SIENNA from March ‘06 Prod. (OM45443U)

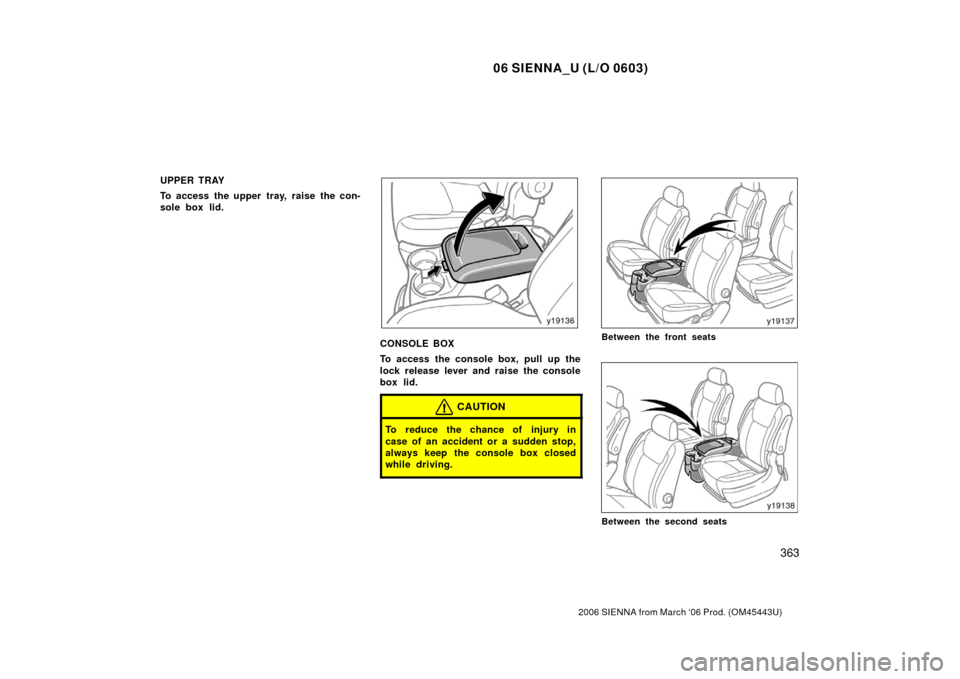

UPPER TRAY
To access the upper tray, raise the con-
sole box lid.
CONSOLE BOX
To access the console box, pull up the
lock release lever and raise the console
box lid.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the console box closed
while driving.
Between the front seats
Between the second seats

06 SIENNA_U (L/O 0603)
364
2006 SIENNA from March ‘06 Prod. (OM45443U)
REMOVING AND INSTALLING THE
CONSOLE BOX
The console box can be removed and
installed between the front seats and
between the second seats as shown in
the illustrations.
When the console box is installed in the
second seat position, the right side sec-
ond seat must be in the outside position.

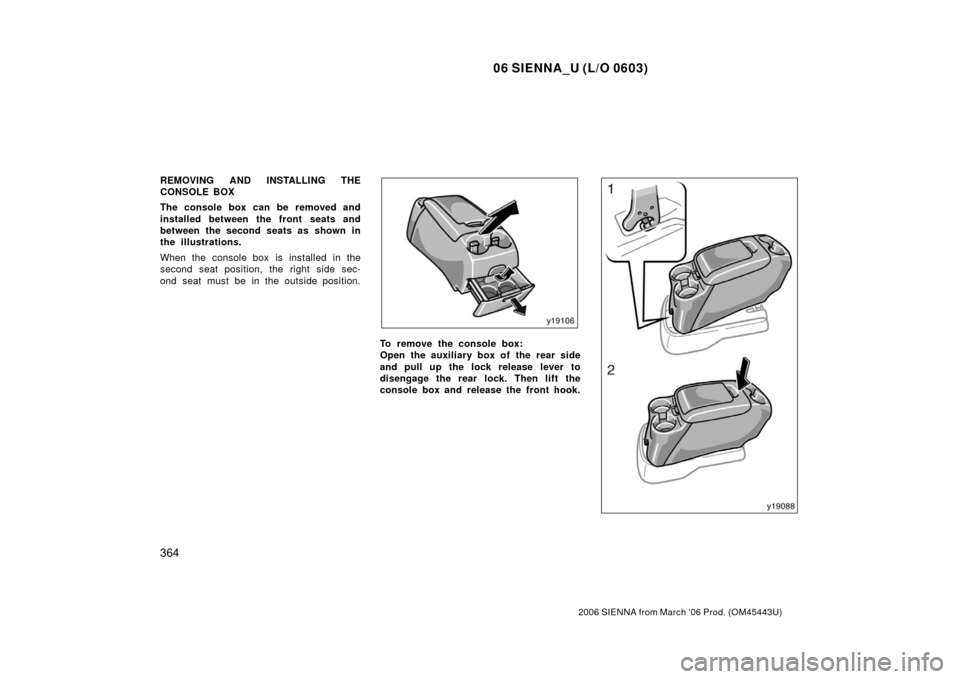

To remove the console box:
Open the auxiliary box of the rear side
and pull up the lock release lever to
disengage the rear lock. Then lift the
console box and release the front hook.

06 SIENNA_U (L/O 0603)
365
2006 SIENNA from March ‘06 Prod. (OM45443U)

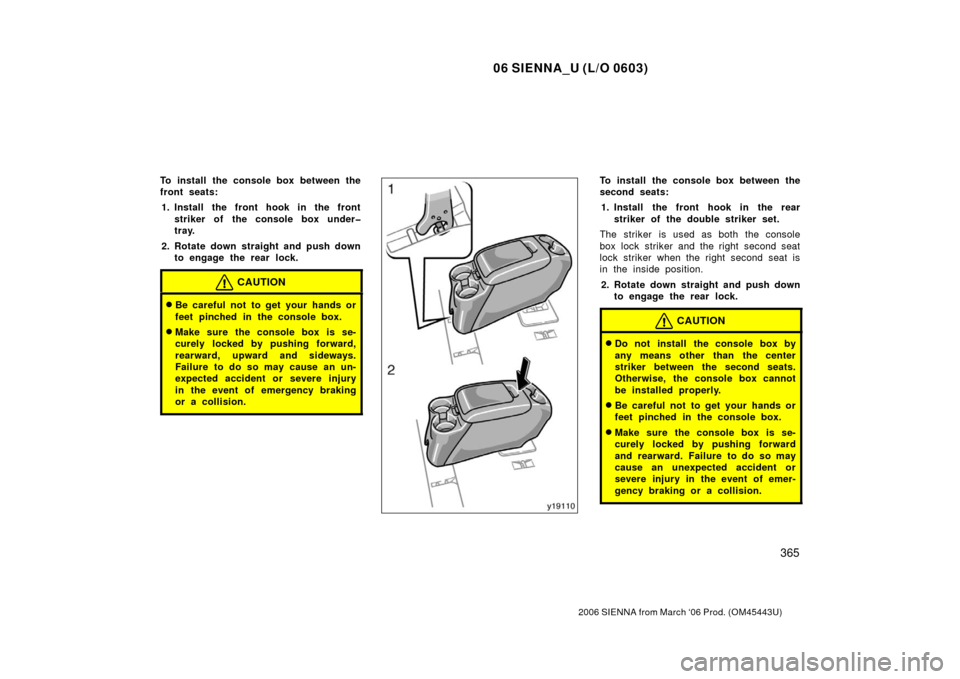

To install the console box between the
front seats:1. Install the front hook in the front striker of the console box under
tray.
2. Rotate down straight and push down to engage the rear lock.
CAUTION
Be careful not to get your hands or
feet pinched in the console box.
Make sure the console box is se-
curely locked by pushing forward,
rearward, upward and sideways.
Failure to do so may cause an un-
expected accident or severe injury
in the event of emergency braking
or a collision.
To install the console box between the
second seats:
1. Install the front hook in the rear striker of the double striker set.
The striker is used as both the console
box lock striker and the right second seat
lock striker when the right second seat is
in the inside position.
2. Rotate down straight and push down to engage the rear lock.
CAUTION
Do not install the console box by
any means other than the center
striker between the second seats.
Otherwise, the console box cannot
be installed properly.
Be careful not to get your hands or
feet pinched in the console box.
Make sure the console box is se-
curely locked by pushing forward
and rearward. Failure to do so may
cause an unexpected accident or
severe injury in the event of emer-
gency braking or a collision.

06 SIENNA_U (L/O 0603)
366
2006 SIENNA from March ‘06 Prod. (OM45443U)

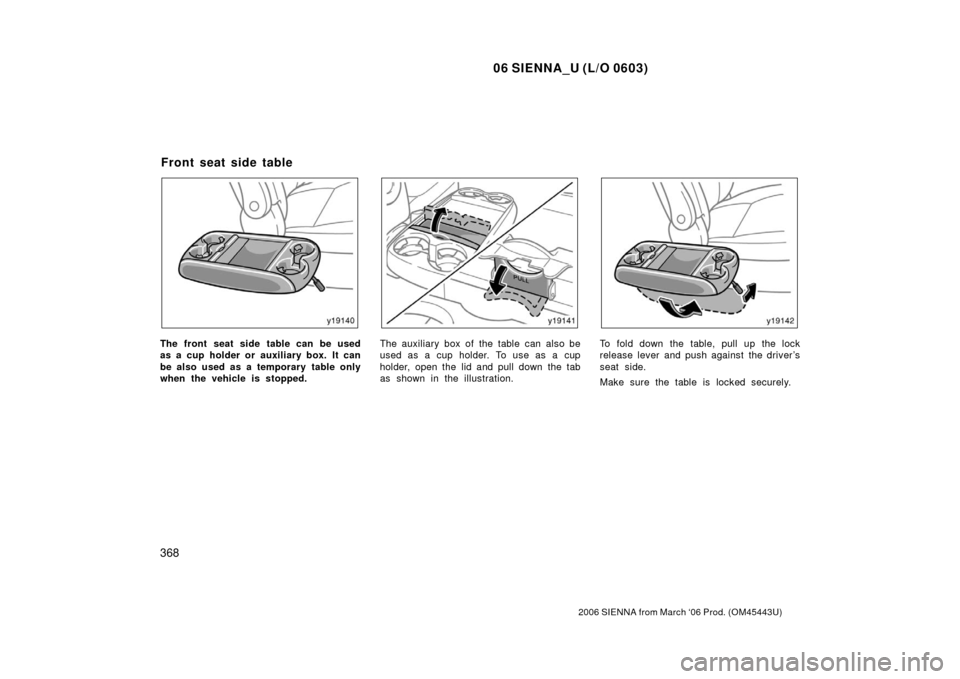

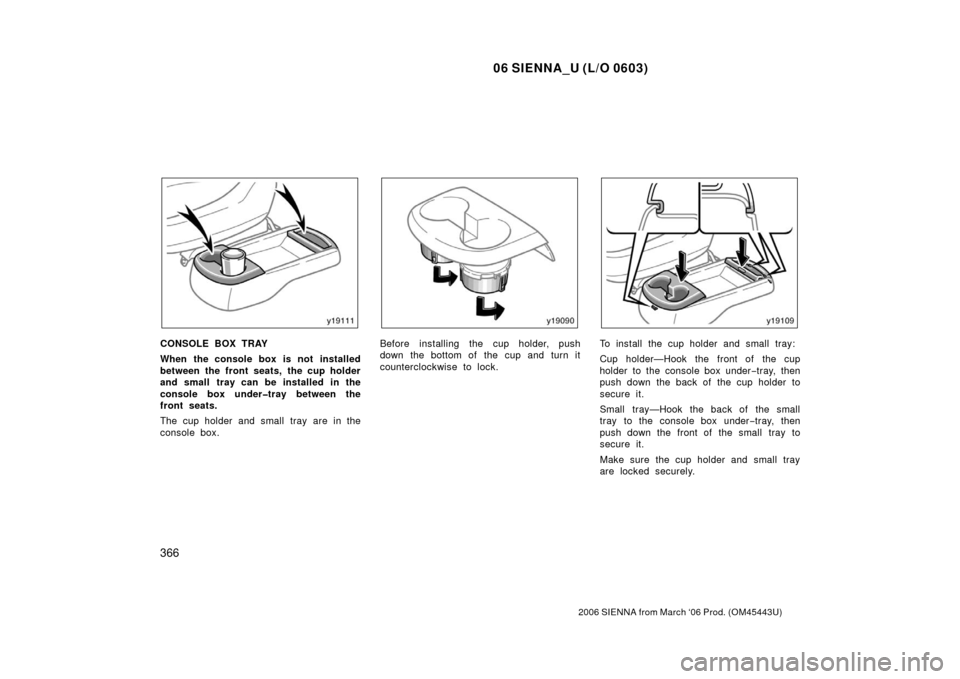

CONSOLE BOX TRAY
When the console box is not installed
between the front seats, the cup holder
and small tray can be installed in the
console box undertray between the
front seats.
The cup holder and small tray are in the
console box.Before installing the cup holder, push
down the bottom of the cup and turn it
counterclockwise to lock.To install the cup holder and small tray:
Cup holder—Hook the front of the cup
holder to the console box under−tray, then
push down the back of the cup holder to
secure it.
Small tray—Hook the back of the small
tray to the console box under −tray, then
push down the front of the small tray to
secure it.
Make sure the cup holder and small tray
are locked securely.

06 SIENNA_U (L/O 0603)
367
2006 SIENNA from March ‘06 Prod. (OM45443U)

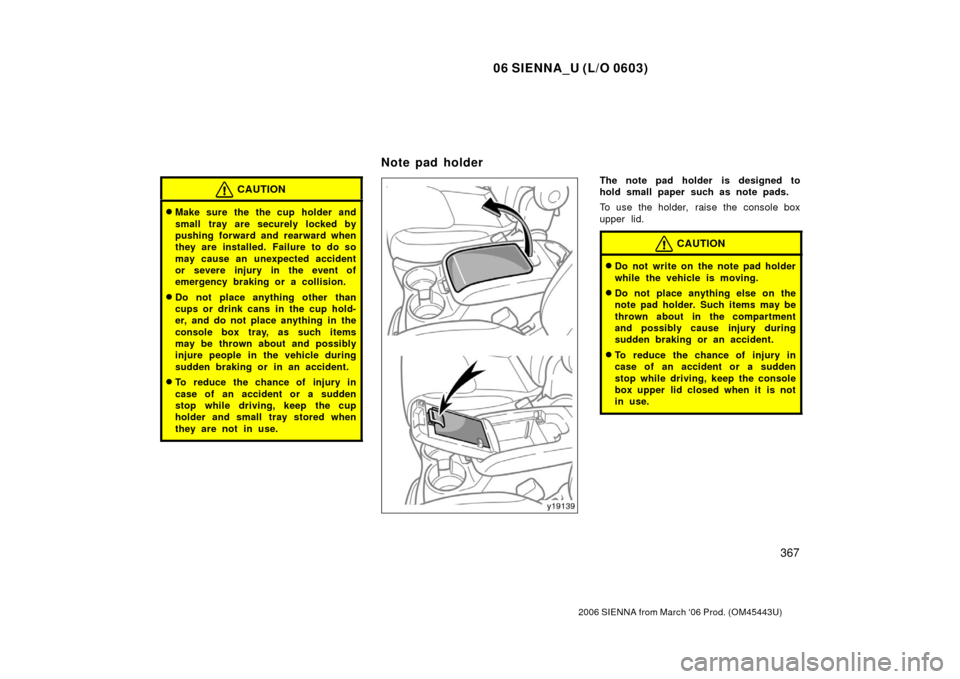

CAUTION
Make sure the the cup holder and
small tray are securely locked by
pushing forward and rearward when
they are installed. Failure to do so
may cause an unexpected accident
or severe injury in the event of
emergency braking or a collision.
Do not place anything other than
cups or drink cans in the cup hold-
er, and do not place anything in the
console box tray, as such items
may be thrown about and possibly
injure people in the vehicle during
sudden braking or in an accident.
To reduce the chance of injury in
case of an accident or a sudden
stop while driving, keep the cup
holder and small tray stored when
they are not in use.
The note pad holder is designed to
hold small paper such as note pads.
To use the holder, raise the console box
upper lid.
CAUTION
Do not write on the note pad holder
while the vehicle is moving.
Do not place anything else on the
note pad holder. Such items may be
thrown about in the compartment
and possibly cause injury during
sudden braking or an accident.
To reduce the chance of injury in
case of an accident or a sudden
stop while driving, keep the console
box upper lid closed when it is not
in use.
Note pad holder

06 SIENNA_U (L/O 0603)
368
2006 SIENNA from March ‘06 Prod. (OM45443U)
The front seat side table can be used
as a cup holder or auxiliary box. It can
be also used as a temporary table only
when the vehicle is stopped.The auxiliary box of the table can also be
used as a cup holder. To use as a cup
holder, open the lid and pull down the tab
as shown in the illustration.To fold down the table, pull up the lock
release lever and push against the driver’s
seat side.
Make sure the table is locked securely.
Front seat side table

06 SIENNA_U (L/O 0603)
369
2006 SIENNA from March ‘06 Prod. (OM45443U)

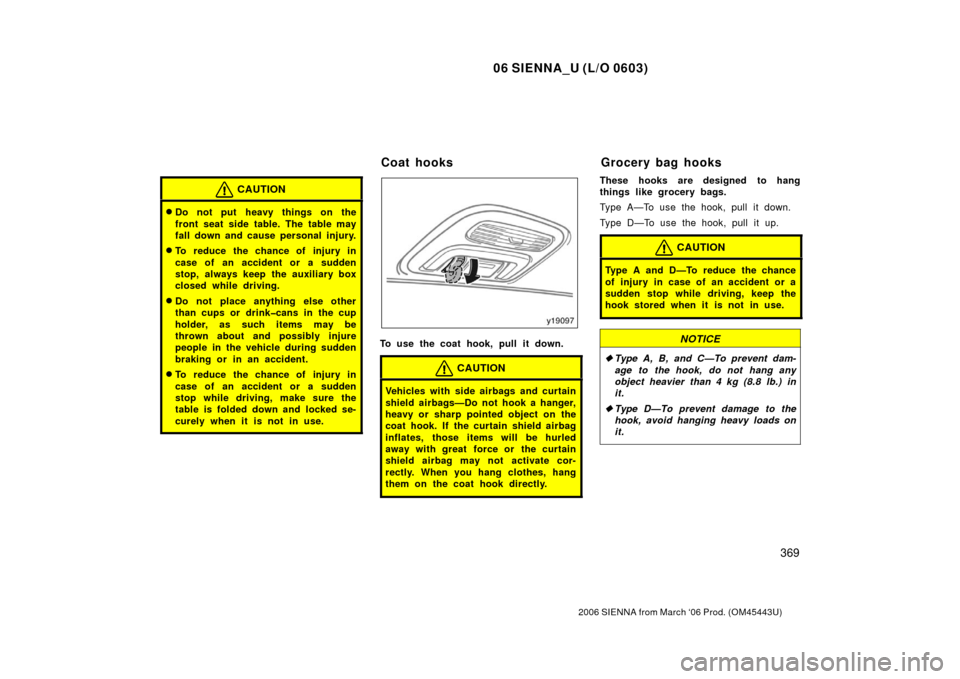

CAUTION
Do not put heavy things on the
front seat side table. The table may
fall down and cause personal injury.
To reduce the chance of injury in
case of an accident or a sudden
stop, always keep the auxiliary box
closed while driving.
Do not place anything else other
than cups or drinkcans in the cup
holder, as such items may be
thrown about and possibly injure
people in the vehicle during sudden
braking or in an accident.
To reduce the chance of injury in
case of an accident or a sudden
stop while driving, make sure the
table is folded down and locked se-
curely when it is not in use.
To use the coat hook, pull it down.
CAUTION
Vehicles with side airbags and curtain
shield airbags—Do not hook a hanger,
heavy or sharp pointed object on the
coat hook. If the curtain shield airbag
inflates, those items will be hurled
away with great force or the curtain
shield airbag may not activate cor-
rectly. When you hang clothes, hang
them on the coat hook directly.
These hooks are designed to hang
things like grocery bags.
Type A—To use the hook, pull it down.
Type D—To use the hook, pull it up.
CAUTION
Type A and D—To reduce the chance
of injury in case of an accident or a
sudden stop while driving, keep the
hook stored when it is not in use.
NOTICE
Type A, B, and C—To prevent dam-
age to the hook, do not hang any
object heavier than 4 kg (8.8 lb.) in
it.
 Type D—To prevent damage to the
hook, avoid hanging heavy loads on
it.
Coat hooks Grocery bag hooks

06 SIENNA_U (L/O 0603)
370
2006 SIENNA from March ‘06 Prod. (OM45443U)

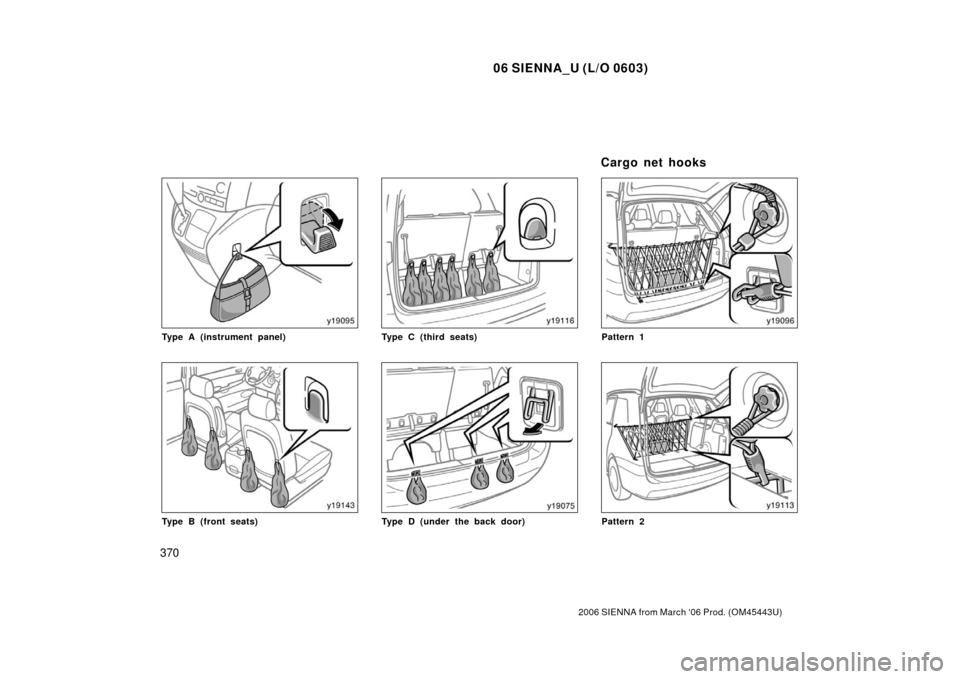

Type A (instrument panel)
Type B (front seats)
Type C (third seats)
Type D (under the back door)
Pattern 1
Pattern 2
C arg o net ho o ks

06 SIENNA_U (L/O 0603)
371
2006 SIENNA from March ‘06 Prod. (OM45443U)
Pattern 3
Pattern 4
These hooks are designed to be used
for the cargo net.
The cargo net can be used in a variety
of ways as shown in the illustrations.
The cargo net itself is not included as an
original equipment.
NOTICE
To prevent damage to the hooks,
avoid using them for things other
than the cargo net.
To secure your luggage, use the tie
down hooks as shown above.
See “—Stowage precautions” on page 399
in Section 2 for precautions when loading
luggage.
CAUTION
To avoid personal injury, keep the tie
down hooks folded when not in use.
Tiedown hooks

06 SIENNA_U (L/O 0603)
372
2006 SIENNA from March ‘06 Prod. (OM45443U)

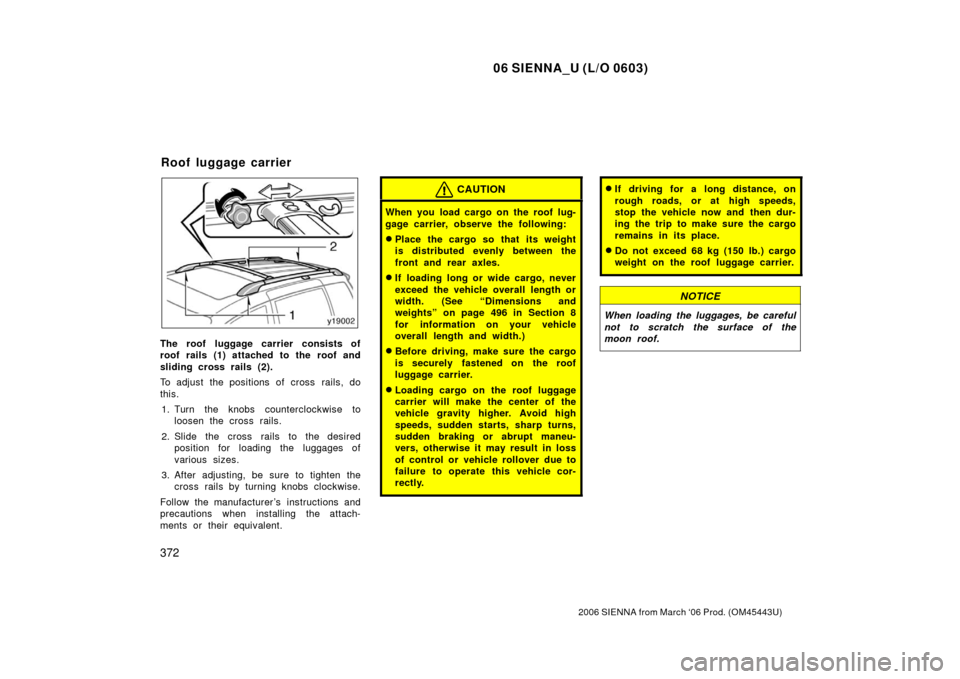

The roof luggage carrier consists of
roof rails (1) attached to the roof and
sliding cross rails (2).
To adjust the positions of cross rails, do
this.1. Turn the knobs counterclockwise to loosen the cross rails.
2. Slide the cross rails to the desired position for loading the luggages of
various sizes.
3. After adjusting, be sure to tighten the cross rails by turning knobs clockwise.
Follow the manufacturer ’s instructions and
precautions when installing the attach-
ments or their equivalent.
CAUTION
When you load cargo on the roof lug-
gage carrier, observe the following:
Place the cargo so that its weight
is distributed evenly between the
front and rear axles.
If loading long or wide cargo, never
exceed the vehicle overall length or
width. (See “Dimensions and
weights” on page 496 in Section 8
for information on your vehicle
overall length and width.)
Before driving, make sure the cargo
is securely fastened on the roof
luggage carrier.
Loading cargo on the roof luggage
carrier will make the center of the
vehicle gravity higher. Avoid high
speeds, sudden starts, sharp turns,
sudden braking or abrupt maneu-
vers, otherwise it may result in loss
of control or vehicle rollover due to
failure to operate this vehicle cor-
rectly.
If driving for a long distance, on
rough roads, or at high speeds,
stop the vehicle now and then dur-
ing the trip to make sure the cargo
remains in its place.
Do not exceed 68 kg (150 lb.) cargo
weight on the roof luggage carrier.
NOTICE
When loading the luggages, be careful
not to scratch the surface of the
moon roof.
Roof luggage carrier
