5
Touch this touch screen button to browse in-
formation about guidance route, to set the
Points of Interest to be displayed on the
screen, or to record the route.
76, 79, 80, 81 . . . . . . 8“DISPLAY” button
Push this button to display the “Display”
screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
164
9“OFF”
Touch this touch screen button to obtain a
broader view. Some of the buttons on the
screen are not displayed. They are dis-
played again by touching “ON”.
103 . . . . . .
10Zoom in touch screen button
Touch this touch screen button to magnify
the map scale. . . . . . . . . . . . . . . . . . . . . . . . .
33
11Foot print map touch screen button
Touch this touch screen button to display the
foot print map and the building information.
34 . . . . . .
12“MAP/VOICE” button
Push this button to repeat a voice guidance,
cancel one touch scroll, start guidance, and
display the current position. . . . . . . . . . . . . .
27, 28, 70
13“DEST” button
Push this button to display the “Destination”
screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6, 42
14Screen configuration touch screen
button
Touch this touch screen button to change the
screen mode. . . . . . . . . . . . . . . . . . . . . . . . . .
31
Page 222 of 226
6
15“MENU” button
Push this button to display the “Menu”
screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8, 84, 234
16Distance and time to destination
Displays the distance, the estimated travel
time to the destination, and the estimated ar-
rival time at the destination. . . . . . . . . . . . . .
70
17“GPS” mark (Global Positioning
System)
Whenever your vehicle is receiving signals
from the GPS, this mark is displayed.
222 . . . . . .
18Speech command system indicator
This indicator is shown by pushing the talk
switch. The speech command system can
be operated while this indicator is shown.
161 . . . . . .

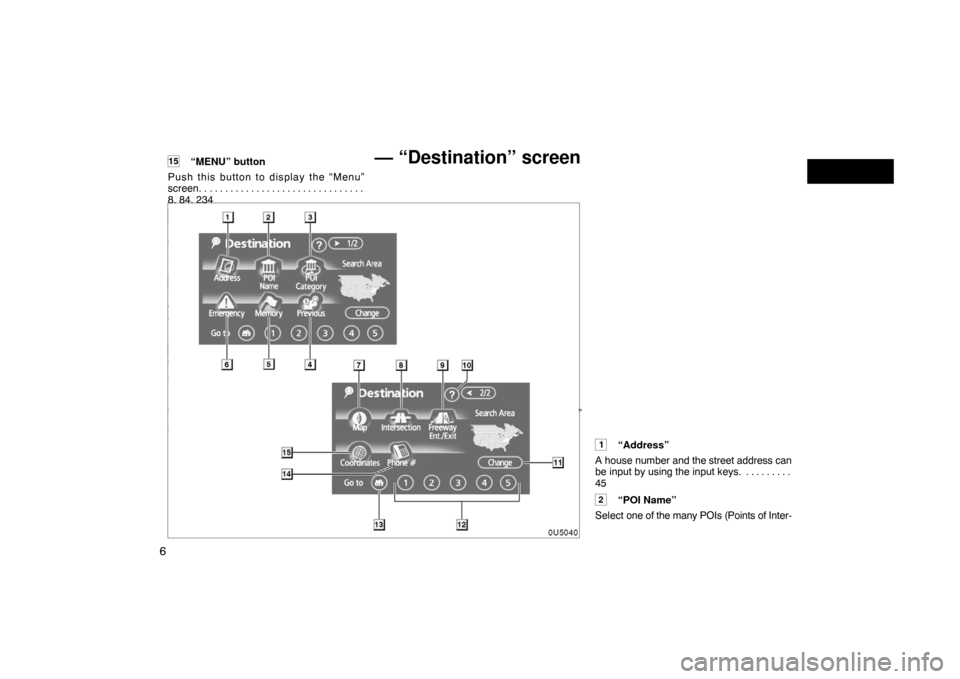

The “Destination” screen allows you to search for a destination. To display the “Destination”
screen, push the “DEST” button.
1“Address”
A house number and the street address can
be input by using the input keys. . . . . . . . . .
45
2“POI Name”
Select one of the many POIs (Points of Inter-
— “Destination” screen
0U5040
Page 223 of 226
7
est) that have already been stored in the sys-
tem’s database. . . . . . . . . . . . . . . . . . . . . . . .
50
3“POI Category”
A destination can be selected from the POI
category. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
53
4“Previous”
A destination can be selected from any of the
last 100 previously set destinations and from
the previous starting point. . . . . . . . . . . . . . .
57
5“Memory”
The location can be selected from the regis-
tered “Memory points”. (To register memory
points, see “ — Registering memory points”
on page 89.) . . . . . . . . . . . . . . . . . . . . . . . . . .
57
6“Emergency”
One of the four categories of emergency ser-
vice points that are already stored in the sys-
tem’s database can be selected. . . . . . . . . .
56
7“Map”
A destination can be selected simply by
touching the location on the displayed map.
58 . . . . . .
8“Intersection”
The names of two intersecting streets can be
entered. This is helpful if only the general vi-
cinity, not the specific address, is known.
58 . . . . . .
9“Freeway Ent./Exit”
The name of a freeway (interstate) entrance
or exit can be entered. . . . . . . . . . . . . . . . . . .
59
10“?”
Function help for the “Destination” screen
can be viewed on this screen. . . . . . . . . . . .
26
11“Change”
To change the search area, touch this touch
screen button. . . . . . . . . . . . . . . . . . . . . . . . . .
42
12Quick access touch screen buttons
One of 5 preset destinations can be selected
by touching the screen directly. To use this
function, it is necessary to set the “Quick ac-
cess” for each memory point. (To register a
“Quick Access”, see “ — Editing memory
points” on page 90.) . . . . . . . . . . . . . . . . . . . . 45
Page 224 of 226
8
13Home touch screen button
A personal home address can be selected
without entering the address each time. To
use this function, it is necessary to set
“Home” for the memory point. (To register
“Home”, see “ — Registering home” on page
94.) 45. .
14“Phone #”
A destination can be entered by the tele-
phone number. . . . . . . . . . . . . . . . . . . . . . . . .
61
15“Coordinates”
A destination can be set by using latitude and
longitude as coordinates. . . . . . . . . . . . . . . .
60
The “Menu” screen allows effective use of the navigation system. To display the “Menu”
screen, push the “MENU” button.
1“Suspend Guidance” and “Resume
Guidance”
Suspends or resumes guidance . . . . . . . . .
84
2“Volume”
Sets the volume for voice guidance.
85 . . . . . .
3“?”
Function help for the “Menu” screen can be
viewed on this screen. . . . . . . . . . . . . . . . . .
— “Menu” screen
0U5041
Page 225 of 226
9
26
4“Map DVD”
Displays information regarding the disc ver-
sion or covered area. . . . . . . . . . . . . . . . . . . .
234
5“Select User”
Up to 3 different settings for different users
can be memorized. . . . . . . . . . . . . . . . . . . . .
86
6“Setup”
Enables various settings for the navigation
system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9, 100
7“My Places”
Enables changes to “Memory points”,
“Home” and “Areas to avoid”. Enables dele-
tion of the previous point. . . . . . . . . . . . . . . .
88
The items shown on the “Setup” screen can be set. To display the “Setup” screen, push the
“MENU” button and touch “Setup”.
— “Setup” screen
Page 226 of 226
10
1“Distance”
The distance units “km” or “miles” can be
selected. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
100
2“Estimated Travel Time”
The system to display the travel time and the
arrival time to the destination on the route
guidance screen can be set. . . . . . . . . . . . .
101
3“Keyboard Layout”
Key layout can be changed. . . . . . . . . . . . . .
102
4“Time Zone”
The desired time zone can be selected.
102 . . . . . .
5“ Function”
The choice whether to display each touch
screen button and current street name on the
map screen can be set. . . . . . . . . . . . . . . . . .
103
6“Display POI Icons”
A selection of 6 icons displayed on the “Dis-
play POI Icons” top screen is possible.
104 . . . . . .
7“Display Building Shapes”
Selection of either ON or OFF to display the
building shape on the map screen is pos-
sible. 104
8“Traffic Restrict. Notification”
Notification of seasonal restrictions can be
selected. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
105
9“Voice Recognition Guidance”
Voice recognition guidance can be set.
105 . . . . . .
10“Voice Guidance in All Modes”
Voice guidance can be set in all modes.
105 . . . . . .
11“Auto Voice Guidance”
Automatic voice guidance can be set.
106 . . . . . .
12“Pop up Message”
Selection of either ON or OFF to display the
pop−up message is possible. . . . . . . . . . . . .
106
13“Calibration”
Adjustment of the current vehicle position
mark can be done manually, or mis−calcula-
tion by changing tire will be adjusted.
107 . . . . . .
14“Default”
This touch screen button initializes all of the
settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
100
15“?”
Function help for the “Setup” screen can be
viewed. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
26
