To turn on the windshield wipers, move
the lever to the desired setting.
The engine switch must be in the “ON”
position.Lever position
Speed setting
Position 1Intermittent
Position 2Slow
Position 3Fast
For a single sweep of the windshield,
push the lever up and release it. With interval adjuster: The band lets you
adjust the wiping time interval when the
wiper lever is in the intermittent position
(position 1). Twist the band upward to
increase the time between sweeps, and
downward to decrease it.
To squirt washer fluid, pull the lever
toward you.
If the windshield wipers are off, they will
operate a couple of times after the washer
squirts.
For instructions on adding washer fluid,
see “Adding washer fluid” on page 539 in
Section 7
−3.
In freezing weather, warm the windshield
with the defroster before using the washer.
This will help prevent the washer fluid
from freezing on your windshield, which
can block your vision.
NOTICE
Do not operate the wipers if the wind-
shield is dry. It may scratch the
glass.
When waxing your vehicle, make sure that
the washer nozzles do not become
blocked. If a nozzle becomes blocked,
contact your Toyota dealer to have the
vehicle serviced.
NOTICE
If a nozzle becomes blocked, do not
try to clear it with a pin or other
object. The nozzle will be damaged.
Windshield wipers and washer
Page 192 of 572

08 SIENNA_U (L/O 0801)
184
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
To turn on the rear window wiper, twist
the lever knob upward.
The engine switch must be in the “ON”
position.Lever position
Speed setting
Position 1Intermittent
Position 2Normal
To squirt washer fluid on the rear window,
twist the knob upward or downward as far
as it will go (position 3 or 4). The knob
automatically returns from these positions
after you release it. The rear window wip-
er operates while the washer squirts. For instructions on adding washer fluid,
see “Adding washer fluid” on page 539 in
Section 7
−3.
NOTICE
Do not operate the rear wiper if the
rear window is dry. It may scratch
the glass.
Do not lift the rear wiper arm away
from the window, as it may break.
To defog or defrost the rear window,
push the switch.
The engine switch must be in the “ON”
position.
The thin heater wires on the inside of the
rear window will quickly clear the window
surfaces. An indicator light will illuminate
to indicate the defogger is operating.
On some models, the rear view mirror
defoggers and/or the windshield wiper de −
icer is also operating simultaneously by
this switch. Vehicles with the outside rear
view mirror defoggers, the heater panel in
the outside rear view mirrors will quickly
clear the surfaces. Vehicles with the wind-
shield wiper de −icer, the windshield wiper
blades will be de −iced.
Rear window wiper and
washer Rear window and outside rear
view mirror defoggers and
windshield wiper de icer
Page 193 of 572

08 SIENNA_U (L/O 0801)
185
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
Push the switch once again to turn the
defoggers off.
The system will automatically shut off af-
ter the defoggers have operated about 15
minutes.
CAUTION
Vehicles with outside rear view mirror
defoggers, since the mirror surfaces
can get hot, do not touch them when
the defogger switch is on.
Make sure you turn the defoggers off
when the surfaces are clear or the wiper
blades have de−iced. Leaving the defog-
gers on for a long time could cause the
battery to discharge, especially during
stop −and− go driving. The defoggers are
not designed for drying rain water or for
melting snow.
If the outside rear view mirrors are heavi-
ly coated with ice, use a spray de −icer
before operating the switch.
NOTICE
When cleaning the inside of the rear
window, be careful not to scratch or
damage the heater wires or connec-
tors.
Page 194 of 572

08 SIENNA_U (L/O 0801)
186
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
Page 195 of 572

08 SIENNA_U (L/O 0801)
187
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Gauges, Meters and Service reminder indicators
Fuel gauge188
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . .
Engine coolant temperature gauge 188
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Tachometer 189
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Odometer and two trip meters 190
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service reminder indicators and warning buzzers 191
. . . . . . . . . . . . . .
SECTION 1 6
Page 196 of 572

08 SIENNA_U (L/O 0801)
188
2008 SIENNA from Aug. ’08 Prod. (OM45455U)

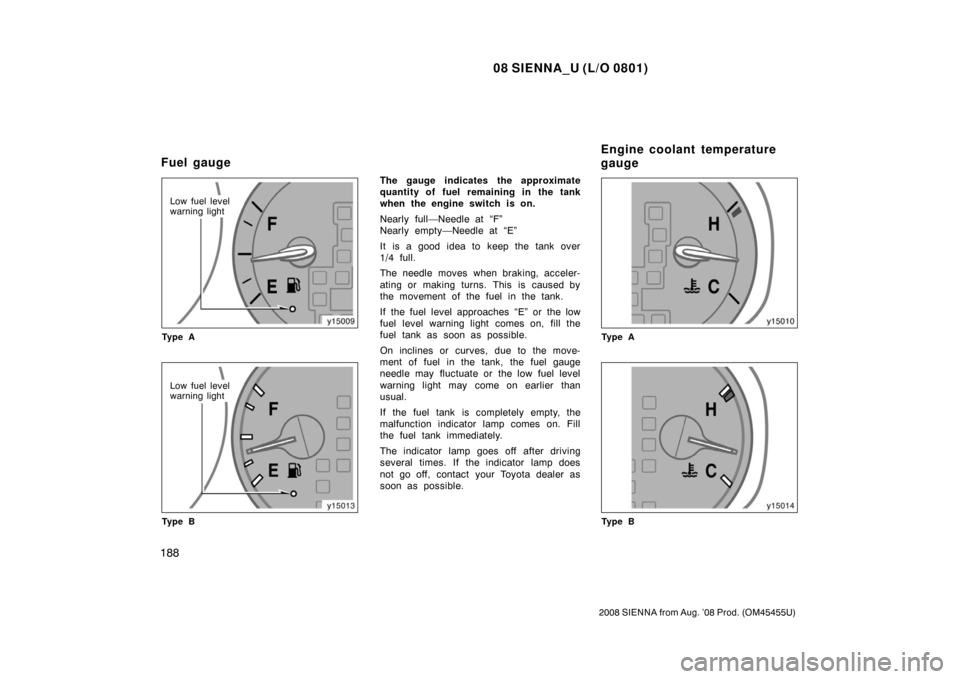

Low fuel level
warning light
Ty p e A
Low fuel level
warning light
Ty p e B
The gauge indicates the approximate
quantity of fuel remaining in the tank
when the engine switch is on.
Nearly full—Needle at “F”
Nearly empty—Needle at “E”
It is a good idea to keep the tank over
1/4 full.
The needle moves when braking, acceler-
ating or making turns. This is caused by
the movement of the fuel in the tank.
If the fuel level approaches “E” or the low
fuel level warning light comes on, fill the
fuel tank as soon as possible.
On inclines or curves, due to the move-
ment of fuel in the tank, the fuel gauge
needle may fluctuate or the low fuel level
warning light may come on earlier than
usual.
If the fuel tank is completely empty, the
malfunction indicator lamp comes on. Fill
the fuel tank immediately.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.
Ty p e A
Ty p e B
Fuel gauge Engine coolant temperature
gauge
Page 197 of 572

08 SIENNA_U (L/O 0801)
189
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
The gauge indicates the engine coolant
temperature when the engine switch is
on. The engine operating temperature
will vary with changes in weather and
engine load.
If the needle moves into the red zone,
your engine is too hot. If your vehicle
overheats, stop your vehicle and allow the
engine to cool.
Your vehicle may overheat during severe
operating conditions, such as:
Driving up a long hill on a hot day.
Reducing speed or stopping after high
speed driving.
Idling for a long period with the air
conditioning on in stop−and− go traffic.
Towing a trailer.
NOTICE
Do not remove the thermostat in
the engine cooling system as this
may cause the engine to overheat.
The thermostat is designed to con-
trol the flow of coolant to keep the
temperature of the engine within
the specified operating range.
Do not continue driving with an
overheated engine. See “If your ve-
hicle overheats” on page 470 in
Section 4.
The tachometer indicates engine speed
in thousands of rpm (revolutions per
minute). Use it while driving to select
correct shift points and to prevent en-
gine lugging and over revving.
Driving with the engine running too fast
causes excessive engine wear and poor
fuel economy. Remember, in most cases
the slower the engine speed, the greater
the fuel economy.
NOTICE
Do not let the indicator needle get
into the red zone. This may cause
severe engine damage.
Tachometer
Page 198 of 572

08 SIENNA_U (L/O 0801)
190
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
This meter displays the odometer and
two trip meters.1. Odometer—It shows the total distance the vehicle has been driven.
2. Two trip meters—Show two different distances independently driven since
the last time each trip meter was set
to zero.
You can use one trip meter to calculate
the fuel economy and the other to
measure the distance on each trip. All
trip meter data is cancelled if the elec-
trical power source is disconnected. 3. Trip meter reset knob—Resets the two
trip meters to zero, and also change
the meter display.
To change the meter display, quickly
push and release the knob. The meter
display changes in the order from the
odometer to trip meter A to trip meter
B, then back to the odometer each
time you push.
To reset the trip meter A to zero, dis-
play the meter A reading, then push
and hold the knob until the meter is
set to zero. The same process can be
applied for resetting the trip meter B.
Odometer and two trip meters
Page 199 of 572

08 SIENNA_U (L/O 0801)
191
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
If the indicator or buzzer comes on...Do this.
(a)or
(indicator and buzzer)
If parking brake is off, stop immediately and contact Toyota dealer.
(b)
(indicator and buzzer)
Fasten driver ’s seat belt.
(c)Fasten front passenger ’s seat belt.
(d)Stop immediately and contact Toyota dealer.
(e)orTake vehicle to Toyota dealer.
(f)Low fuel level warning lightFill up tank.
(g)Stop and check.
Service reminder indicators and warning buzzers
Page 200 of 572

08 SIENNA_U (L/O 0801)
192
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
If the indicator or buzzer comes on...Do this.
(h)orTake vehicle to Toyota dealer.
If brake system warning light is also on, stop immediately and contact Toyota dealer.
(i)Close all doors.
(j)Take vehicle to Toyota dealer immediately.
(k)Take vehicle to Toyota dealer.
(l)Adjust tire inflation pressure. If the light comes on after blinking for 1 minute, contact
Toyota dealer.
(m)Add washer fluid.
(n)Replace engine oil.
