TOYOTA SIENNA 2008 XL20 / 2.G Owners Manual

08 SIENNA_U (L/O 0801)
263
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
MP3/WMA player
This button is used to change the display
for the MP3/WMA file that contains text
data.
To change the display, quickly push and
release the “TEXT” button while the
MP3/WMA file is playing. The display
changes in the order from the elapsed
time to folder name to file name to album
title to track title to artist name, then back
to the elapsed time.
If this button is pushed while an
MP3/WMA file that does not contain text
data is playing, “NO TITLE” will appear on
the display.
If the entire text data is not displayed,
push and hold it until you hear a beep.
The rest of the text data will appear.TYPE/FOLDER (Type/Folder up/down)
Radio
XM
 Satellite Radio
∗—
When you push the “ ” or “” side of
the “TYPE/FOLDER” button while receiving
a XM  channel, the current channel cate-
gory appears on the display.
When the channel category appears, push
either “ ” or “ ” side of the
“TYPE/FOLDER” button to switch to the
next or previous category.
∗: Use of satellite radio requires XM
tuner and service. Contact your Toyota
dealer for details.
MP3/WMA player
To skip up or down to a different folder:
Push either side of the “TYPE/FOLDER”
several times until the number of the fold-
er you want to listen to appears on the
display.
To jump to the first file in the current
folder:
Push and hold the “ ” side of the button
until you hear a beep.
When playing a disc featuring both audio
data (CD −DA) and MP3/WMA files, audio
data (CD −DA) is played. TUNE·FILE (Tuning and File up/down)
Radio
Turn the “TUNE·FILE” knob clockwise to
step up the frequency. Turn the knob
counterclockwise to step down the fre-
quency.
XM
 Satellite Radio
∗—
Turn the “TUNE·FILE” knob clockwise to
step up the channel. Turn the knob coun-
terclockwise to step down the channel.
∗: Use of satellite radio requires XM
tuner and service. Contact your Toyota
dealer for details.
MP3/WMA player
Turn the knob clockwise to file up. Turn
the knob counterclockwise to file down.

08 SIENNA_U (L/O 0801)
264
2008 SIENNA from Aug. ’08 Prod. (OM45455U)

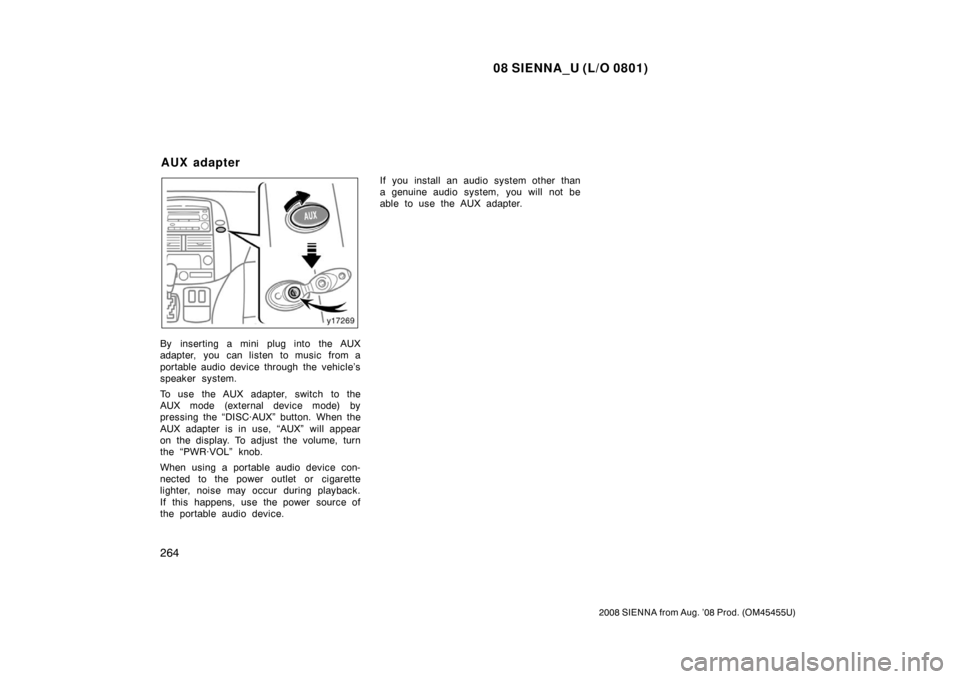

By inserting a mini plug into the AUX
adapter, you can listen to music from a
portable audio device through the vehicle’s
speaker system.
To use the AUX adapter, switch to the
AUX mode (external device mode) by
pressing the “DISC·AUX” button. When the
AUX adapter is in use, “AUX” will appear
on the display. To adjust the volume, turn
the “PWR·VOL” knob.
When using a portable audio device con-
nected to the power outlet or cigarette
lighter, noise may occur during playback.
If this happens, use the power source of
the portable audio device.If you install an audio system other than
a genuine audio system, you will not be
able to use the AUX adapter.
AUX adapter

08 SIENNA_U (L/O 0801)
265
2008 SIENNA from Aug. ’08 Prod. (OM45455U)

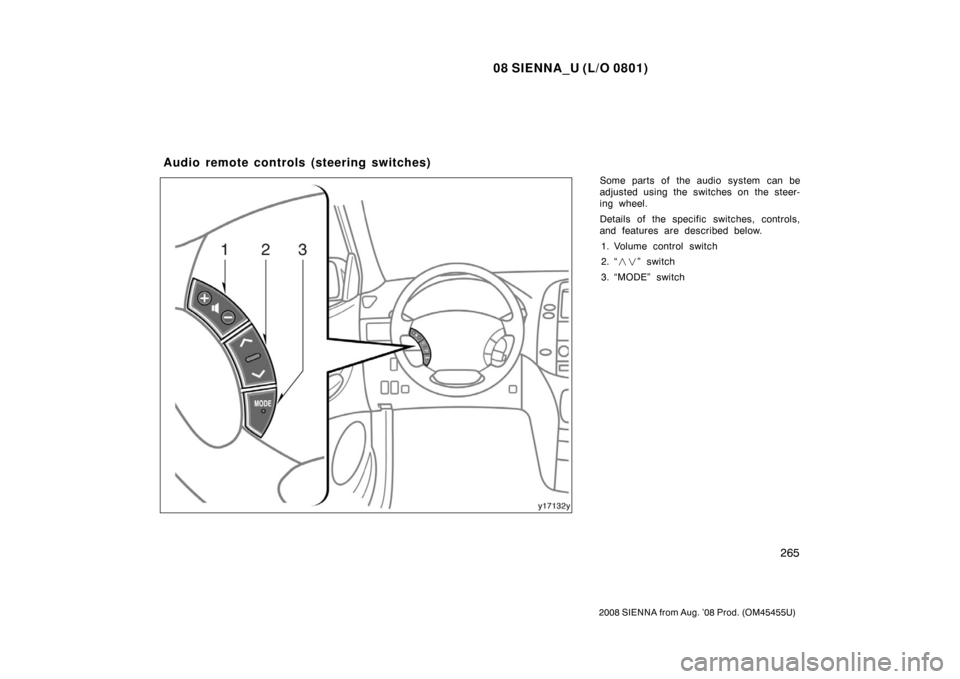

Some parts of the audio system can be
adjusted using the switches on the steer-
ing wheel.
Details of the specific switches, controls,
and features are described below.1. Volume control switch
2. “ ” switch
3. “MODE” switch
Audio remote controls (steering switches)

08 SIENNA_U (L/O 0801)
266
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
1. Volume control switch
Push “+” to increase the volume. The vol-
ume continues to increase while the
switch is being pushed.
Push “ −” to decrease the volume. The
volume continues to decrease while the
switch is being pushed.
2. “ ” switch
Radio
This switch has the following features—
To select a preset station:
Quickly push and release the “ ” or “ ”
side of the switch. Do this again to select
the next preset station.
To seek a station:
Push and hold the “ ” or “” side of the
switch until you hear a beep. Do this
again to find the next station. If you push
the switch on either side during the seek
mode, seeking will be cancelled.
To step up or down the frequency, push
and hold the switch even after you hear
a beep. When you release from the
switch, the radio will begin seeking up or
down for a station. Do this again to find
the next station. XM
 Satellite Radio∗—
To select a preset channel, push the “ ”
or “ ” side of the switch. Repeat until a
desired channel is found.
∗: Use of satellite radio requires XM
tuner and service. Contact your Toyota
dealer for details.
Compact disc player
Use this switch to skip up or down to a
different track in either direction.
Quickly push and release the “ ” or “ ”
side of the switch until the track you want
to listen to is set. If you want to return
to the beginning of the current track, push
the “ ” side of the switch once, quickly.
Vehicles with rear seat entertainment sys-
tem—
While the DVD player is in operation, the
chapter or track can be changed by push-
ing the “ ” or “ ” side of the switch.
With compact disc changer only—
Push and hold the “ ” or “ ” side of the
switch until the disc you want to listen to
is set. MP3/WMA player
Use this switch to select a desired file or
disc.
To select a desired file:
Quickly push and release the “
” or “ ”
side of the switch until the file you want
to listen to is set. If you want to return
to the beginning of the current file, push
the “ ” side of the switch once, quickly.
To select a desired disc:
Push and hold the “ ” or “” side of the
switch until the disc you want to listen to
is set.
Vehicles with rear seat entertainment sys-
tem—
While the DVD player is in operation, the
chapter or track can be changed by push-
ing the “ ” or “ ” side of the switch.

08 SIENNA_U (L/O 0801)
267
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
3. “MODE” switch
Push the “MODE” switch to select an au-
dio mode. Each push changes the mode
sequentially if the desired mode is ready
to use. The DVD player will be selectable
if a rear seat entertainment system is
installed in your vehicle.
To turn the audio system on, push the
“MODE” switch.
To turn the audio system off, push and
hold the “MODE” switch until the system
turns off.

08 SIENNA_U (L/O 0801)
268
2008 SIENNA from Aug. ’08 Prod. (OM45455U)

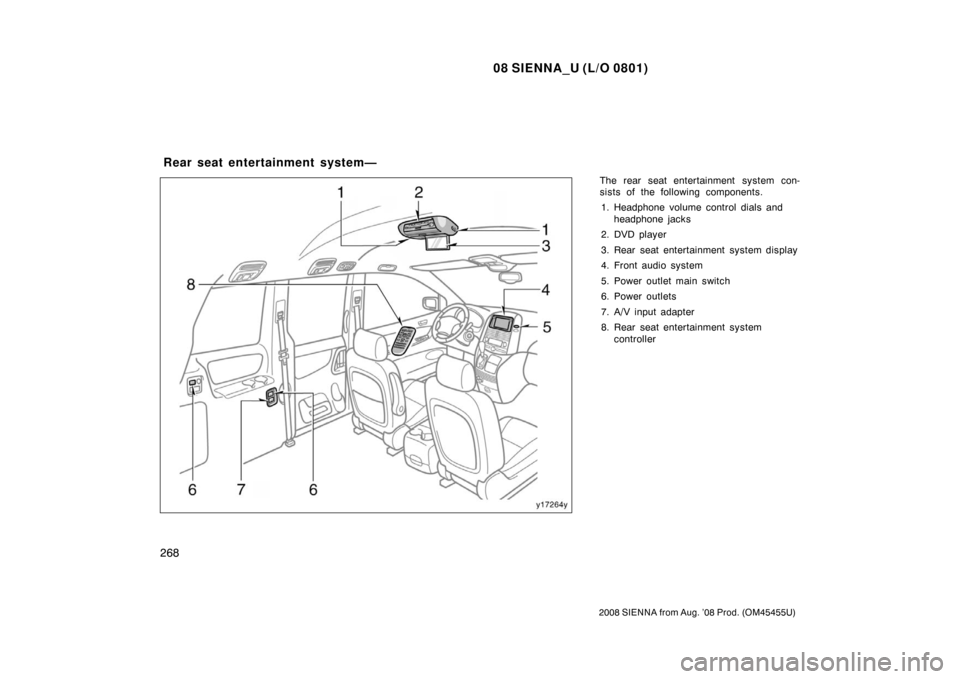

The rear seat entertainment system con-
sists of the following components.1. Headphone volume control dials and headphone jacks
2. DVD player
3. Rear seat entertainment system display
4. Front audio system
5. Power outlet main switch
6. Power outlets
7. A/V input adapter
8. Rear seat entertainment system controller
Rear seat entertainment system—

08 SIENNA_U (L/O 0801)
269
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
The rear seat entertainment system is de-
signed for the rear passengers to enjoy
audio and DVD video separately from the
front audio system.
The rear seat entertainment system can
be operated when the engine switch is in
the “ACC” or “ON” position.
The rear passengers can enjoy DVD vid-
eo, audio CD, video CD, CD text, dts−CD
and MP3.
The rear seat entertainment system can
play DVD video, audio CD, video CD, CD
text, dts −CD or MP3 only when a disc is
loaded in the DVD player.
You can enjoy videos and sound when
your personal audio system is connected
to the input terminal adapter. For details,
refer to the manufacturer ’s instructions.
You can enjoy the rear seat entertainment
system with commercial h eadphone. See
“—Headphone ja cks” on page 308 in this
Section for details.
You can also enjoy the rear seat enter-
tainment system with a wireless head-
phone. The wireless headphone can be
used within rear seat. If the signal be-
comes weak, the headphone will mute.
For details, refer to the manufacturer ’s
instructions. With some wireless headphone generally
available in the market, it may be difficult
to catch sound properly. Toyota recom-
mends the use of Toyota genuine wireless
headphone.
You can purchase a wireless headphone

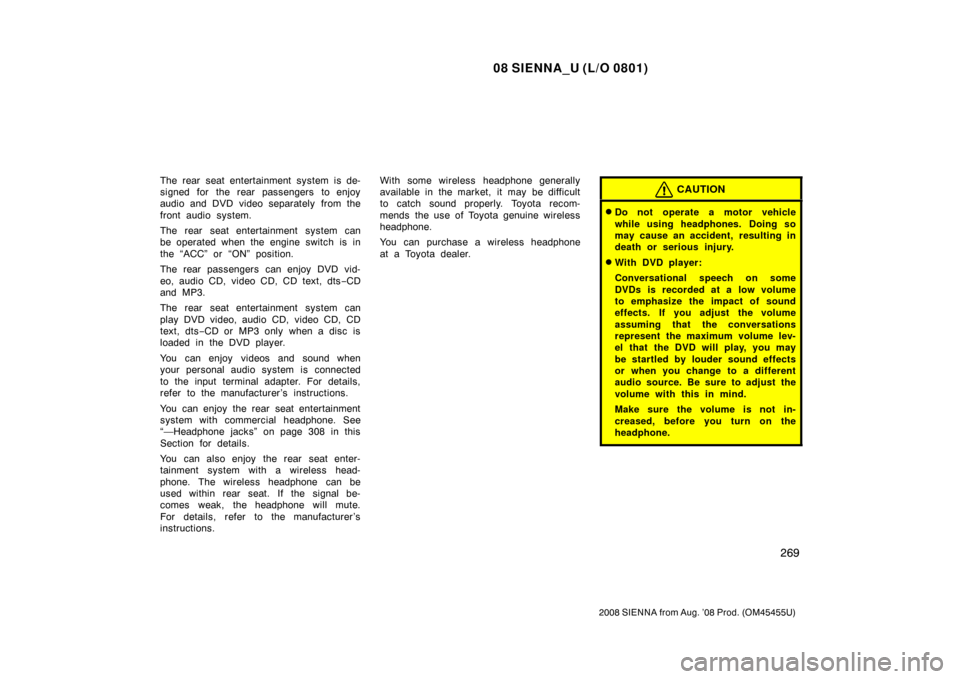

at a Toyota dealer.CAUTION
Do not operate a motor vehicle
while using headphones. Doing so
may cause an accident, resulting in
death or serious injury.
With DVD player:
Conversational speech on some
DVDs is recorded at a low volume
to emphasize the impact of sound
effects. If you adjust the volume
assuming that the conversations
represent the maximum volume lev-
el that the DVD will play, you may
be startled by louder sound effects
or when you change to a different
audio source. Be sure to adjust the
volume with this in mind.
Make sure the volume is not in-
creased, before you turn on the
headphone.

08 SIENNA_U (L/O 0801)
270
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
To open the display, push the lock release
button.Pull the display down to an easily view-
able angle (between 90 and 125 )
NOTICE
The screen should be cleaned with a
dry soft cloth. If the screen is pushed
by hand or wiped with a hard cloth,
the surface of the screen may be
scratched.
To close, push the display up until you
hear a click.
The illumination of the screen is automati-
cally turned off when the display is
closed. However, the rear seat entertain-
ment system is not turned off.
CAUTION
To reduce the chance of injury in
case of an accident or sudden stop
while driving, close the display when
it is not in use.
—Display

08 SIENNA_U (L/O 0801)
271
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
NOTICE
Benzene or alkaline solutions may
damage the coated surface of the
screen .
 To prevent the battery from being
discharged, do not turn on the rear
seat entertainment system longer
than necessary when the engine is
not running.
The rear seat entertainment system can
be operated with the rear seat entertain-
ment system remote control and buttons
on the DVD player unit. The system can-
not be operated by touching the switches
on the screen directly.
CAUTION
Do not disassemble or modify the re-
mote control. It may cause an acci-
dent, fire or electric shock.
NOTICE
Keep the remote control away from
direct sunlight, high heat and high
humidity. These conditions could
cause the case to deform or the bat-
tery to explode or leak.

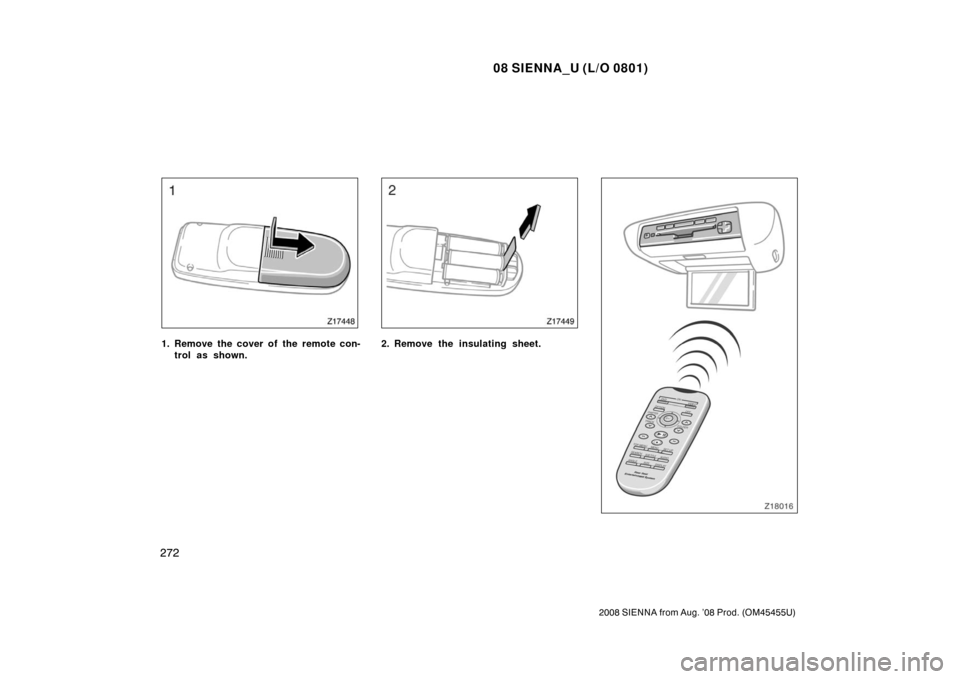

BEFORE USING THE REMOTE
CONTROL
(for new vehicle owners)
A battery is already set in the remote
control with an insulating sheet, which
prevents the battery from being dis-
charged. Before using the remote con-
trol, remove the insulating sheet ac-
cording to the following procedure.
—Rear seat entertainment
system remote control

08 SIENNA_U (L/O 0801)
272
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
1. Remove the cover of the remote con-trol as shown.2. Remove the insulating sheet.
