TOYOTA SIENNA 2008 XL20 / 2.G Owners Manual

08 SIENNA_U (L/O 0801)
283
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
Remote control
DVD player unit
The player can also be operated with the
switches on the screen.
To operate the switches on the screen,
select the switch by the joystick and push
the “ENT” button. You cannot select the
switches on the screen by touching them
directly.
When the switch is selected by the joys-
tick, the outline of the switch changes to
blue. Push the “ENT” button, and the
switch will be highlighted in green.
Remote control
DVD player unit

08 SIENNA_U (L/O 0801)
284
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
TURNING THE OPERATION SWITCHES
ON AND OFF
To turn on the operation switches, push
the “OPTION” button on the remote con-
trol.
Top page (DVD video operation switch)
Second page (DVD video operation
switch)
Top page (video CD)
Second page (video CD)

08 SIENNA_U (L/O 0801)
285
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
There are operation switches on the “Page
1” and “Page 2” screens.
To change the screen, push the “Page 1”
or “Page 2” switch on the screen.
If “” appears on the screen when
you select a switch, it indicates that
the switch cannot work.On the screen
Remote control

08 SIENNA_U (L/O 0801)
286
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
DVD player unit
To turn off the switches on the screen,
push the “OPTION” button on the remote
control once again or select the “Hide
Buttons” on the screen.
—DVD player operation
NOTE: The playback condition of some
DVD video discs may be determined by
the DVD video software producer. This
DVD player plays discs as the software
producer intended. Therefore, some
functions may not work properly. Be
sure to read the instruction manual for
the DVD video disc separately provided.
For detailed information about DVD
video discs, see “—DVD video disc
information” on page 306 in this
Section.
Precautions for DVD video discs
When recording on a DVD video, video
CD or audio tracks may not record in
some cases while the menu is displayed.
As audio will not play in this case, verify
that the video tracks are playing and then
activate playback.
The title/chapter number and playback
time display may not appear while playing
back certain DVD video discs.CAUTION
Conversational speech on some DVDs
is recorded at a low volume to em-
phasize the impact of sound effects.
If you adjust the volume assuming
that the conversations represent the
maximum volume level available for
the DVD, you may be startled by
louder sound effects or when you
change to a different audio source.
Loud sounds may have a significant
impact on the human body or pose a
driving hazard. Keep this in mind
when you adjust the volume.

08 SIENNA_U (L/O 0801)
287
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
TURNING THE MENU SCREEN FOR THE
DISC ON OR OFF
To turn on the menu screen for the disc,
select the “Top Menu” or the “Menu”
switch on the screen. You can also turn
on the menu screen by pushing the
“MENU” or “TOP MENU” button on the
remote control.
For the operation of the menu screen, see
the separate manual for the DVD disc.

08 SIENNA_U (L/O 0801)
288
2008 SIENNA from Aug. ’08 Prod. (OM45455U)

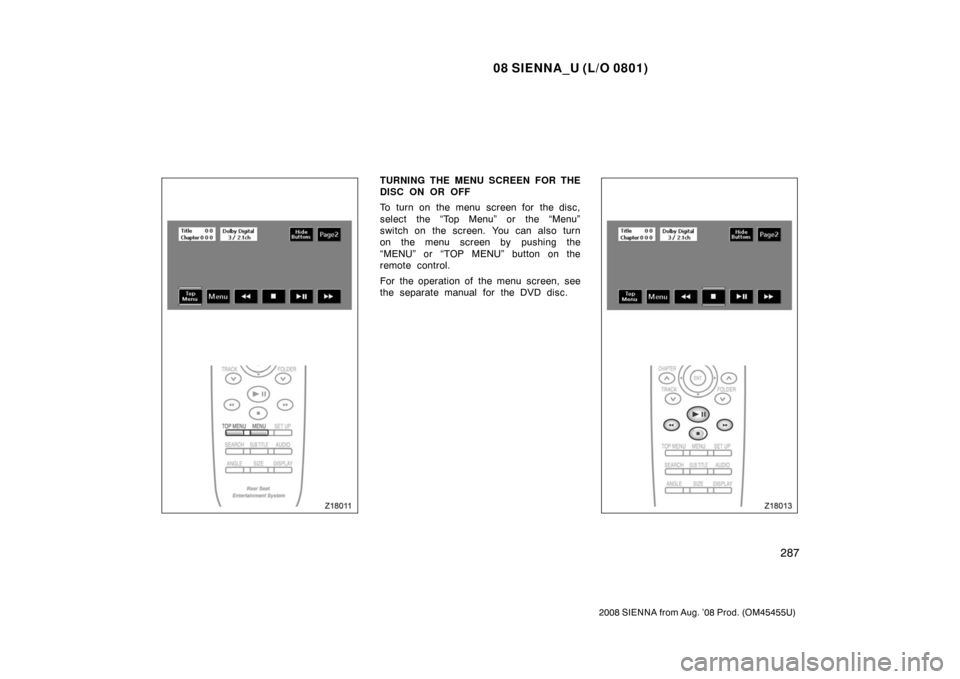

OPERATING THE “”, “”, “”
AND “ ” SWITCHES/BUTTONS
“
” switch/button: Select this switch/
button to pause the disc or to cancel the
pause and return to normal playing.
“
” switch/button: This switch/button
stops a screen when the DVD player is
operated.
“  ” and “ ” switches on the screen:
Select the “ ” or “ ” switch, and
push and hold the “ENT” button to fast
forward or reverse. When you release the
“ENT” button, the DVD player will resume
playing.
“  ” and “ ” buttons on the remote
control: Push and hold the “ ” or “ ”
button to fast forward or reverse. When
you release the button, the DVD player
will resume playing.
Select the “ ” switch/button while paus-
ing, the DVD video plays the slow −motion
video replay.
SKIPPING TO THE PREDETERMINED
SCREEN
To skip to the predetermined screen, se-
lect the “Return” switch. The DVD player
starts playing from the beginning of the
predetermined screen.
For further details of the predetermined
screen, see the separate manual for the
DVD disc.

08 SIENNA_U (L/O 0801)
289
2008 SIENNA from Aug. ’08 Prod. (OM45455U)

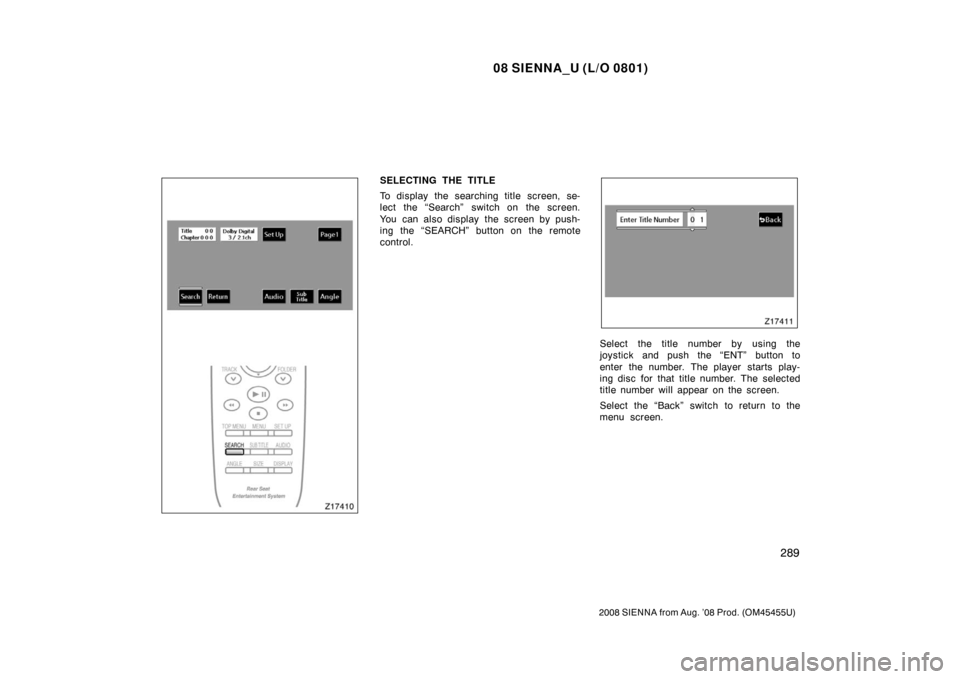

SELECTING THE TITLE
To display the searching title screen, se-
lect the “Search” switch on the screen.
You can also display the screen by push-
ing the “SEARCH” button on the remote
control.
Select the title number by using the
joystick and push the “ENT” button to
enter the number. The player starts play-
ing disc for that title number. The selected
title number will appear on the screen.
Select the “Back” switch to return to the
menu screen.

08 SIENNA_U (L/O 0801)
290
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
CHANGING THE SUBTITLE LANGUAGE
Select the “Sub Title” switch on the
screen, and then the changing subtitle lan-
guage screen will appear. You can also
display the screen by pushing the “SUB
TITLE” button on the remote control.
Each time you select the “Sub Title”
switch, another language stored on the
disc is selected.
To turn off the subtitles, select the “Hide
Buttons” switch.
Select the “Back” switch to return to the
previous screen.
The selected subtitle language will appear
on the screen.

08 SIENNA_U (L/O 0801)
291
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
CHANGING AUDIO LANGUAGE
Select the “Audio” switch on the screen
and then the changing audio language
screen will appear. You can also display
the screen by pushing the “AUDIO” button
on the remote control.
Each time you select the “Audio” switch,
another language stored on the disc is
selected.
To turn off the audio language screen,
select the “Hide Buttons” switch.
Select the “Back” switch to return to the
previous screen.
The selected audio language will appear
on the screen.

08 SIENNA_U (L/O 0801)
292
2008 SIENNA from Aug. ’08 Prod. (OM45455U)

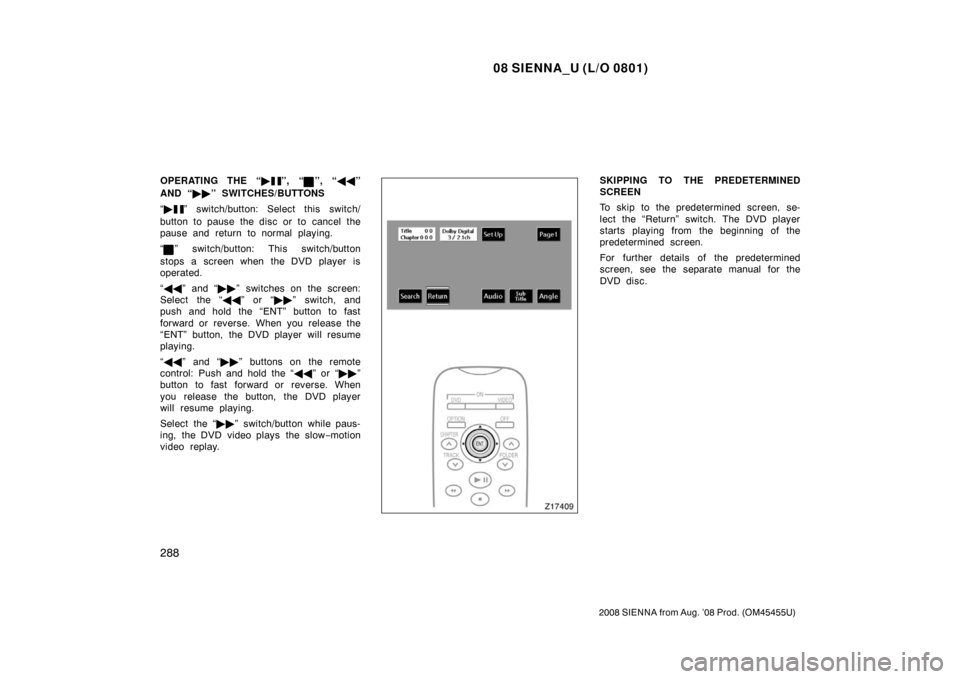

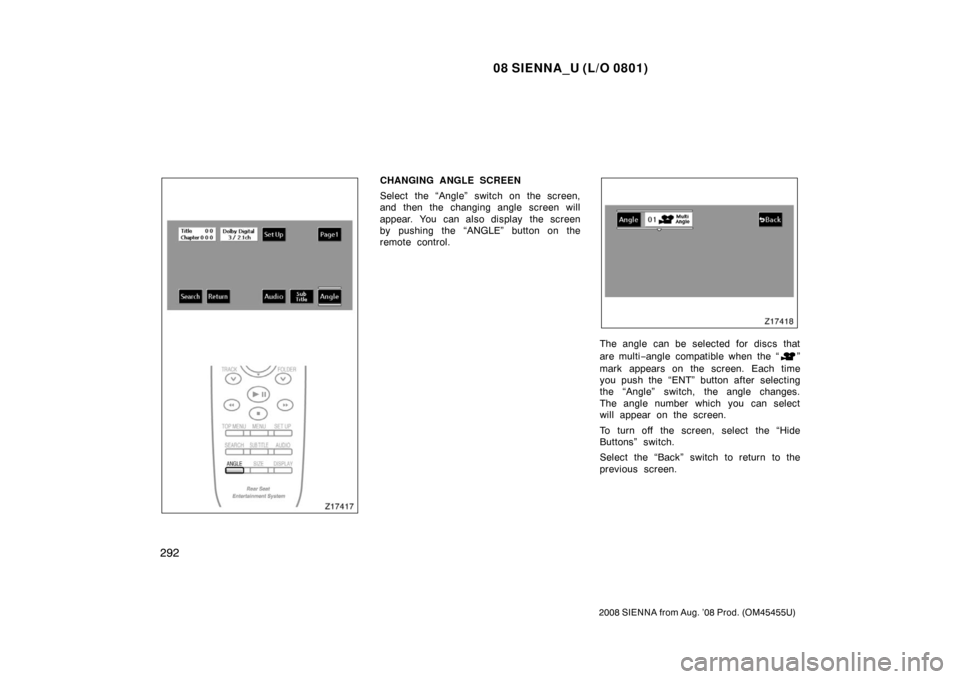

CHANGING ANGLE SCREEN
Select the “Angle” switch on the screen,
and then the changing angle screen will
appear. You can also display the screen
by pushing the “ANGLE” button on the
remote control.
The angle can be selected for discs that
are multi−angle compatible when the “
”
mark appears on the screen. Each time
you push the “ENT” button after selecting
the “Angle” switch, the angle changes.
The angle number which you can select
will appear on the screen.
To turn off the screen, select the “Hide
Buttons” switch.
Select the “Back” switch to return to the
previous screen.
