TOYOTA SIENNA 2009 XL20 / 2.G Navigation Manual

OTHER FUNCTIONS
151

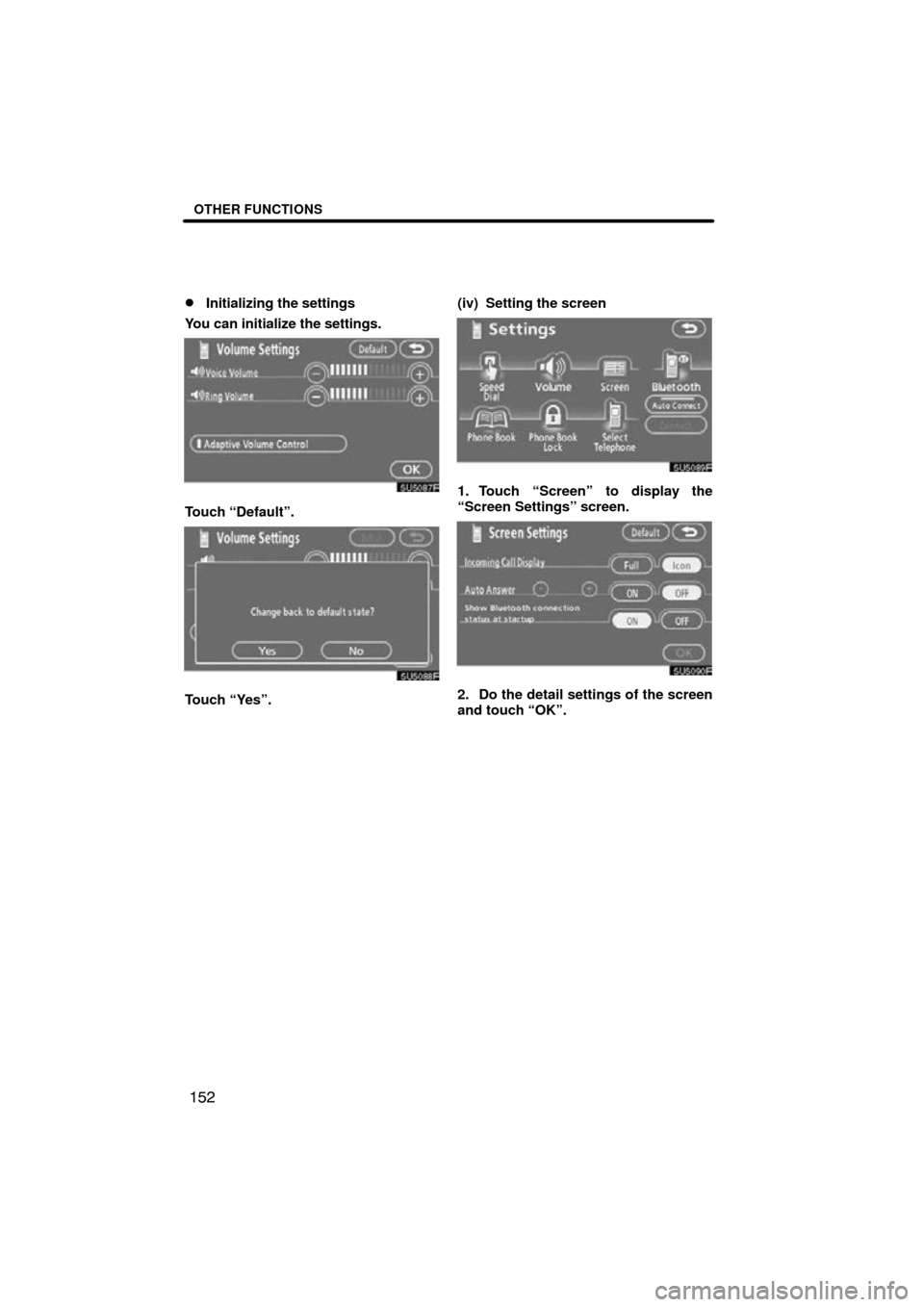

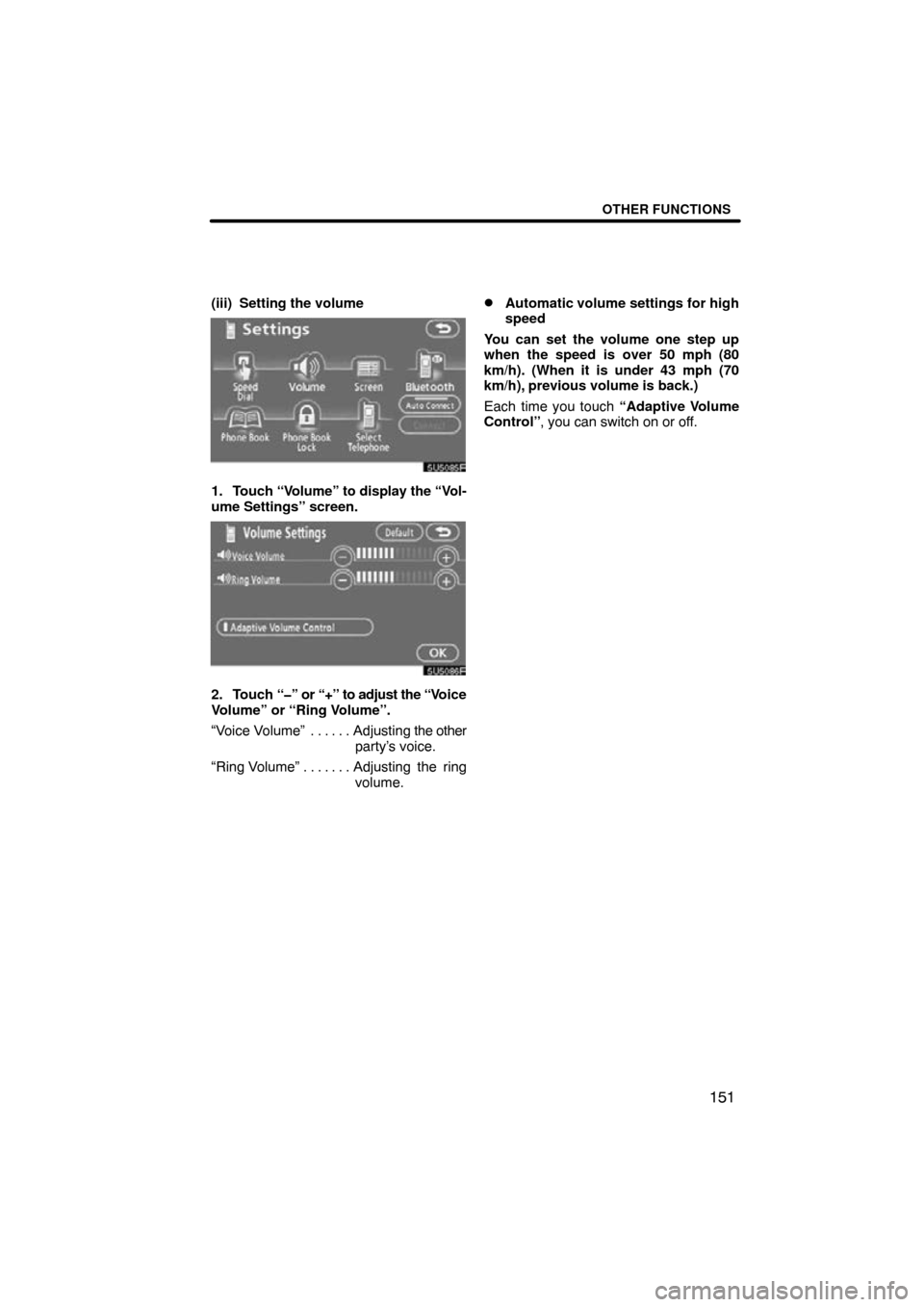

(iii) Setting the volume
1. Touch “Volume” to display the “Vol-
ume Settings” screen.
2. Touch “” or “+” to adjust the “V oice
Volume” or “Ring Volume”.
“Voice Volume” Adjusting the other
. . . . . .
party’s voice.
“Ring Volume” Adjusting the ring . . . . . . .
volume.
Automatic volume settings for high
speed
You can set the volume one step up
when the speed is over 50 mph (80
km/h). (When it is under 43 mph (70
km/h), previous volume is back.)
Each time you touch “Adaptive Volume
Control” , you can switch on or off.

OTHER FUNCTIONS
152

Initializing the settings
You can initialize the settings.
Touch “Default”.
Touch “Yes”. (iv) Setting the screen
1. Touch “Screen” to display the
“Screen Settings” screen.
2. Do the detail settings of the screen
and touch “OK”.

OTHER FUNCTIONS
153

Receiving Call Display
You can select the method of the receiv-
ing call display.
Touch “Full” or “Icon”.
“Full mode” When a call is received, the
. . . . . .
Hands−free screen is displayed
and you can operate it on the
screen.
“Icon mode” The message is displayed on the
. . . . . .
upper side of the screen. You can
only operate the steering switch.
Auto answer
When a call is received, the display au-
tomatically changes to the talking
screen and you can start to talk on the
phone (without touching any switch) af-
ter the preset time.
Touch “ON” of “Auto Answer” and “”
or “+” to adjust the waiting time of auto
answer within 1 60 seconds.

OTHER FUNCTIONS
154

The Bluetooth
connection status at
startup
When the engine switch is in the “ACC”
or “ON” position and the Bluetooth  is
automatically connected, the connec-
tion check is displayed.
Touch “ON” or “OFF” of “Show
Bluetooth∗ connection status at start
up”.
∗: Bluetooth is a registered trademark of Bluetooth SIG. Inc.
Initializing the settings
You can initialize the settings.
Touch “Default”.
Touch “Yes”.

OTHER FUNCTIONS
155
(v) Setting the phone book
You can register phone numbers in the
phone book.
Touch “Phone Book” to display the
“Phone Book Management” screen.
You can do the detail settings of phone
book.
Transferring a telephone number
You can transfer the telephone num-
bers in your Bluetooth phone to the
system. Up to 1000 person’s data (up to
2 numbers a person) can be registered
in the phone book.
Transfer it while the engine is running.
1. Touch “Transfer Data” to display
“Select Group” screen.
2. Select the group you want to trans-
fer to.
3. Touch “Overwrite” or “Add To”.

OTHER FUNCTIONS
156
4. Transfer the phone book data to the
system using the Bluetooth phone.
This screen appears while transferring. To
cancel it, touch “Cancel” . If the transfer-
ring is interrupted on the way, the phone
book data transferred until then can be
memorized in the system.
5. When this screen is displayed, the
transfer is completed.
When this screen is displayed, try the
transfer operation again.
Registering the phone book data
You can register the phone book data.
1. Touch “Register” of “Phone Book”.
2. Touch the desired touch screen but-
ton to edit the phone book.
3. When you complete the edit, touch
“OK”.

OTHER FUNCTIONS
157

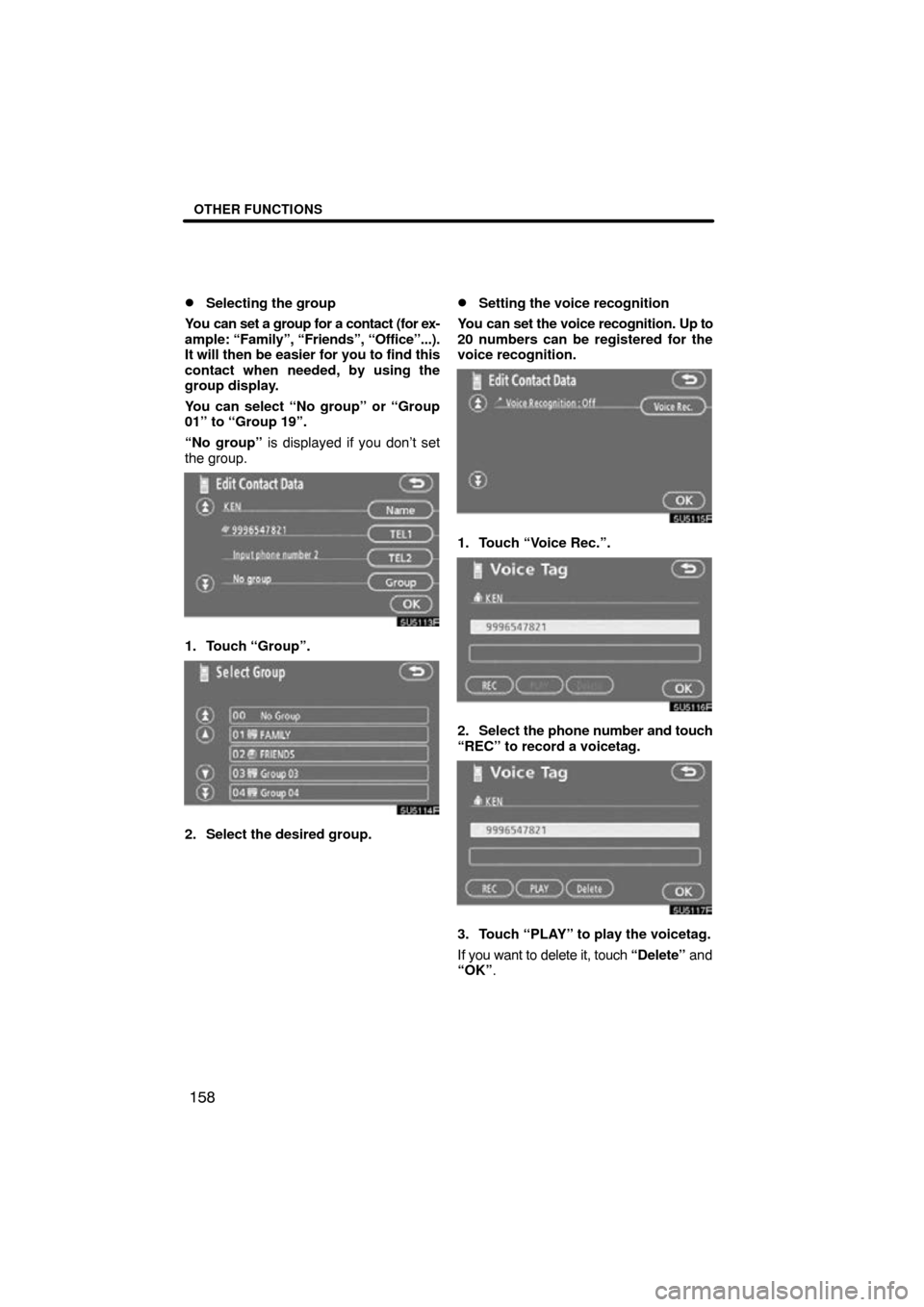

Editing the name
When you don’t input the name, the
number is displayed.
1. Touch “Name”.
2. Use the software keyboard to input
the name.
Editing the phone number
You can register the phone number in
“TEL1” and “TEL2” separately. Up to 2
numbers a person can be registered.
1. Touch “TEL1” or “TEL2”.
2. Input the number and touch “OK”.
3. Select the desired icon.

OTHER FUNCTIONS
158

Selecting the group
You can set a group for a contact (for ex-
ample: “Family”, “Friends”, “Office”...).
It will then be easier for you to find this
contact when needed, by using the
group display.
You can select “No group” or “Group
01” to “Group 19”.
“No group” is displayed if you don’t set
the group.
1. Touch “Group”.
2. Select the desired group.
Setting the voice recognition
You can set the voice recognition. Up to
20 numbers can be registered for the
voice recognition.
1. Touch “Voice Rec.”.
2. Select the phone number and touch
“REC” to record a voicetag.
3. Touch “PLAY” to play the voicetag.
If you want to delete it, touch “Delete” and
“OK” .

OTHER FUNCTIONS
159

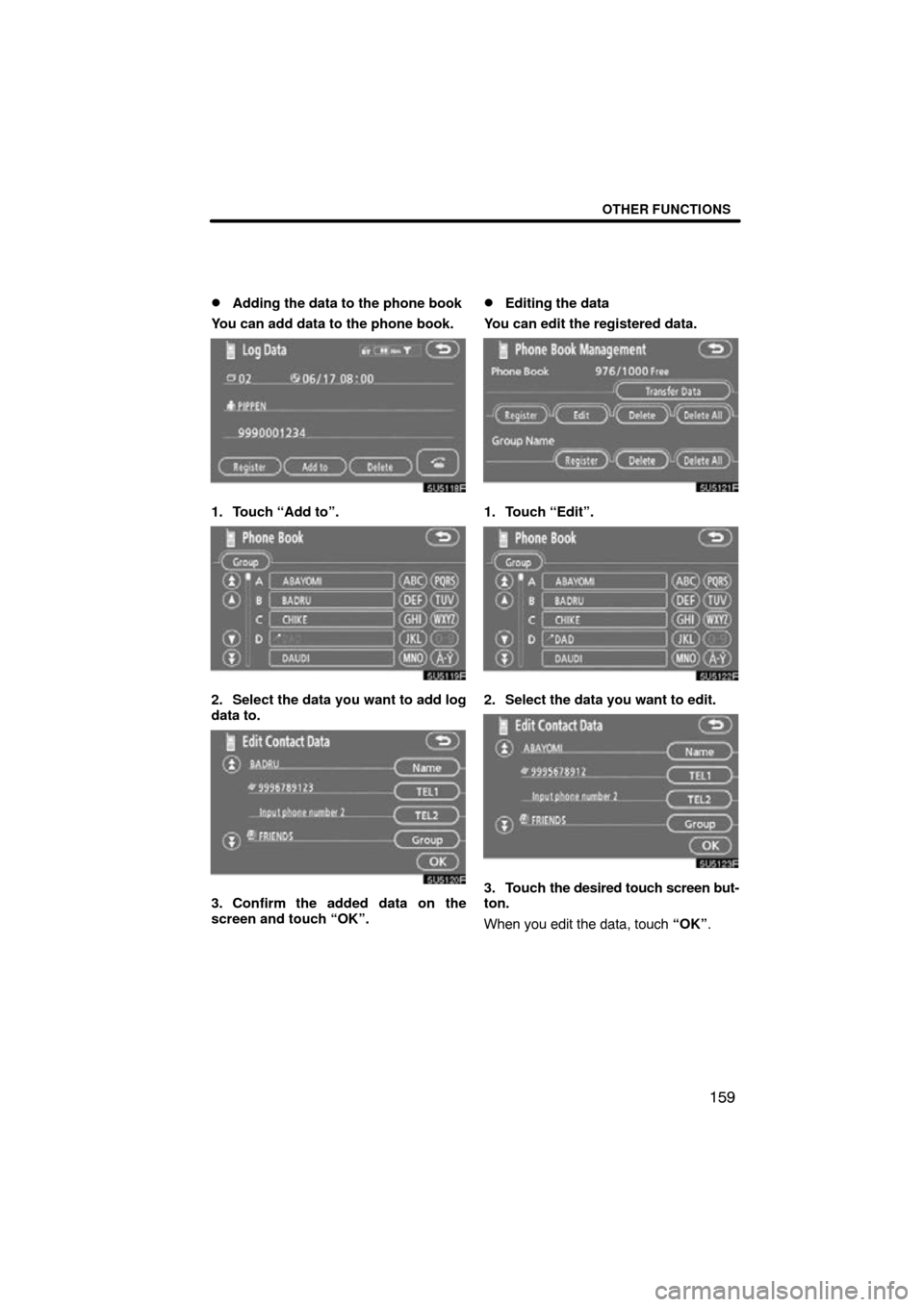

Adding the data to the phone book
You can add data to the phone book.
1. Touch “Add to”.
2. Select the data you want to add log
data to.
3. Confirm the added data on the
screen and touch “OK”.

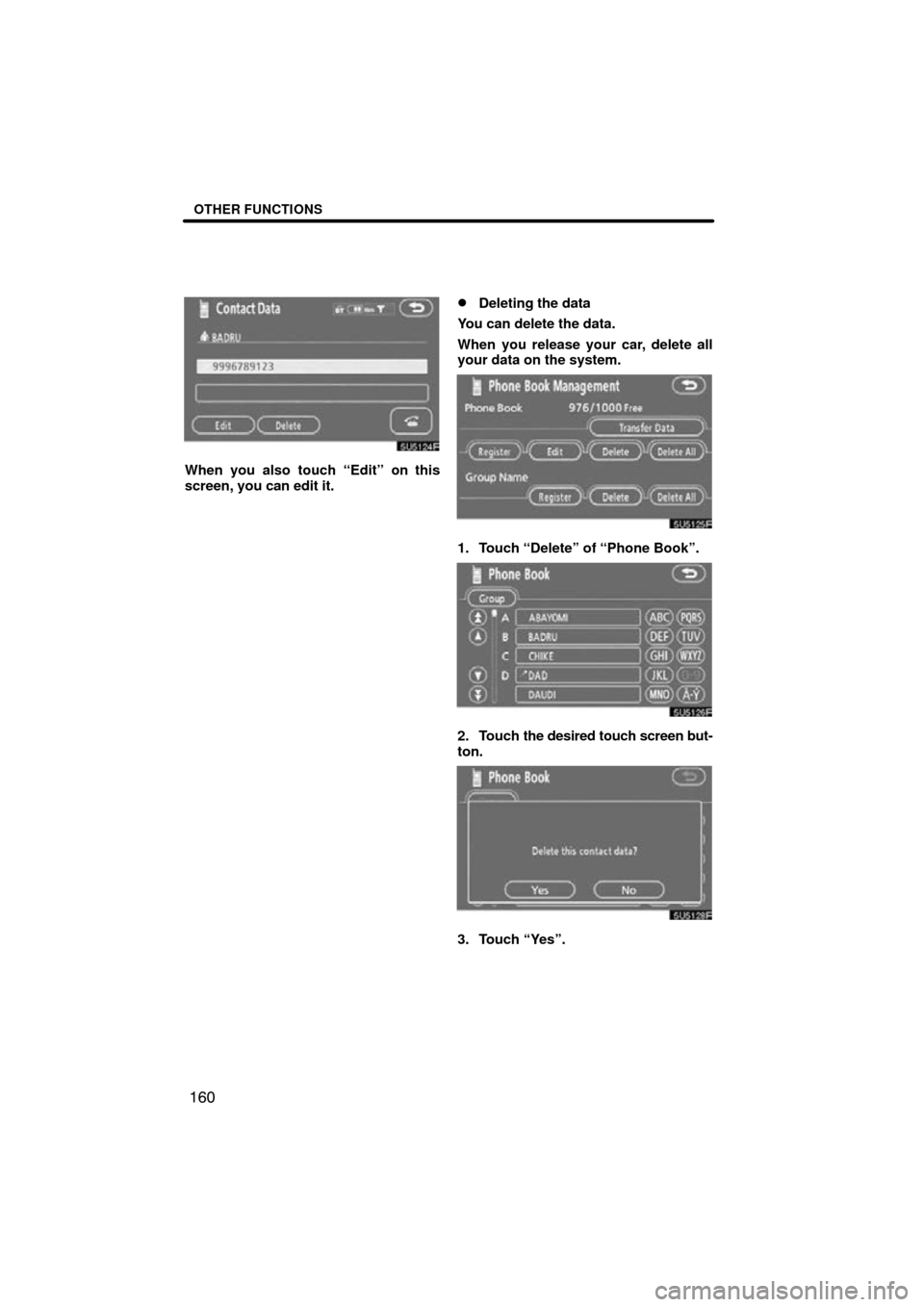

Editing the data
You can edit the registered data.
1. Touch “Edit”.
2. Select the data you want to edit.
3. Touch the desired touch screen but-
ton.
When you edit the data, touch “OK”.

OTHER FUNCTIONS
160
When you also touch “Edit” on this
screen, you can edit it.
Deleting the data
You can delete the data.
When you release your car, delete all
your data on the system.
1. Touch “Delete” of “Phone Book”.
2. Touch the desired touch screen but-
ton.
3. Touch “Yes”.
