Quick guide —
— Overview buttons and guidance screen

11
No.NameFunctionPage
7“Map View”
Touch this touch screen button to
browse information about guidance
route, to set the Points of Interest to be
displayed on the screen, or to record the
route.
80, 82, 83, 84
8“DISPLAY”
buttonPush this button to display the “Display”
screen.179
9“  OFF”
Touch this touch screen button to obtain
a broader view. Some of the buttons on
the screen are not displayed. They are
displayed again by touching “ON”.
11 2
10Zoom in touch
screen buttonTouch this touch screen button to mag-
nify the map scale.37
11
Foot print map
touch screen
buttonTouch this touch screen button to dis-
play the foot print map and the building
information.
37
12“MAP/VOICE”
buttonPush this button to repeat a voice guid-
ance, cancel one touch scroll, start
guidance, and display the current posi-
tion.
29, 31, 72
13“DEST” buttonPush this button to display the “Destina-
tion” screen.42, 43
14
Screen
configuration
touch screen
button
Touch this touch screen button to
change the screen mode.34
15“MENU” buttonPush this button to display the “Menu”
screen.88, 90, 270
16Distance and time
to destinationDisplays the distance, the estimated
travel time to the destination, and the
estimated arrival time at the destination.
73
17
“GPS” mark
(Global
Positioning
System)Whenever your vehicle is receiving sig-
nals from the GPS, this mark is dis-
played.
258
18
Speech
command system
indicatorThis indicator is shown by pushing the
talk switch. The speech command sys-
tem can be operated while this indicator
is shown.
175

12
1U5067X
0U5002F
0U5003F
0U5004F

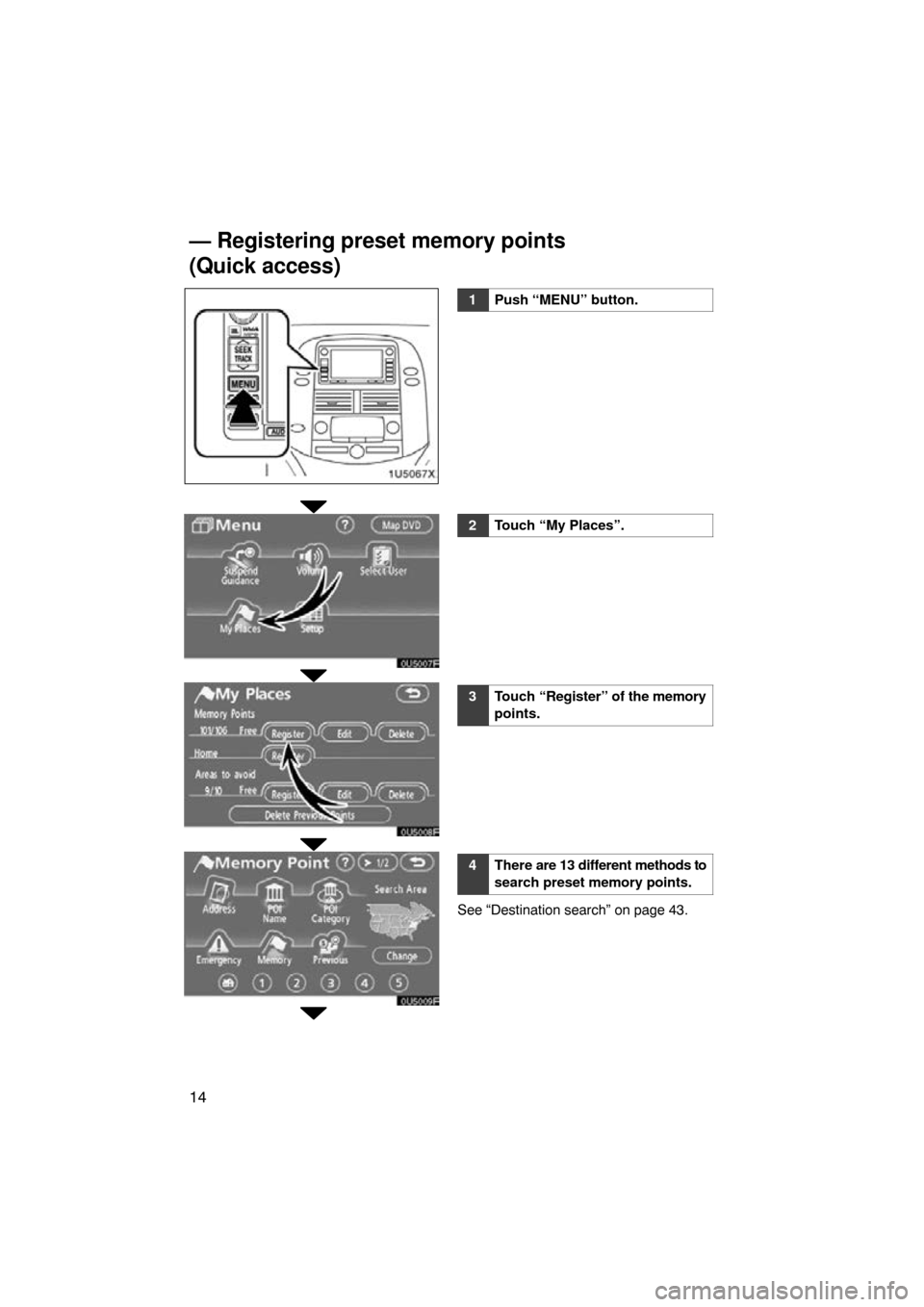

1Push “MENU” button.
2Touch “My Places”.
3Touch “Register” of the home.
4There are 12 different methods to
search your home.
See “Destination search” on page 43.
— Registering home

13
0U5005F
0U5006F

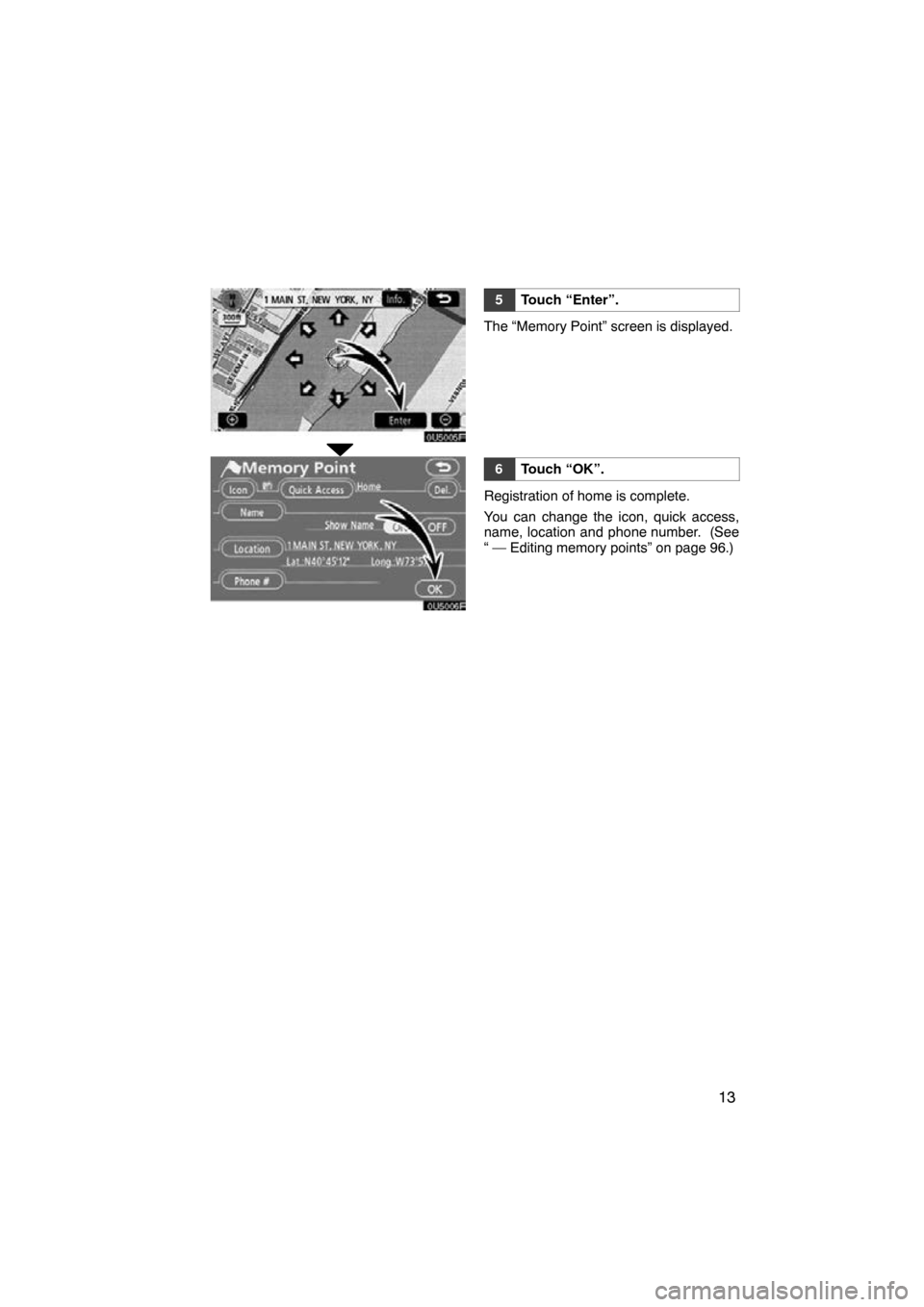

5Touch “Enter”.
The “Memory Point” screen is displayed.
6Touch “OK”.
Registration of home is complete.
You can change the icon, quick access,
name, location and phone number. (See
“ — Editing memory points” on page 96.)

14
1U5067X
0U5007F
0U5008F
0U5009F
1Push “MENU” button.
2Touch “My Places”.
3Touch “Register” of the memory
points.
4There are 13 different methods to
search preset memory points.
See “Destination search” on page 43.
— Registering preset memory points
(Quick access)
