buttons TOYOTA SIENNA 2009 XL20 / 2.G Navigation Manual

AUDIO/VIDEO SYSTEM
237
(g) Operating a video CD
PLAYING A VIDEO CD

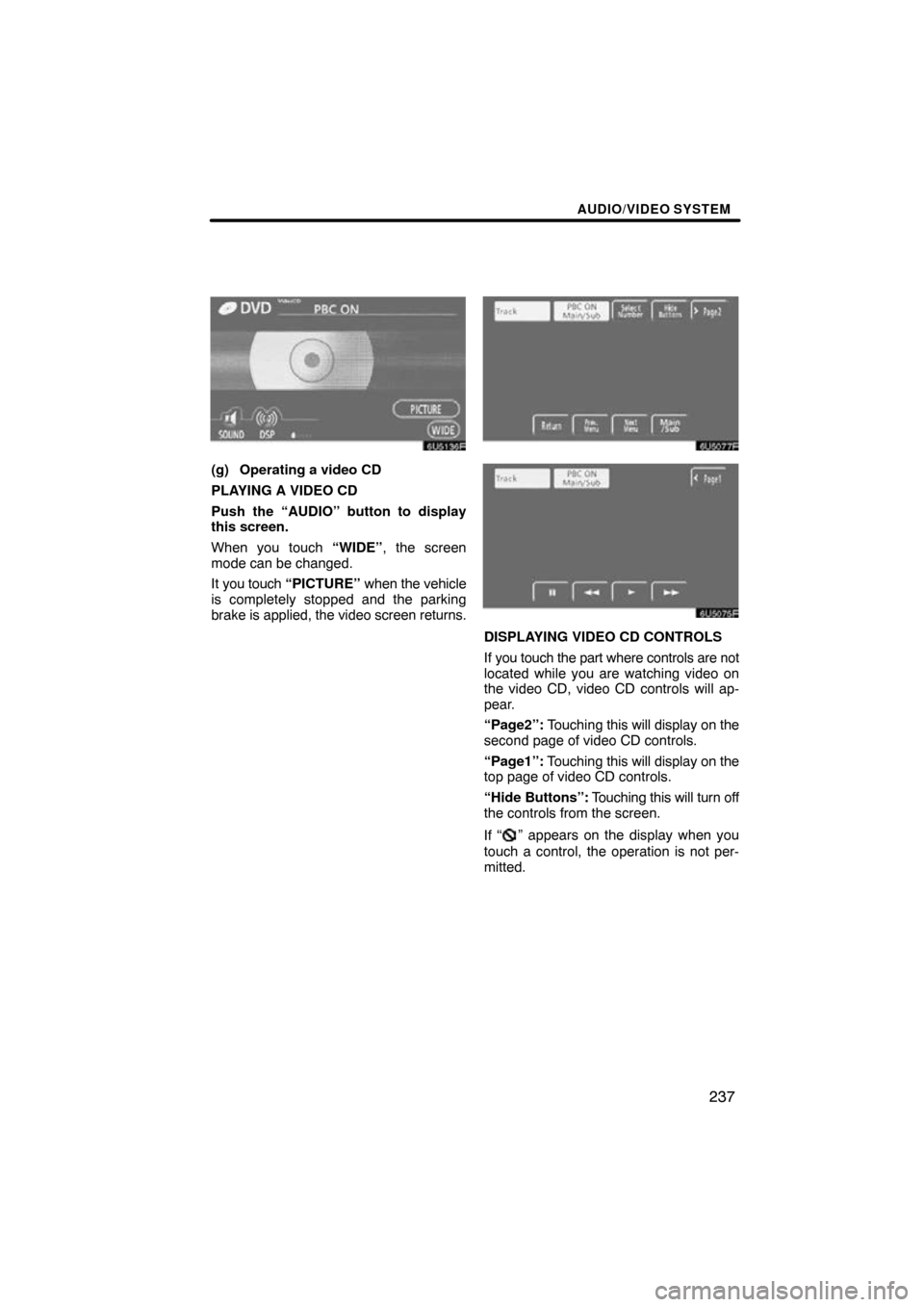

Push the “AUDIO” button to display
this screen.
When you touch “WIDE”, the screen
mode can be changed.
It you touch “PICTURE” when the vehicle
is completely stopped and the parking
brake is applied, the video screen returns.
DISPLAYING VIDEO CD CONTROLS
If you touch the part where controls are not
located while you are watching video on
the video CD, video CD controls will ap-
pear.
“Page2”: Touching this will display on the
second page of video CD controls.
“Page1”: Touching this will display on the
top page of video CD controls.
“Hide Buttons”: Touching this will turn off
the controls from the screen.
If “
” appears on the display when you
touch a control, the operation is not per-
mitted.

INDEX
274
K
Key layout
110
. . . . . . . . . . . . . . . . . . . . . . . . .
Keyboard layout 89
. . . . . . . . . . . . . . . . . . . .
L
Last 5 cities 50,53
. . . . . . . . . . . . . . . . . . . . . .
Limitations of the navigation
system 258
. . . . . . . . . . . . . . . . . . . . . . . . .
List 27
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
List all categories button 54,57
. . . . . . . . . . .
List screen operation 25
. . . . . . . . . . . . . . . .
Listening to satellite radio 201
. . . . . . . . . . .
Listening to the radio 195
. . . . . . . . . . . . . . .
LOAD·EJECT button 188,207
. . . . . . . . . . . .
Local POI list 81
. . . . . . . . . . . . . . . . . . . . . . .
M
Maintenance i nformation 24,120
. . . . . . . . . .
Maintenance information setting 120 . . . . . .
Map button 42
. . . . . . . . . . . . . . . . . . . . . . . .
Map database information and
updates 260
. . . . . . . . . . . . . . . . . . . . . . . .
Map DVD button 88
. . . . . . . . . . . . . . . . . . . .
Map scale 37
. . . . . . . . . . . . . . . . . . . . . . . . .
Map screen operation 29
. . . . . . . . . . . . . . .
Map view 80
. . . . . . . . . . . . . . . . . . . . . . . . . .
Map View button 10
. . . . . . . . . . . . . . . . . . . .
MAP/VOICE button 10,29,30
. . . . . . . . . . . .
Mark button 10
. . . . . . . . . . . . . . . . . . . . . . . .
Memo information 24
. . . . . . . . . . . . . . . . . . .
Memo list 127
. . . . . . . . . . . . . . . . . . . . . . . . .
Memory button 42
. . . . . . . . . . . . . . . . . . . . .
Memory point information 33
. . . . . . . . . . . .
Memory point names 100
. . . . . . . . . . . . . . .
Memory point screen 95
. . . . . . . . . . . . . . . .
MENU button 10,88,89
. . . . . . . . . . . . . . . . .
Menu screen 88
. . . . . . . . . . . . . . . . . . . . . . .
Message 197
. . . . . . . . . . . . . . . . . . . . . . . . .
Microphone 129,175
. . . . . . . . . . . . . . . . . . . .
MID 192
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
MP3/WMA 212
. . . . . . . . . . . . . . . . . . . . . . . .
MSG button 197
. . . . . . . . . . . . . . . . . . . . . . .
My places 94
. . . . . . . . . . . . . . . . . . . . . . . . .
My places button 88
. . . . . . . . . . . . . . . . . . .
N
Names of areas to be avoided 106. . . . . . .
Nearest 5 cities 50,53 . . . . . . . . . . . . . . . . . . .
North−up 10
. . . . . . . . . . . . . . . . . . . . . . . . . .
North−up symbol 39
. . . . . . . . . . . . . . . . . . .
Notifying traffic restriction 114
. . . . . . . . . . . .
Numbers and symbols 26
. . . . . . . . . . . . . . .
O
Off function 10,89,112
. . . . . . . . . . . . . . . . . .
On route button 57 . . . . . . . . . . . . . . . . . . . . .
One−touch scroll 30
. . . . . . . . . . . . . . . . . . .
Operating a DVD video disc 227
. . . . . . . . .
Operating a MP3 disc 223
. . . . . . . . . . . . . .
Operating a MP3/WMA disc 212
. . . . . . . . .
Operating a video CD 237
. . . . . . . . . . . . . .
Operating an audio CD 220
. . . . . . . . . . . . .
Operating guide 178
. . . . . . . . . . . . . . . . . . .
OPP (Object Push Profile) 129
. . . . . . . . . .
Orientation of the map 39
. . . . . . . . . . . . . . .
Outgoing calls 137
. . . . . . . . . . . . . . . . . . . . .
Overview buttons and
guidance screen 10
. . . . . . . . . . . . . . . . . .
P
Parental lock 232
. . . . . . . . . . . . . . . . . . . . . .
Phone # button 42
. . . . . . . . . . . . . . . . . . . . .
Phone book 155,156,159,160
. . . . . . . . . . . .
Phone book lock 168
. . . . . . . . . . . . . . . . . . .
Playing a disc 208,220
. . . . . . . . . . . . . . . . . .
Playing a DVD disc 228
. . . . . . . . . . . . . . . .
Playing a MP3 disc 223
. . . . . . . . . . . . . . . . .
Playing a MP3/WMA disc 212
. . . . . . . . . . .
Playing a video CD 237
. . . . . . . . . . . . . . . . .
Playing an audio CD 220
. . . . . . . . . . . . . . .
Playing an audio disc 209
. . . . . . . . . . . . . . .
POI as a destination 82
. . . . . . . . . . . . . . . . .
POI Category button 42
. . . . . . . . . . . . . . . .
POI category change 112
. . . . . . . . . . . . . . . .
POI information 33
. . . . . . . . . . . . . . . . . . . . .
POI Name button 42
. . . . . . . . . . . . . . . . . . .
POIs near the search point 57
. . . . . . . . . . .
POIs to be displayed 80
. . . . . . . . . . . . . . . .
Pop−up message 89,116
. . . . . . . . . . . . . . . .
Portable audio players 195
. . . . . . . . . . . . . .
Position/direction calibration 117
. . . . . . . . . .
Preset memory points 14
. . . . . . . . . . . . . . .
Presetting a satellite radio channel 202 . . .
Presetting a station 196
. . . . . . . . . . . . . . . .
Previous button 42
. . . . . . . . . . . . . . . . . . . . .
PWR·VOL knob 188
. . . . . . . . . . . . . . . . . . .

INDEX
275
Q
Quick access
14
. . . . . . . . . . . . . . . . . . . . . .
Quick access touch− screen buttons 42 . . .
R
Radio data system 197
. . . . . . . . . . . . . . . . .
Radio ID 200
. . . . . . . . . . . . . . . . . . . . . . . . . .
Radio operation 195,200
. . . . . . . . . . . . . . . .
RAND button 211,216,222,226
. . . . . . . . . . .
RDS 197
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear system lock 183
. . . . . . . . . . . . . . . . . .
Rear view monitor system 252
. . . . . . . . . . .
Receive on the Bluetooth phone 143. . . . .
Receiving call display 153
. . . . . . . . . . . . . .
Reconnecting the
Bluetooth  phone 136
. . . . . . . . . . . . . . . .
Registering a group name 163
. . . . . . . . . . .
Registering area to avoid 103
. . . . . . . . . . . .
Registering home 12,102
. . . . . . . . . . . . . . . .
Registering memory points 95
. . . . . . . . . . .
Registering preset memory points 14 . . . . .
Registering the phone book data 156 . . . . .
Registering the speed dial 146
. . . . . . . . . . .
Registering the speed tone148
. . . . . . . . . .
Reordering destinations 74
. . . . . . . . . . . . . .
Resume guidance 91
. . . . . . . . . . . . . . . . . . .
Resume guidance button 88
. . . . . . . . . . . . .
Route button 10
. . . . . . . . . . . . . . . . . . . . . . .
Route guidance screen 68
. . . . . . . . . . . . . .
Route overview 82
. . . . . . . . . . . . . . . . . . . . .
Route preference 64,79
. . . . . . . . . . . . . . . . .
Route preview 83
. . . . . . . . . . . . . . . . . . . . . .
Route trace 84
. . . . . . . . . . . . . . . . . . . . . . . .
RPT button 211,216,222,226
. . . . . . . . . . . .
S
Satellite radio channel category 201. . . . . .
Satellite tuner 200. . . . . . . . . . . . . . . . . . . . .
Scale indicator 10 . . . . . . . . . . . . . . . . . . . . .
SCAN button 188 . . . . . . . . . . . . . . . . . . . . . .
Screen adjustment 179 . . . . . . . . . . . . . . . . .
Screen configuration button 10 . . . . . . . . . .
Screen layout function 112. . . . . . . . . . . . . . .
Screen off 179 . . . . . . . . . . . . . . . . . . . . . . . .
Screen scroll operation 30. . . . . . . . . . . . . .
Screen setting 181 . . . . . . . . . . . . . . . . . . . . .
Screen size 194 . . . . . . . . . . . . . . . . . . . . . . .
Seaching for a desired track 222 . . . . . . . . .
Search condition 76 . . . . . . . . . . . . . . . . . . . .
Search point from destinations 56 . . . . . . . .
Search point via the map screen 56 . . . . . . Searching by title 230
. . . . . . . . . . . . . . . . . .
Searching by track 239 . . . . . . . . . . . . . . . . .
Searching for a desired file 215,225. . . . . . .
Searching for a desired folder 216,225. . . . .
Searching for a desired track
or a disc 211 . . . . . . . . . . . . . . . . . . . . . . . . .
Security code 167. . . . . . . . . . . . . . . . . . . . .
SEEK/TRACK button 188. . . . . . . . . . . . . . .
Select user button 88 . . . . . . . . . . . . . . . . . .
Selecting a desired disc 209 . . . . . . . . . . . . .
Selecting a desired file 214,224
. . . . . . . . . . .
Selecting a desired folder 213,223
. . . . . . . .
Selecting a desired track 210,221 . . . . . . . . .
Selecting a group icon 163. . . . . . . . . . . . . .
Selecting a language 185. . . . . . . . . . . . . . .
Selecting a menu item 230 . . . . . . . . . . . . . .
Selecting a satellite radio channel 202 . . . .
Selecting a station 197 . . . . . . . . . . . . . . . . .
Selecting the group 158
. . . . . . . . . . . . . . . .
Selecting the search area 44
. . . . . . . . . . . .
Sending a tone 142
. . . . . . . . . . . . . . . . . . . .
Sending a tone by the speed tone 145
. . . .
S

et a Bluetooth  phone 169
. . . . . . . . . . . . .
Setting and deleting destination 74 . . . . . . .
Setting home as the destination 17 . . . . . . .
Setting route 76
. . . . . . . . . . . . . . . . . . . . . . .
Setting the phone book 155
. . . . . . . . . . . . .
Setting the voice recognition 158
. . . . . . . . .
Setup 108
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setup button 88
. . . . . . . . . . . . . . . . . . . . . . .
Setup menu 232
. . . . . . . . . . . . . . . . . . . . . . .
Setup screen 89
. . . . . . . . . . . . . . . . . . . . . . .
Single map 35
. . . . . . . . . . . . . . . . . . . . . . . .
Single map screen 34
. . . . . . . . . . . . . . . . . .
Sort 28
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Sound icons 98
. . . . . . . . . . . . . . . . . . . . . . .
Speech command system 175
. . . . . . . . . . .
Speech command system indicator 10 . . . .
Speed dial 139,146,147
. . . . . . . . . . . . . . . . .
Speed tone 145,148,149,150
. . . . . . . . . . . .
Starting route from adjacent road 79 . . . . . .
Starting route guidance 63
. . . . . . . . . . . . . .
Steering switches 242
. . . . . . . . . . . . . . . . . .
Street name 47
. . . . . . . . . . . . . . . . . . . . . . . .
Subtitle language 232
. . . . . . . . . . . . . . . . . .
Surround function 193
. . . . . . . . . . . . . . . . . .
Suspend guidance 90
. . . . . . . . . . . . . . . . . .
Suspend guidance button 88
. . . . . . . . . . . .
Suspending and resuming guidance 90 . . .
Switch color 182
. . . . . . . . . . . . . . . . . . . . . . .
Switching the screens 34
. . . . . . . . . . . . . . .

SIENNA_Navi_U (L/O 0807)
3
For safety reasons, this manual indicates
items requiring particular attention with the
following marks.
CAUTION
This is a warning against anything
which may cause injury to people if
the warning is ignored. You are in-
formed about what you must or must
not do in order to reduce the risk of
injury to yourself and others.
NOTICE
This is a warning against anything
which may cause damage to the ve-
hicle or its equipment if the warning
is ignored. You are informed about
what you must or must not do in or-
der to avoid or reduce the risk of dam-
age to your vehicle and its equip-
ment.
INFORMATION
This provides additional information.
To use this system in the safest possible
manner, follow all the safety tips shown be-
low.
This system is intended to assist in reach-
ing the destination and, if used properly,
can do so. The driver is solely responsible
for the safe operation of your vehicle and
the safety of your passengers.
Do not use any feature of this system to the
extent it becomes a distraction and pre-
vents safe driving. The first priority while
driving should always be the safe opera-
tion of the vehicle. While driving, be sure
to observe all traffic regulations.
Prior to the actual use of this system, learn
how to use it and become thoroughly famil-
iar with it. Read the entire Navigation Sys-
tem Owner’s Manual to make sure you un-
derstand the system. Do not allow other
people to use this system until they have
read and understood the instructions in
this manual.
For your safety, some functions may be-
come inoperable when driving. Unavail-
able touch screen buttons are dimmed.
Only when the vehicle is not moving, can
the destination and route selection be
done.
Important information about
this manualSafety Instruction

SIENNA_Navi_U (L/O 0807)
5
Table of Contents
Quick guide —
— Overview buttons and guidance screen 10. . . . . . . . . . .
— Registering home 12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
— Registering preset memory points (Quick access) 14 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
— Operation flow: guiding the route 16 . . . . . . . . . . . . . . . . .
— Setting home as the destination 17 . . . . . . . . . . . . . . . . . .
Navigation system function index 18 . . . . . . . . . . . . . . . . . . .
1 Basic Functions
〈Basic information before operation〉
Display operation 22 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Initial screen 23 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . .
Touch screen operation 25
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

Inputting letters and numbers/list screen operation 25
. . . . . . . . . . . . . .
Function help 29
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . .
Map screen operation 29
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
Current position display 29
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Screen scroll operation 30
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Switching the screens 34
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Map scale 37
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . .
Foot print map 37
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Orientation of the map 39
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Quick
Guide

10
0U5116X

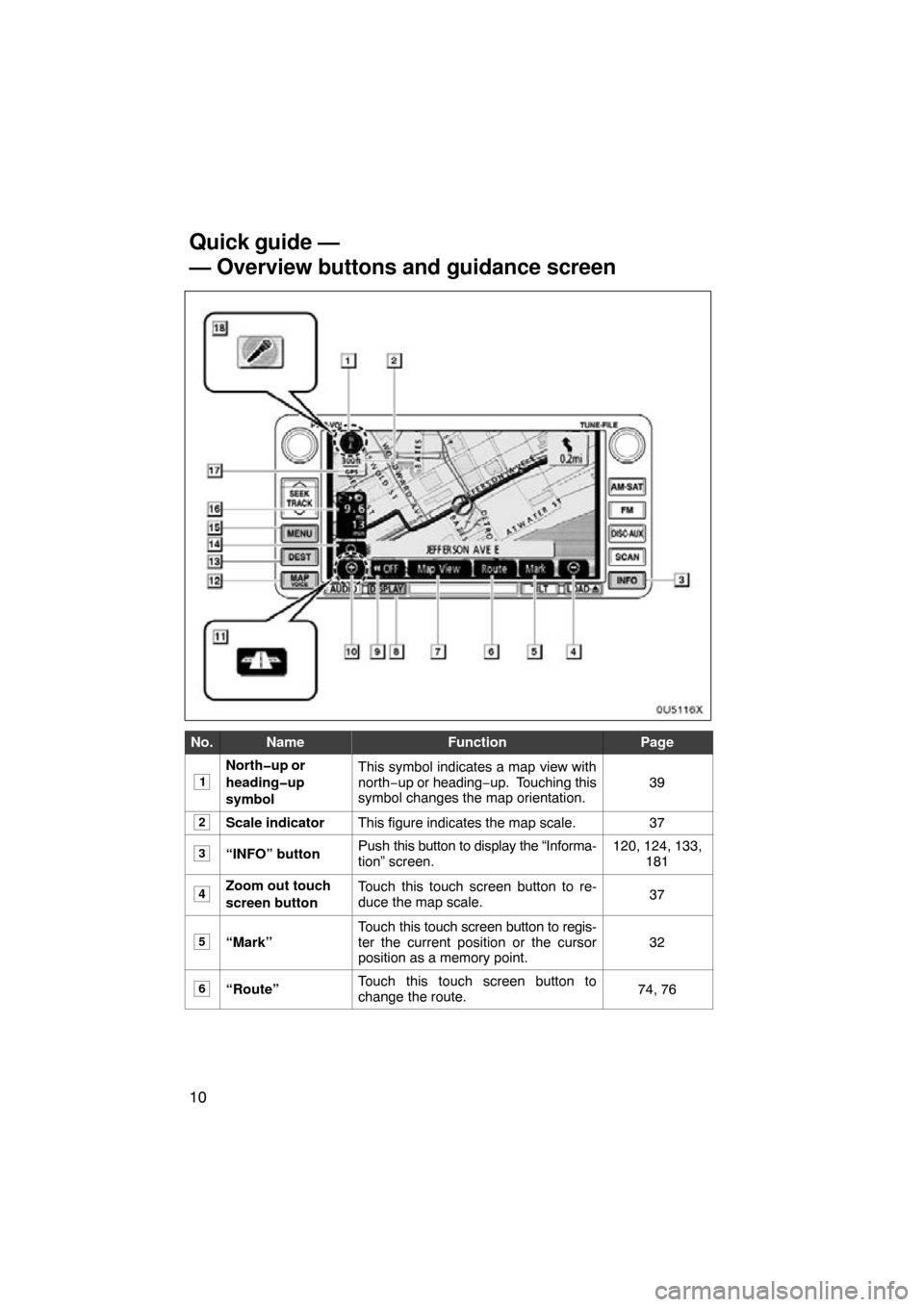

No.NameFunctionPage
1
Northup or
headingup
symbolThis symbol indicates a map view with
north−up or heading−up. Touching this
symbol changes the map orientation.
39
2Scale indicatorThis figure indicates the map scale.37
3“INFO” buttonPush this button to display the “Informa-
tion” screen.120, 124, 133,
181
4Zoom out touch
screen buttonTouch this touch screen button to re-
duce the map scale.37
5“Mark”
Touch this touch screen button to regis-
ter the current position or the cursor
position as a memory point.
32
6“Route”Touch this touch screen button to
change the route.74, 76
Quick guide —
— Overview buttons and guidance screen

11
No.NameFunctionPage
7“Map View”
Touch this touch screen button to
browse information about guidance
route, to set the Points of Interest to be
displayed on the screen, or to record the
route.
80, 82, 83, 84
8“DISPLAY”
buttonPush this button to display the “Display”
screen.179
9“  OFF”
Touch this touch screen button to obtain
a broader view. Some of the buttons on
the screen are not displayed. They are
displayed again by touching “ON”.
11 2
10Zoom in touch
screen buttonTouch this touch screen button to mag-
nify the map scale.37
11
Foot print map
touch screen
buttonTouch this touch screen button to dis-
play the foot print map and the building
information.
37
12“MAP/VOICE”
buttonPush this button to repeat a voice guid-
ance, cancel one touch scroll, start
guidance, and display the current posi-
tion.
29, 31, 72
13“DEST” buttonPush this button to display the “Destina-
tion” screen.42, 43
14
Screen
configuration
touch screen
button
Touch this touch screen button to
change the screen mode.34
15“MENU” buttonPush this button to display the “Menu”
screen.88, 90, 270
16Distance and time
to destinationDisplays the distance, the estimated
travel time to the destination, and the
estimated arrival time at the destination.
73
17
“GPS” mark
(Global
Positioning
System)Whenever your vehicle is receiving sig-
nals from the GPS, this mark is dis-
played.
258
18
Speech
command system
indicatorThis indicator is shown by pushing the
talk switch. The speech command sys-
tem can be operated while this indicator
is shown.
175

15
0U5010F
0U5011F
0U5012F
0U5013F
5Touch “Enter”.
The “Memory Point” screen is displayed.
6Touch “Quick Access”.
7Touch one of preset buttons 1 to
5.
8Touch “OK”.
Registration of preset memory points is
complete.
You can change the icon, quick access,
name, location and phone number. (See
“ — Editing memory points” on page 96.)
The registered points can be used on the
“Destination” screen. (See “ — Destination
search by Quick access” on page 46.)

SIENNA_Navi_U (L/O 0807)
18
Map
Displaying mapsPage
Viewing the map screen10
Displaying the current vehicle position29
Viewing the current position vicinity map30
Changing the scale37
Changing the map orientation39
Displaying POIs∗80
Displaying the estimated travel/arrival time to the destination73
Selecting the dual map screen34
Viewing foot print map37
Deleting map screen touch screen buttons11 2
Searching destinationPage
Searching the destination (by home, POI∗, phone #, etc.)43
Changing the search area44
Operating the map location of the selected destination63
Route guidance
Before starting route guidancePage
Setting the destination63
Viewing alternative routes63
Starting route guidance63
Before starting or during route guidancePage
Viewing the route63
Adding destinations74
Changing the route76
Displaying the estimated travel/arrival time to the destination73
∗: Point(s) of Interest
Navigation system function index
