ADVANCED FUNCTIONS
90
9“Voice Recognition Guidance”
Voice recognition guidance can be set. 11 4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10“Voice Guidance in All Modes”
Voice guidance can be set in all modes. 11 5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11“Auto Voice Guidance”
Automatic voice guidance can be set. 11 5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
12“Popup Message”
Selection of either ON or OFF to display
the pop− up message is possible.
11 6
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
13“Calibration”
Adjustment of the current vehicle position
mark can be done manually, or mis −cal-
culation by changing tire will be adjusted.
11 7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
14“Default”
This touch screen button initializes all of
the settings. 108 . . . . . . . . . . . . . . . . . . . .
15“?”
Function help for the “Setup” screen can
be viewed. 29 . . . . . . . . . . . . . . . . . . . . . . .

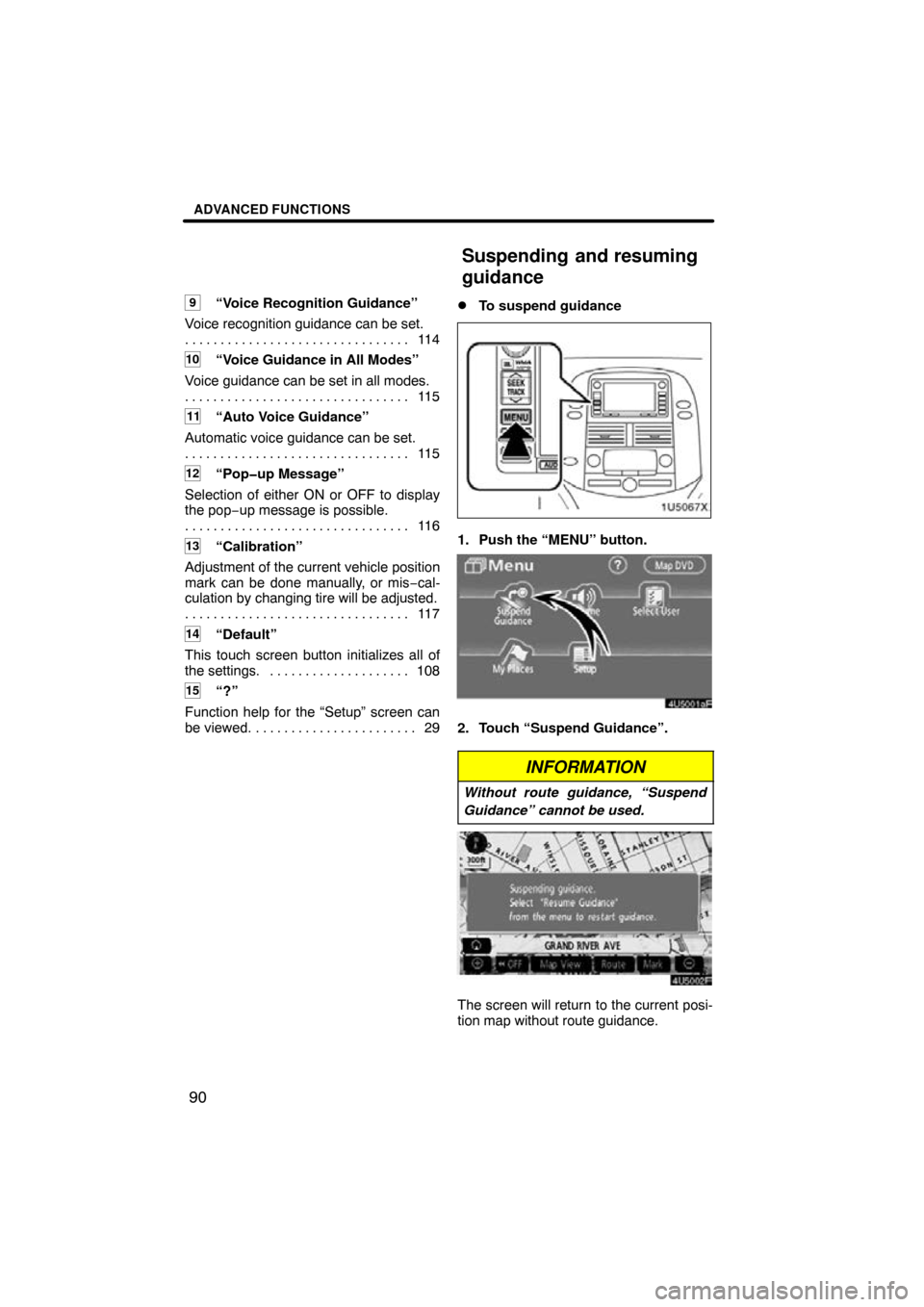

To suspend guidance
1. Push the “MENU” button.
2. Touch “Suspend Guidance”.
INFORMATION
Without route guidance, “Suspend
Guidance” cannot be used.
The screen will return to the current posi-
tion map without route guidance.
Suspending and resuming
guidance

OTHER FUNCTIONS
153

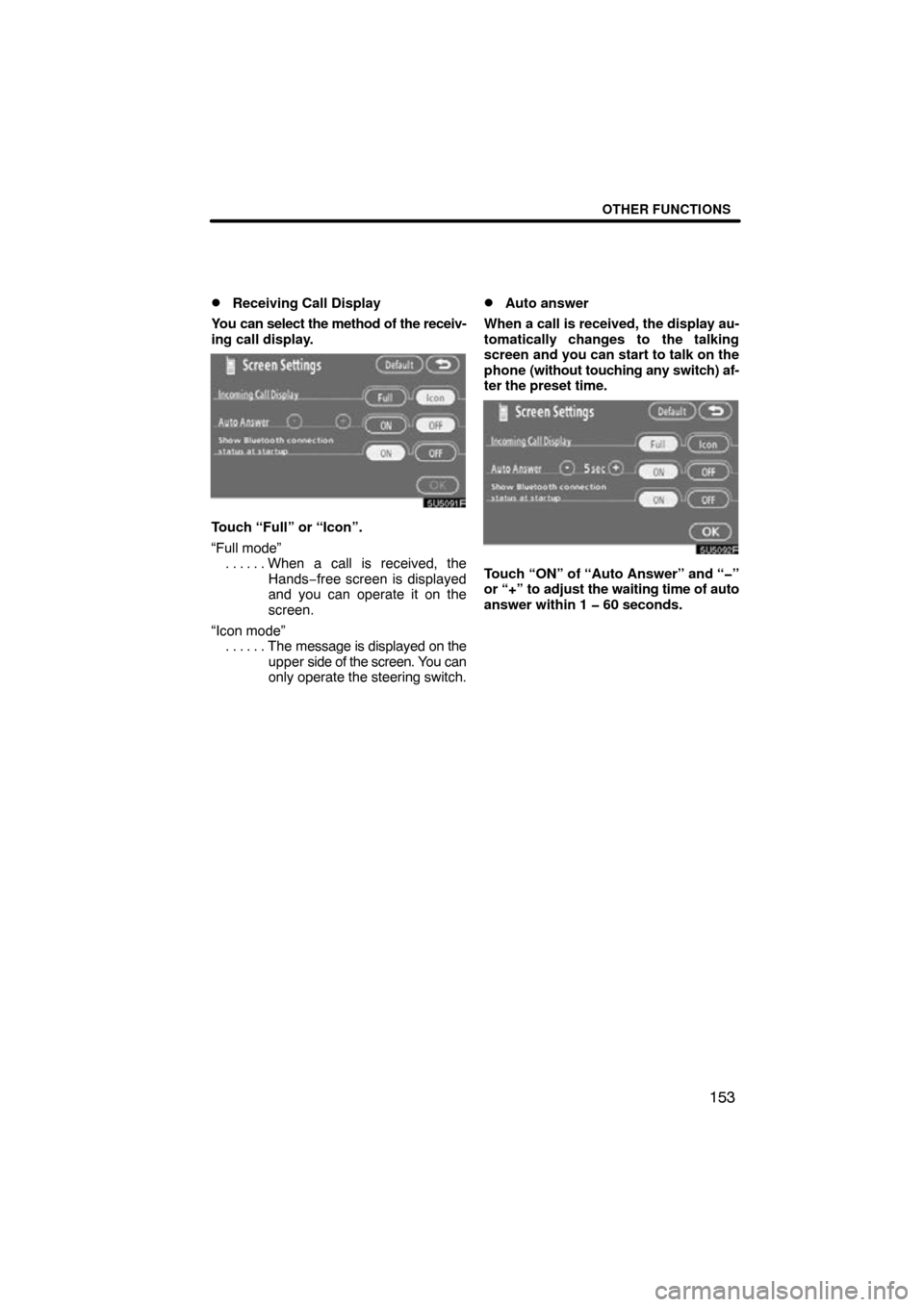

Receiving Call Display
You can select the method of the receiv-
ing call display.
Touch “Full” or “Icon”.
“Full mode” When a call is received, the
. . . . . .
Hands−free screen is displayed
and you can operate it on the
screen.
“Icon mode” The message is displayed on the
. . . . . .
upper side of the screen. You can
only operate the steering switch.
Auto answer
When a call is received, the display au-
tomatically changes to the talking
screen and you can start to talk on the
phone (without touching any switch) af-
ter the preset time.
Touch “ON” of “Auto Answer” and “”
or “+” to adjust the waiting time of auto
answer within 1 60 seconds.

AUDIO/VIDEO SYSTEM
192
The touch screen buttons for radio, CD
changer and DVD player operation are
displayed on the function touch screen
button display screen when the audio
control mode is selected. Touch them
lightly and directly on the screen.
The selected switch is highlighted.
INFORMATION
If the system does not respond to
a touch of a touch screen button,
move your finger away from the
screen and then touch it again.
 You cannot operate dimmed touch
screen buttons.
 Wipe off fingerprints on the sur-
face of the display using a glass
cleaning cloth.
(c) Tone and balance
How good an audio program sounds to you
is largely determined by the mix of the
treble, midrange, and bass levels. In fact,
different kinds of music and vocal pro-
grams usually sound better with different
mixes of treble, mid −range, and bass.
A good balance of the left and right stereo
channels and of the front and rear sound
levels is also important.
Keep in mind that if you are listening to a
stereo recording or broadcast, changing
the right/left balance will increase the vol-
ume of one group of sounds while de-
creasing the volume of another.

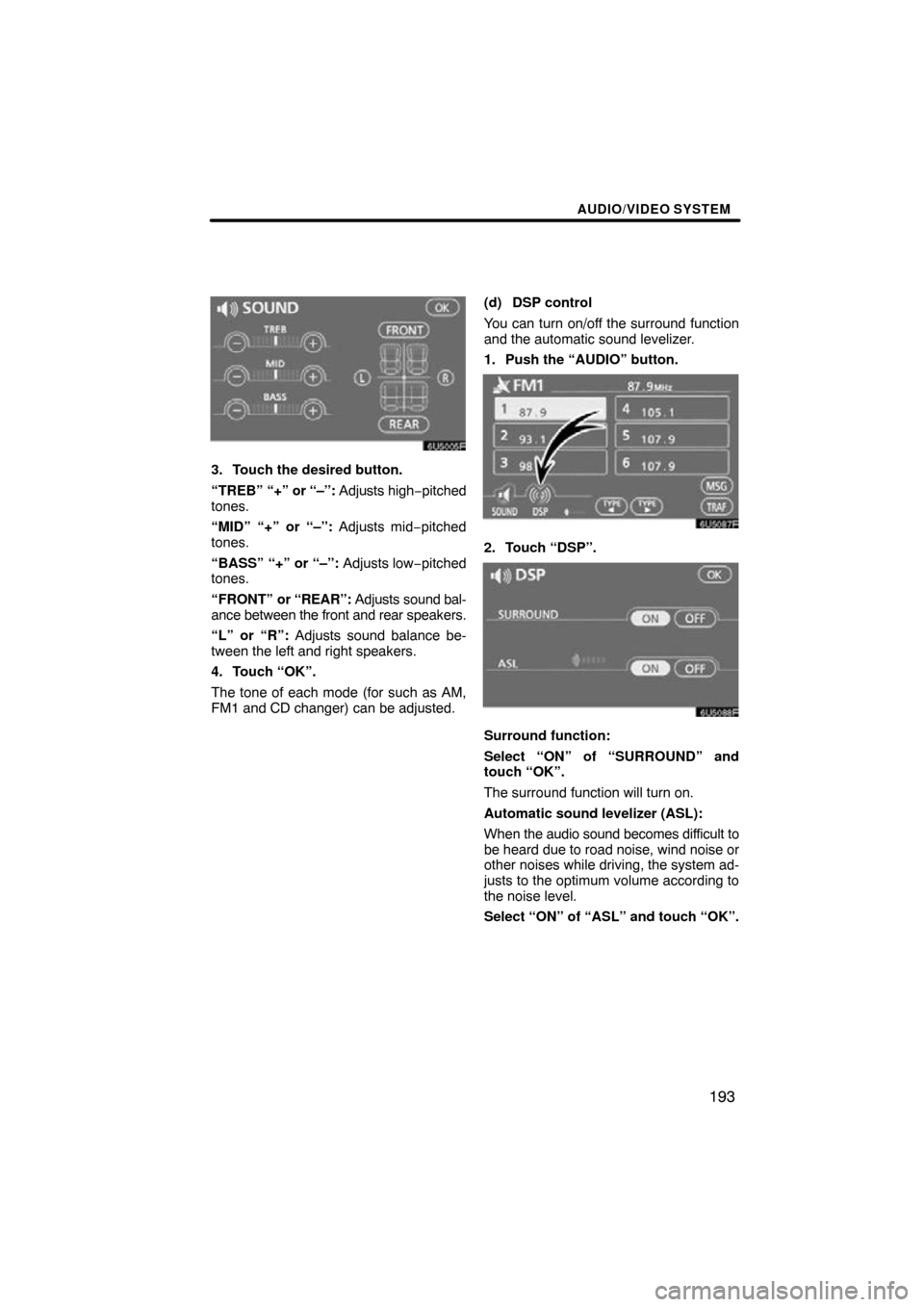

1. Push the “AUDIO” button.
2. Touch “SOUND”.

AUDIO/VIDEO SYSTEM
193
3. Touch the desired button.
“TREB” “+” or “–”: Adjusts high −pitched
tones.
“MID” “+” or “–”: Adjusts mid−pitched
tones.
“BASS” “+” or “–”: Adjusts low− pitched
tones.
“FRONT” or “REAR”: Adjusts sound bal-
ance between the front and rear speakers.
“L” or “R”: Adjusts sound balance be-
tween the left and right speakers.
4. Touch “OK”.
The tone of each mode (for such as AM,
FM1 and CD changer) can be adjusted. (d) DSP control
You can turn on/off the surround function
and the automatic sound levelizer.
1. Push the “AUDIO” button.
2. Touch “DSP”.
Surround function:
Select “ON” of “SURROUND” and
touch “OK”.
The surround function will turn on.
Automatic sound levelizer (ASL):
When
the audio sound becomes difficult to
be heard due to road noise, wind noise or
other noises while driving, the system ad-
justs to the optimum volume according to
the noise level.
Select “ON” of “ASL” and touch “OK”.

AUDIO/VIDEO SYSTEM
196
Turn the knob clockwise to step up the
station band or counterclockwise to
step down.
Your radio automatically changes to stereo
reception when a stereo broadcast is re-
ceived. “ST” appears on the screen. If the
signal becomes weak, the radio reduces
the amount of channel separation to pre-
vent the weak signal from creating noise.
If the signal becomes extremely weak, the
radio switches from stereo to mono recep-
tion. In this case, “ST” disappears from the
screen.
(b) Presetting a station
1. Tune in the desired station.
2. Touch one of the touch screen but-
tons (1 — 6) you want and hold it until
a beep is heard. This sets the station to
the touch screen button and the fre-
quency appears on the touch screen
button.
Each radio mode (AM, FM1 or FM2) can
store up to 6 stations. To change the pre-
set station to a different one, follow the
same procedure.
The preset station memory is cancelled
when the power source is interrupted by
battery disconnection or a blown fuse.

AUDIO/VIDEO SYSTEM
197
(c) Selecting a station
Tune in the desired station using one of the
following methods.
Preset tuning: Touch the touch screen
button (1 — 6) for the station you want.
The touch screen button is highlighted and
the station frequency appears on the
screen.
Seek tuning: Push the “SEEK/TRACK”
button on ei ther side. The radio will begin
seeking up or down for a station of the
nearest frequency and will stop on recep-
tion. Each time you push the button, the
stations will be searched automatically
one after another.
To scan all the frequencies: Touch
“SCAN” on the screen or push the
“SCAN” button briefly. “SCAN” appears
on the screen. The radio will find the next
station and stay there for a few seconds,
and then scan again. To select a station,
touch “SCAN” or push the “SCAN” but-
ton again.
To scan the preset stations: Touch
“SCAN” on the screen or push the
“SCAN” button for longer than a second.
“P. SCAN” appears on the screen. The ra-
dio will tune in the next preset station, stay
there for a few seconds, and then move to
the next preset station. To select a station,
touch “SCAN” or push the “SCAN” but-
ton again. (d) Radio Data System
Your audio/video system is equipped with
Radio Data Systems (RDS). RDS mode
provides you to receive text messages
from radio stations that utilize RDS trans-
mitters.
When RDS is on, the radio can
— only select stations of a particular pro-
gram type,
— display messages from radio stations,
— search for a stronger signal station.
RDS features are ava
ilable for the use only
on FM stations which broadcast RDS in-
formation.

AUDIO/VIDEO SYSTEM
228
PLAYING A DVD DISC
Push the “AUDIO” button to display
this screen.
When you touch “WIDE”, the screen
mode can be changed.
It you touch “PICTURE” when the vehicle
is completely stopped and the parking
brake is applied, the video screen returns.
DISPLAYING DVD CONTROLS
If you touch a part of the screen, where
controls are not located while watching
video, DVD controls will appear.
“Page2”: Touching this will display on the
second page of DVD controls.
“Page1”: Touching this will display the top
page of DVD controls.
“Hide Buttons”: Touching this will turn off
the controls from the screen.
If “
” appears on the screen when you
touch a control, the operation relevant to
the control is not permitted.

AUDIO/VIDEO SYSTEM
237
(g) Operating a video CD
PLAYING A VIDEO CD
Push the “AUDIO” button to display
this screen.
When you touch “WIDE”, the screen
mode can be changed.
It you touch “PICTURE” when the vehicle
is completely stopped and the parking
brake is applied, the video screen returns.
DISPLAYING VIDEO CD CONTROLS
If you touch the part where controls are not
located while you are watching video on
the video CD, video CD controls will ap-
pear.
“Page2”: Touching this will display on the
second page of video CD controls.
“Page1”: Touching this will display on the
top page of video CD controls.
“Hide Buttons”: Touching this will turn off
the controls from the screen.
If “
” appears on the display when you
touch a control, the operation is not per-
mitted.

AUDIO/VIDEO SYSTEM
238
DESCRIPTION OF VIDEO CD CON-
TROLS
Controls on top page
“Select Number”: The track or number
search screen appears. (See “SEARCH-
ING BY TRACK” on page 239.)
“Prev. Menu”: When you touch this while
the disc menu is displayed, the previous
page appears on the screen. If you touch
this while the player is playing video, the
previous track is searched and played.
“Next Menu”: When you touch this while
the disc menu is displayed, the next page
appears on the display. If you touch this
while the player is playing video, the next
track is searched and played.
“Main/Sub”: A multiplex transmission
changing control. The mode changes from
Main/Sub to Main, to Sub and back to
Main/Sub by touching this control.
“Return”: Touching this will display the
predetermined scene and start playing
from there.
Controls on second page
: Use this to pause the video
screen. When you touch this again, the
video screen advance frame by frame.
 : Touch this to fast reverse during
playback.
 : Touch this to pause during playback
and resume playing during pause.
 : Touch this to fast forward during the
playback and start playing slowly during
pause.

INDEX
272
Numbers/Symbols
? button
42,88,89
. . . . . . . . . . . . . . . . . . . . . .
3 Routes selection 65 . . . . . . . . . . . . . . . . . .
A
Adaptive volume control 151
. . . . . . . . . . . .
Adding a memo 126
. . . . . . . . . . . . . . . . . . . .
Adding destinations 74
. . . . . . . . . . . . . . . . .
Adding the data to the phone book 159
. . . .
Address button 42
. . . . . . . . . . . . . . . . . . . . .
Alphabet key 26
. . . . . . . . . . . . . . . . . . . . . . .
AM·SAT button 188
. . . . . . . . . . . . . . . . . . . .
Angle mark 232
. . . . . . . . . . . . . . . . . . . . . . .
Area to avoid 103
. . . . . . . . . . . . . . . . . . . . . .
Arrow screen 34,70
. . . . . . . . . . . . . . . . . . . . .
ASL 193
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
AUDIO button 188
. . . . . . . . . . . . . . . . . . . . .
Audio language 232
. . . . . . . . . . . . . . . . . . . .
Audio remote controls 242
. . . . . . . . . . . . . .
Auto answer 153
. . . . . . . . . . . . . . . . . . . . . .
Auto voice guidance 89,115
. . . . . . . . . . . . . .
Automatic sound levelizer 193
. . . . . . . . . . .
Automatic transition 182
. . . . . . . . . . . . . . . .
Automatic volume settings for
high speed 151
. . . . . . . . . . . . . . . . . . . . . .
AUX adapter 195
. . . . . . . . . . . . . . . . . . . . . .
B
BASS 192
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Beep setting 184
. . . . . . . . . . . . . . . . . . . . . .
Bluetooth  129
. . . . . . . . . . . . . . . . . . . . . . . .
Bluetooth  information 171
. . . . . . . . . . . . . .
Brightness 179
. . . . . . . . . . . . . . . . . . . . . . . .
Building information 38
. . . . . . . . . . . . . . . . .
C
Calendar with memo 124
. . . . . . . . . . . . . . .
Calibration 89
. . . . . . . . . . . . . . . . . . . . . . . . .
Call by dial 136
. . . . . . . . . . . . . . . . . . . . . . . .
Call by dialed numbers 137
. . . . . . . . . . . . .
Call by phone book 137
. . . . . . . . . . . . . . . . .
Call by POI 142
. . . . . . . . . . . . . . . . . . . . . . .
Call by received calls 138
. . . . . . . . . . . . . . .
Call by speed dial 139
. . . . . . . . . . . . . . . . . .
Call by voice recognition 140
. . . . . . . . . . . .
Call on the Bluetooth phone 136
. . . . . . . .
Categories 54
. . . . . . . . . . . . . . . . . . . . . . . . .
CD changer operation 206
. . . . . . . . . . . . . .
Cellular phone 129
. . . . . . . . . . . . . . . . . . . . .
Change “Area Size” 107
. . . . . . . . . . . . . . . .
Change “Icon” 97
. . . . . . . . . . . . . . . . . . . . . . Change “Location”
100,106
. . . . . . . . . . . . . .
Change “Name” 99,105
. . . . . . . . . . . . . . . . .
Change “Phone #” 101
. . . . . . . . . . . . . . . . .
Change “Quick Access” 98
. . . . . . . . . . . . . .
Change button 42
. . . . . . . . . . . . . . . . . . . . .
Change the route 64
. . . . . . . . . . . . . . . . . . .
Changing a device name 172
. . . . . . . . . . . .
Changing the angle 232
. . . . . . . . . . . . . . . .
Changing the audio language 231
. . . . . . . .
Changing the Bluetooth settings 172. . . . .
Changing the map DVD −ROM 269 . . . . . . .
Changing the security code 167
. . . . . . . . . .
Changing the setting of the
Bluetooth  phone 145
. . . . . . . . . . . . . . . .
Changing the subtitle language 231 . . . . . . .
City center 55
. . . . . . . . . . . . . . . . . . . . . . . . .
City name 49,52
. . . . . . . . . . . . . . . . . . . . . . .
City to search 49,52
. . . . . . . . . . . . . . . . . . . .
Color 179
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Command list 178
. . . . . . . . . . . . . . . . . . . . .
Compass mode
36
. . . . . . . . . . . . . . . . . . . . .
Compass mode screen 34
. . . . . . . . . . . . . .
Connecting a Bluetooth  phone 135 . . . . . .
Contrast 179
. . . . . . . . . . . . . . . . . . . . . . . . . .
Coordinates button 42
. . . . . . . . . . . . . . . . . .
Current position as the search point 55 . . .
Current position display 29
. . . . . . . . . . . . . .
Current position/tire change calibration 117
. . . . . . . . . . . . . . . . . . . . . . .
Cursor position as a destination 31 . . . . . . .
Cursor position as a memory point 32 . . . .
D
Database version 270
. . . . . . . . . . . . . . . . . .
Dealer setting 122
. . . . . . . . . . . . . . . . . . . . .
Default 89
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Delete personal data 183
. . . . . . . . . . . . . . .
Deleting “Quick Access” 99
. . . . . . . . . . . . .
Deleting a Bluetooth  phone 174
. . . . . . . . .
Deleting a group name 164
. . . . . . . . . . . . . .
Deleting all of the speed dial 147
. . . . . . . . .
Deleting all the group name 165
. . . . . . . . .
Deleting all the phone data161
. . . . . . . . . .
Deleting area to avoid 107
. . . . . . . . . . . . . .
Deleting destinations 75
. . . . . . . . . . . . . . . .
Deleting home 103
. . . . . . . . . . . . . . . . . . . . .
Deleting memory points 101
. . . . . . . . . . . . .
Deleting previous points 108
. . . . . . . . . . . .
Deleting the log data 165
. . . . . . . . . . . . . . .
Deleting the phone data 160
. . . . . . . . . . . . .
Deleting the speed dial individually 147 . . .
Deleting the speed tone individually 150
. . . . . . . . . . . . . . . . . . . . .
DEST button 10,42,43
. . . . . . . . . . . . . . . . . .
Destination information 34
. . . . . . . . . . . . . .
