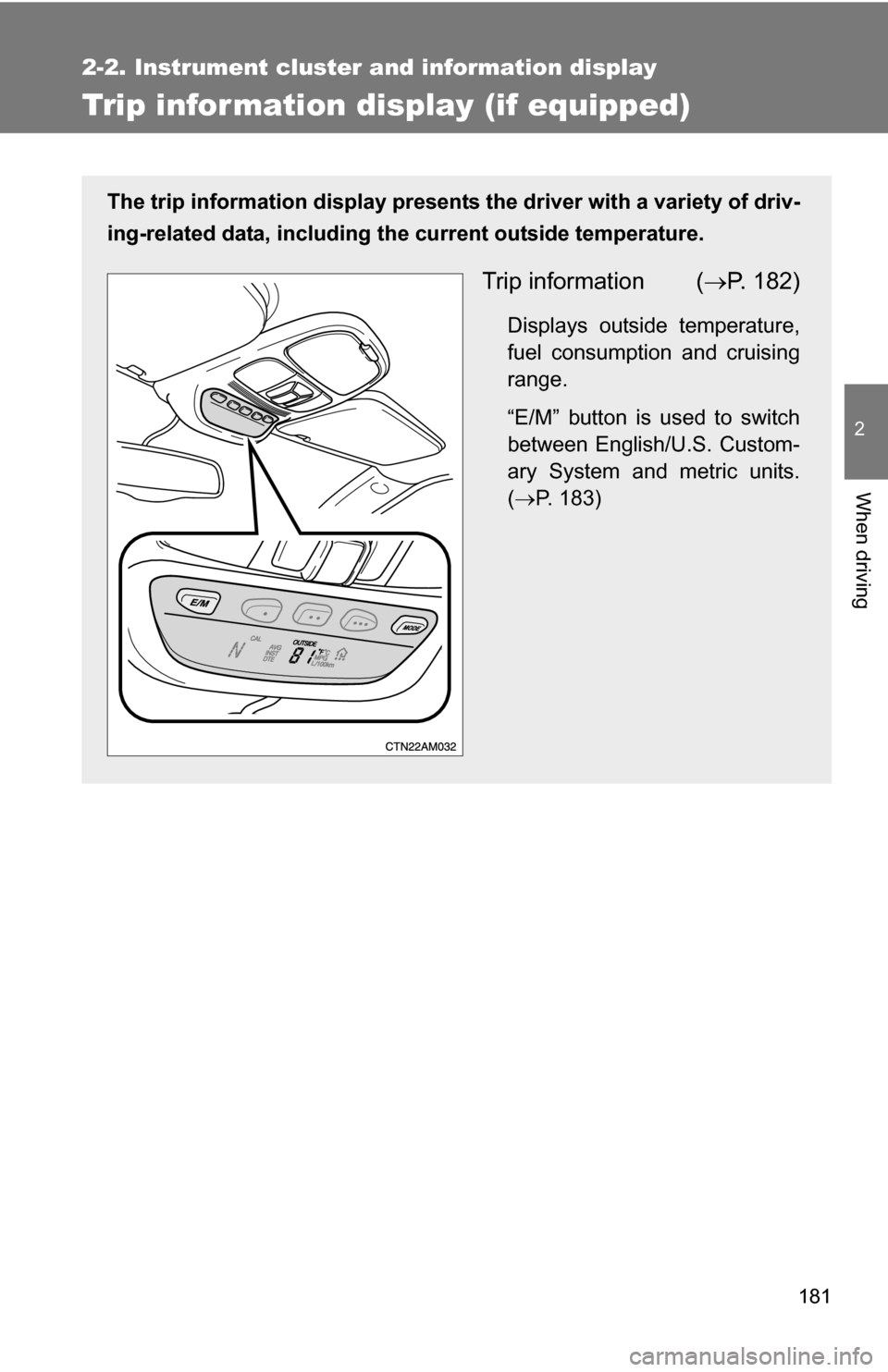

TOYOTA SIENNA 2009 XL20 / 2.G Owners Manual

181
2-2. Instrument cluster and information display
2
When driving
Trip information display (if equipped)
The trip information display presents the driver with a variety of driv-
ing-related data, including th e current outside temperature.
Trip information (P. 182)
Displays outside temperature,
fuel consumption and cruising
range.
“E/M” button is used to switch
between English/U.S. Custom-
ary System and metric units.
(P. 183)

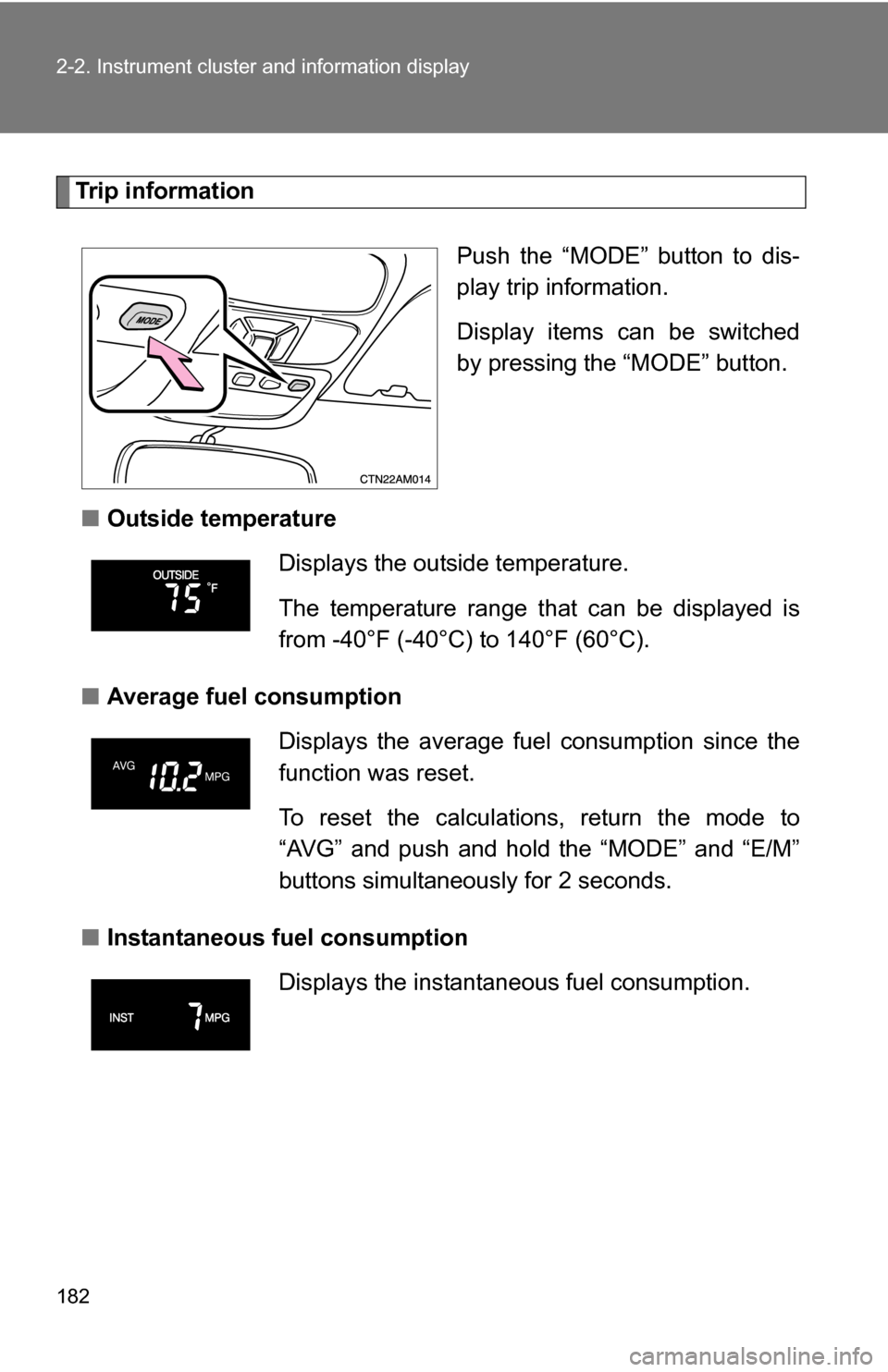

182 2-2. Instrument cluster and information display
Trip informationPush the “MODE” button to dis-
play trip information.
Display items can be switched
by pressing the “MODE” button.
■ Outside temperature
■ Average fuel consumption
■ Instantaneous fuel consumption
Displays the outside temperature.
The temperature range that can be displayed is
from -40°F (-40°C) to 140°F (60°C).
Displays the average fuel consumption since the
function was reset.
To reset the calculations, return the mode to
“AVG” and push and hold the “MODE” and “E/M”
buttons simultaneously for 2 seconds.
Displays the instantane ous fuel consumption.

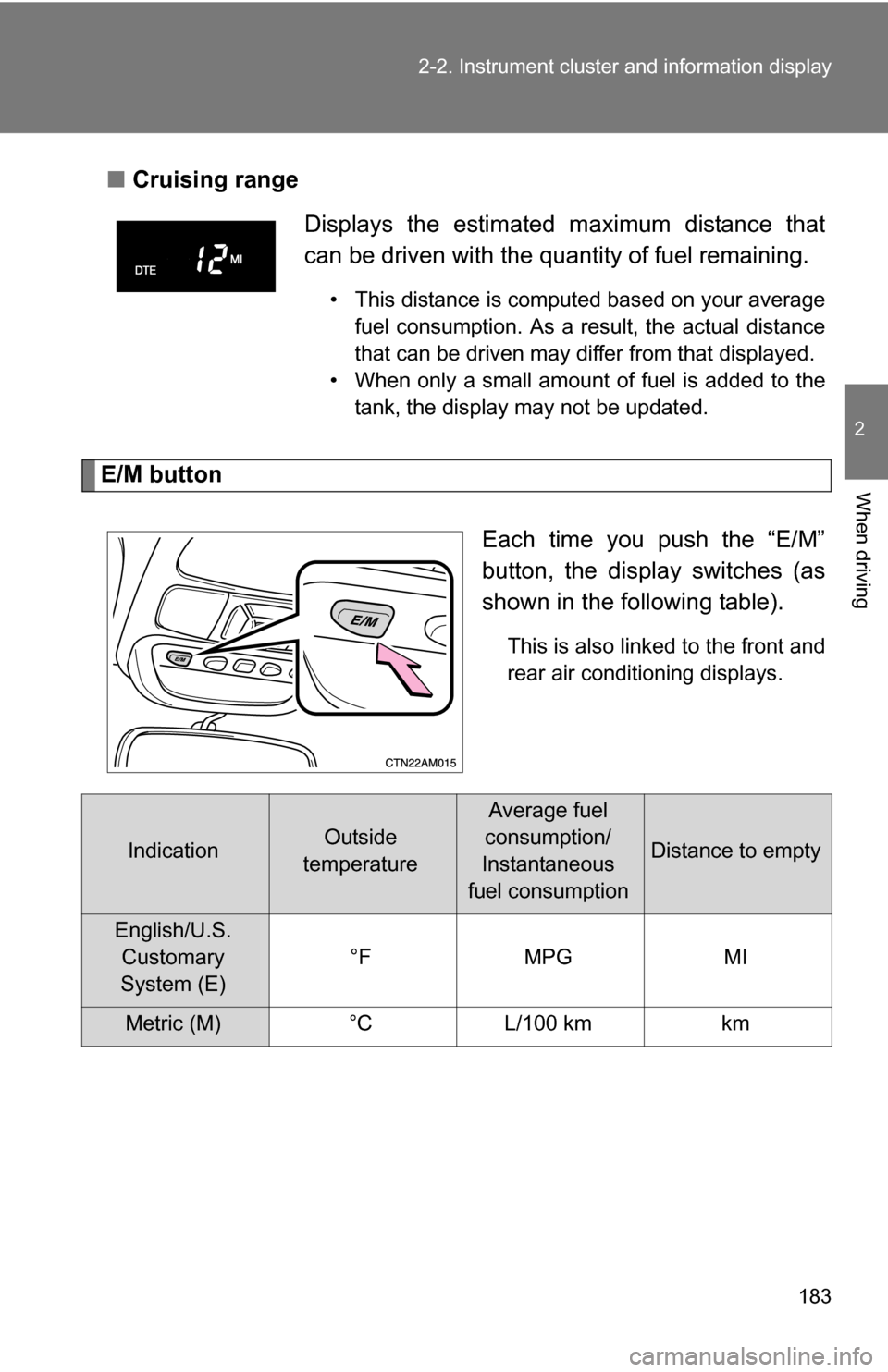

183
2-2. Instrument cluster and information display
2
When driving
■
Cruising range
E/M button
Each time you push the “E/M”
button, the display switches (as
shown in the following table).
This is also linked to the front and
rear air conditioning displays.
Displays the estimated maximum distance that
can be driven with the quantity of fuel remaining.
• This distance is computed based on your averagefuel consumption. As a result, the actual distance
that can be driven may differ from that displayed.
• When only a small amount of fuel is added to the tank, the display may not be updated.
IndicationOutside
temperature
Average fuel
consumption/
Instantaneous
fuel consumption
Distance to empty
English/U.S. Customary
System (E) °F MPG MI
Metric (M)
°CL/100 km km

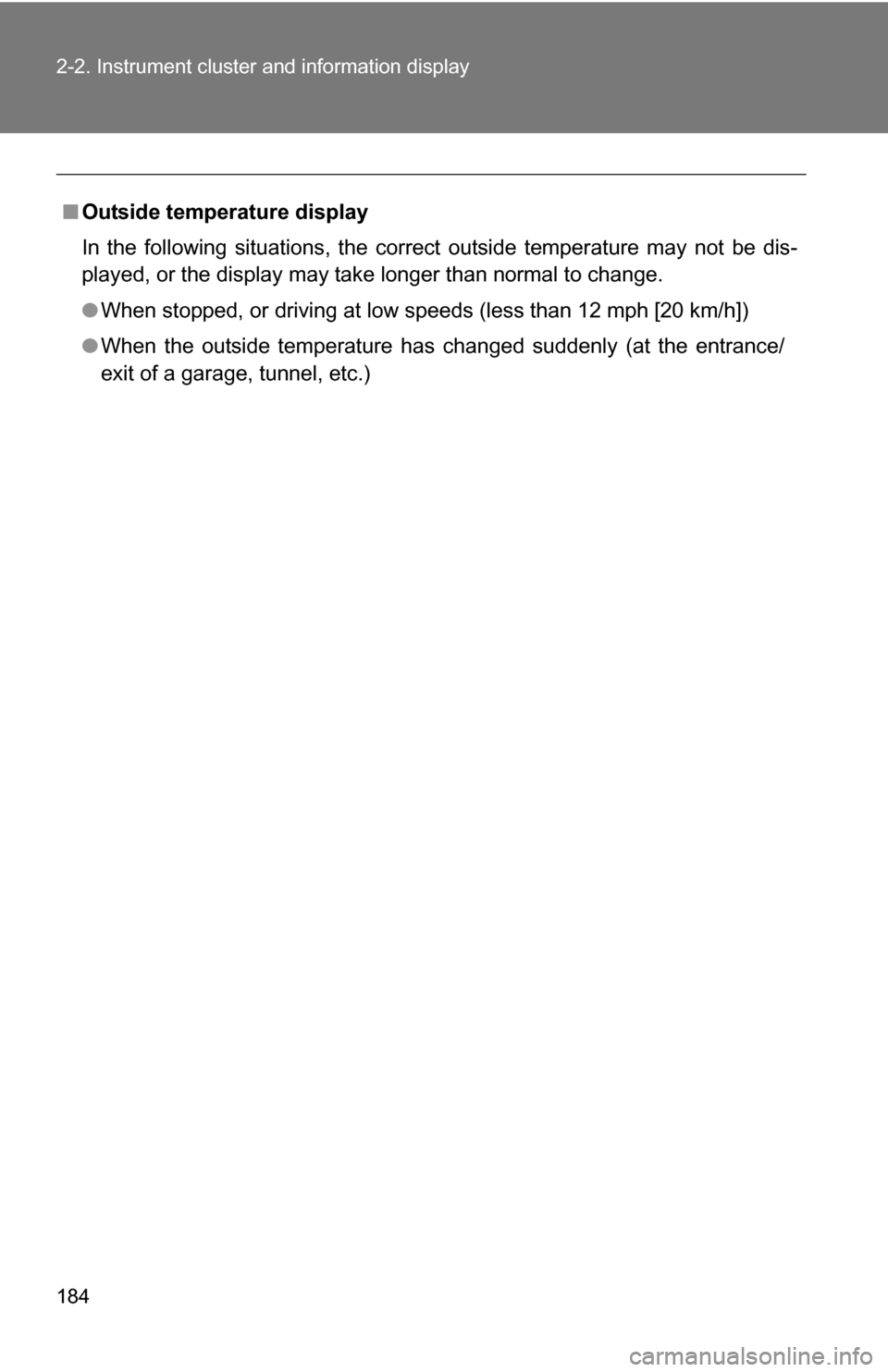

184 2-2. Instrument cluster and information display
■Outside temperature display
In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change.
●When stopped, or driving at low speeds (less than 12 mph [20 km/h])
● When the outside temperature has changed suddenly (at the entrance/
exit of a garage, tunnel, etc.)

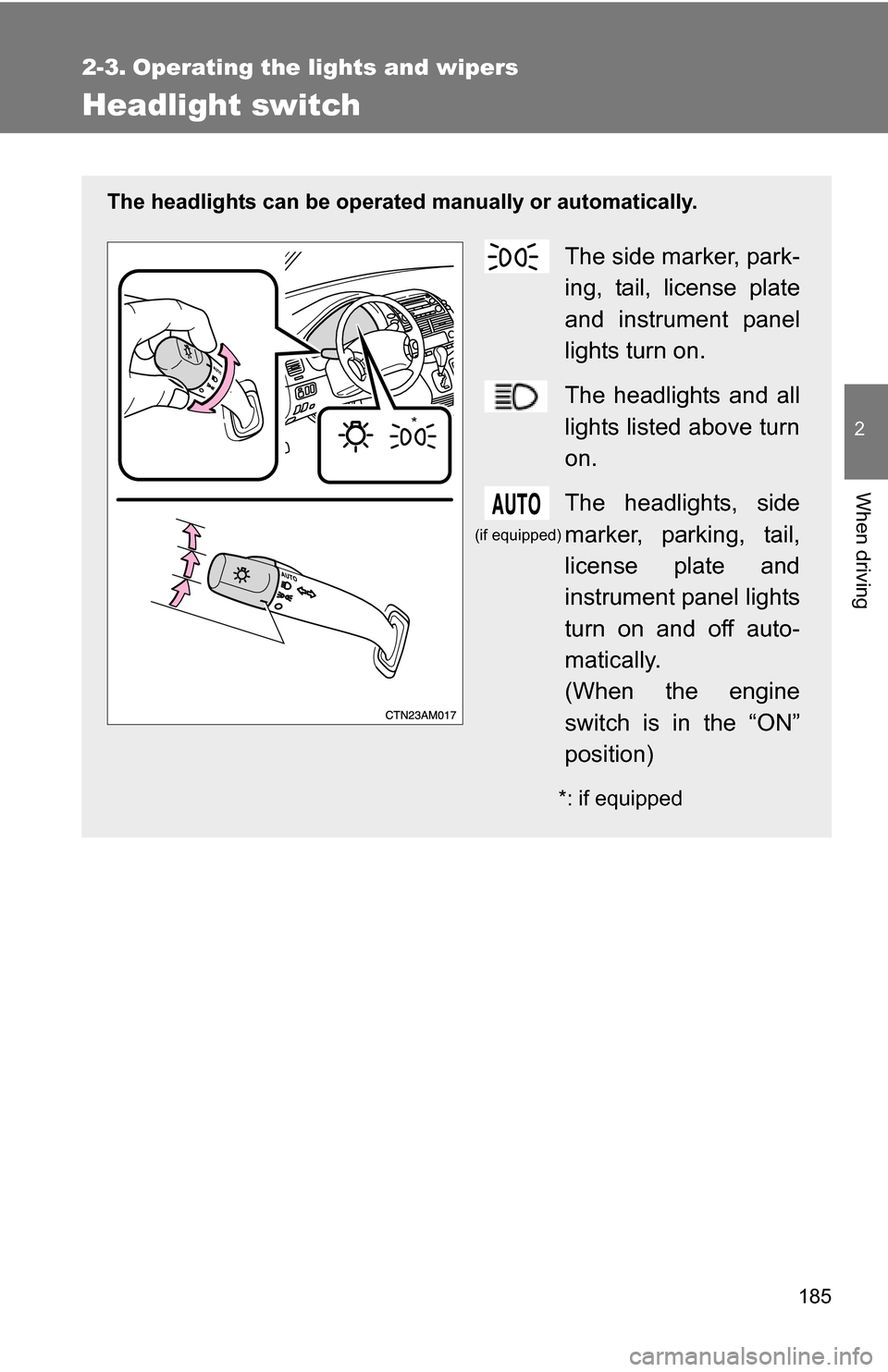

185
2
When driving
2-3. Operating the lights and wipers
Headlight switch
The headlights can be operated manually or automatically.
The side marker, park-
ing, tail, license plate
and instrument panel
lights turn on.
The headlights and all
lights listed above turn
on.
The headlights, side
marker, parking, tail,
license plate and
instrument panel lights
turn on and off auto-
matically.
(When the engine
switch is in the “ON”
position)
*: if equipped
*
(if equipped)

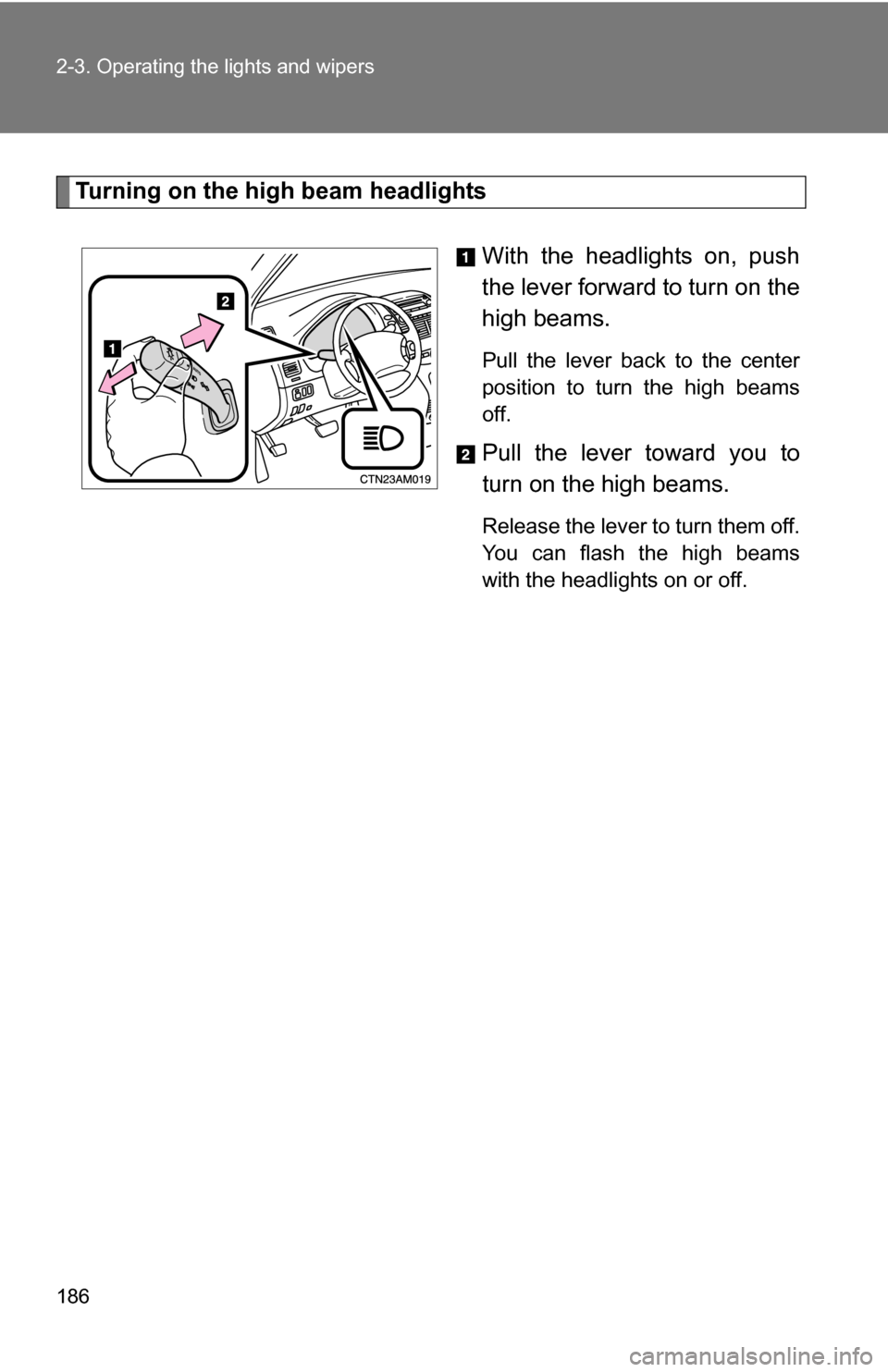

186 2-3. Operating the lights and wipers
Turning on the high beam headlightsWith the headlights on, push
the lever forward to turn on the
high beams.
Pull the lever back to the center
position to turn the high beams
off.
Pull the lever toward you to
turn on the high beams.
Release the lever to turn them off.
You can flash the high beams
with the headlights on or off.

187
2-3. Operating the lights and wipers
2
When driving

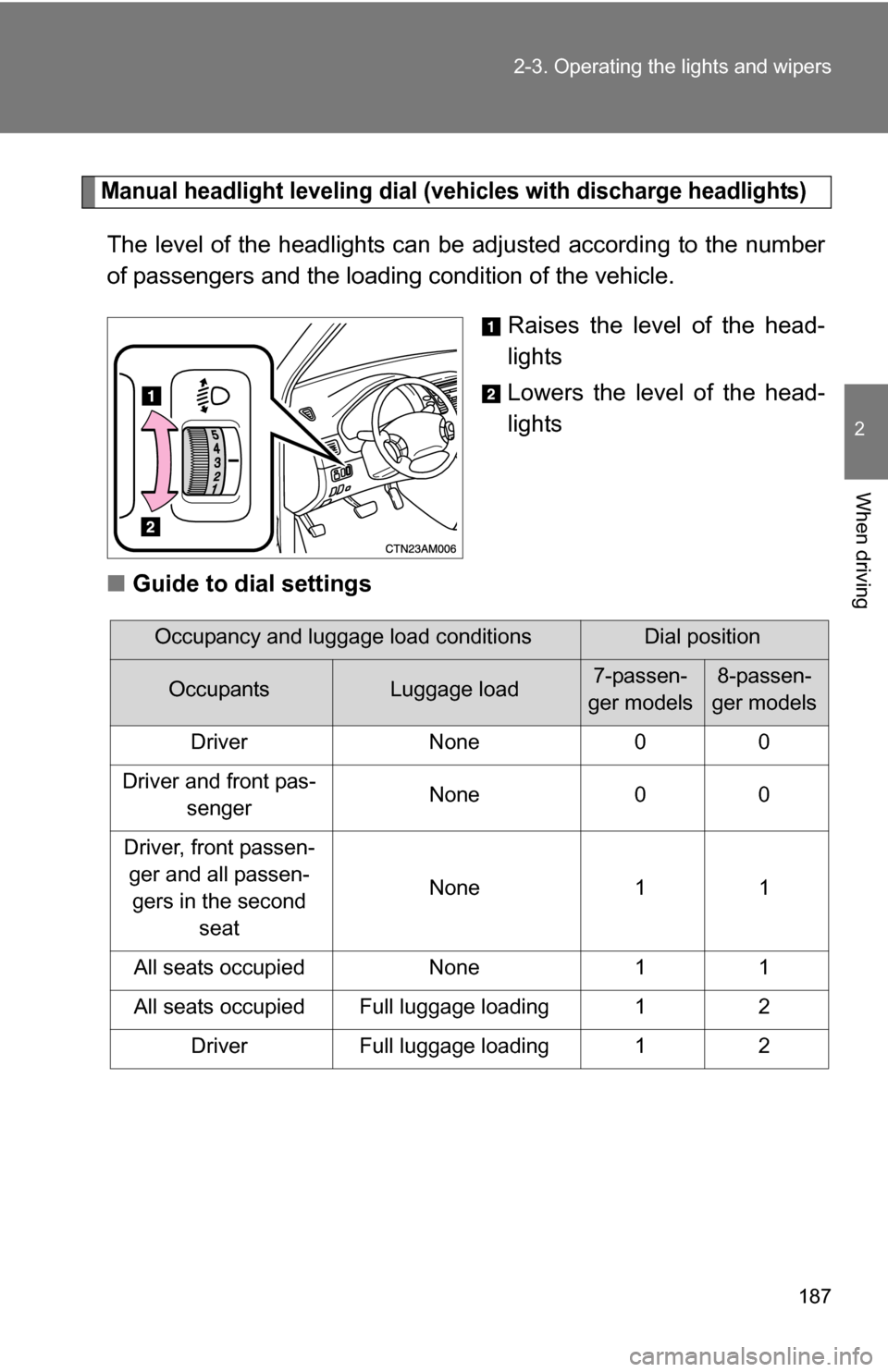

Manual headlight leveling dial (vehicles with discharge headlights)
The level of the headlights can be adjusted according to the number
of passengers and the loading
condition of the vehicle.
Raises the level of the head-
lights
Lowers the level of the head-
lights
■ Guide to dial settings
Occupancy and luggage load conditionsDial position
OccupantsLuggage load7-passen-
ger models8-passen-
ger models
Driver None 0 0
Driver and front pas- senger None 0 0
Driver, front passen- ger and all passen-gers in the second seat None 1 1
All seats occupied None 1 1
All seats occupied Full luggage loading 1 2 Driver Full luggage loading 1 2

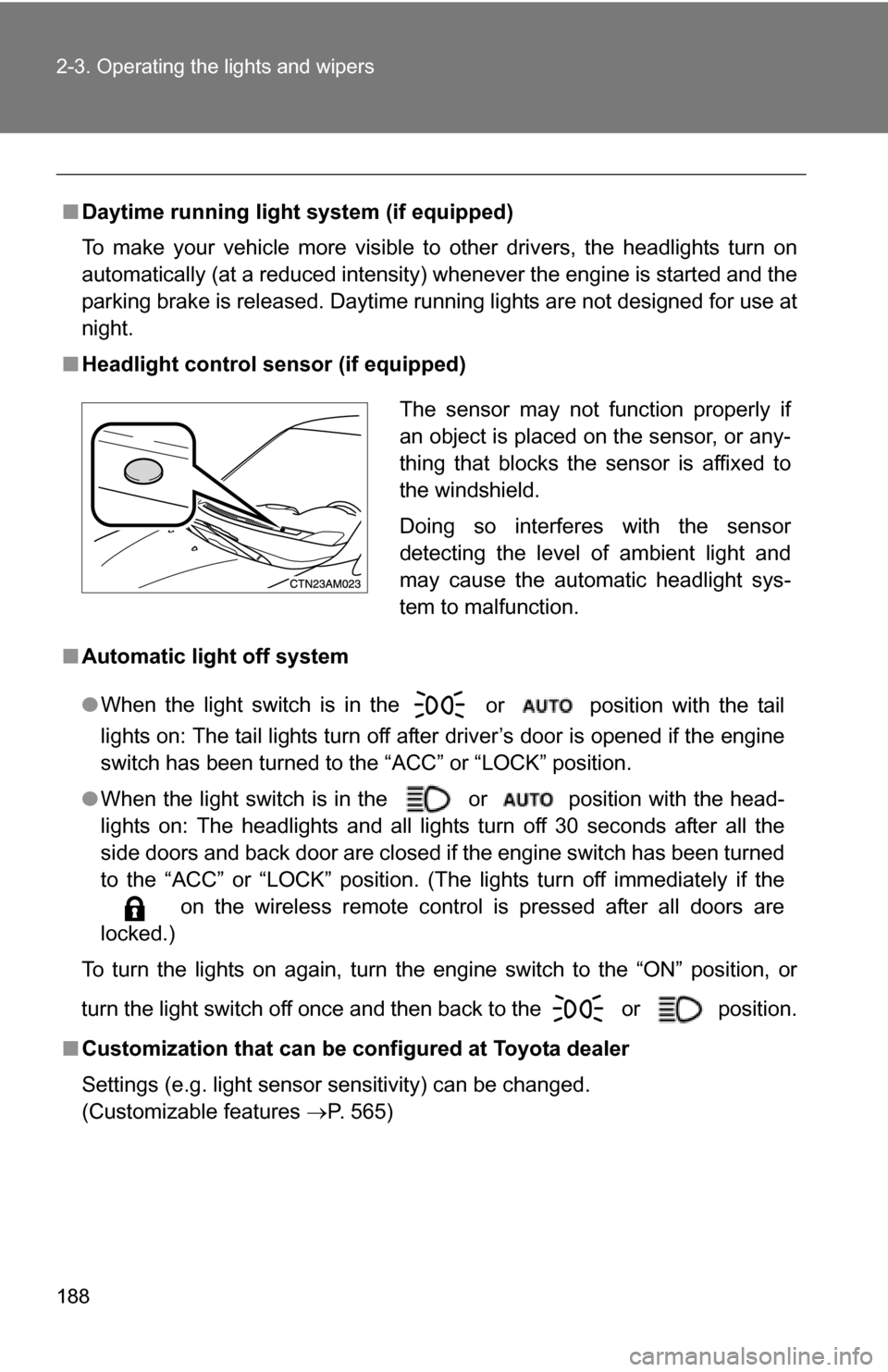

188 2-3. Operating the lights and wipers
■Daytime running light system (if equipped)
To make your vehicle more visible to other drivers, the headlights turn on
automatically (at a reduced intensity) whenever the engine is started and the
parking brake is released. Daytime running lights are not designed for use at
night.
■ Headlight control sensor (if equipped)
■ Automatic light off system
●When the light switch is in the
or position with the tail
lights on: The tail lights turn off after driver’s door is opened if the engine
switch has been turned to the “ACC” or “LOCK” position.
● When the light switch is in the or position with the head-
lights on: The headlights and all lights turn off 30 seconds after all the
side doors and back door are closed if the engine switch has been turned
to the “ACC” or “LOCK” position. (The lights turn off immediately if the
on the wireless remote control is pressed after all doors are
locked.)
To turn the lights on again, turn the engine switch to the “ON” position, or
turn the light switch off once and then back to the
or position.
■ Customization that can be co nfigured at Toyota dealer
Settings (e.g. light sensor sensitivity) can be changed.
(Customizable features P. 565)
The sensor may not function properly if
an object is placed on the sensor, or any-
thing that blocks the sensor is affixed to
the windshield.
Doing so interferes with the sensor
detecting the level of ambient light and
may cause the automatic headlight sys-
tem to malfunction.

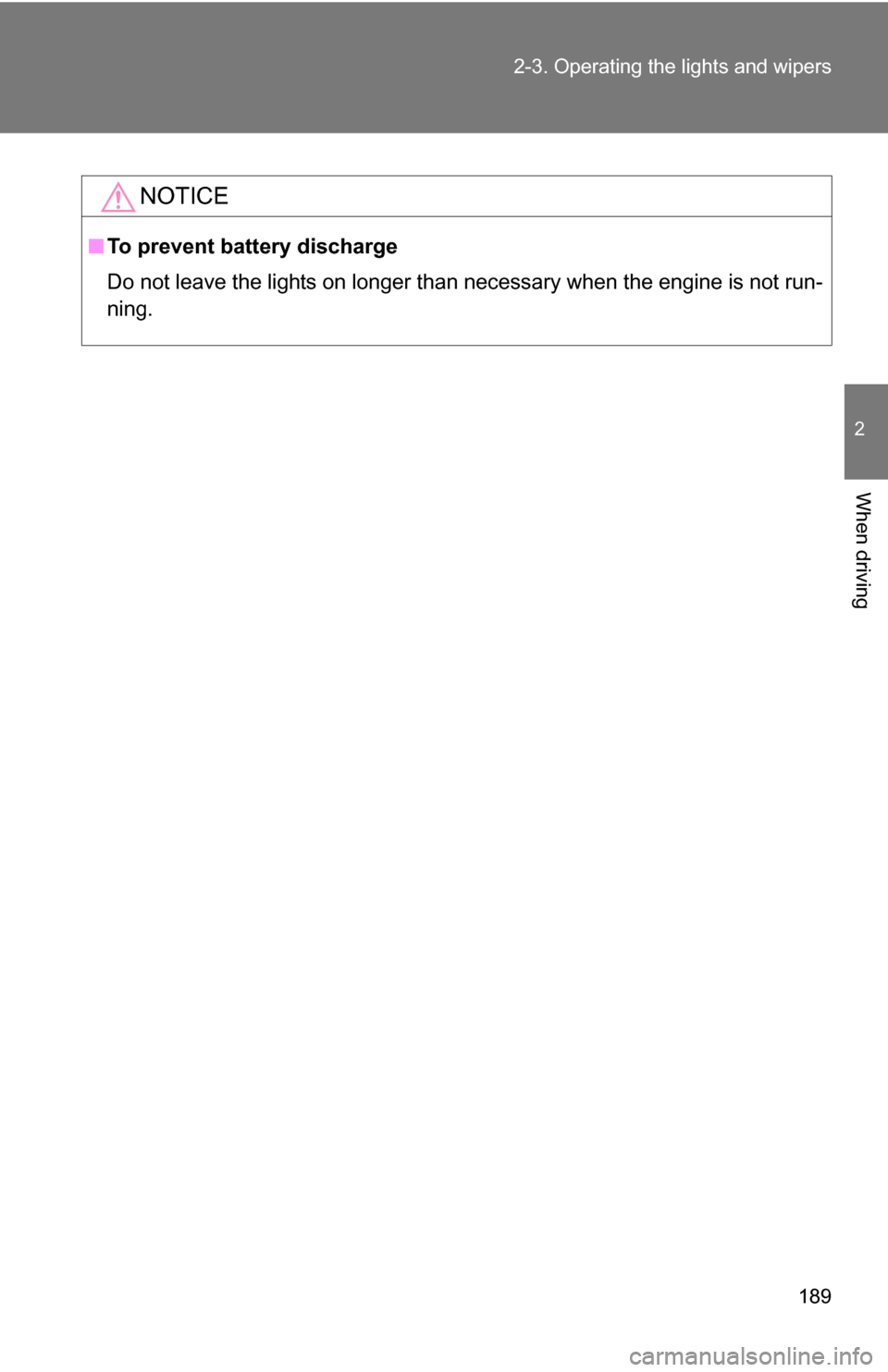

189
2-3. Operating the lights and wipers
2
When driving
NOTICE
■
To prevent battery discharge
Do not leave the lights on longer than necessary when the engine is not run-
ning.

190
2-3. Operating the lights and wipers

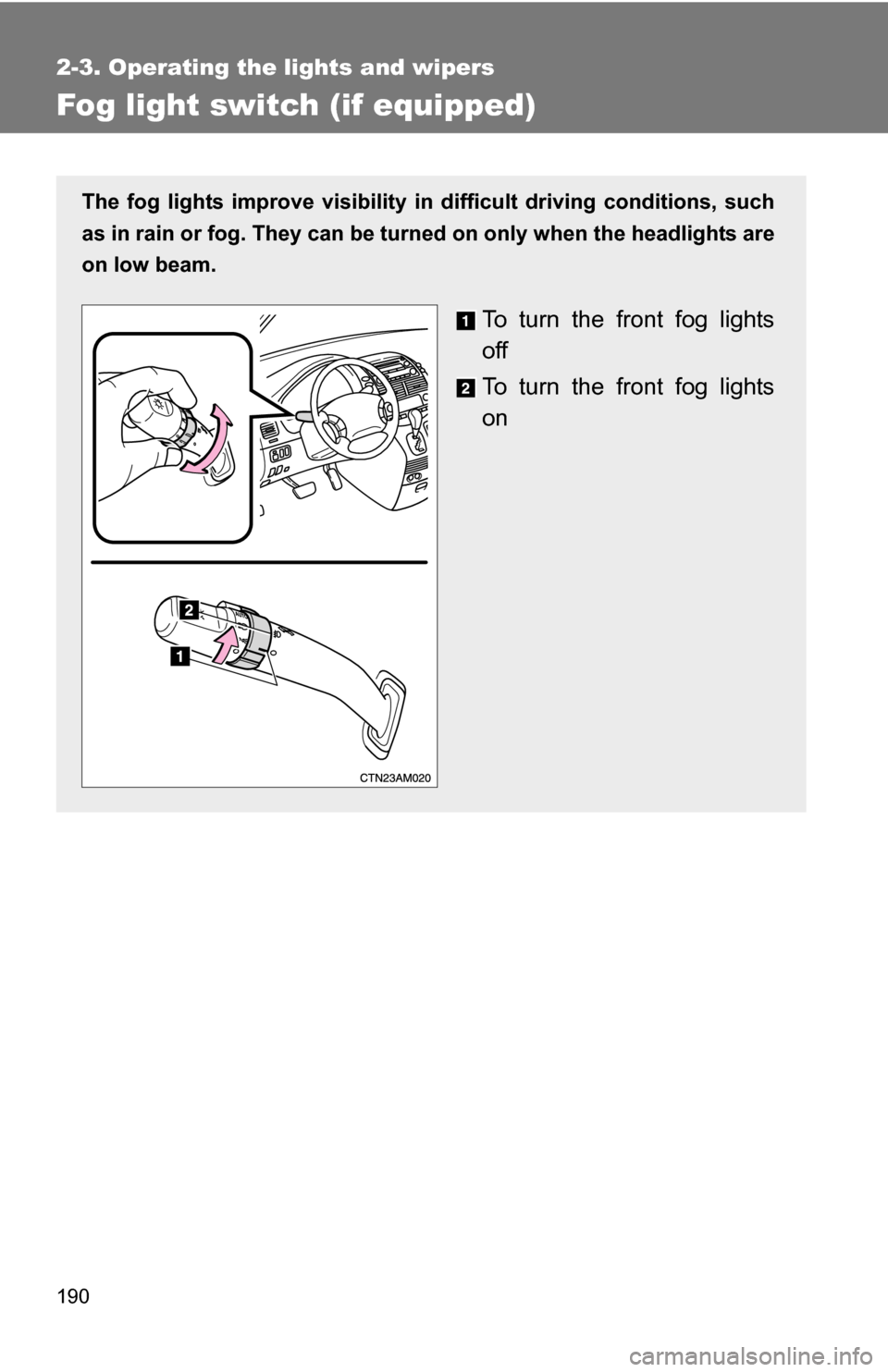

Fog light switch (if equipped)
The fog lights improve visibility in difficult driving conditions, such
as in rain or fog. They can be turned on only when the headlights are
on low beam.
To turn the front fog lights
off
To turn the fr ont fog lights
on
