TOYOTA SIENNA 2009 XL20 / 2.G Owners Manual

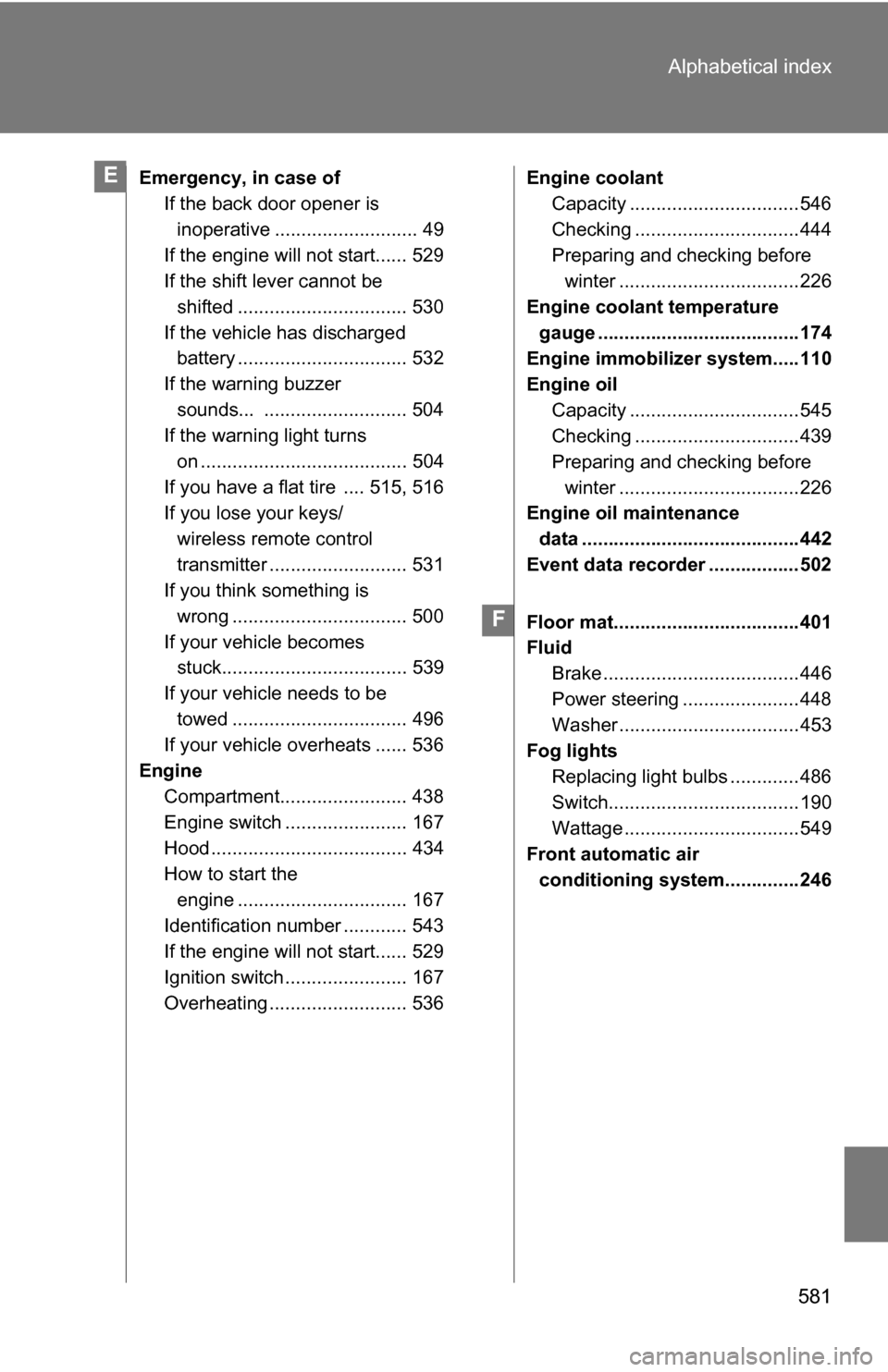

581
Alphabetical index
Emergency, in case of
If the back door opener is
inoperative ........................... 49
If the engine will not start...... 529
If the shift lever cannot be shifted ................................ 530
If the vehicle has discharged battery ................................ 532
If the warning buzzer sounds... ........................... 504
If the warning light turns
on ....................................... 504
If you have a flat tire .... 515, 516
If you lose your keys/ wireless remote control
transmitter .......................... 531
If you think something is
wrong ................................. 500
If your vehicle becomes stuck................................... 539
If your vehicle needs to be towed ................................. 496
If your vehicle overheats ...... 536
Engine Compartment........................ 438
Engine switch ....................... 167
Hood ..................................... 434
How to start the engine ................................ 167
Identification number ............ 543
If the engine will not start...... 529
Ignition switch ....................... 167
Overheating .......................... 536 Engine coolant
Capacity ................................546
Checking ...............................444
Preparing and checking before winter ..................................226
Engine coolan t temperature
gauge ......................................174
Engine immobilizer system.....110
Engine oil
Capacity ................................545
Checking ...............................439
Preparing and checking before winter ..................................226
Engine oil maintenance
data .........................................442
Event data recorder .................502
Floor mat...................................401
Fluid Brake .....................................446
Power steering ......................448
Washer ..................................453
Fog lights Replacing light bulbs .............486
Switch....................................190
Wattage .................................549
Front automatic air conditioning system..............246E
F

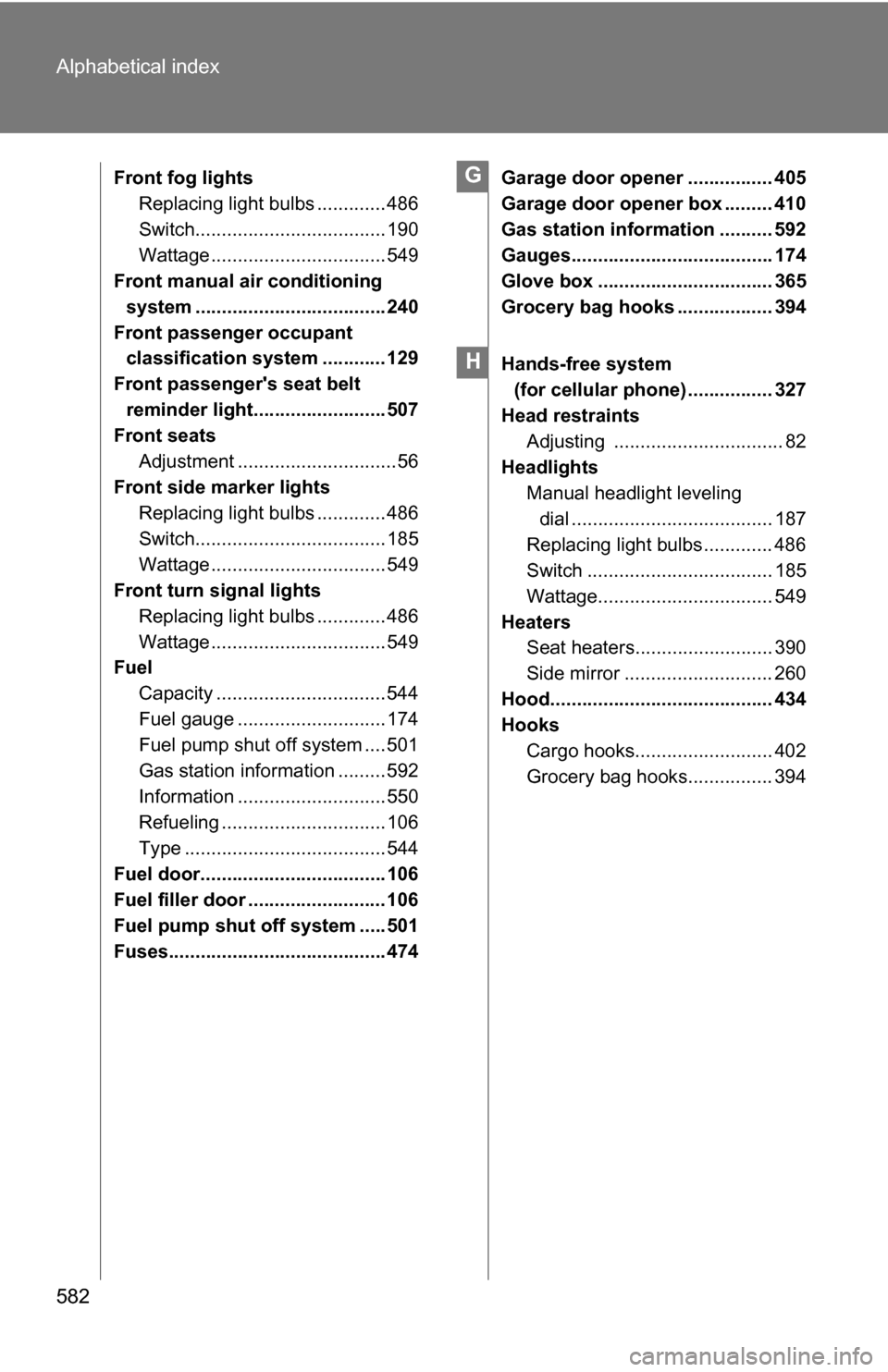

582 Alphabetical index
Front fog lightsReplacing light bulbs ............. 486
Switch.................................... 190
Wattage ................................. 549
Front manual air conditioning
system .................................... 240
Front passenger occupant classification system ............ 129
Front passenger's seat belt reminder light......................... 507
Front seats
Adjustment ..............................56
Front side marker lights Replacing light bulbs ............. 486
Switch.................................... 185
Wattage ................................. 549
Front turn signal lights
Replacing light bulbs ............. 486
Wattage ................................. 549
Fuel
Capacity ................................ 544
Fuel gauge ............................ 174
Fuel pump shut off system .... 501
Gas station information ......... 592
Information ............................ 550
Refueling ............................... 106
Type ...................................... 544
Fuel door................................... 106
Fuel filler door .......................... 106
Fuel pump shut off system ..... 501
Fuses......................................... 474 Garage door opener ................ 405
Garage door opener box ......... 410
Gas station information .......... 592
Gauges...................................... 174
Glove box ................................. 365
Grocery bag hooks .................. 394
Hands-free system
(for cellular phone) ................ 327
Head restraints
Adjusting ................................ 82
Headlights Manual headlight leveling
dial ...................................... 187
Replacing light bulbs ............. 486
Switch ................................... 185
Wattage................................. 549
Heaters Seat heaters.......................... 390
Side mirror ............................ 260
Hood.......................................... 434
Hooks Cargo hooks.......................... 402
Grocery bag hooks................ 394G
H

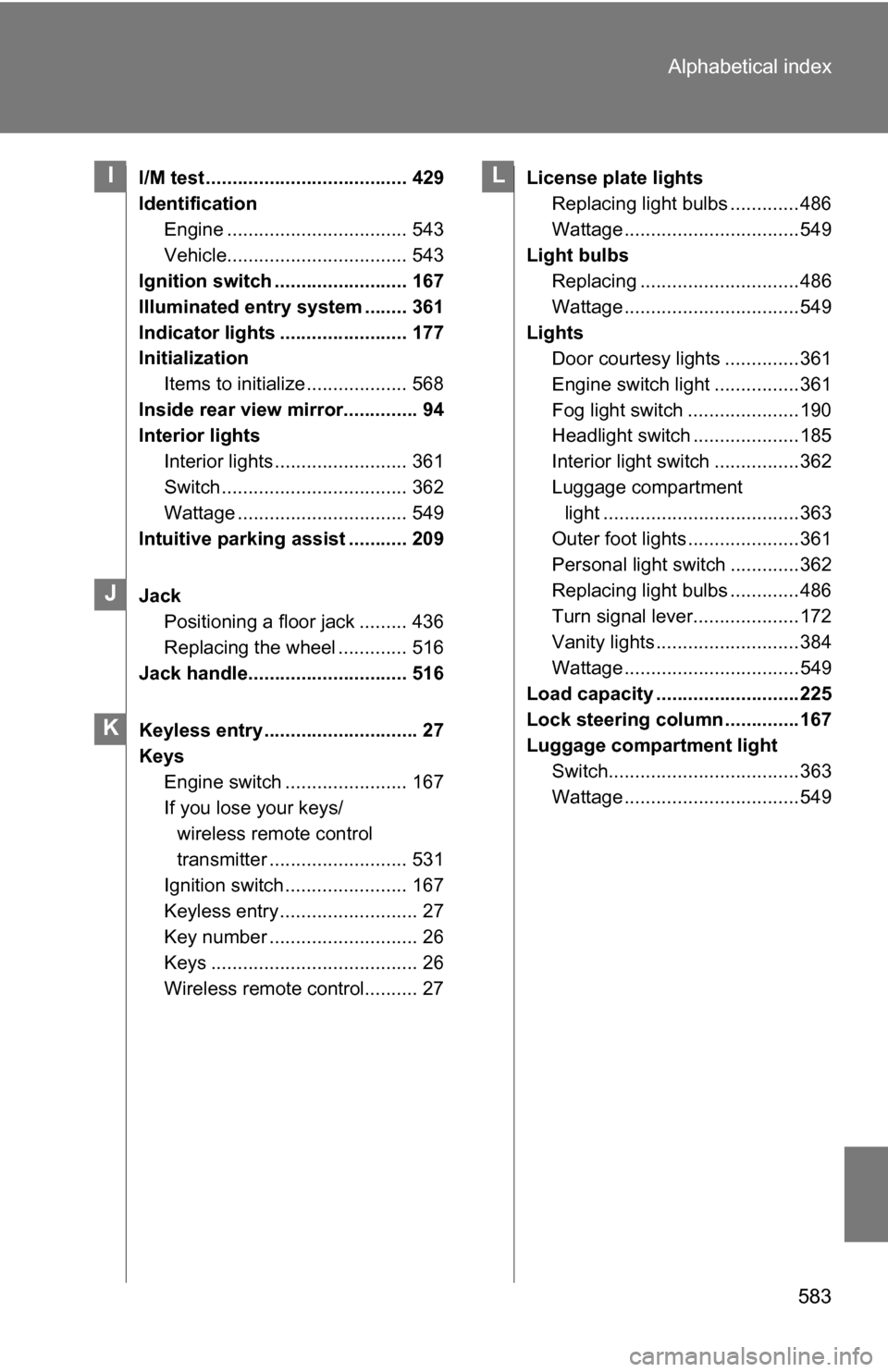

583
Alphabetical index
I/M test ...................................... 429
Identification
Engine .................................. 543
Vehicle.................................. 543
Ignition switch ......................... 167
Illuminated entry system ........ 361
Indicator lights ........................ 177
Initialization
Items to initialize ................... 568
Inside rear view mirror.............. 94
Interior lights Interior lights ......................... 361
Switch ................................... 362
Wattage ................................ 549
Intuitive parking assist ........... 209
Jack Positioning a floor jack ......... 436
Replacing the wheel ............. 516
Jack handle.............................. 516
Keyless entry ............................. 27
Keys Engine switch ....................... 167
If you lose your keys/
wireless remote control
transmitter .......................... 531
Ignition switch ....................... 167
Keyless entry .......................... 27
Key number ............................ 26
Keys ....................................... 26
Wireless remote control.......... 27 License plate lights
Replacing light bulbs .............486
Wattage .................................549
Light bulbs Replacing ..............................486
Wattage .................................549
Lights Door courtesy lights ..............361
Engine switch light ................361
Fog light switch .....................190
Headlight switch ....................185
Interior light switch ................362
Luggage compartment light .....................................363
Outer foot lights .....................361
Personal light switch .............362
Replacing light bulbs .............486
Turn signal lever....................172
Vanity lights ...........................384
Wattage .................................549
Load capacity ...........................225
Lock steering column ..............167
Luggage compartment light Switch....................................363
Wattage .................................549I
J
K
L

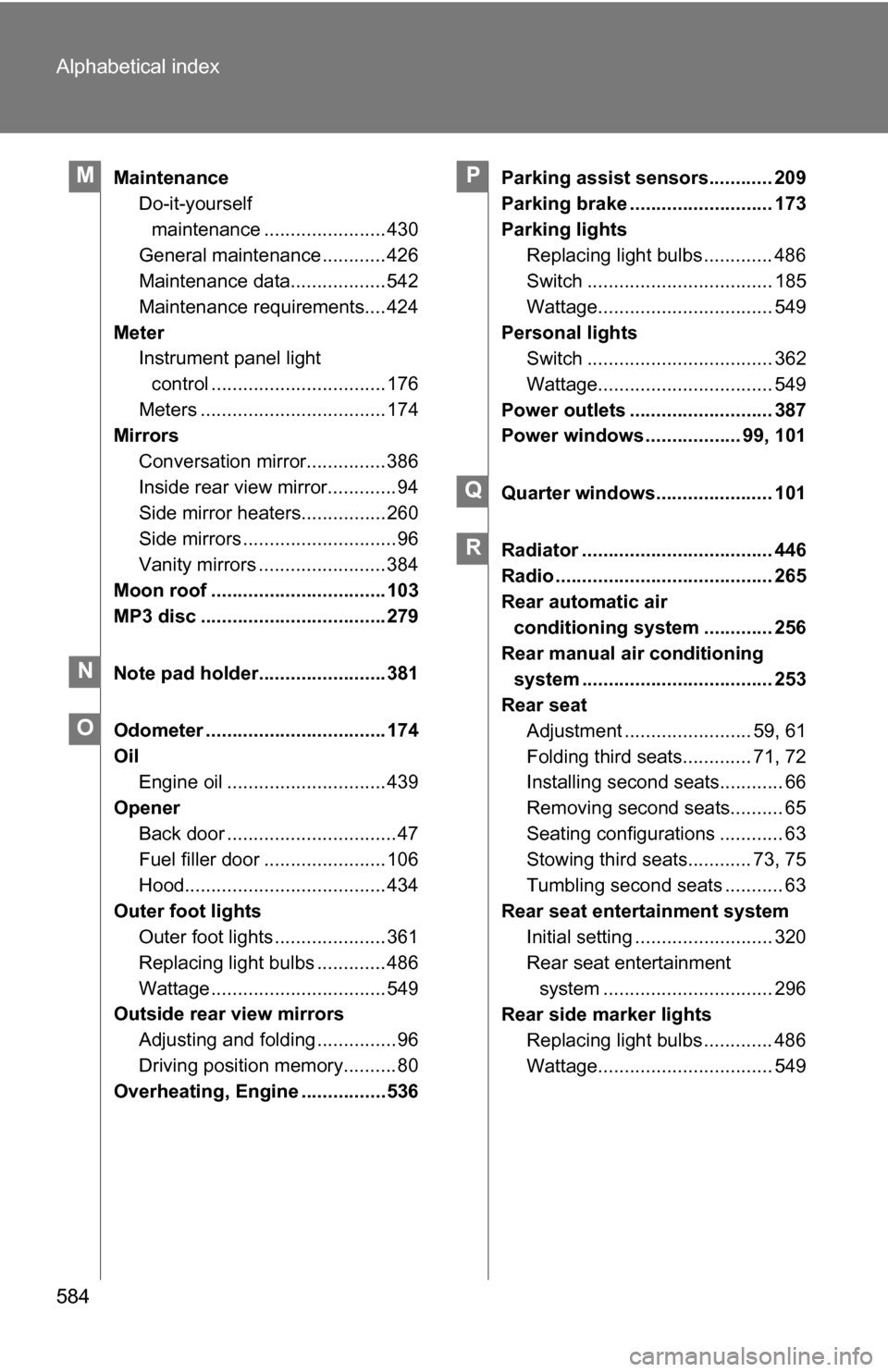

584 Alphabetical index
MaintenanceDo-it-yourself
maintenance ....................... 430
General maintenance ............ 426
Maintenance data.................. 542
Maintenance requirements.... 424
Meter Instrument panel light
control ................................. 176
Meters ................................... 174
Mirrors
Conversation mirror............... 386
Inside rear view mirror.............94
Side mirror heaters................260
Side mirrors .............................96
Vanity mirrors ........................ 384
Moon roof ................................. 103
MP3 disc ................................... 279
Note pad holder........................ 381
Odometer .................................. 174
Oil Engine oil .............................. 439
Opener Back door ................................47
Fuel filler door ....................... 106
Hood...................................... 434
Outer foot lights Outer foot lights ..................... 361
Replacing light bulbs ............. 486
Wattage ................................. 549
Outside rear view mirrors
Adjusting and folding ...............96
Driving position memory..........80
Overheating, Engine ................536 Parking assist sensors............ 209
Parking brake ........................... 173
Parking lights
Replacing light bulbs ............. 486
Switch ................................... 185
Wattage................................. 549
Personal lights Switch ................................... 362
Wattage................................. 549
Power outlets ........................... 387
Power windows .................. 99, 101
Quarter windows...................... 101
Radiator .................................... 446
Radio ......................................... 265
Rear automatic air conditioning system ............. 256
Rear manual air conditioning system .................................... 253
Rear seat
Adjustment ........................ 59, 61
Folding third seats............. 71, 72
Installing second seats............ 66
Removing second seats.......... 65
Seating configurations ............ 63
Stowing third seats............ 73, 75
Tumbling second seats ........... 63
Rear seat entertainment system Initial setting .......................... 320
Rear seat entertainment
system ................................ 296
Rear side marker lights
Replacing light bulbs ............. 486
Wattage................................. 549M
N
O
P
Q
R

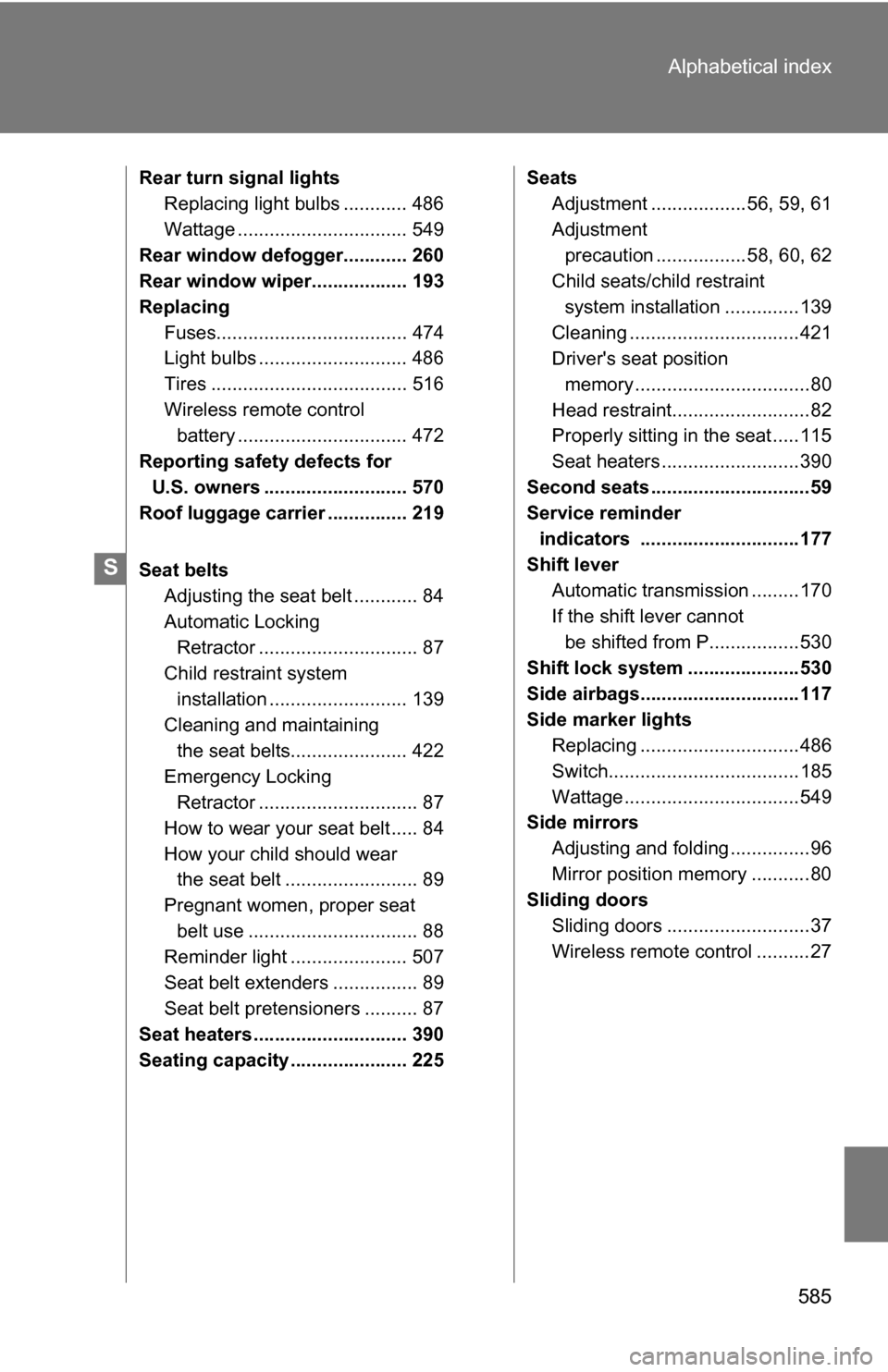

585
Alphabetical index
Rear turn signal lights
Replacing light bulbs ............ 486
Wattage ................................ 549
Rear window defogger............ 260
Rear window wiper.................. 193
Replacing Fuses.................................... 474
Light bulbs ............................ 486
Tires ..................................... 516
Wireless remote control battery ................................ 472
Reporting safety defects for U.S. owners ........................... 570
Roof luggage carrier ............... 219
Seat belts
Adjusting the seat belt ............ 84
Automatic Locking Retractor .............................. 87
Child restraint system installation .......................... 139
Cleaning and maintaining
the seat belts...................... 422
Emergency Locking Retractor .............................. 87
How to wear your seat belt ..... 84
How your child should wear the seat belt ......................... 89
Pregnant women, proper seat belt use ................................ 88
Reminder light ...................... 507
Seat belt extenders ................ 89
Seat belt pretensioners .......... 87
Seat heaters ............................. 390
Seating capacity ...................... 225 Seats
Adjustment ..................56, 59, 61
Adjustment
precaution .................58, 60, 62
Child seats/child restraint
system installation ..............139
Cleaning ................................421
Driver's seat position memory .................................80
Head restraint..........................82
Properly sitting in the seat .....115
Seat heaters ..........................390
Second seats ..............................59
Service reminder indicators ..............................177
Shift lever Automatic transmission .........170
If the shift lever cannot
be shifted from P................. 530
Shift lock system .....................530
Side airbags..............................117
Side marker lights Replacing ..............................486
Switch....................................185
Wattage .................................549
Side mirrors
Adjusting and folding ...............96
Mirror position memory ...........80
Sliding doors
Sliding doors ...........................37
Wireless remote control ..........27
S

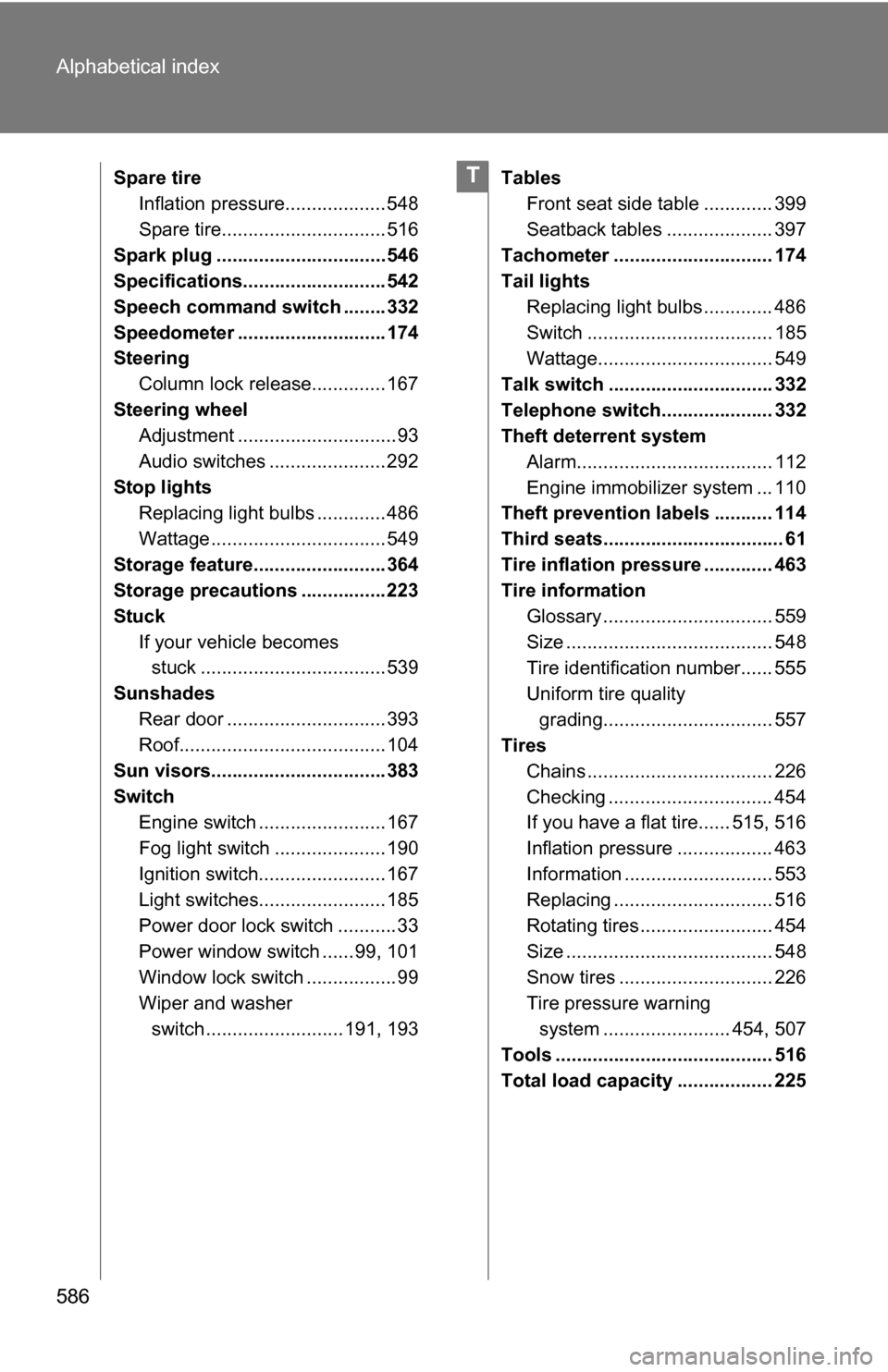

586 Alphabetical index
Spare tireInflation pressure................... 548
Spare tire............................... 516
Spark plug ................................ 546
Specifications........................... 542
Speech command switch ........ 332
Speedometer ............................ 174
Steering Column lock release.............. 167
Steering wheel Adjustment ..............................93
Audio switches ...................... 292
Stop lights Replacing light bulbs ............. 486
Wattage ................................. 549
Storage feature......................... 364
Storage precautions ................223
Stuck If your vehicle becomes stuck ................................... 539
Sunshades Rear door .............................. 393
Roof....................................... 104
Sun visors................................. 383
Switch Engine switch ........................ 167
Fog light switch ..................... 190
Ignition switch........................ 167
Light switches........................ 185
Power door lock switch ...........33
Power window switch ...... 99, 101
Window lock switch .................99
Wiper and washer
switch .......................... 191, 193 Tables
Front seat side table ............. 399
Seatback tables .................... 397
Tachometer .............................. 174
Tail lights Replacing light bulbs ............. 486
Switch ................................... 185
Wattage................................. 549
Talk switch ............................... 332
Telephone switch..................... 332
Theft deterrent system Alarm..................................... 112
Engine immobilizer system ... 110
Theft prevention labels ........... 114
Third seats.................................. 61
Tire inflation pressure ............. 463
Tire information
Glossary ................................ 559
Size ....................................... 548
Tire identification number...... 555
Uniform tire quality grading................................ 557
Tires
Chains ................................... 226
Checking ............................... 454
If you have a flat tire...... 515, 516
Inflation pressure .................. 463
Information ............................ 553
Replacing .............................. 516
Rotating tires ......................... 454
Size ....................................... 548
Snow tires ............................. 226
Tire pressure warning system ........................ 454, 507
Tools ......................................... 516
Total load capacity .................. 225T

587
Alphabetical index
Towing
Dinghy towing ....................... 237
Trailer towing ........................ 229
Traction control ....................... 215
TRAC ........................................ 215
Trays......................................... 380
Trip information display ......... 181
Trip meter................................. 174
Turn signal lights Replacing light bulbs ............ 486
Switch ................................... 172
Wattage ................................ 549
Valet key..................................... 26
Vanity lights Vanity lights .......................... 384
Wattage ................................ 549
Vanity mirrors .......................... 384
Vehicle identification number................................... 543
Vehicle stability control .......... 215
VSC ........................................... 215 Warning buzzers
Brake system ........................504
Seat belt reminder .................507
Warning lights Anti-lock brake system ..........505
Brake assist system ..............505
Brake system ........................504
Charging system .... ...............505
Dynamic laser cruise control master warning light............507
Engine oil pressure ...............505
Low fuel level ........................507
Low washer fluid ...................507
Malfunction indicator lamp ....505
Master warning light ..............507
Open door .............................507
Pretensioners ........................505
Seat belt reminder light .........507
SRS airbags ..........................505
Third seat warning light ......... 507
Tire pressure warning light ....507
Vehicle stability control system ................................505
Washer Checking ...............................453
Preparing and checking before winter .......................226
Switch............................191, 193
Washing and waxing ...............418
V
W

588 Alphabetical index
WeightCargo capacity ...................... 219
Load limits ............................. 225
Weight ................................... 542
Wheels ...................................... 467
Window glasses ........................99
Window lock switch ...................99
Windows
Power windows ...............99, 101
Rear window defogger .......... 260
Washer .......................... 191, 193
Windshield wiper de-icer......... 260
Windshield wipers ................... 191
Wireless remote control Replacing the battery ............ 472
Wireless remote control ..........27
WMA disc .................................. 279

589
What to do if...
What to do if...
A tire puncturesP. 515/P. 5 1 6If you have a flat tire
The engine does not start
P. 529If the engine will not start
P. 1 1 0Engine immobilizer system
P. 532If the battery is discharged
The shift lever cannot be
moved outP. 530If the shift lever cannot be shifted
from P
The engine coolant temperature
gauge enters the red zone
Steam can be seen coming
from under the hood
P. 536If your vehicle overheats
The key is lostP. 531If you lose your keys/wireless
remote control transmitter
The battery runs outP. 532If the battery is discharged
The doors cannot be locked
P. 3 3Front doors
P. 3 7Siding doors
P. 4 7Back door
The horn begins to soundP. 1 1 2Alarm
The vehicle is stuck in
mud or sandP. 539If the vehicle becomes stuck

590 What to do if...
A warning light or indicator light
comes onP. 504If a warning light turns on or a
warning buzzer sounds...
Optitron type meters
Non-Optitron type meters
