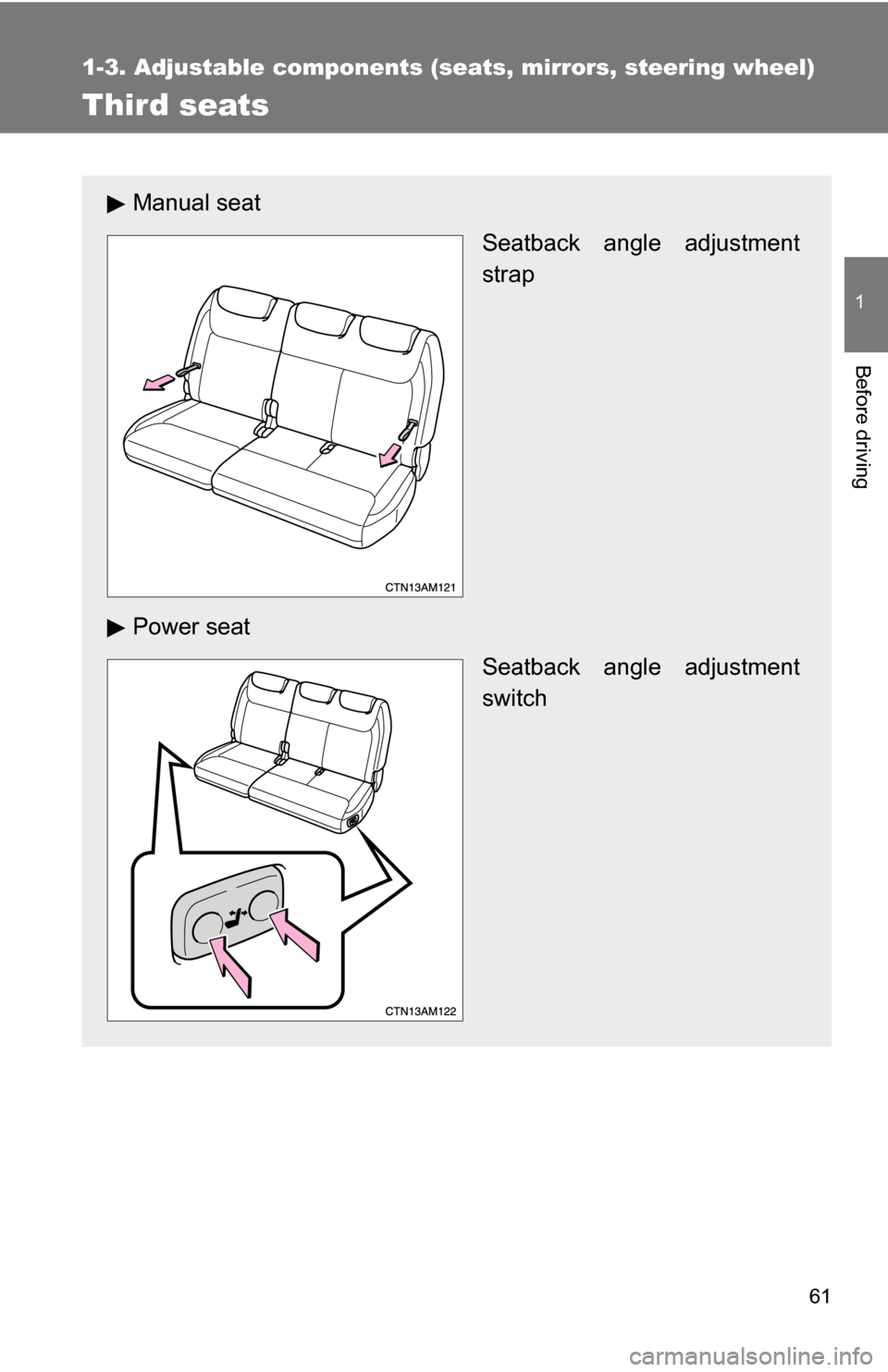

TOYOTA SIENNA 2009 XL20 / 2.G Repair Manual

61
1
1-3. Adjustable components (seats, mirrors, steering wheel)
Before driving
Third seats
Manual seatSeatback angle adjustment
strap
Power seat Seatback angle adjustment
switch

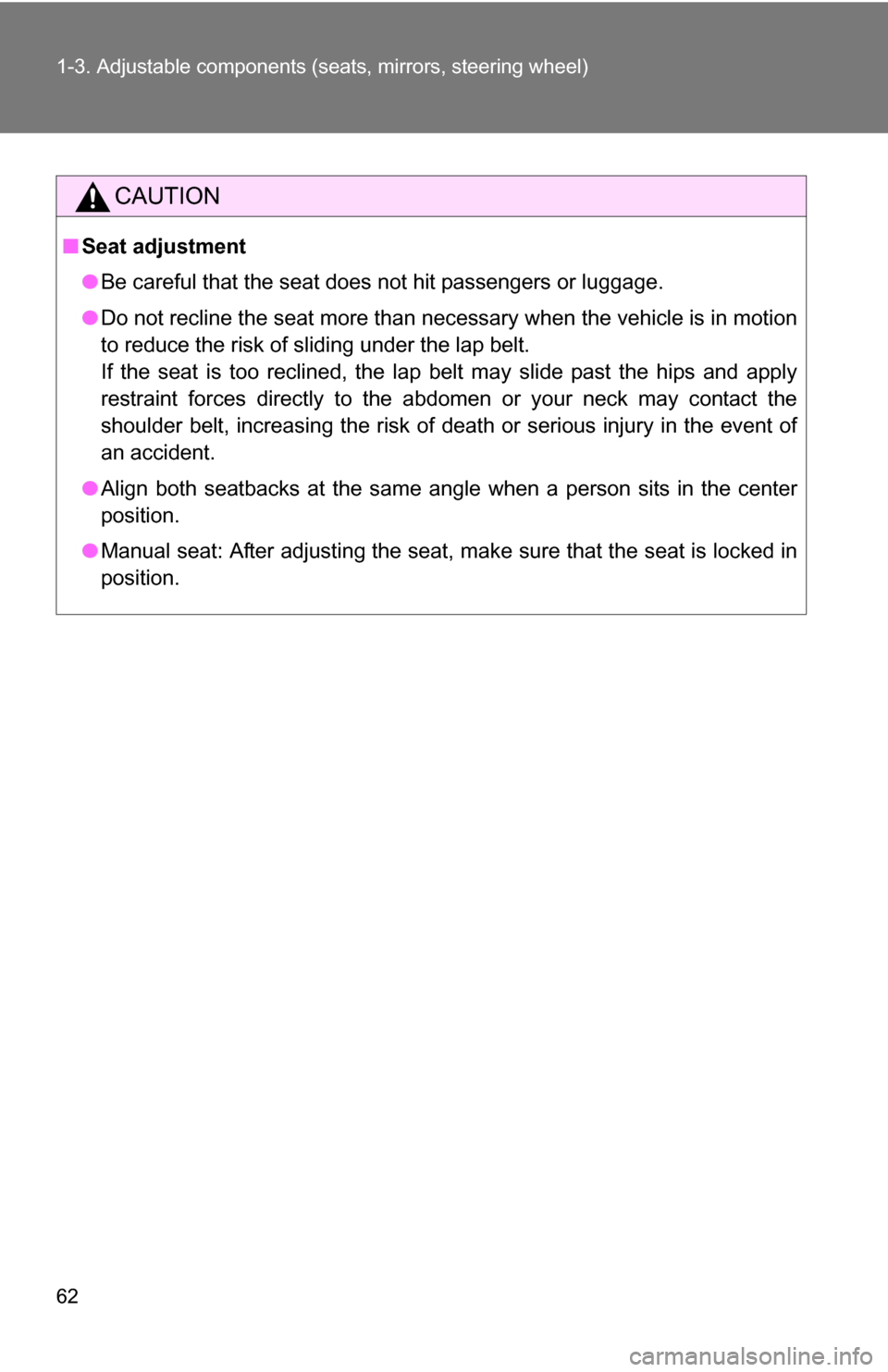

62 1-3. Adjustable components (seats, mirrors, steering wheel)
CAUTION
■Seat adjustment
●Be careful that the seat does not hit passengers or luggage.
● Do not recline the seat more than necessary when the vehicle is in motion
to reduce the risk of sliding under the lap belt.
If the seat is too reclined, the lap belt may slide past the hips and apply
restraint forces directly to the abdomen or your neck may contact the
shoulder belt, increasing the risk of death or serious injury in the event of
an accident.
● Align both seatbacks at the same angle when a person sits in the center
position.
● Manual seat: After adjusting the seat, make sure that the seat is locked in
position.

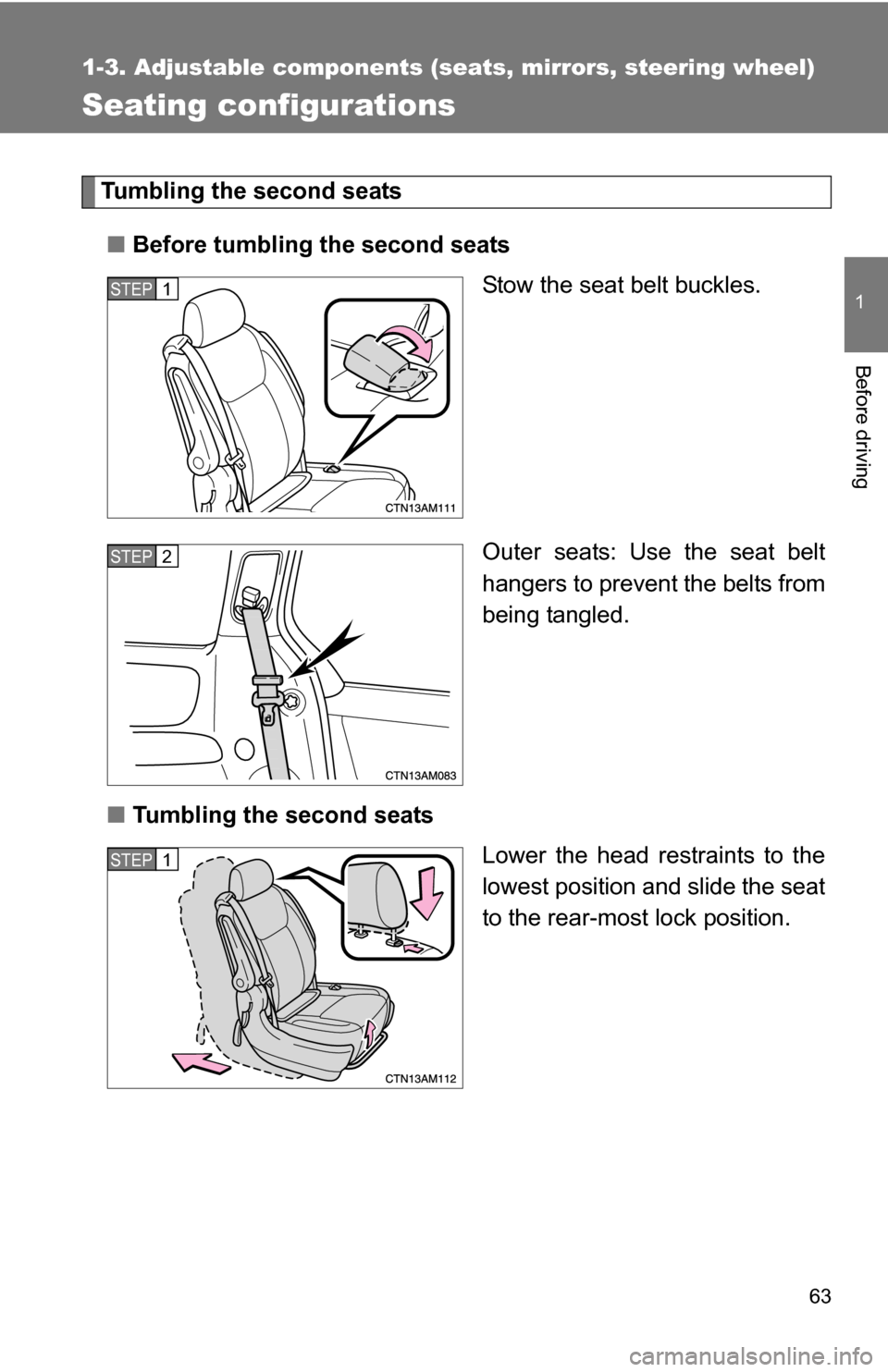

63
1
1-3. Adjustable components (seats, mirrors, steering wheel)
Before driving
Seating configurations
Tumbling the second seats■ Before tumbling the second seats
Stow the seat belt buckles.
Outer seats: Use the seat belt
hangers to prevent the belts from
being tangled.
■ Tumbling the second seats
Lower the head restraints to the
lowest position and slide the seat
to the rear-most lock position.
STEP1
STEP2
STEP1

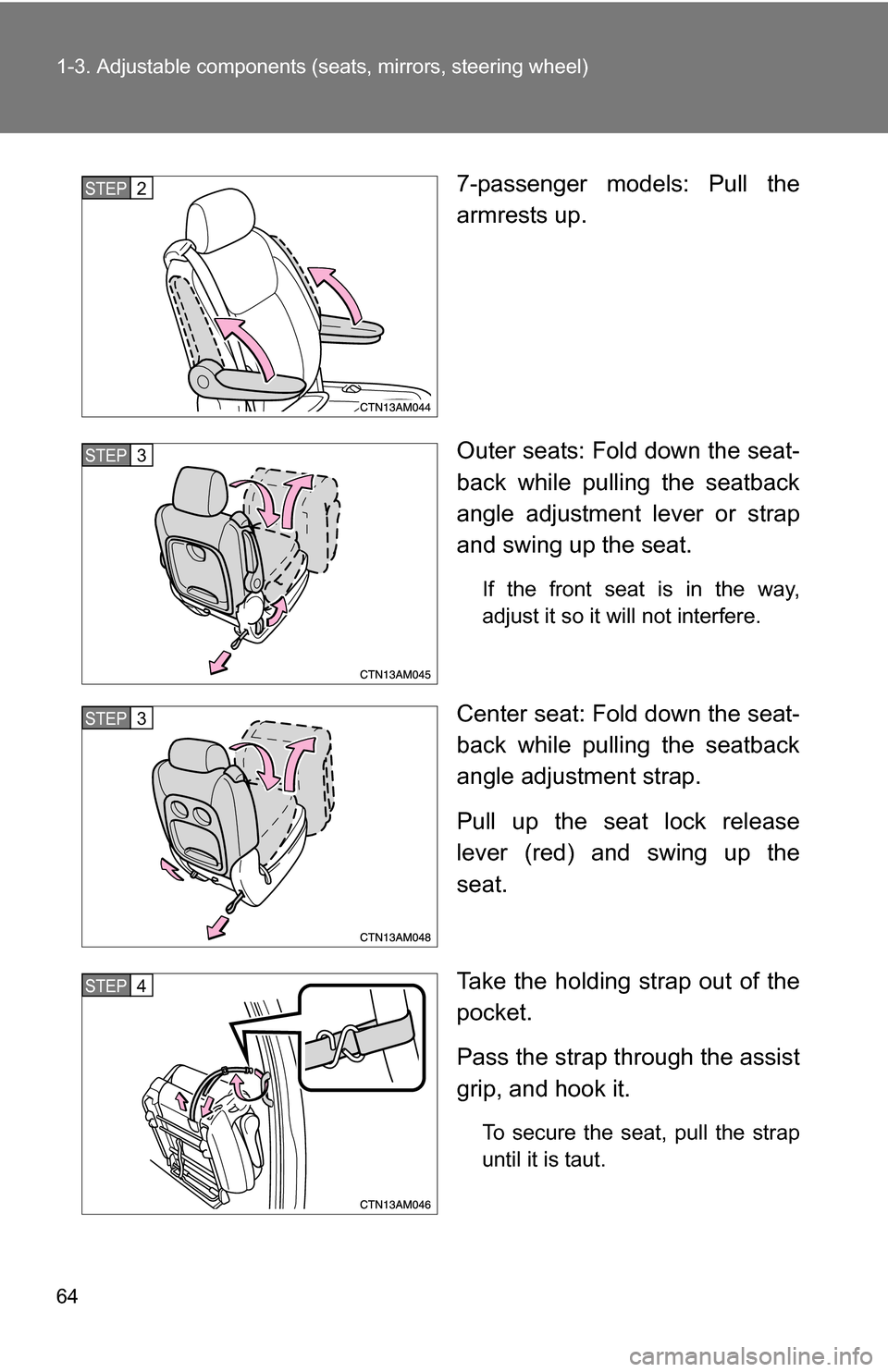

64 1-3. Adjustable components (seats, mirrors, steering wheel)
7-passenger models: Pull the
armrests up.
Outer seats: Fold down the seat-
back while pulling the seatback
angle adjustment lever or strap
and swing up the seat.
If the front seat is in the way,
adjust it so it will not interfere.
Center seat: Fold down the seat-
back while pulling the seatback
angle adjustment strap.
Pull up the seat lock release
lever (red) and swing up the
seat.
Take the holding strap out of the
pocket.
Pass the strap through the assist
grip, and hook it.
To secure the seat, pull the strap
until it is taut.
STEP2
STEP3
STEP3
STEP4

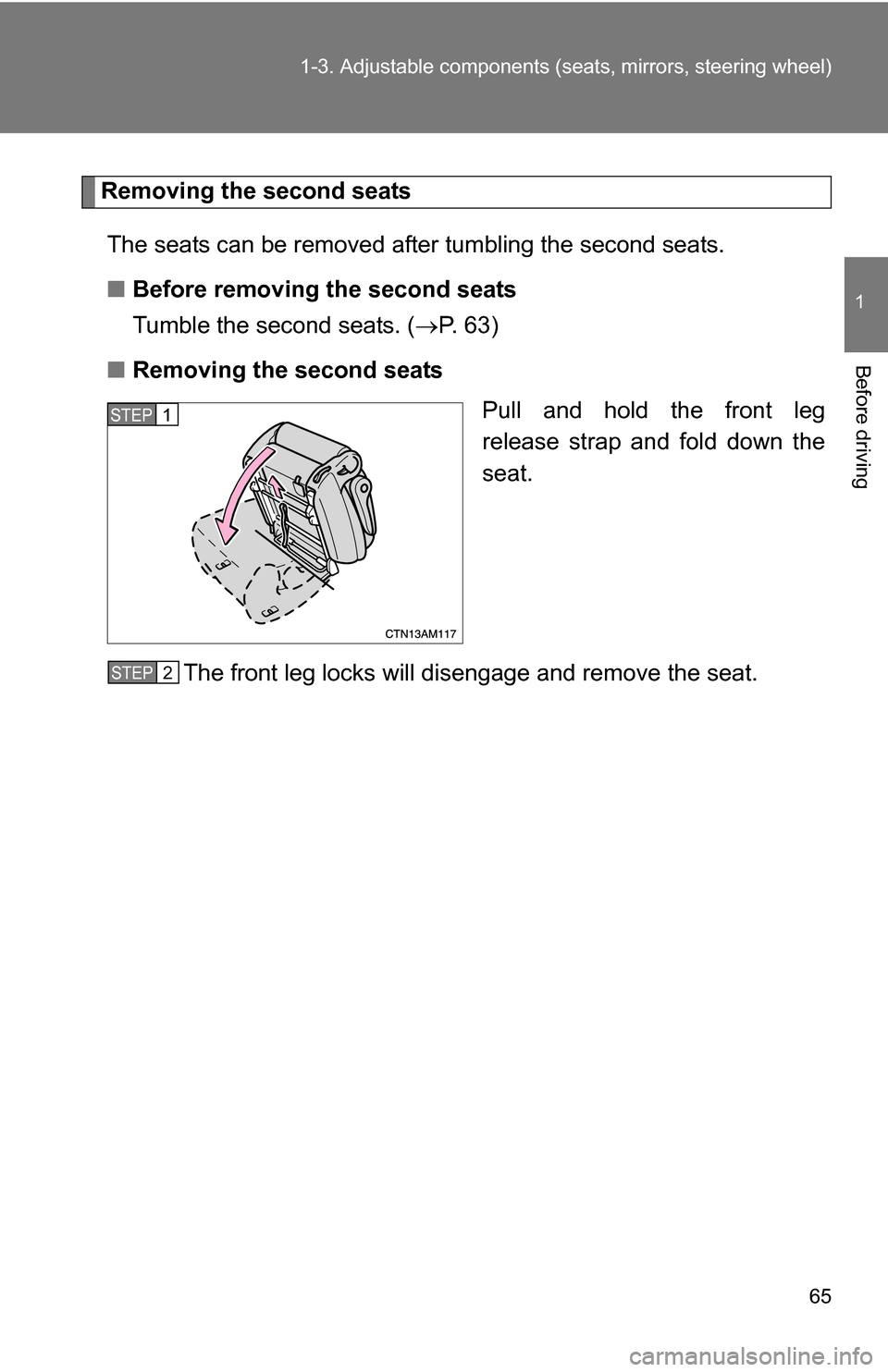

65
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
Removing the second seats
The seats can be removed after tumbling the second seats.
■ Before removing the second seats
Tumble the second seats. ( P. 6 3 )
■ Removing the second seats
Pull and hold the front leg
release strap and fold down the
seat.
The front leg locks will dise ngage and remove the seat.
STEP1
STEP2

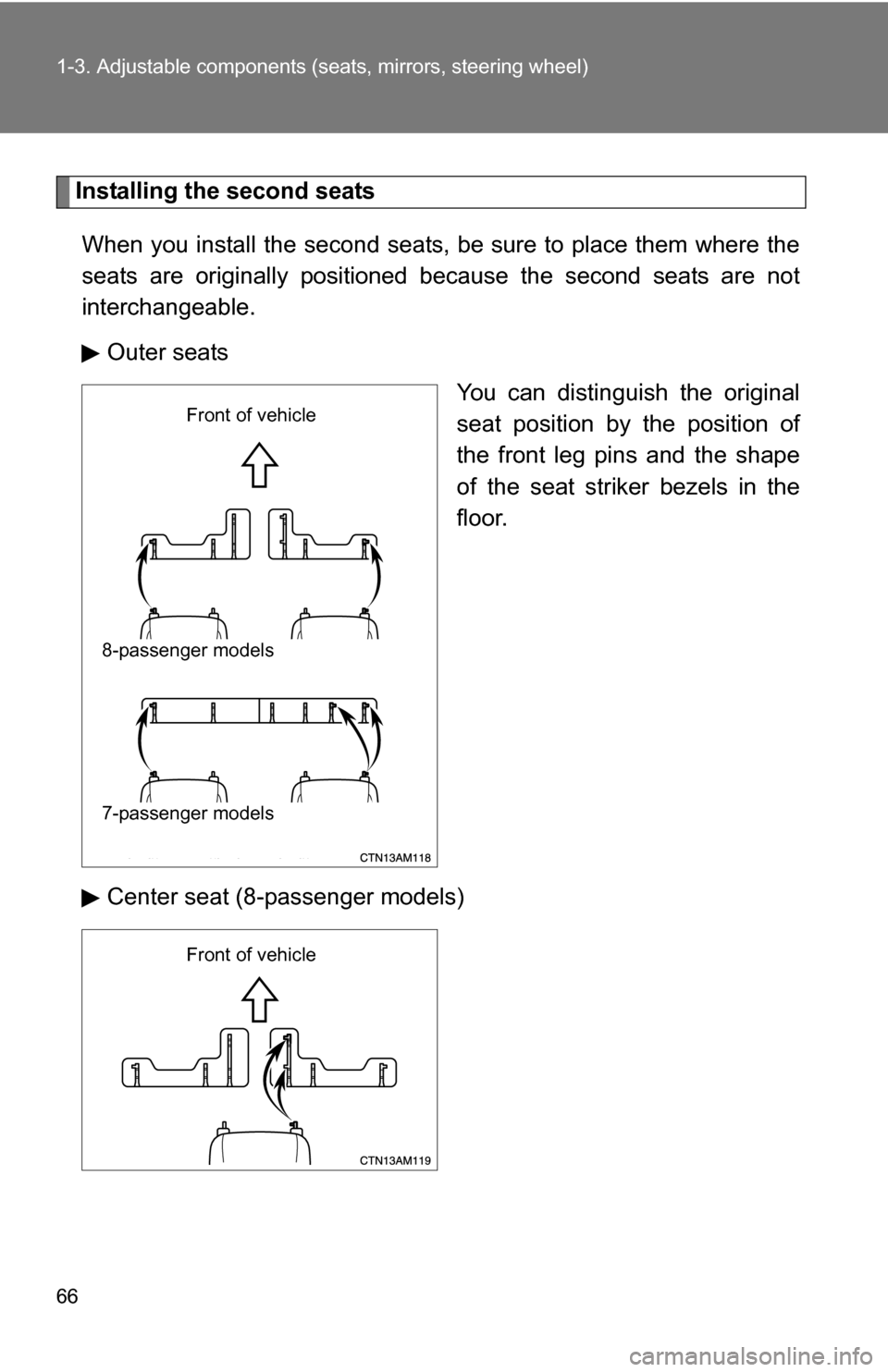

66 1-3. Adjustable components (seats, mirrors, steering wheel)
Installing the second seats
When you install the second seats, be sure to place them where the
seats are originally positioned because the second seats are not
interchangeable. Outer seats You can distinguish the original
seat position by the position of
the front leg pins and the shape
of the seat striker bezels in the
floor.
Center seat (8-passenger models)
Front of vehicle
8-passenger models
7-passenger models
Front of vehicle

67
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
■Installing the second seats
Align the front leg hooks with the
rear strikers, then swing up the
seat.
Make sure the front legs align
with the strikers before swinging
up the seat.
Fold down the seat and engage
the rear leg locks.
Make sure the front legs are
locked securely.
If you locked the rear legs unintentionally before the front legs are
locked securely, do the following:
Outer seats: Disengage the rear
leg locks by pushing the pins
(red) inside each rear leg.
STEP1
STEP2
STEP1

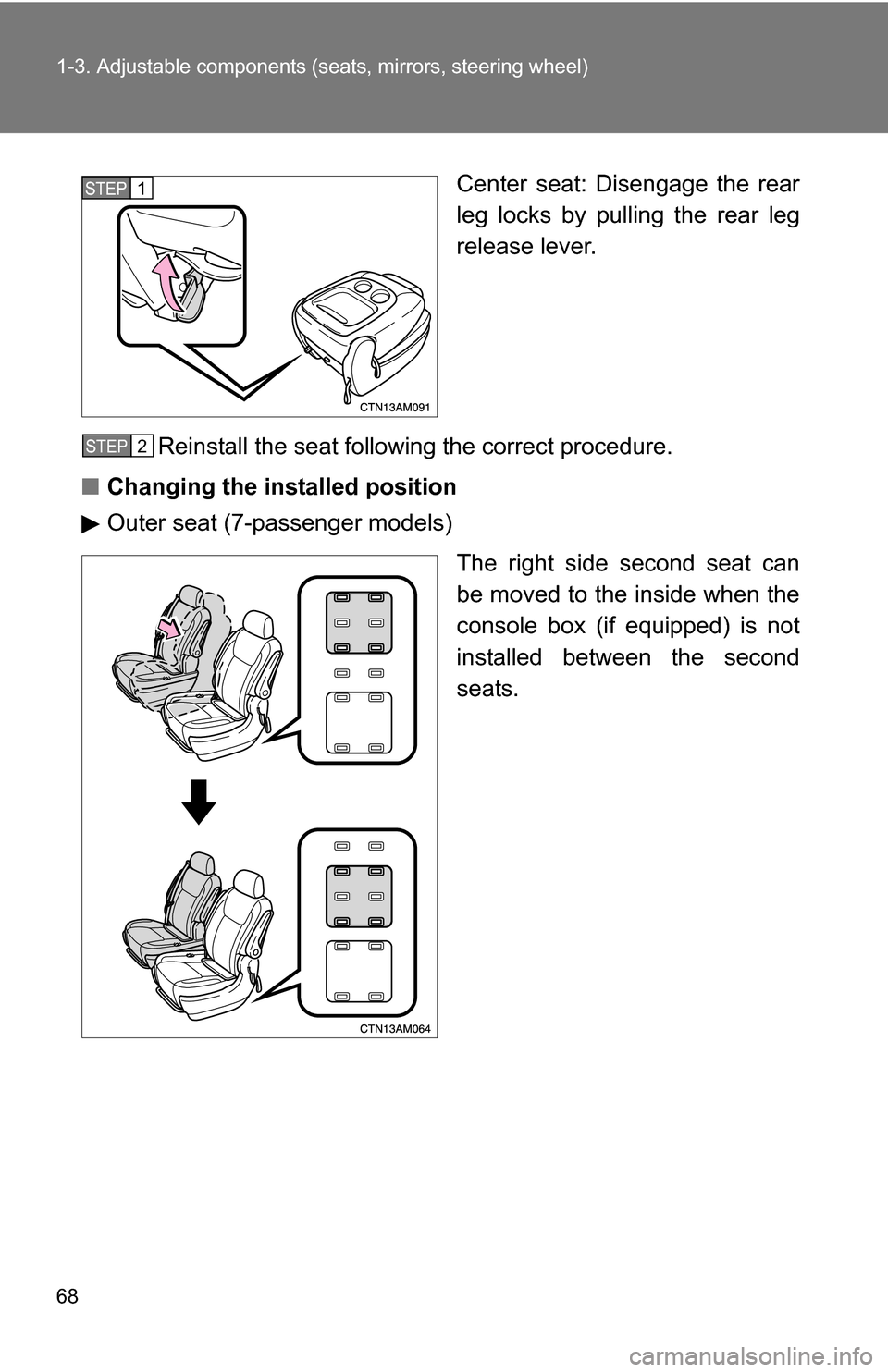

68 1-3. Adjustable components (seats, mirrors, steering wheel)
Center seat: Disengage the rear
leg locks by pulling the rear leg
release lever.
Reinstall the seat following the correct procedure.
■ Changing the installed position
Outer seat (7-passenger models)
The right side second seat can
be moved to the inside when the
console box (if equipped) is not
installed between the second
seats.STEP1
STEP2

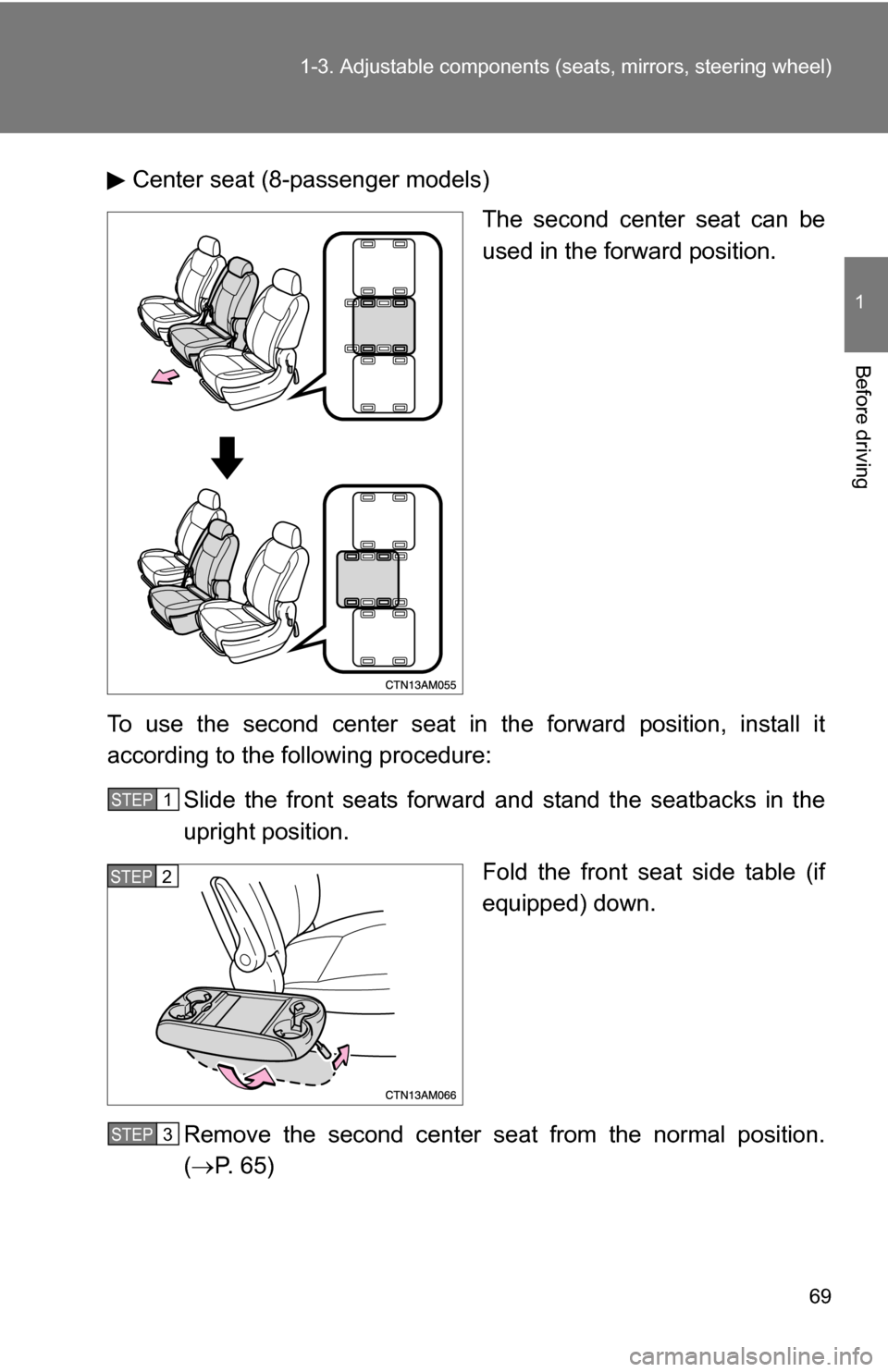

69
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
Center seat (8-passenger models)
The second center seat can be
used in the forward position.
To use the second center seat in the forward position, install it
according to the following procedure: Slide the front seats forward and stand the seatbacks in the
upright position. Fold the front seat side table (if
equipped) down.
Remove the second center s eat from the normal position.
(  P. 6 5 )
STEP1
STEP2
STEP3

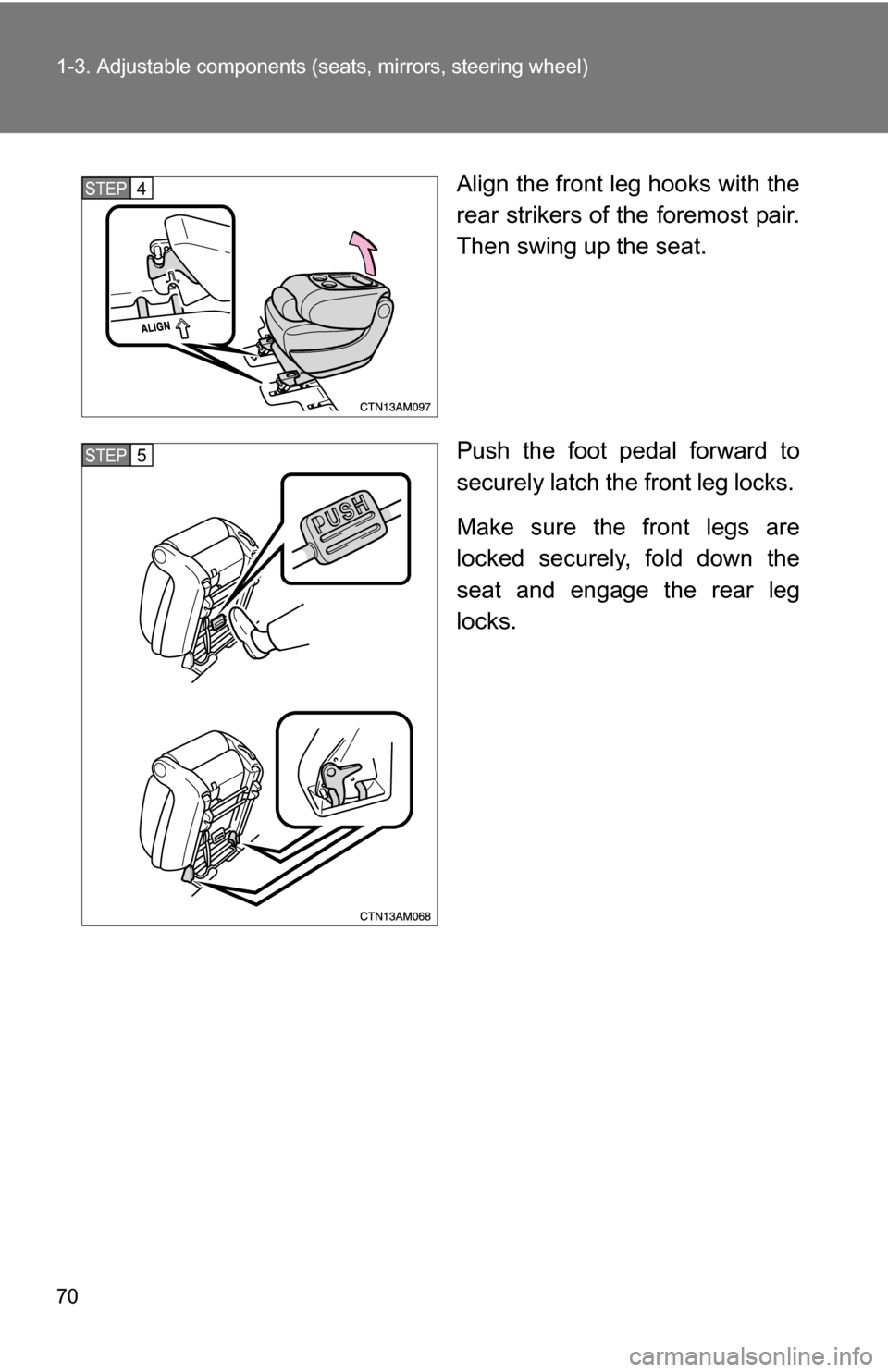

70 1-3. Adjustable components (seats, mirrors, steering wheel)
Align the front leg hooks with the
rear strikers of the foremost pair.
Then swing up the seat.
Push the foot pedal forward to
securely latch the front leg locks.
Make sure the front legs are
locked securely, fold down the
seat and engage the rear leg
locks.STEP4
STEP5
