TOYOTA SIENNA 2010 XL30 / 3.G Navigation Manual

OTHER FUNCTIONS
131
4Indicates the level of reception.

Too bad Excellent
The level of reception does not always cor-
respond with the one of your cellular
phone.
INFORMATION
This system supports the following
service.
 HFP (Hands Free Profile) Ver. 1.0
 OPP (Object Push Profile) Ver. 1.1
If your cellular phone does not
support HFP, you cannot enter the
Bluetooth  phone, and take OPP
service individually.
An antenna for the Bluetooth  connec-
tion is built in the display. The indica-
tion of the Bluetooth connection may
turn yellow and the system may not
function when you use the Bluetooth
phone in the following conditions and
places.
Your cellular phone is hiding behind the
display (behind the seat or in the glove
box and console box).
Your cellular phone touches or is
covered with metal materials.
Leave the Bluetooth phone on the
place where “Blue” indication is dis-
played.
Bluetooth is a trademark owned by
Bluetooth SIG, Inc.
When you sell your car:
A lot of personal data is registered
when you use the Handsfree system.
When you sell your car, initialize the
system so your personal information is
no longer recorded. (See “(d) Delete
personal data” on page 183.)
If you initialize it, the former state will never
come back again. Be careful when initializ-
ing data, because once the data is initial-
ized it can not be recovered.
You can initialize the following data in the
system.
Phone book data
Dialed numbers and received calls
Speed dial
Bluetooth  phone data
Security code

OTHER FUNCTIONS
132

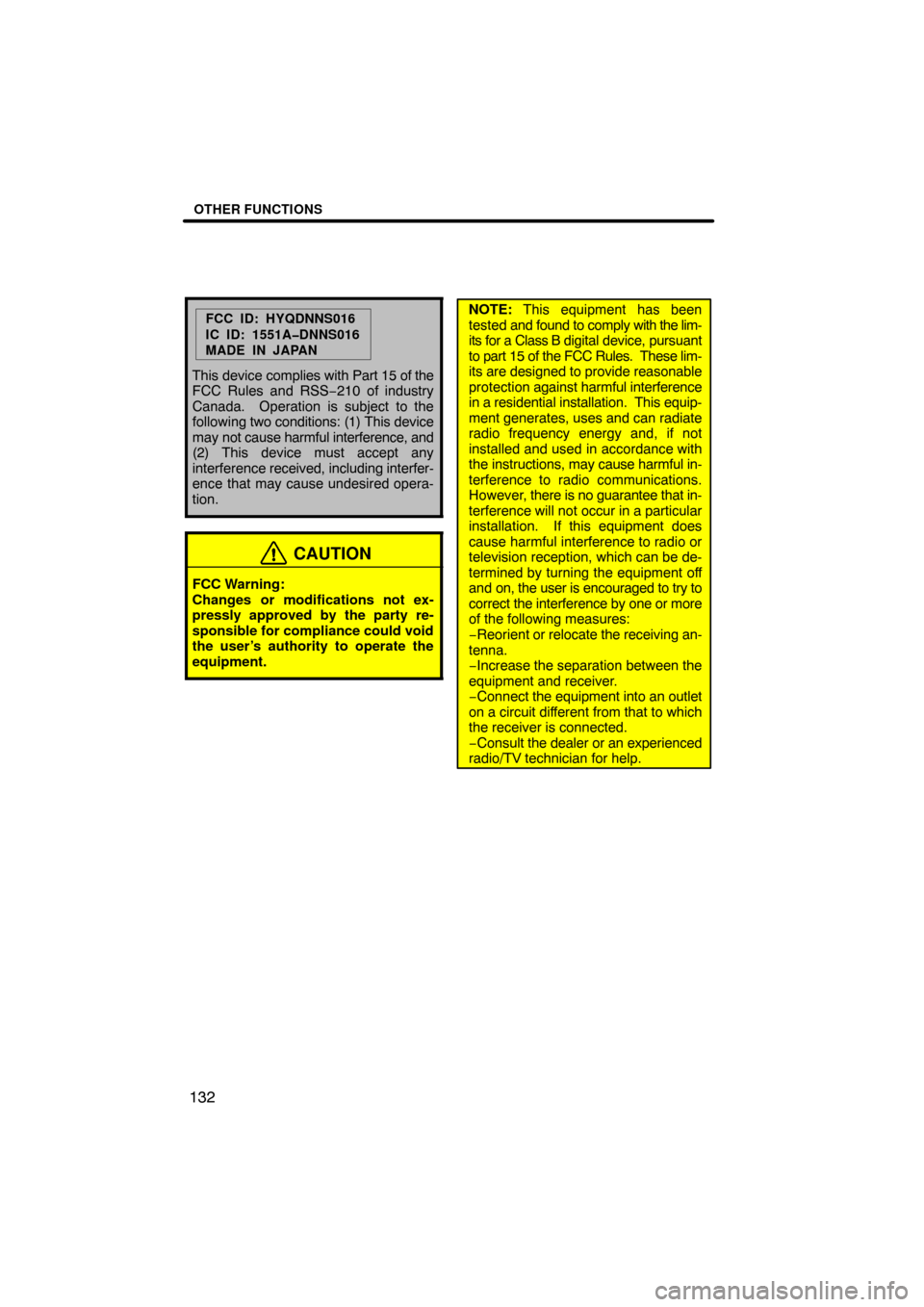

FCC ID: HYQDNNS016
IC ID: 1551ADNNS016
MADE IN JAPAN
This device complies with Part 15 of the
FCC Rules and RSS −210 of industry
Canada. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) This device must accept any
interference received, including interfer-
ence that may cause undesired opera-
tion.
CAUTION
FCC Warning:
Changes or modifications not ex-
pressly approved by the party re-
sponsible for compliance could void
the user’s authority to operate the
equipment.
NOTE: This equipment has been
tested and found to comply with the lim-
its for a Class B digital device, pursuant
to part 15 of the FCC Rules. These lim-
its are designed to provide reasonable
protection against harmful interference
in a residential installation. This equip-
ment generates, uses and can radiate
radio frequency energy and, if not
installed and used in accordance with
the instructions, may cause harmful in-
terference to radio communications.
However, there is no guarantee that in-
terference will not occur in a particular
installation. If this equipment does
cause harmful interference to radio or
television reception, which can be de-
termined by turning the equipment off
and on, the user is encouraged to try to
correct the interference by one or more
of the following measures:
−Reorient or relocate the receiving an-
tenna.
−Increase the separation between the
equipment and receiver.
−Connect the equipment into an outlet
on a circuit different from that to which
the receiver is connected.
−Consult the dealer or an experienced
radio/TV technician for help.

OTHER FUNCTIONS
133
CAUTION: Radio Frequency Radi-
ation Exposure
This equipment complies with FCC
radiation exposure limits set forth for
uncontrolled equipment and meets the
FCC radio frequency (RF) Exposure
Guidelines in Supplement C to OET65.
This equipment has very low levels of
RF energy that it deemed to comply
without maximum permissive expo-
sure evaluation (MPE). But it is desir-
able that it should be installed and op-
erated with at least 20 cm and more be-
tween the radiator and person’s body
(excluding extremities: hands, wrists,
feet and legs).
Colocation: This transmitter must
not be co −located or operated in con-
junction with any other antenna or
transmitter.(a) Enter a Bluetooth phone
To use the handsfree system, you
need to enter your phone into the sys-
tem. Once you have registered it, you
can make a handsfree call.
1. Push the “INFO” button.
2. Touch “Telephone” to display “Tele-
phone” screen.
You can also push the
switch of the
steering wheel to display this screen when
the vehicle is stopped.

OTHER FUNCTIONS
134
3. Touch “Settings” to display “Set-
tings” screen.
4. Touch “Bluetooth∗” to display the
“Bluetooth∗ Settings” screen.
5. Touch “Register” to connect your
cellular phone to the system.
∗: Bluetooth is a registered trademark of Bluetooth SIG. Inc.
6. When this screen is displayed, input
the Passkey displayed on the screen
into the phone.
For the operation of the phone, see the
manual that comes with your cellular
phone.
If you want to cancel it, touch “Cancel”.
7. When the connection is completed,
this screen is displayed.
You will not need to reenter the passkey
when this phone is used in the future.
When this screen is displayed, follow the
guidance on the screen to try again.

OTHER FUNCTIONS
135

Connecting a Bluetooth
 phone
(i) Automatically
When you register your phone, auto
connection will be turned on. Always
set it to this mode and leave the
Bluetooth  phone in a condition where
connection can be established.
Each time you touch “Auto Connect”,
auto connection will be switched on or off.
When the engine switch is in the “ACC”
or “ON” position, the selected
Bluetooth  phone will be automatically
connected and the connection result is
displayed.
This screen appears when the Bluetooth
phone is first connected after the engine
switch is in the “ACC” or “ON” position. (ii) Manually
When the auto connection fails or is
turned off, you have to connect
Bluetooth
 manually.
Touch “Connect” after enabling the
Bluetooth  connection on the phone.
When the connection is completed, this
screen is displayed.
Now you can use the Bluetooth  phone.

OTHER FUNCTIONS
136

Reconnecting the Bluetooth

phone
If the Bluetooth phone is discon-
nected with a poor reception from the
Bluetooth  network when the engine
switch is in the “ACC” or “ON” position,
the system automatically reconnects
the Bluetooth phone. In this case, the
connection result is not displayed.
If the Bluetooth is disconnected on pur-
pose such as you turned your cellular
phone OFF, this does not happen. Recon-
nect it by the following methods.
Select the Bluetooth  phone again.
Enter the Bluetooth  phone.
(b) Call on the Bluetooth pho-
ne
After you enter the Bluetooth phone,
you can call by using handsfree sys-
tem. You can call using the 7 methods
described below.
(i) By dial
You can call by inputting the telephone
number.
This cannot be operated while driving.

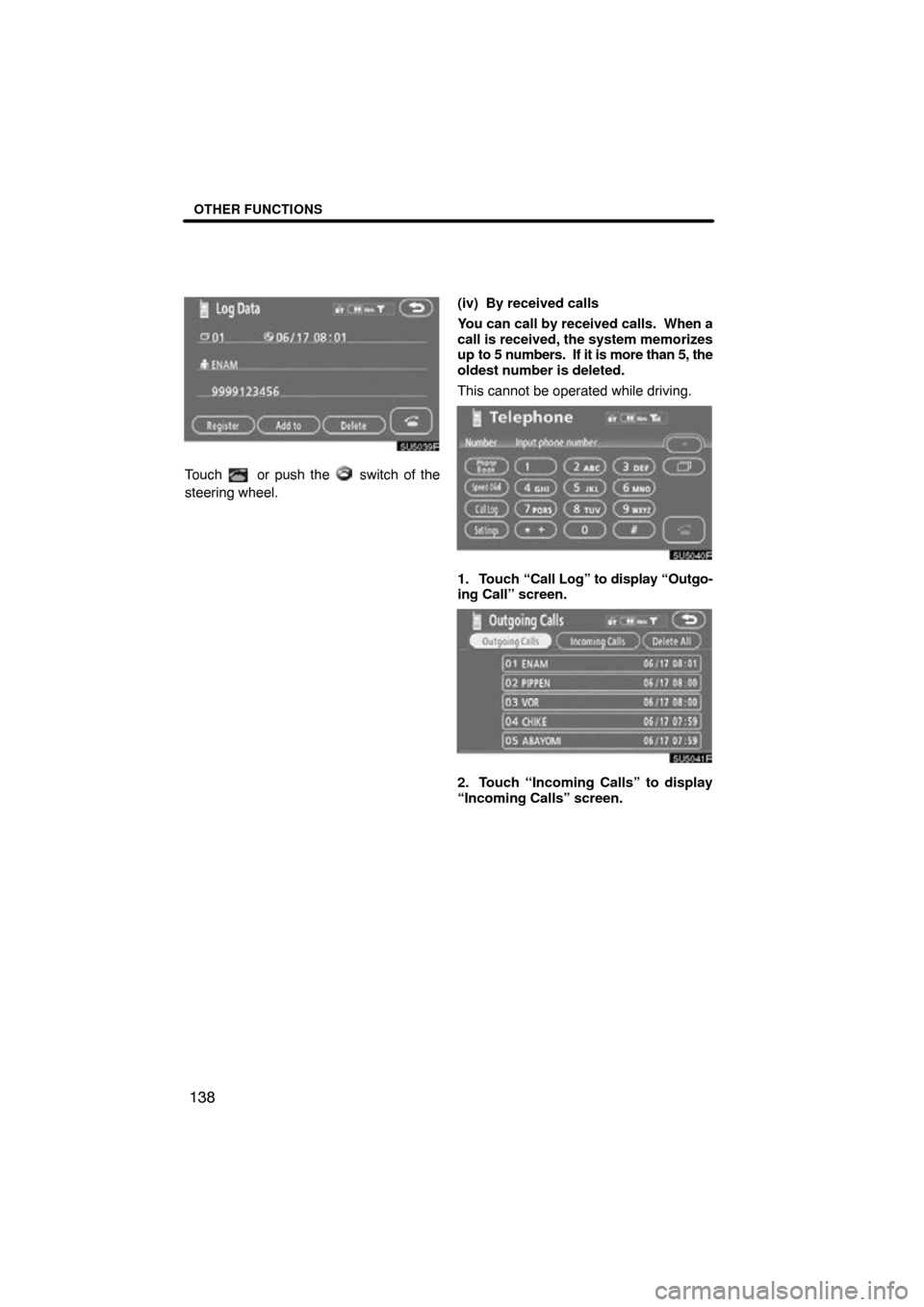

Touch the desired key to input the tele-
phone number.
Each time you touch , an inputted digit is
deleted.
When you touch
, the number you
called last is inputted.
Touch
or push the switch of the
steering wheel.

OTHER FUNCTIONS
137
(ii) By phone book
You can call by phone book data which
is transferred from your cellular phone.
The system has one phone book. You
can register up to 1000 numbers.
This cannot be operated while driving.
Touch the desired key to input the tele-
phone number.

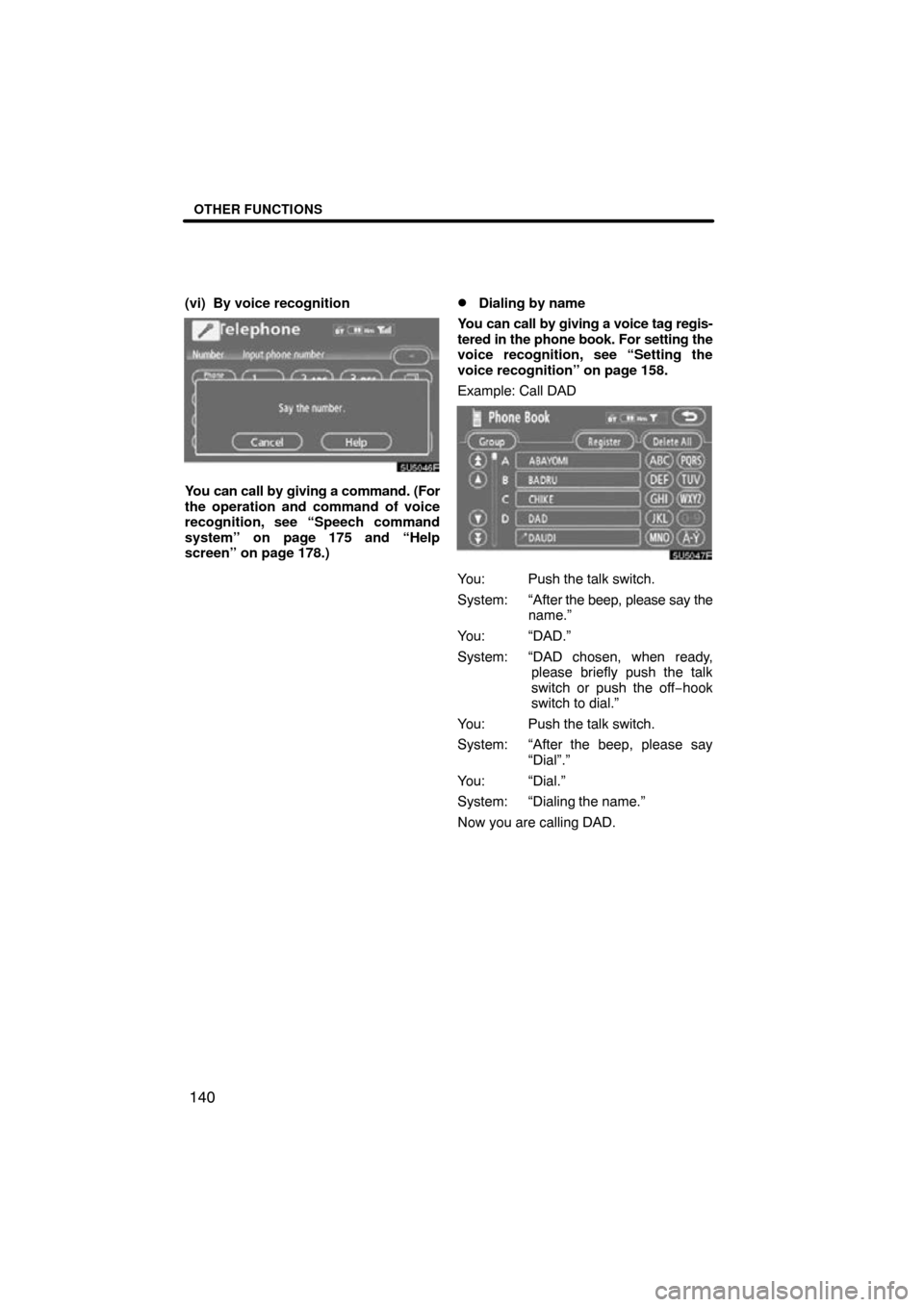

1. Touch “Phone Book” to display
“Phone Book” screen.
2. Select the desired number from the
list.
Touch or push the switch of the
steering wheel. (iii) By dialed numbers
You can call by dialed number.
The sys-
tem memorizes up to 5 dialed numbers.
If it is more than 5, the oldest number is
deleted.
This cannot be operated while driving.
1. Touch “Call Log” to display “Outgo-
ing Calls” screen.
When you call by phone book, the
name (if registered) is displayed.
When you call the same number
continuously, only the newest number
is registered.
2. Select the desired number from the
list.

OTHER FUNCTIONS
138
Touch or push the switch of the
steering wheel. (iv) By received calls
You can call by received calls.
When a
call is received, the system memorizes
up to 5 numbers. If it is more than 5, the
oldest number is deleted.
This cannot be operated while driving.
1. Touch “Call Log” to display “Outgo-
ing Call” screen.
2. Touch “Incoming Calls” to display
“Incoming Calls” screen.

OTHER FUNCTIONS
139
When a telephone number registered
in the phone book is received, the
name and the number are displayed.
Received calls which you did not
answer are also memorized in the
system and “Abs.” is displayed on the
left side of the number.
Received calls which you refused are
also memorized in the system and
“
” is displayed on the left side of the
number.
Unnoticed telephone number such as
a public telephone is not memorized in
the system.
3. Select the desired number from the
list.
Touch or push the switch of the
steering wheel.
An international phone call may not be
made depending on the cellular phone
which you have. (v) By speed dial
You can call by registered telephone
number which you selected from a
phone book, dialed numbers and re-
ceived
calls. (See page 146 for register-
ing the speed dial.)
1. Touch “Speed Dial” to display
“Speed Dial” screen.
2. Touch the desired number to call.
You can change the page by touching
“Speed Dial 2” or “Speed Dial 3”.
When you push the telephone button while
driving, the screen above appears. T ouch
the desired name to call. (The telephone
number is not displayed.)

OTHER FUNCTIONS
140
(vi) By voice recognition
You can call by giving a command. (For
the operation and command of voice
recognition, see “Speech command
system” on page 175 and “Help
screen” on page 178.)
Dialing by name
You can call by giving a voice tag regis-
tered in the phone book. For setting the
voice recognition, see “Setting the
voice recognition” on page 158.
Example: Call DAD
You: Push the talk switch.
System: “After the beep, please say the
name.”
You: “DAD.”
System: “DAD chosen, when ready, please briefly push the talk
switch or push the off−hook
switch to dial.”
You: Push the talk switch.
System: “After the beep, please say “Dial”.”
You: “Dial.”
System: “Dialing the name.”
Now you are calling DAD.
