bluetooth TOYOTA SIENNA 2010 XL30 / 3.G Navigation Manual

OTHER FUNCTIONS
154

The Bluetooth
connection status at
startup
When the engine switch is in the “ACC”
or “ON” position and the Bluetooth  is
automatically connected, the connec-
tion check is displayed.
Touch “ON” or “OFF” of “Show
Bluetooth∗ connection status at start
up”.
∗: Bluetooth is a registered trademark of Bluetooth SIG. Inc.
Initializing the settings
You can initialize the settings.
Touch “Default”.
Touch “Yes”.

OTHER FUNCTIONS
155
(v) Setting the phone book
You can register phone numbers in the
phone book.
Touch “Phone Book” to display the
“Phone Book Management” screen.
You can do the detail settings of phone
book.
Transferring a telephone number
You can transfer the telephone num-
bers in your Bluetooth phone to the
system. Up to 1000 person’s data (up to
2 numbers a person) can be registered
in the phone book.
Transfer it while the engine is running.
1. Touch “Transfer Data” to display
“Select Group” screen.
2. Select the group you want to trans-
fer to.
3. Touch “Overwrite” or “Add To”.

OTHER FUNCTIONS
156
4. Transfer the phone book data to the
system using the Bluetooth phone.
This screen appears while transferring. To
cancel it, touch “Cancel” . If the transfer-
ring is interrupted on the way, the phone
book data transferred until then can be
memorized in the system.
5. When this screen is displayed, the
transfer is completed.
When this screen is displayed, try the
transfer operation again.
Registering the phone book data
You can register the phone book data.
1. Touch “Register” of “Phone Book”.
2. Touch the desired touch screen but-
ton to edit the phone book.
3. When you complete the edit, touch
“OK”.

OTHER FUNCTIONS
169

Initializing the security code
You can initialize the settings.
1. Touch “Default”.
2. Input the security code and touch
“OK”.
3. Touch “Yes”.

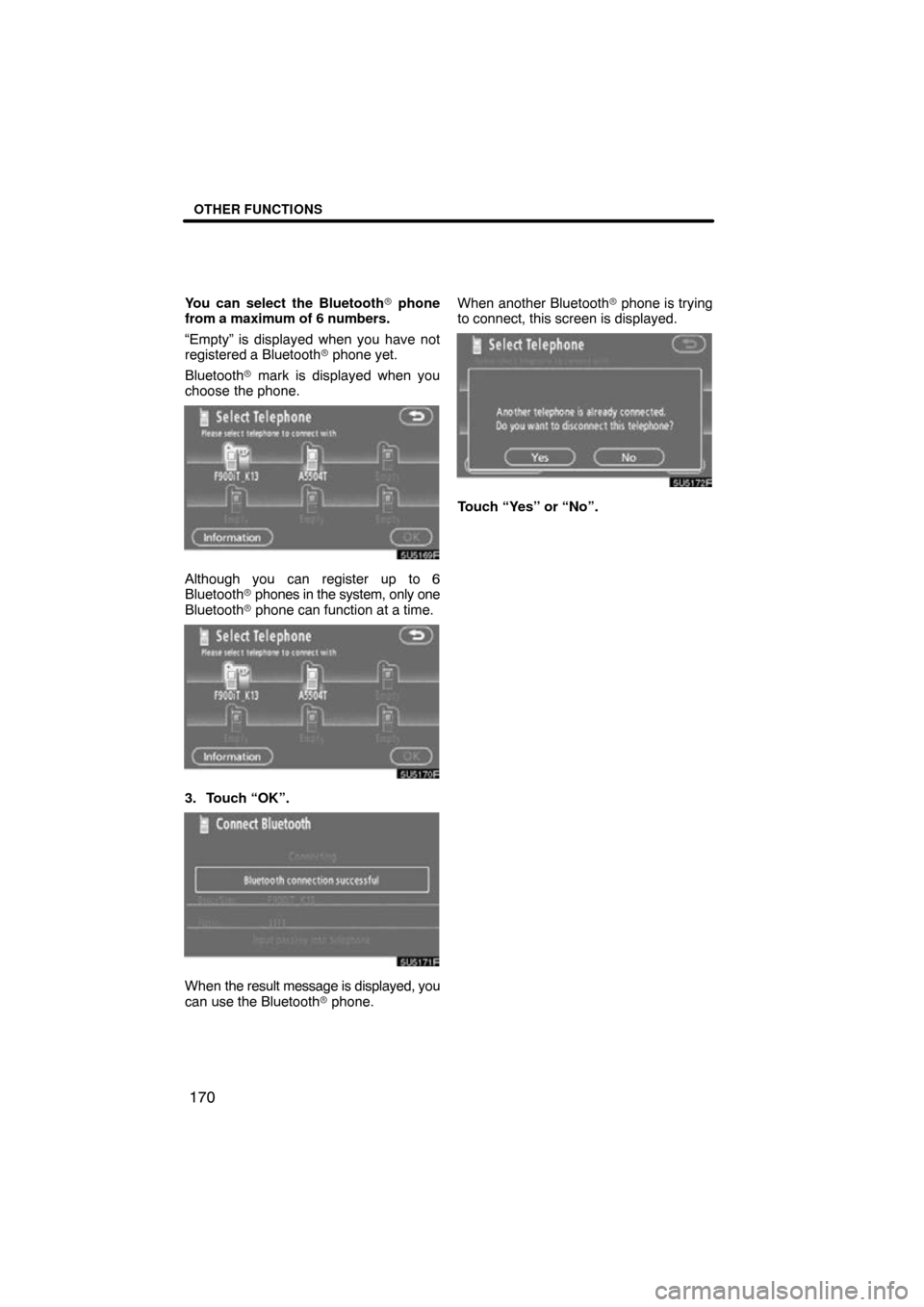

(f) Set a Bluetooth phone
Selecting a Bluetooth  phone
In case you register more than one
Bluetooth  phone, you need to choose
a favorite one.
1. Touch “Settings” to display “Set-
tings” screen.
2. Touch “Select Telephone” to dis-
play “Select Telephone” screen.

OTHER FUNCTIONS
170
You can select the Bluetooth phone
from a maximum of 6 numbers.
“Empty” is displayed when you have not
registered a Bluetooth  phone yet.
Bluetooth  mark is displayed when you
choose the phone.
Although you can register up to 6
Bluetooth  phones in the system, only one
Bluetooth  phone can function at a time.
3. Touch “OK”.
When the result message is displayed, you
can use the Bluetooth  phone. When another Bluetooth
 phone is trying
to connect, this screen is displayed.
Touch “Yes” or “No”.

OTHER FUNCTIONS
171

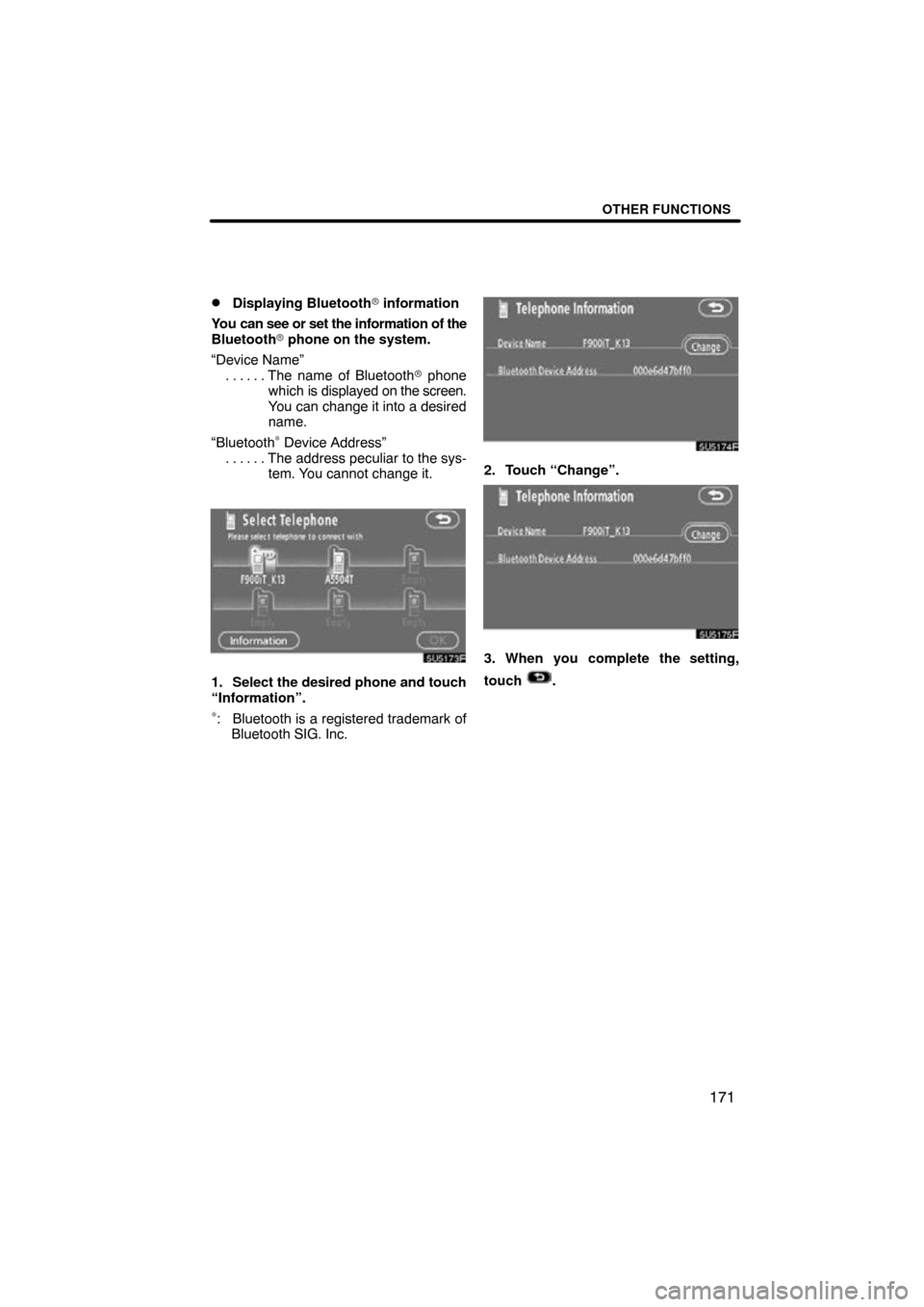

Displaying Bluetooth
information
You can see or set the information of the
Bluetooth  phone on the system.
“Device Name” The name of Bluetooth  phone
. . . . . .
which is displayed on the screen.
You can change it into a desired
name.
“Bluetooth
∗ Device Address”
The address peculiar to the sys-
. . . . . .
tem. You cannot change it.
1. Select the desired phone and touch
“Information”.
∗: Bluetooth is a registered trademark of
Bluetooth SIG. Inc.
2. Touch “Change”.
3. When you complete the setting,
touch
.

OTHER FUNCTIONS
172

Changing a Device Name
You can change a Device Name. If you
change a Device Name, the name regis-
tered in your cellular phone is not
changed.
1. Touch “Change”.
2. Use the software keyboard to input
the Device name.

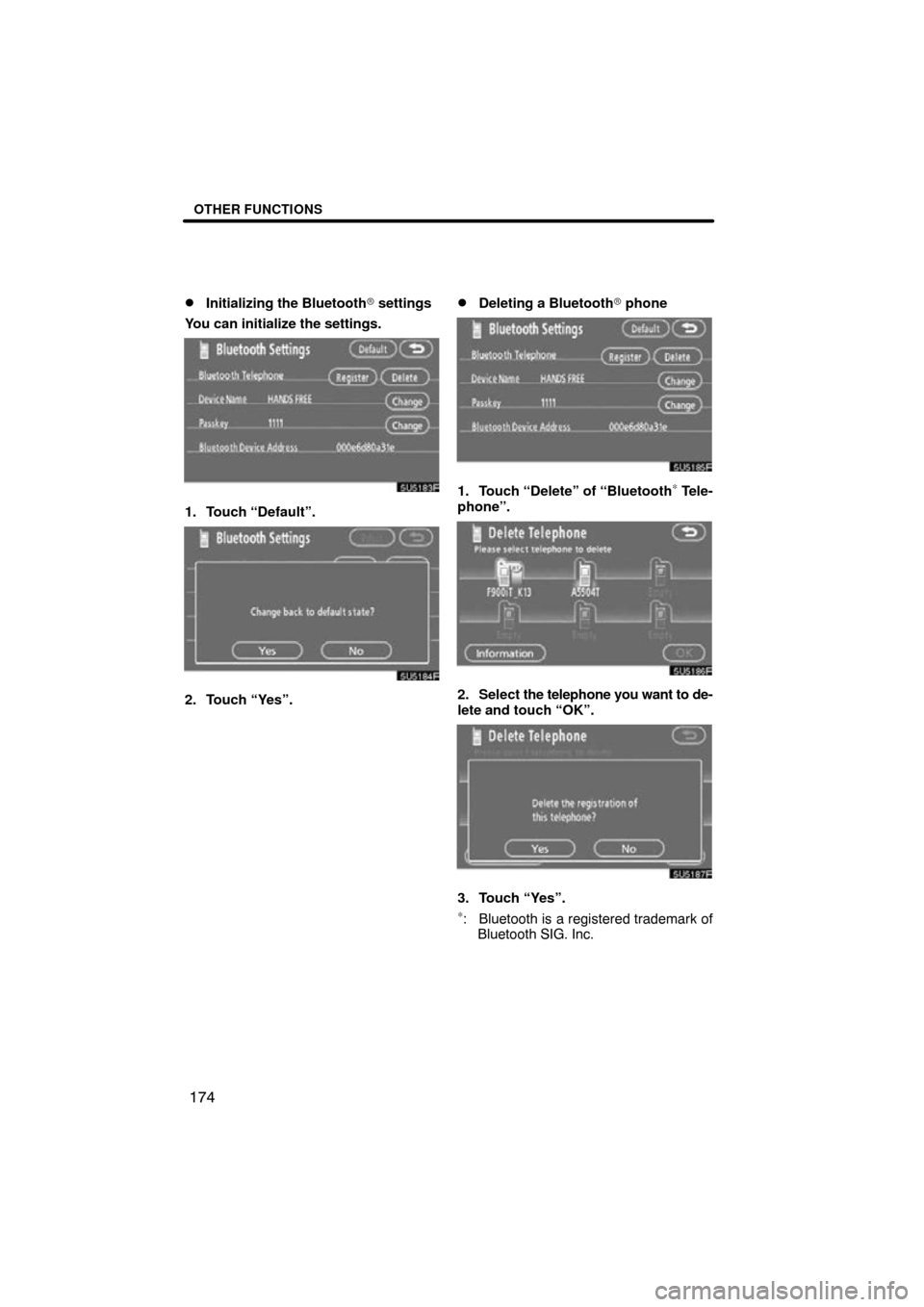

Changing the Bluetooth settings
You can change the display and settings of
Bluetooth  information on the system.
The information displays the following
items.
“Device Name” The name in the Bluetooth
. . . . . .
network. You can change it.
“Passkey” The password when you register
. . . . . .
your cellular phone in the sys-
tem. You can change it into the
figure of 4 −8 digits.
“Bluetooth
∗ Device Address”
The address peculiar to the
. . . . . .
system. You can not change it. If
you have registered two
Bluetooth  phones with the
same Device Name or Passkey
and you cannot distinguish one
from the other , refer to it.
∗: Bluetooth is a registered trademark of
Bluetooth SIG. Inc.

OTHER FUNCTIONS
173
When you change the Device Name or
Passkey, do the followings.
1. Touch “Bluetooth∗”.
2. Touch “Change” of “Device Name”
or “Passkey”.
∗: Bluetooth is a registered trademark of
Bluetooth SIG. Inc.
3. Use the software keyboard to input
the Device Name.
You can input up to 20 characters.
4. Input a Passkey with 4 8 digits.
When you touch  , the inputted number is
deleted.
5. When you complete the setting,
touch
.

OTHER FUNCTIONS
174

Initializing the Bluetooth
 settings
You can initialize the settings.
1. Touch “Default”.
2. Touch “Yes”.
Deleting a Bluetooth phone
1. Touch “Delete” of “Bluetooth∗ Tele-
phone”.
2. Select the telephone you want to de-
lete and touch “OK”.
3. Touch “Yes”.
∗: Bluetooth is a registered trademark of Bluetooth SIG. Inc.

OTHER FUNCTIONS
175

Displaying the information of the
Bluetooth
 phone you delete
You can display the information of the
Bluetooth  phone before you delete it
and you can make sure whether the
telephone you delete is correct or not.
1. Select the telephone you want to
display the information about.
2. When you complete confirming it,
touch
. The speech command system enables
you to operate the navigation system
and audio/video system by giving a
command.
1. Push the talk switch.
A beep sounds and on screen message is
displayed with
an indicator at the top left.
Speech command system
