bluetooth TOYOTA SIENNA 2010 XL30 / 3.G Navigation Manual

SIENNA_Navi_U
19
During route guidancePage
Suspending route guidance90
Adjusting route guidance volume91
Deleting the destination74
Displaying the entire route map82
Useful functions
Memory pointsPage
Registering your own memory points94
Marking icons on the map94
InformationPage
Displaying vehicle maintenance timing120
Displaying the calendar124
Handsfree system (for cellular phone)Page
Initiating Bluetooth133
Making a call on the Bluetooth  phone136
Receiving a call on the Bluetooth  phone143
Speech command systemPage
Operating the system with your voice175

OTHER FUNCTIONS
129
Handsfree system allows you to make
or receive a call without taking your
hands off the steering wheel by con-
necting your cellular phone.
This system supports Bluetooth .
Bluetooth  is a wireless data system by
which you can call without your cellular
phone being connected with a cable or
placed on a cradle.
If your cellular phone does not support
Bluetooth , this system can not function.
CAUTION
While you are driving, do not use a
cellular phone or connect the
Bluetooth  phone.
NOTICE
Do not leave your cellular phone in
the car. The temperature indoor may
be high and damage the phone.
INFORMATION
In the following conditions, the sys-
tem may not function.
 The cellular phone is turned OFF.
 The current position is outside the
communication area.
 The cellular phone is not con-
nected.
 The cellular phone has a low bat-
tery.
By pushing the telephone switch
above, you can receive a call or hang up
without taking your hands off the steer-
ing wheel.
 Microphone
You can use the microphone above
when talking on the phone.
The other party’s voice outputs from the
driver’s speaker. When the received calls
or received voice outputs, the audio from
the Audio/video system or voice guidance
from the Navigation system will be muted.
Handsfree system
(for cellular phone)

OTHER FUNCTIONS
130
INFORMATION
Talk alternately with the other party
on the phone. If you talk at the
same time, the voice may not reach
each other. (It is not a malfunction.)
 Keep the volume of receiving voice
down. Otherwise, echo is coming
up. When you talk on the phone,
speak clearly towards the micro-
phone.
 In the following situations, your
voice may not reach the other
party.
Driving on unpaved road. (Too
much road noise.)
 Driving at high speed.
 Windows are open.
 If airconditioning vents are
turned towards the microphone.
 The sound of the airconditioning
fan is loud.
1Indicates the condition of
Bluetooth  connection.
“Blue” indicates an excellent connection
to Bluetooth .
“Yellow” indicates a bad connection to
Bluetooth , resulting in possible deteriora-
tion of voice quality.
: no connection to Bluetooth .
2Indicates the amount of battery
charge left.
Empty Full
It is not displayed while the Bluetooth  is
connecting or the phone book data is be-
ing transferred.
The amount left does not always corre-
spond with the one of your cellular phone.
This system doesn’t have a charging func-
tion.
3Indicates the receiving area.
“Rm” is displayed when receiving in
Roaming area.
“Hm” is displayed when receiving in
Home area.

OTHER FUNCTIONS
131
4Indicates the level of reception.

Too bad Excellent
The level of reception does not always cor-
respond with the one of your cellular
phone.
INFORMATION
This system supports the following
service.
 HFP (Hands Free Profile) Ver. 1.0
 OPP (Object Push Profile) Ver. 1.1
If your cellular phone does not
support HFP, you cannot enter the
Bluetooth  phone, and take OPP
service individually.
An antenna for the Bluetooth  connec-
tion is built in the display. The indica-
tion of the Bluetooth connection may
turn yellow and the system may not
function when you use the Bluetooth
phone in the following conditions and
places.
Your cellular phone is hiding behind the
display (behind the seat or in the glove
box and console box).
Your cellular phone touches or is
covered with metal materials.
Leave the Bluetooth phone on the
place where “Blue” indication is dis-
played.
Bluetooth is a trademark owned by
Bluetooth SIG, Inc.
When you sell your car:
A lot of personal data is registered
when you use the Handsfree system.
When you sell your car, initialize the
system so your personal information is
no longer recorded. (See “(d) Delete
personal data” on page 183.)
If you initialize it, the former state will never
come back again. Be careful when initializ-
ing data, because once the data is initial-
ized it can not be recovered.
You can initialize the following data in the
system.
Phone book data
Dialed numbers and received calls
Speed dial
Bluetooth  phone data
Security code

OTHER FUNCTIONS
133

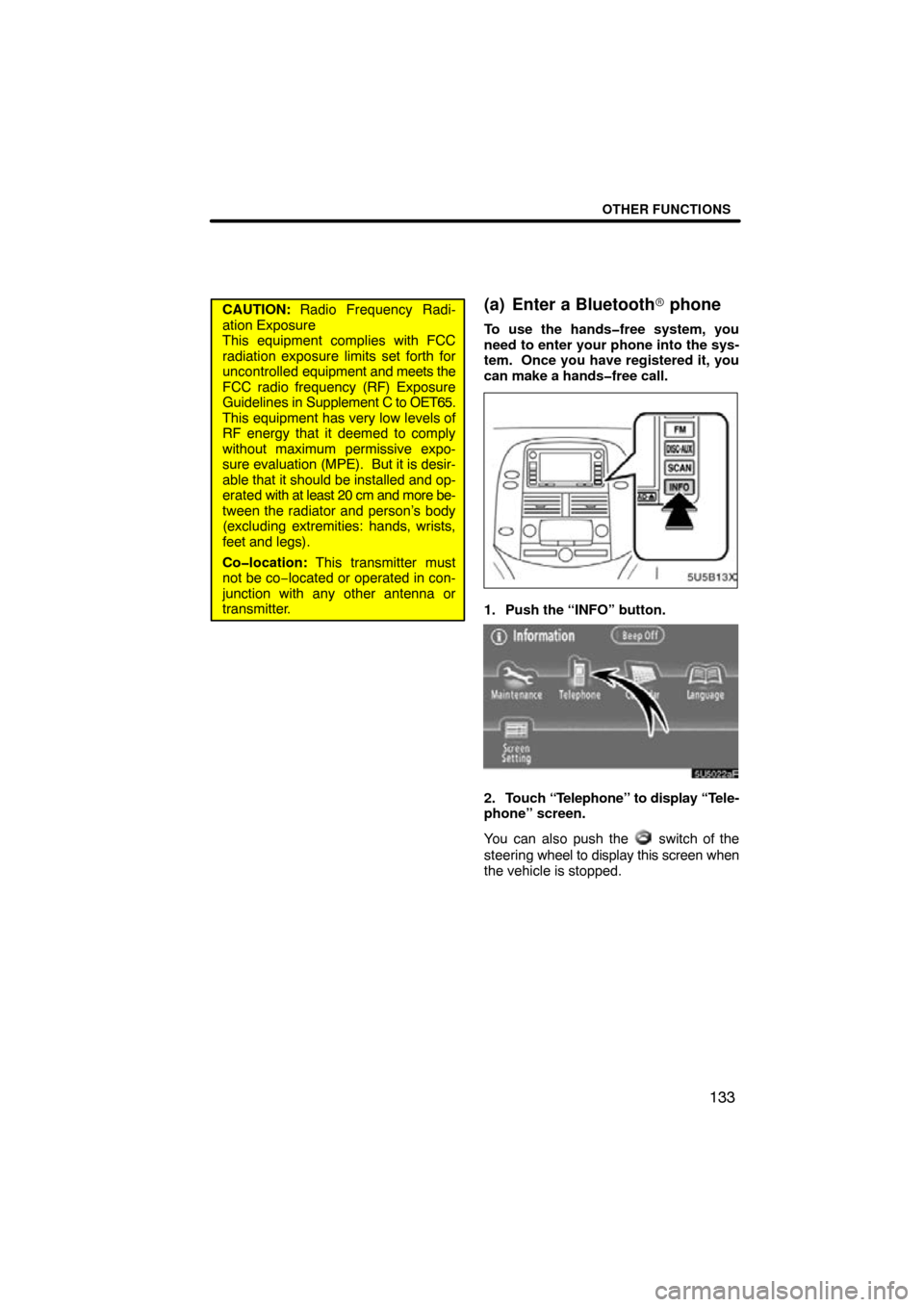

CAUTION: Radio Frequency Radi-
ation Exposure
This equipment complies with FCC
radiation exposure limits set forth for
uncontrolled equipment and meets the
FCC radio frequency (RF) Exposure
Guidelines in Supplement C to OET65.
This equipment has very low levels of
RF energy that it deemed to comply
without maximum permissive expo-
sure evaluation (MPE). But it is desir-
able that it should be installed and op-
erated with at least 20 cm and more be-
tween the radiator and person’s body
(excluding extremities: hands, wrists,
feet and legs).
Colocation: This transmitter must
not be co −located or operated in con-
junction with any other antenna or
transmitter.(a) Enter a Bluetooth phone
To use the handsfree system, you
need to enter your phone into the sys-
tem. Once you have registered it, you
can make a handsfree call.
1. Push the “INFO” button.
2. Touch “Telephone” to display “Tele-
phone” screen.
You can also push the
switch of the
steering wheel to display this screen when
the vehicle is stopped.

OTHER FUNCTIONS
134
3. Touch “Settings” to display “Set-
tings” screen.
4. Touch “Bluetooth∗” to display the
“Bluetooth∗ Settings” screen.
5. Touch “Register” to connect your
cellular phone to the system.
∗: Bluetooth is a registered trademark of Bluetooth SIG. Inc.
6. When this screen is displayed, input
the Passkey displayed on the screen
into the phone.
For the operation of the phone, see the
manual that comes with your cellular
phone.
If you want to cancel it, touch “Cancel”.
7. When the connection is completed,
this screen is displayed.
You will not need to reenter the passkey
when this phone is used in the future.
When this screen is displayed, follow the
guidance on the screen to try again.

OTHER FUNCTIONS
135

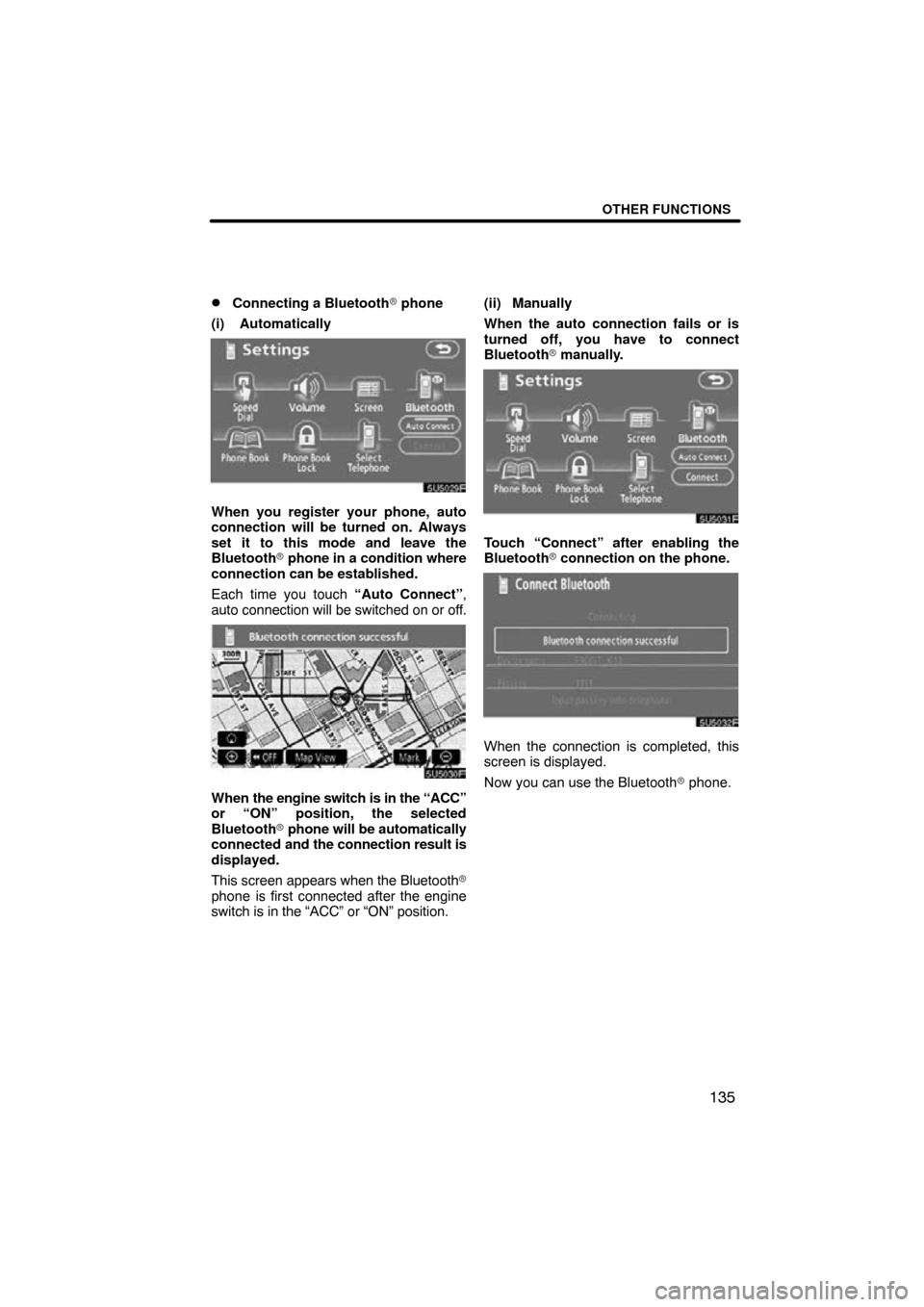

Connecting a Bluetooth
 phone
(i) Automatically
When you register your phone, auto
connection will be turned on. Always
set it to this mode and leave the
Bluetooth  phone in a condition where
connection can be established.
Each time you touch “Auto Connect”,
auto connection will be switched on or off.
When the engine switch is in the “ACC”
or “ON” position, the selected
Bluetooth  phone will be automatically
connected and the connection result is
displayed.
This screen appears when the Bluetooth
phone is first connected after the engine
switch is in the “ACC” or “ON” position. (ii) Manually
When the auto connection fails or is
turned off, you have to connect
Bluetooth
 manually.
Touch “Connect” after enabling the
Bluetooth  connection on the phone.
When the connection is completed, this
screen is displayed.
Now you can use the Bluetooth  phone.

OTHER FUNCTIONS
136

Reconnecting the Bluetooth

phone
If the Bluetooth phone is discon-
nected with a poor reception from the
Bluetooth  network when the engine
switch is in the “ACC” or “ON” position,
the system automatically reconnects
the Bluetooth phone. In this case, the
connection result is not displayed.
If the Bluetooth is disconnected on pur-
pose such as you turned your cellular
phone OFF, this does not happen. Recon-
nect it by the following methods.
Select the Bluetooth  phone again.
Enter the Bluetooth  phone.
(b) Call on the Bluetooth pho-
ne
After you enter the Bluetooth phone,
you can call by using handsfree sys-
tem. You can call using the 7 methods
described below.

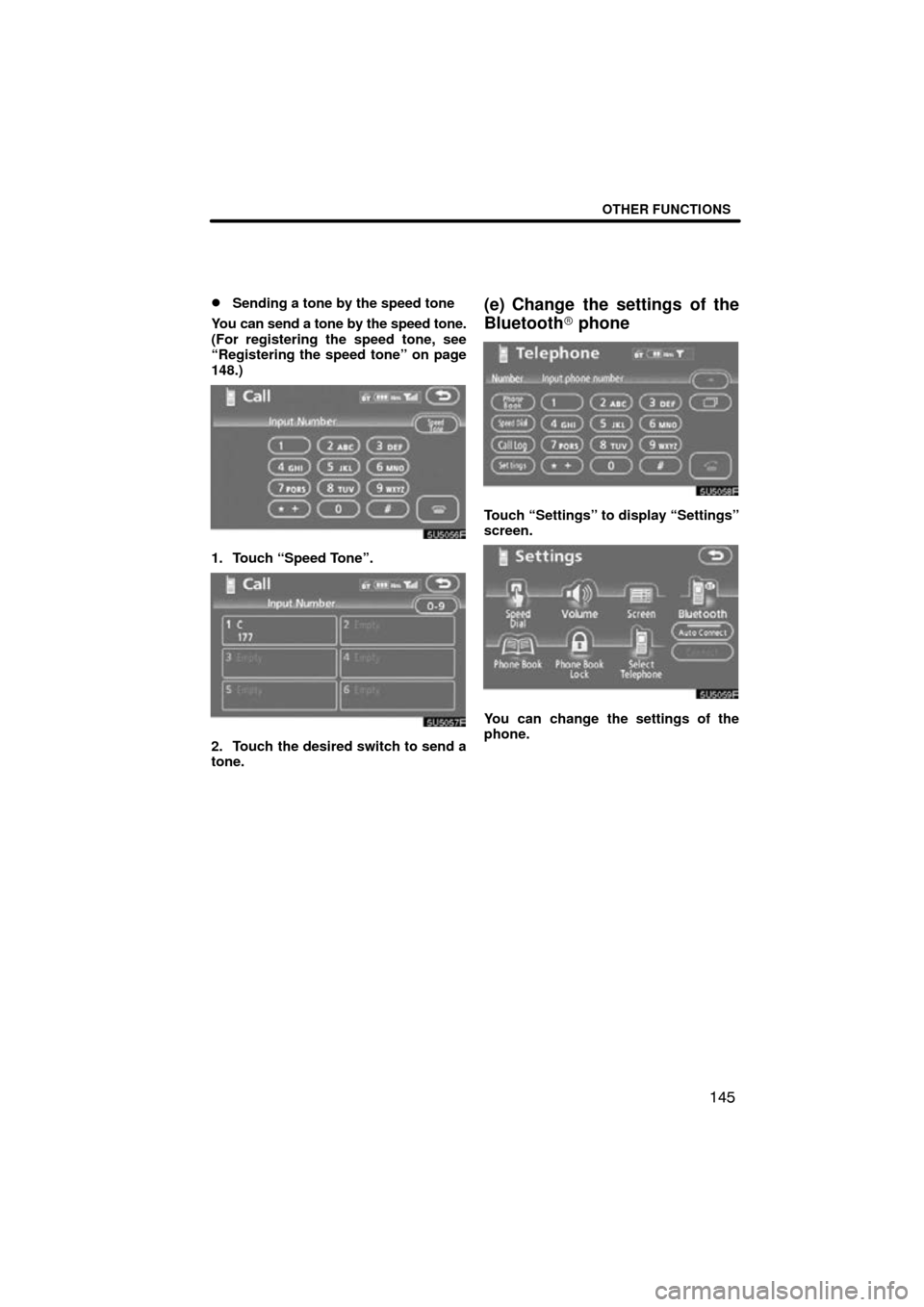

(i) By dial
You can call by inputting the telephone
number.
This cannot be operated while driving.
Touch the desired key to input the tele-
phone number.
Each time you touch , an inputted digit is
deleted.
When you touch
, the number you
called last is inputted.
Touch
or push the switch of the
steering wheel.

OTHER FUNCTIONS
143
(c) Receive on the Bluetooth
phone
When a call is received, this screen is
displayed with a sound. Touch
or
push the
switch of the steering
wheel to talk on the phone.
To hang up the phone:
Touch
or push the switch of
the steering wheel again.
To refuse to receive the call: Touch
and hold it.
To adjust the volume of received call: Touch
“–” or “+” or use the volume
switch of the steering wheel.
On the international phone call, the other
party’s name may not be displayed cor-
rectly depending on the cellular phone
which you have.
(d) Talk on the Bluetooth
phone
While you are talking on the phone, this
screen is displayed. You can do the op-
eration below on the screen.
To adjust the volume of the other party’s
voice:
Touch
“–” or “+” or use the volume
switch of the steering wheel.
To hang up the phone: Touch
or push the switch of
the steering wheel.
To mute your voice: Touch “Mute”.
To input a Key: Touch “09”.
To transfer the call Touch “Transfer Call” .
You cannot change from Hands −free call
to cellular phone call while driving.
When you change from cellular phone call
to Hands− free call, the Hands −free screen
will be displayed and you can operate it on
the screen.
Transferring method and behavior are dif-
ferent depending on the cellular phone
which you have.
For the operation of the phone, see the
manual that comes with your cellular
phone.

OTHER FUNCTIONS
145

Sending a tone by the speed tone
You can send a tone by the speed tone.
(For registering the speed tone, see
“Registering the speed tone” on page
148.)
1. Touch “Speed Tone”.
2. Touch the desired switch to send a
tone.
(e) Change the settings of the
Bluetooth  phone
Touch “Settings” to display “Settings”
screen.
You can change the settings of the
phone.
