1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
■Operating the driving position memory after turning the engine switch
to the “LOCK” position
Memorized positions can be activated up to 30 seconds after the driver's
door is opened, even after turning the engine switch to the “LOCK” position.
■ To cancel memorized position recall
Perform any of the following operations.
●Push the “SET” button.
● Push button “1” or “2”.
● Adjust the seat using the switches (using the switches only cancels seat
position recall).
■ If the battery is disconnected
The memorized positions are erased when the battery is disconnected.
CAUTION
■Seat adjustment caution
Take care during seat adjustment that the seat does not strike the rear pas-
senger or squeeze your body against the steering wheel.

82
1-3. Adjustable components (seats, mirrors, steering wheel)

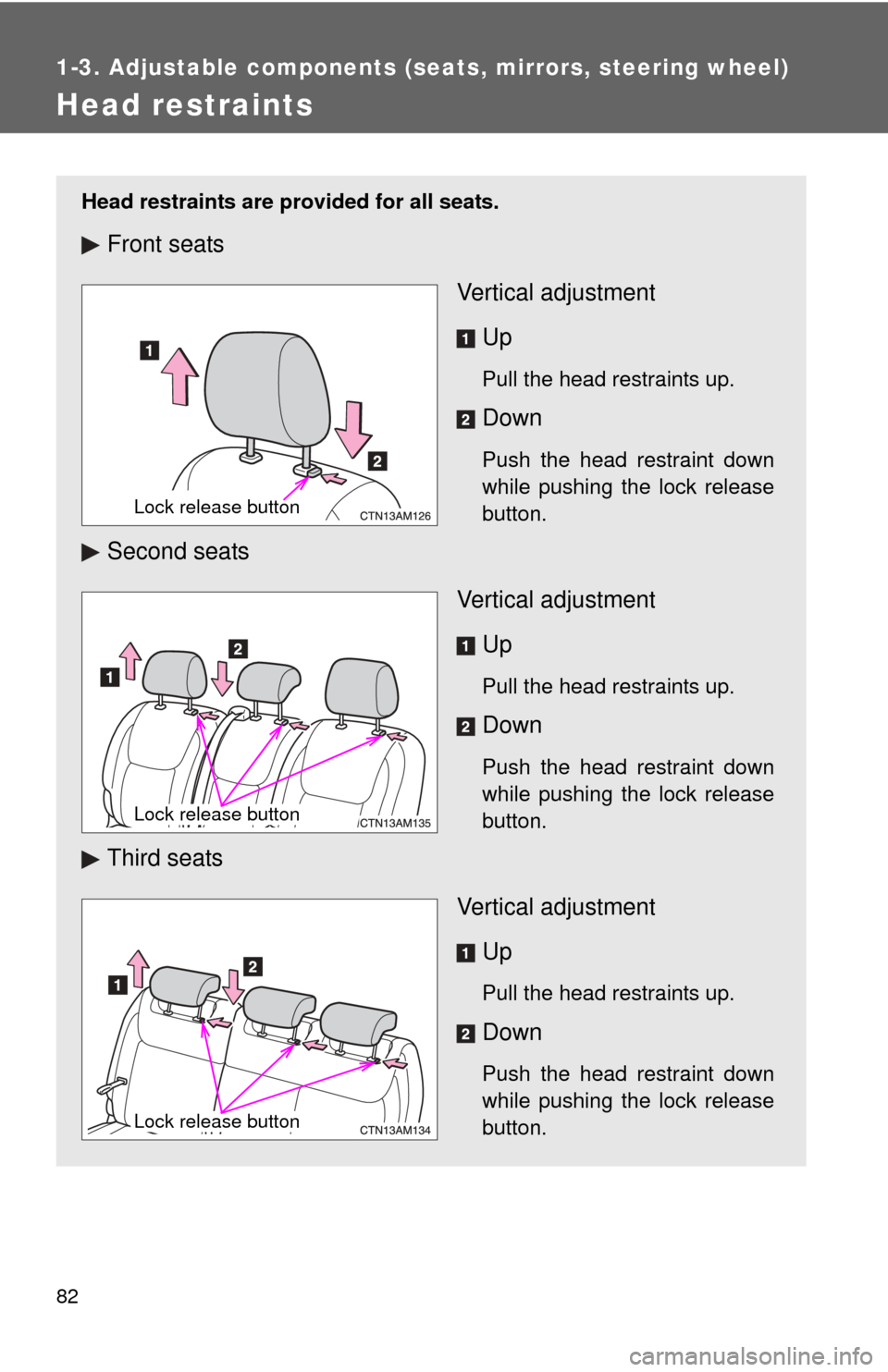

Head restraints
Head restraints are provided for all seats.
Front seatsVertical adjustmentUp
Pull the head restraints up.
Down
Push the head restraint down
while pushing the lock release
button.
Second seats
Vertical adjustmentUp
Pull the head restraints up.
Down
Push the head restraint down
while pushing the lock release
button.
Third seats
Vertical adjustmentUp
Pull the head restraints up.
Down
Push the head restraint down
while pushing the lock release
button.
Lock release button
Lock release button
Lock release button

83
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
■Removing the head restraints
■ Installing the head restraints
■ Adjusting the height of the head restraints
Pull the head restraint up while pressing
the lock release button.
Align the head restraint with the installa-
tion holes and push it down to the lock
position.
Press and hold the lock release button
when lowering the head restraint.
Make sure that the head restraints are
adjusted so that the center of the head
restraint is closest to the top of your ears.

84 1-3. Adjustable components (seats, mirrors, steering wheel)
CAUTION
■Head restraint precautions
Observe the following precautions regarding the head restraints. Failure to
do so may result in death or serious injury.
●Use the head restraints designed for each respective seat.
● Adjust the head restraints to the correct position at all times.
● After adjusting the head restraints, push down on them and make sure
they are locked in position.
● Do not drive with the head restraints removed.

85
1
1-3. Adjustable components (seats, mirrors, steering wheel)
Before driving

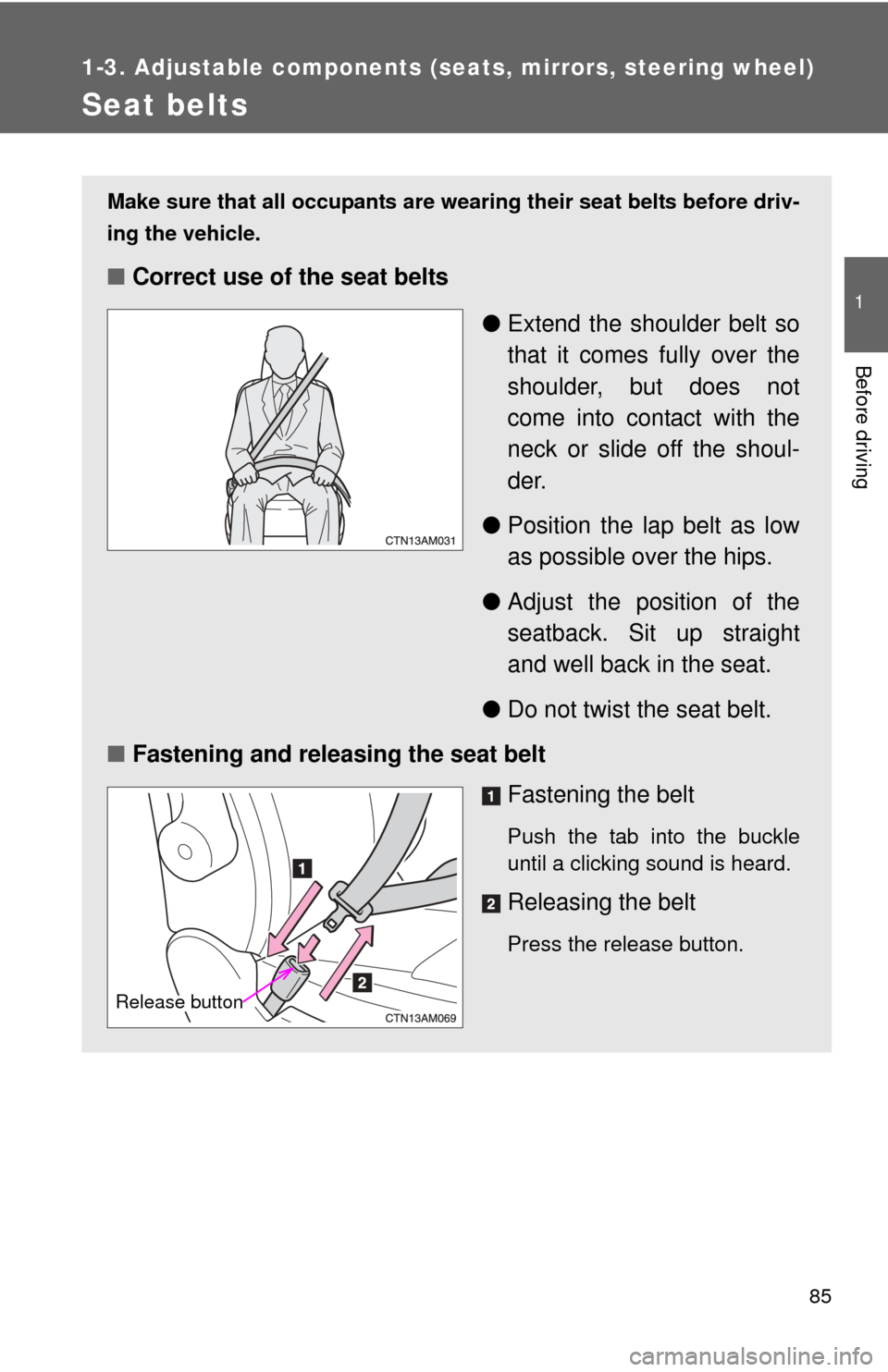

Seat belts
Make sure that all occupants are wearing their seat belts before driv-
ing the vehicle.
■Correct use of the seat belts
●Extend the shoulder belt so
that it comes fully over the
shoulder, but does not
come into contact with the
neck or slide off the shoul-
der.
● Position the lap belt as low
as possible over the hips.
● Adjust the position of the
seatback. Sit up straight
and well back in the seat.
● Do not twist the seat belt.
■ Fastening and releasing the seat belt
Fastening the belt
Push the tab into the buckle
until a clicking sound is heard.
Releasing the belt
Press the release button.
Release button

86 1-3. Adjustable components (seats, mirrors, steering wheel)
Center third seat belt
The center third seat belt is a 3-point type restraint with 2 buckles.
Both seat belt buckles must be correctly located and securely latched
for proper operation. Make sure that the buckle is
securely latched for ready use of
the center seat belt.Matches the tab with the
hooked end.
Matches the tab with the con-
cave end.
■Adjusting the height of the belt (front seats)
Down
Up
Move the height adjuster up
and down as needed until you
hear a click.

87
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
■Release method
The belt can be completely released when not required, such as
when folding down the third seat.
Insert the key into the hole on
the center seat belt buckle to
release the tab (with the hooked
end), and allow the belt to
retract.
Stow the seat belt tabs in the
cover set in the roof as shown.
■ Extracting the belt
Pull tab out and pull the belt
out a little. Then pull tab out.
STEP1
STEP2

88 1-3. Adjustable components (seats, mirrors, steering wheel)
Seat belt comfort guide (outer third seat)
If the shoulder belt sits close to a
person's neck, use the seat belt
comfort guide.
Seat belt pretensioners (front seats)
The pretensioner helps the seat
belt to quickly restrain the occu-
pant by retracting the seat belt
when the vehicle is subjected to
certain types of severe frontal
collision.
The pretensioner may not acti-
vate in the event of a minor frontal
impact, a side impact or a rear
impact.
■Emergency locking retractor (ELR)
The retractor will lock the belt during a sudden stop or on impact. It may also
lock if you lean forward too quickly. A slow, easy motion will allow the belt to
extend so that you can move around fully.
■ Automatic locking retractor (ALR)
When a passenger's shoulder belt is completely extended and then
retracted even slightly, the belt is locked in that position and cannot be
extended. This feature is used to hold the child restraint system (CRS) firmly.
To free the belt again, fully retract the belt and then pull the belt out once
more. ( P. 140)

89
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
■Pregnant women
■ People suffering illness
Obtain medical advice and wear the seat belt in the proper way.
■ When not using the second seat belts
Obtain medical advice and wear the seat
belt in the proper way. ( P. 85)
Women who are pregnant should position
the lap belt as low as possible over the
hips in the same manner as other occu-
pants. Extend the shoulder belt com-
pletely over the shoulder and position the
belt across the chest. Avoid belt contact
over the rounding of the abdominal area.
If the seat belt is not worn properly, not
only a pregnant woman, but also the fetus
could suffer death or serious injury as a
result of sudden braking or a collision.
Pass the outer seat belts through the seat
belt hangers and secure the seat belt
plates to prevent the shoulder belts from
being damaged.

90 1-3. Adjustable components (seats, mirrors, steering wheel)
■Child seat belt usage
The seat belts of your vehicle were principally designed for persons of adult
size.
●Use a child restraint system appropriate for the child, until the child
becomes large enough to properly wear the vehicle's seat belt. ( P. 136)
● When the child becomes large enough to properly wear the vehicle's seat
belt, follow the instructions on P. 85 regarding seat belt usage.
■ Replacing the belt after the pretensioner has been activated
If the vehicle is involved in multiple collisions, the pretensioner will activate
for the first collision, but will not activate for the second or subsequent colli-
sions.
■ Seat belt extender
If your seat belts cannot be fastened
securely because they are not long
enough, a personalized seat belt
extender is available from your Toyota
dealer free of charge.
