TOYOTA SIENNA 2012 XL30 / 3.G Navigation Manual

MY PLACES
111

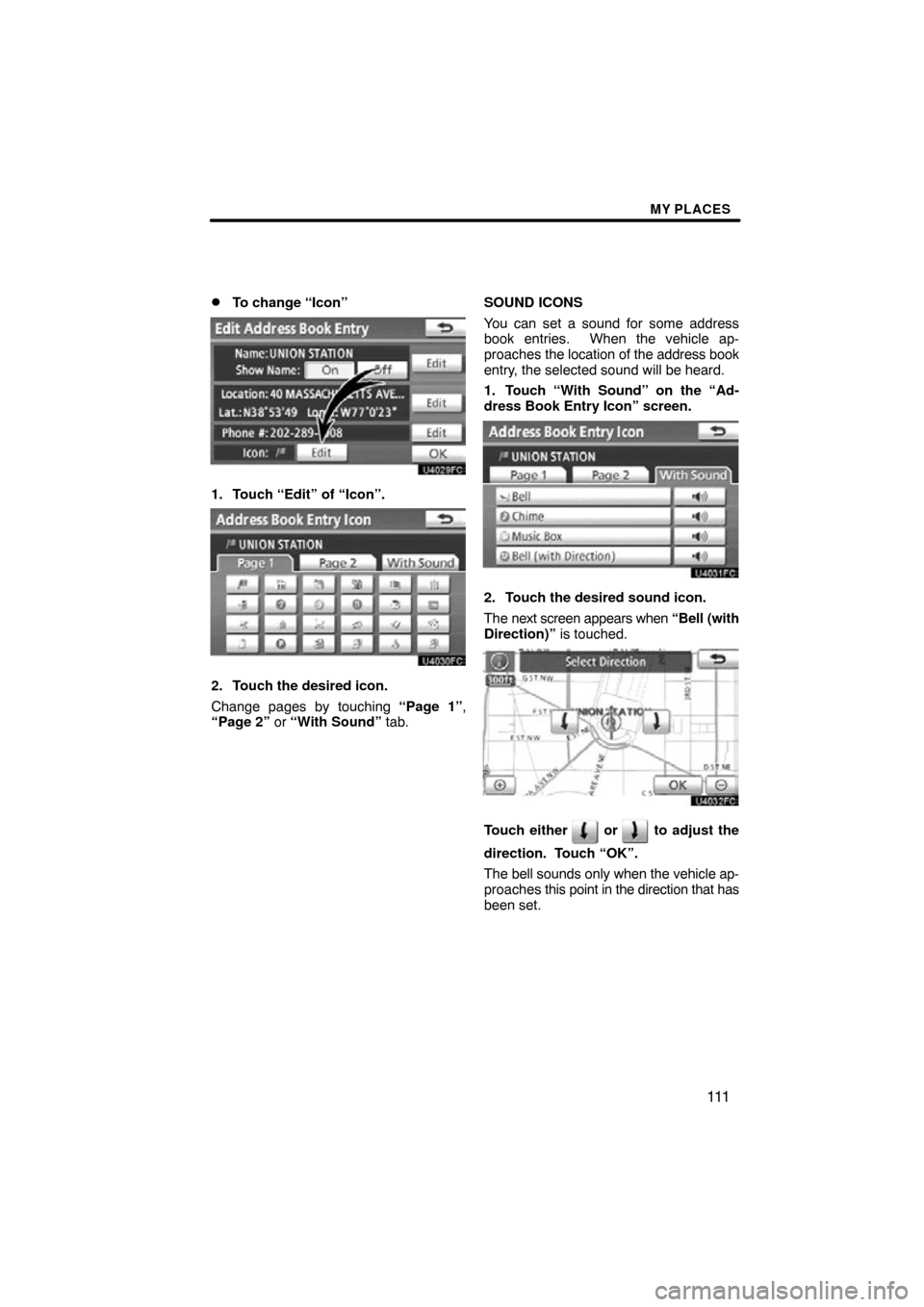

To change “Icon”
1. Touch “Edit” of “Icon”.
2. Touch the desired icon.
Change pages by touching
“Page 1”,
“Page 2” or “With Sound” tab. SOUND ICONS
You can set a sound for some address
book entries. When the vehicle ap-
proaches
the location of the address book
entry, the selected sound will be heard.
1. Touch “With Sound” on the “Ad-
dress Book Entry Icon” screen.
2. Touch the desired sound icon.
The next screen appears when “Bell (with
Direction)” is touched.
Touch either or to adjust the
direction. Touch “OK”.
The bell sounds only when the vehicle ap-
proaches this point in the direction that has
been set.

MY PLACES
11 2

To change “Name”
1. Touch “Edit” of “Name”.
2. Enter the name using the alphanu-
meric keys.
Up to 32 characters can be entered.
3. Touch “OK”.
The previous screen will be displayed.
DISPLAYING MEMORY POINT NAMES
The name of an address
book entry can be
set to display on the map.
To show the name, touch “On” on the
“Edit Address Book Entry” screen. To
not show it, touch “Off”.

MY PLACES
11 3

To change “Location”
1. Touch “Edit” of “Location”.
2. Touch
one of the 8 directional touch
screen buttons to move the cursor
to the desired point on the map.
3. Touch “OK”.
The previous screen will be displayed.
To change “Phone #” (telephone
number)
1. Touch “Edit” of “Phone #”.
2. Enter the number using number
keys.
3. Touch “OK”.
The previous screen will be displayed.

MY PLACES
11 4

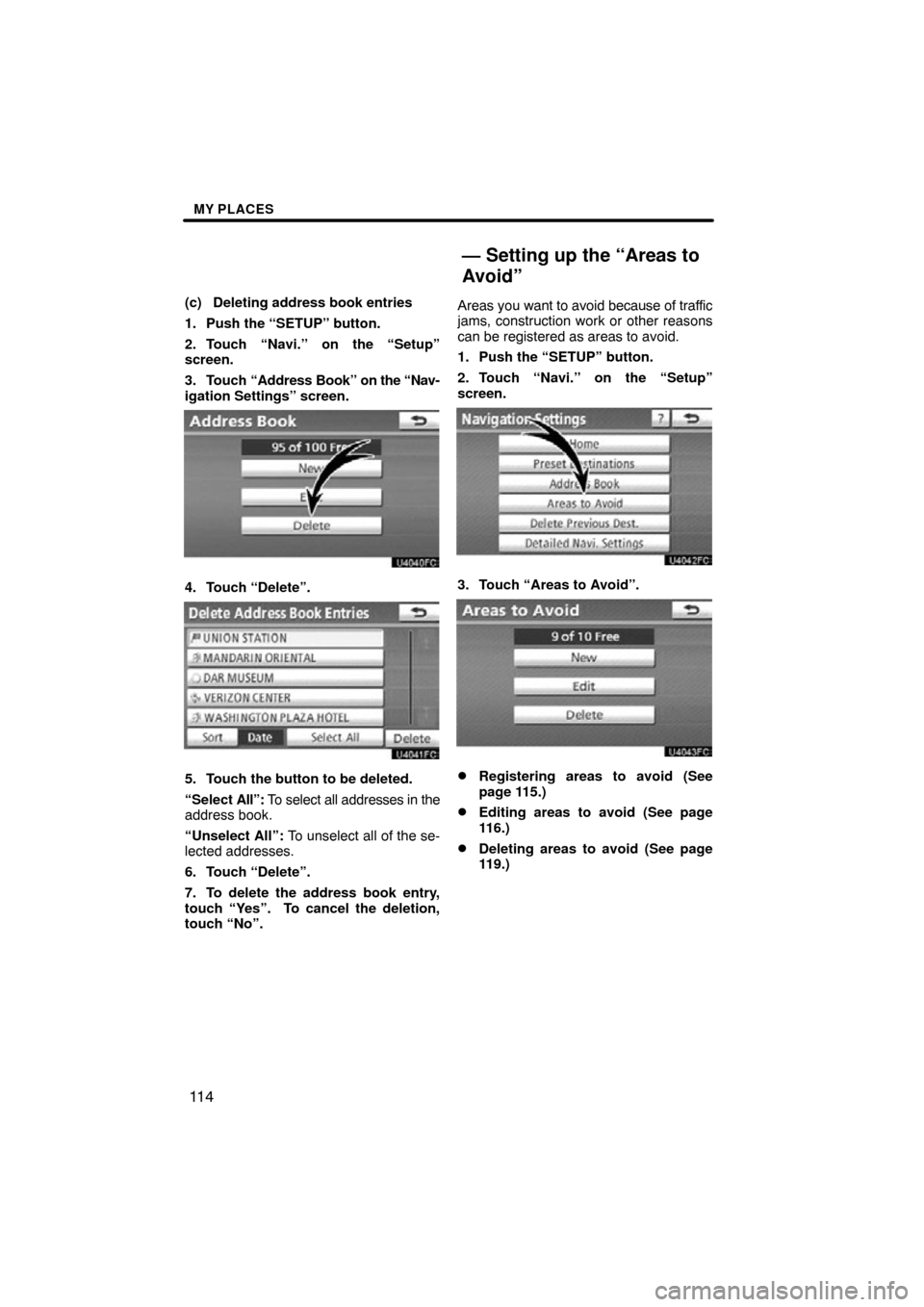

(c) Deleting address book entries
1. Push the “SETUP” button.
2. Touch “Navi.” on the “Setup”
screen.
3. Touch “Address Book” on the “Nav-
igation Settings” screen.
4. Touch “Delete”.
5. Touch the button to be deleted.
“Select All”: To select all addresses in the
address book.
“Unselect All”: To unselect all of the se-
lected addresses.
6. Touch “Delete”.
7. To delete the address book entry,
touch “Yes”. To cancel the deletion,
touch “No”. Areas you
want to avoid because of traffic
jams, construction work or other reasons
can be registered as areas to avoid.
1. Push the “SETUP” button.
2. Touch “Navi.” on the “Setup”
screen.
3. Touch “Areas to Avoid”.
Registering areas to avoid (See
page 115.)
Editing areas to avoid (See page
116.)
Deleting areas to avoid (See page
119.)
— Setting up the “Areas to
Avoid”

MY PLACES
11 5

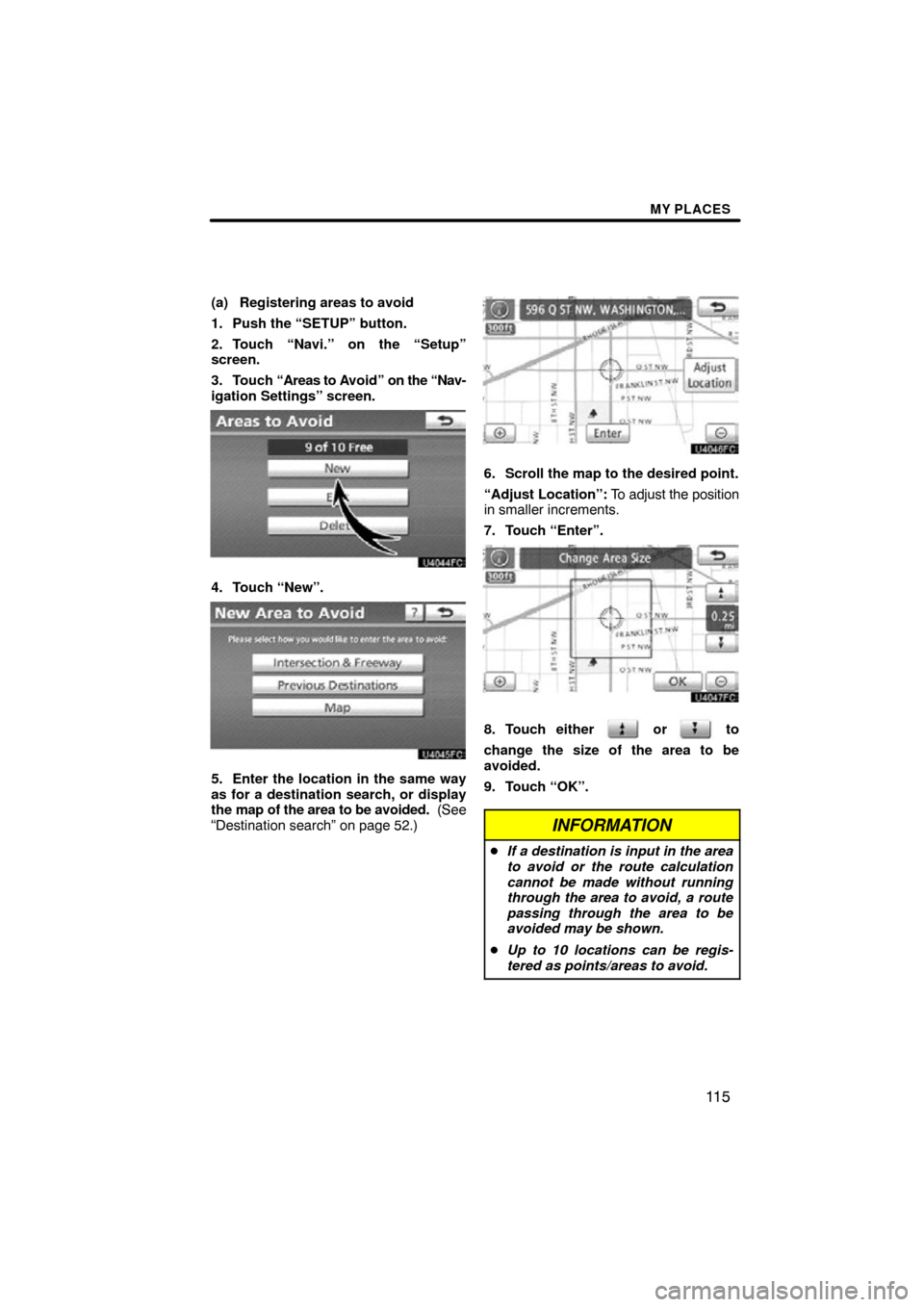

(a) Registering areas to avoid
1. Push the “SETUP” button.
2. Touch “Navi.” on the “Setup”
screen.
3. Touch “Areas to A void” on the “Nav-
igation Settings” screen.
4. Touch “New”.
5. Enter the location in the same way
as for a destination search, or display
the map of the area to be avoided. (See
“Destination search” on page 52.)
6. Scroll the map to the desired point.
“Adjust Location”: To adjust the position
in smaller increments.
7. Touch “Enter”.
8. Touch either or to
change the size of the area to be
avoided.
9. Touch “OK”.
INFORMATION
 If a destination is input in the area
to avoid or the route calculation
cannot be made without running
through the area to avoid, a route
passing through the area to be
avoided may be shown.
 Up to 10 locations can be regis-
tered as points/areas to avoid.

MY PLACES
11 6

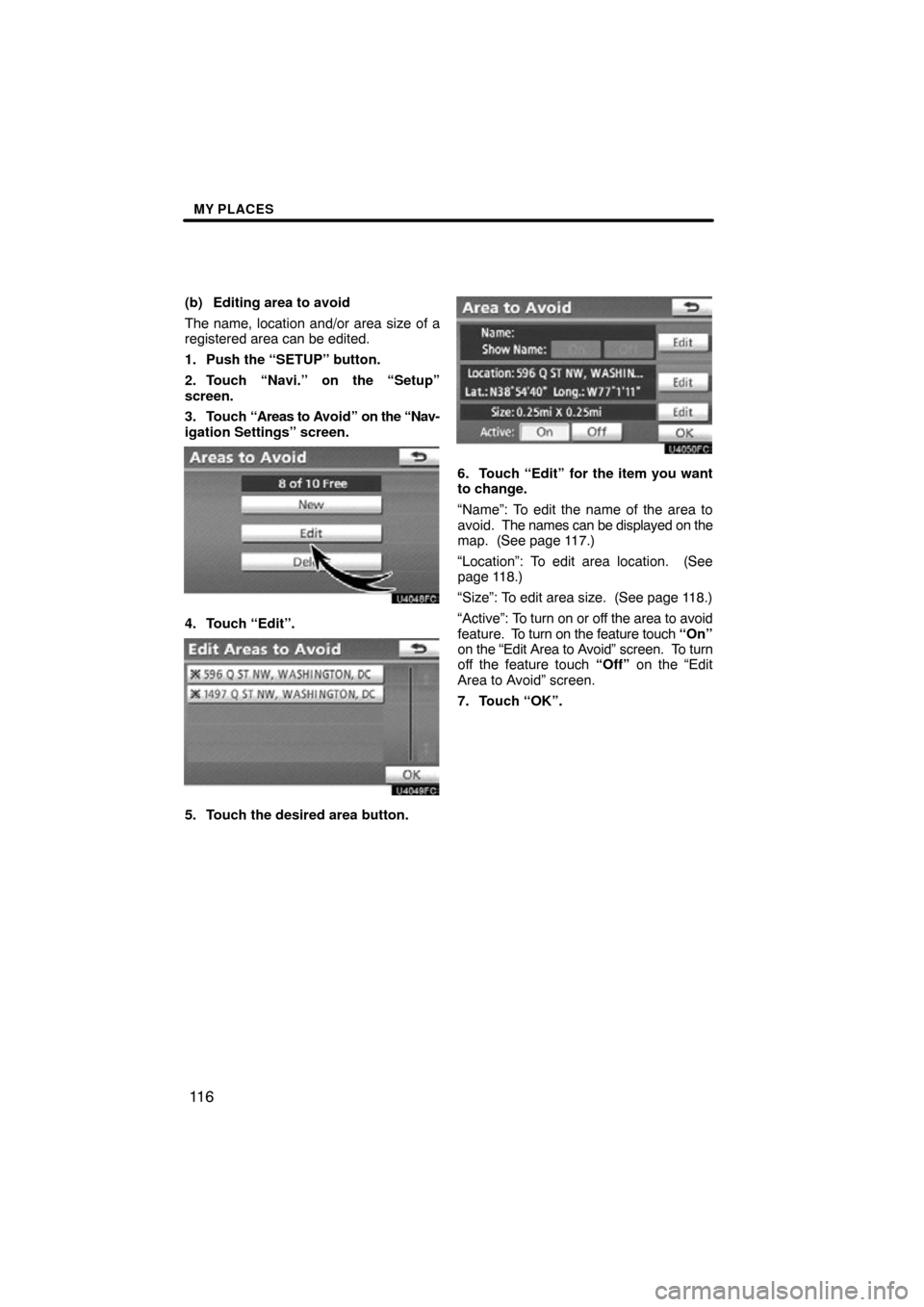

(b) Editing area to avoid
The name, location and/or area size of a
registered area can be edited.
1. Push the “SETUP” button.
2. Touch “Navi.” on the “Setup”
screen.
3. Touch “Areas to A void” on the “Nav-
igation Settings” screen.
4. Touch “Edit”.
5. Touch the desired area button.
6. Touch “Edit” for the item you want
to change.
“Name”: To edit the name of the area to
avoid. The names can be displayed on the
map. (See page 117.)
“Location”: To edit area location. (See
page 118.)
“Size”: To edit area size. (See page 118.)
“Active”: To turn on or off the area to avoid
feature. To turn on the feature touch “On”
on the “Edit Area to Avoid” screen. To turn
off the feature touch “Off” on the “Edit
Area to Avoid” screen.
7. Touch “OK”.

MY PLACES
11 7

To change “Name”
1. Touch “Edit” of “Name”.
2. Enter the name
using alphanumeric
keys.
Up to 32 characters can be entered.
3. Touch “OK”.
The previous screen will be displayed. DISPLAYING
NAMES OF AREAS TO BE
AVOIDED
The name of an area to be avoided that
may be displayed on the map can be set.
To show the name, touch “On” on the
“Area to A void” screen. To not show it,
touch “Off”.

MY PLACES
11 8

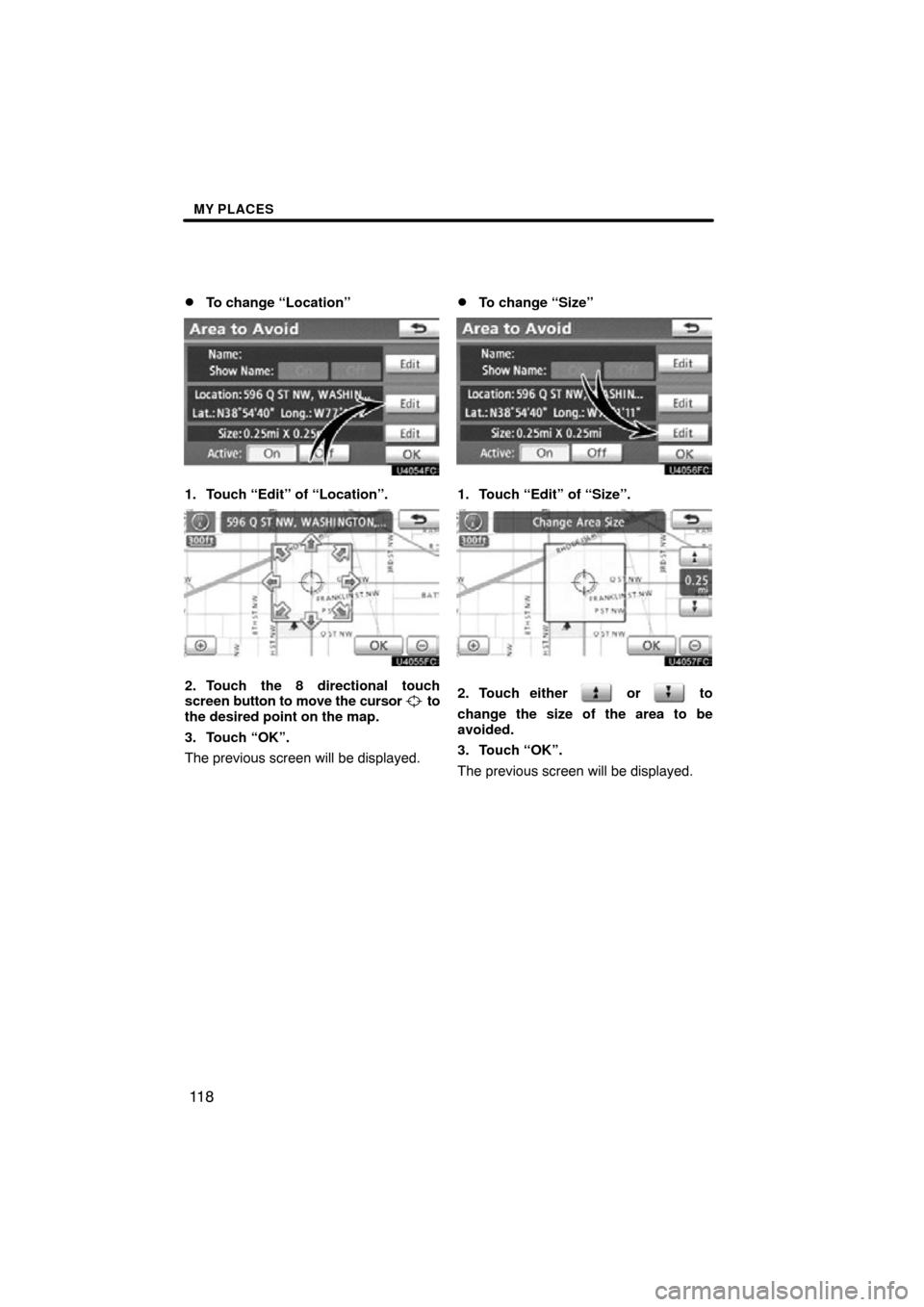

To change “Location”
1. Touch “Edit” of “Location”.
2. Touch the 8 directional touch
screen
button to move the cursor to
the desired point on the map.
3. Touch “OK”.
The previous screen will be displayed.
To change “Size”
1. Touch “Edit” of “Size”.
2. Touch either or to
change the size of the area to be
avoided.
3. Touch “OK”.
The previous screen will be displayed.

MY PLACES
11 9

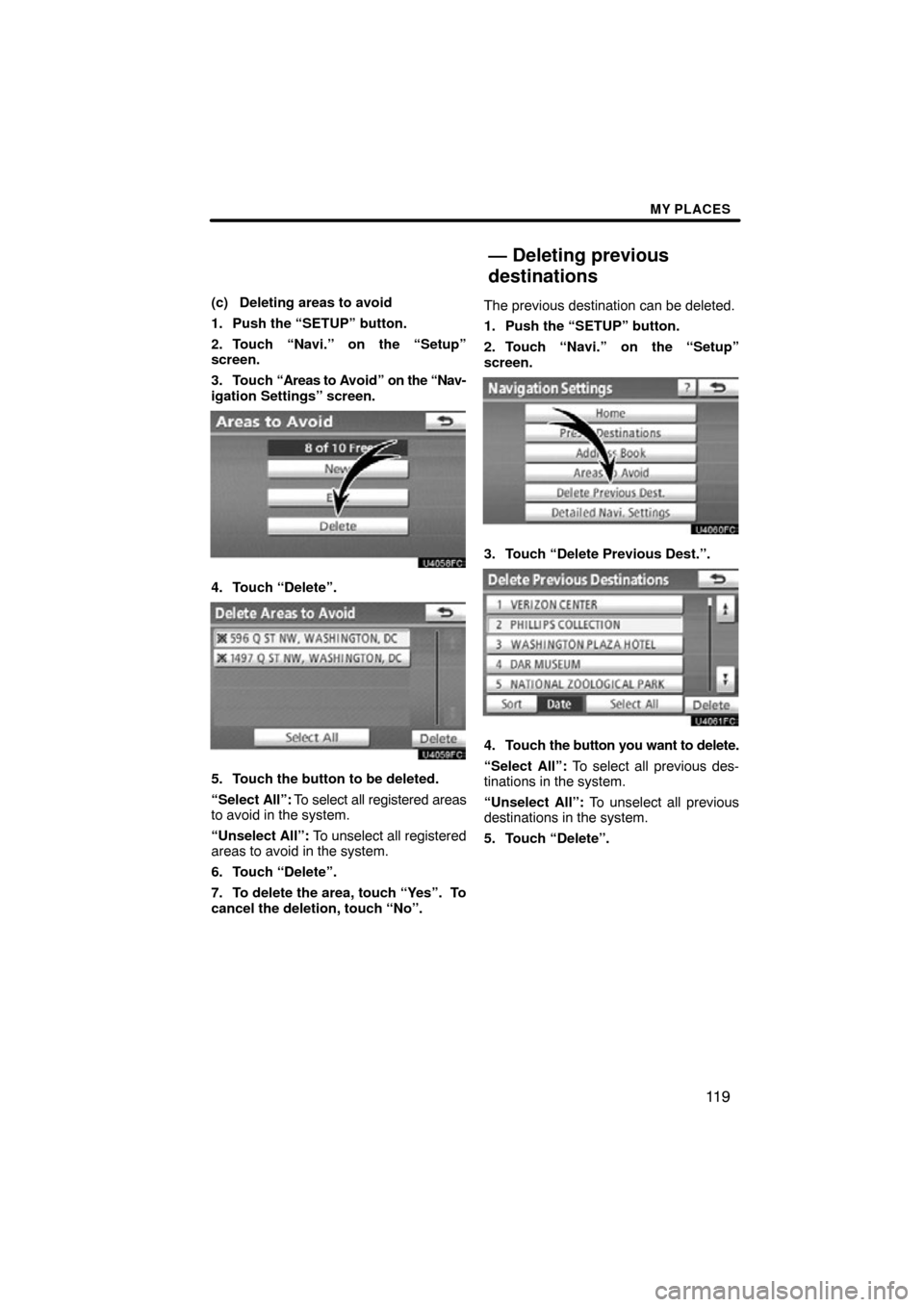

(c) Deleting areas to avoid
1. Push the “SETUP” button.
2. Touch “Navi.” on the “Setup”
screen.
3. Touch “Areas to A void” on the “Nav-
igation Settings” screen.
4. Touch “Delete”.
5. Touch the button to be deleted.
“Select All”: To select all registered areas
to avoid in the system.
“Unselect All”: To unselect all registered
areas to avoid in the system.
6. Touch “Delete”.
7. To delete the area, touch “Yes”. To
cancel the deletion, touch “No”. The previous destination can be deleted.
1. Push the “SETUP” button.
2. Touch “Navi.” on the “Setup”
screen.
3. Touch “Delete Previous Dest.”.
4. Touch
the button you want to delete.
“Select All”: To select all previous des-
tinations in the system.
“Unselect All”: To unselect all previous
destinations in the system.
5. Touch “Delete”.
— Deleting previous
destinations

MY PLACES
120

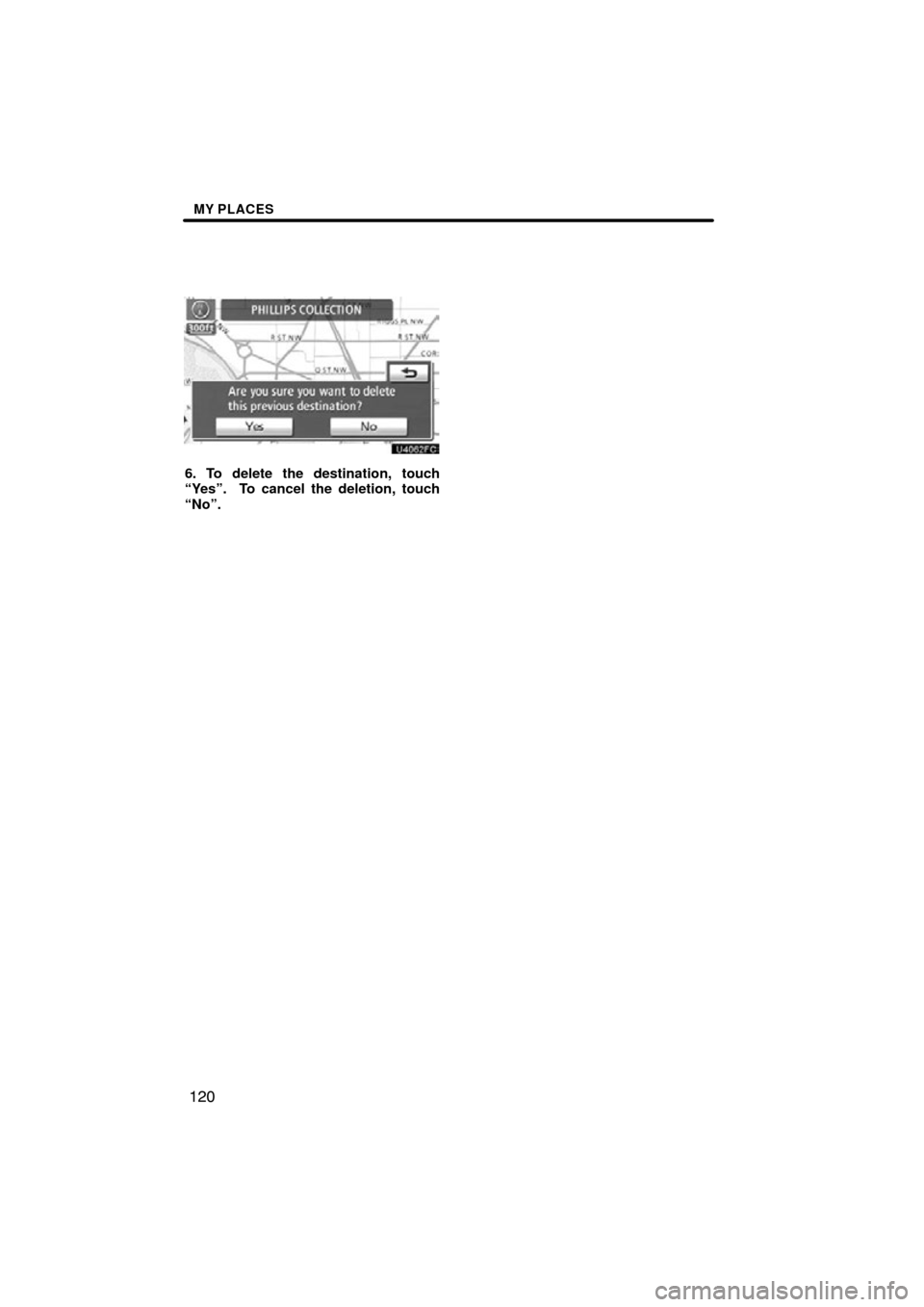

6. To delete the destination, touch
“Yes”. To cancel the deletion, touch
“No”.
