TOYOTA SIENNA 2012 XL30 / 3.G Owners Manual

551
3-5. Using the hand
s-free phone system (for cellular phone)
3
Interior features
SIENNA_U (OM45477U)
Listing the registered cellular phones
Selecting “List Phones” using a voice command or causes the
list of registered cellular phones to be read aloud.
When listing is complete, the system returns to “Phone Setup”.
Pressing the talk switch while the name of a cellular phone is being
read selects the cellular phone, and the following functions will be
available:
• Selecting a cellular phone: “Select Phone”
• Changing a registered name: “Change Name”
• Deleting a cellular phone: “Delete Phone”
Deleting a cellular phone
Select “Delete Phone” using a voice command or .
Select the cellular phone to be deleted by either of the follow-
ing methods and select “Confirm” using a voice command or:
a. Press the talk switch and say the name of the desired cellu- lar phone.
b. Press the talk switch and say “List phones”. While the name of the desired cellular phone is being read aloud, press the
talk switch.
STEP1
STEP2

552 3-5. Using the hands-free phone system (for cellular phone)
SIENNA_U (OM45477U)
Changing the passkey
Select “Set Passkey” using a voice command or .
Press the talk switch, say a 4 to 8-digit number, and select
“Confirm” using a voice command or .
The number should be input 1 digit at a time.
When the entire number to be registered as a passkey has
been input, press once again.
■ Turning on the automatic connection
Select “Hands-free Power” using a voice command or .
Select “Turn on” using a voice command or .
■The number of cellular ph ones that can be registered
Up to 6 cellular phones can be registered in the system.
STEP1
STEP2
STEP3

553
3-5. Using the hands-free phone system (for cellular phone)
3
Interior features
SIENNA_U (OM45477U)

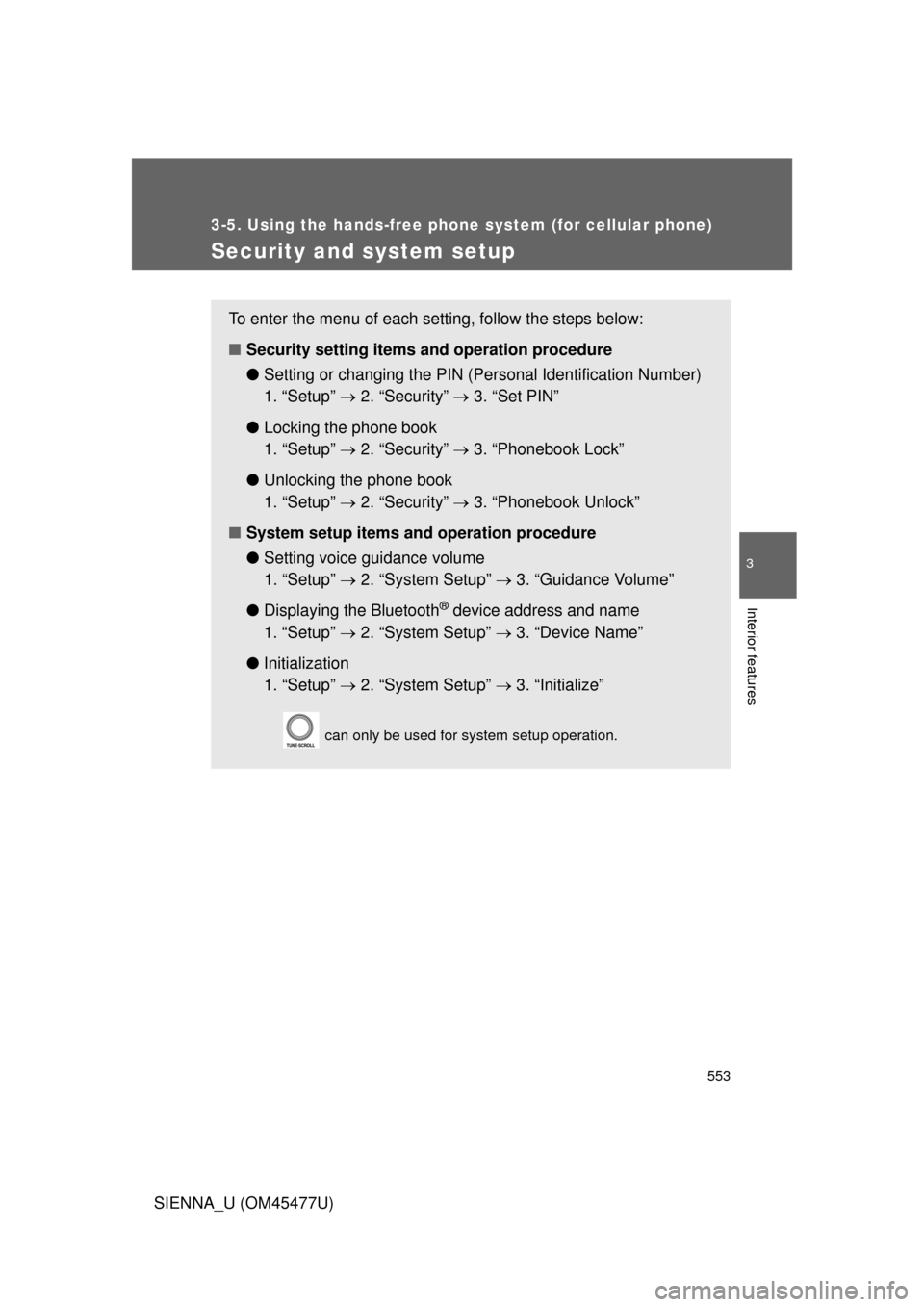

Security and system setup
To enter the menu of each setting, follow the steps below:
■Security setting items and operation procedure
● Setting or changing t he PIN (Personal Identification Number)
1. “Setup”  2. “Security”  3. “Set PIN”
● Locking the phone book
1. “Setup”  2. “Security”  3. “Phonebook Lock”
● Unlocking the phone book
1. “Setup”  2. “Security”  3. “Phonebook Unlock”
■ System setup items and operation procedure
●Setting voice guidance volume
1. “Setup”  2. “System Setup”  3. “Guidance Volume”
● Displaying the Bluetooth
® device address and name
1. “Setup”  2. “System Setup”  3. “Device Name”
● Initialization
1. “Setup”  2. “System Setup”  3. “Initialize”
can only be used for system setup operation.

554 3-5. Using the hands-free phone system (for cellular phone)
SIENNA_U (OM45477U)
Setting or changing the PIN
■ Setting a PIN
Select “Set PIN” using a voice command or .
Enter a PIN using a voice command or .
When using , input the code 1 digit at a time.
■Changing the PIN
Select “Set PIN” using a voice command or .
Enter the registered PIN using a voice command or .
Enter a new PIN using a voice command or .
When using , input the code 1 digit at a time.
STEP1
STEP2
STEP1
STEP2
STEP3

555
3-5. Using the hand
s-free phone system (for cellular phone)
3
Interior features
SIENNA_U (OM45477U)
Locking or unlocking the phone book
Select “Phonebook Lock (Phb k Lock)” or “Phonebook unlock
(Phbk Unlock)” using a voice command or .
Input the PIN by either of the following methods and select
“Confirm” using a voice command or :
a. Press the talk switch and say the registered PIN.
b. Input a registered PIN using .
Setting voice guidance volume
Select “Guidance Volume” using .
Change the voice guidance volume.
To decrease the volume: Turn counterclockwise.
To increase the volume: Turn clockwise.
STEP1
STEP2
STEP1
STEP2

556 3-5. Using the hands-free phone system (for cellular phone)
SIENNA_U (OM45477U)
Displaying the Bluetooth® device address and name
Select “Device Name” using .
Turn to display the Bluetooth
® device address and
name.
Select “Go Back” using to return to “System Setup”.
Initialization
Select “Initialize” and then “Confirm” using .
Select “Confirm” using .
STEP1
STEP2
STEP3
STEP1
STEP2

557
3-5. Using the hand
s-free phone system (for cellular phone)
3
Interior features
SIENNA_U (OM45477U)
■Initialization
● The following data in the system can be initialized:
• Phone book
• Outgoing and incoming call history
• Speed dials
• Registered cellular phone data
• Security code
● Once the initialization has been completed, the data cannot be restored
to its original state.
■ When the phone book is locked
The following functions cannot be used:
● Dialing by inputting a name
● Speed dialing
● Dialing a number stored in the call history memory
● Using the phone book

558
3-5. Using the hands-free phone system (for cellular phone)
SIENNA_U (OM45477U)
Using the phone book
Adding a new phone numberThe following methods can be used to add a new phone number:
● Inputting a phone number using a voice command
● Transferring data from the cellular phone
● Inputting a phone number using
● Selecting a phone number from outgoing or incoming call history
To enter the menu of each setting, follow the steps below:
●Adding a new phone number
1. “Phonebook”  2. “Add Entry”
● Setting speed dial
1. “Phonebook”  2. “Set Speed Dial (Speed Dial)”
● Changing a registered name
1. “Phonebook”  2. “Change Name”
● Deleting registered data
1. “Phonebook”  2. “Delete Entry”
● Deleting speed dial
1. “Phonebook”  2. “Delete Speed Dial (Del Spd Dial)”
● Listing the registered data
1. “Phonebook”  2. “List Names”

559
3-5. Using the hand
s-free phone system (for cellular phone)
3
Interior features
SIENNA_U (OM45477U)■
Adding procedure
Select “Add Entry” using a voice command or .
Use one of the following methods to input a phone number:
Inputting a phone number using a voice command STEP2-1: Select “By Voice” using a voice command or
.
STEP2-2: Press the talk switch, say the desired number, and select “Confirm” using a voice command.
Transferring data from the cellular phone STEP2-1: Select “By Phone” and then “Confirm” using a voice
command or .
STEP2-2: Transfer the data from the cellular phone.
Refer to the manual that comes with the cellular phone
for the details of transferring data.
STEP2-3: Select the data to be re gistered by either of the fol-
lowing methods:
a. Say “Previous” or “Next” until the desired data is displayed, and select “Confirm” using a voice
command.
b. Select the desired data using .
STEP1
STEP2

560 3-5. Using the hands-free phone system (for cellular phone)
SIENNA_U (OM45477U)Inputting a phone number using
STEP2-1: Select “Manual Input” using .
STEP2-2: Input a phone number using , and press once again.
Input the phone number 1 digit at a time.
Selecting a phone number from outgoing or incoming call his-
torySTEP2-1: Select “Call History” using a voice command or
.
STEP2-2: Select “Outgoing” or “Incoming” using a voice com-
mand or .
STEP2-3: Select the data to be re gistered by either of the fol-
lowing methods:
a. Say “Previous” or “Go back” until the desired data is displayed, and select “Confirm” using a
voice command.
b. Select the desired data using .
